Voltcraft DL-160S

Voltcraft DL-160S

Voltcraft DL-160S
Status planned
Connectivity USB
Frequency range 31.5Hz - 8kHz
Measurement range (A) 30dB - 130dB
Accuracy (94dB@1kHz) 1.4dB
Frequency weighting A, C
Time weighting F, S
Standards IEC 61672-1 Class 2

The Voltcraft DL-160S is a sound level meter with USB connectivity.

See Voltcraft DL-160S/Info for more details (such as lsusb -vvv output) about the device.

This is a rebadged CEM DT-173.

Hardware

Photos

Voltcraft Dl 160s Pcb Stacked Bottom Voltcraft Dl 160s Pcb Stacked Bottom

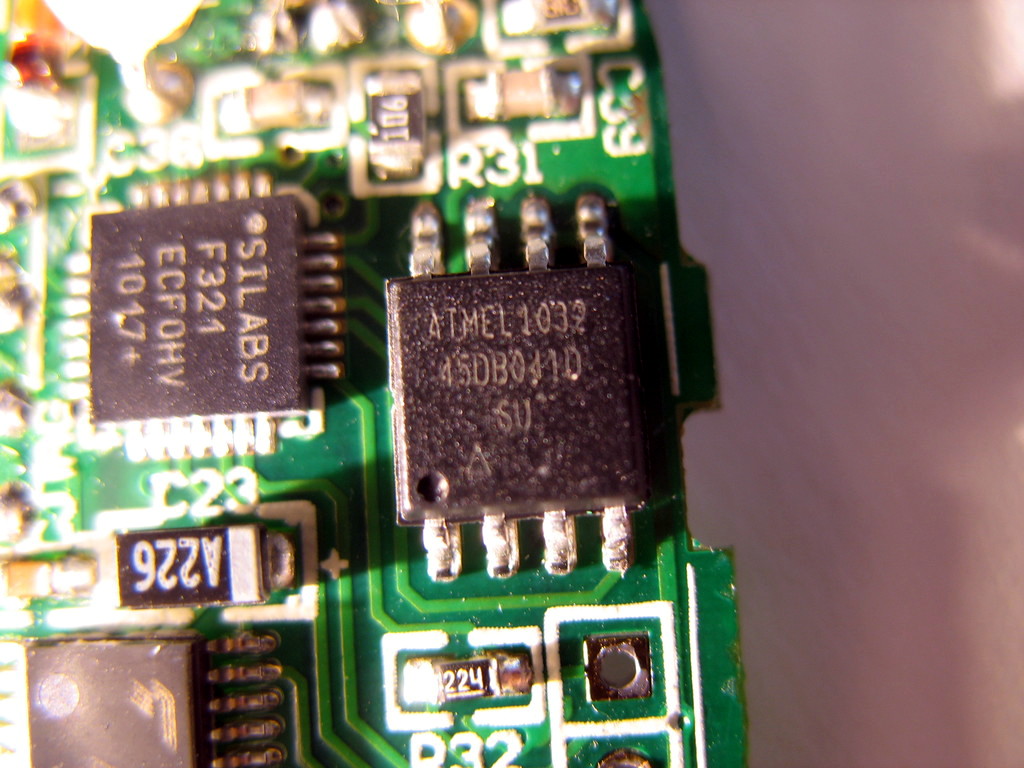

Voltcraft Dl 160s Atmel 1032 45db0410 Voltcraft Dl 160s Atmel 1032 45db0410

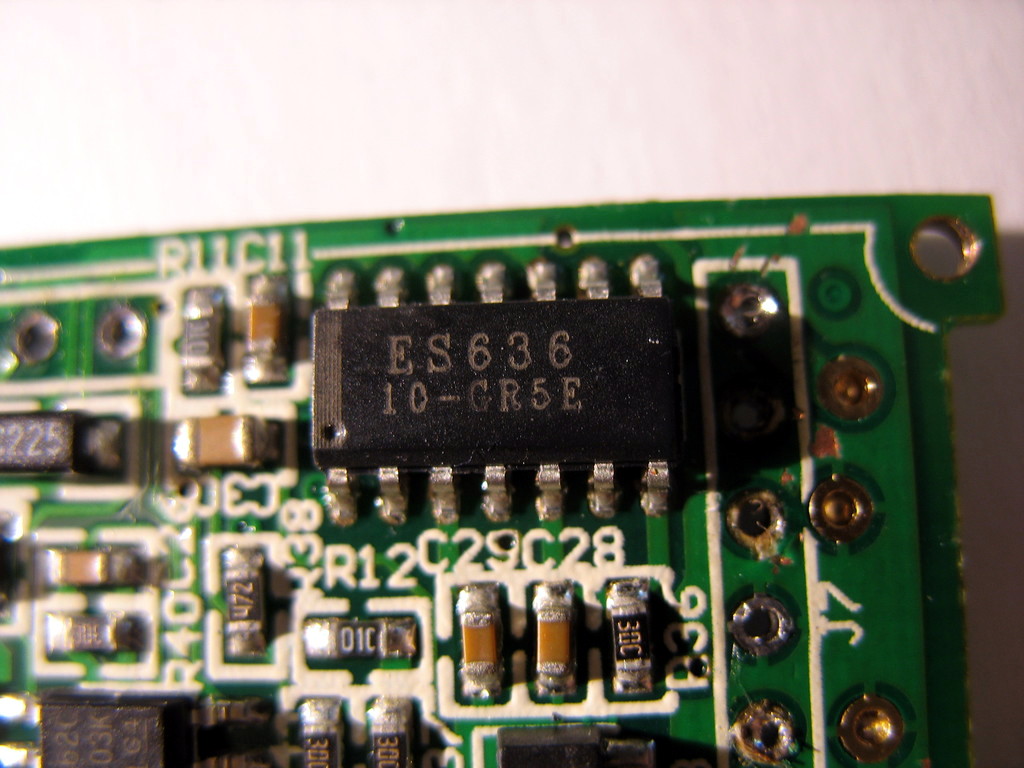

Voltcraft Dl 160s Es636 Voltcraft Dl 160s Es636

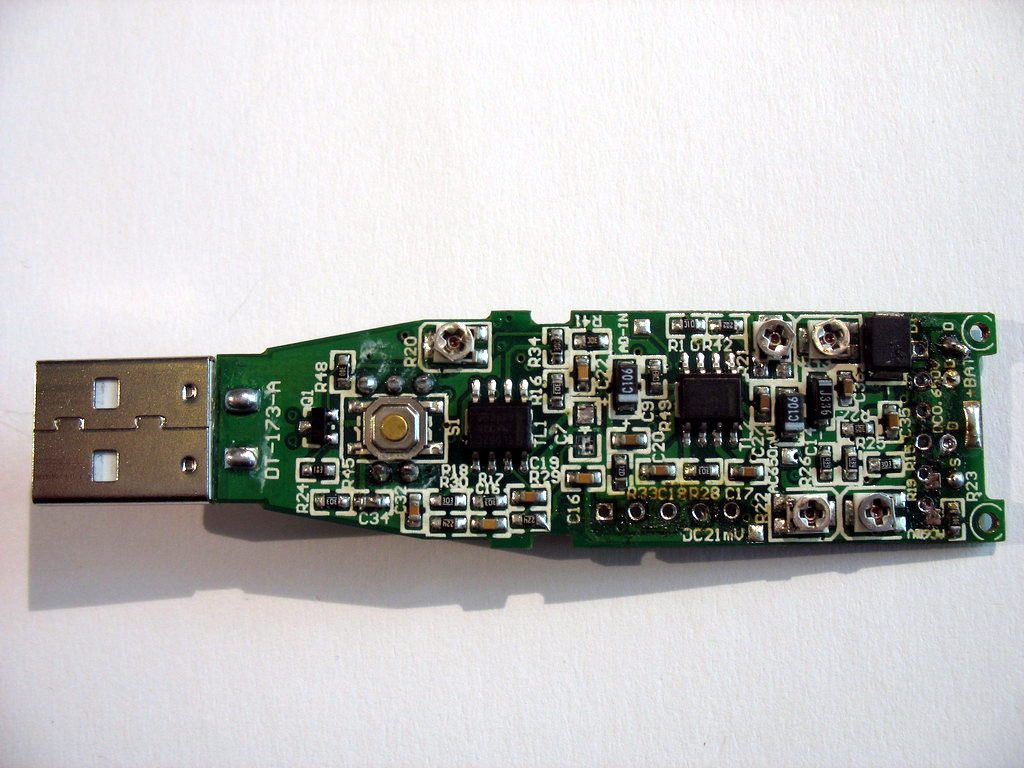

Voltcraft Dl 160s Pcb Main Bottom Voltcraft Dl 160s Pcb Main Bottom

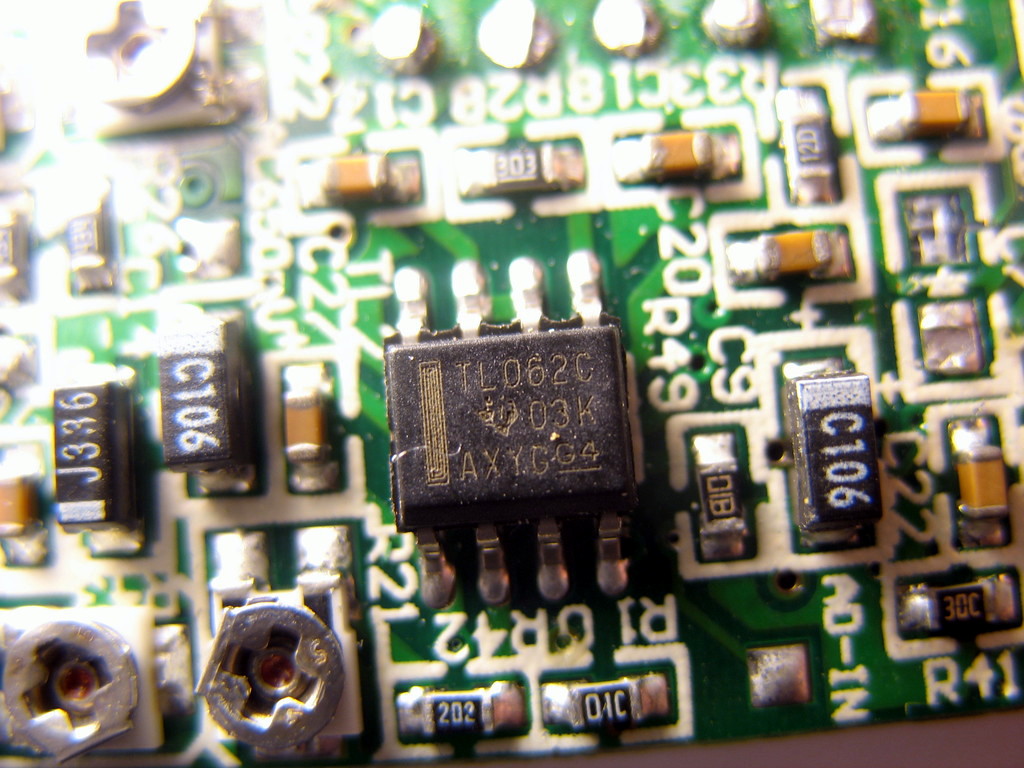

Voltcraft Dl 160s Tl062c 1 Voltcraft Dl 160s Tl062c 1

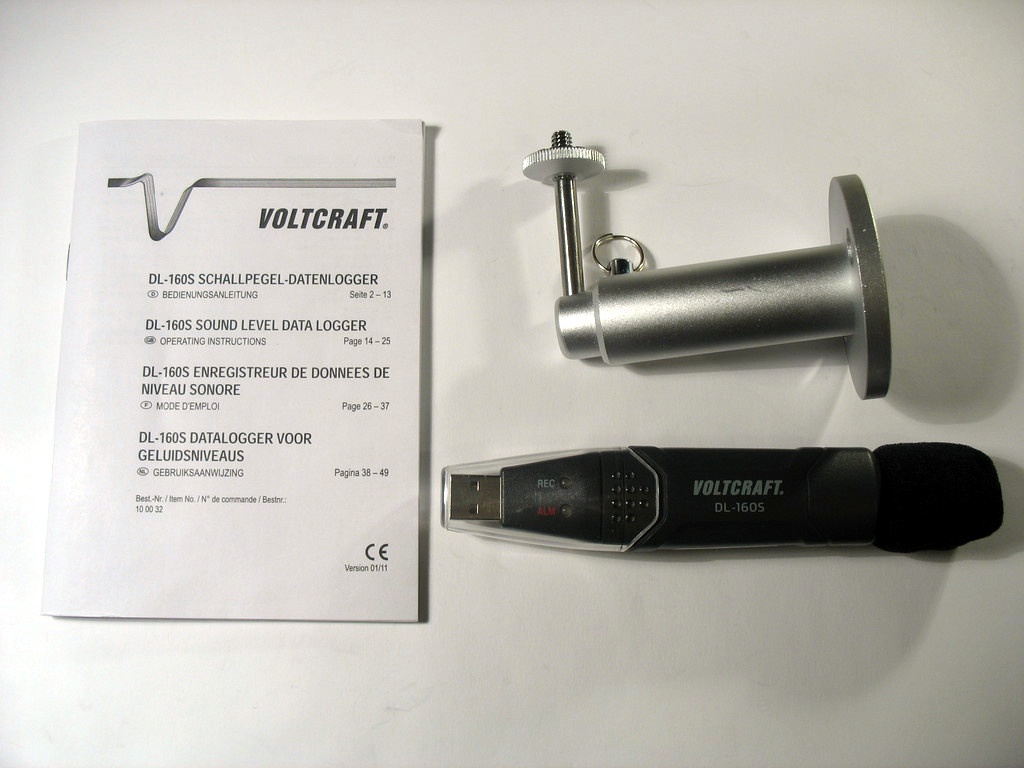

Voltcraft Dl 160s Package Contents Voltcraft Dl 160s Package Contents

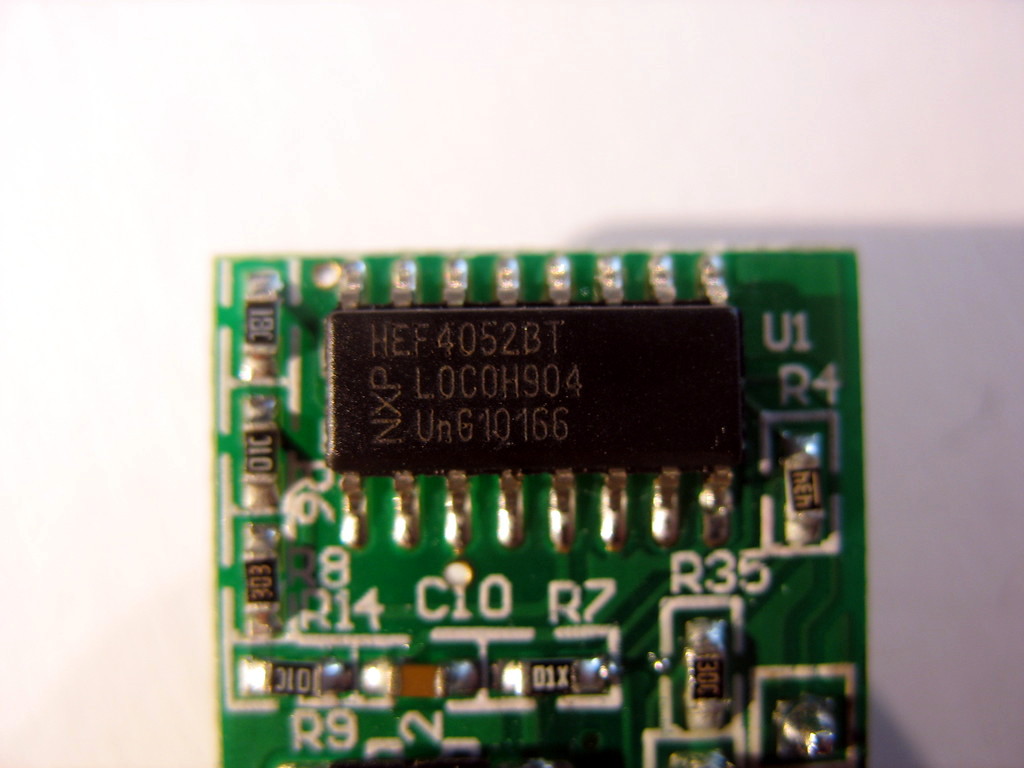

Voltcraft Dl 160s Nxp Hef4052bt Voltcraft Dl 160s Nxp Hef4052bt

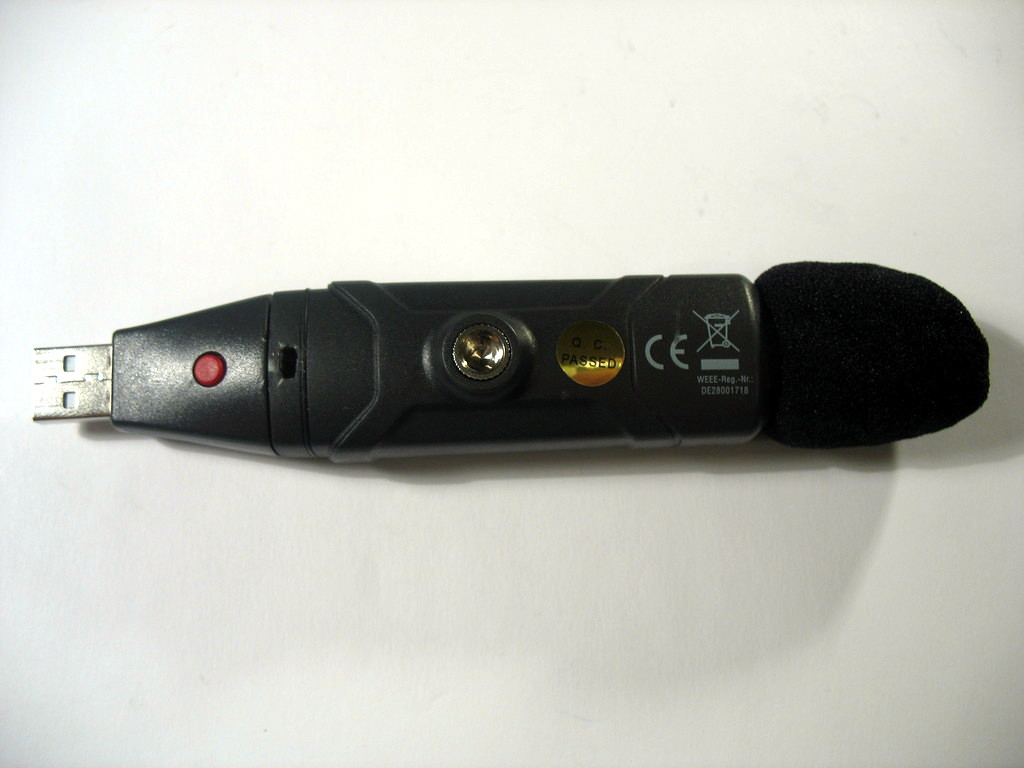

Voltcraft Dl 160s Device Bottom Voltcraft Dl 160s Device Bottom

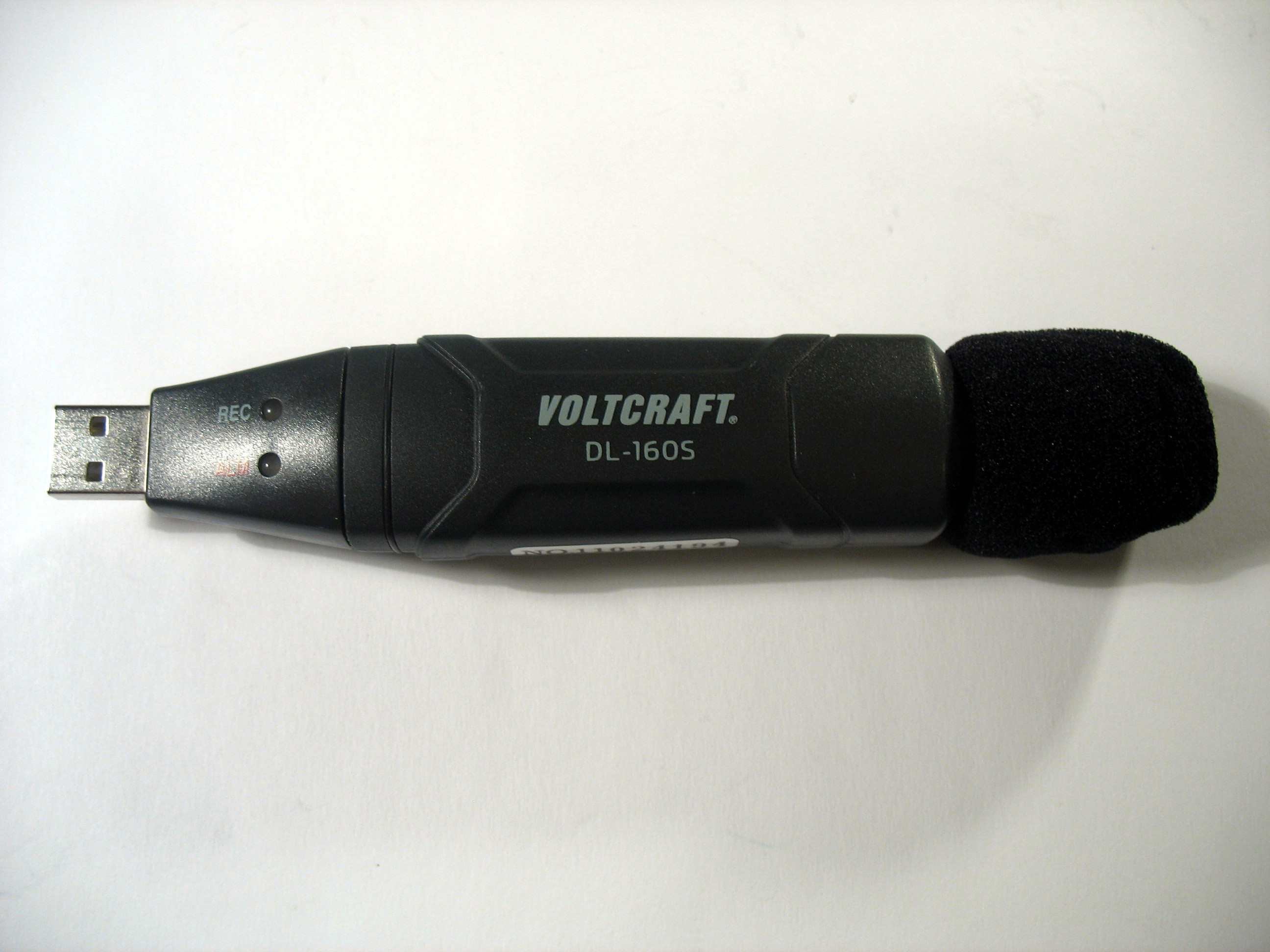

Voltcraft Dl 160s Front Voltcraft Dl 160s Front

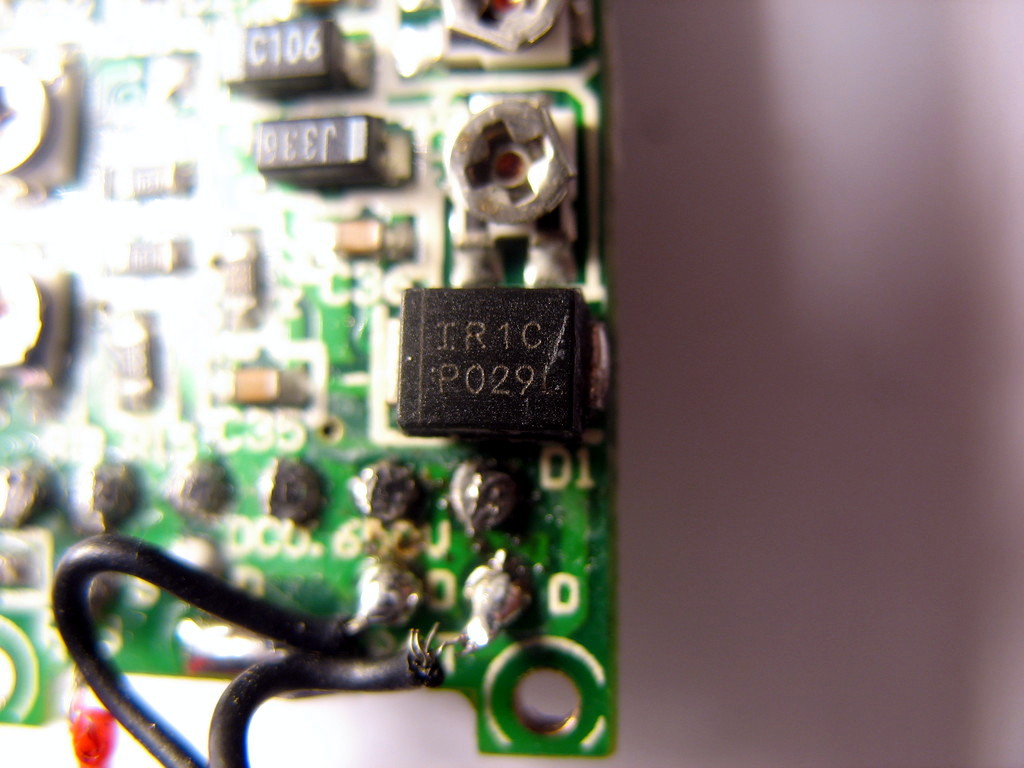

Voltcraft Dl 160s Ir1c Voltcraft Dl 160s Ir1c

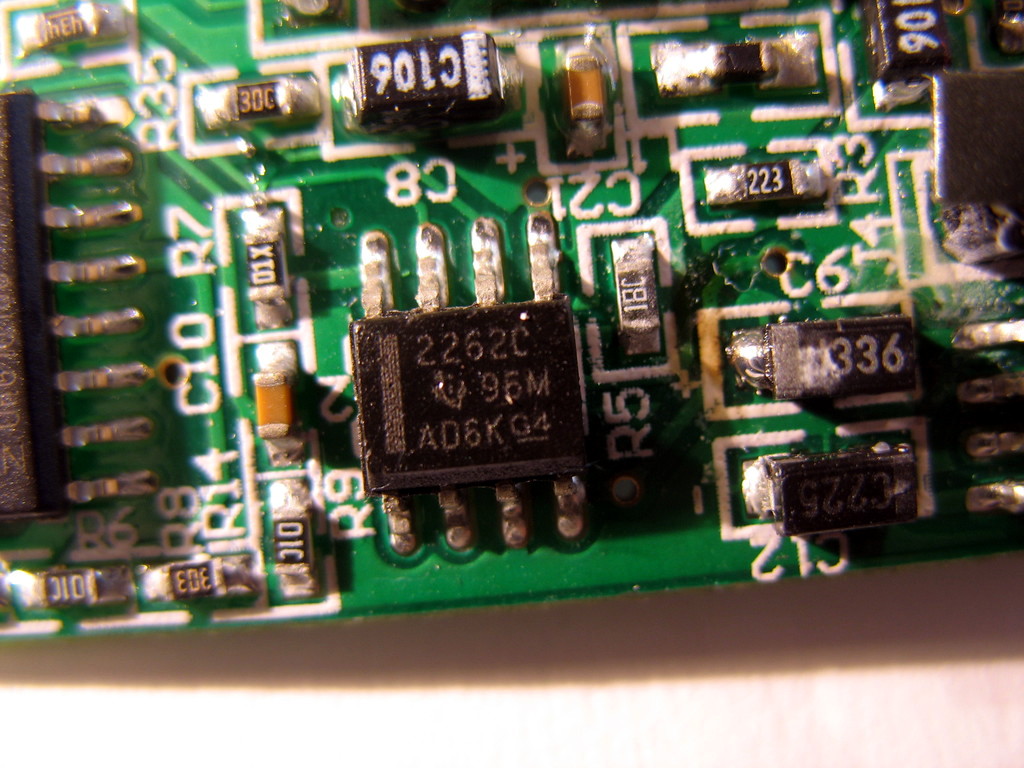

Voltcraft Dl 160s Ti 2262c Voltcraft Dl 160s Ti 2262c

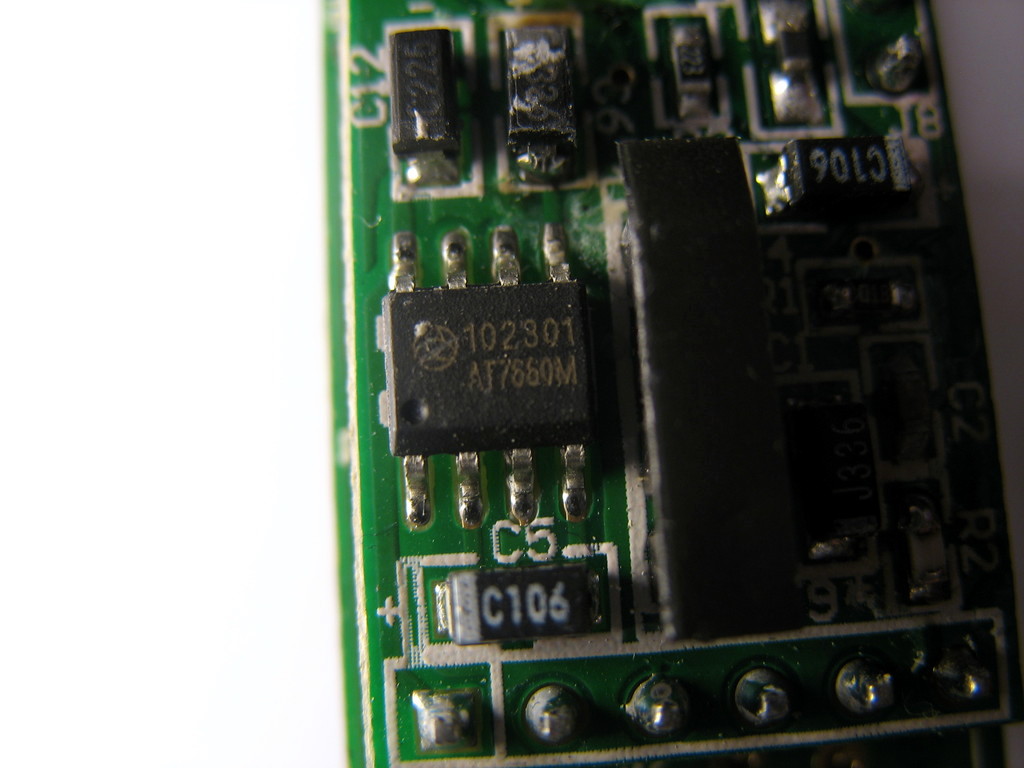

Voltcraft Dl 160s At7660m Voltcraft Dl 160s At7660m

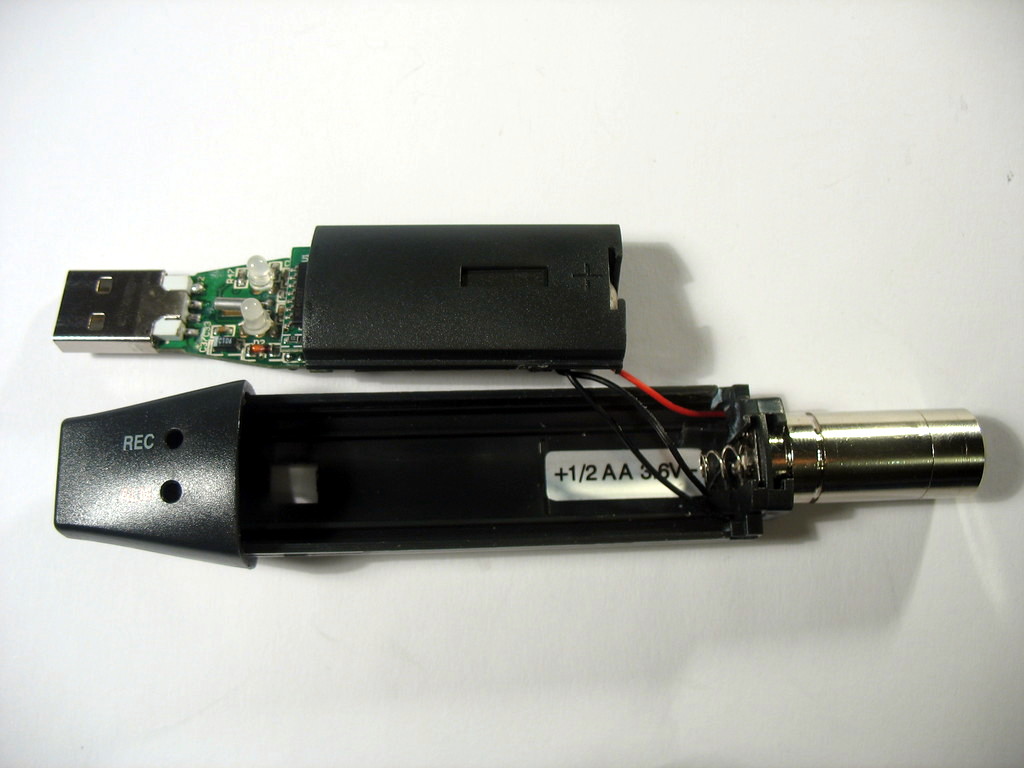

Voltcraft Dl 160s Device Open2 Voltcraft Dl 160s Device Open2

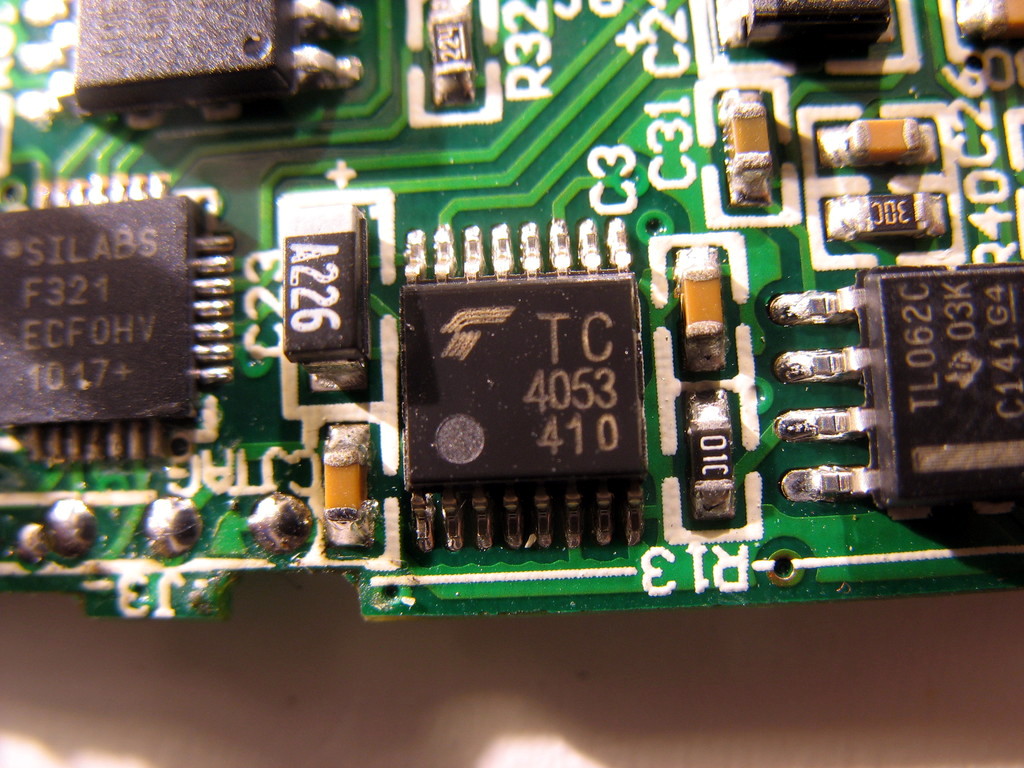

Voltcraft Dl 160s Tc 4053 Voltcraft Dl 160s Tc 4053

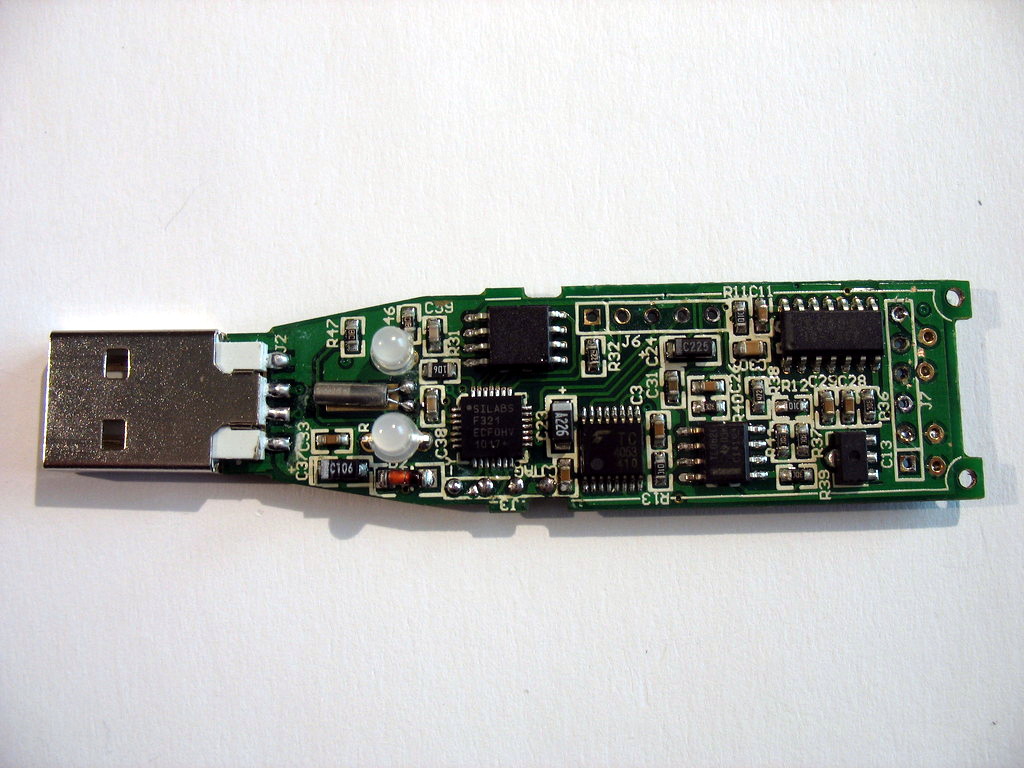

Voltcraft Dl 160s Pcb Main Top Voltcraft Dl 160s Pcb Main Top

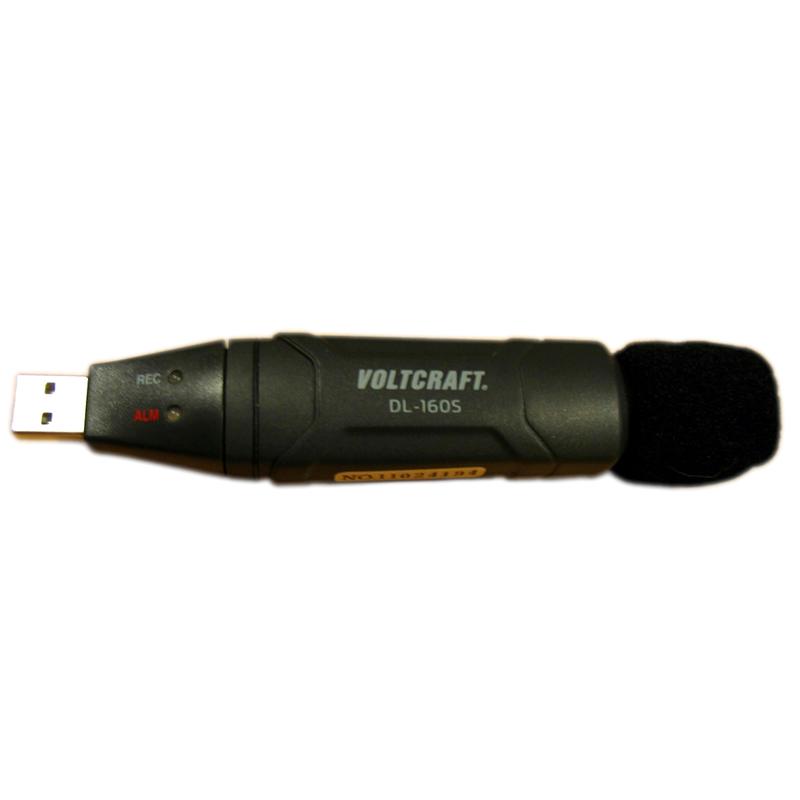

Voltcraft Dl 160s Voltcraft Dl 160s

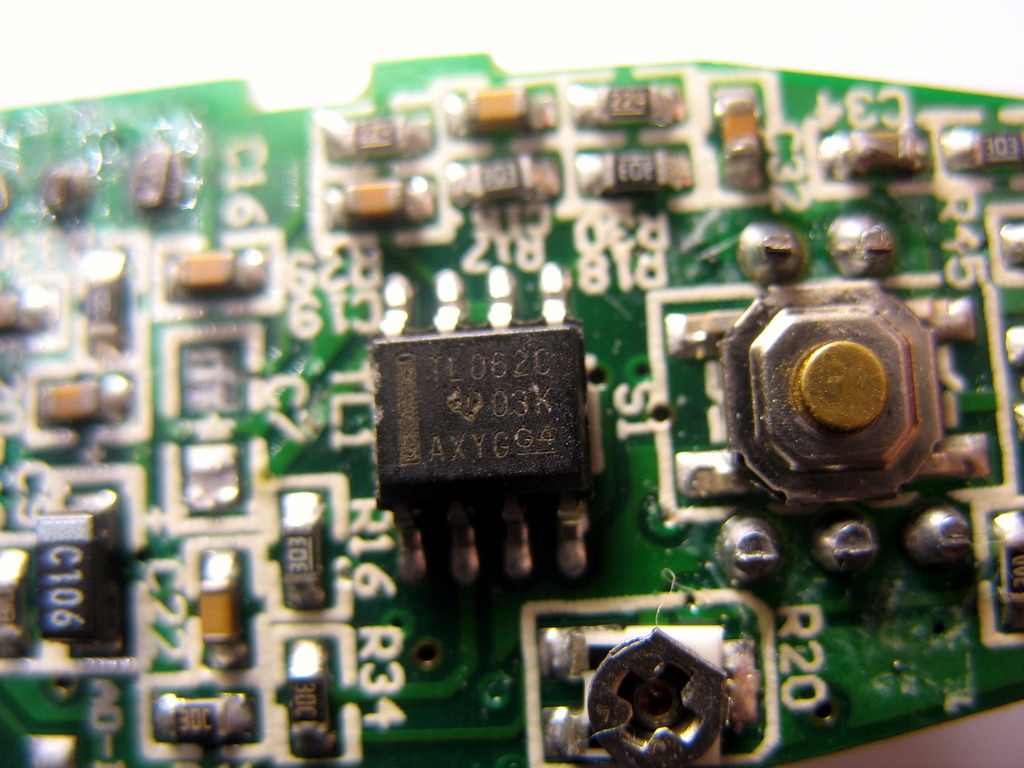

Voltcraft Dl 160s Tl062c 2 Voltcraft Dl 160s Tl062c 2

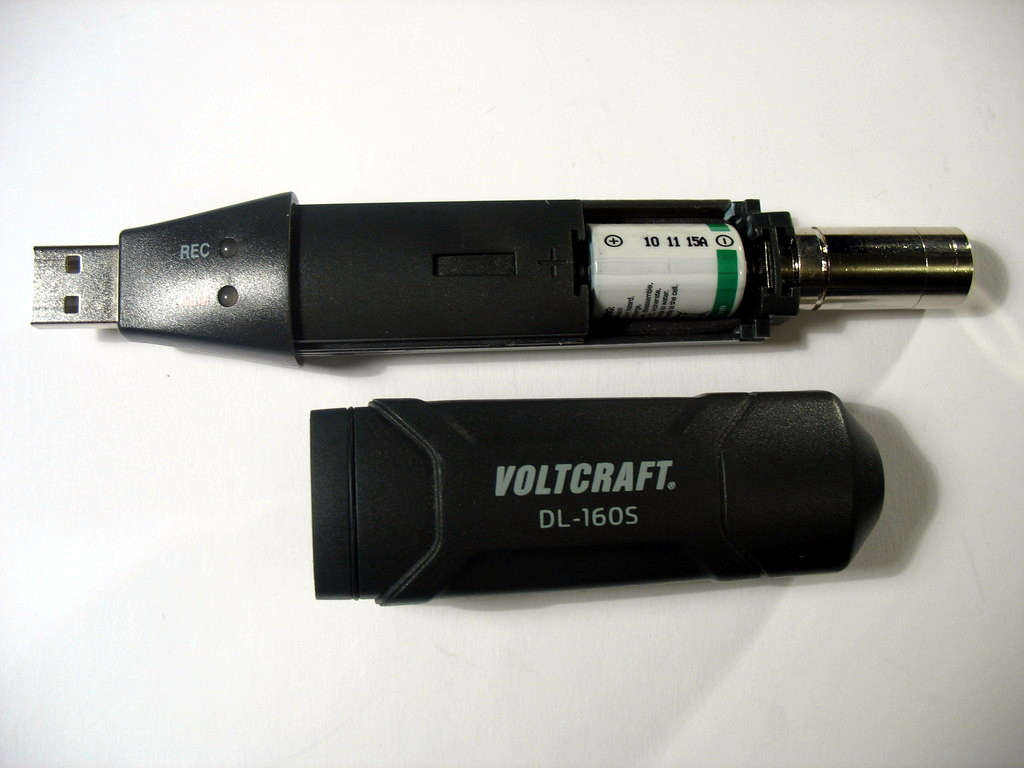

Voltcraft Dl 160s Device Open1 Voltcraft Dl 160s Device Open1

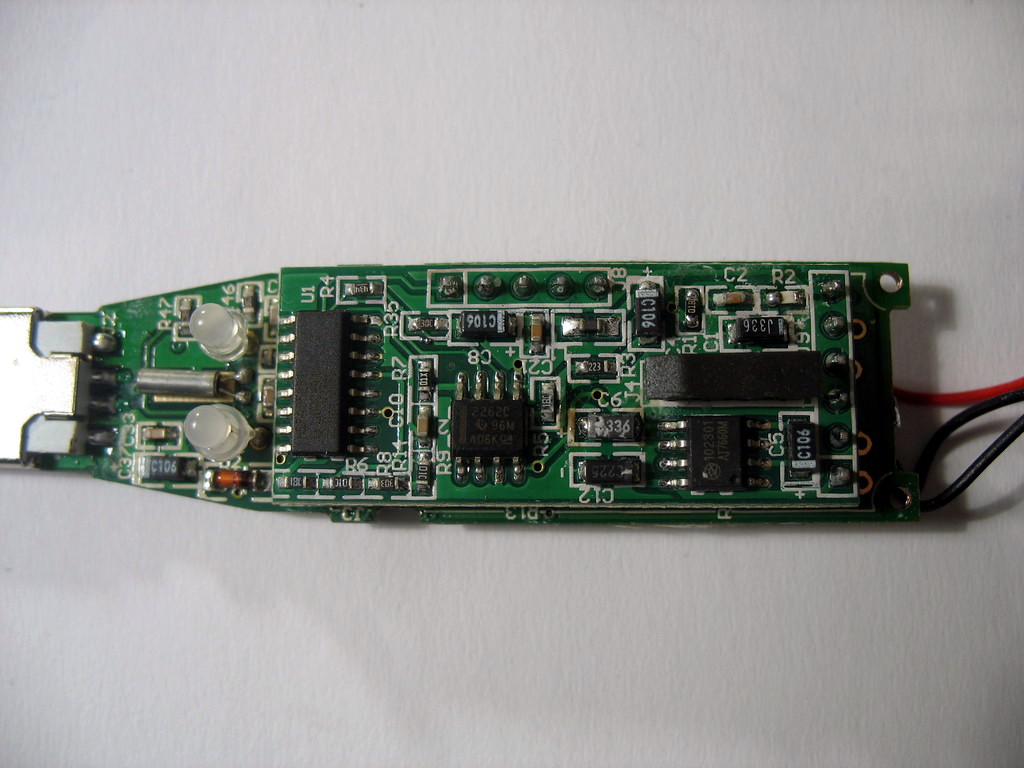

Voltcraft Dl 160s Pcb Stack Voltcraft Dl 160s Pcb Stack

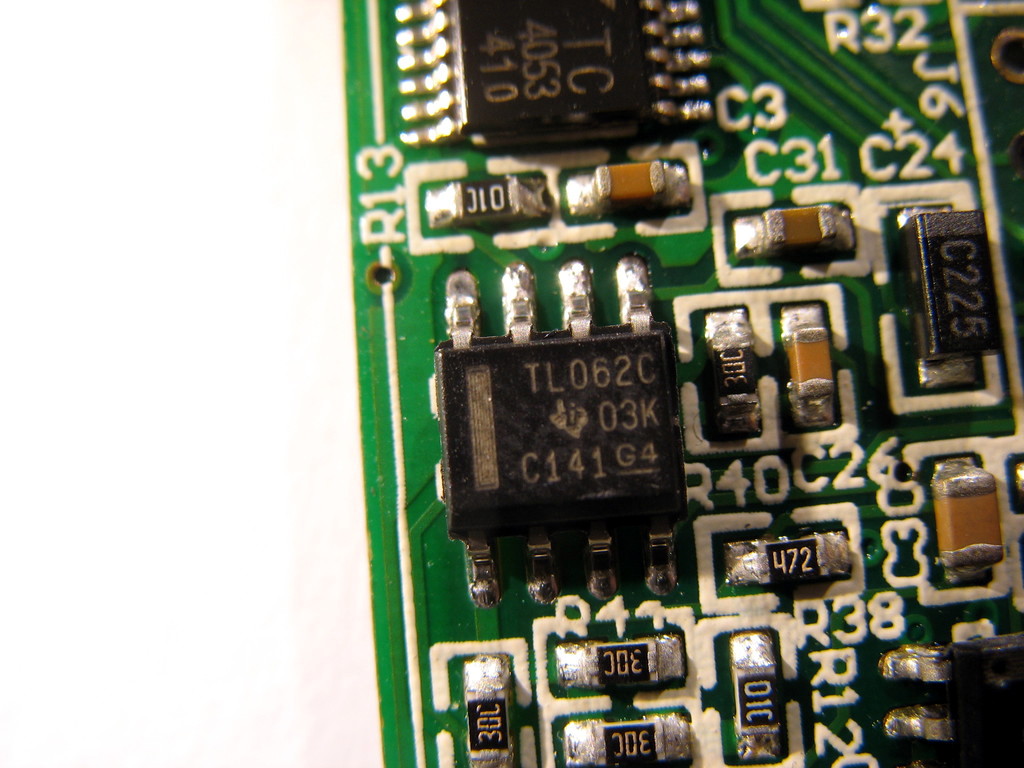

Voltcraft Dl 160s Tl062c 3 Voltcraft Dl 160s Tl062c 3

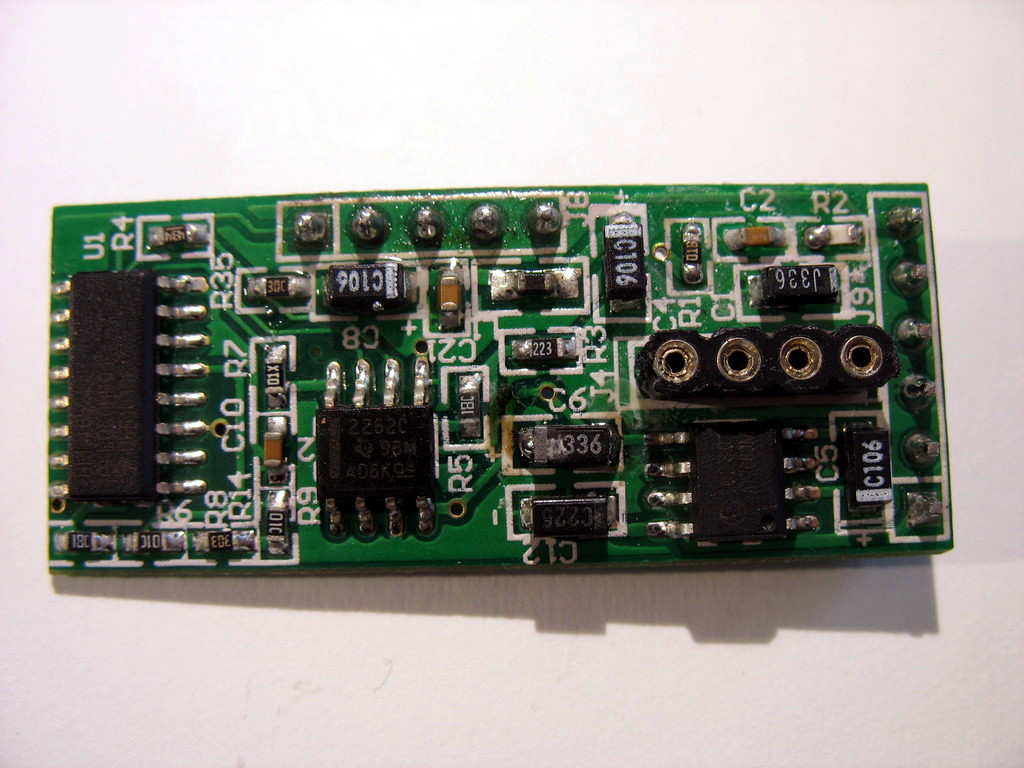

Voltcraft Dl 160s Pcb Stacked Top Voltcraft Dl 160s Pcb Stacked Top

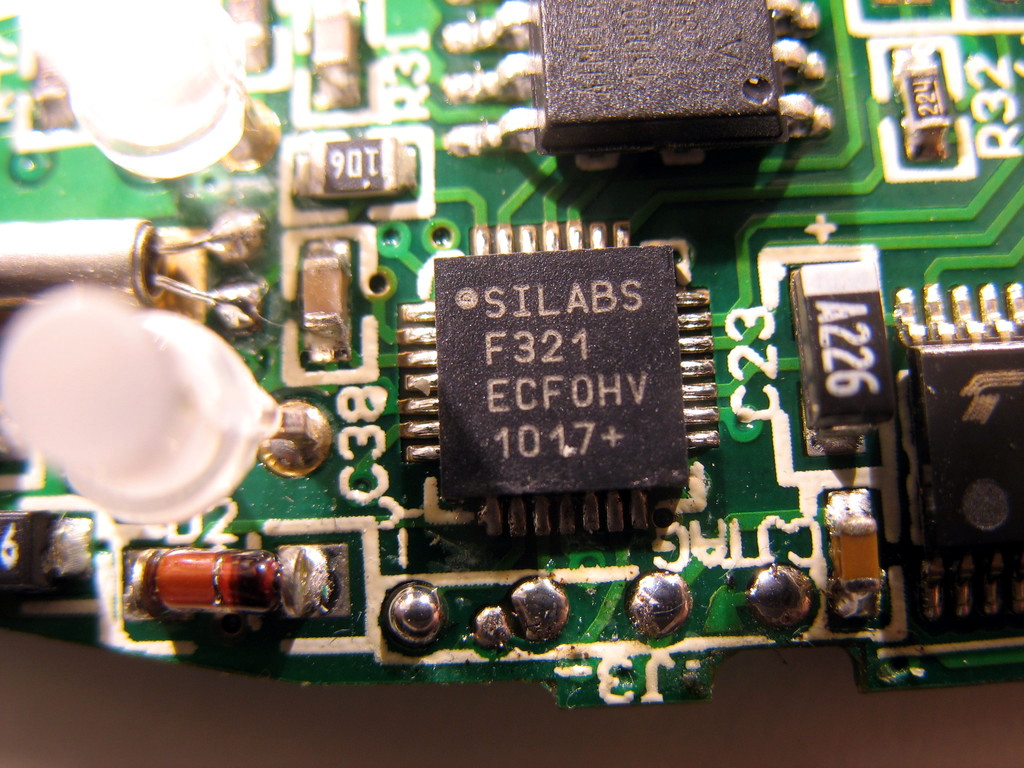

Voltcraft Dl 160s Silabs F321 Voltcraft Dl 160s Silabs F321
