Hanmatek HM305P¶
Hanmatek HM305P¶
| Status | in progress |
| Source code | etommens-etm-xxxxp |
| Channels | 1 |
| Voltage/current (CH1) | 0-30V / 0-5A |
| Connectivity | USB/serial |
| Features | programmable presets, over voltage protection, over current protection, output on/off |
The Hanmatek HM305P is a 1-channel programmable DC switched power supply (0-30V/0-5A) with USB/serial connectivity.
See ETommens eTM-xxxxP Series for information common to all devices in this series.
Hardware¶
- MCU : Nuvoton NUC029LAN Arm® Cortex®-M0.
- EEPROM : Belling - BL24C08A - 8K bits I2C EEPROM.
Photos¶
Hanmatek Hm305p Inside Power Front Left

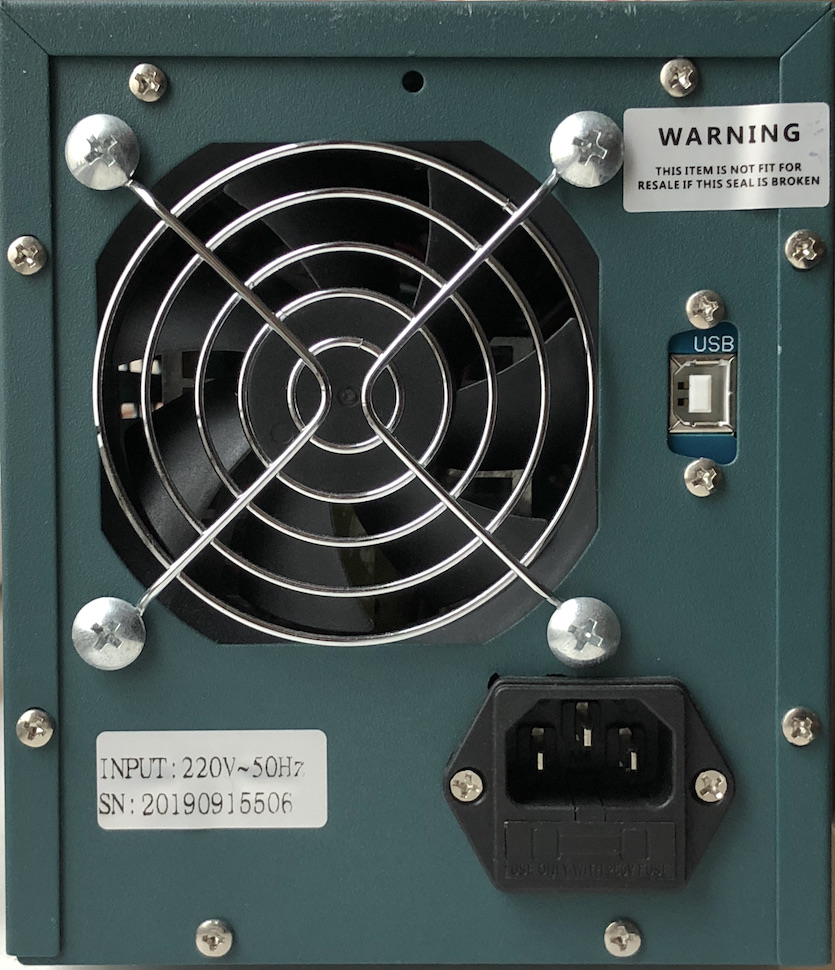

Hanmatek Hm305p Rear

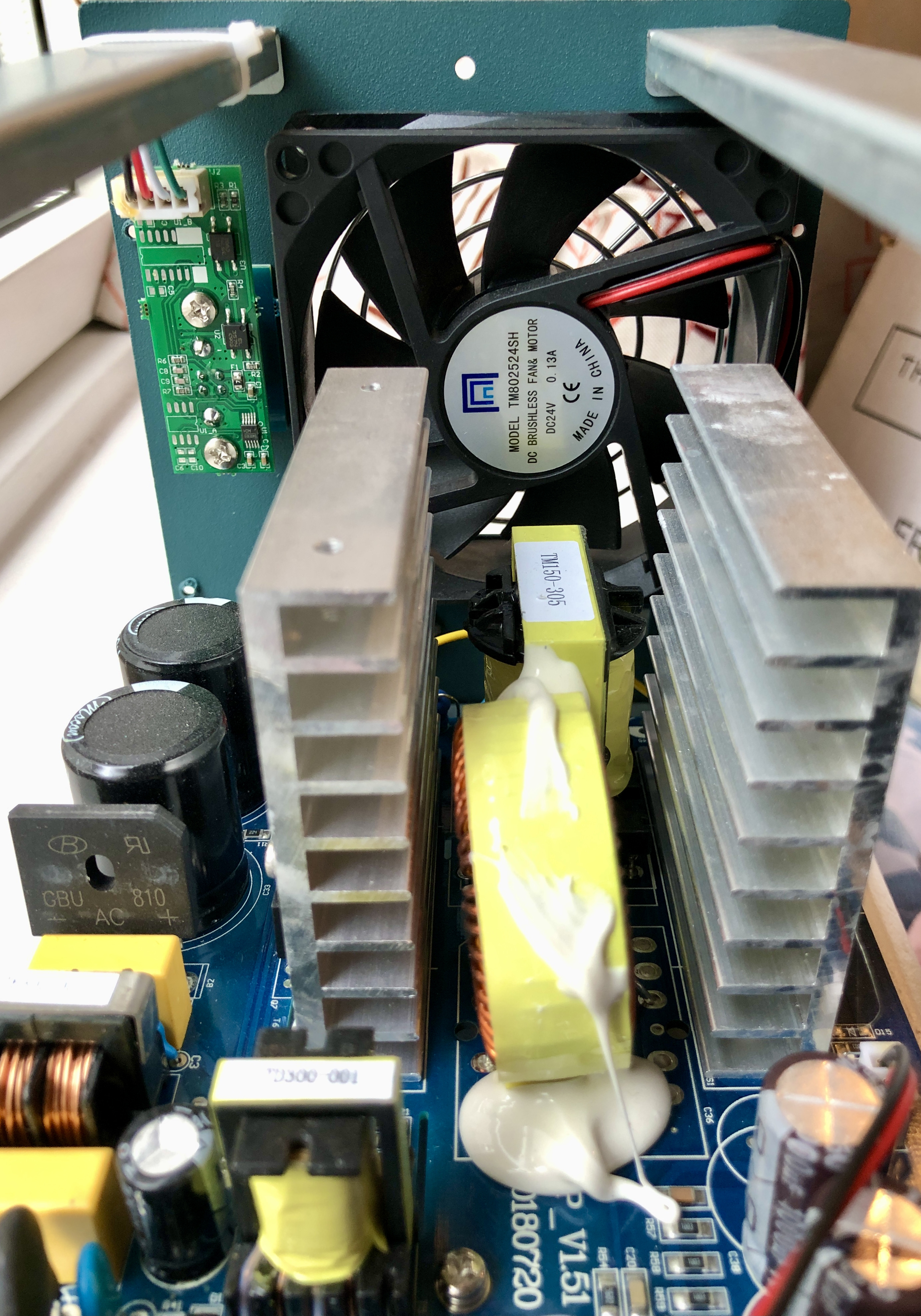

Hanmatek Hm305p Inside Rear

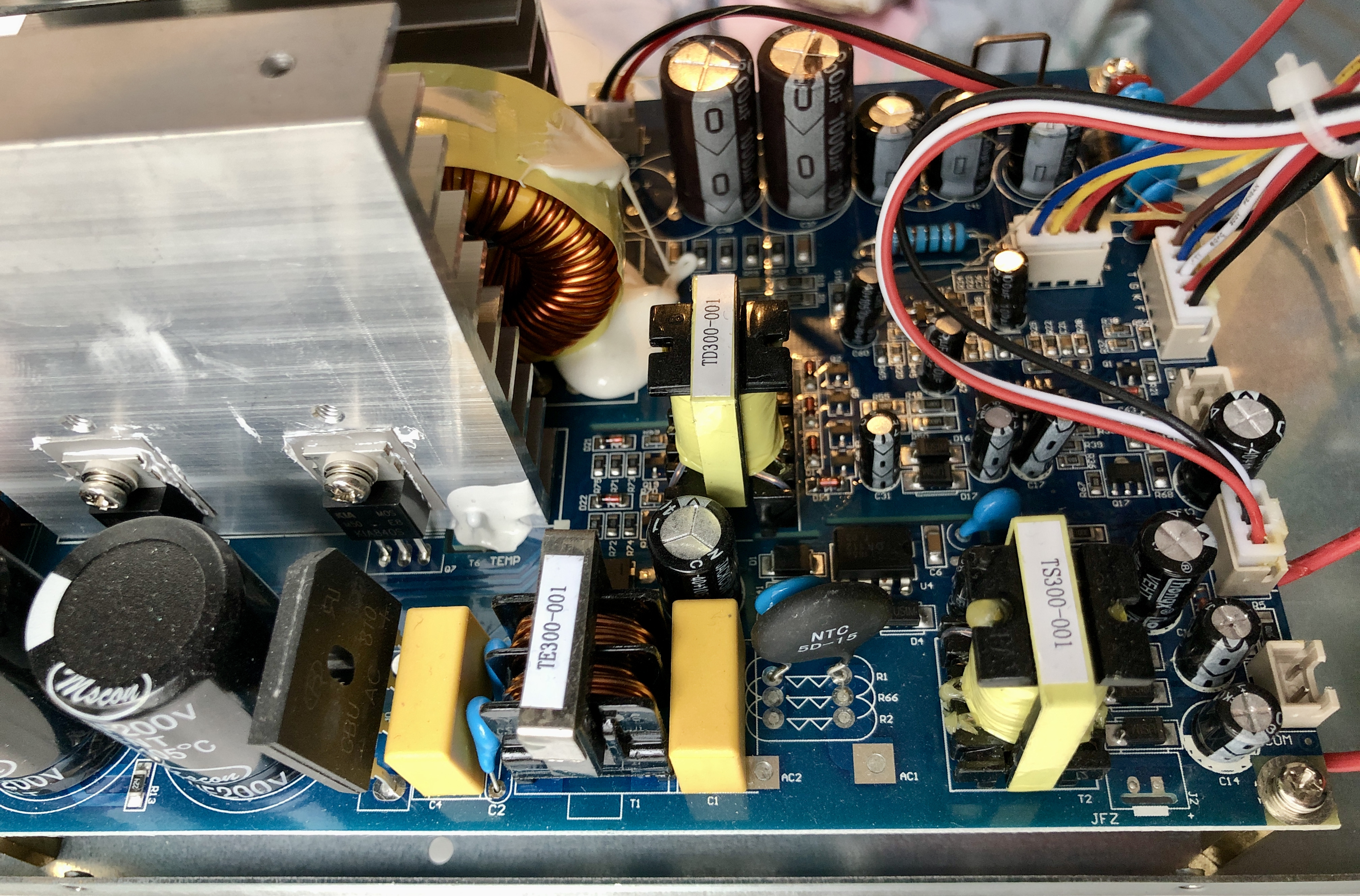

Hanmatek Hm305p Inside Power Front Right

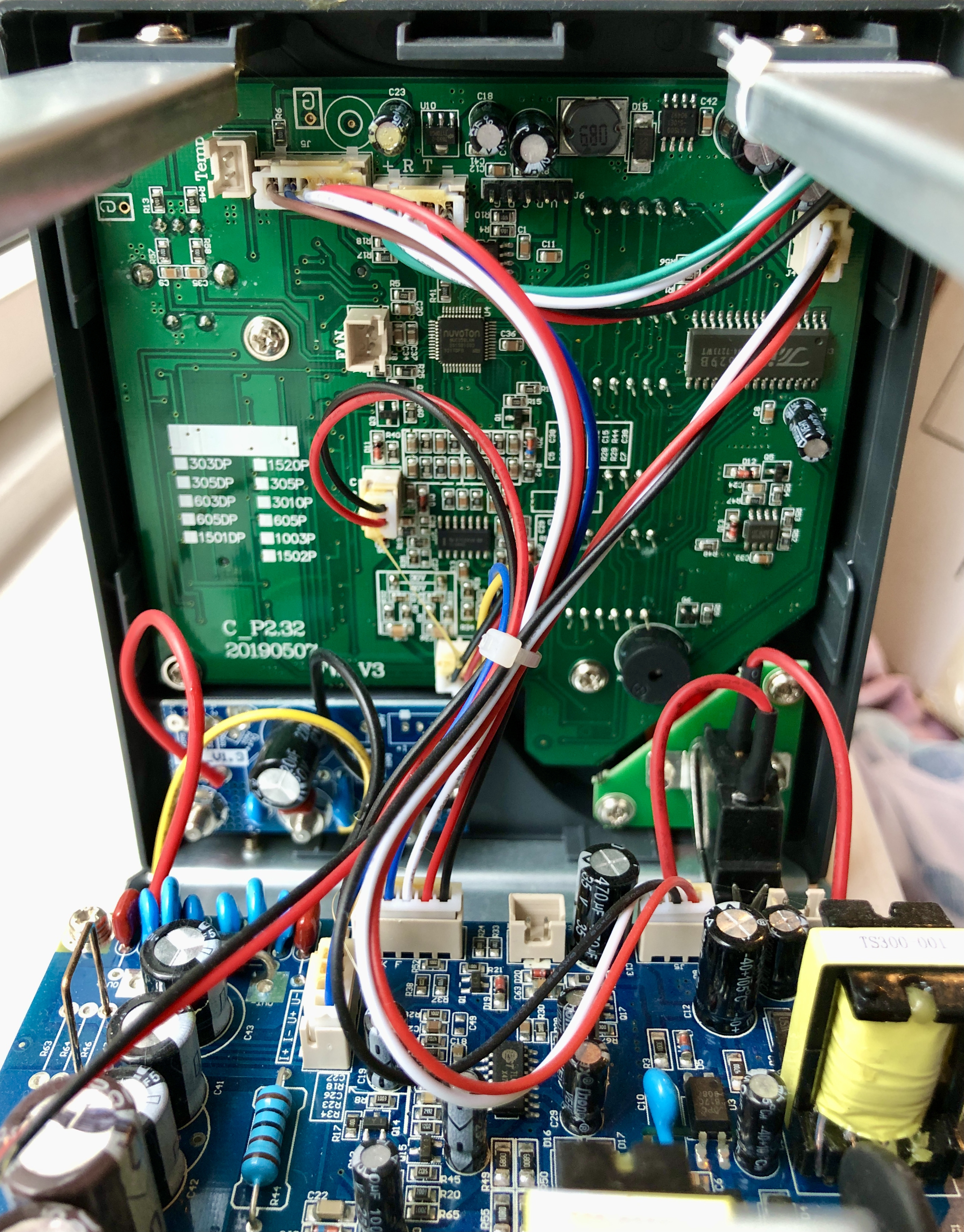

Hanmatek Hm305p Inside Front

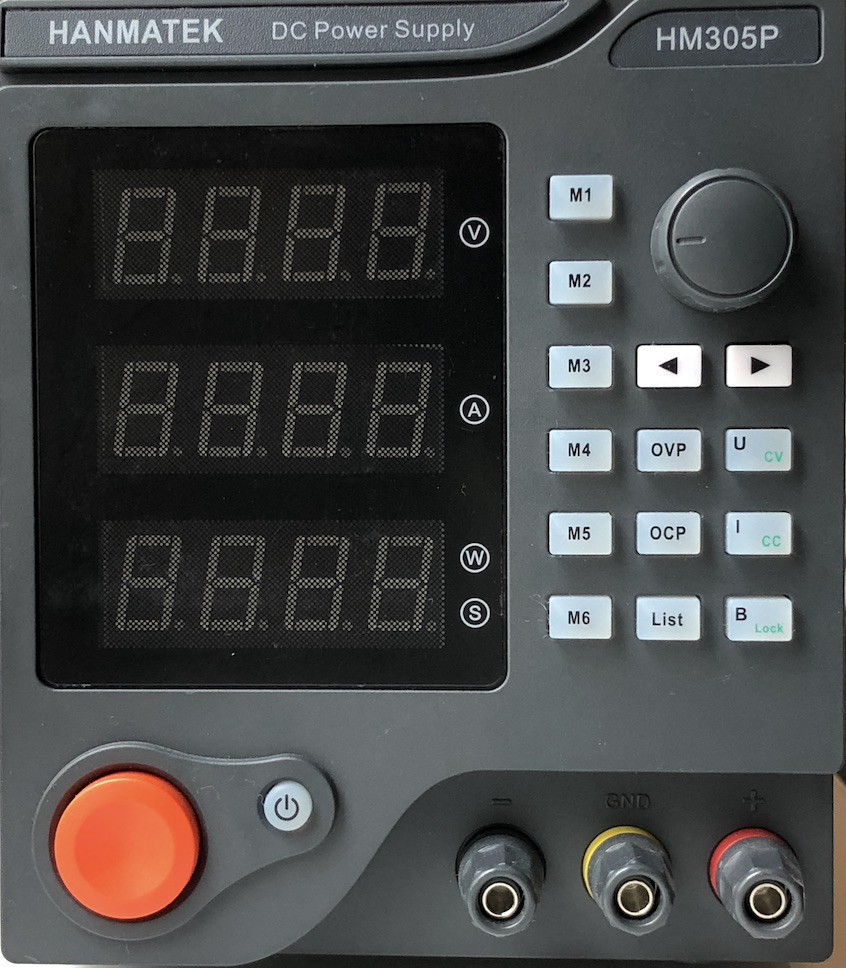

Hanmatek Hm305p Front
Protocol¶
See ETommens eTM-xxxxP Series#Protocol for the protocol details.
