Fluke/Philips PM2800 series¶
Fluke/Philips PM2800 series¶
| Status | supported |
| Source code | scpi-pps |
| Channels | 1-3 |
| Connectivity | GPIB |
| Website | fluke.com |
The Philips PM2800 are a series of programmable power supplies with 1-3 output channels and GPIB connectivity. Each channel contains 1 of 6 available modules:
| Voltage | Current | Power | Type |
|---|---|---|---|
| 30V | 10A | 60W | autoranging |
| 60V | 5A | 60W | autoranging |
| 60V | 10A | 120W | autoranging |
| 8V | ±15A | 120W | linear |
| 60V | ±2A | 120W | linear |
| 120V | ±1A | 120W | linear |
The autoranging modules go in chassis models 2811/2812/2813 (last digit is number of modules), linear in models 2831/2832.
These power supplies have also been sold under the Fluke brand.
Photos¶
Philips Pm2813

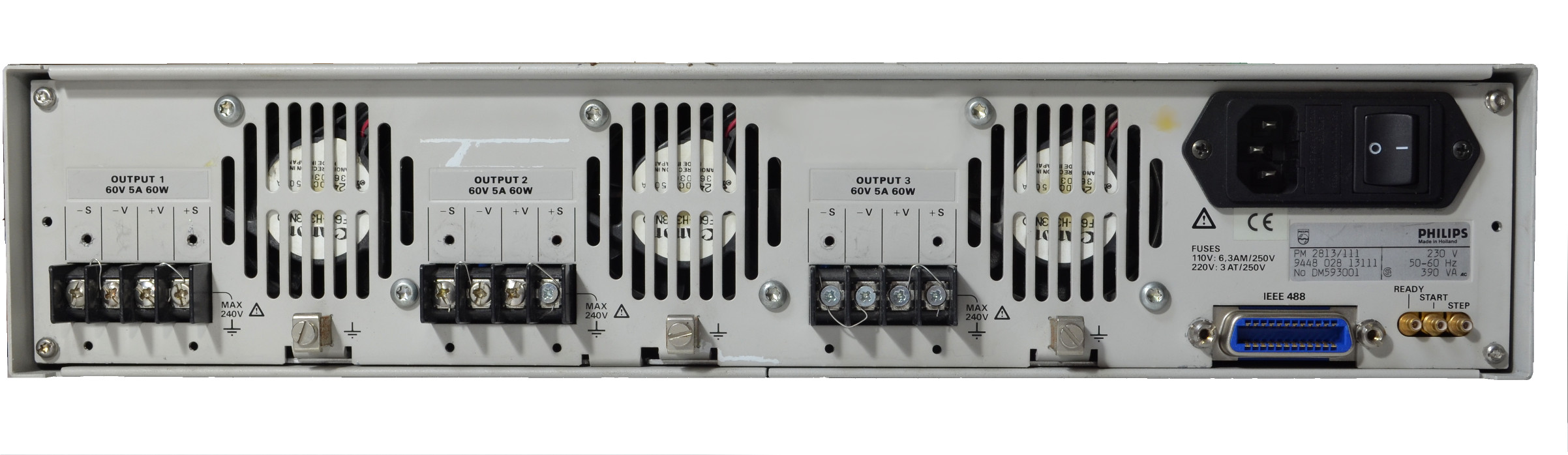

Philips Pm2813 Back

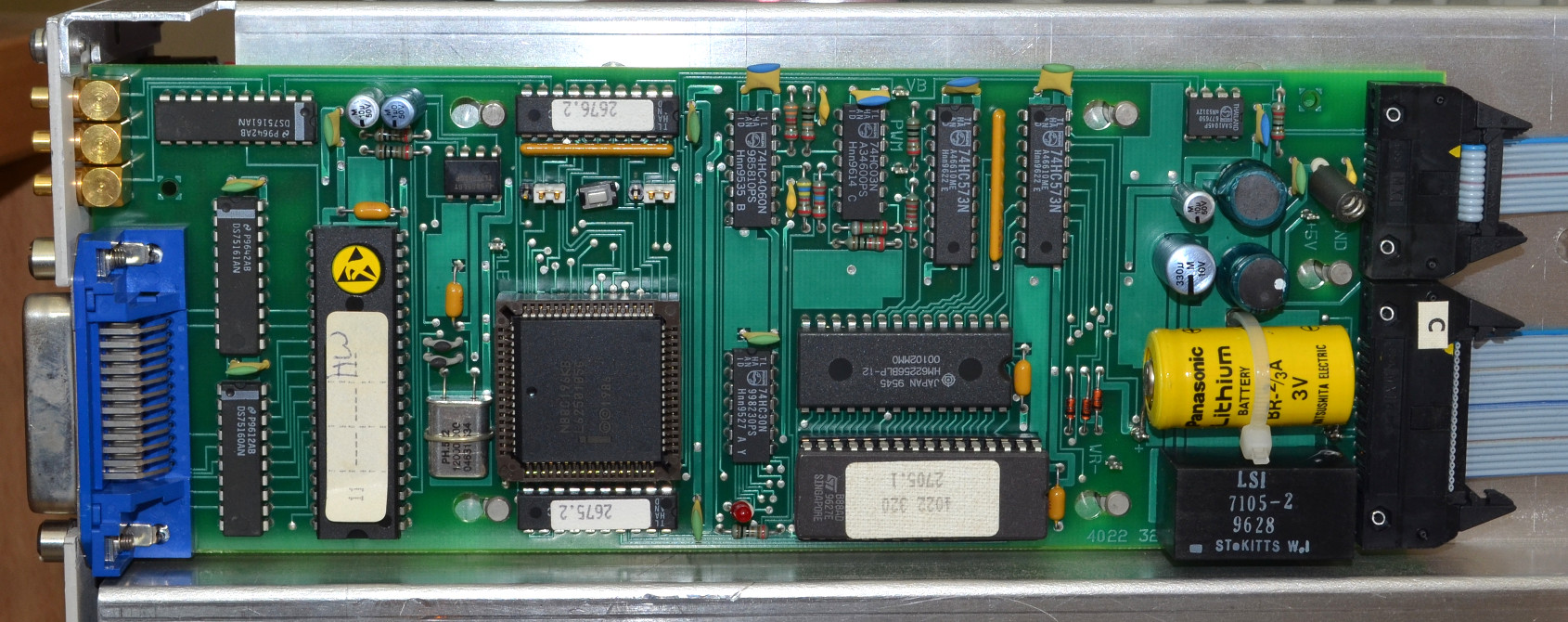

Philips Pm2813 Control
