Hantek iDSO1070¶
Hantek iDSO1070¶
| Status | planned |
| Source code | [1] |
| Channels | 2 |
| Samplerate | 250MSa/s |
| Analog bandwidth | 70MHz |
| Vertical resolution | 8bit |
| Triggers | none (SW-only) |
| Input impedance | 1MΩ‖25pF |
| Memory | none |
| Display | none |
| Connectivity | USB / Wifi |
| Website | hantek.com |
The Hantek iDSO1070 is a self powered, 2-channel oscilloscope with an analog bandwidth of 70MHz with 250MSa/s sampling rate (125MSa/s each channel). The internal battery let the device to run up to 3-4 hours.
See Hantek iDSO1070/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- Main chip: Xilinx Spartan XC3S50A (datasheet)
- Main oscillator: 50MHz 50.000 YX FH
Photos¶
Hantek Idso1070a Inside1 Back

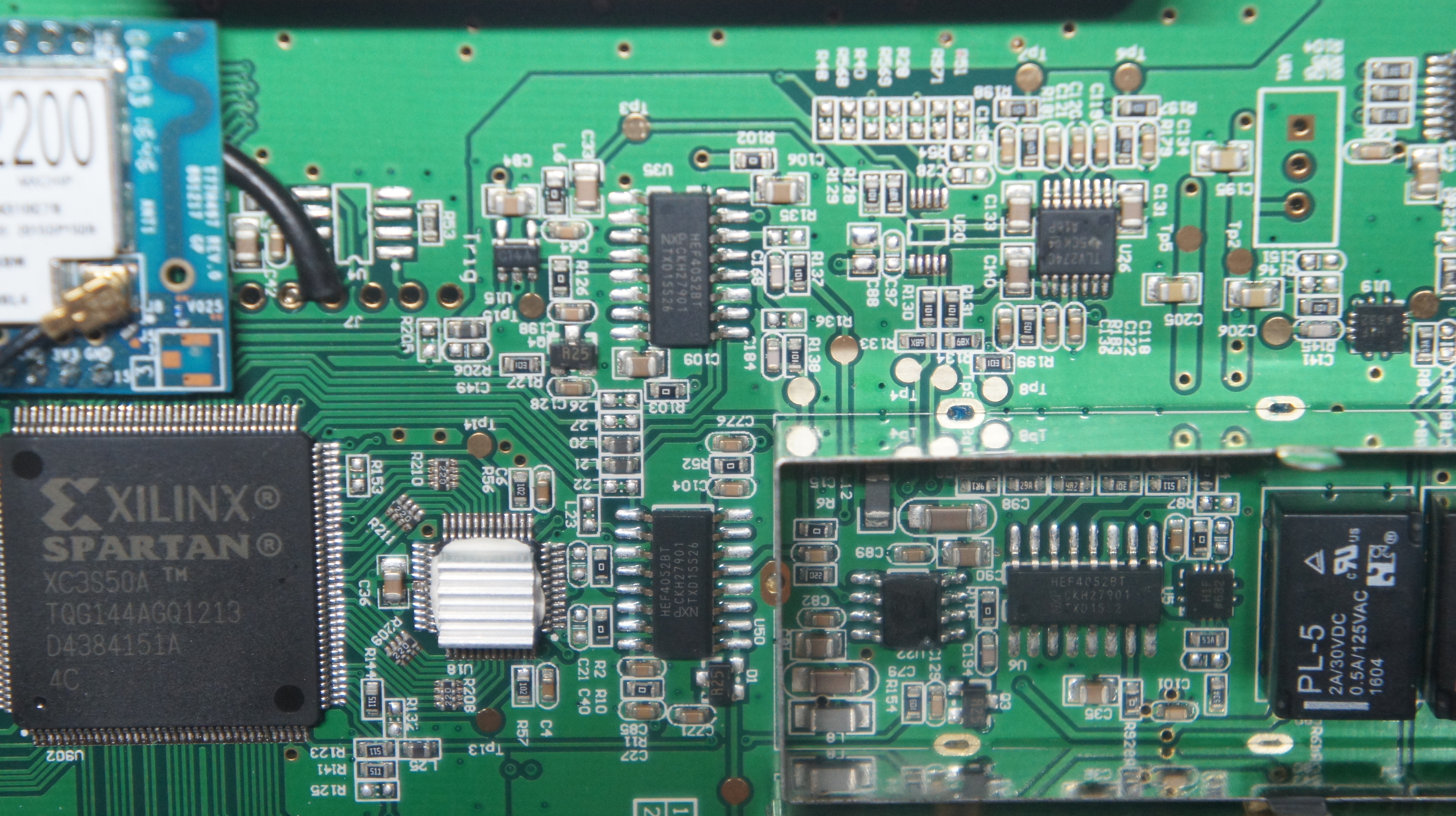

Hantek Idso1070a Detail 1

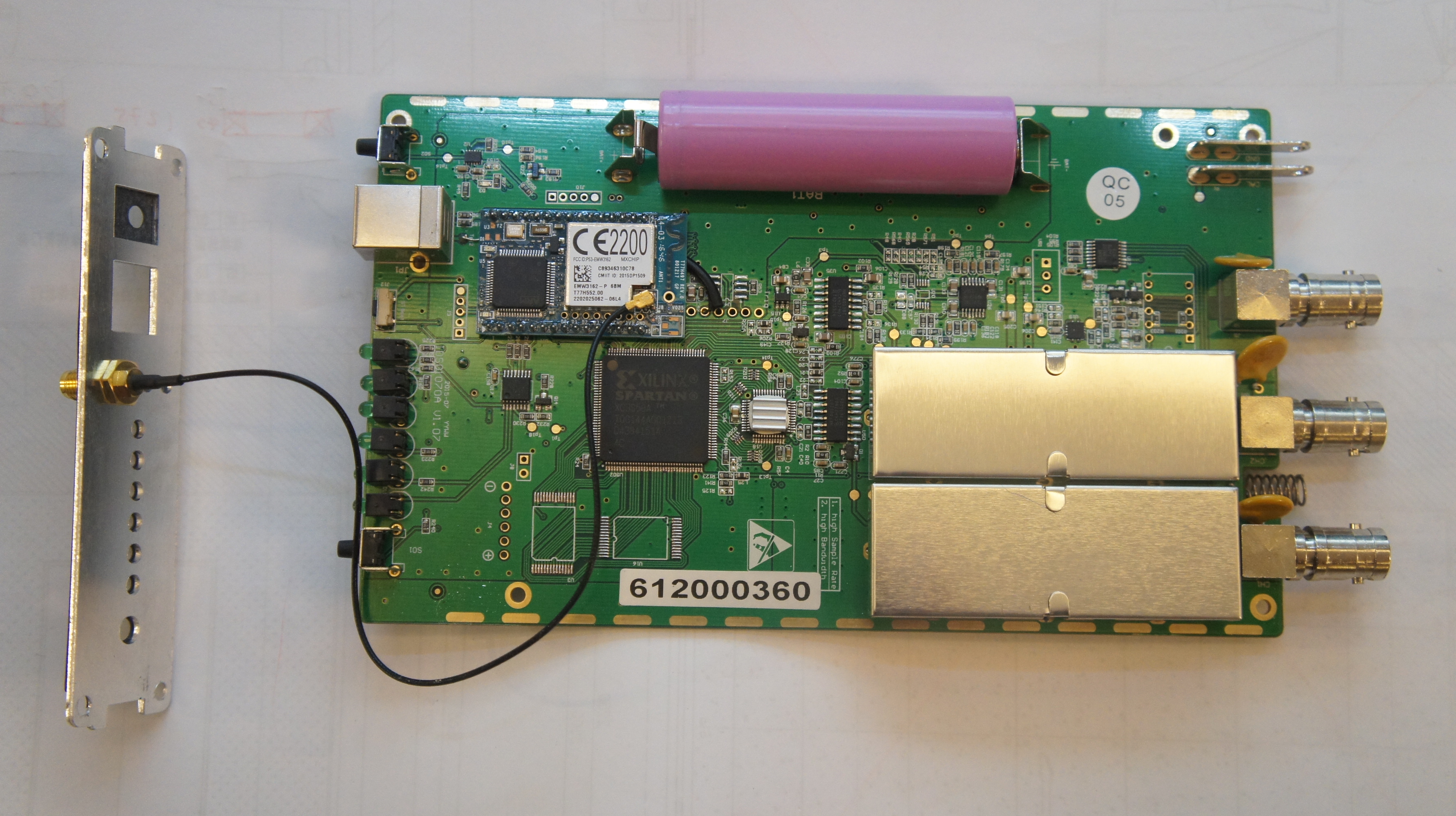

Hantek Idso1070a Inside1 Front

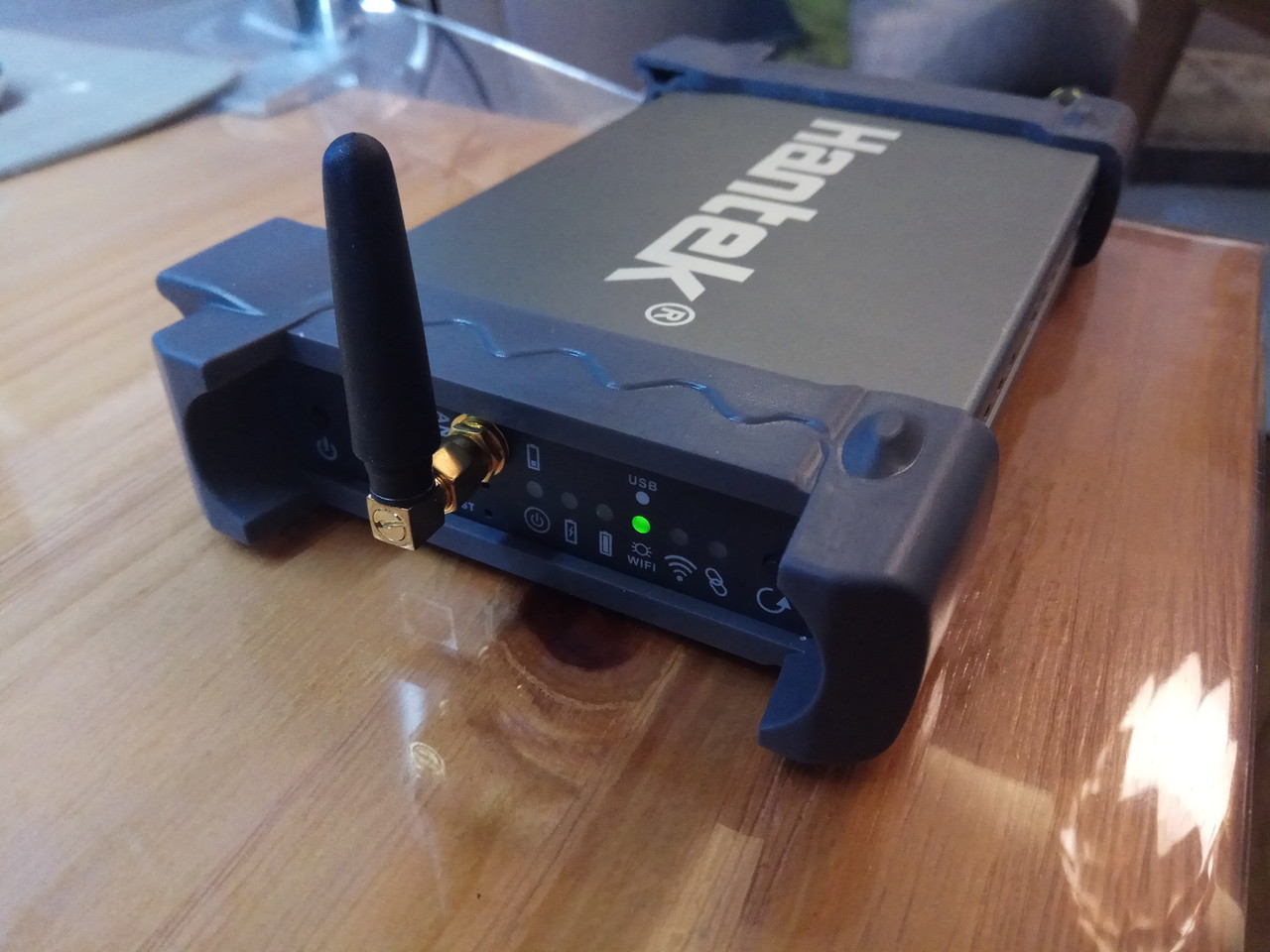

Hantek Idso1070a

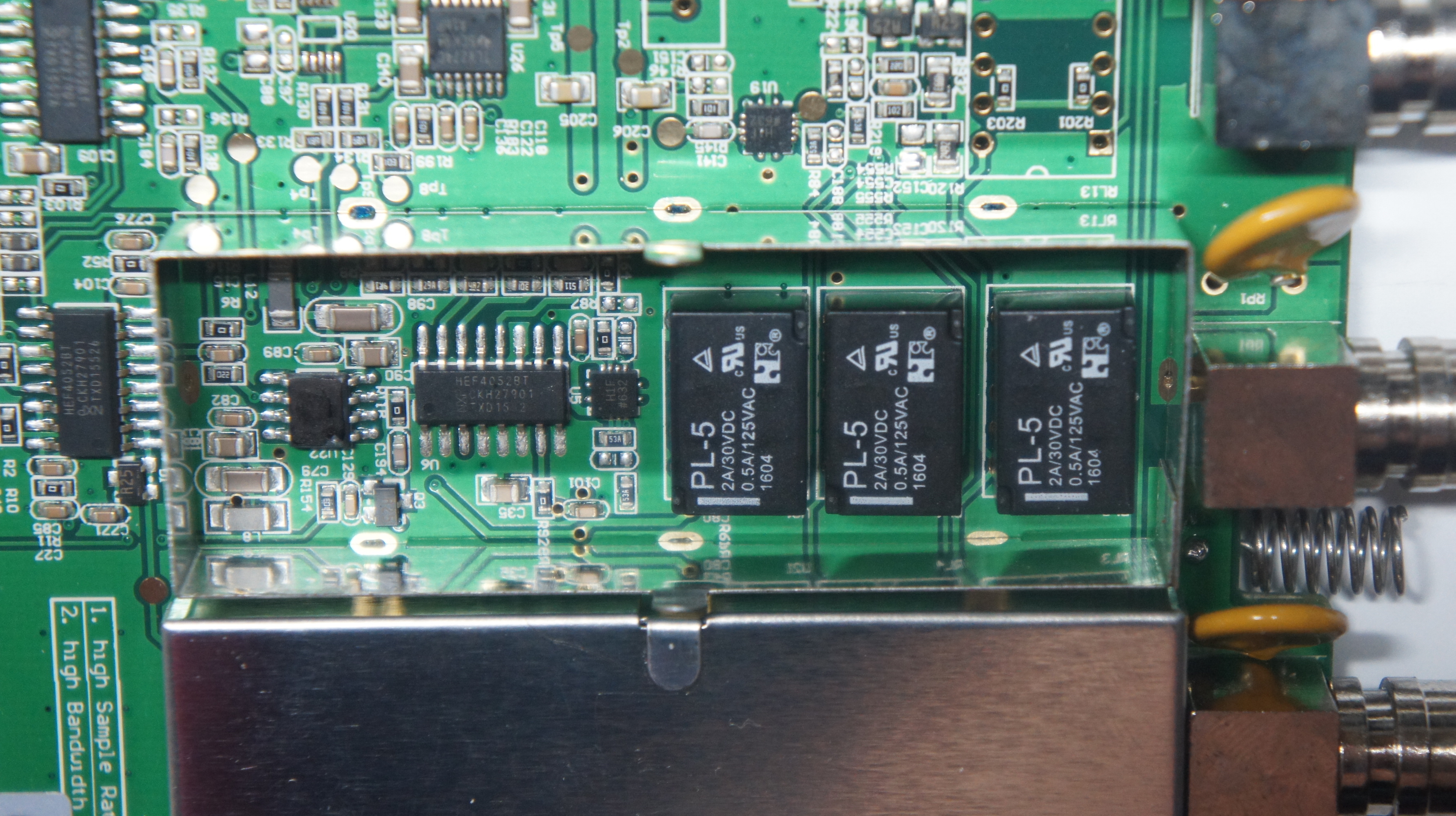

Hantek Idso1070a Channel Module

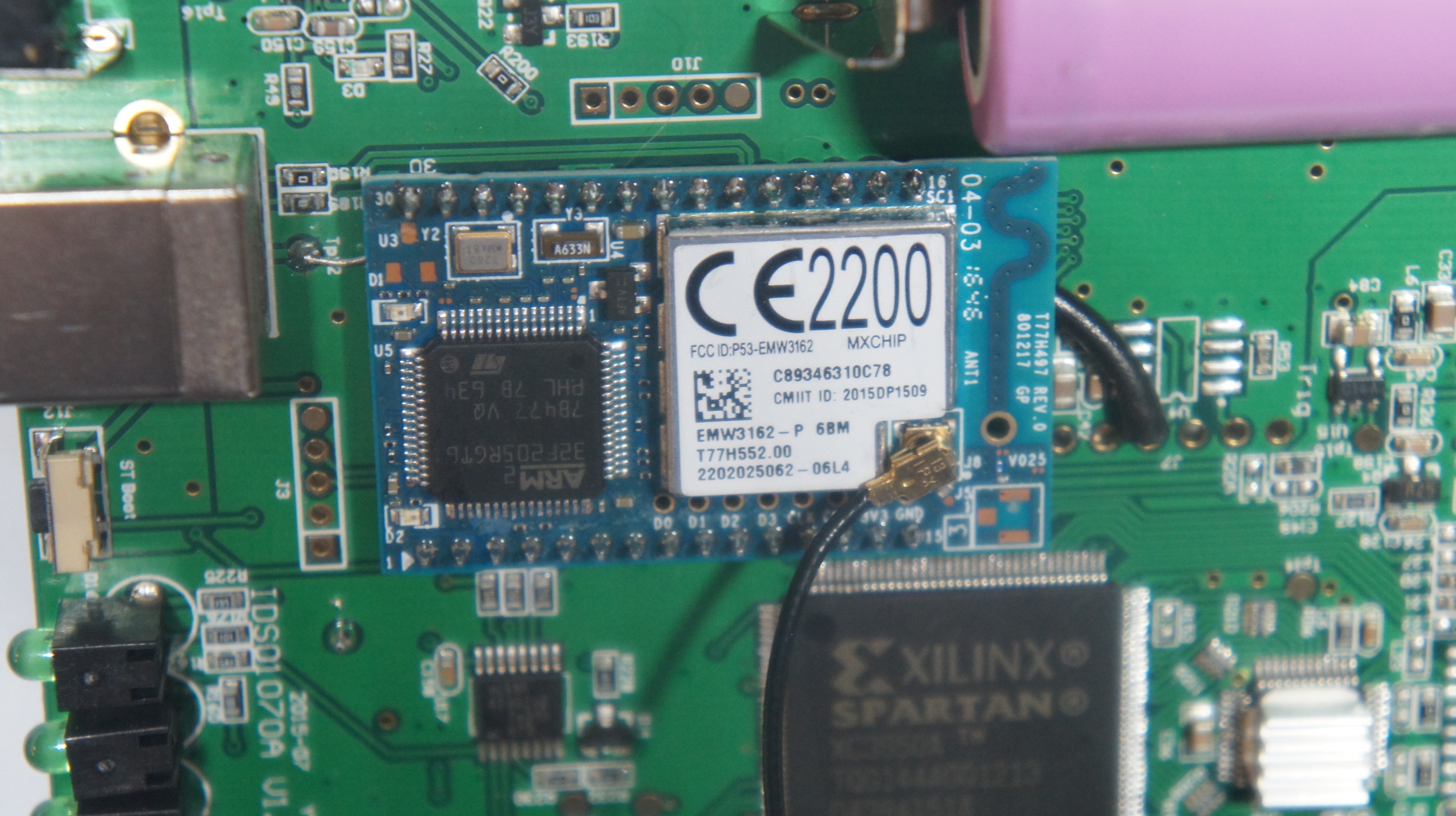

Hantek Idso1070a Wifi Module
Protocol¶
See Reverse Engineered Protocol.
When the "Refresh" button is not pressed, the device run in Wifi mode, when "Refresh" button is kept pressed at boot it run in USB mode (USB vendor_id and device_id will change).
