Hantek 6254BD¶
Hantek 6254BD¶
| Status | planned |
| Channels | 4 |
| Samplerate | 1GSa/s |
| Analog bandwidth | 250MHz |
| Vertical resolution | 8bit |
| Triggers | edge, pulse, video, alternative |
| Input impedance | 1MΩ‖25pF |
| Memory | 64K |
| Display | none |
| Connectivity | USB |
| Website | hantek.com |
The Hantek 6254BD is a USB-based, 4-channel oscilloscope with an analog bandwidth of 250MHz and 1GSa/s sampling rate.
See Hantek 6254BD/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- FPGA: Xilinix Spartan-6 XC6SLX16 (datasheet)
- SPI flash: Macronix MX25L4006E (datasheet)
- 8-bit 1GSa/s ADC: Analog Devices HMCAD1511 (datasheet)
- Integrated synthesizer and VCO: Analog Devices ADF4360-7 (datasheet)
- 12-bit 165MSa/s DAC: Texas Instruments DAC902E (datasheet)
- USB controller: Cypress CY7C68013A (FX2) (datasheet)
- 6Kbit I²C EEPROM: Microchip 24LC64
- 3-State shift register: ON Semiconductor MC74HC595A (datasheet)
Photos¶
Hantek 6254bd Device Bottom

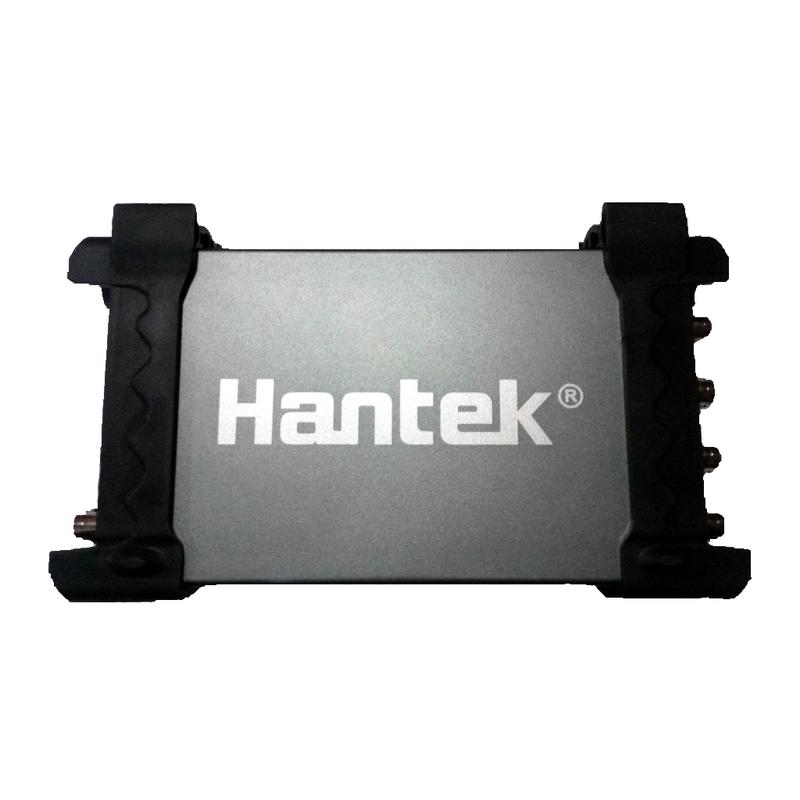

Hantek 6254bd Mugshot

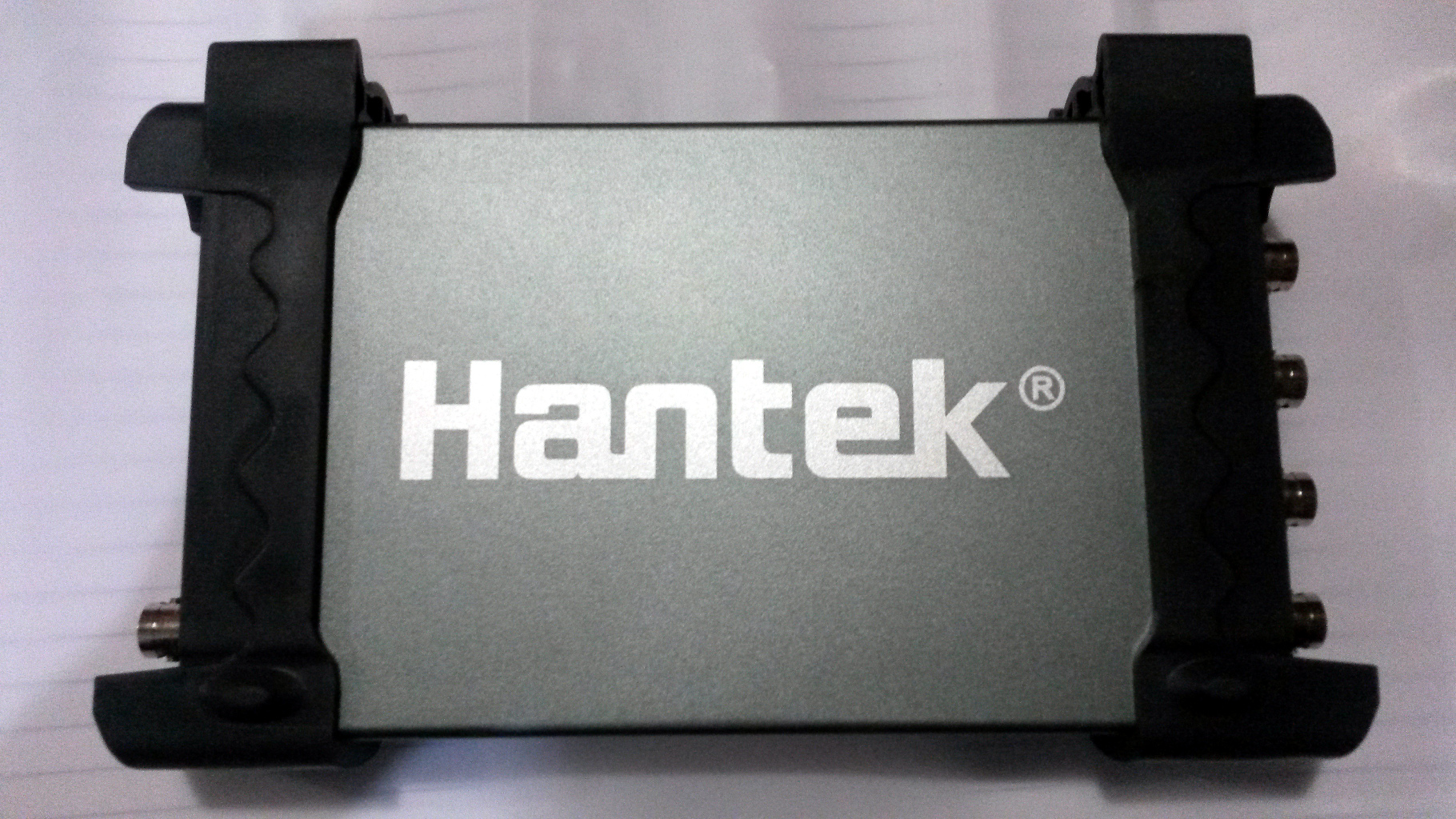

Hantek 6254bd Device Top

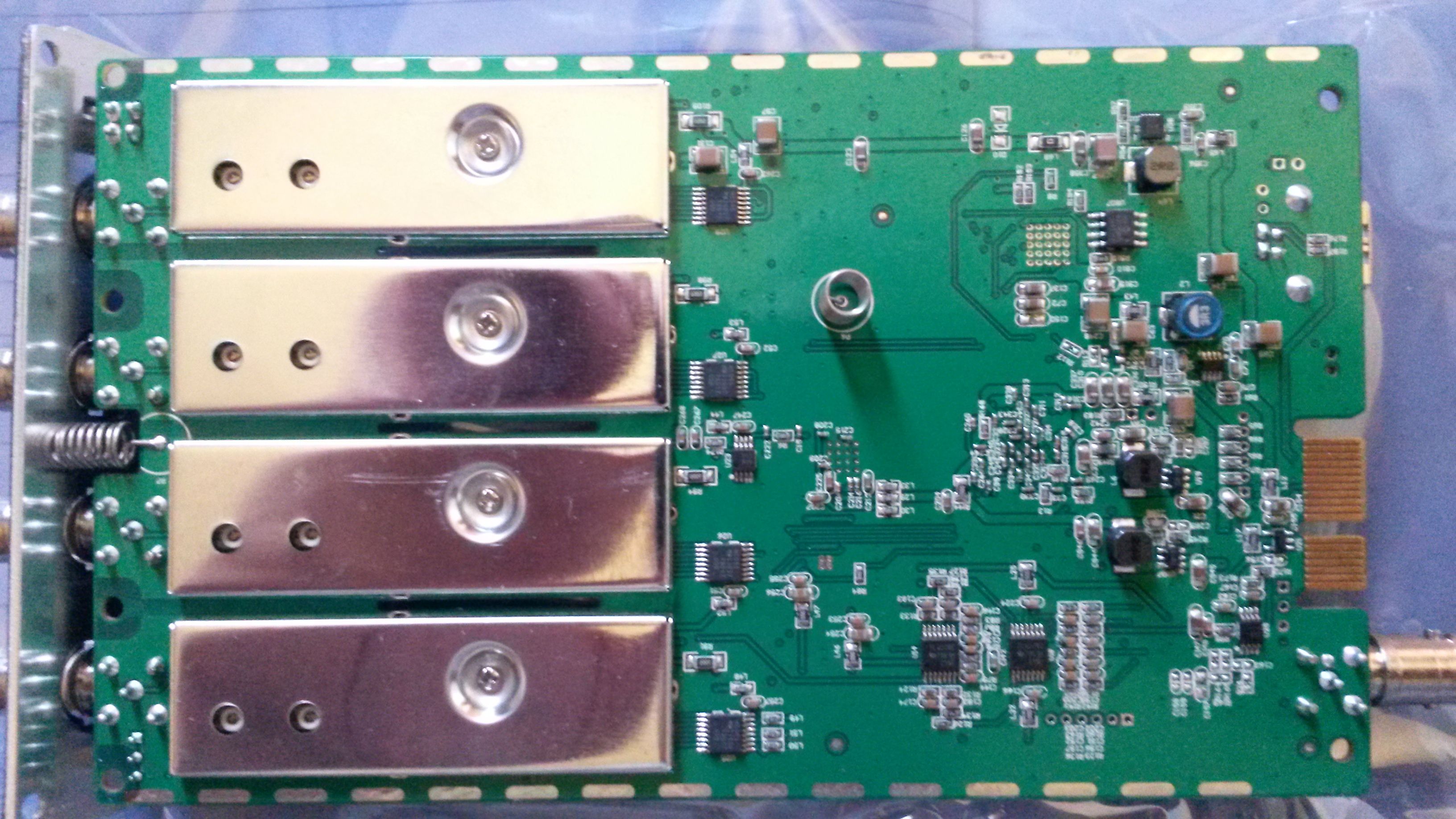

Hantek 6254bd Bottom

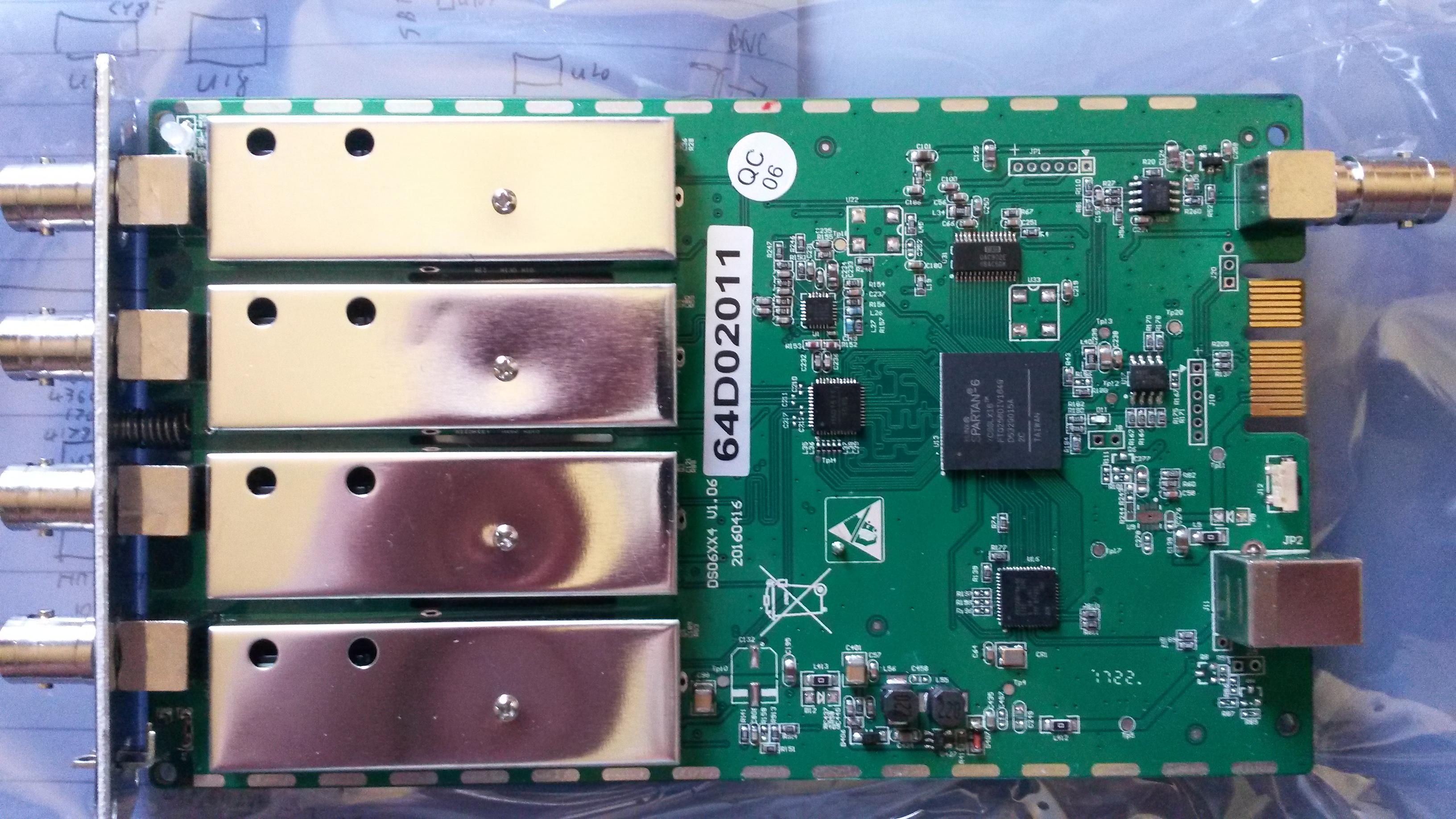

Hantek 6254bd Top
