Status planned
Channels up to 4
Ratings 230V 10A
Connectivity USB HID

The Gembird Silvershield PM (also referred to as SIS-PM) is a USB controlled power outlet with surge protection, up to 4 of the outlets are USB controlled. The firmware presents itself as USB HID to the PC (so that no driver installation is required on Windows).

See Info for USB details.

Photos

Gembird Silvershield Controller Top Gembird Silvershield Controller Top

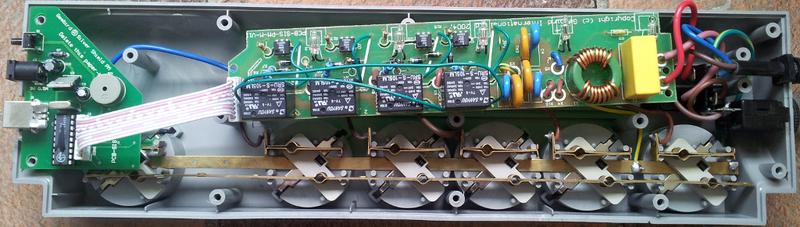

Gembird Silvershield Inside Gembird Silvershield Inside

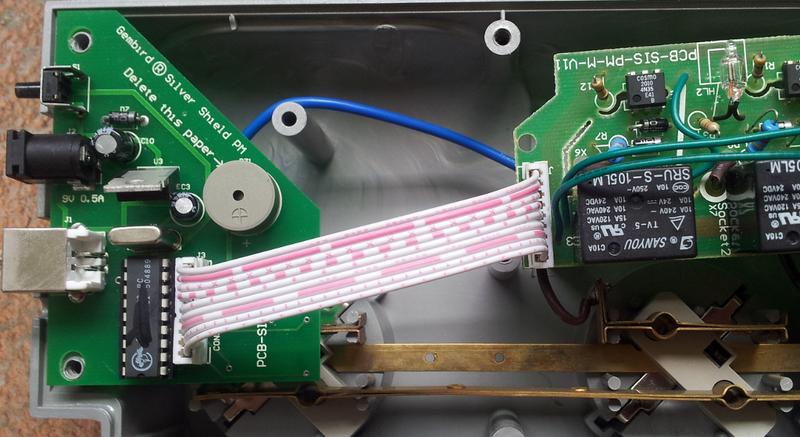

Gembird Silvershield Inside Zoom Gembird Silvershield Inside Zoom

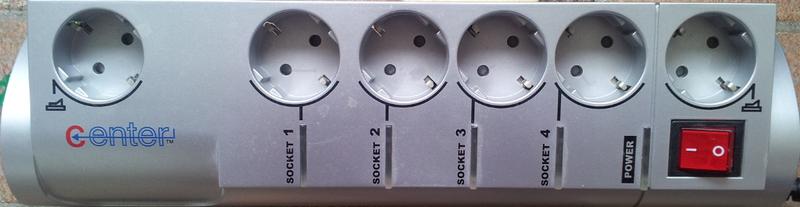

Gembird Silvershield Front Gembird Silvershield Front

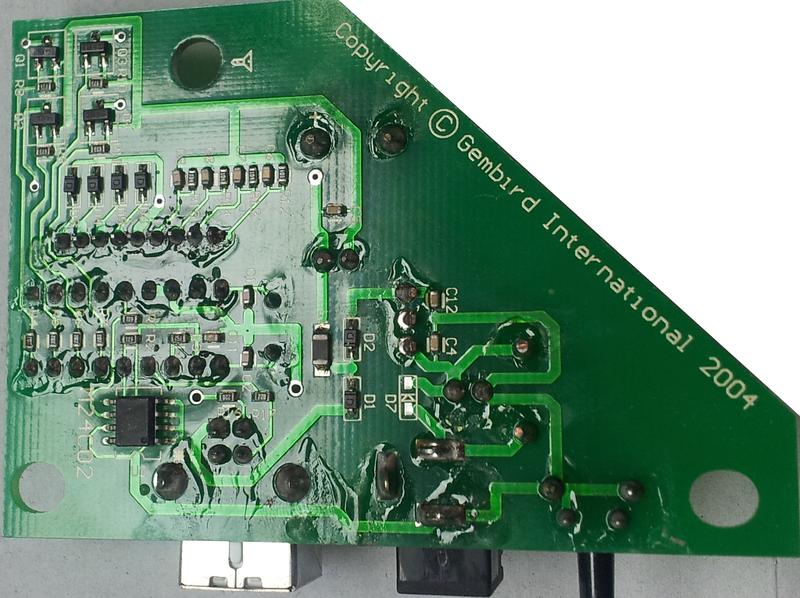

Gembird Silvershield Controller Bottom Gembird Silvershield Controller Bottom

Gembird Silvershield Label Gembird Silvershield Label

Hardware

  • Cypress CY7C63723 controller, USB1 low speed
  • 6MHz crystal
  • 24c02 EEPROM (device supports schedules)
  • 7805 regulator, diodes for alternative USB or barrel jack supply
  • discrete relay controlling transistors, flyback diodes, opto couplers (4N35) per relay, indicators
