Voltcraft VC-96¶
Voltcraft VC-96¶
| Status | supported |
| Source code | serial-dmm |
| Counts | 4000 |
| Connectivity | RS232 |
| Measurements | voltage, capacitance, continuity, diode, frequency, current, |
| Features | autorange, hold, relative, min-max, hfe, bargraph |
| Website | kappenberg.com |
The Voltcraft VC-96 is an 4000 counts handheld, digital multimeter with RS232 (D-sub, DB-25 connector) connectivity.
Hardware¶
Photos¶
Voltcraft Vc96 Pcb Front

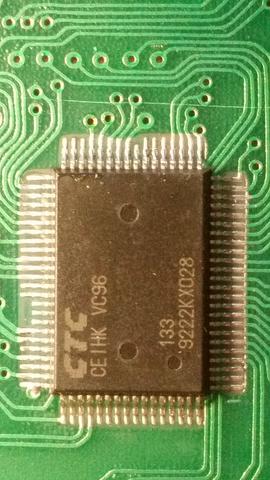

Voltcraft Vc96 Main Chip

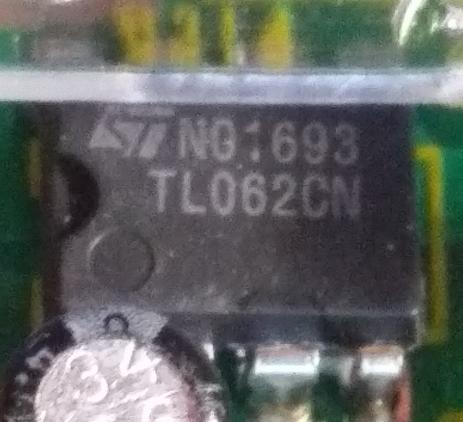

Voltcraft Vc96 Chip Front Top Left

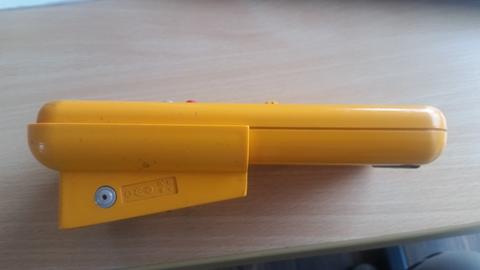

Voltcraft Vc96 Left With Adapter

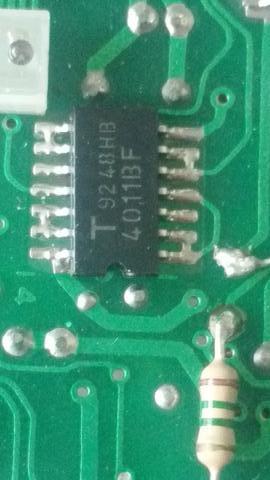

Voltcraft Vc96 Chip Led Center

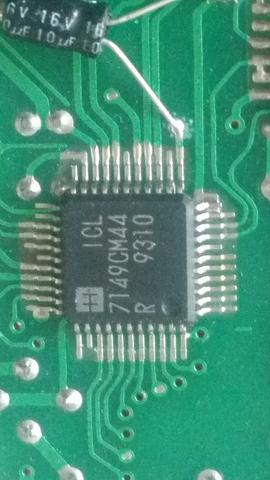

Voltcraft Vc96 Chip Top Right

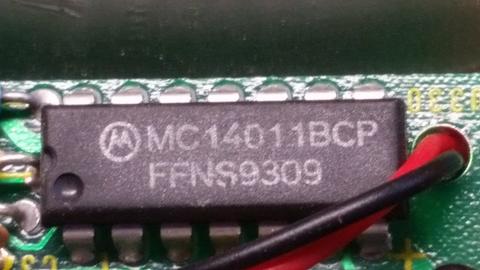

Voltcraft Vc96 Chip Front Bottom Right

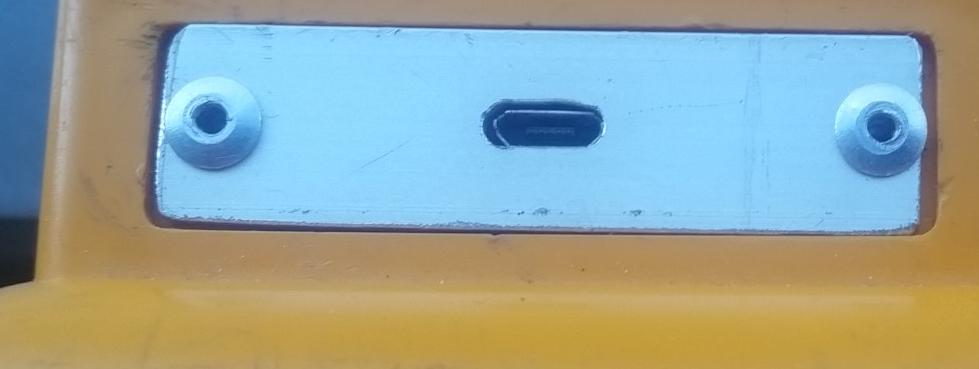

Voltcraft Vc96 Usb Micro Instead Subd25

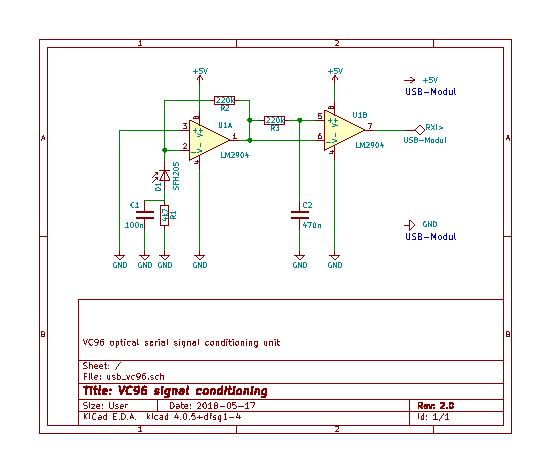

Voltcraft Vc96 Usb Modification Schematics

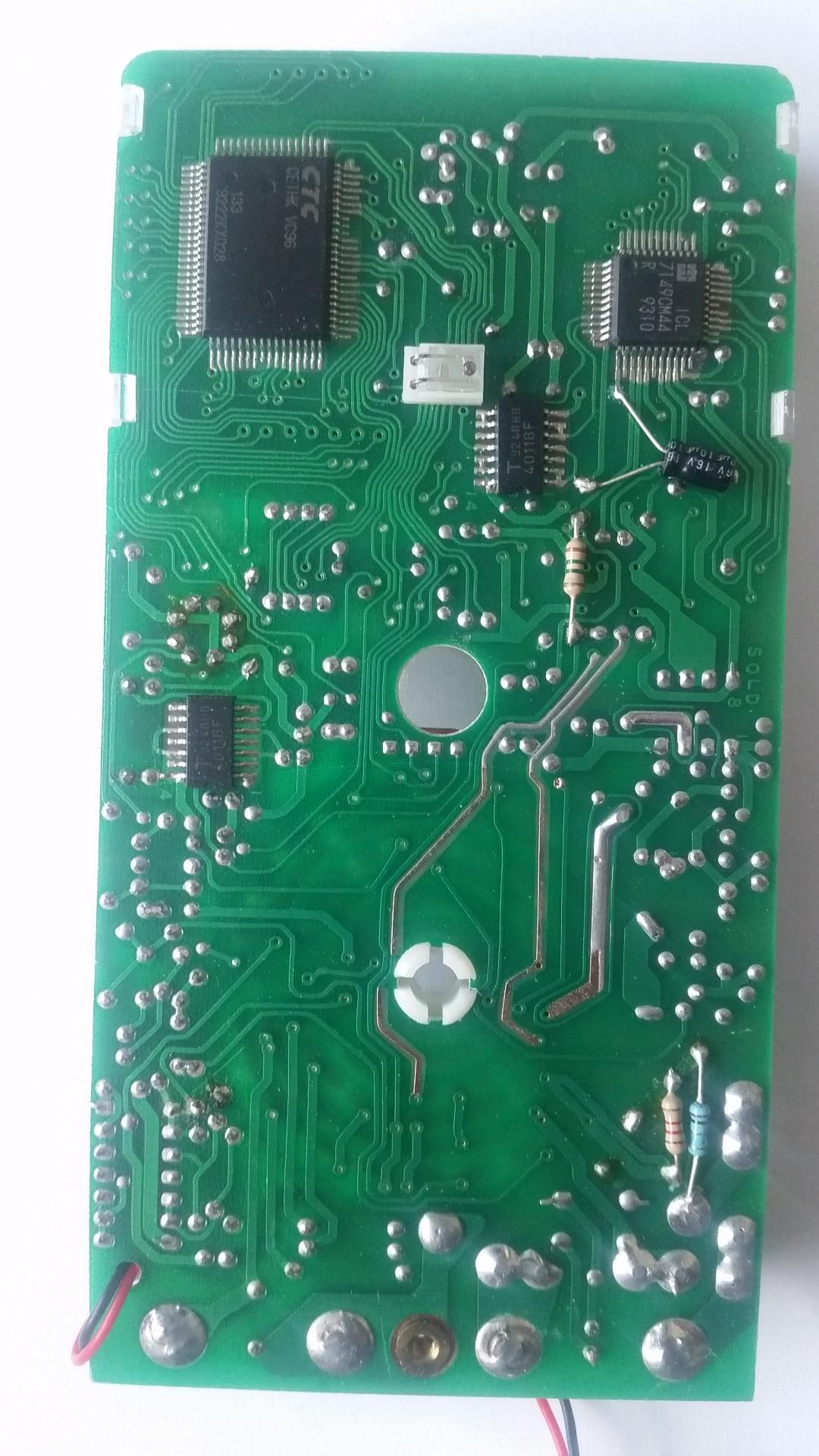

Voltcraft Vc96 Pcb Back

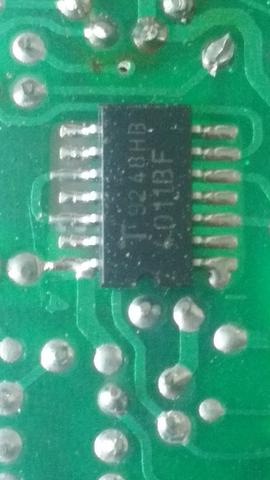

Voltcraft Vc96 Chip Left

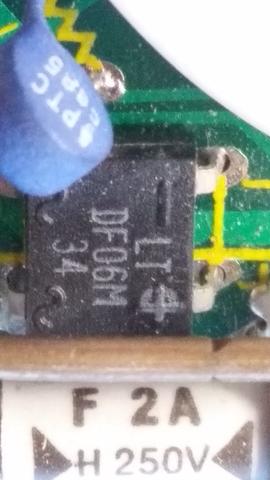

Voltcraft Vc96 Front Rectifier Under Shunt

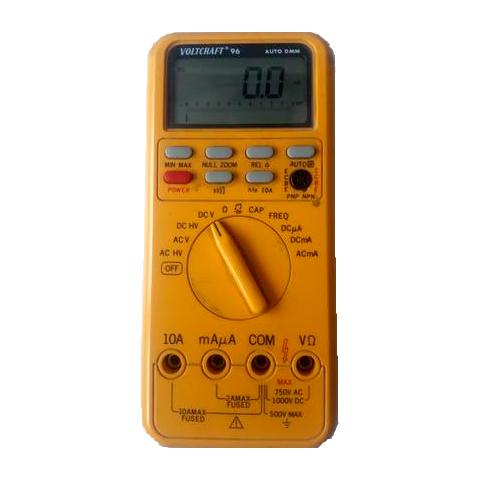

Voltcraft Vc96 Mugshot

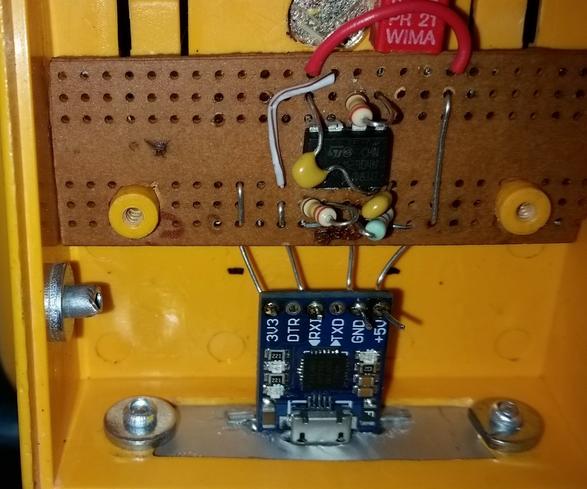

Voltcraft Vc96 Usb Modification

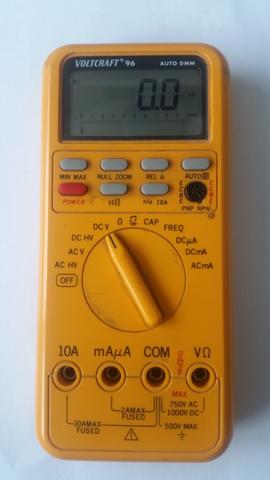

Voltcraft Vc96 Top

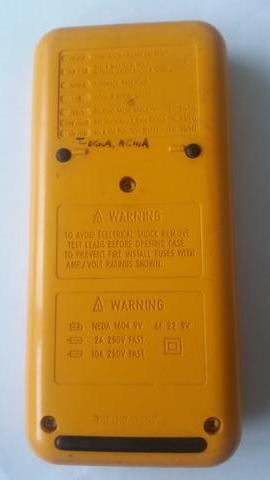

Voltcraft Vc96 Back
Protocol¶
The device sends always (without request) about 4 telegrams per second with 1200 baud, 8N2 over the LED through the case.
The location of the LED is marked on the back (the little circle above the screw).
The converter originally has a RS232 25pin sub-d and needs an 9VDC power supply, but can be modified with a little TTL serial to USB board.
The handling remains the same except using /dev/ttyUSBx instead of /dev/ttySx.
Example packets:
ACV 0.0 V\r\n
ACV 0.00 V\r\n
DCV 00uV\r\n
DCV 0.0 V\r\n
DCV- 0.1mV\r\n
OHM OL M<0xEA>\r\n
DIO OL V\r\n
BEP OL K<0xEA>\r\n
DIO OL V\r\n
DCA 00uA\r\n
hfe 0.0 \r\n
DCA 02uA\r\n
DCA 0.0mA\r\n
DCA 00mA\r\n
ACA 761mA\r\n
ACA 0.0mA\r\n
The device does not send packets in CAP and in FREQ mode.
