Voltcraft VC-950¶
Voltcraft VC-950¶
| Status | in progress |
| Source code | appa-dmm |
| Counts | 100000/10000 |
| IEC 61010-1 | CAT III (1000V) / CAT IV (600V) |
| Connectivity | Infrared (USB/RS232) |
| Measurements | voltage, frequency, period, duty cycle, resistance, continuity, diode, capacitance, current, temperature |
| Features | autorange, data hold, auto hold, peak hold, min/max/avg, relative (%/delta), level (dB/dBm), automatic backlight, true-rms, data logging, auto store, auto-v, ac+dc, VFD, secondary display value |
| Website | conrad.com |
The Voltcraft VC-950 is a 100000/10000 counts, CAT IV (600V) / CAT III (1000V) dual display handheld digital multimeter with Serial/USB connectivity.
It is based on the APPA 505, See also: APPA Multimeters.
The driver supporting these APPA-based devices ("appa-dmm" in sigrok) has been created and will be included in mainline sigrok once it passes acception (see developement repository github.com/Cymaphore/libsigrok branch appa-dmm).
Hardware¶
- ADC IC: CYRUSTEK ES51066A
- Fuses: Current range 10A: Amp rating: 11A, Voltage rating: 1kV, Interrupting rating: 20kA, Opening: Fast acting, Size: 10mm x 38mm
- Current range 400mA: Amp rating: 0.44A, Voltage rating: 1kV, Interrupting rating: 10kA, Opening: Fast acting, Size: 10mm x 34.9mm
- Power supply: 4 x IEC LR6 1.5V (works fine with IEC HR6 1.2V)
Photos and Teardown¶
-
[](./img/Voltcraft_VC-950_-_01_-_Front.png)

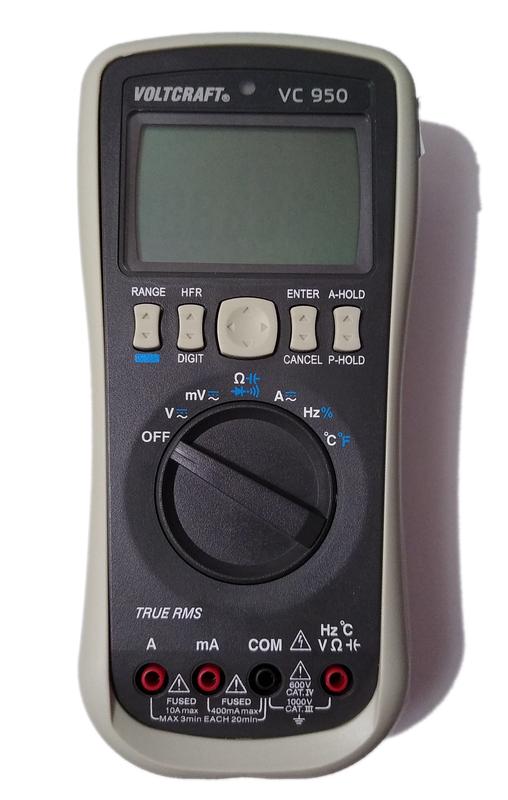

Voltcraft VC-950
-
[](./img/Voltcraft_VC-950_-_02_-_SmuView.png)

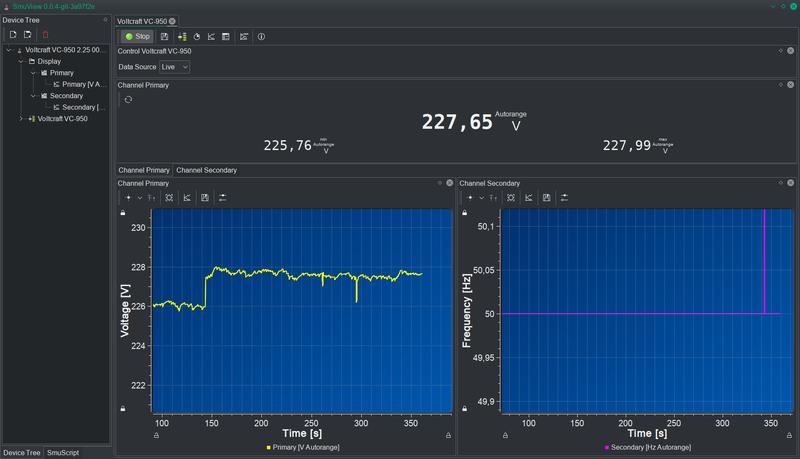

VC-950 connected to SmuView visualizing readings from the power grid
-
[](./img/Voltcraft_VC-950_-_03.jpg)
Measuring voltage and frequency from the power grid
-

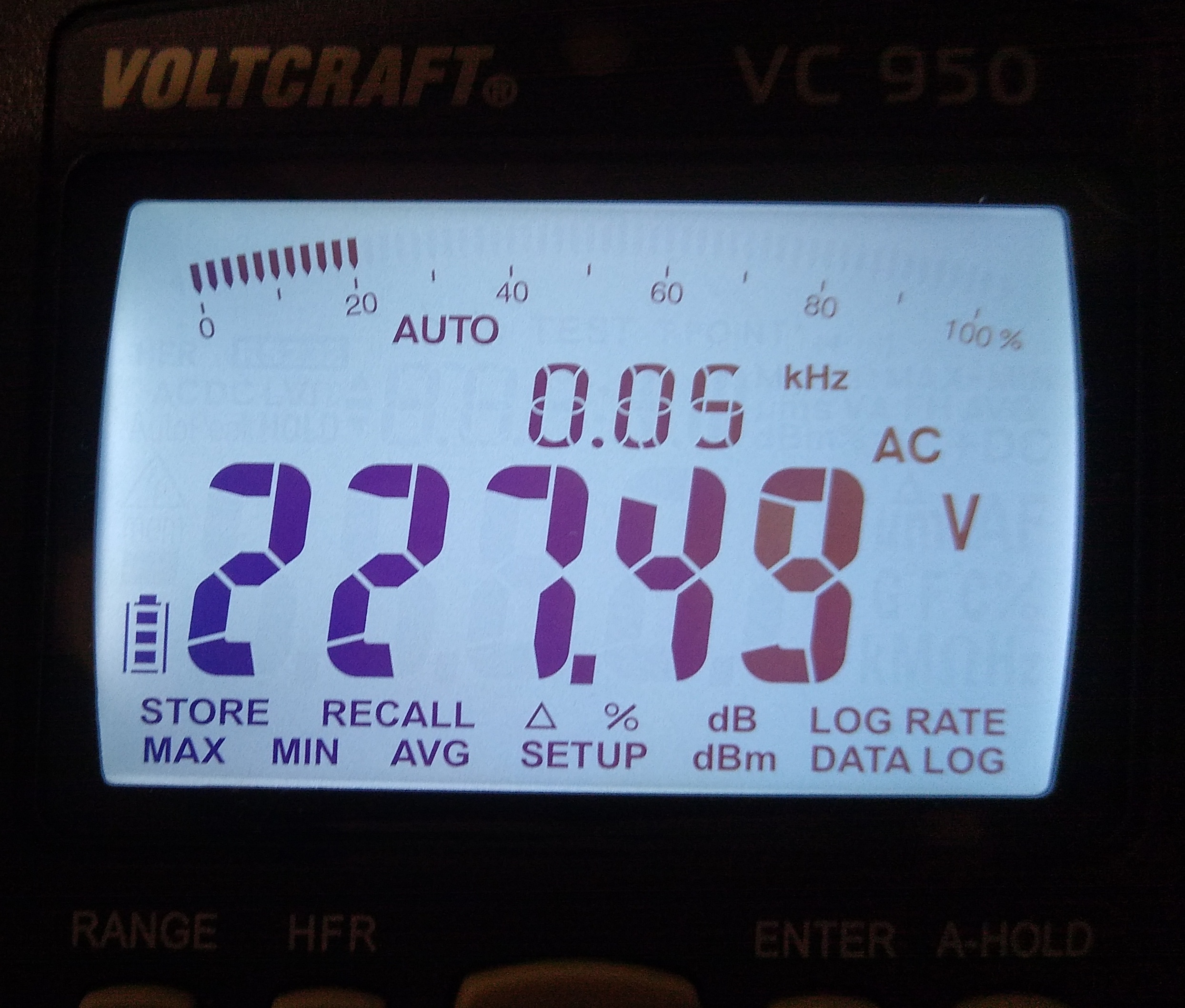

[](./img/Voltcraft_VC-950_-_04_-_Display-Light.jpg)
Display with automatic backlight on
-

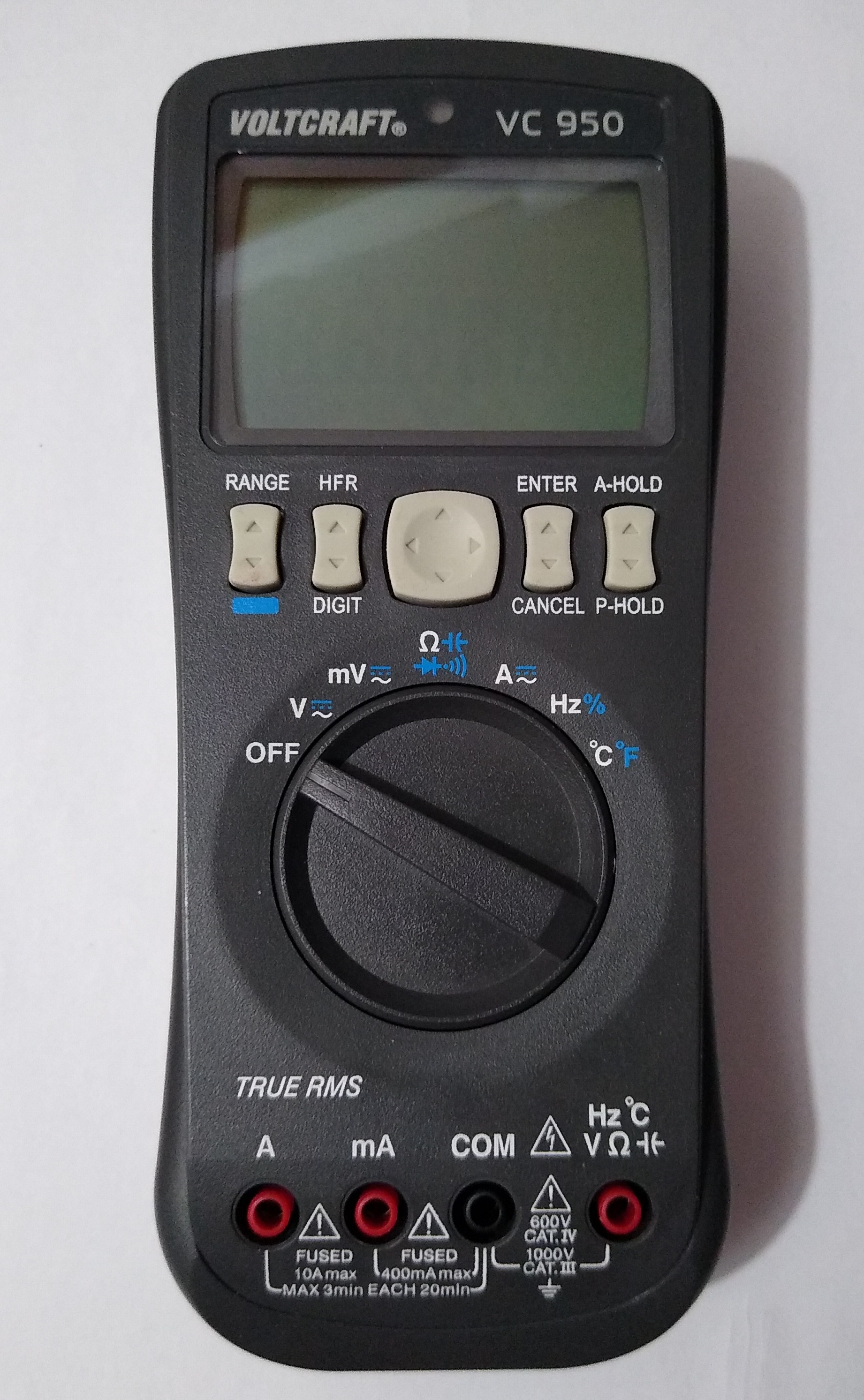

[](./img/Voltcraft_VC-950_-_05_-_No_Sleeve.jpg)
Protective sleeve removed
-
[](./img/Voltcraft_VC-950_-_06_-_Rear.jpg)

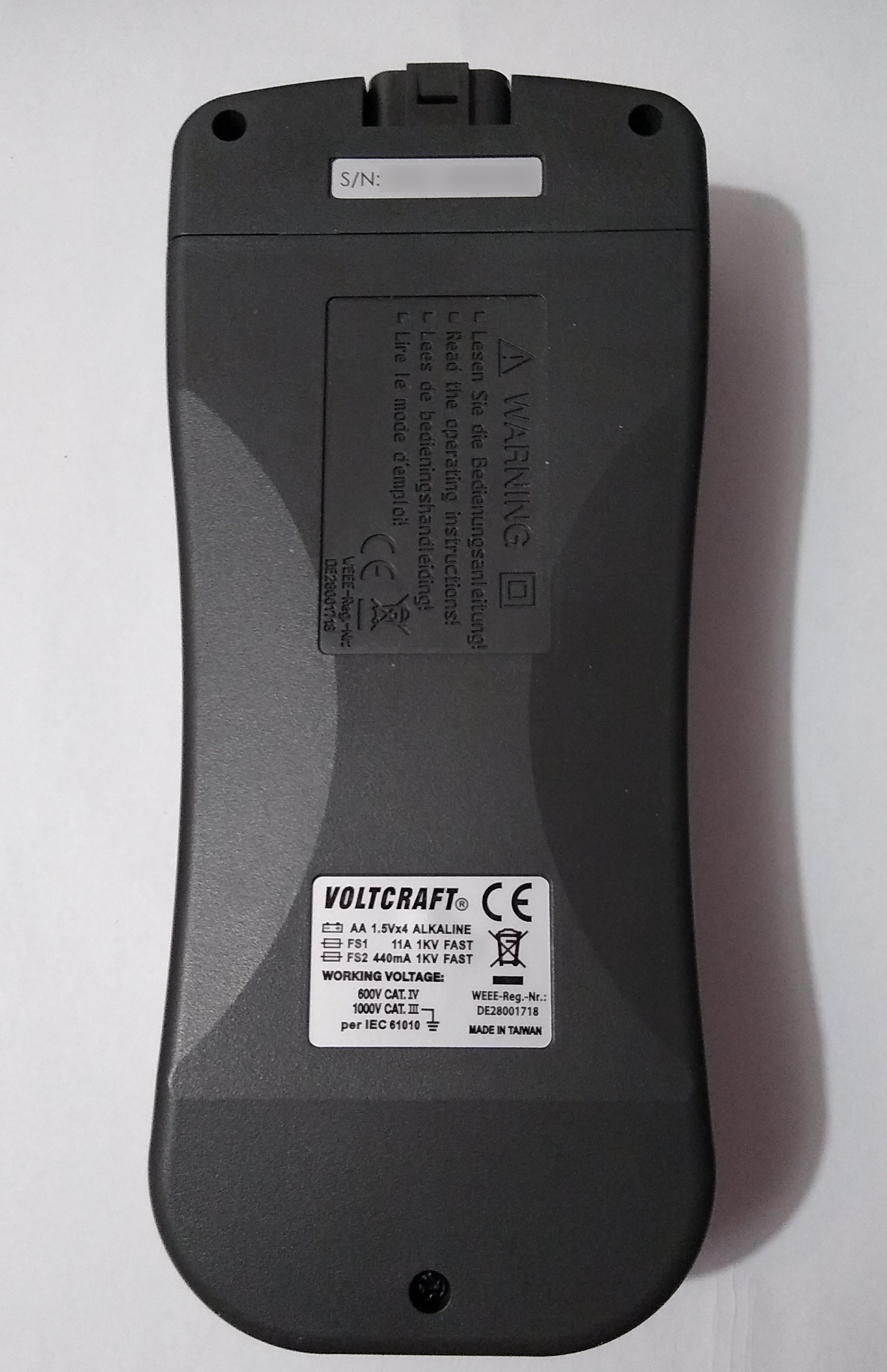

Rear view
-
[](./img/Benning_MM_12_-_08_-_Data_cable.jpg)

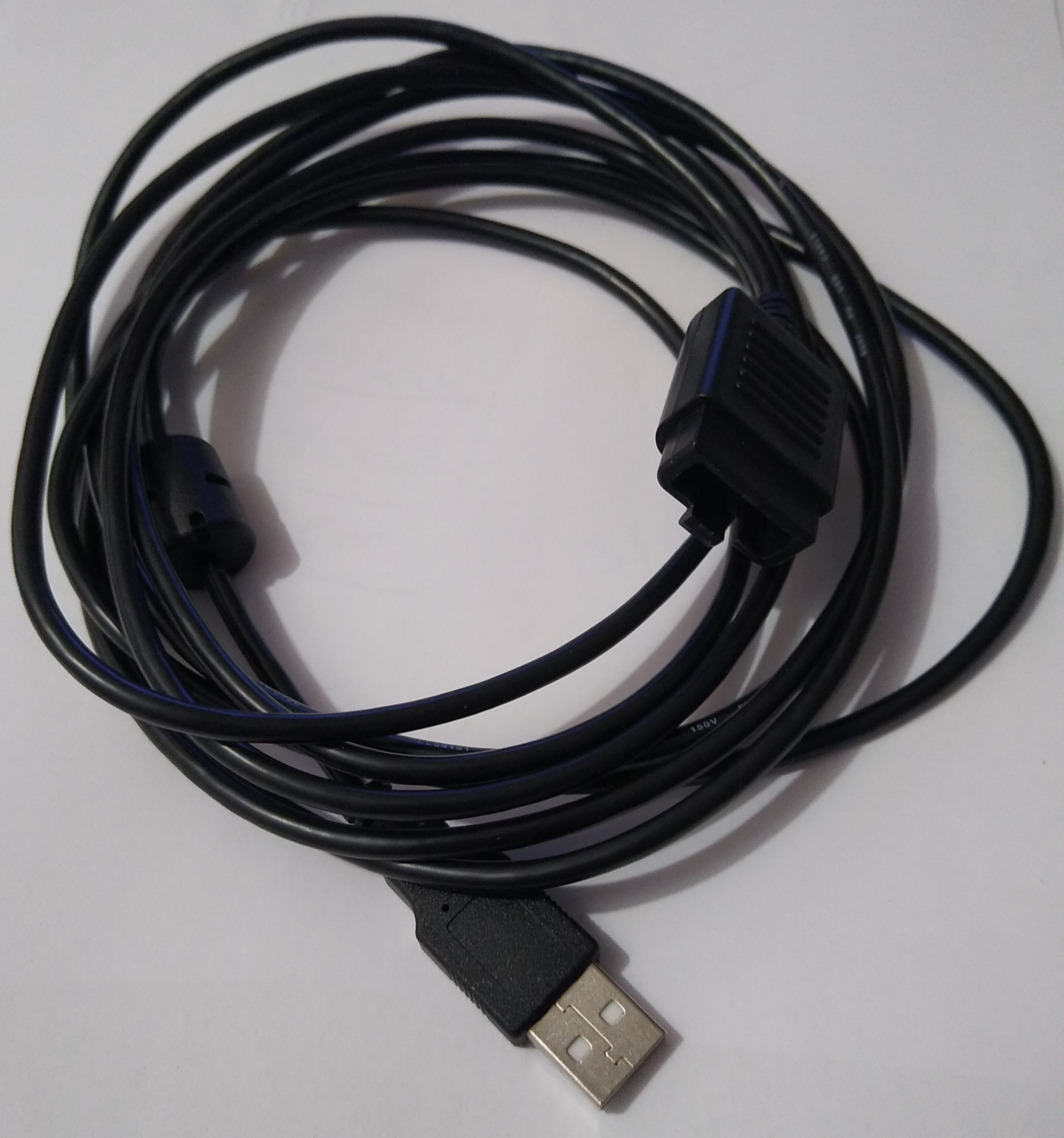

Included data cable (APPA IC-300U)
-
[](./img/Voltcraft_VC-950_-_Teardown_-_01.jpg)

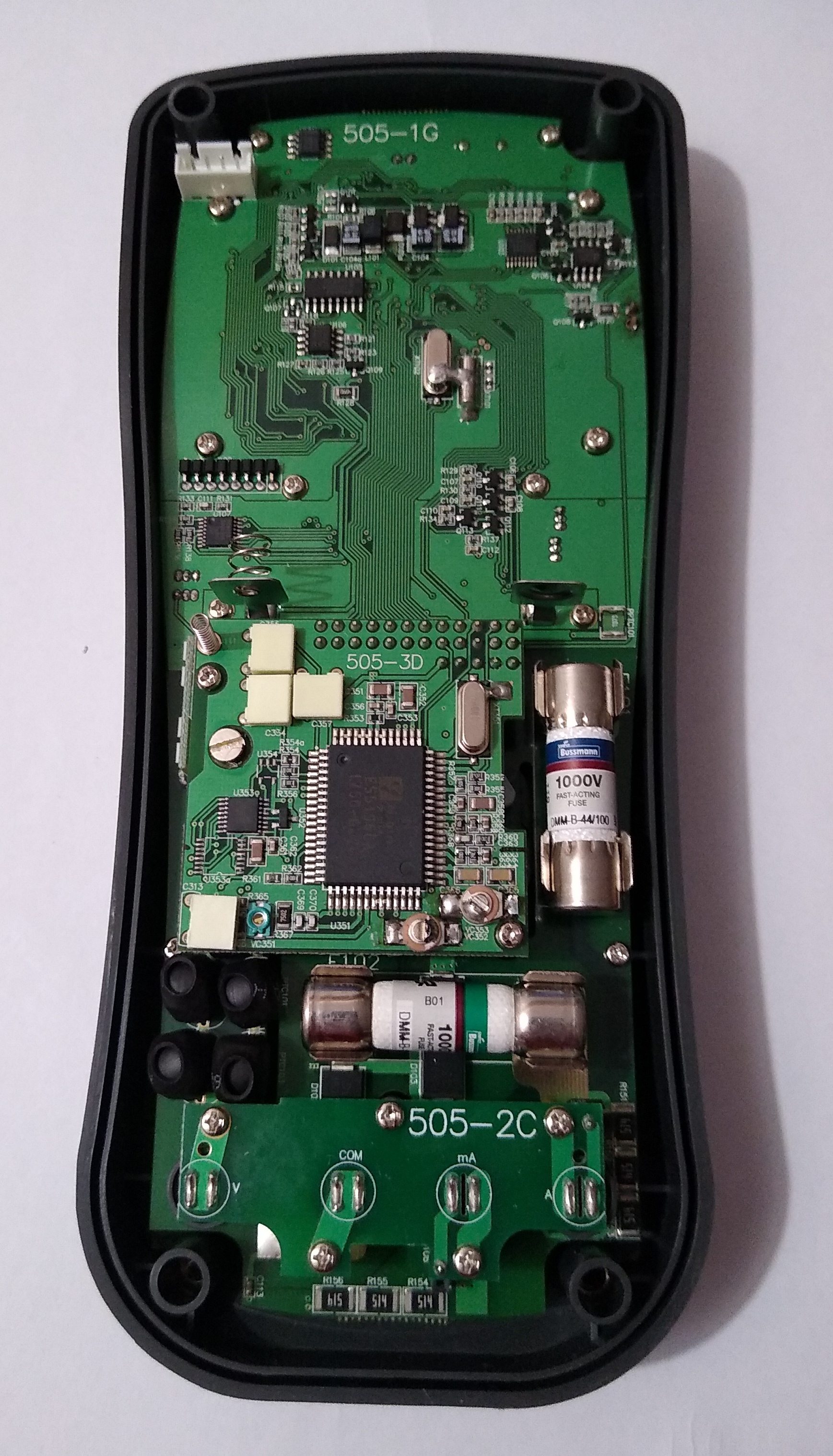

Teardown 1/10
-

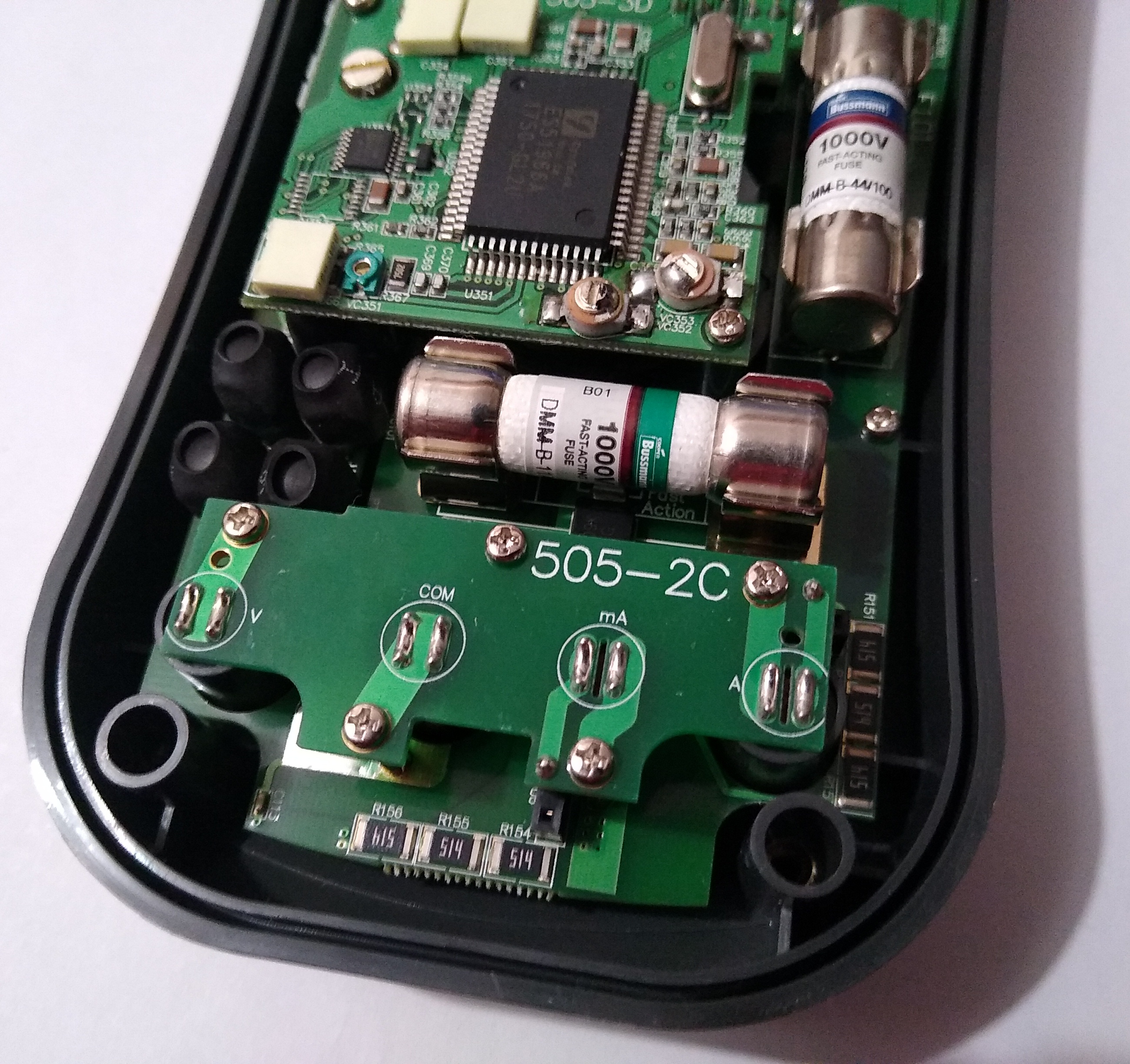

[](./img/Voltcraft_VC-950_-_Teardown_-_02.jpg)
Teardown 2/10
-

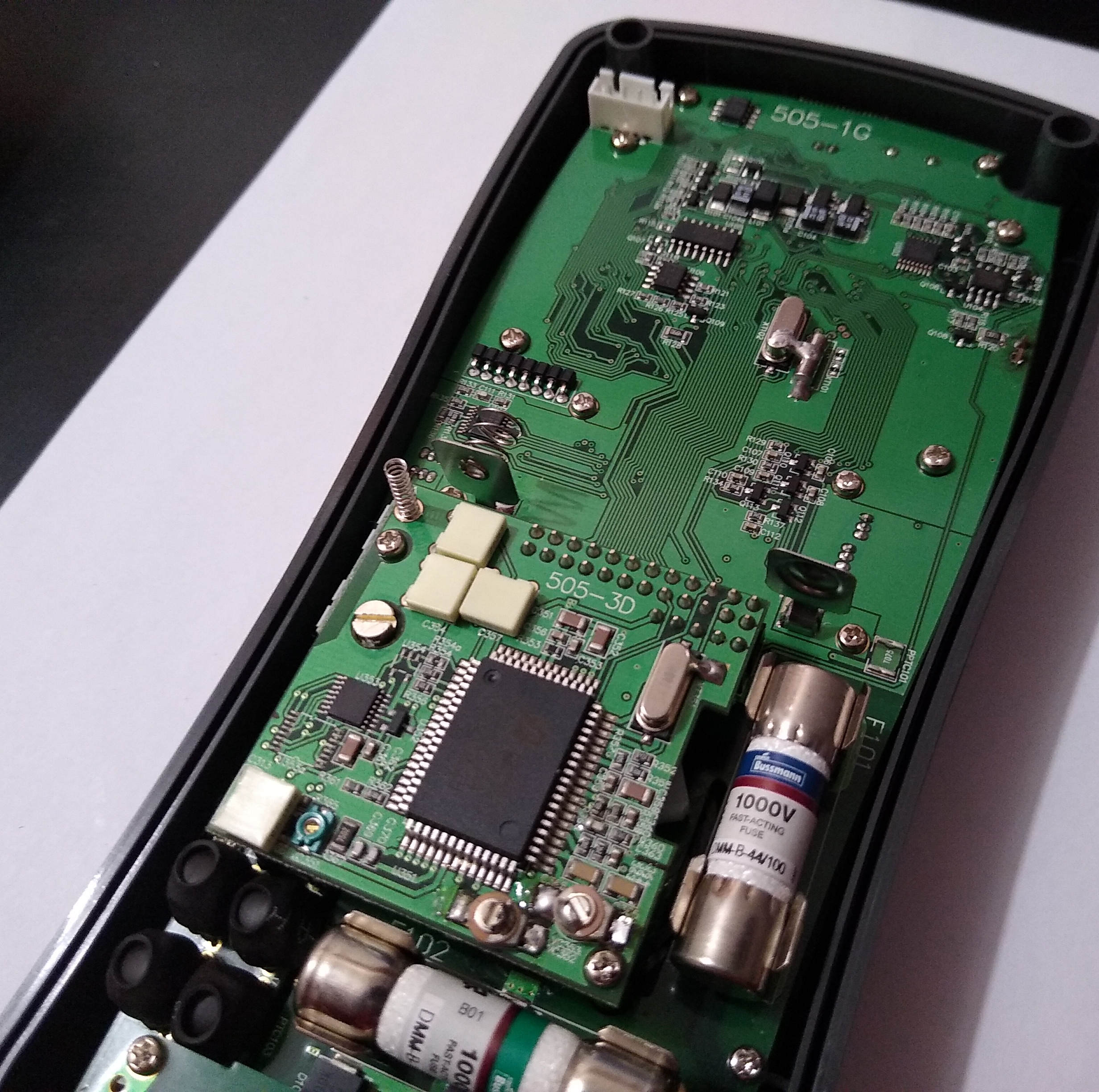

[](./img/Voltcraft_VC-950_-_Teardown_-_03.jpg)
Teardown 3/10
-
[](./img/Voltcraft_VC-950_-_Teardown_-_04.jpg)

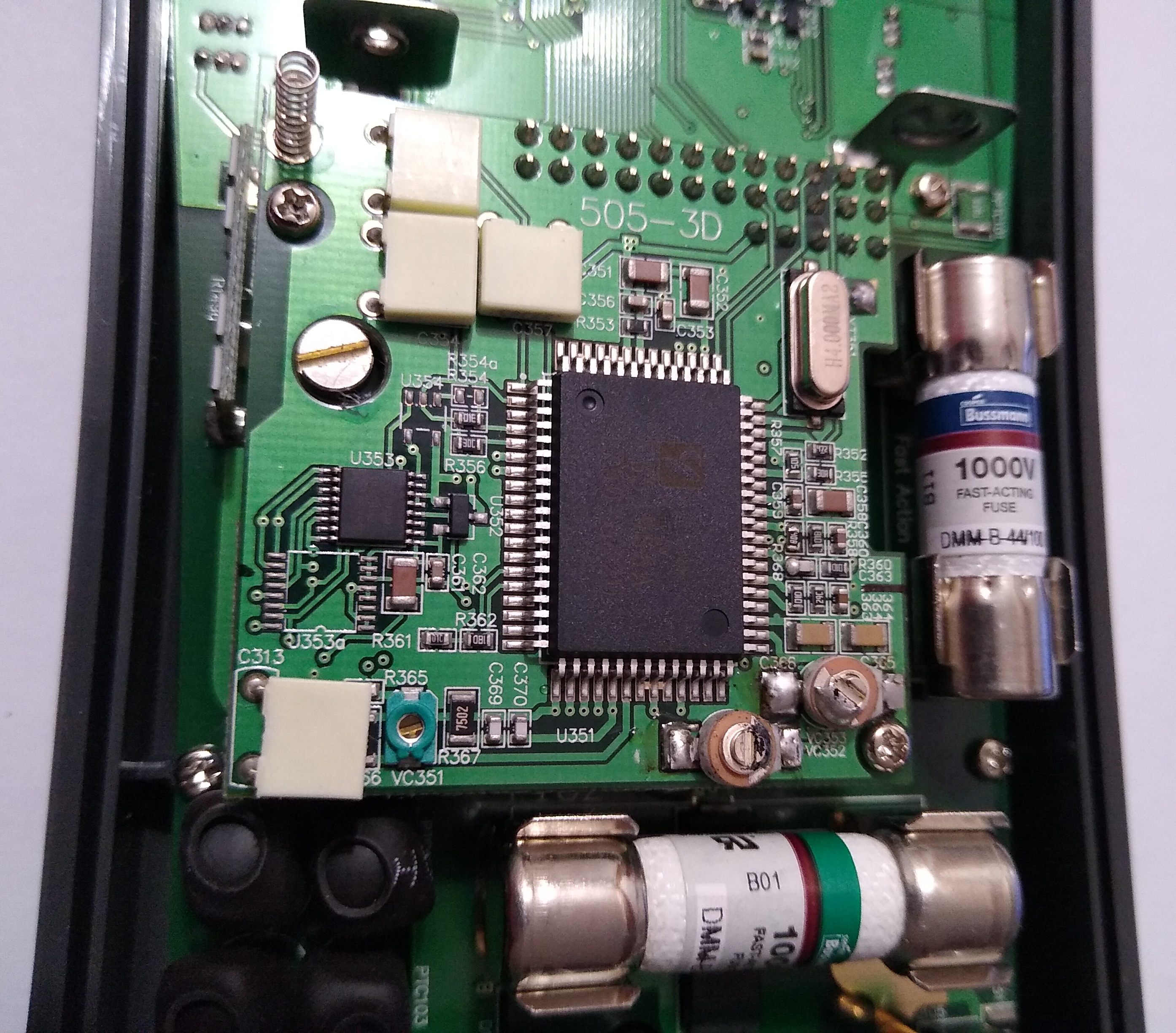

Teardown 4/10
-

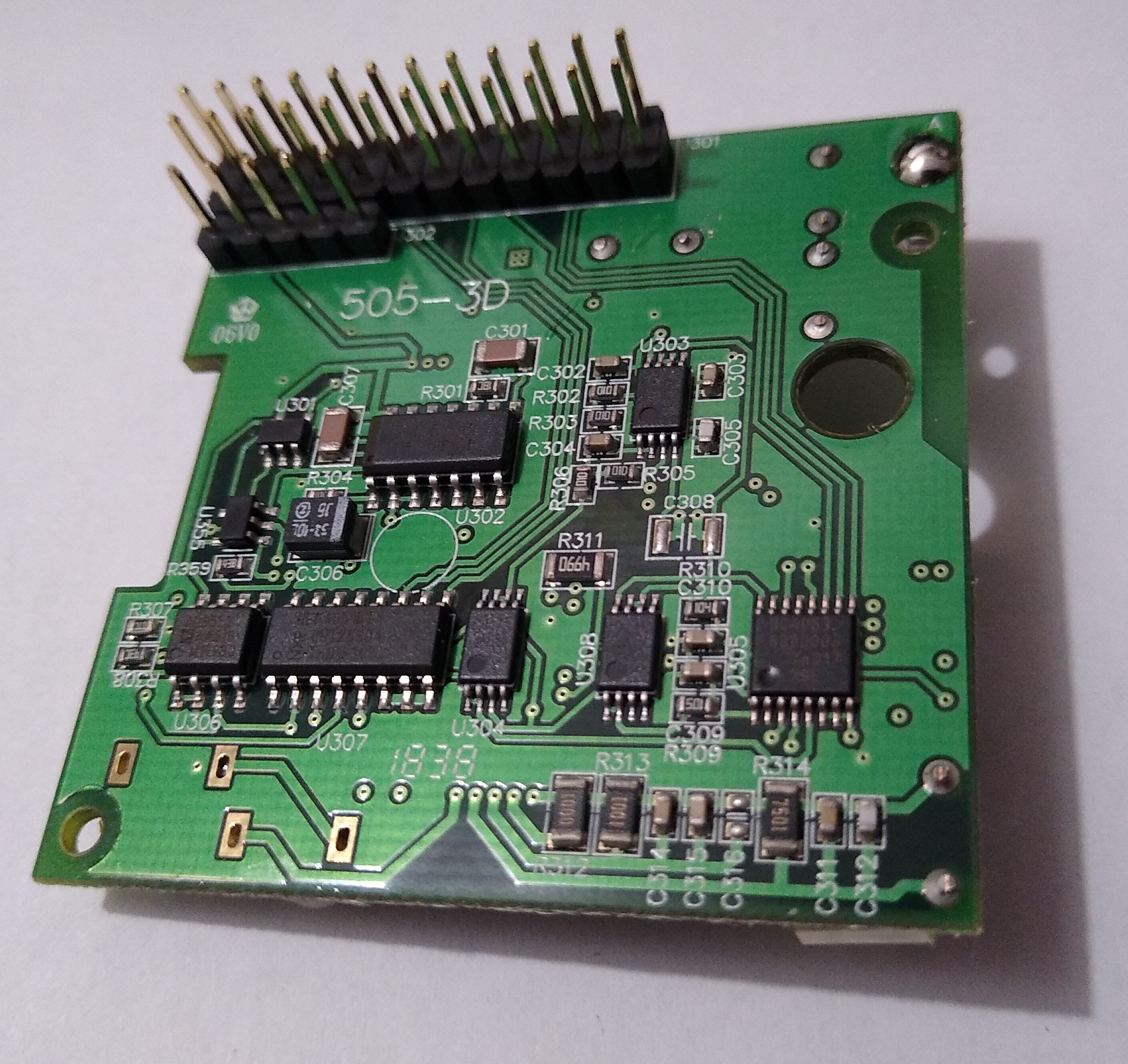

[](./img/Voltcraft_VC-950_-_Teardown_-_05.jpg)
Teardown 5/10
-
[](./img/Voltcraft_VC-950_-_Teardown_-_06.jpg)

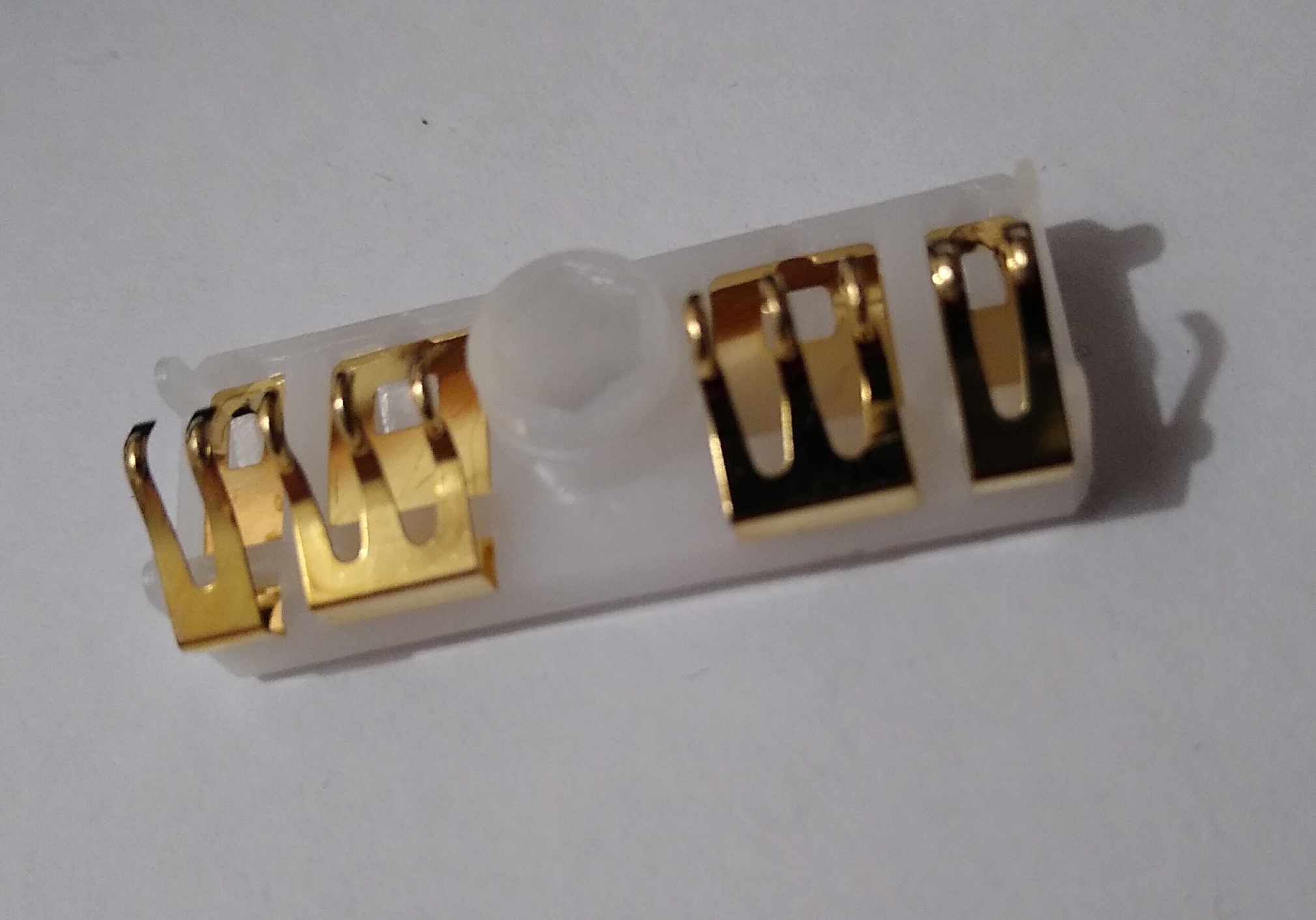

Teardown 6/10
-

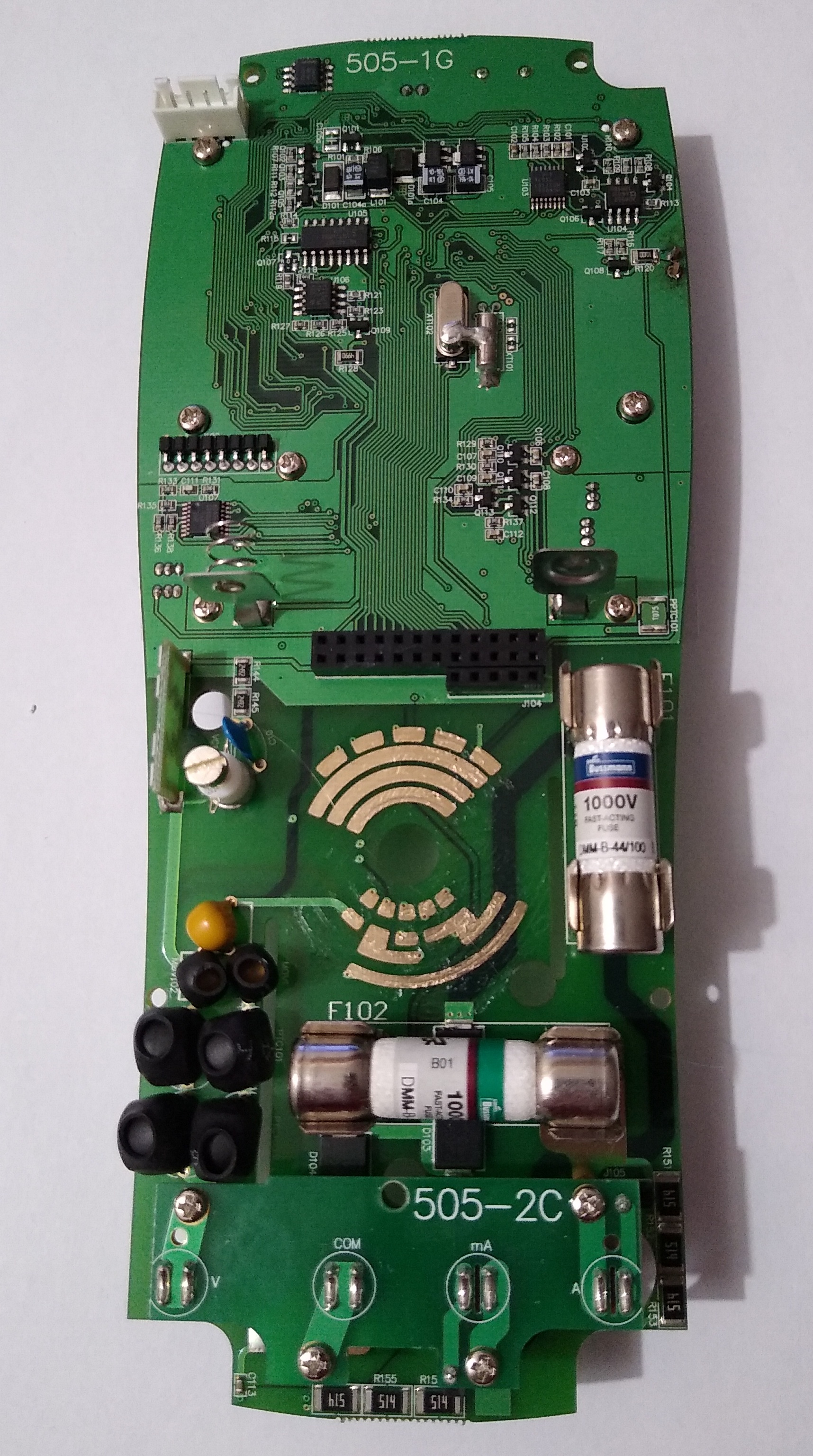

[](./img/Voltcraft_VC-950_-_Teardown_-_07.jpg)
Teardown 7/10
-
[](./img/Voltcraft_VC-950_-_Teardown_-_08.jpg)

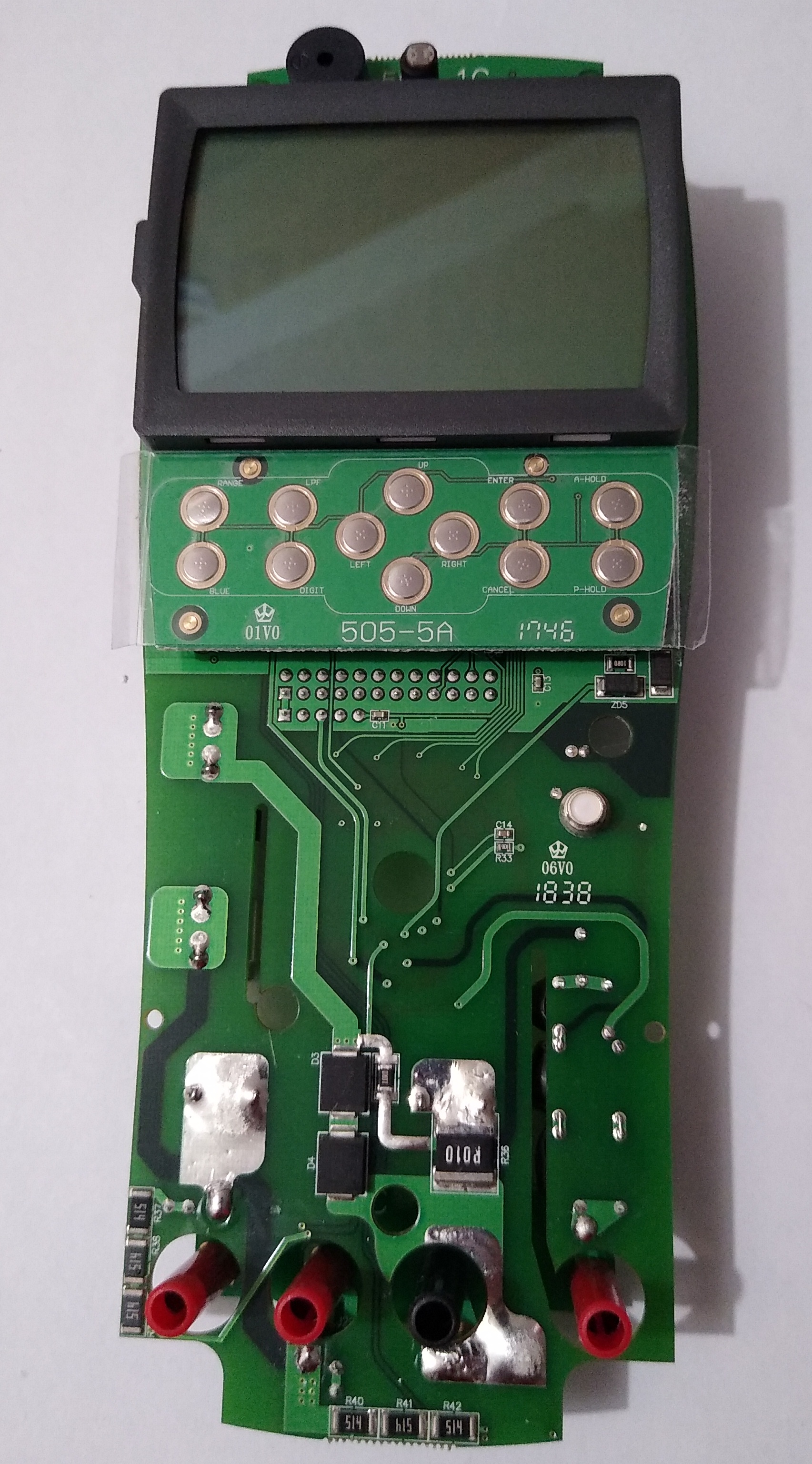

Teardown 8/10
-

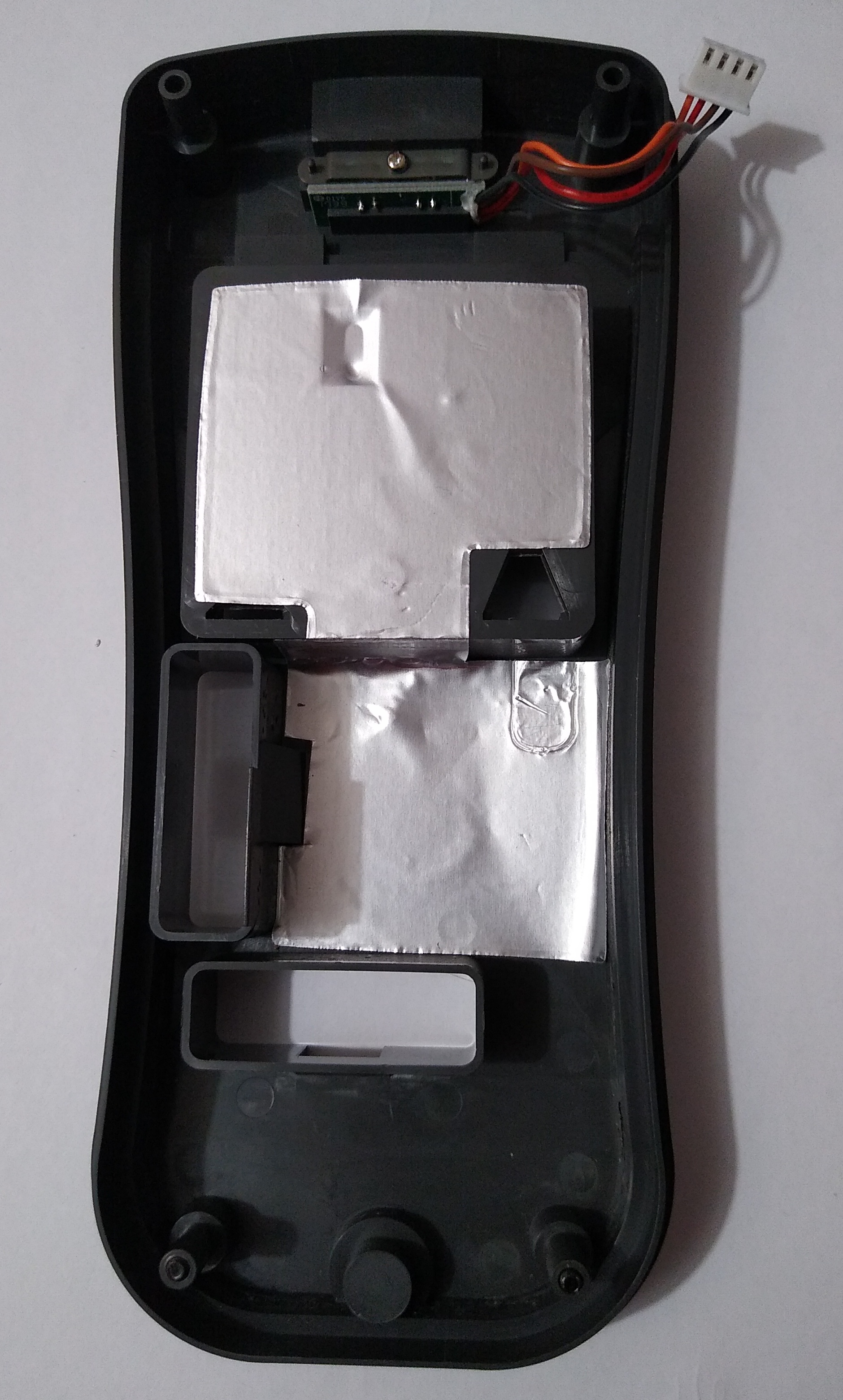

[](./img/Voltcraft_VC-950_-_Teardown_-_09.jpg)
Teardown 9/10
-

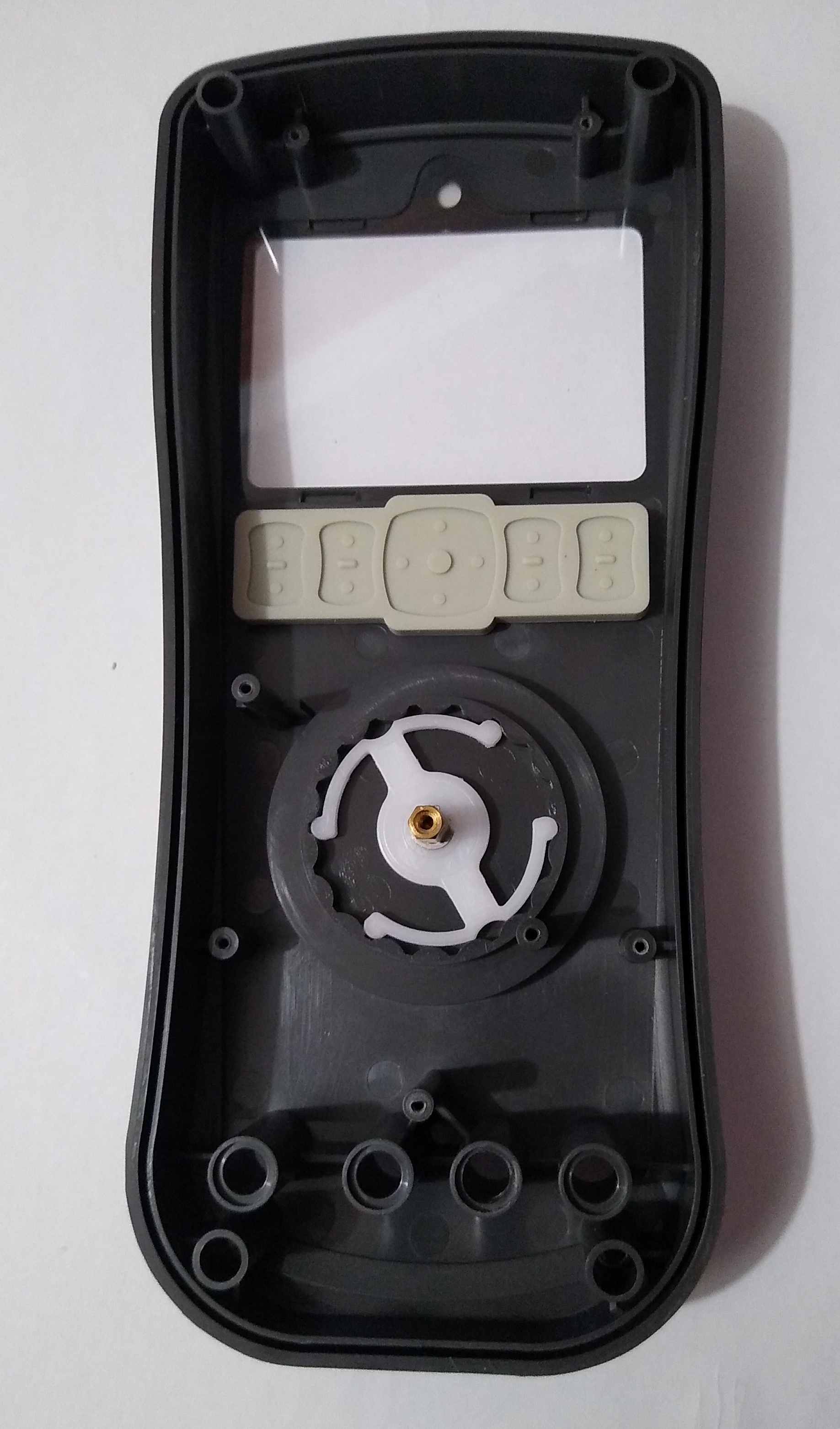

[](./img/Voltcraft_VC-950_-_Teardown_-_10.jpg)
Teardown 10/10
