Voltcraft VC-890¶
Voltcraft VC-890¶
| Status | planned |
| Source code | serial-dmm |
| Counts | 60000 |
| IEC 61010-1 | CAT III (1000V) / CAT IV (600V) |
| Connectivity | USB/serial |
| Website | conrad.com |
The Voltcraft VC-890 is a 60000 counts, CAT III (1000V) / CAT IV (600V) handheld digital multimeter with USB connectivity.
See Voltcraft VC-890/Info for more details (such as lsusb -v output) about the device.
Hardware¶
Multimeter:
- ES51997P chipset
- EFM32 MCU (used as display controller)
- OLED, pixel graphics, large primary display and bar graph, lots of indicators, secondary display
USB cable:
- CP2110 USB to UART bridge (USB HID, supported by conn=hid/cp2110 specs)
Photos¶
Voltcraft Vc890 Temperature Probe 2

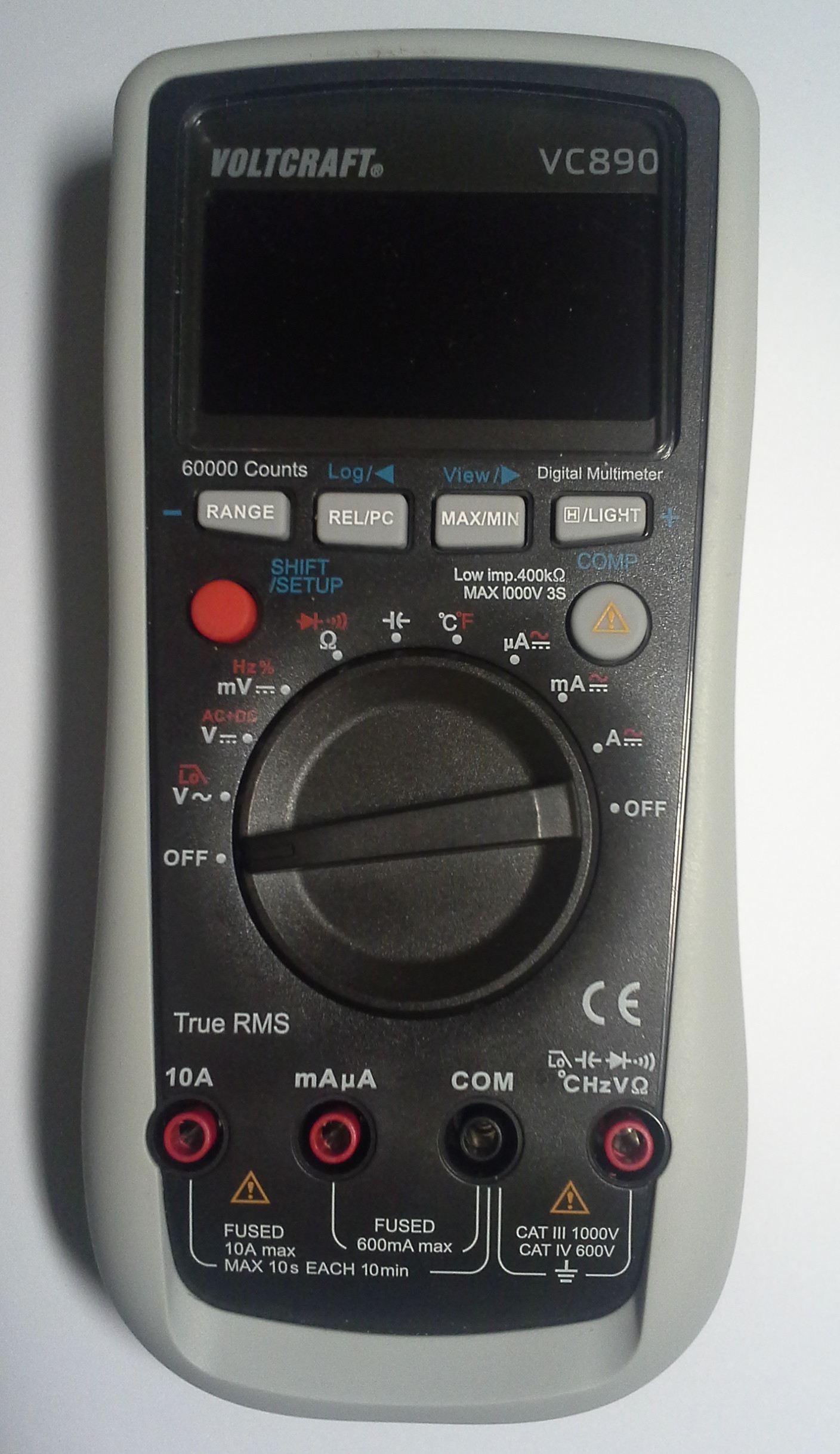

Voltcraft Vc890 Device Front
Voltcraft Vc890 Package Box

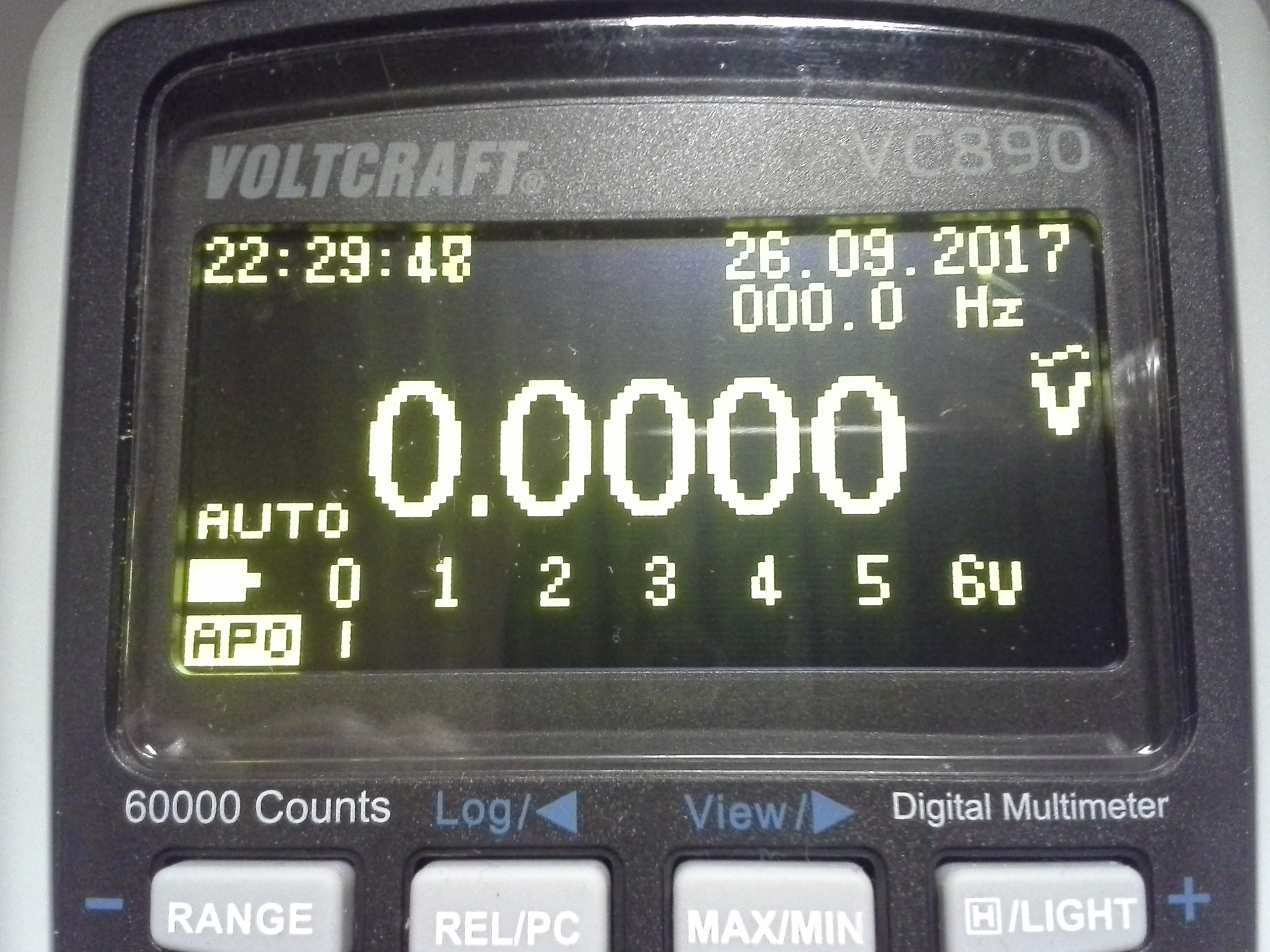

Voltcraft Vc890 Device Lcd

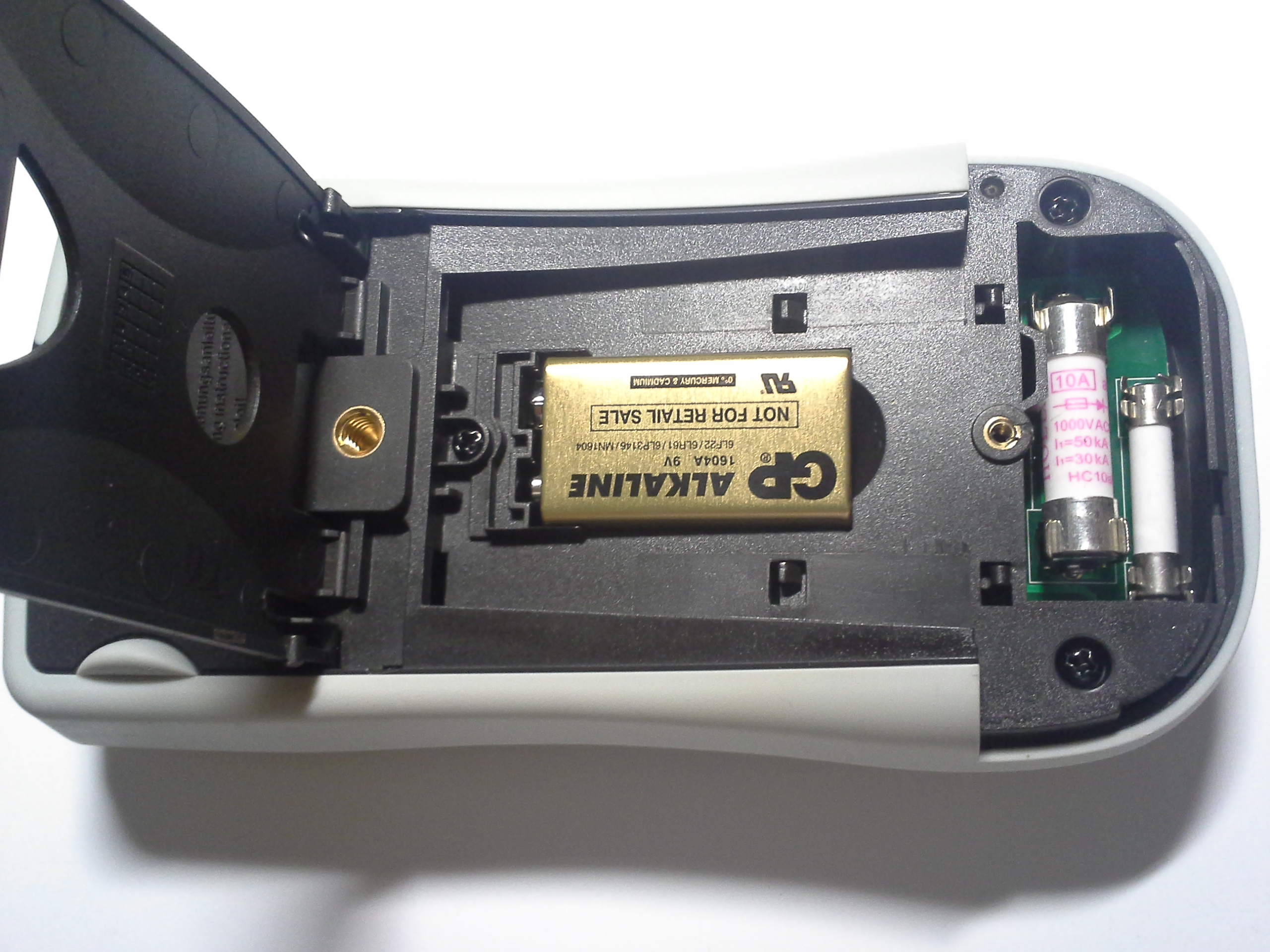

Voltcraft Vc890 Device Battery

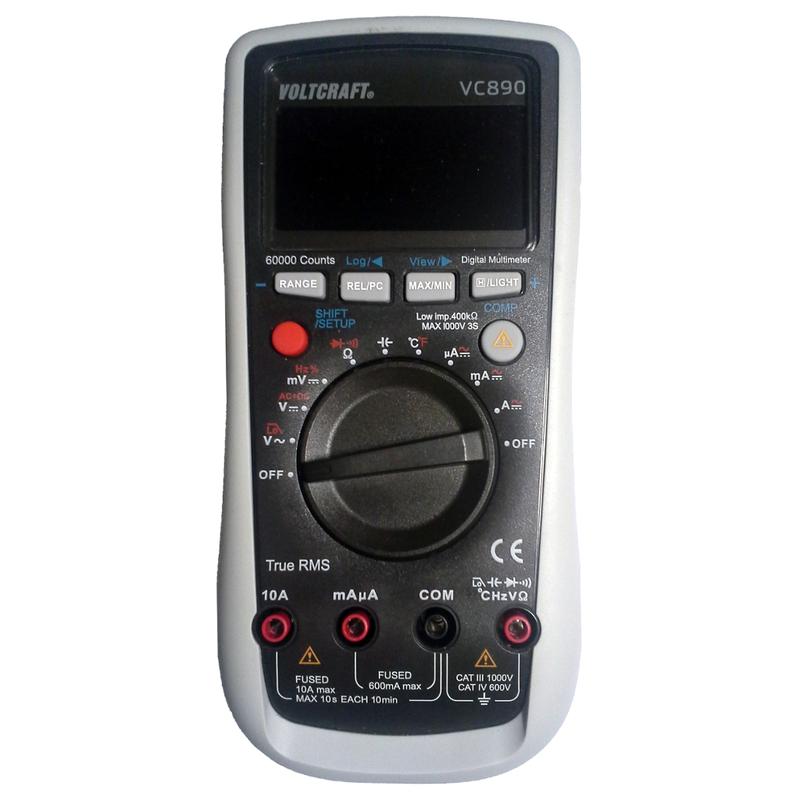

Voltcraft Vc890 Mugshot

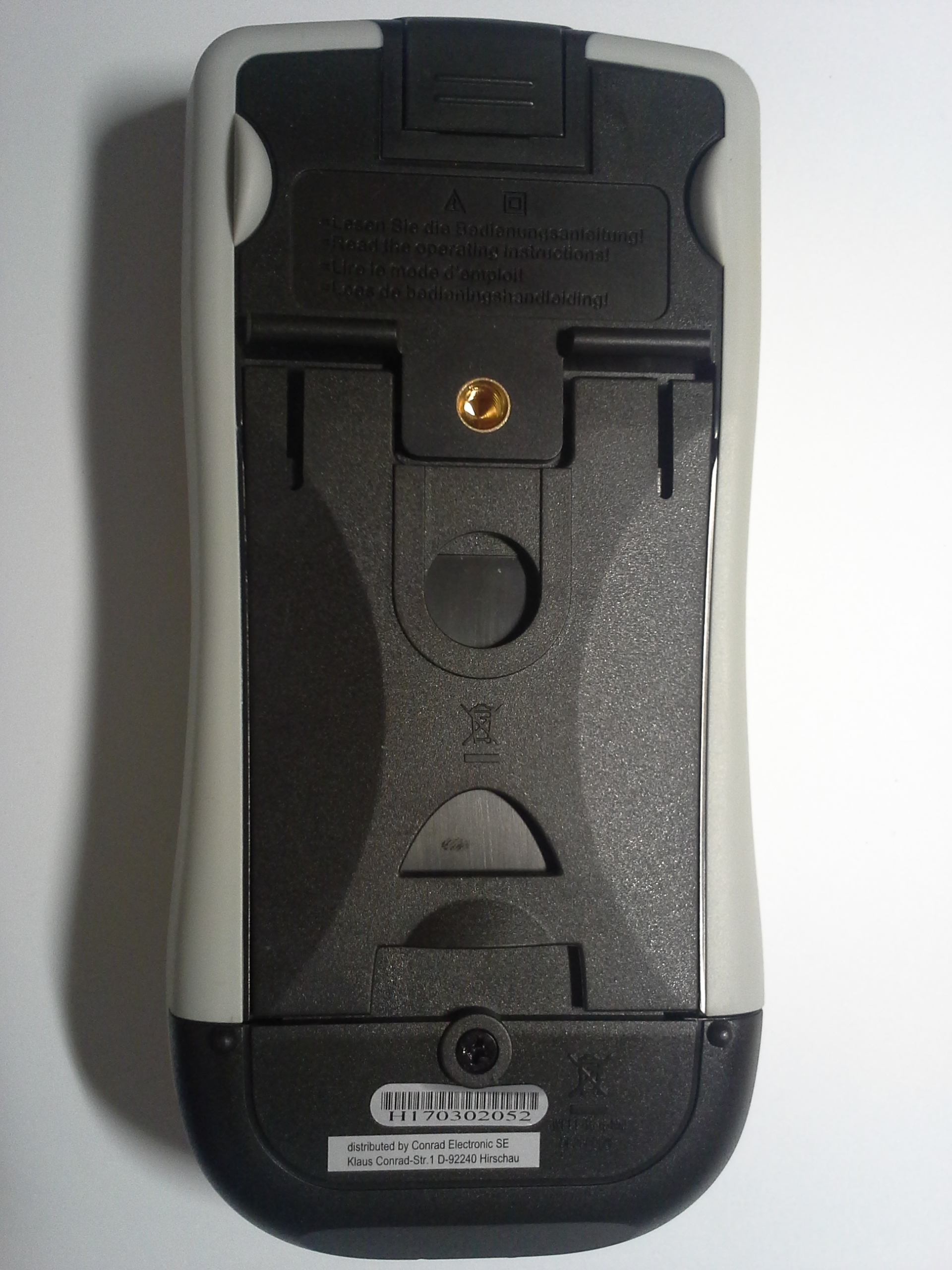

Voltcraft Vc890 Device Back

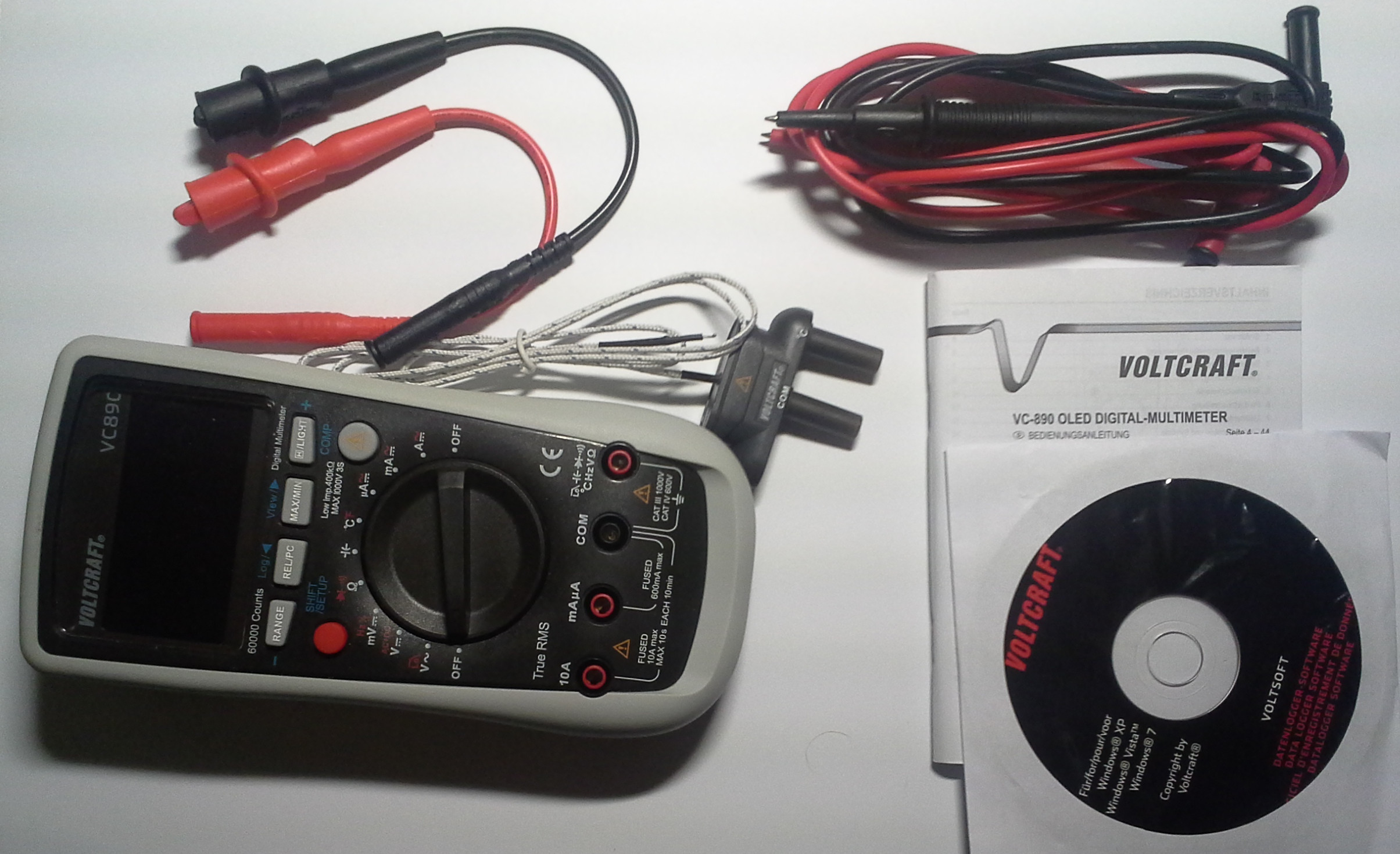

Voltcraft Vc890 Package Content

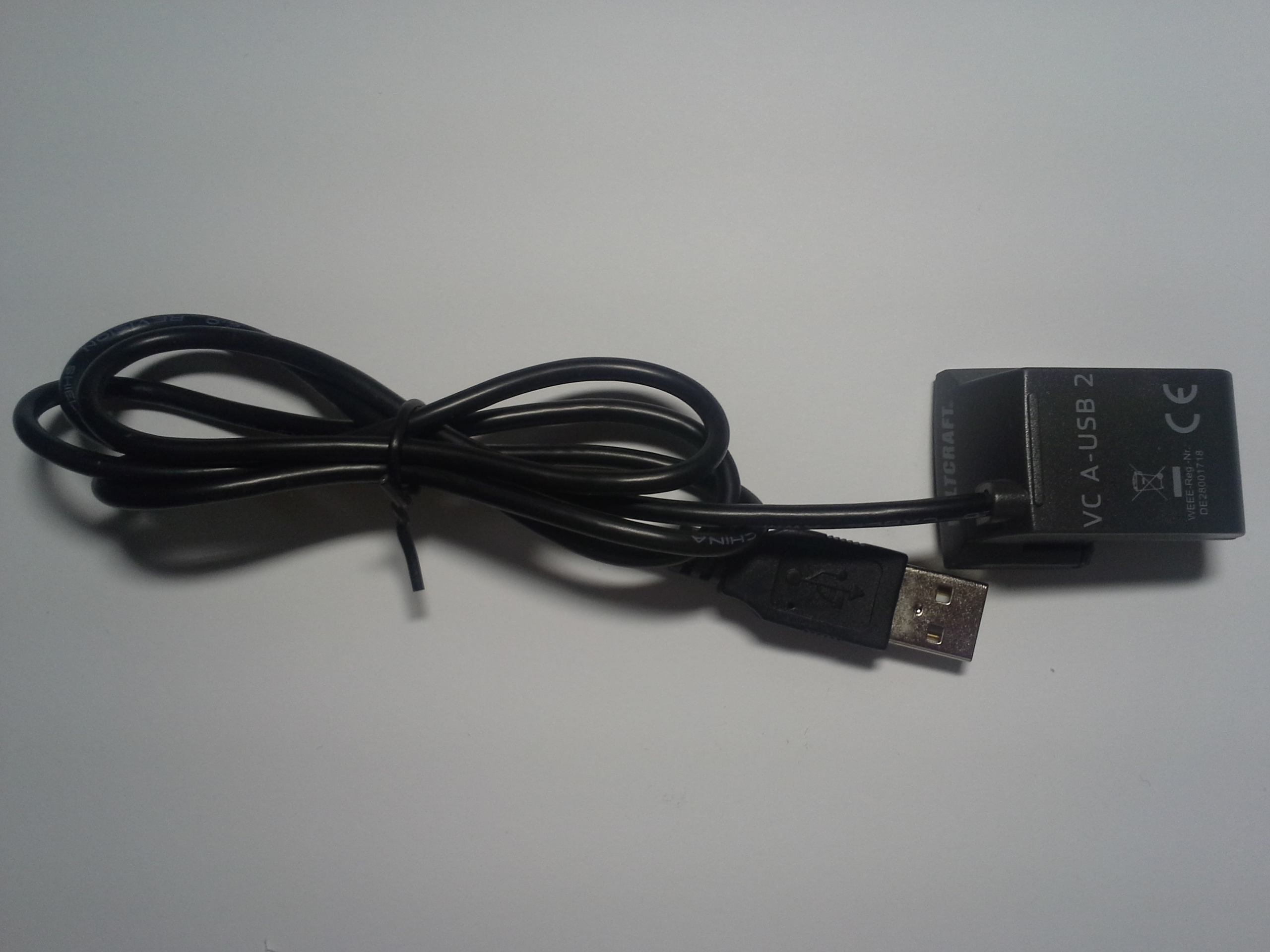

Voltcraft Vc890 Usb Cable 1

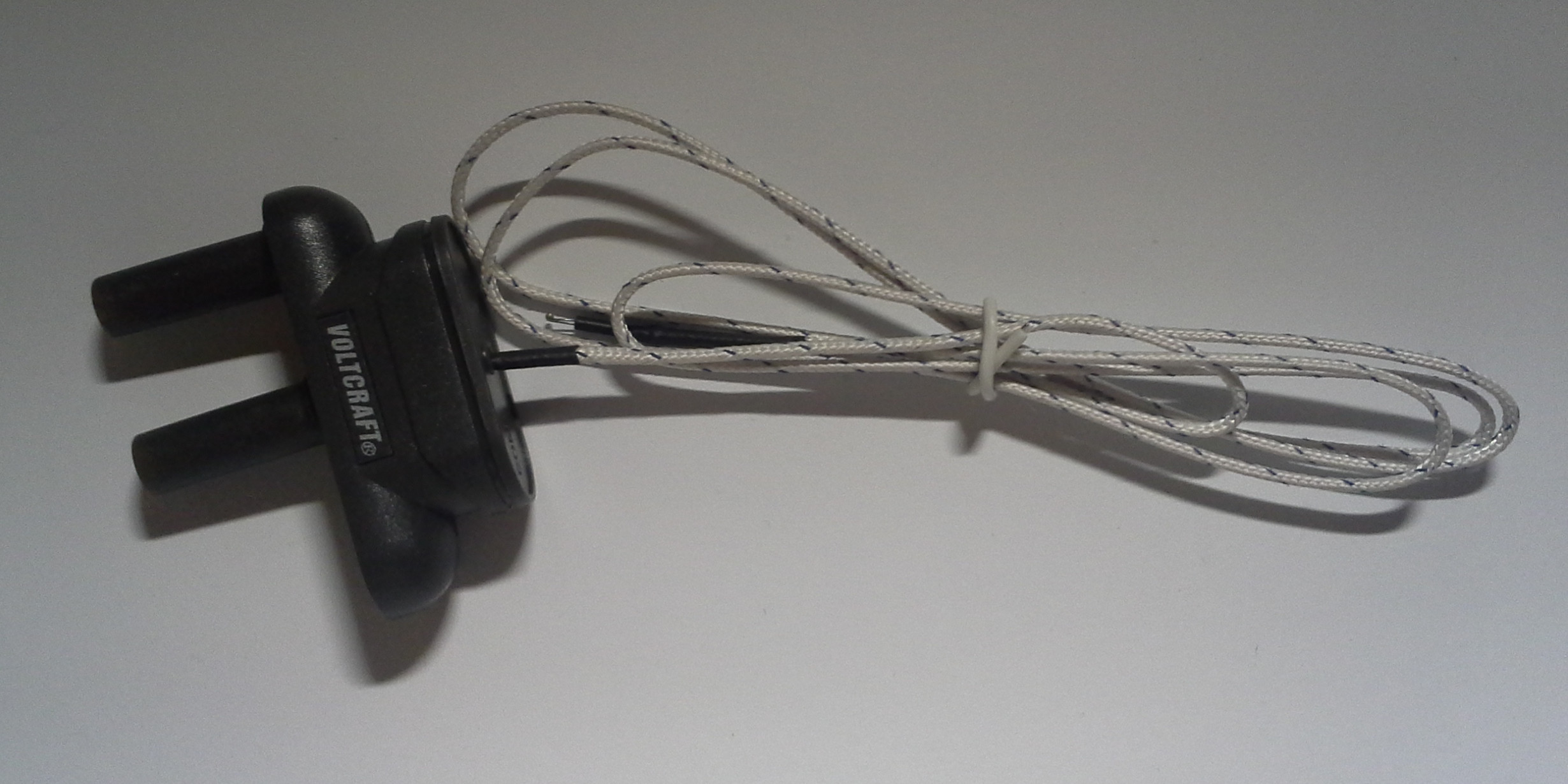

Voltcraft Vc890 Temperature Probe 1

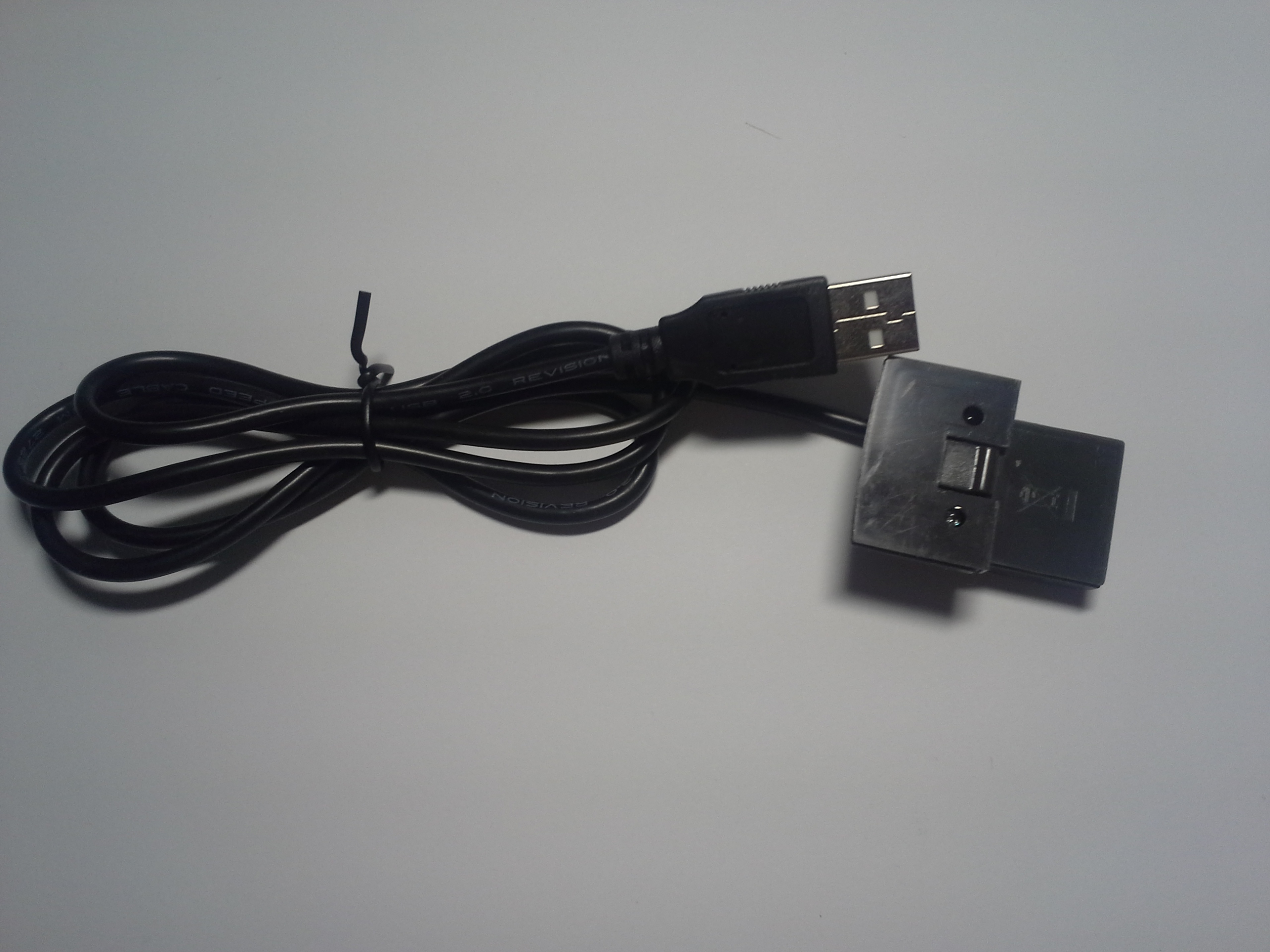

Voltcraft Vc890 Usb Cable 2
