Voltcraft VC-820¶
Voltcraft VC-820¶
| Status | supported |
| Source code | serial-dmm |
| Counts | 4000 |
| IEC 61010-1 | CAT III (1000V) / CAT IV (600V) |
| Connectivity | RS232 / USB |
| Measurements | voltage, resistance, diode, continuity, capacitance, frequency, duty cycle, current |
| Features | autorange, hold, relative |
| Website | conrad.de |
The Voltcraft VC-820 is a 4000 counts, CAT III (1000V) / CAT IV (600V) handheld digital multimeter with RS232 or USB connectivity.
Hardware¶
Multimeter:
- Multimeter IC: Fortune Semiconductor FS9721_LP3 (datasheet)
- Crystal: 4MHz
- Fuses: 10A/250V and 500mA/250V (glass fuses)
RS232 cable:
USB cable:
Photos¶
Voltcraft Vc820 Crystal

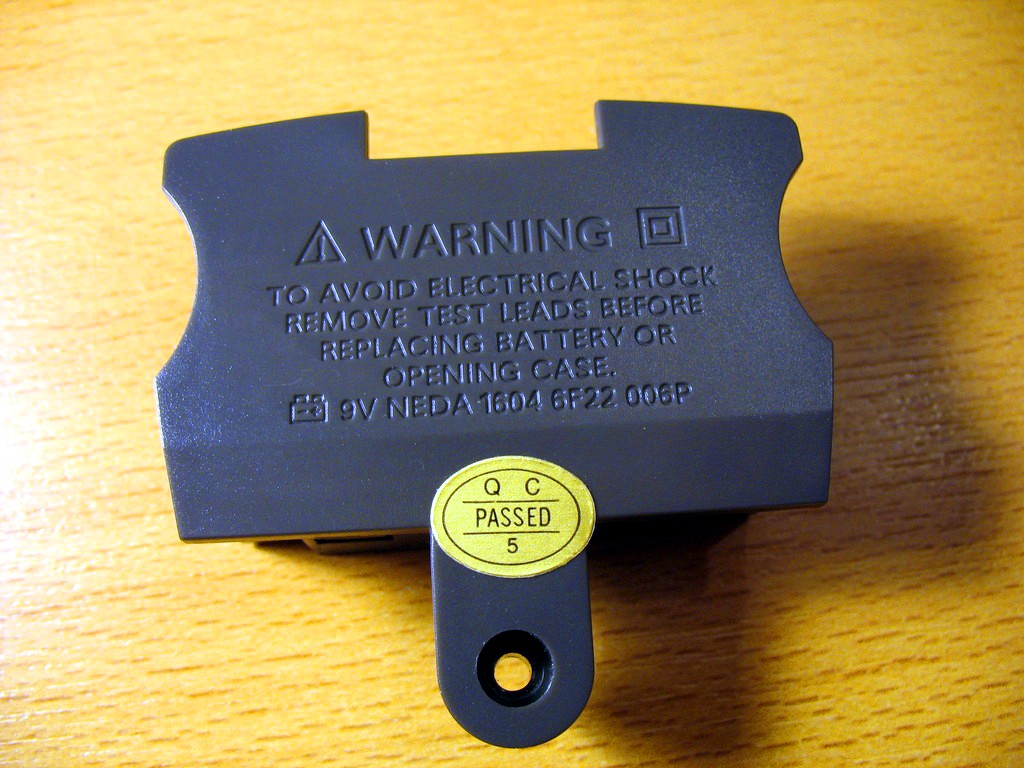

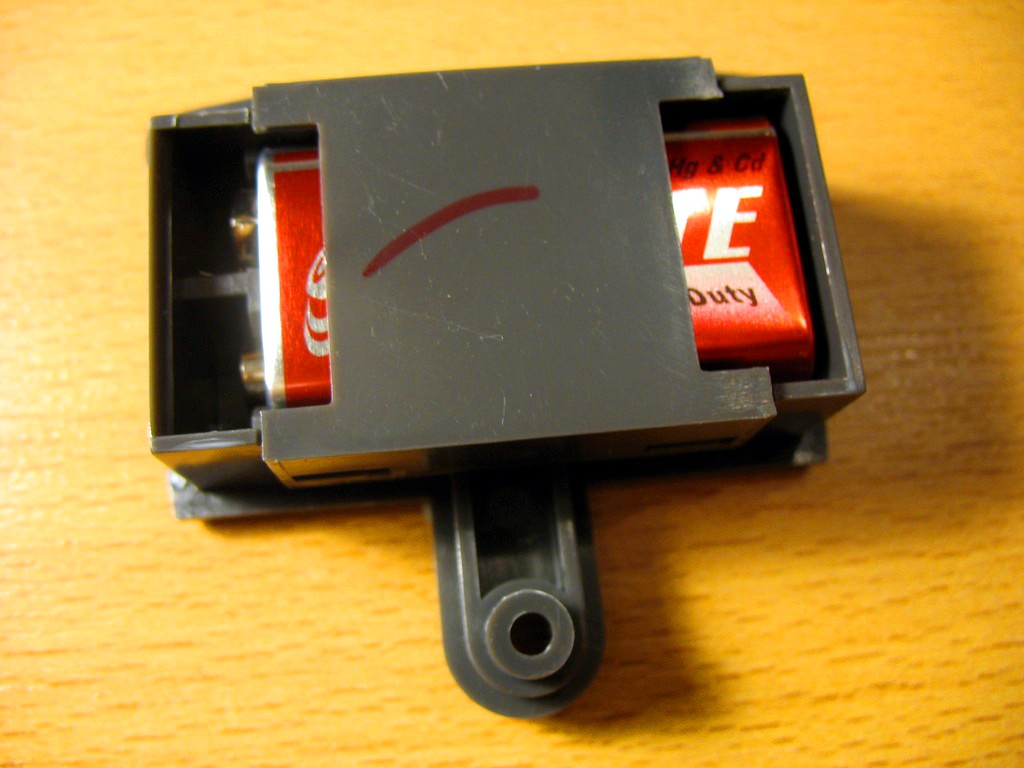

Voltcraft Vc820 Battery1

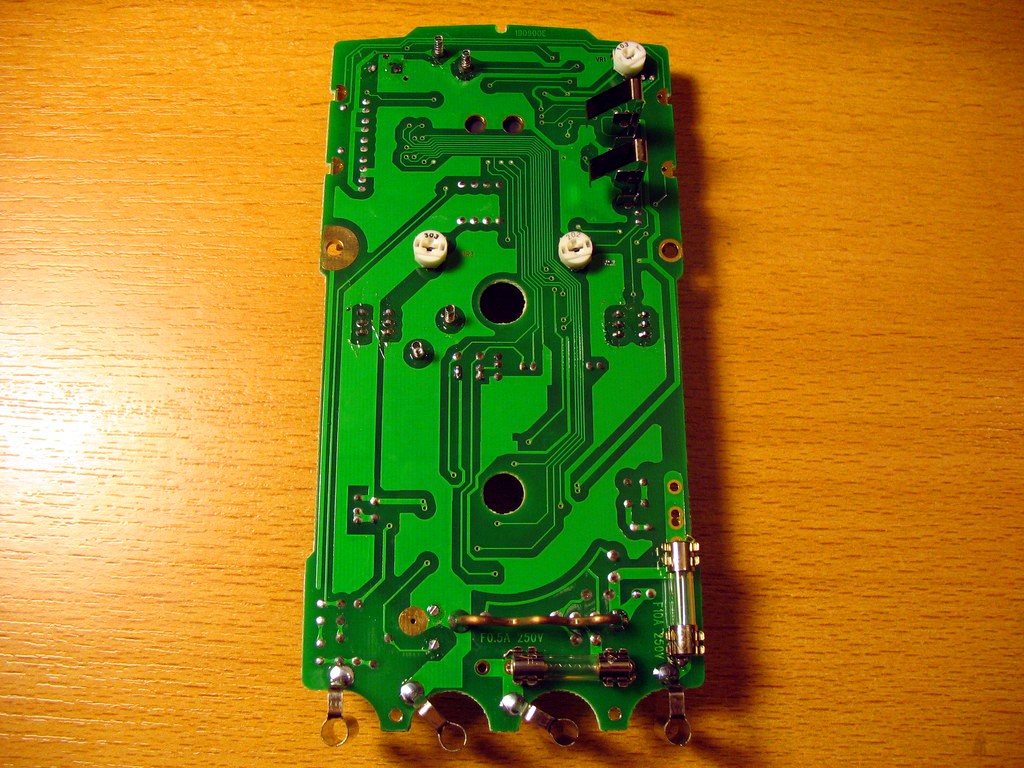

Voltcraft Vc820 Pcb Back

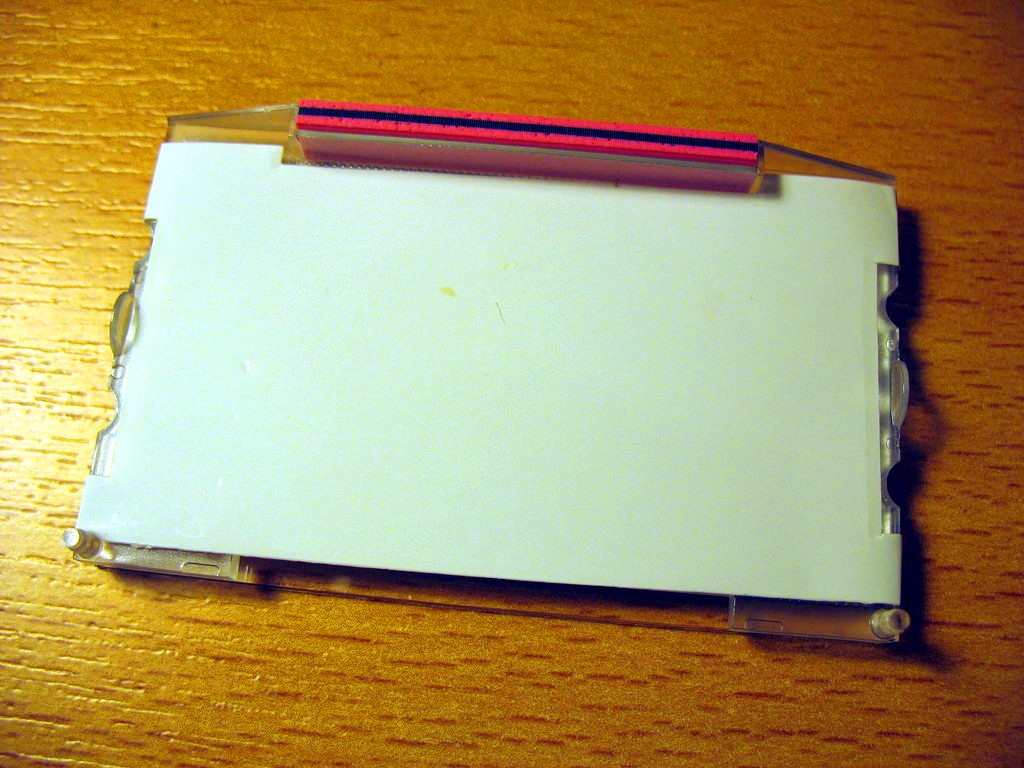

Voltcraft Vc820 Lcd Back

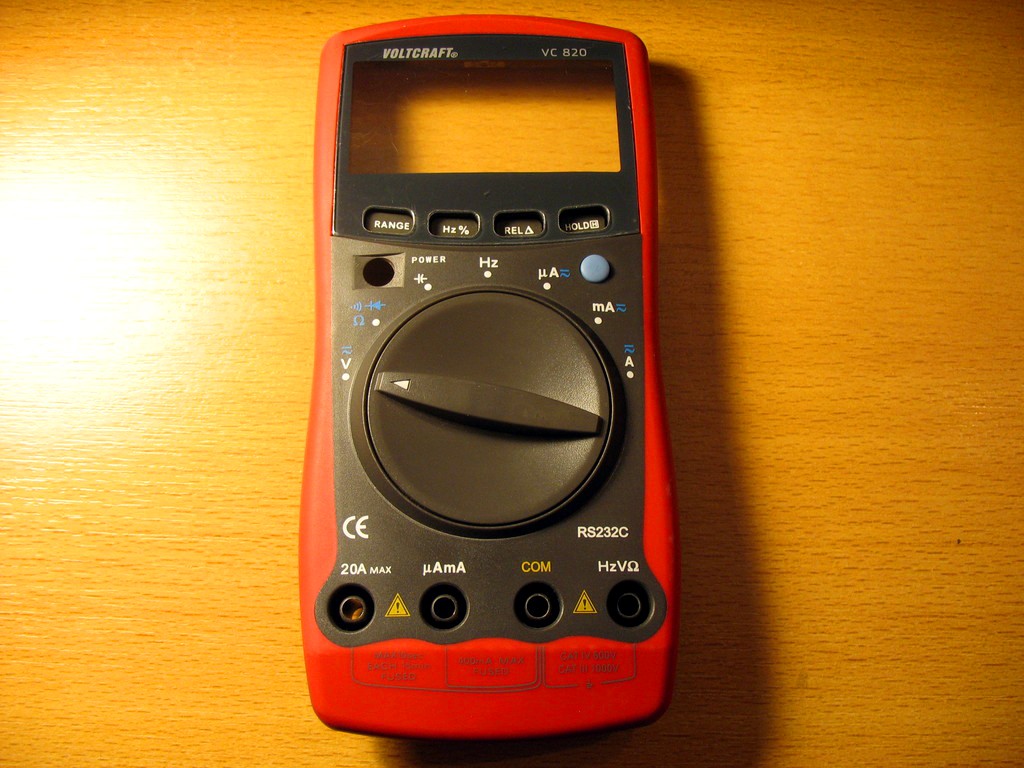

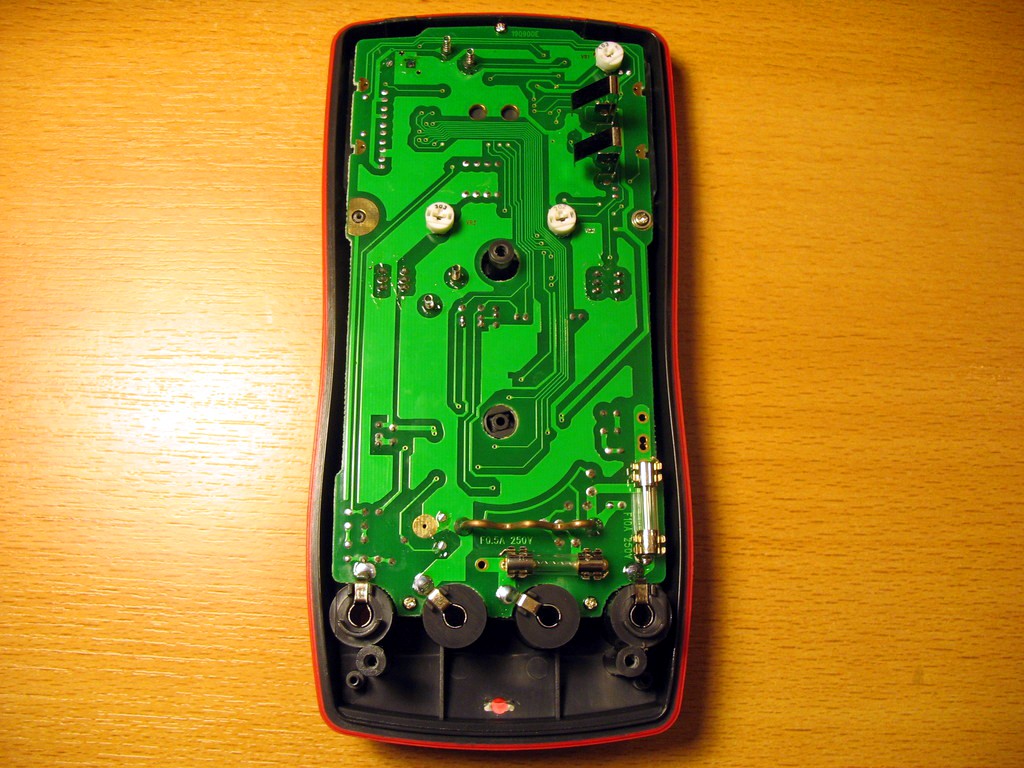

Voltcraft Vc820 Device Open2

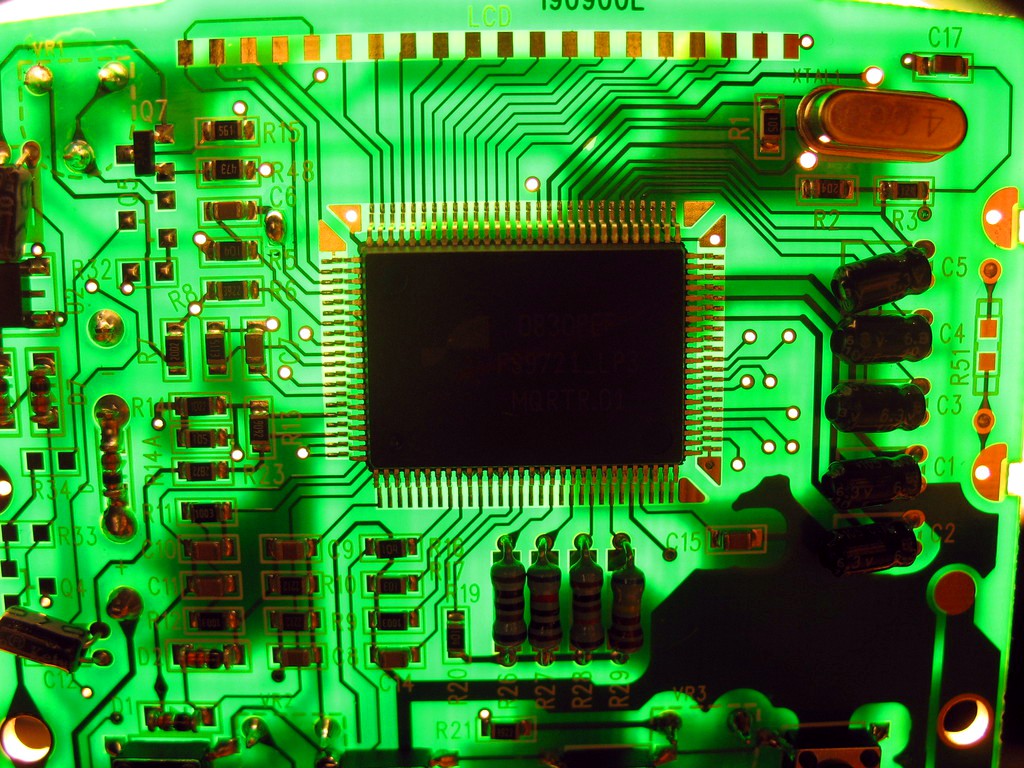

Voltcraft Vc820 Pcb Light1

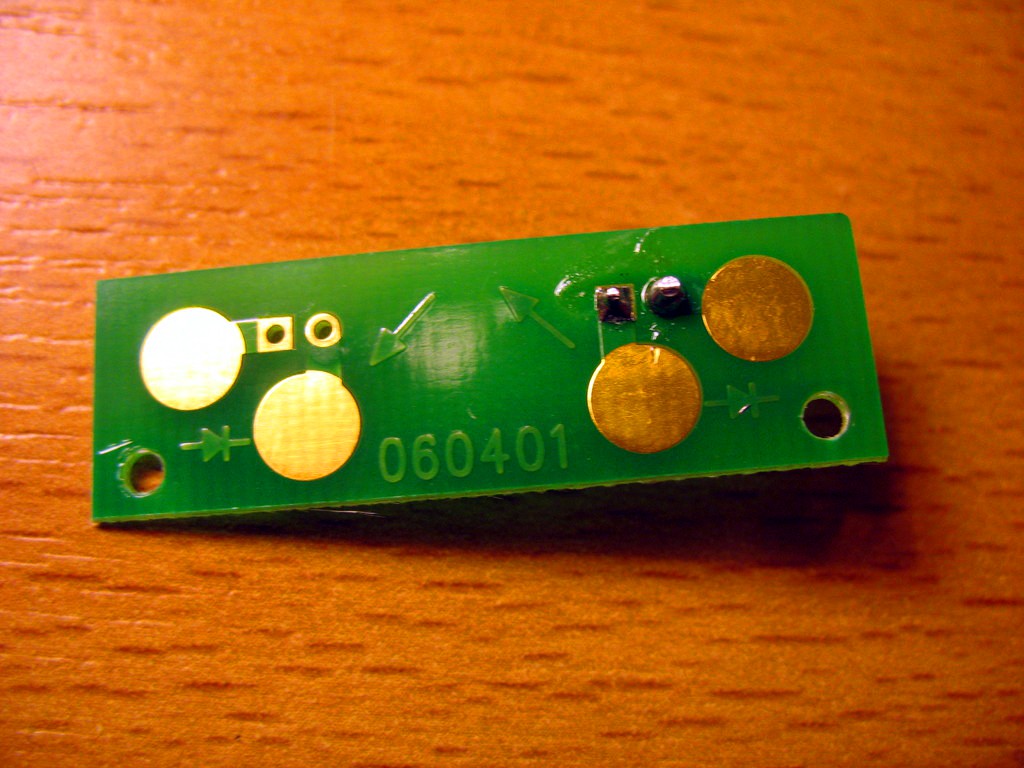

Voltcraft Vc820 Ir Pcb Top

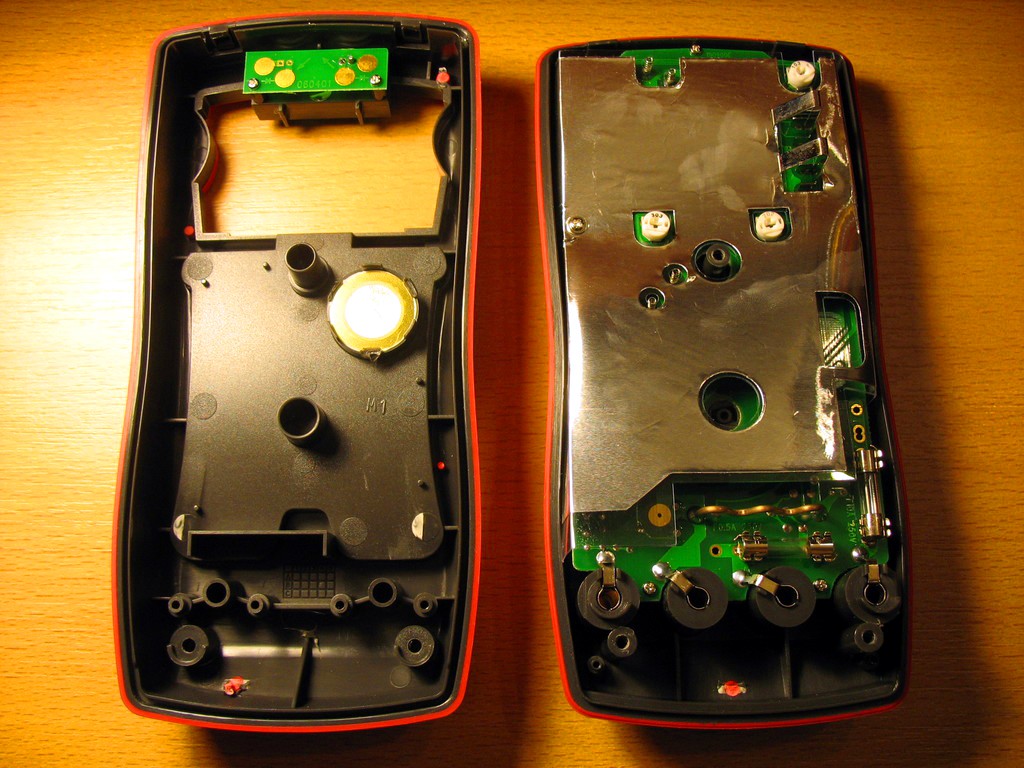

Voltcraft Vc820 Device Open1

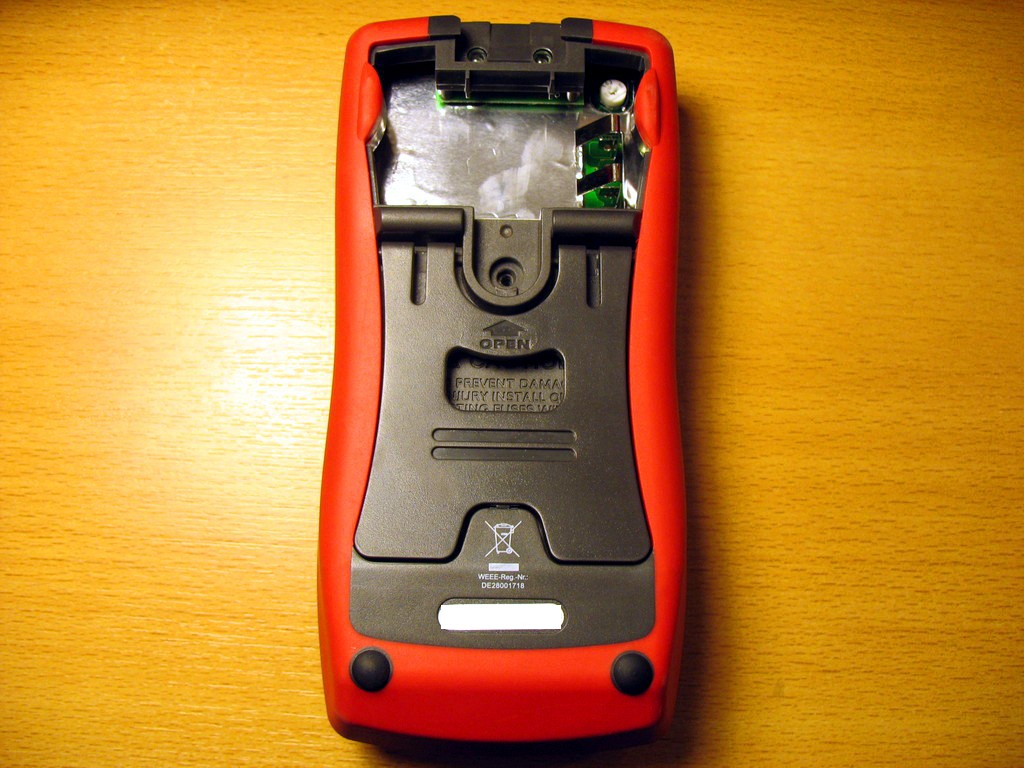

Voltcraft Vc820 Device Back2

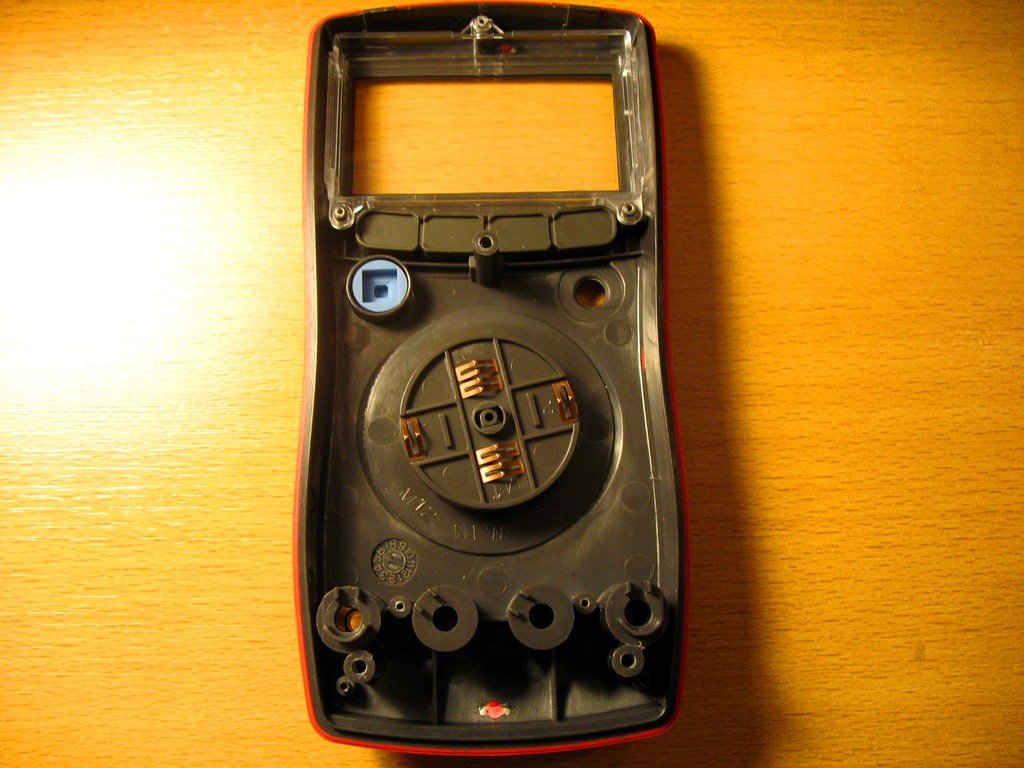

Voltcraft Vc820 Device Open3

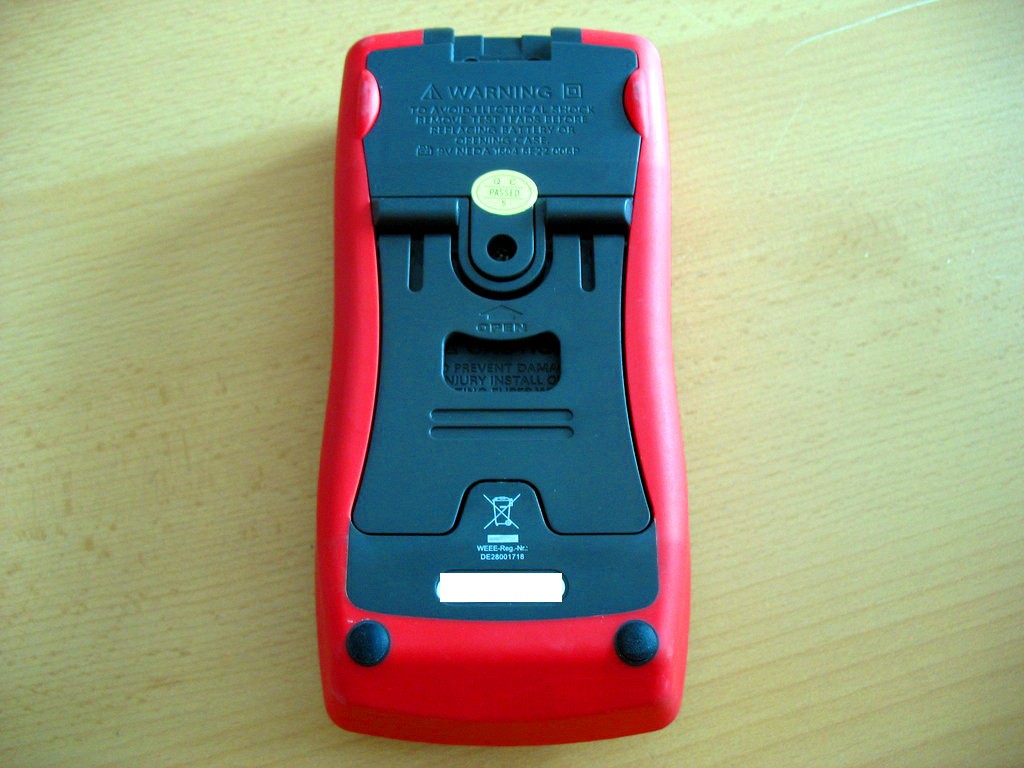

Voltcraft Vc820 Device Back1

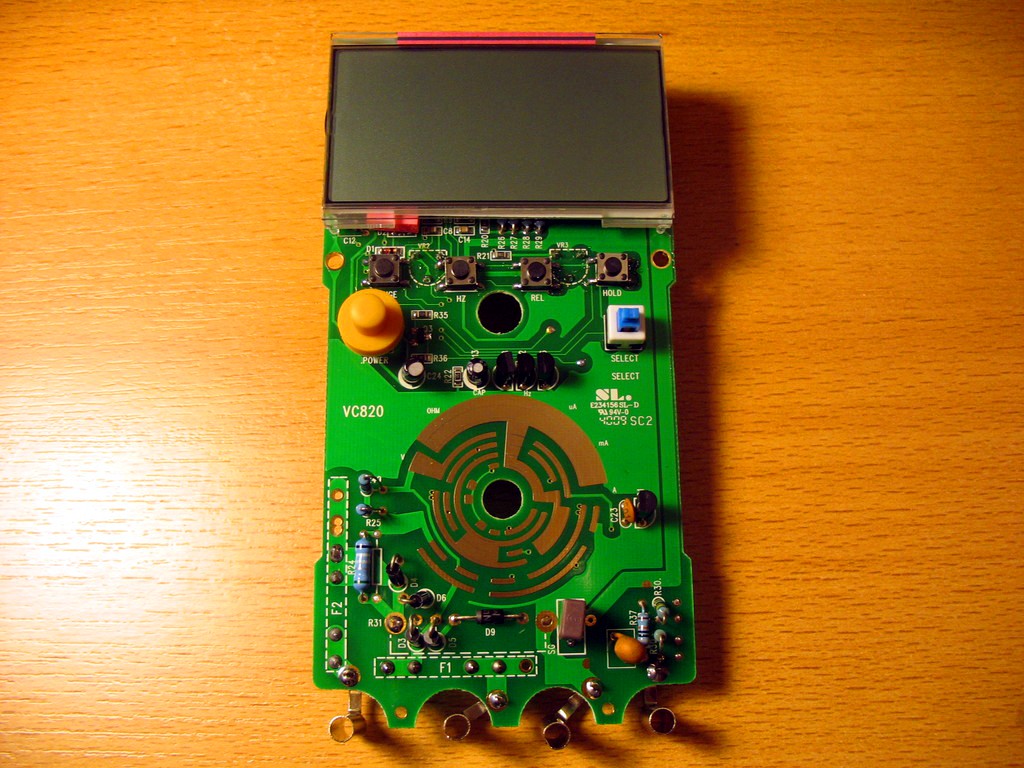

Voltcraft Vc820 Pcb Front With Lcd

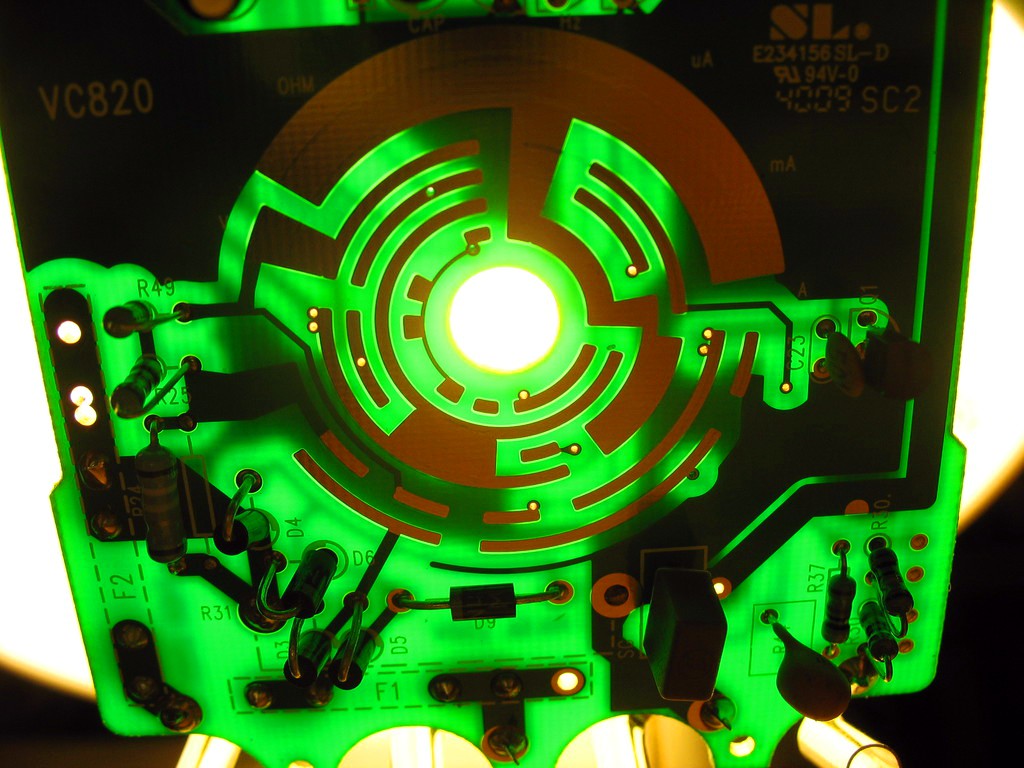

Voltcraft Vc820 Pcb Light2

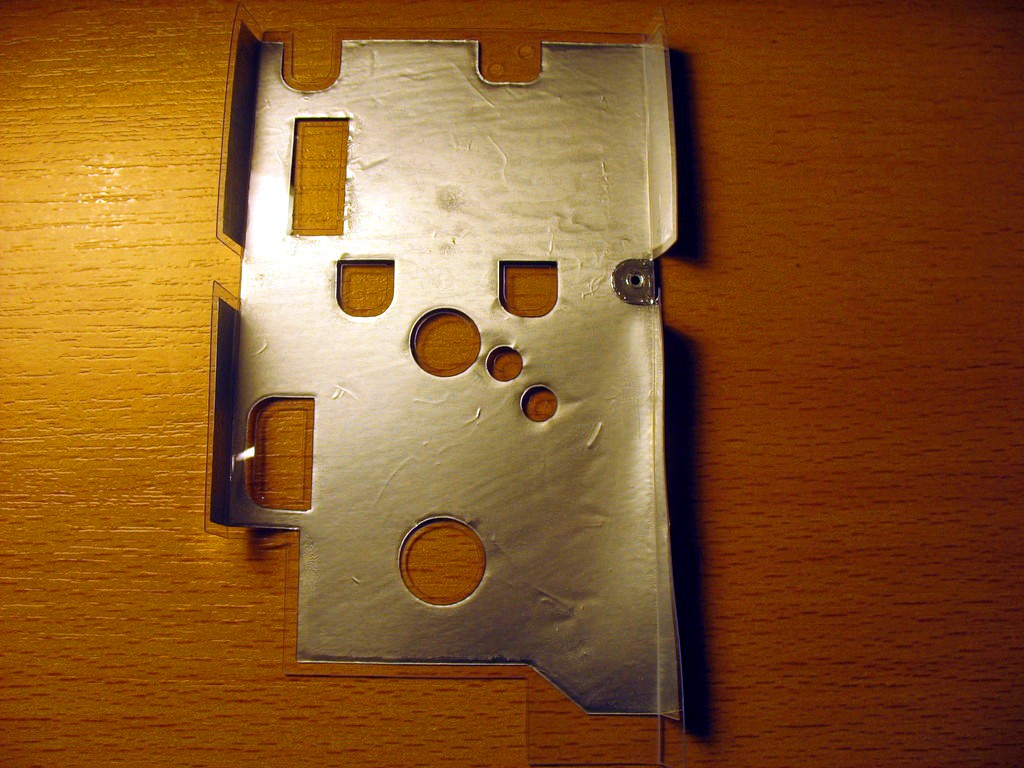

Voltcraft Vc820 Shielding

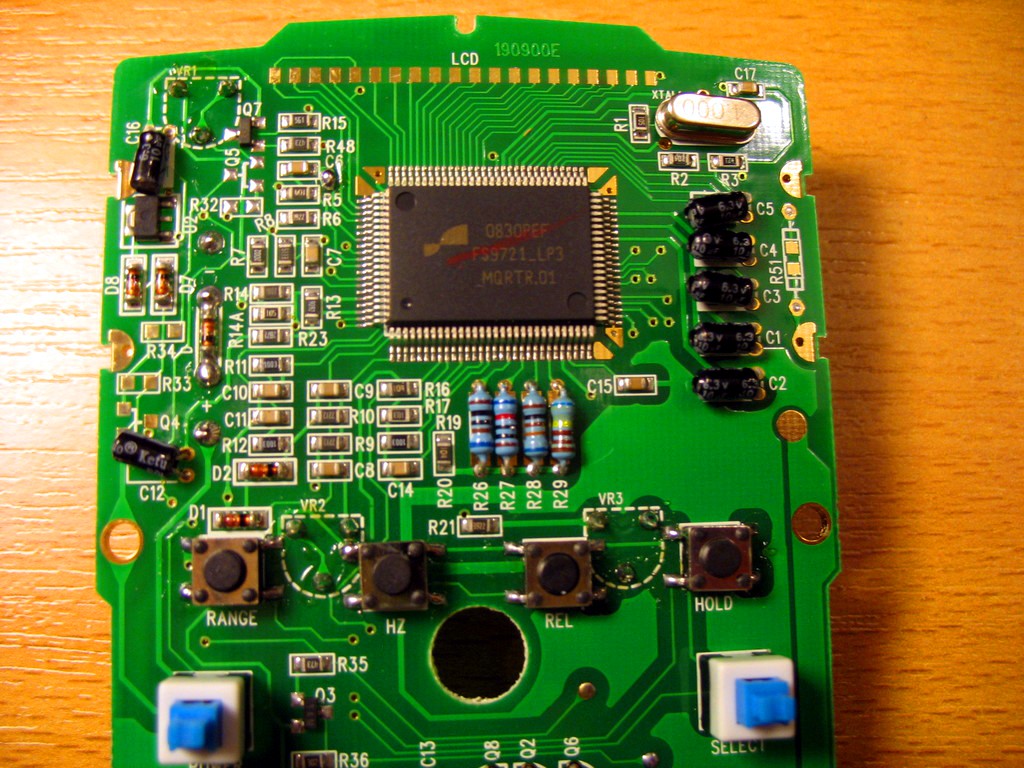

Voltcraft Vc820 Pcb Front Top

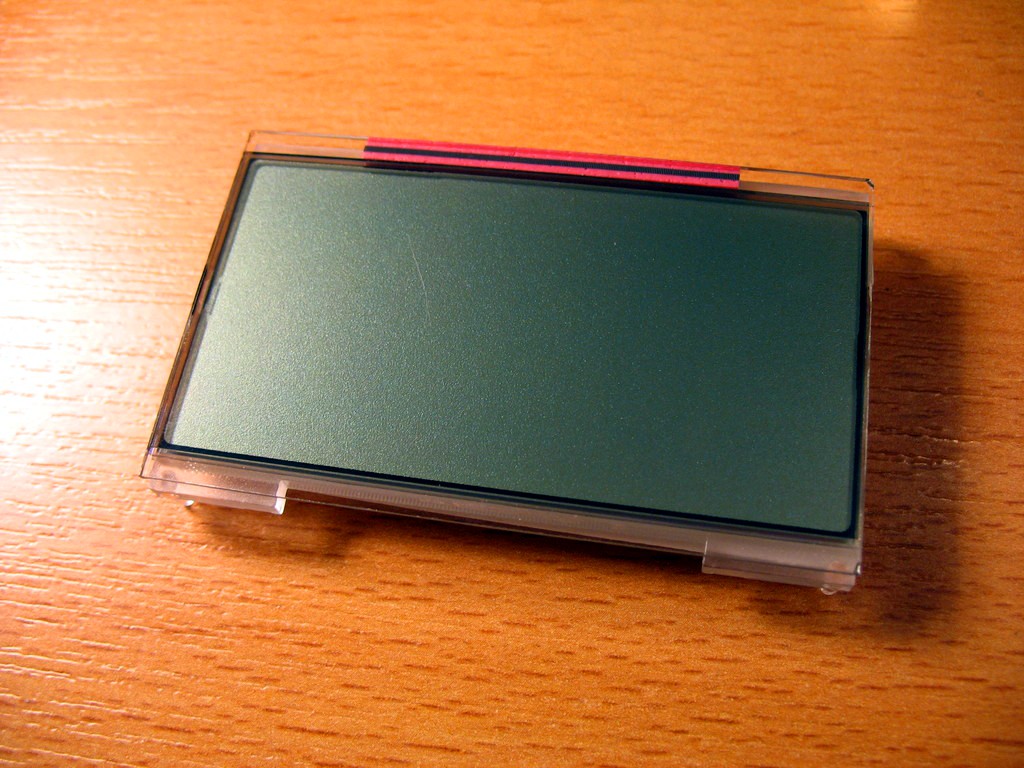

Voltcraft Vc820 Lcd Front

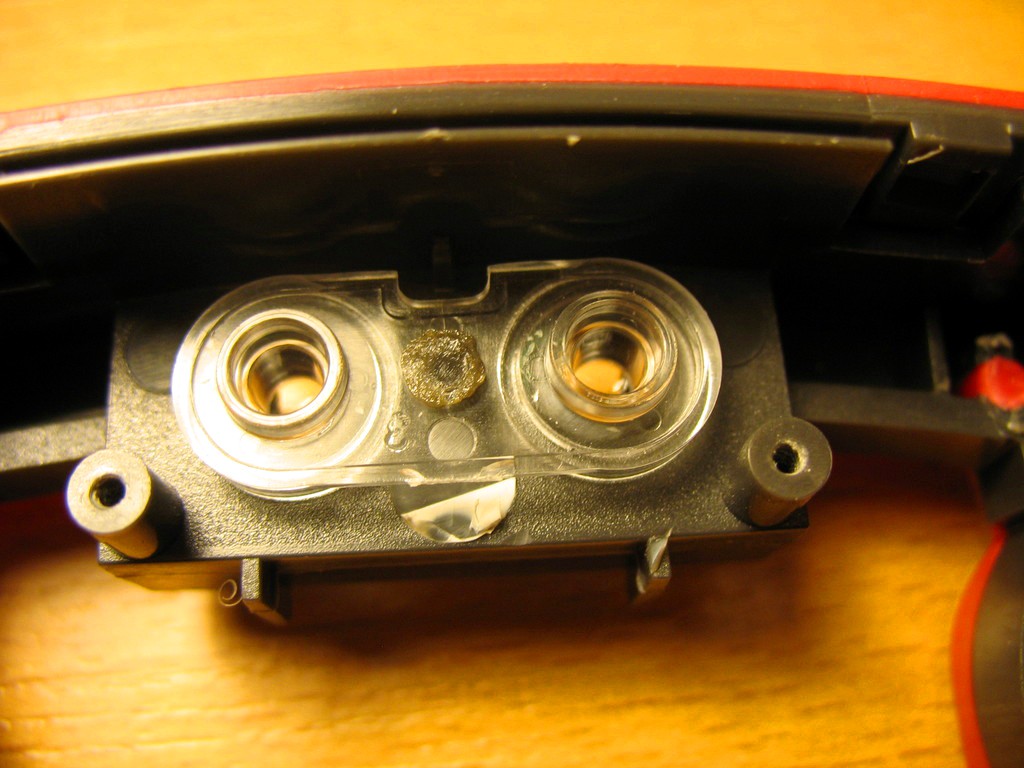

Voltcraft Vc820 Ir Part

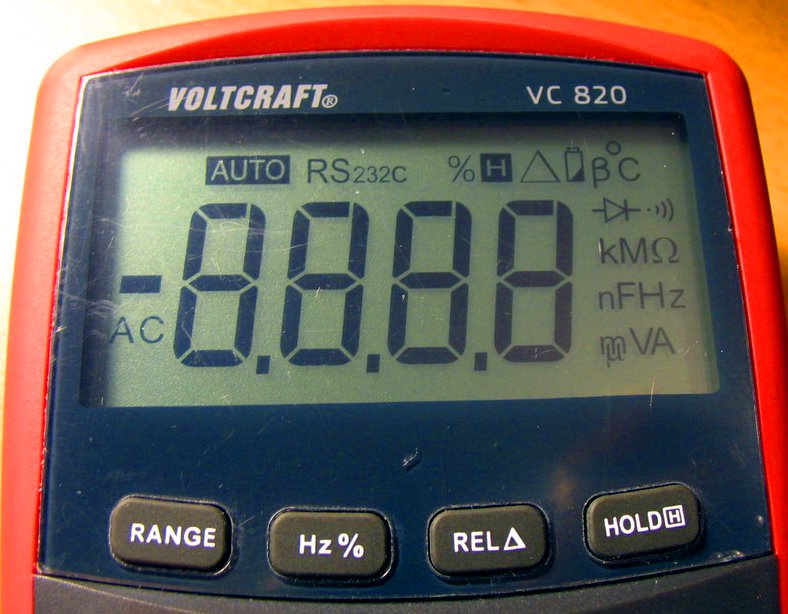

Voltcraft Vc820 Lcd

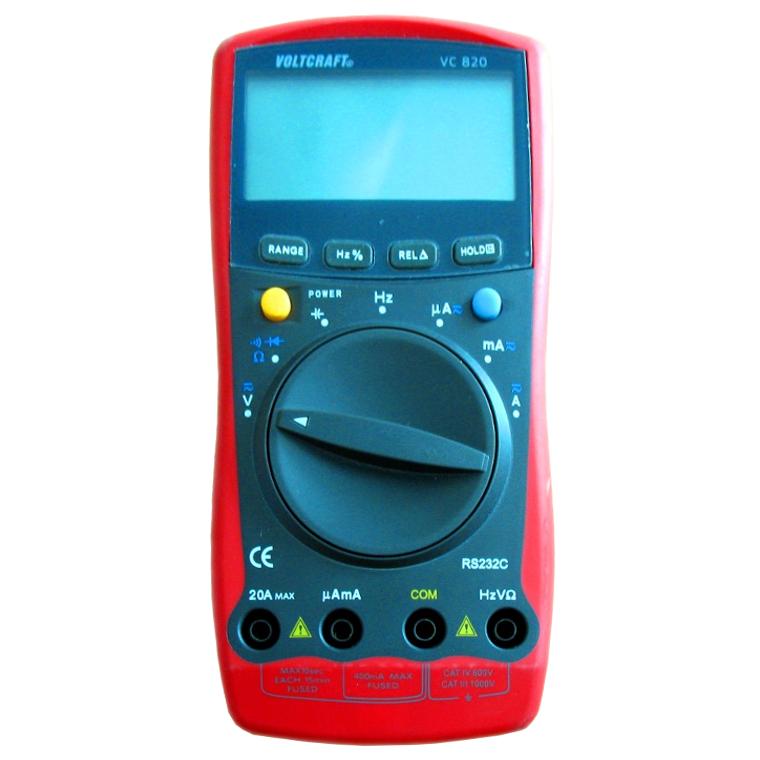

Voltcraft Vc820 Device

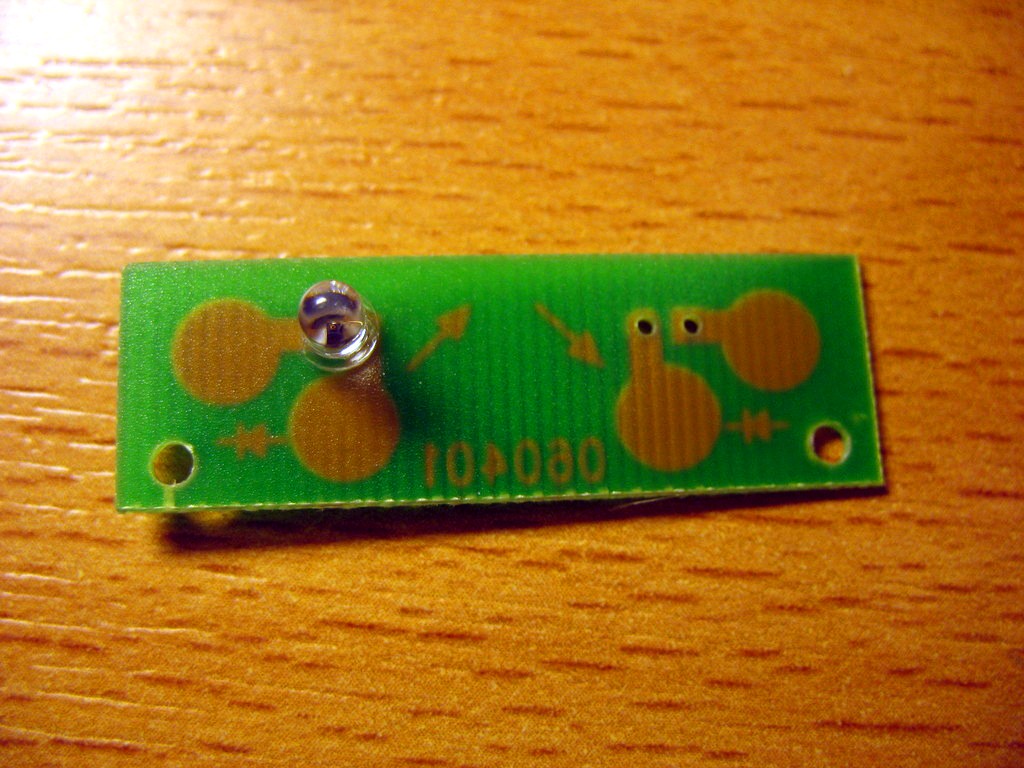

Voltcraft Vc820 Ir Pcb Bottom
Voltcraft Vc820 Device

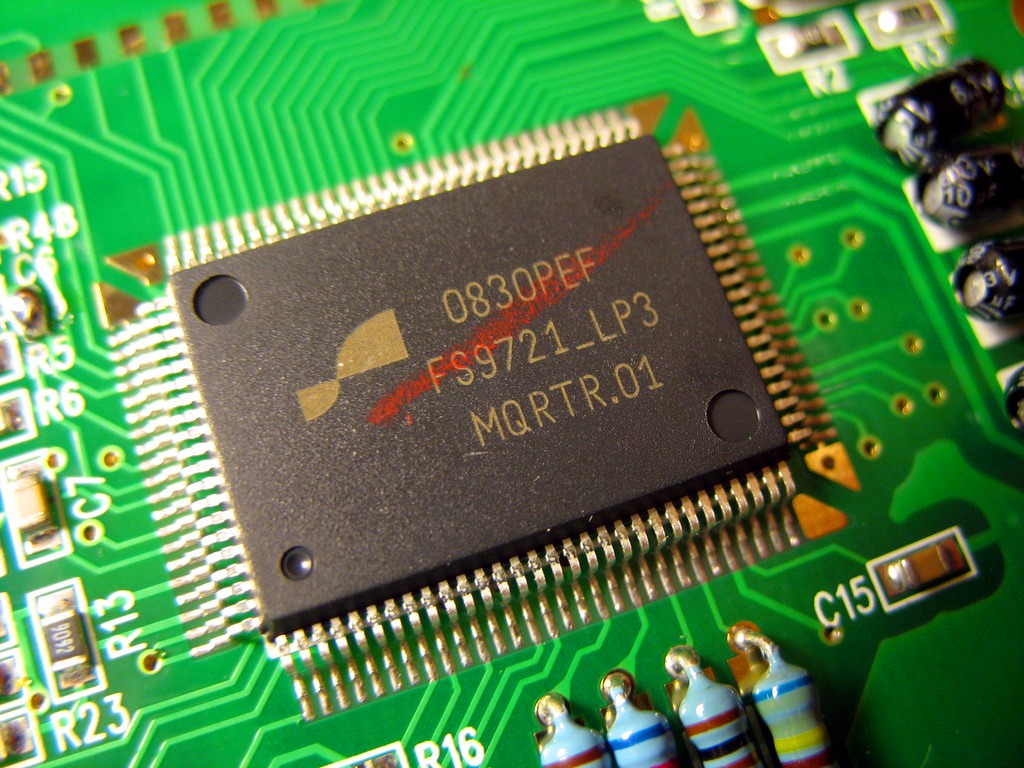

Voltcraft Vc820 Fs9721 Lp3
Voltcraft Vc820 Device Open4
Voltcraft Vc820 Battery2
Protocol¶
See Multimeter_ICs#Fortune_Semiconductor_FS9721_LP3.
A short protocol description is also available from Voltcraft/Conrad.
