Voltcraft M-3850D

Voltcraft M-3850D

Status	planned
Source code	serial-dmm
Counts	4000
IEC 61010-1	unspecified
Connectivity	RS232
Measurements	voltage, current, resistance, capacitance, continuity, diode, logic, frequency, hFE
Features	data hold, min/max, 10 reading memory

The Voltcraft M-3850D is a 4000 counts handheld digital multimeter with RS-232 connectivity.

Hardware

TODO.

Photos

Voltcraft 3850d Front

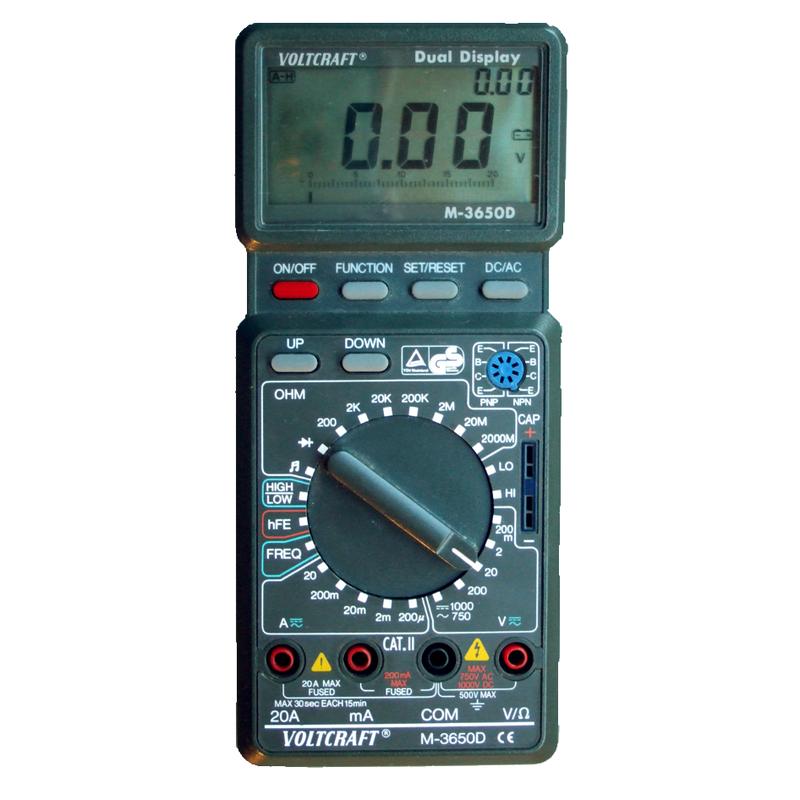

Voltcraft M 3650d Transparent

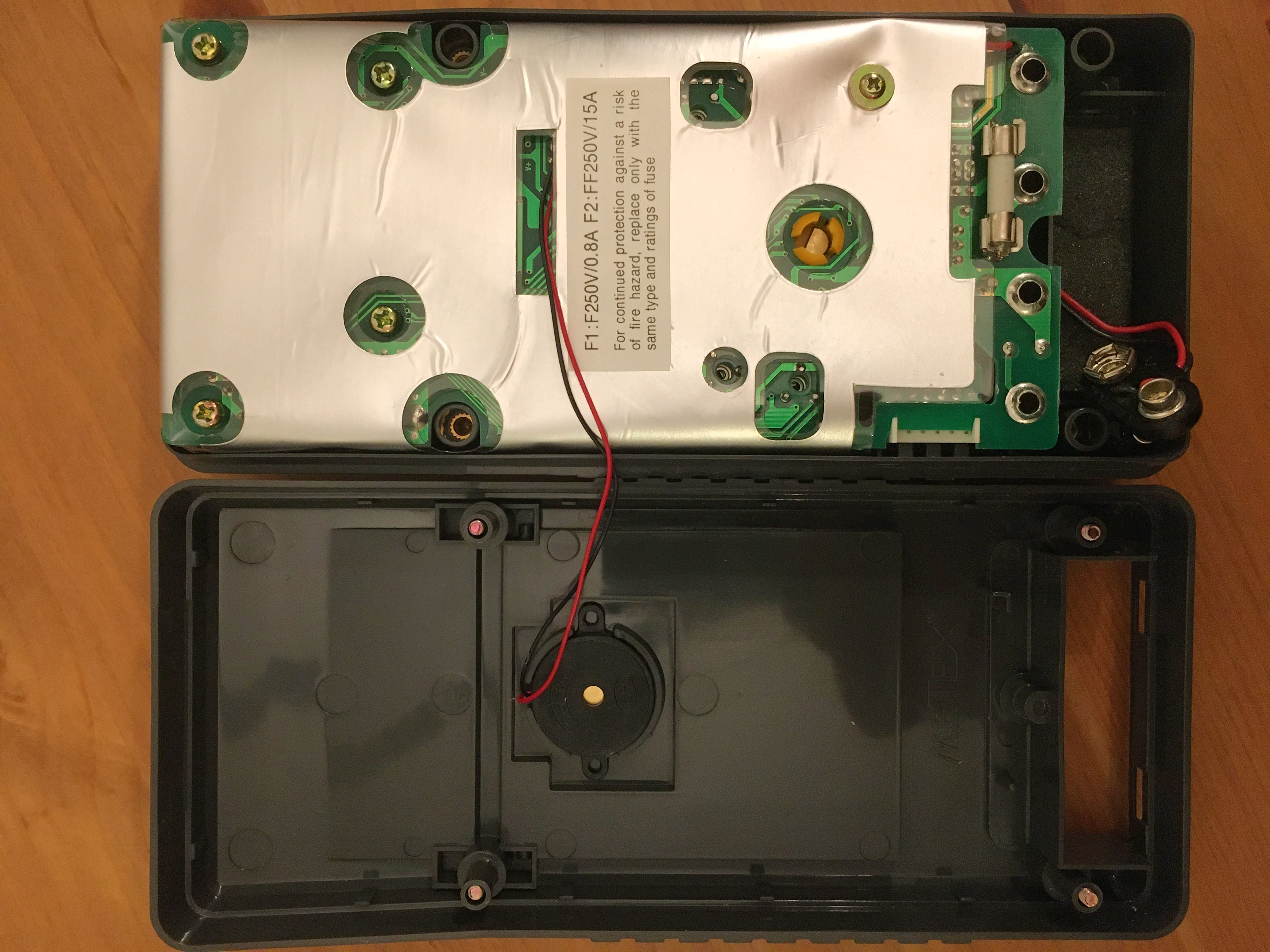

Voltcraft 3850d Open Back

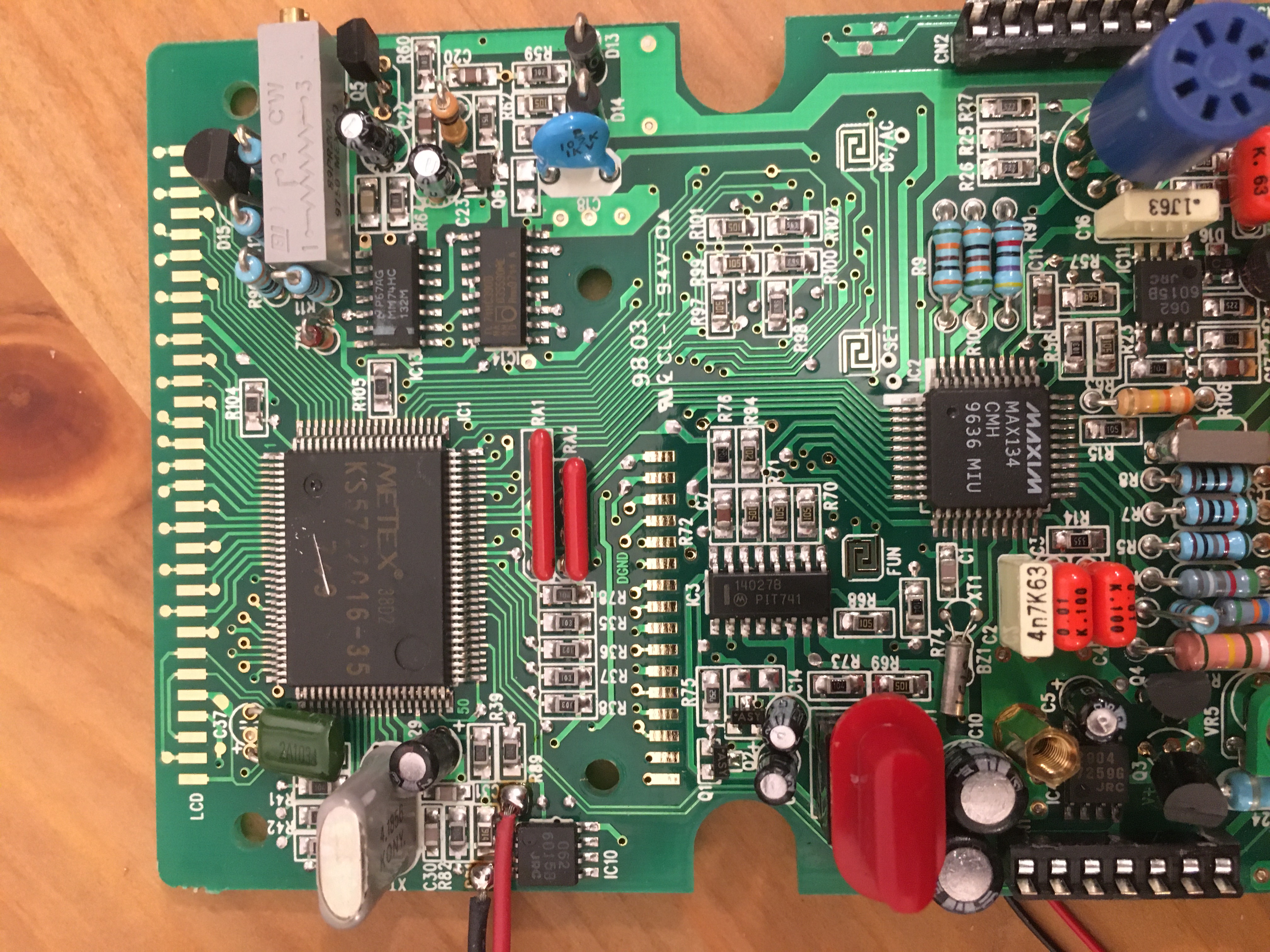

Voltcraft 3850d Open Front Display Removed

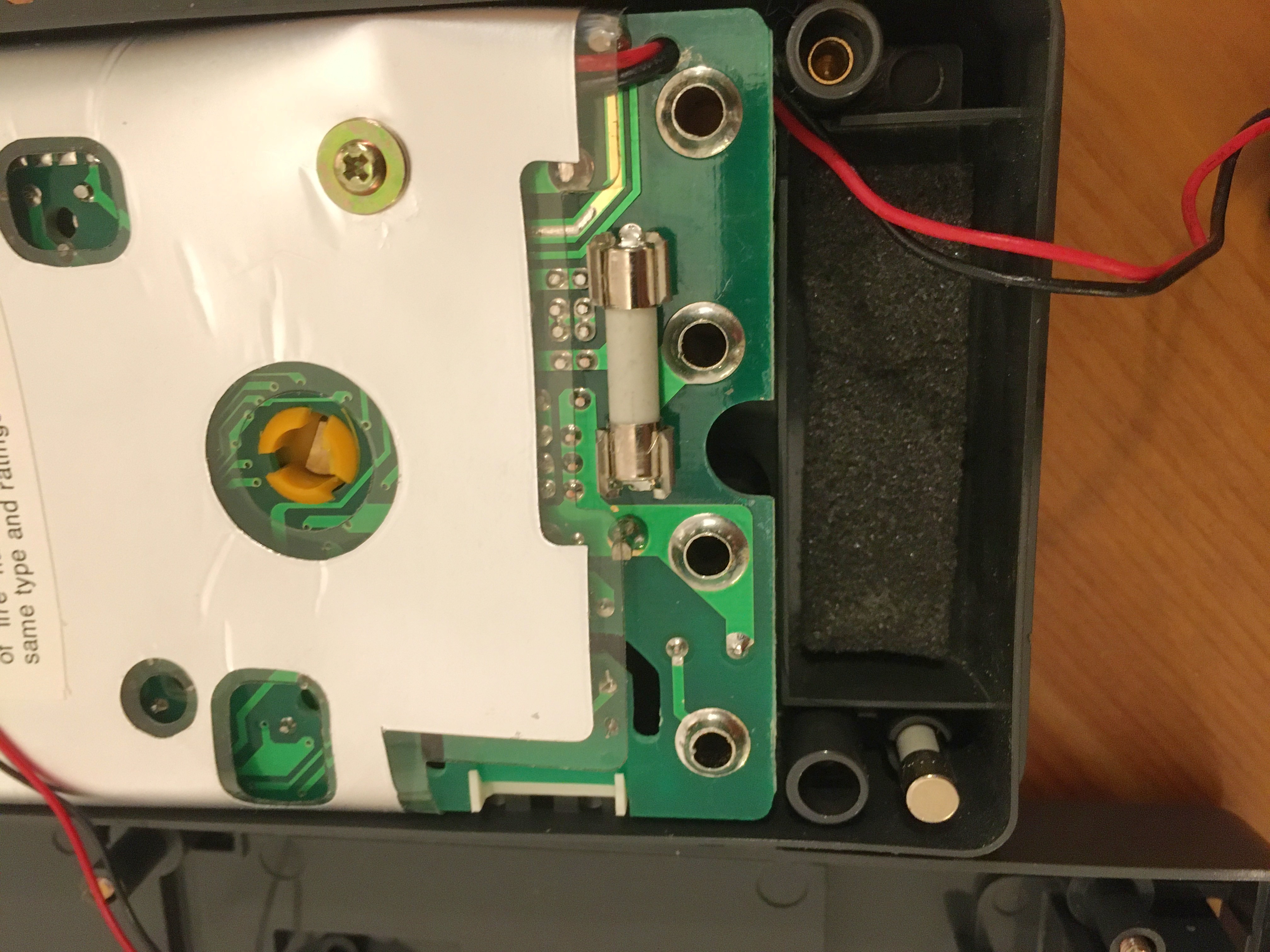

Voltcraft 3850d Open Detail Fuse

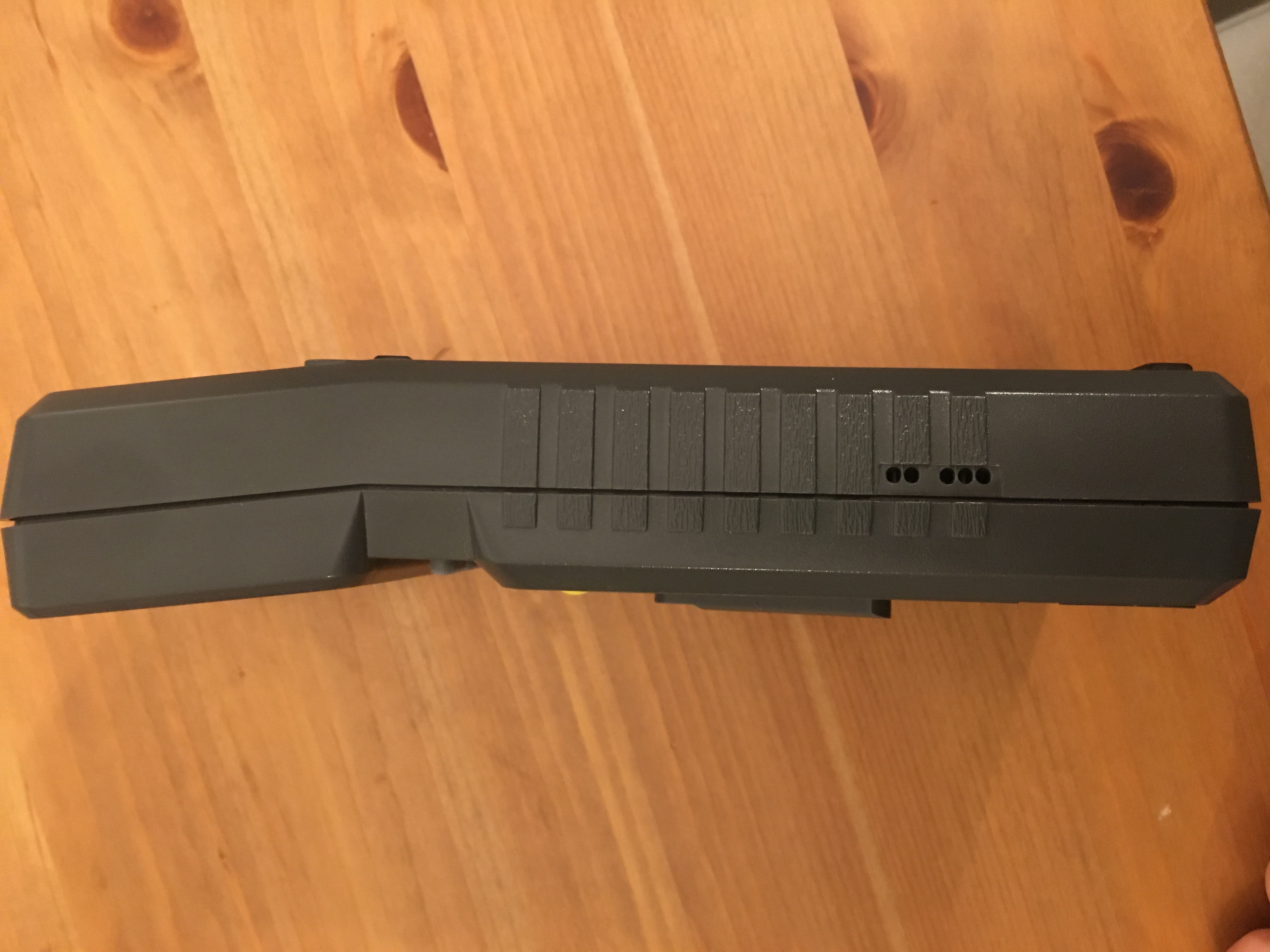

Voltcraft 3850d Right Side

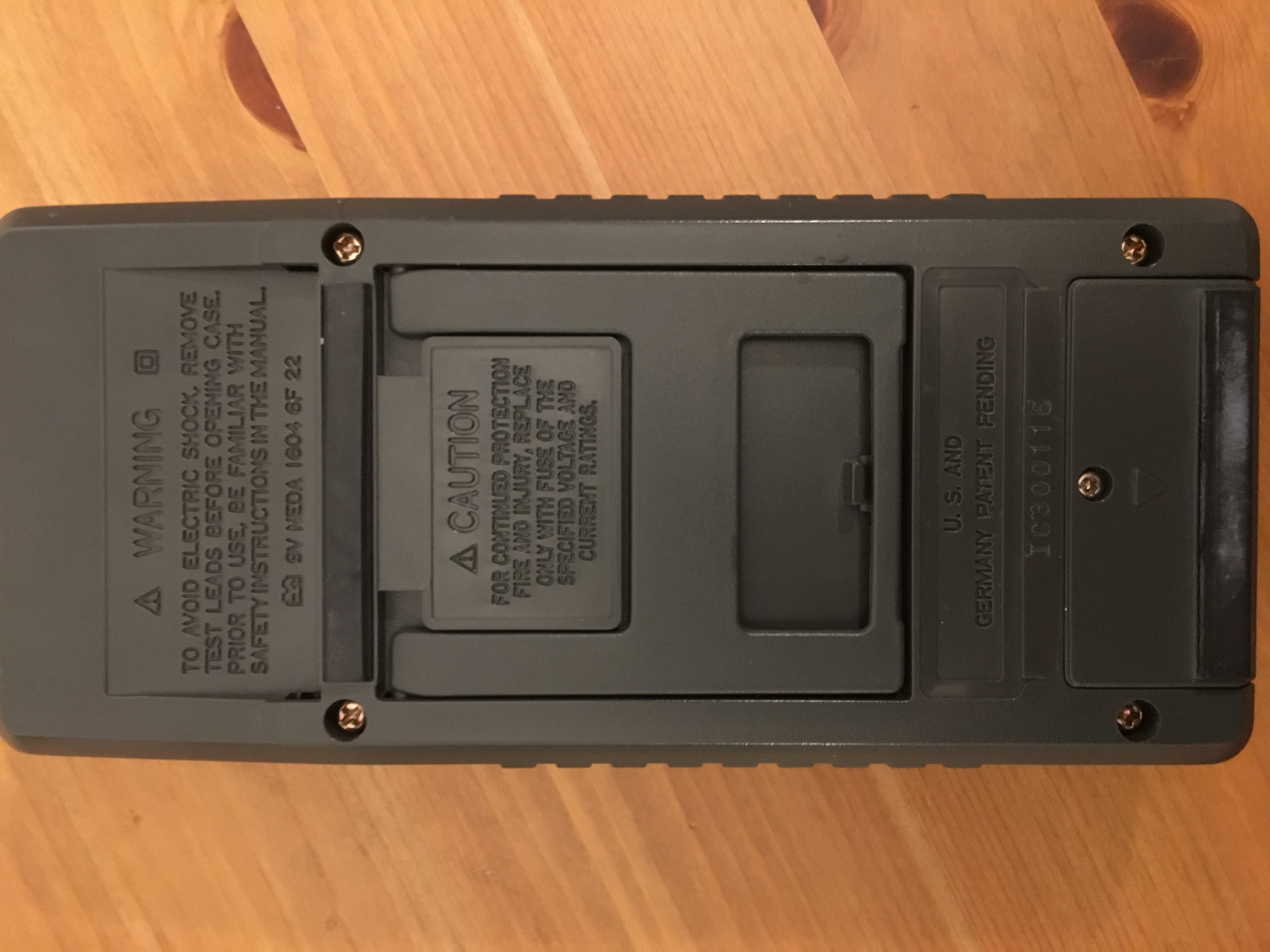

Voltcraft 3850d Back

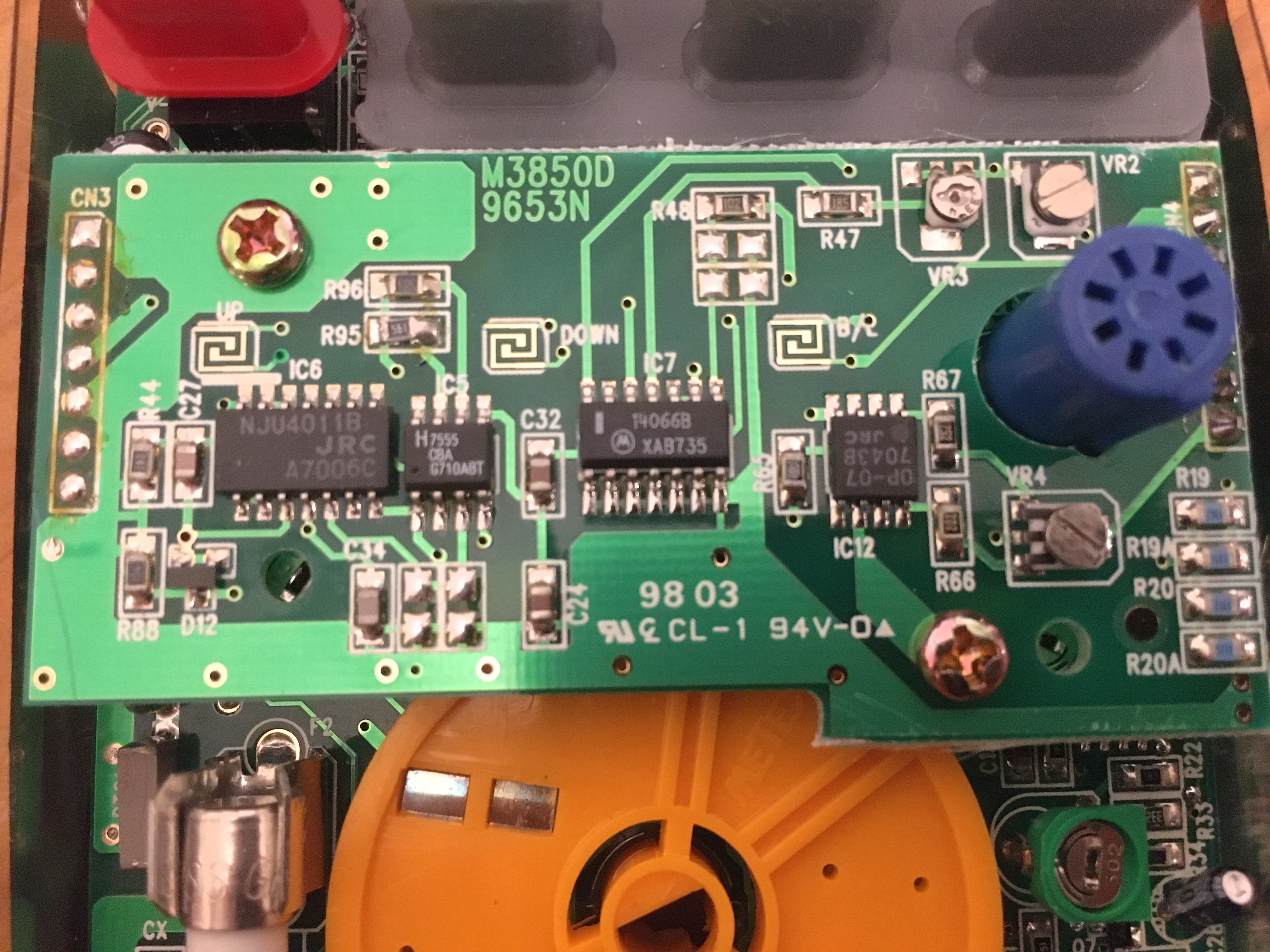

Voltcraft 3850d Open Front Small Board

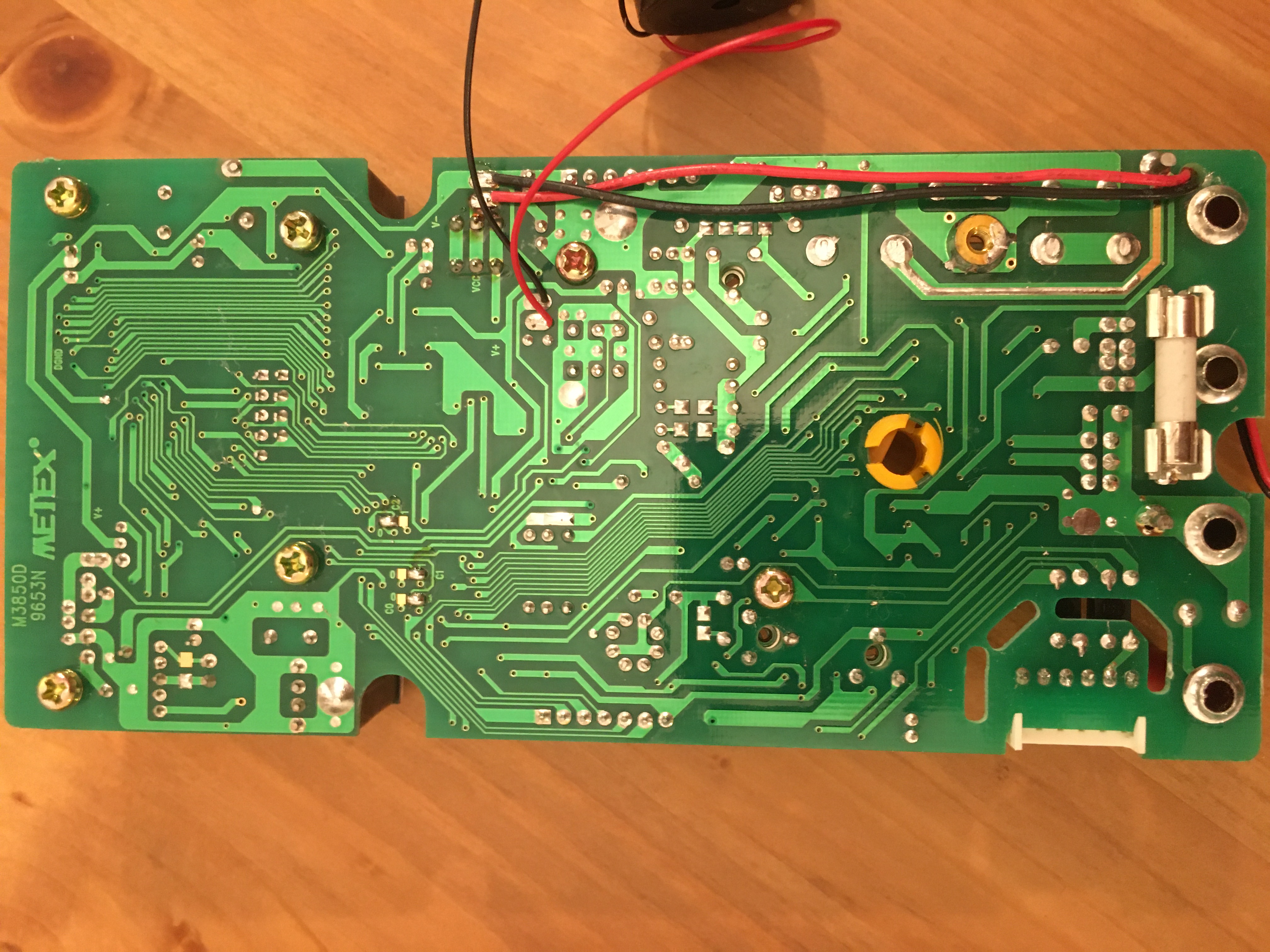

Voltcraft 3850d Open Back Shielding Removed

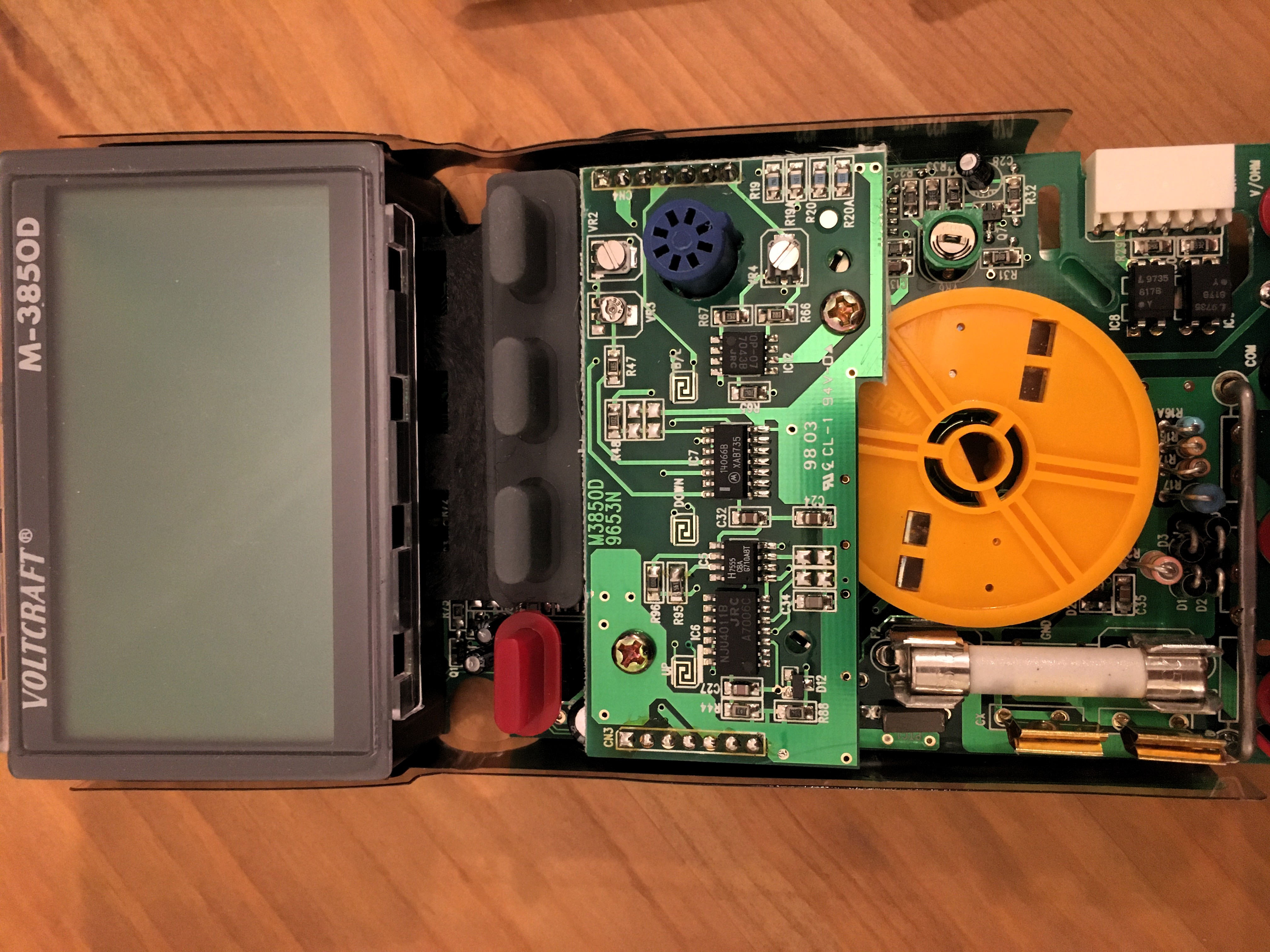

Voltcraft 3850d Open Front

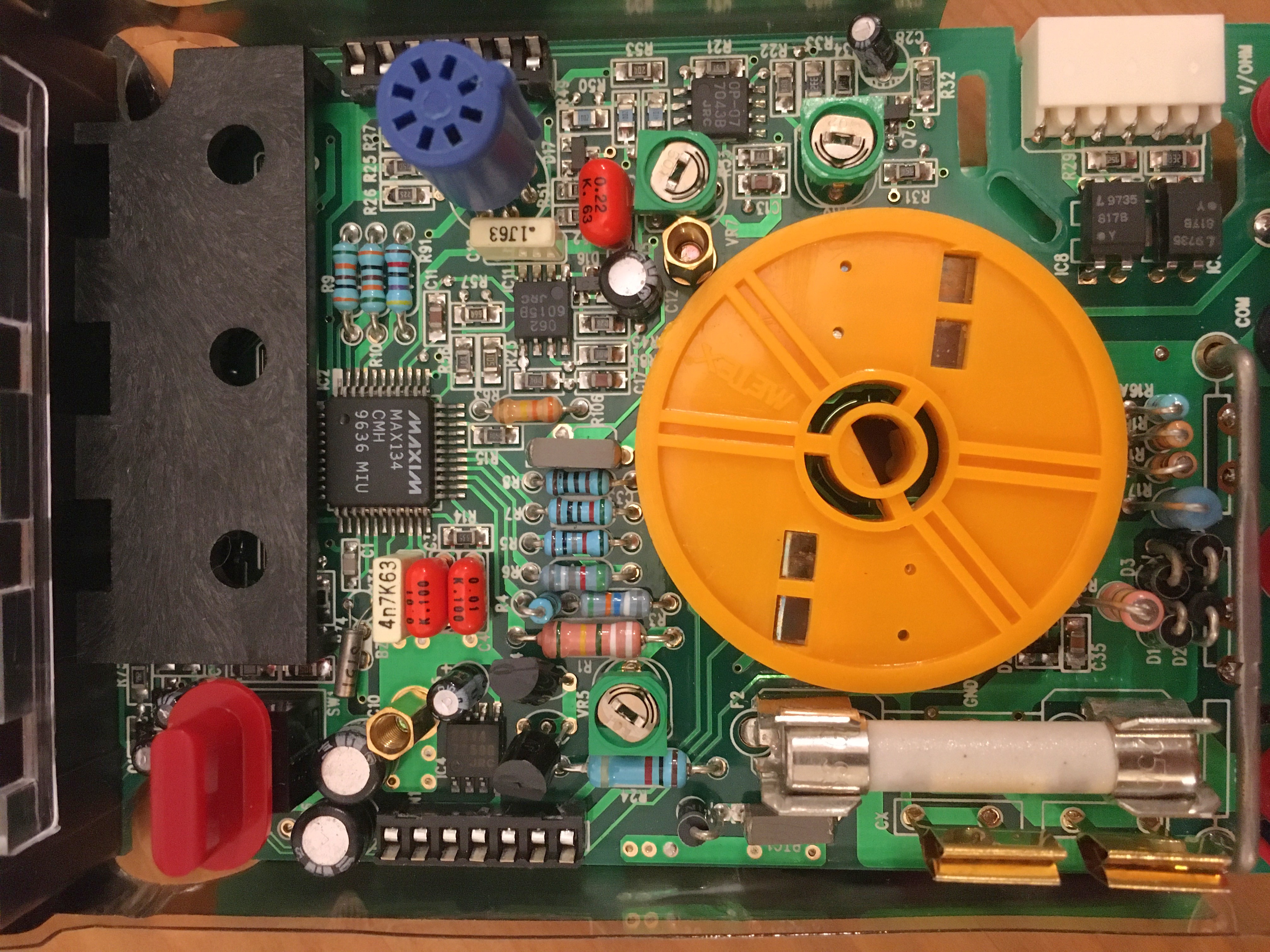

Voltcraft 3850d Open Front Small Board Removed

Protocol

See Multimeter_ICs#Metex_14-byte_ASCII.

Resources

• Manual (German)
