Victor 70C

Victor 70C

Victor 70C
Status supported
Source code serial-dmm
Counts 6000
IEC 61010-1 CAT II
Connectivity USB (standard cable)
Measurements voltage, current, resistance, continuity, diode, capacitance, frequency, temperature
Features max/min, data hold, relative, backlight
Website china-victor.com

The Victor 70C is a 6000 counts, CAT II handheld digital multimeter with USB connectivity.

It is also sold as the EZA EZ-735.

See Victor 70C/Info for more details (such as lsusb -v output) about the device.

Hardware

Note: the USB/HID chip is in the multimeter (not in the USB cable/connector) for this device. The device is connected to the PC using a standard USB cable (without any internal logic/chip).

Photos

Victor 70c Lcd Victor 70c Lcd

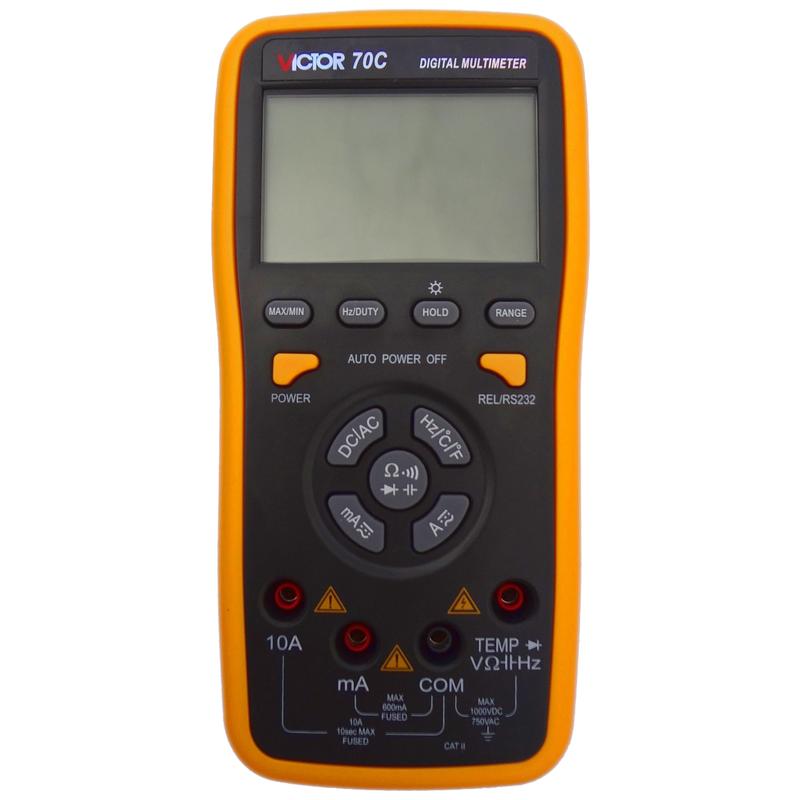

Victor 70c Victor 70c

Victor 70c Tc7660e Victor 70c Tc7660e

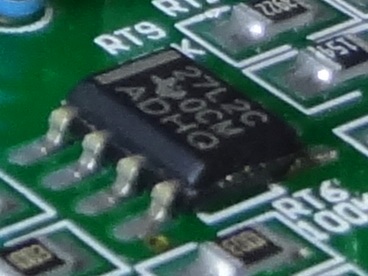

Victor 70c 27l2c Victor 70c 27l2c

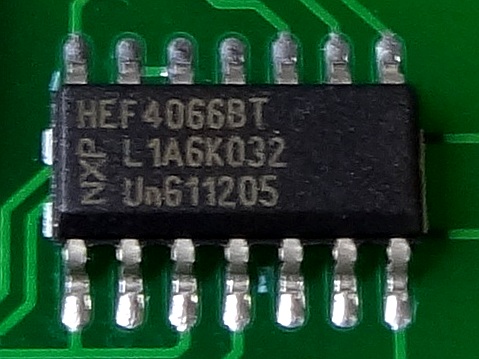

Victor 70c Hef4066bt Victor 70c Hef4066bt

Victor 70c Victor 70c

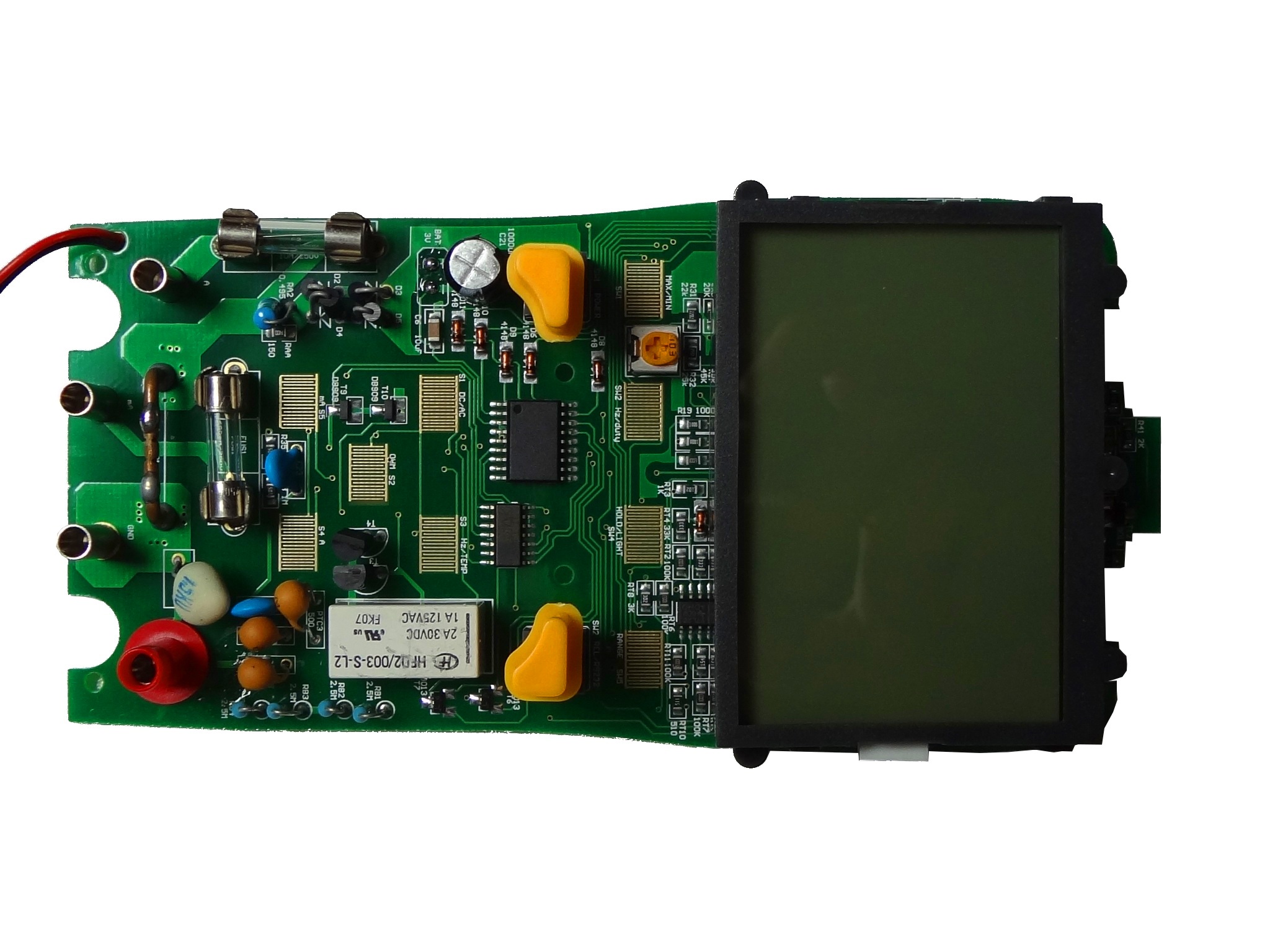

Victor 70c Pcb Top Victor 70c Pcb Top

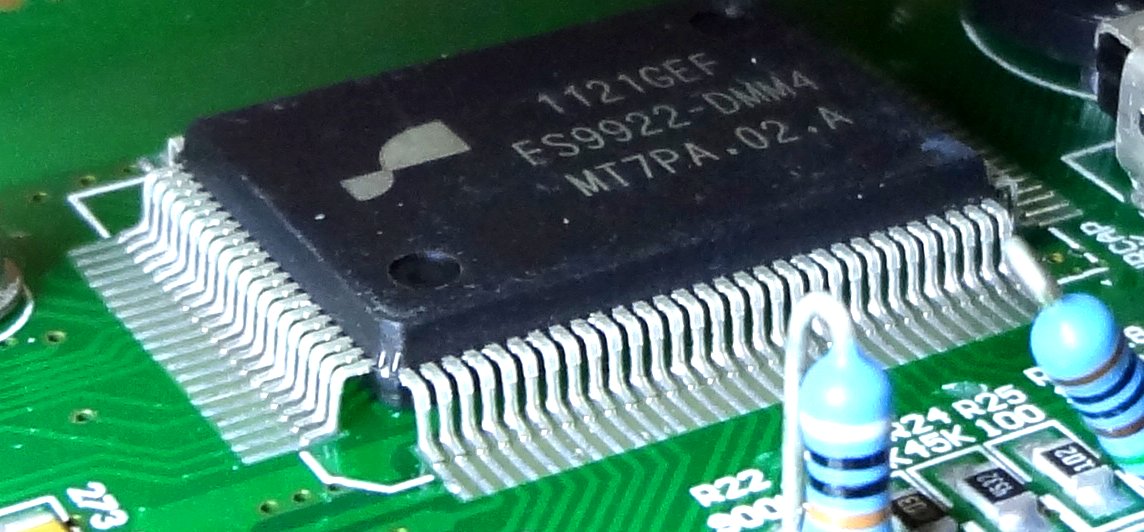

Victor 70c Lcd Controller Victor 70c Lcd Controller

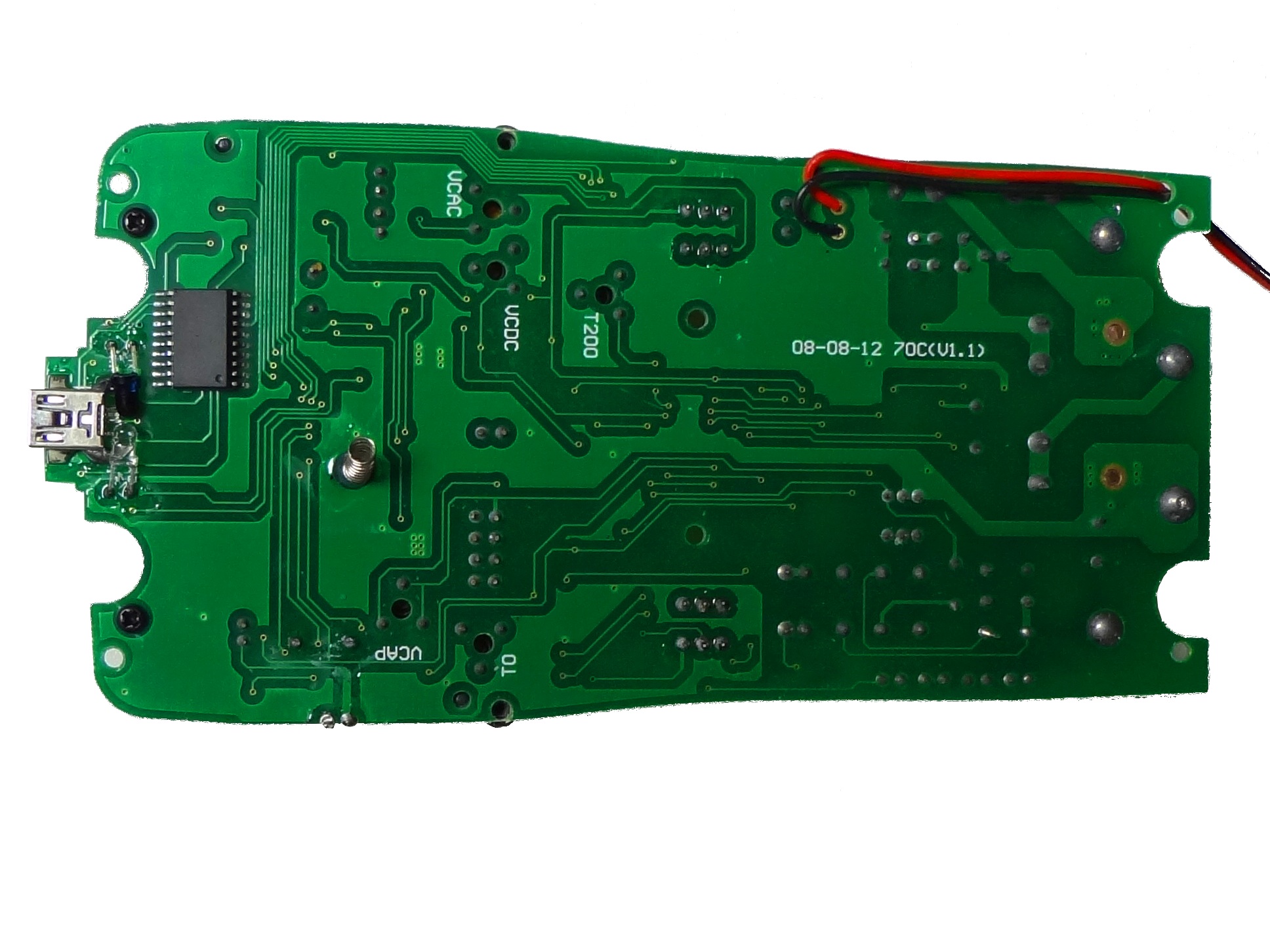

Victor 70c Pcb Bottom Victor 70c Pcb Bottom

Protocol

See Victor protocol.
