UNI-T UT61E

UNI-T UT61E

UNI-T UT61E
Status supported
Counts 22,000
IEC 61010-1 CAT II (600 V) / CAT III (300 V)
Connectivity RS232 / USB
Measurements voltage, current, resistance, capacitance, frequency, duty cycle, diode, continuity
Features autorange, true-rms, data hold, min/max, relative, bargraph, backlight
Website uni-trend.com

The UNI-T UT61E is a 22,000 counts, CAT II (600 V) / CAT III (300 V) handheld digital multimeter with RS-232 or USB connectivity.

See UNI-T UT61E/Info for more details (such as lsusb -vvv output) about the device.

The more recent UT61+/UT161 series is different from the previous UT61 series, and is not supported, until their protocol is known and a driver for them becomes available.

Hardware

Photos

Old Ver Back Old Ver Back

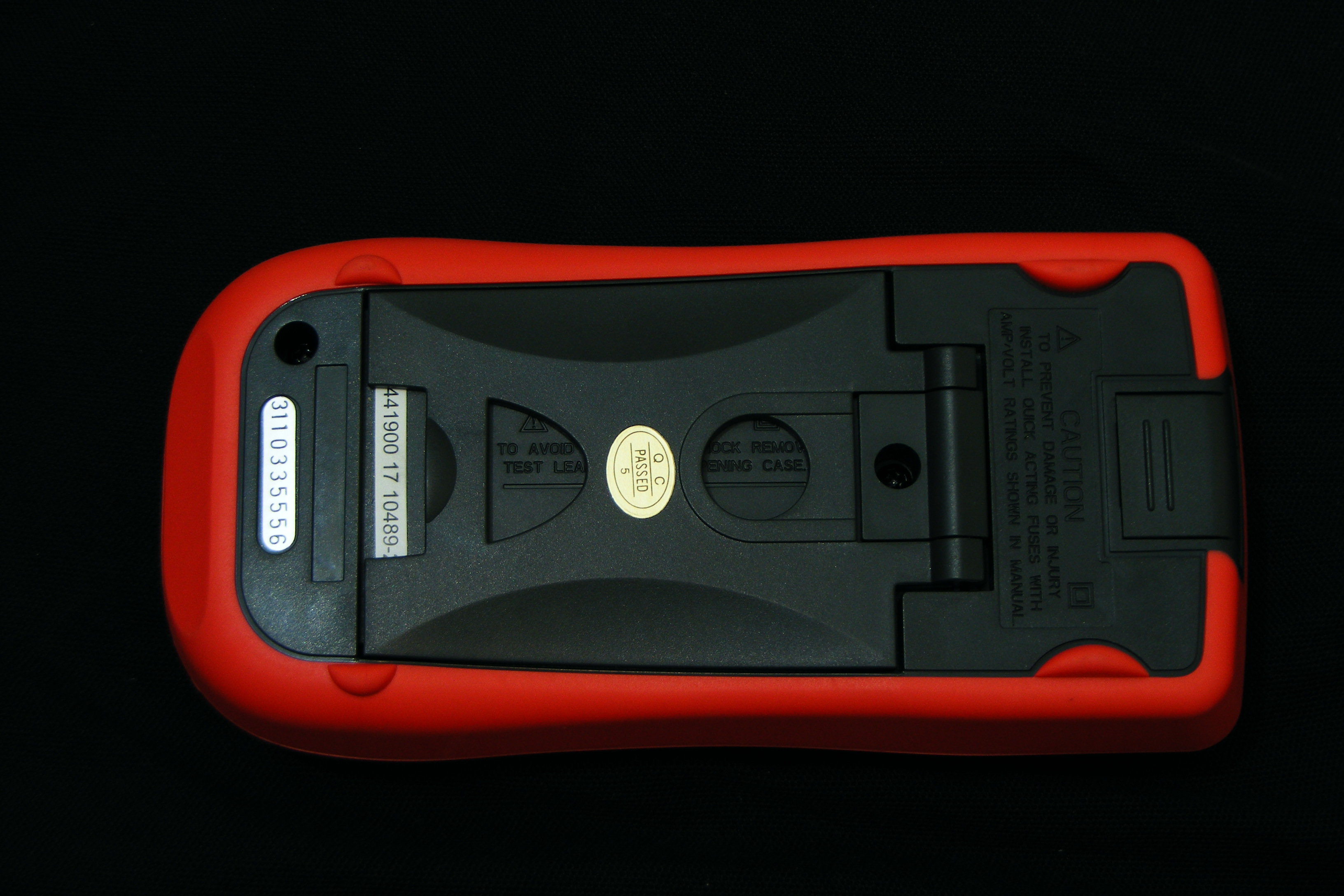

New Ver Back New Ver Back

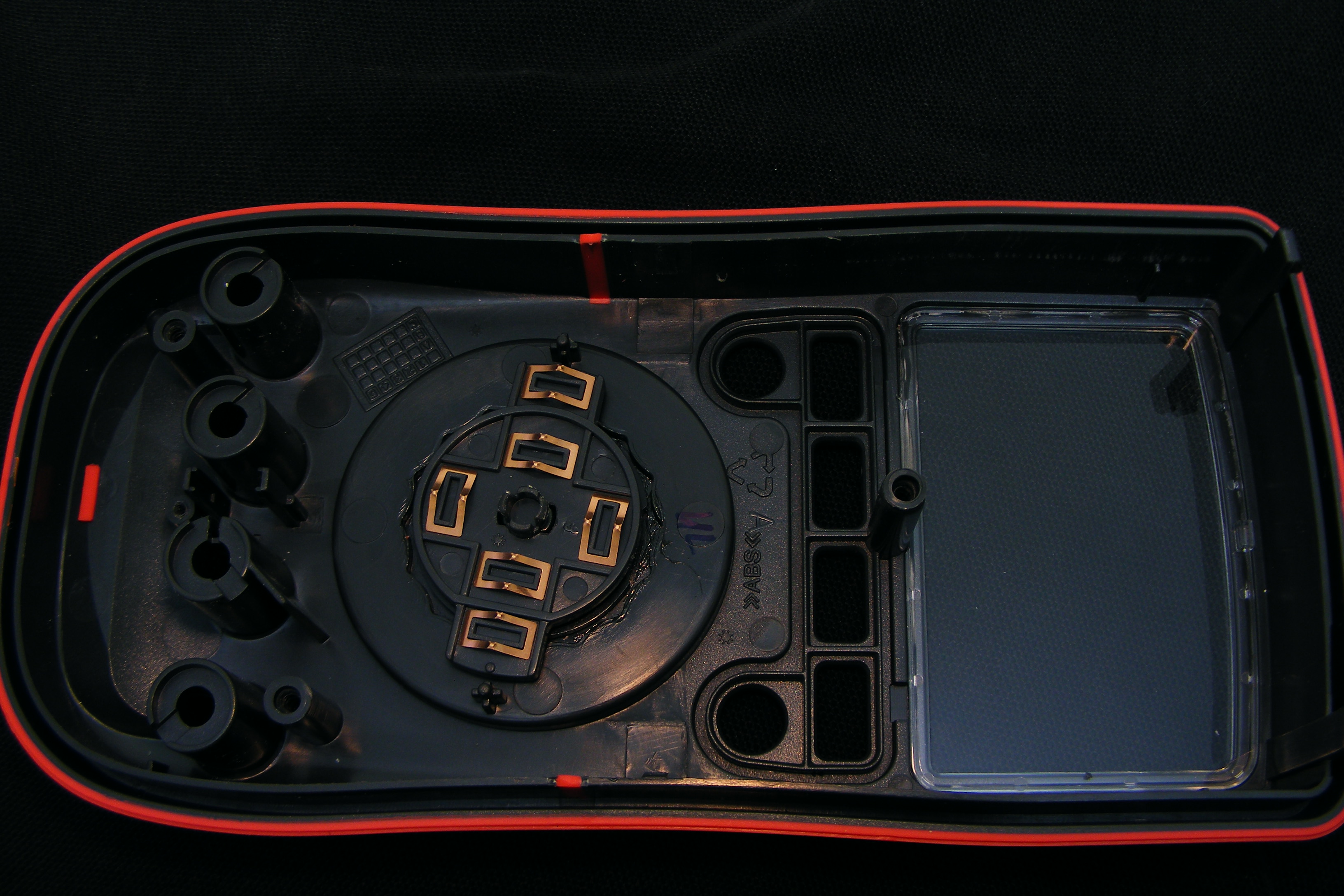

New Ver Frontcover New Ver Frontcover

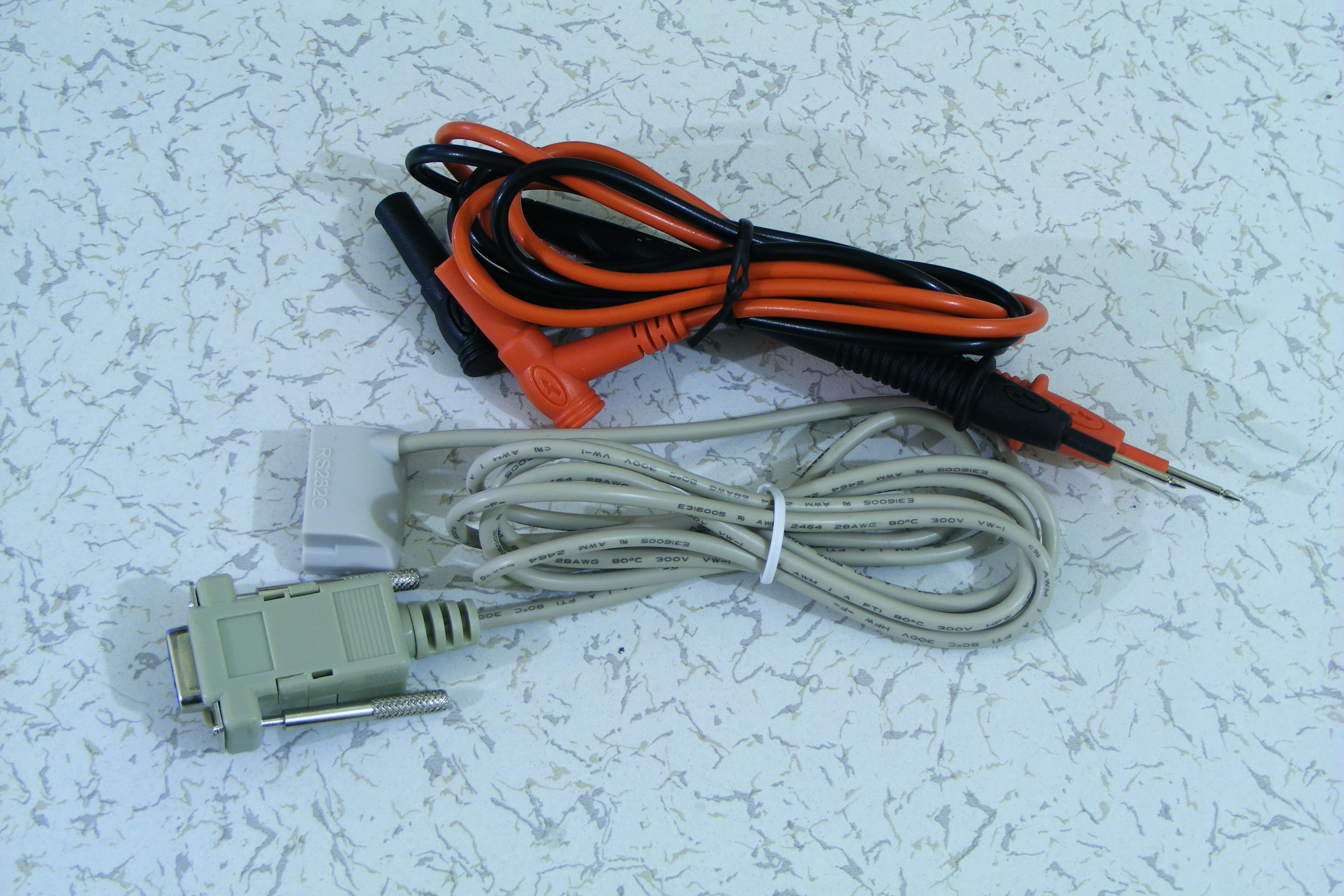

Old Ver Cables Old Ver Cables

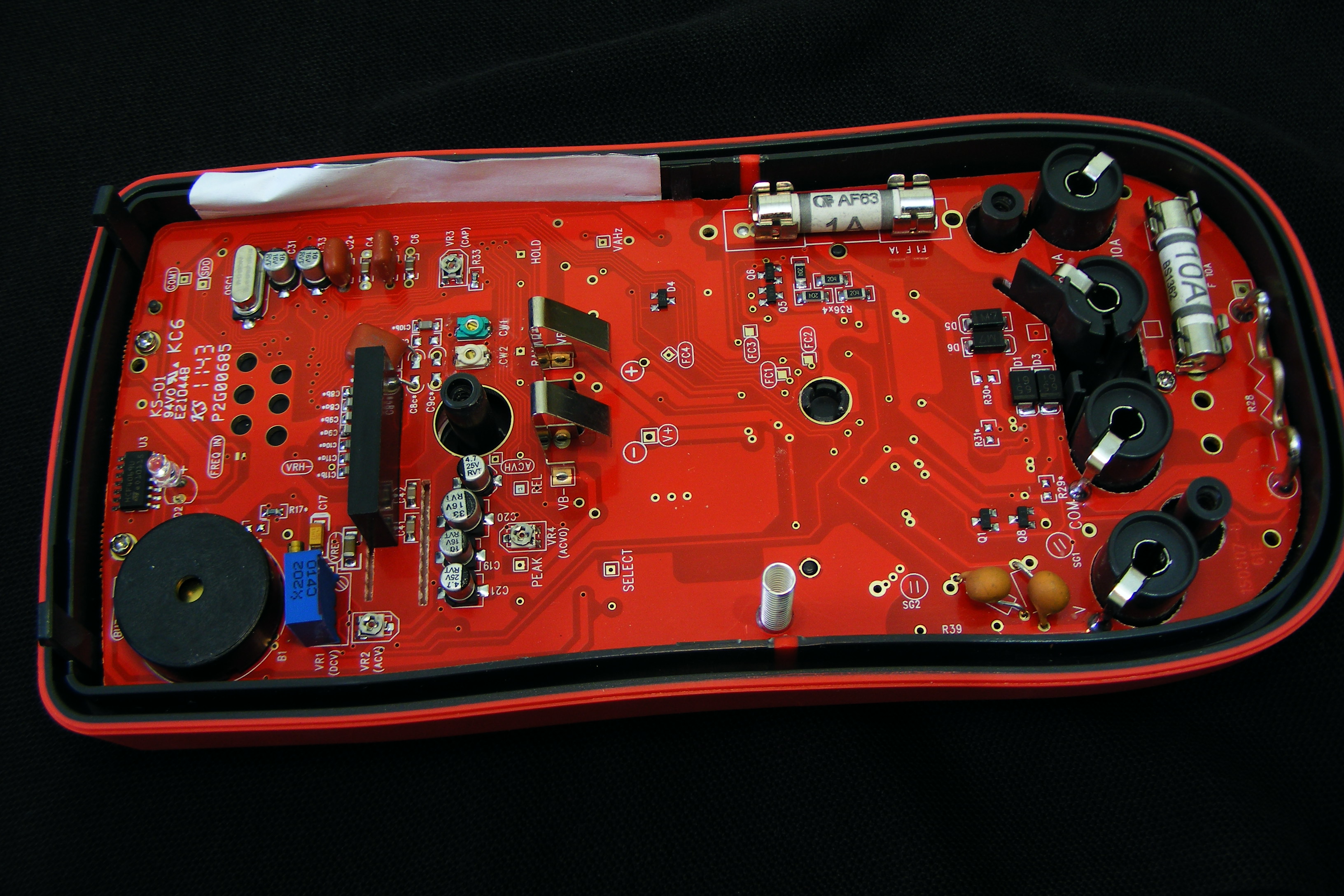

New Ver Pcb Back New Ver Pcb Back

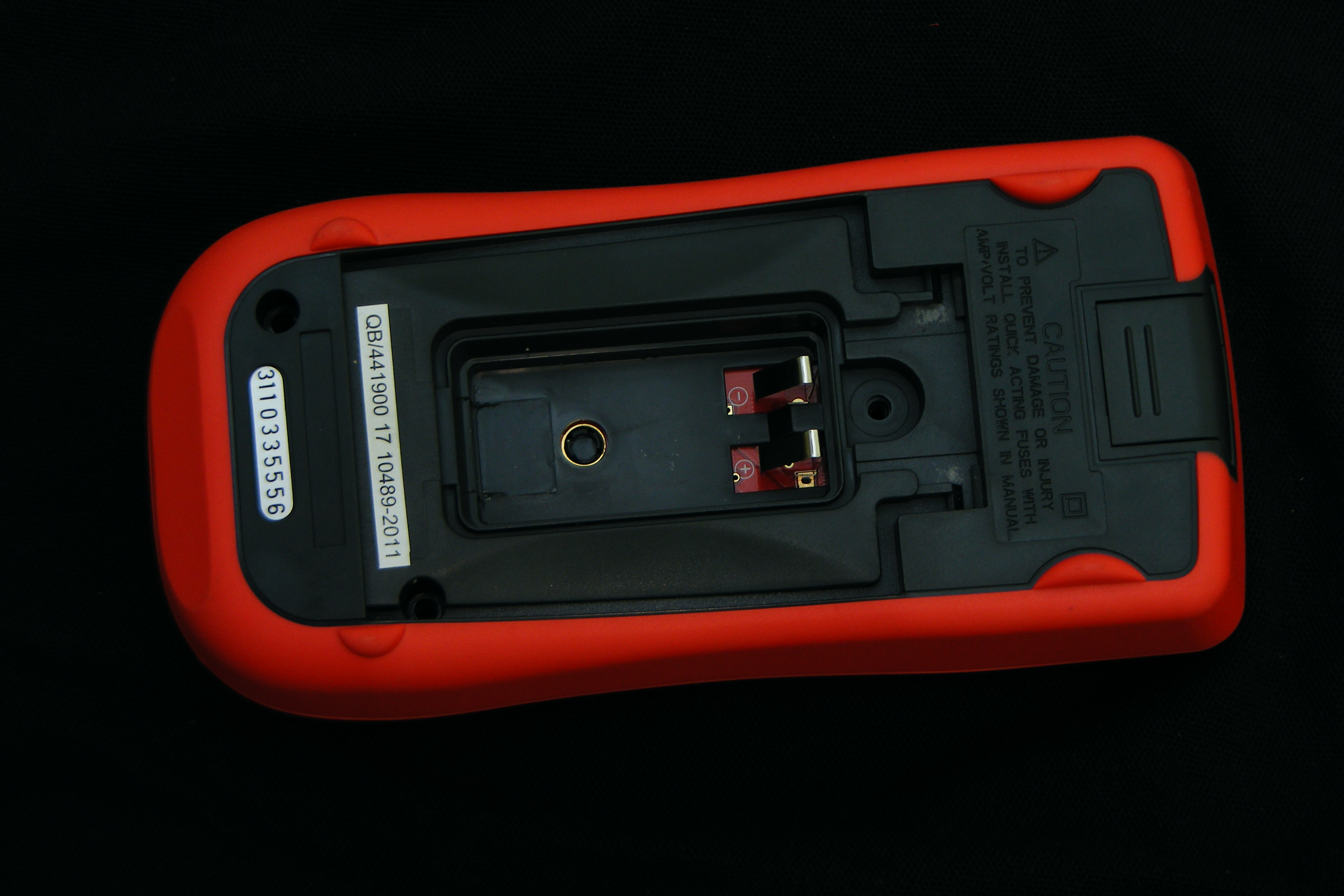

New Ver Backb New Ver Backb

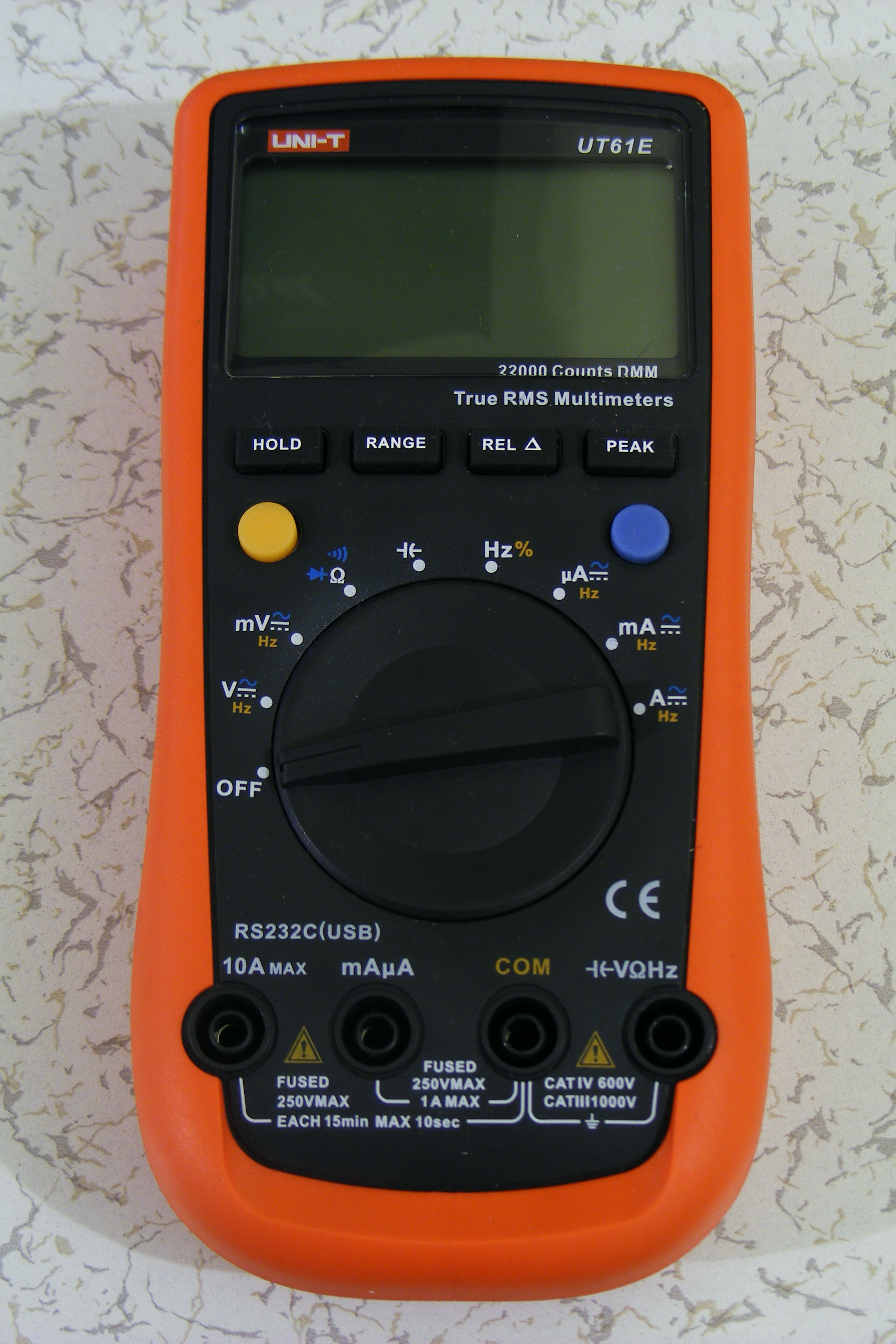

Old Ver Front Old Ver Front

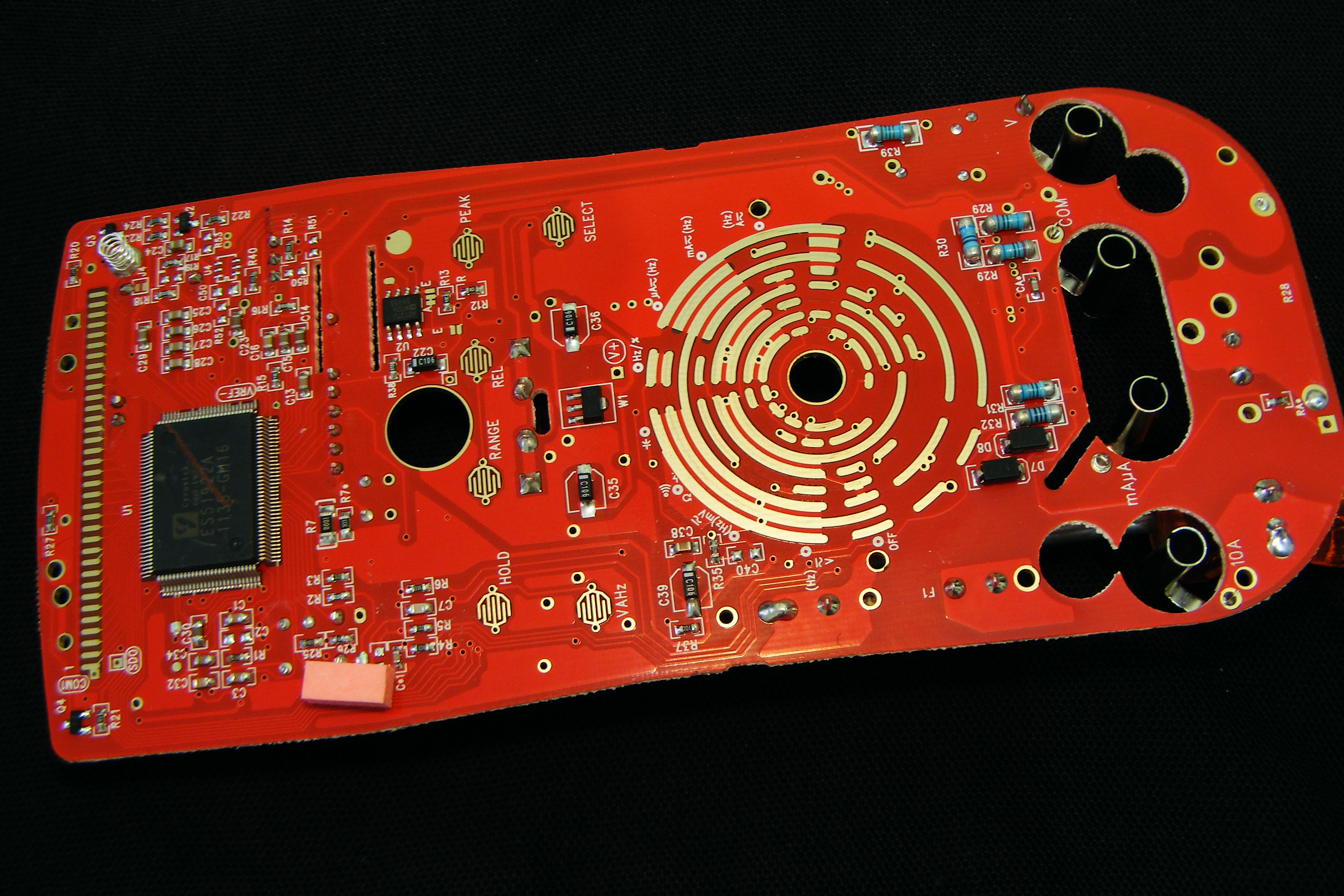

New Ver Pcb Front New Ver Pcb Front

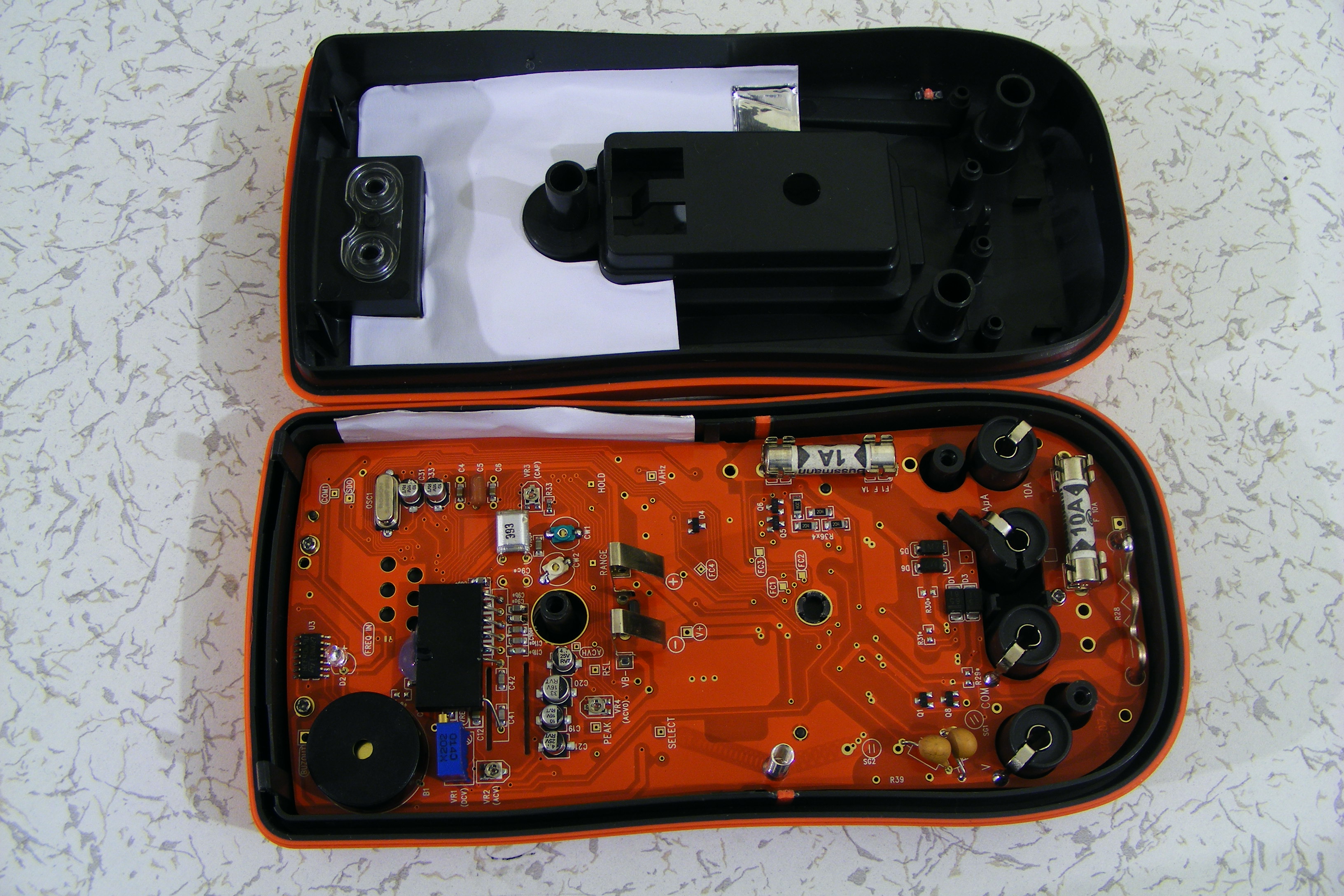

Old Ver Pcb Old Ver Pcb

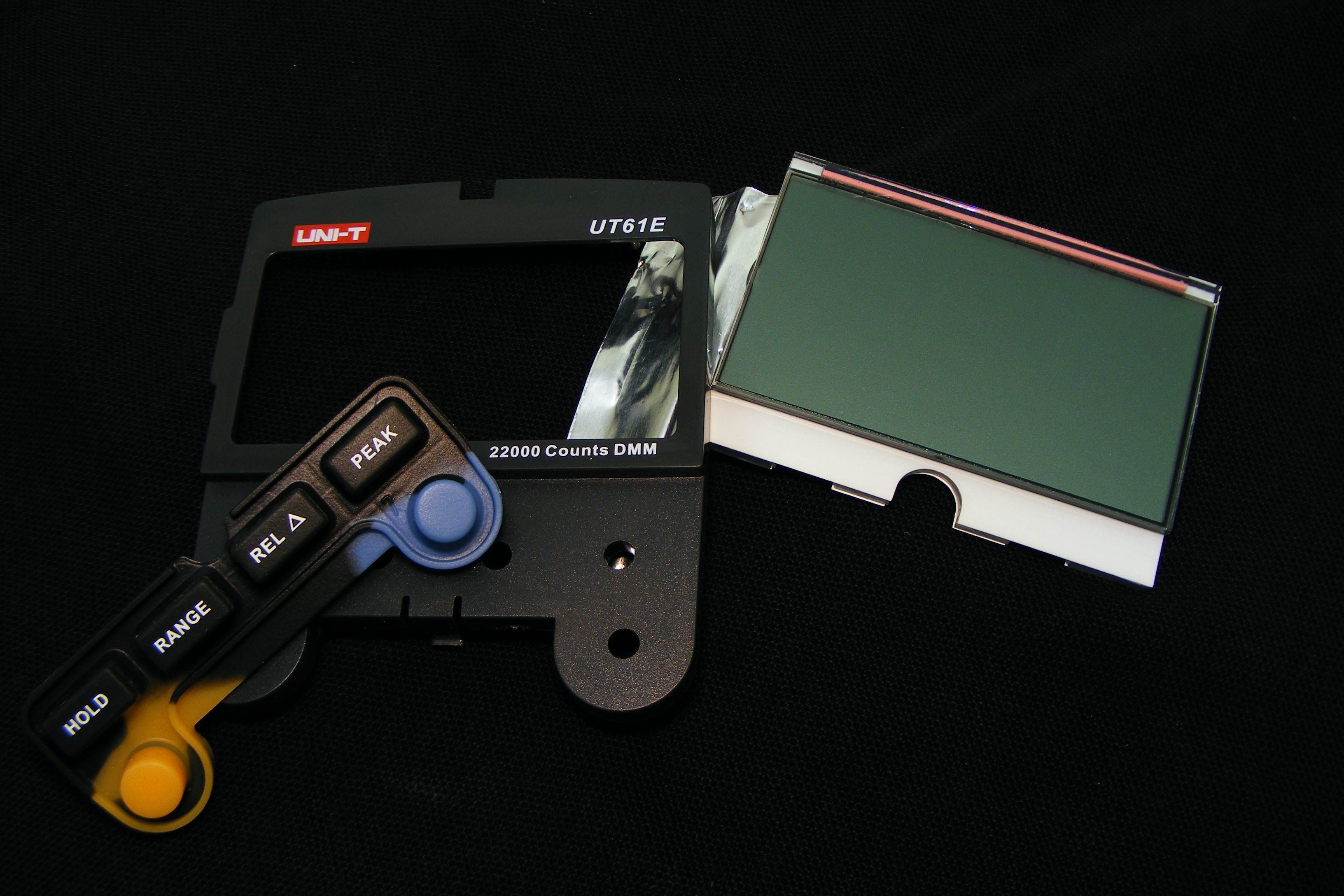

New Ver Lcd New Ver Lcd

Old Ver Old Ver

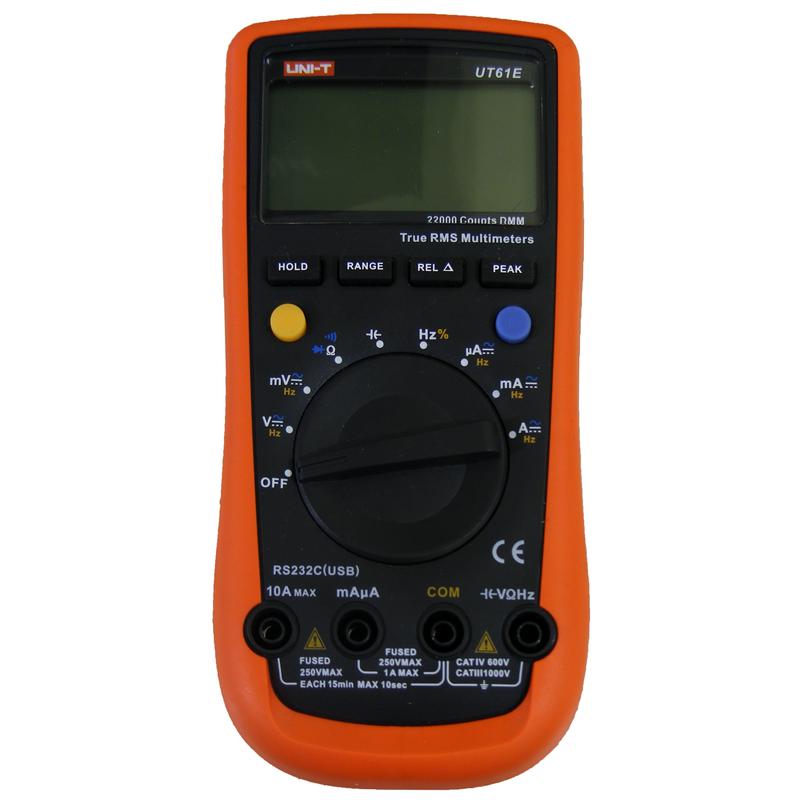

Old Ver Front Old Ver Front

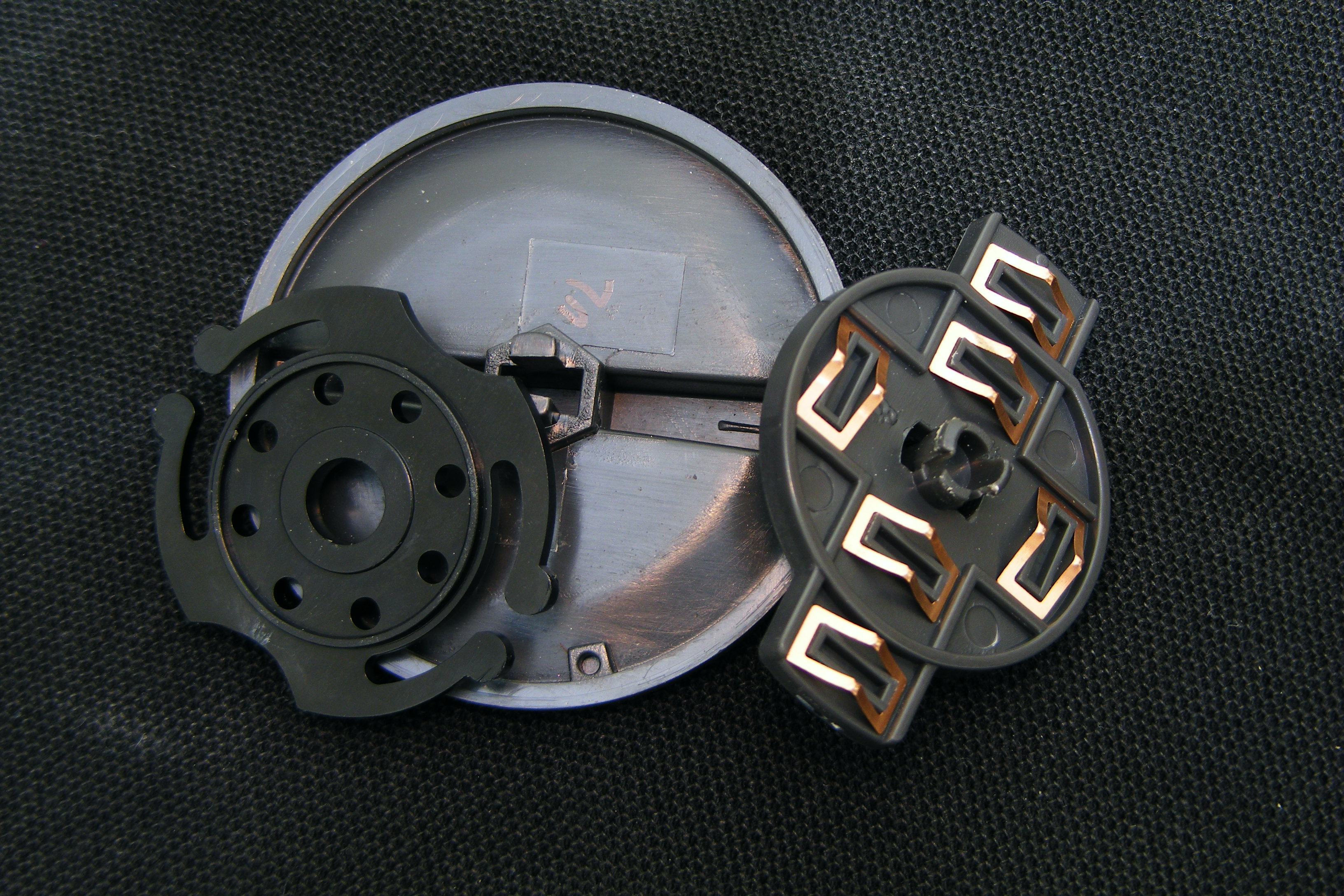

New Ver Knob New Ver Knob

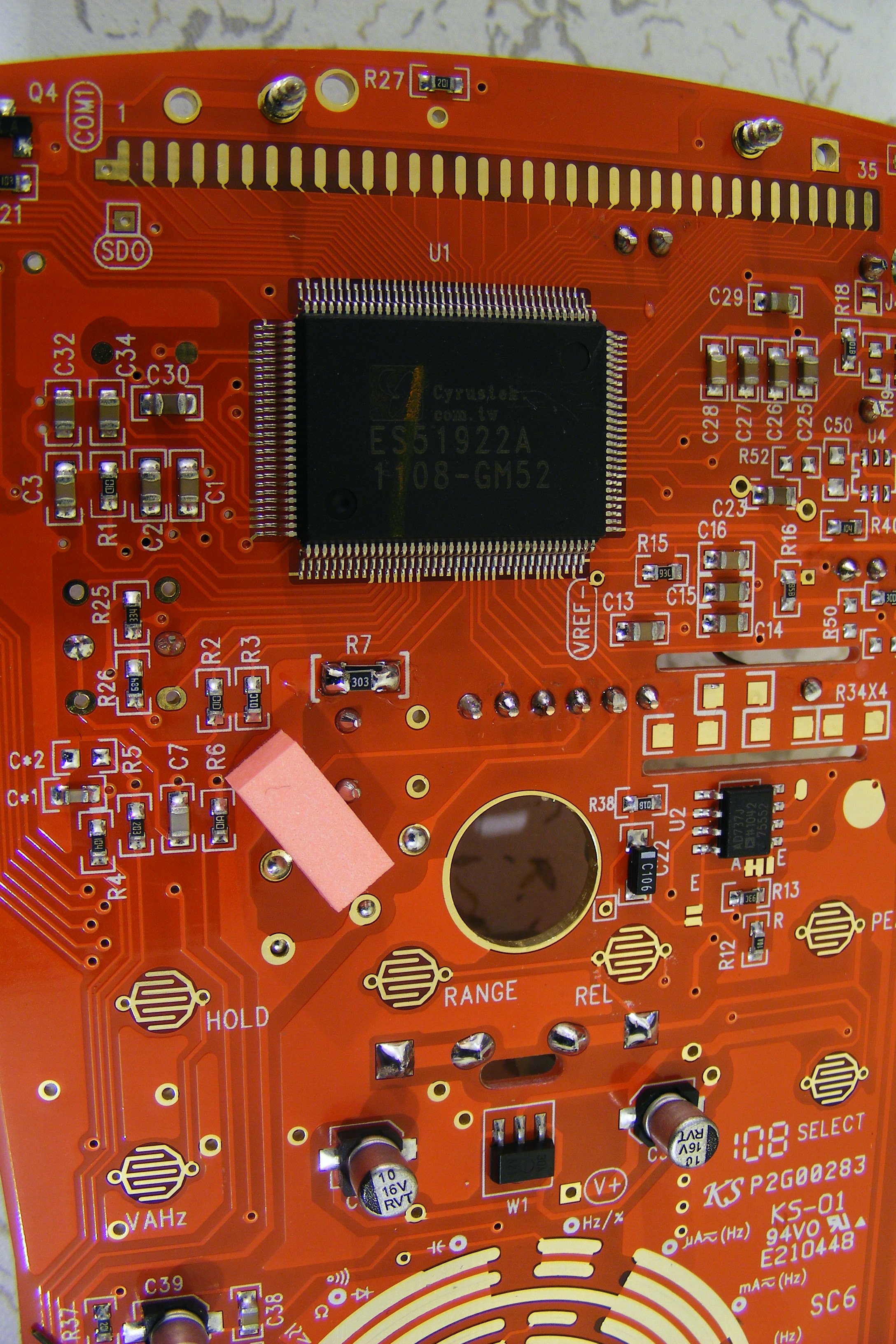

Old Ver Es51922a Old Ver Es51922a

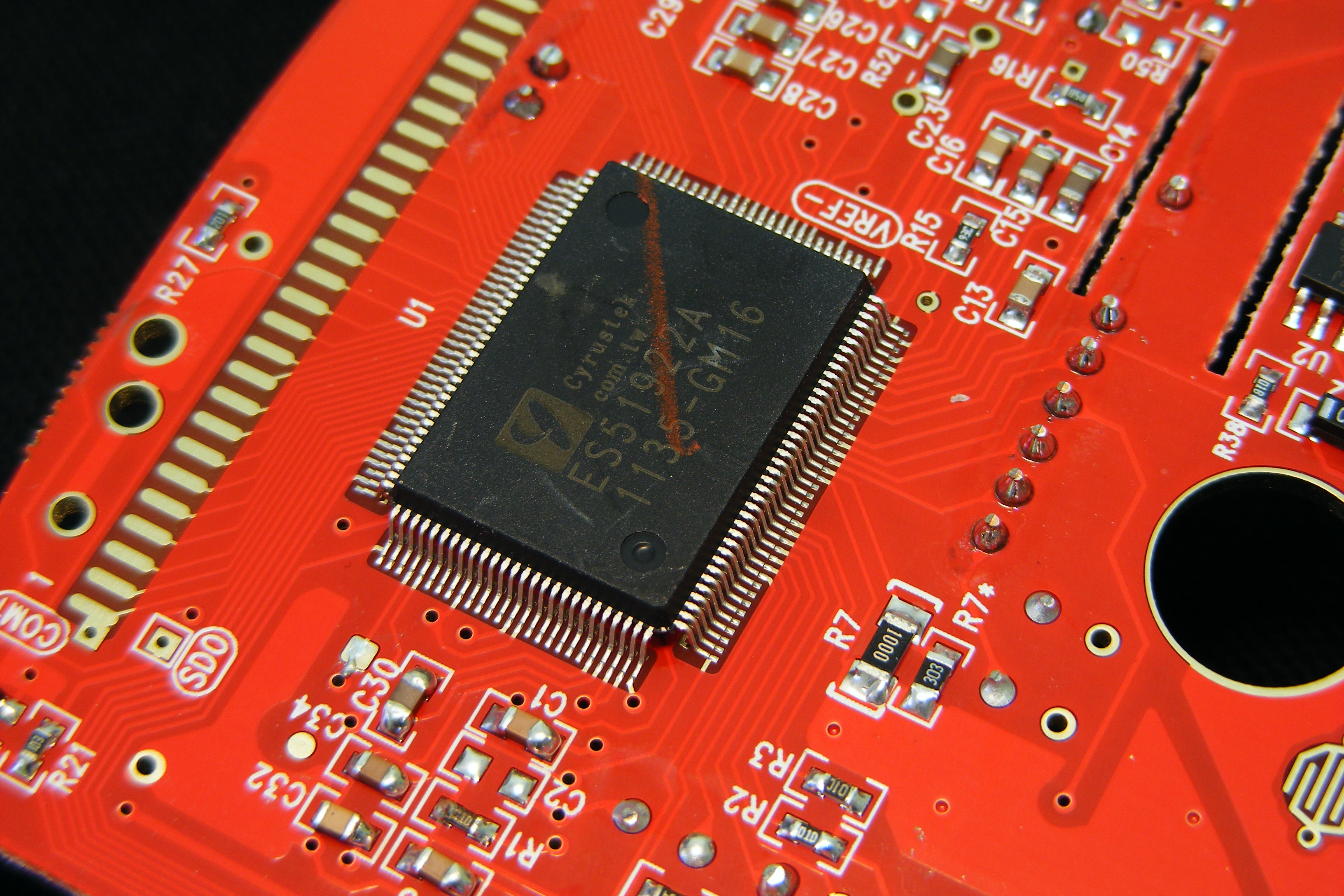

New Ver Es51922a New Ver Es51922a

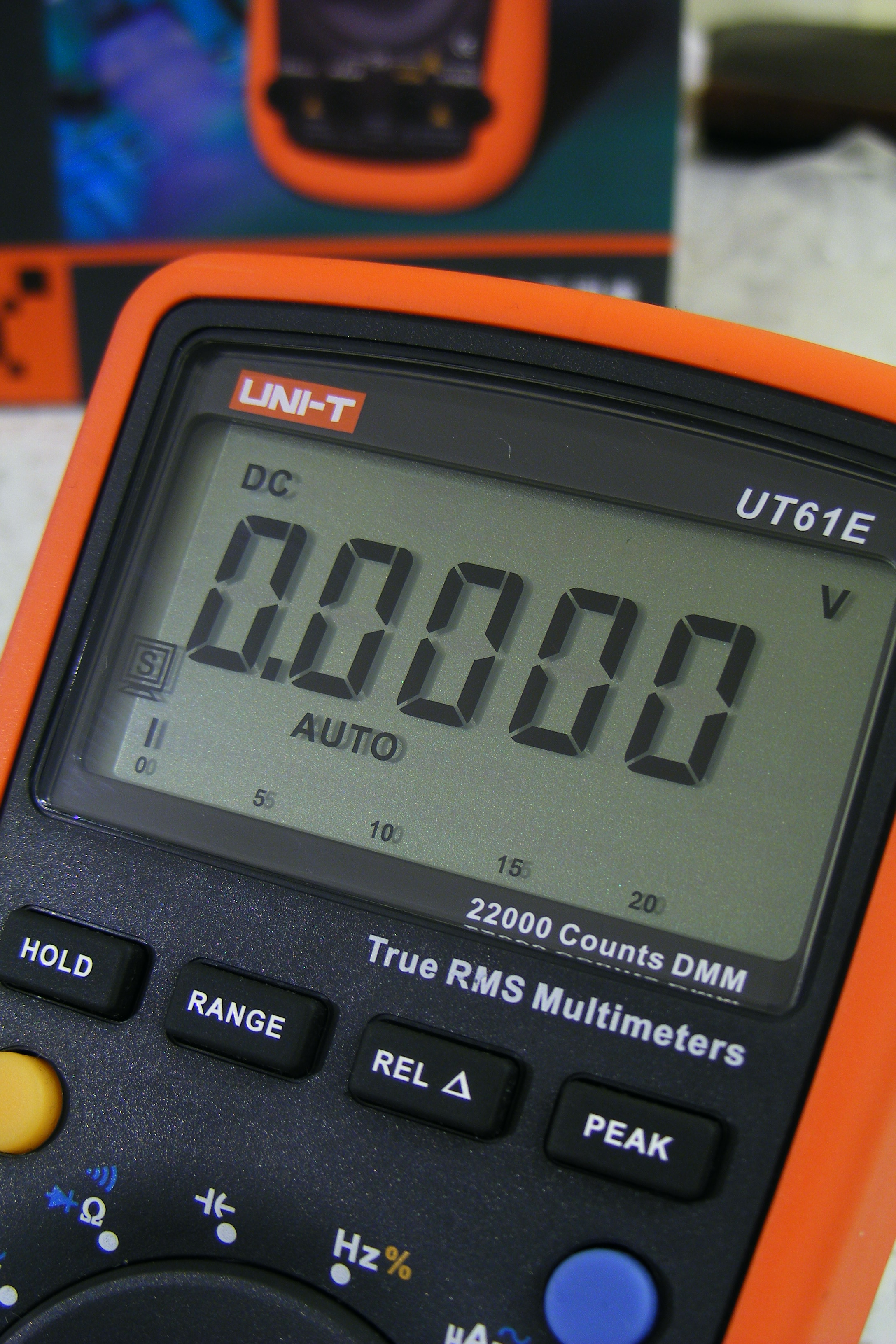

Old Ver Lcd Old Ver Lcd

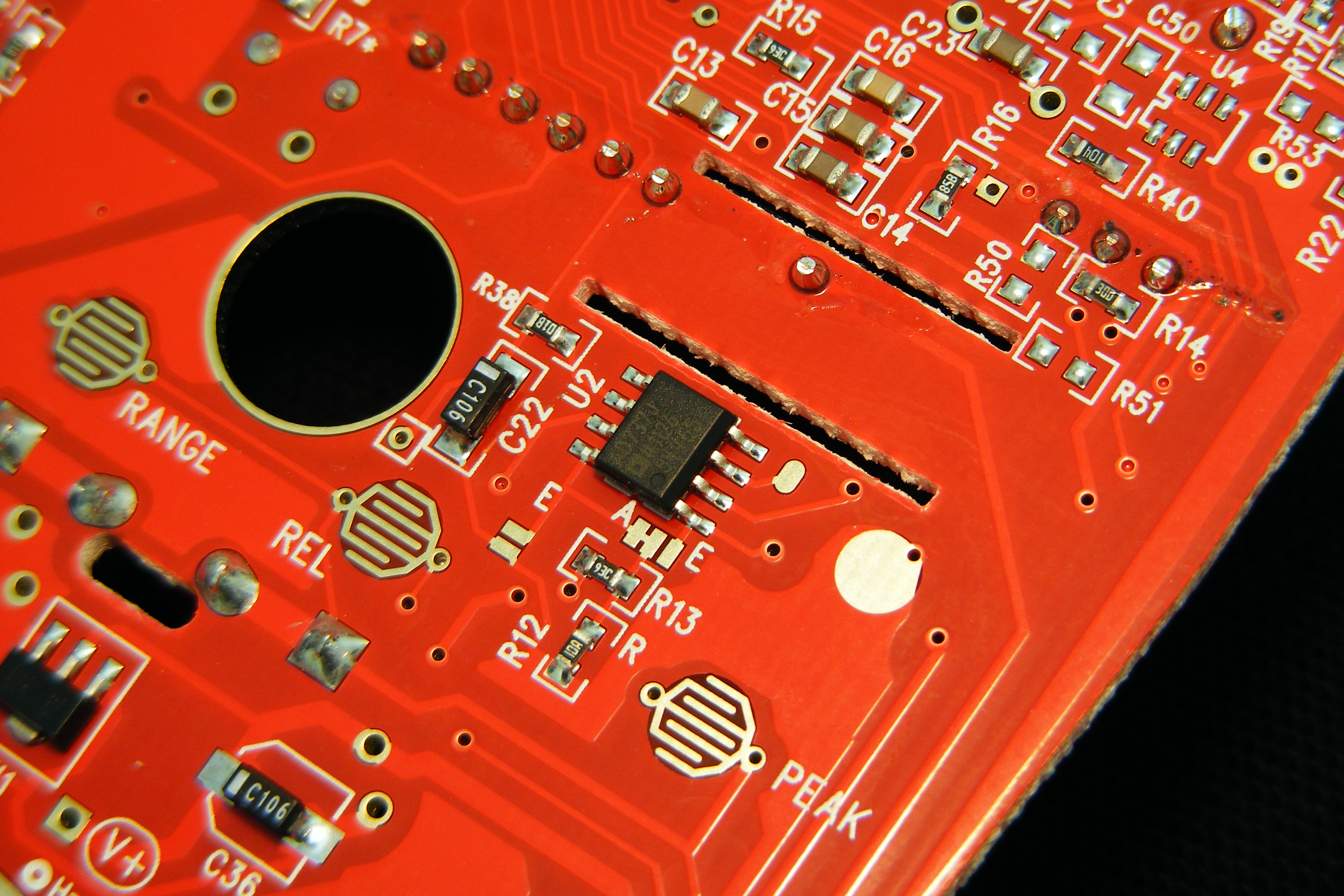

New Ver Ad737 New Ver Ad737

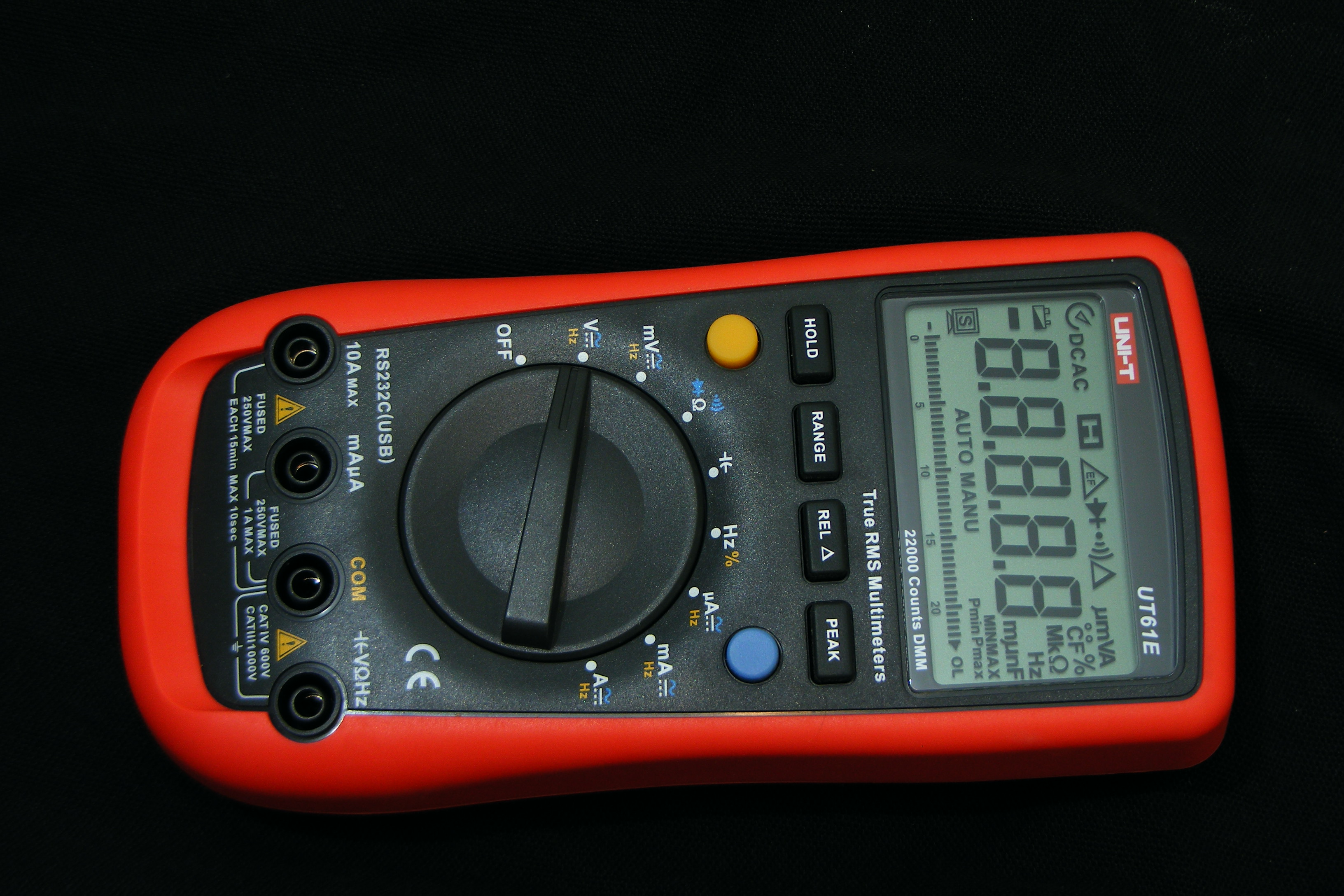

New Ver Front New Ver Front

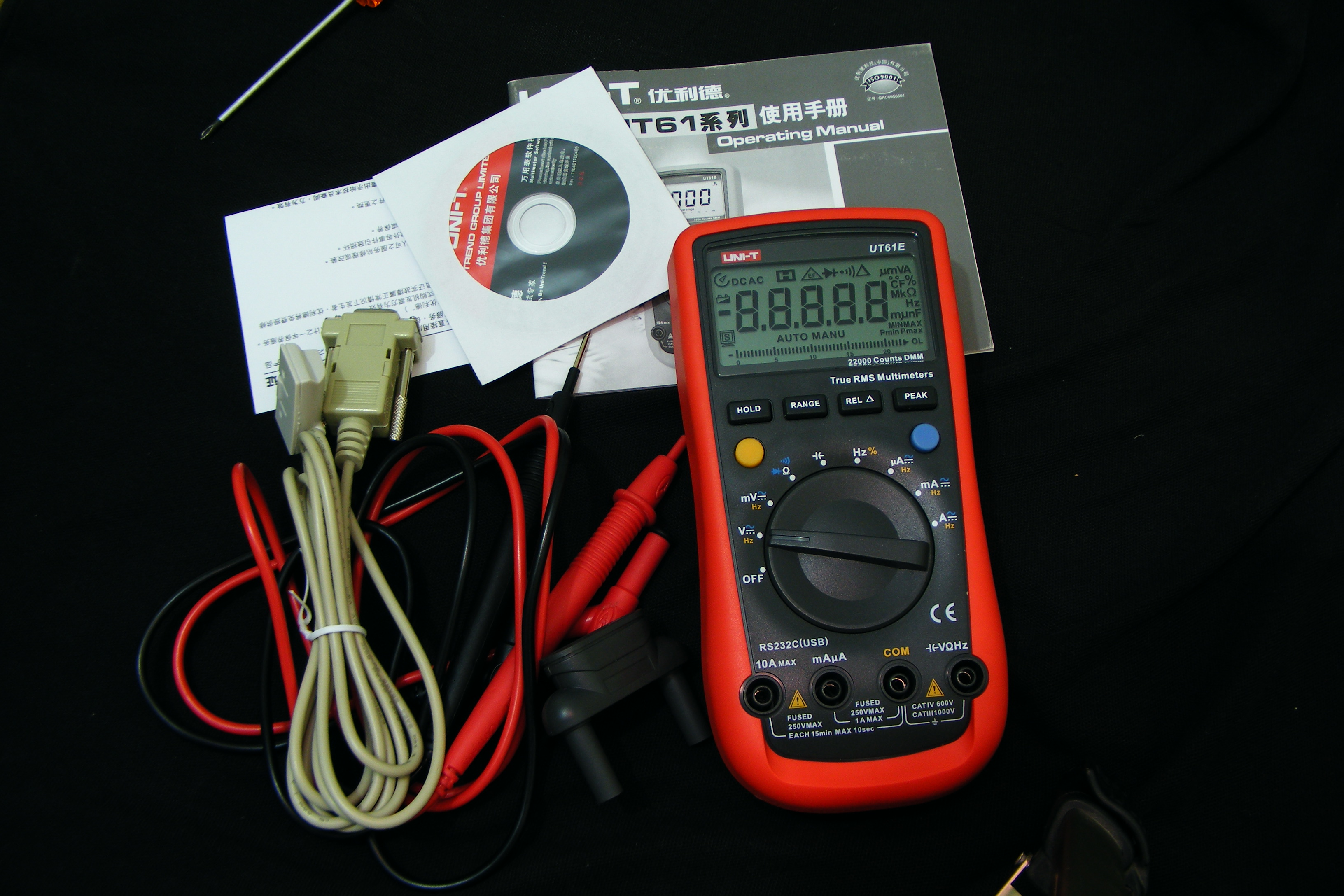

New Ver New Ver

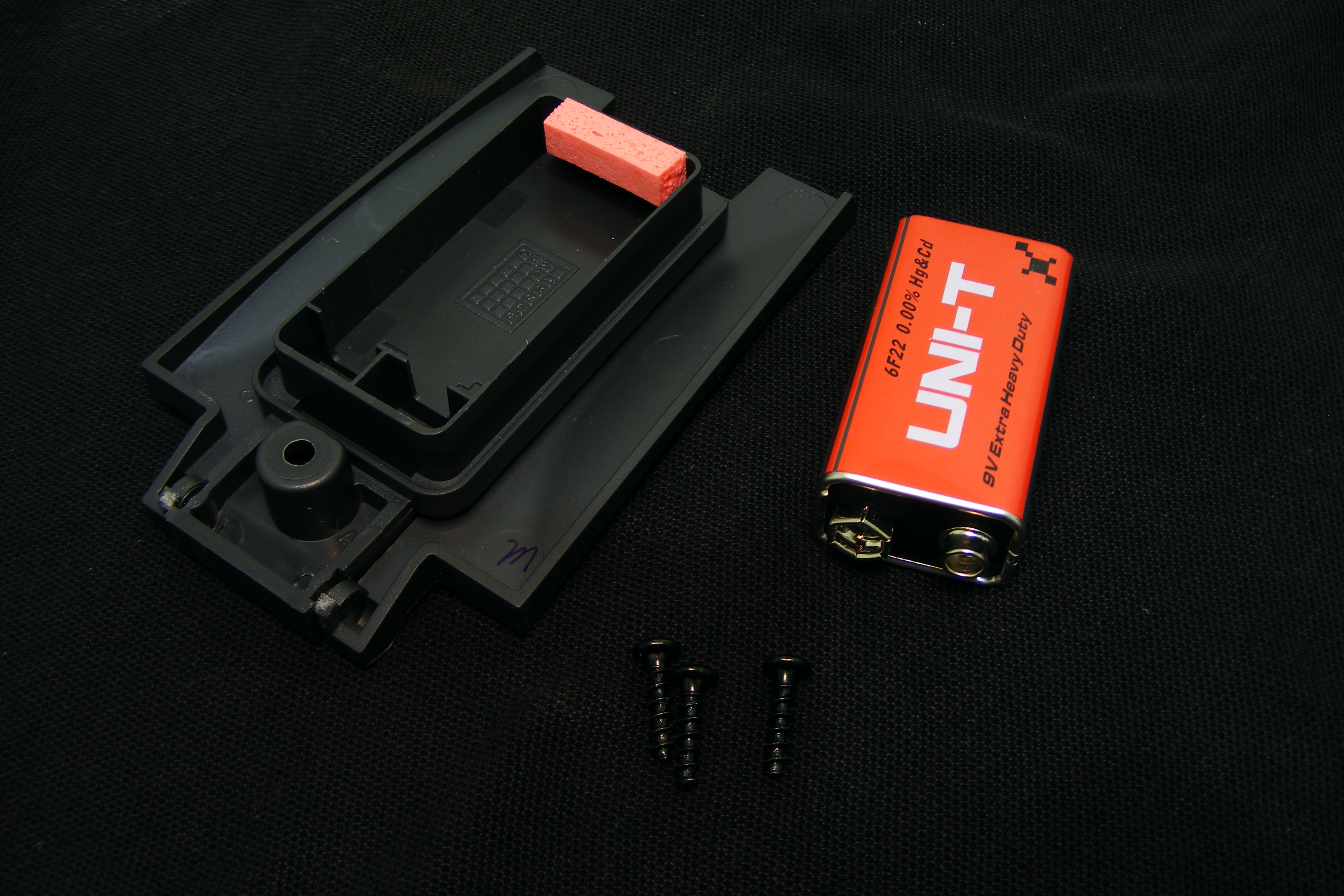

New Ver Batt New Ver Batt

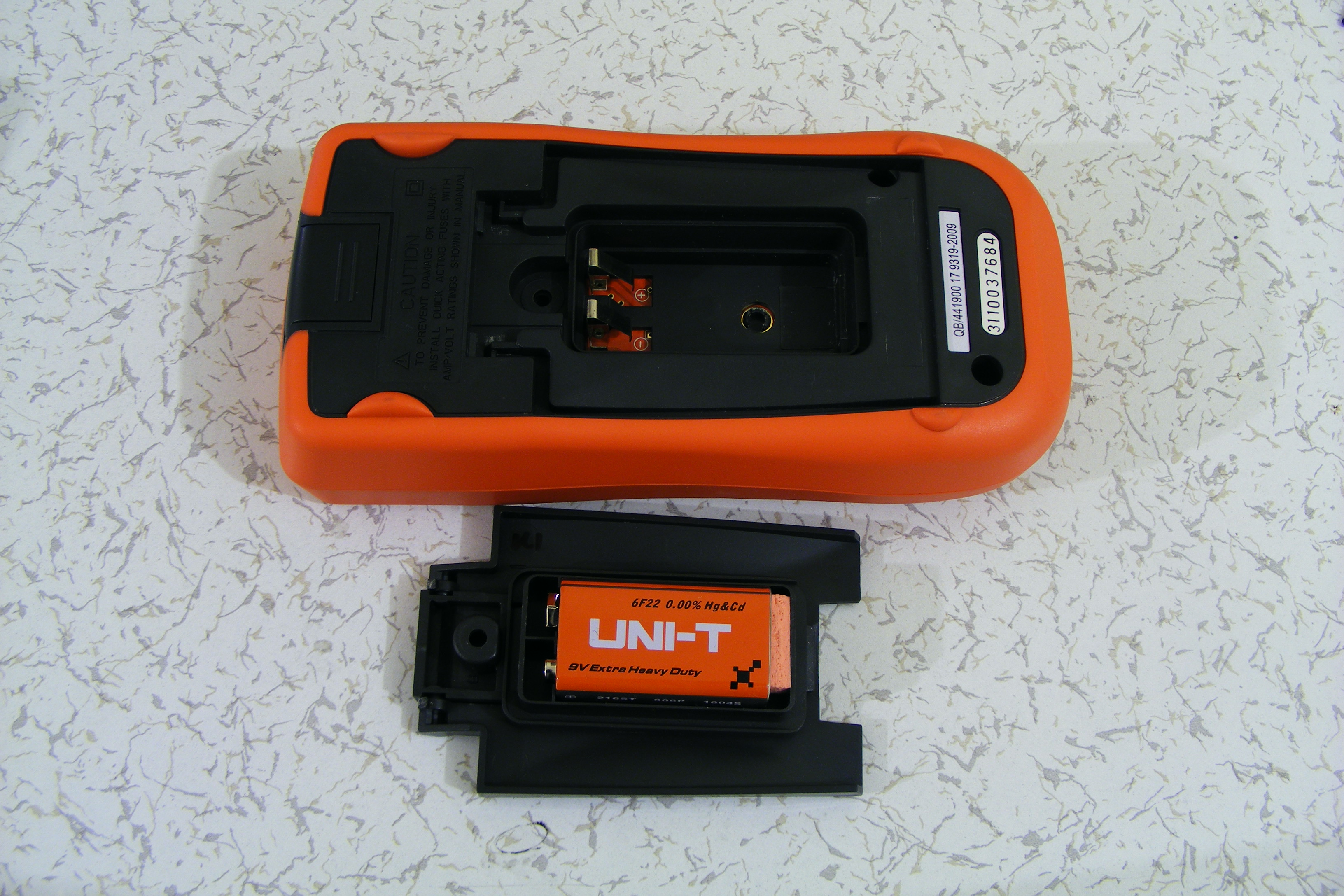

Old Ver Batt Old Ver Batt

Protocol

See Cyrustek ES51922 for the DMM IC protocol.

Depending on the cable, additional decoding is needed, though.

Different cables are available to communicate to the DMM: regular serial cables which provide a COM port, and USB HID based cables where applications are required to handle a proprietary protocol of running serial communication on top of HID requests. See the Device cables page for details; the same cables can be used with many different DMM models.

Depending on the specific cable in use, either a device driver ending in -ser or not ending in -ser must be used. See README.devices for details.

The message "HID feature report error: LIBUSB_ERROR_PIPE" results from using the USB HID driver with a USB-to-serial cable. In this case, try using --driver=uni-t-ut61e-ser

The transmission of the measurement data cannot be disabled. The respective Cyrustek ES51922 pin (111, RS232) is tied to GND (i.e. transmission is always enabled) on this multimeter.[1]

Usage

The following sigrok-cli command can be used to receive five measured values from a device connected via USB (note that the USB VID/PID after the conn option needs to be changed depending on the exact USB adapter cable used):

$ sigrok-cli --driver=uni-t-ut61e:conn=1a86.e008 -O analog --samples 5

If your meter has a serial (RS-232) cable connected to a USB-to-serial adapter, a different driver is used. Example for ttyUSB0:

$ sigrok-cli --driver=uni-t-ut61e-ser:conn=/dev/ttyUSB0 -O analog --samples 5

Same example for COM1 (Windows), please note the special syntax for specifying the COM port:

C:\> sigrok-cli --driver=uni-t-ut61e-ser:conn=\\.\COM1 -O analog --samples 5

--samples <n> stops acquisition after the specified number of measurements, while --continuous does not stop. Type just sigrok-cli by itself for a summary of options. More information on drivers can be found in the README.devices file of the libsigrok source tree.
