UNI-T UT61D¶
UNI-T UT61D¶
| Status | supported |
| Source code | uni-t-dmm |
| Counts | 6000 |
| IEC 61010-1 | CAT II (600V) / CAT III (300V) |
| Connectivity | RS232 / USB |
| Measurements | voltage, current, resistance, capacitance, frequency, duty cycle, diode, continuity |
| Features | autorange, true-rms, data hold, min/max, rel, bargraph, backlight |
| Website | uni-trend.com |
The UNI-T UT61D is a 6000 counts, CAT II (600V) / CAT III (300V) handheld digital multimeter with RS232 or USB connectivity.
See UNI-T UT61D/Info for more details (such as lsusb -v output) about the device.
Hardware¶
Multimeter:
- Multimeter IC: Fortune Semiconductor FS9922-DMM4 (datasheet)
- Low-power True RMS-to-DC converter: Analog Devices AD737 (datasheet)
- Crystal: 4MHz (markings: "ROSON 3.999FSHN")
- Fuses: 10A/240V and 1A/240V (HRV fuses)
RS232 cable:
See Device cables#UNI-T_UT-D02.
USB cable:
See Device cables#UNI-T_UT-D04.
Photos¶
Uni T Ut61d Package Contents

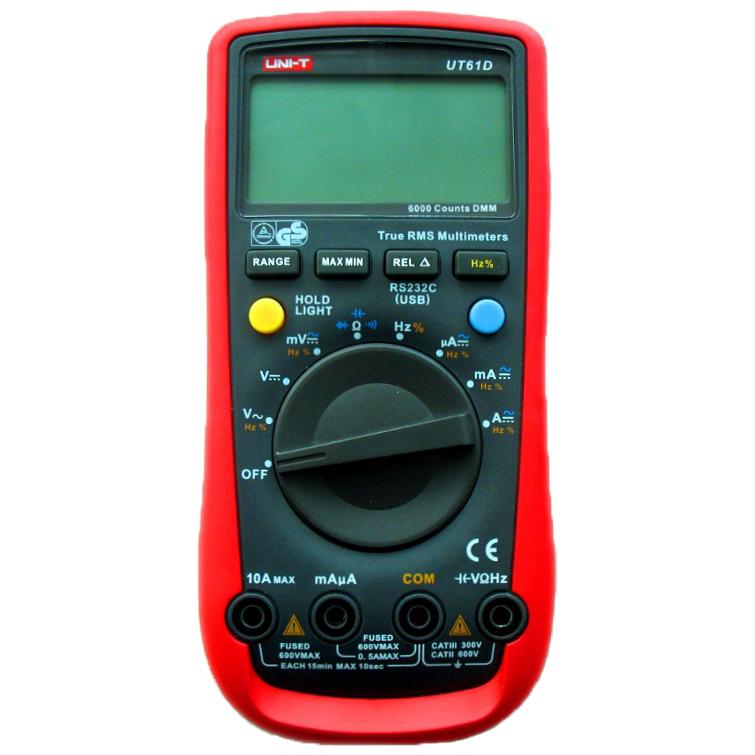

Uni T Ut61d Device

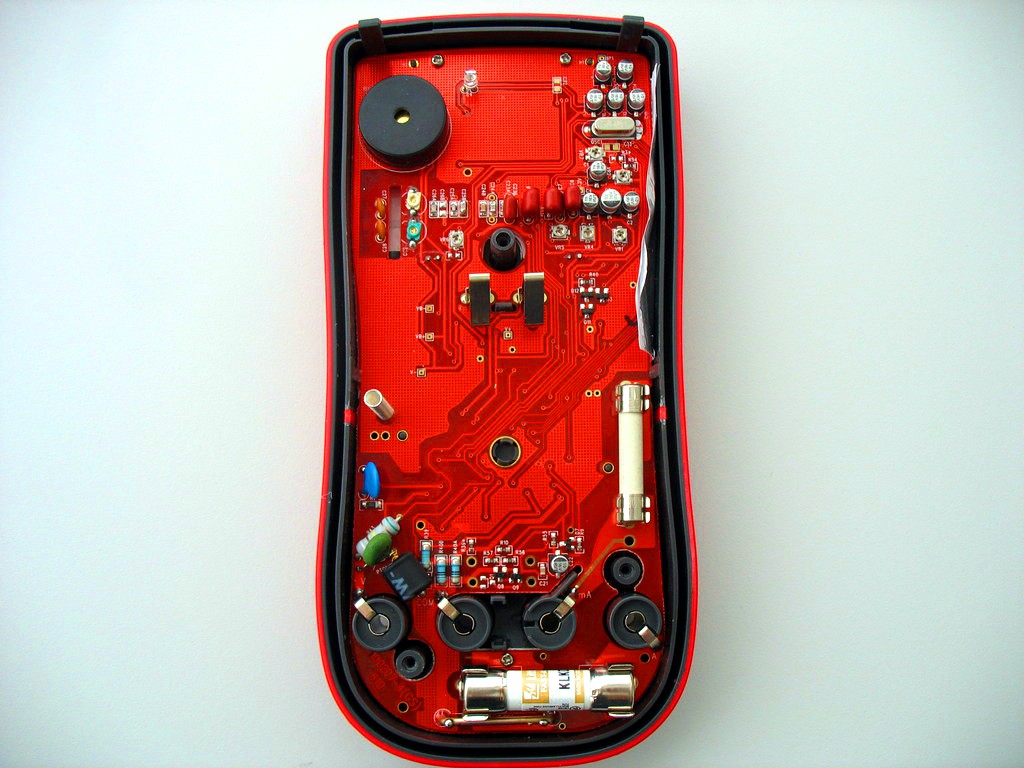

Uni T Ut61d Device Open4

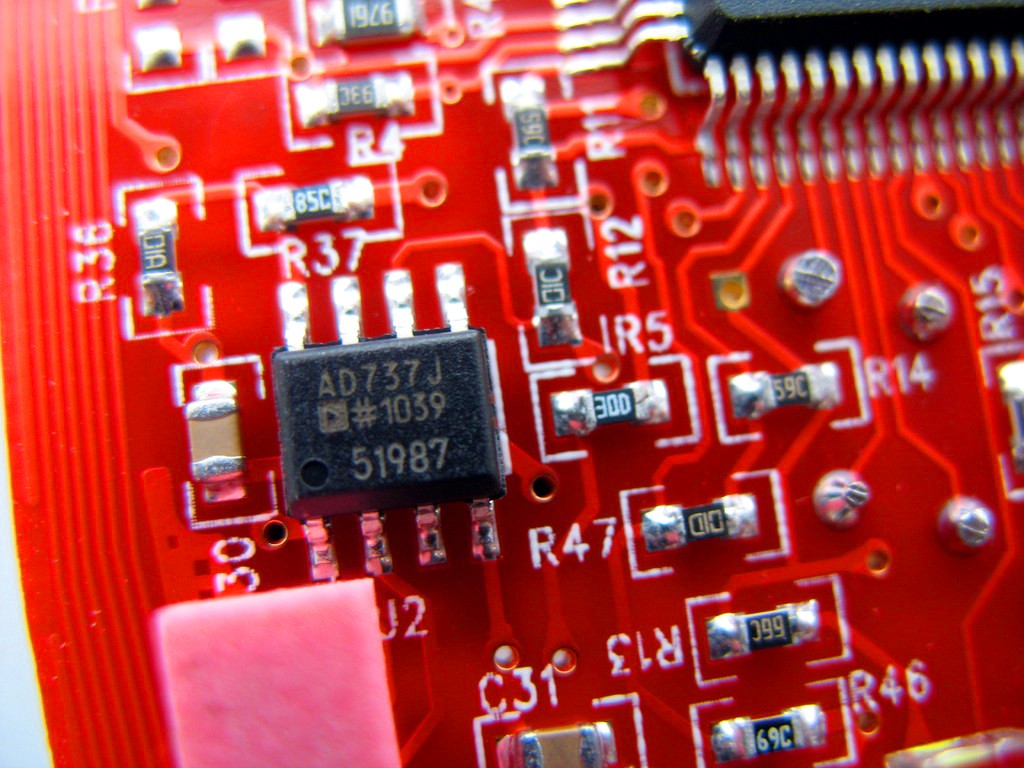

Uni T Ut61d Ad737j
Uni T Ut61d Device

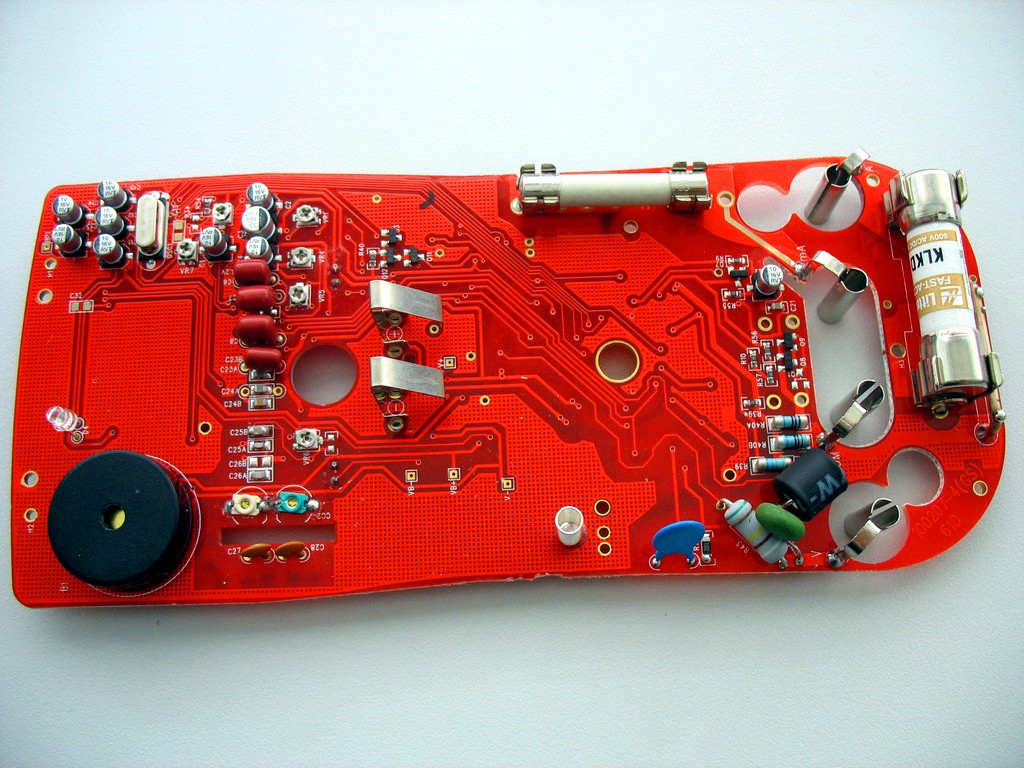

Uni T Ut61d Pcb Back

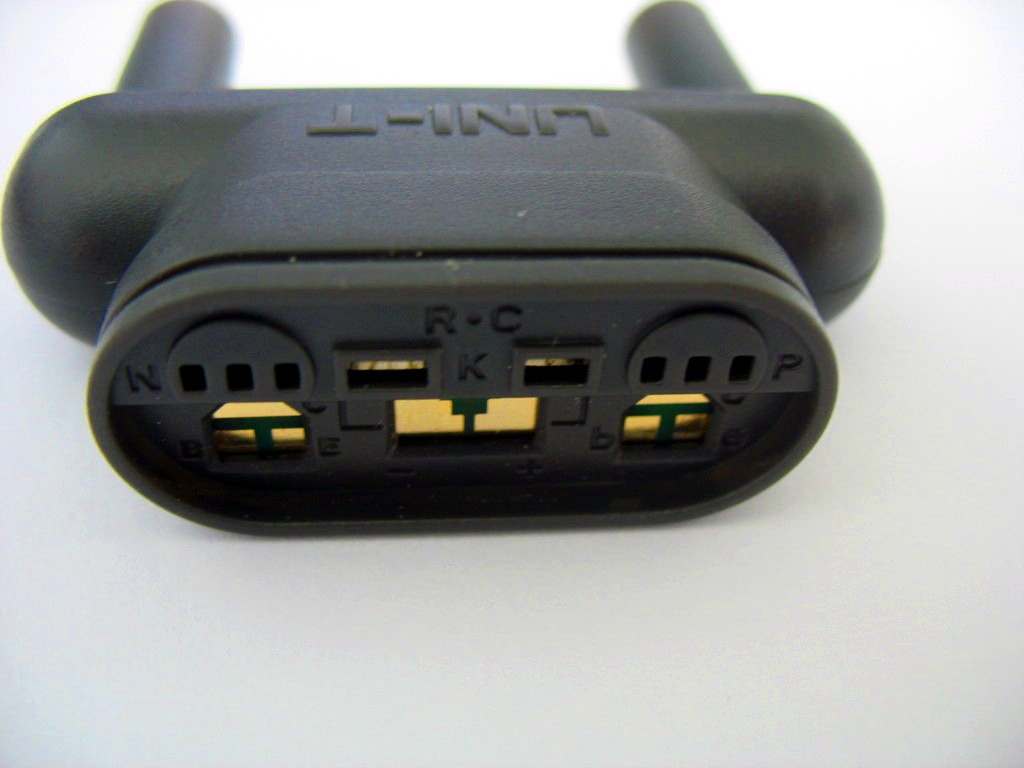

Uni T Ut61d Testadapter3

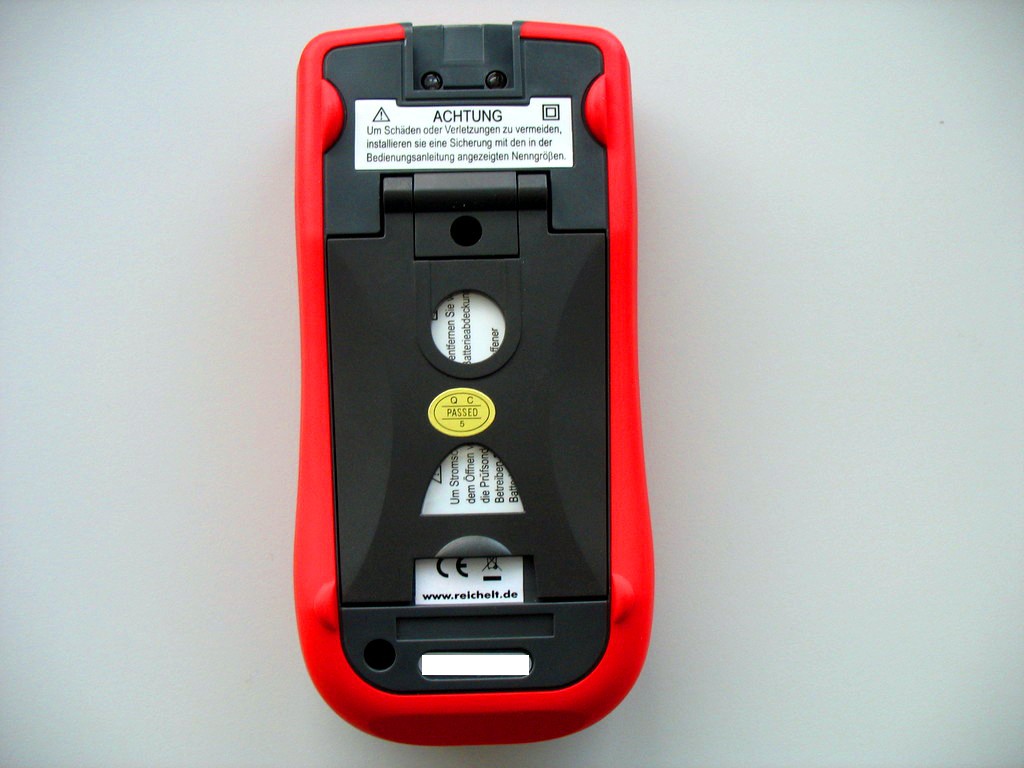

Uni T Ut61d Device Back

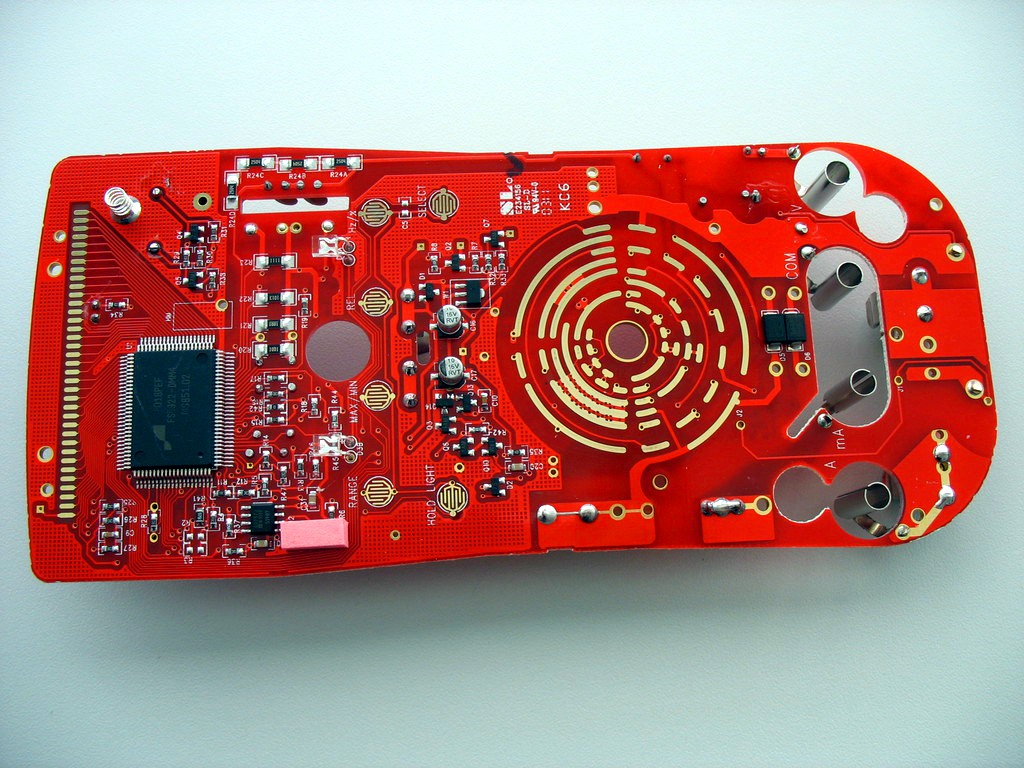

Uni T Ut61d Pcb Front

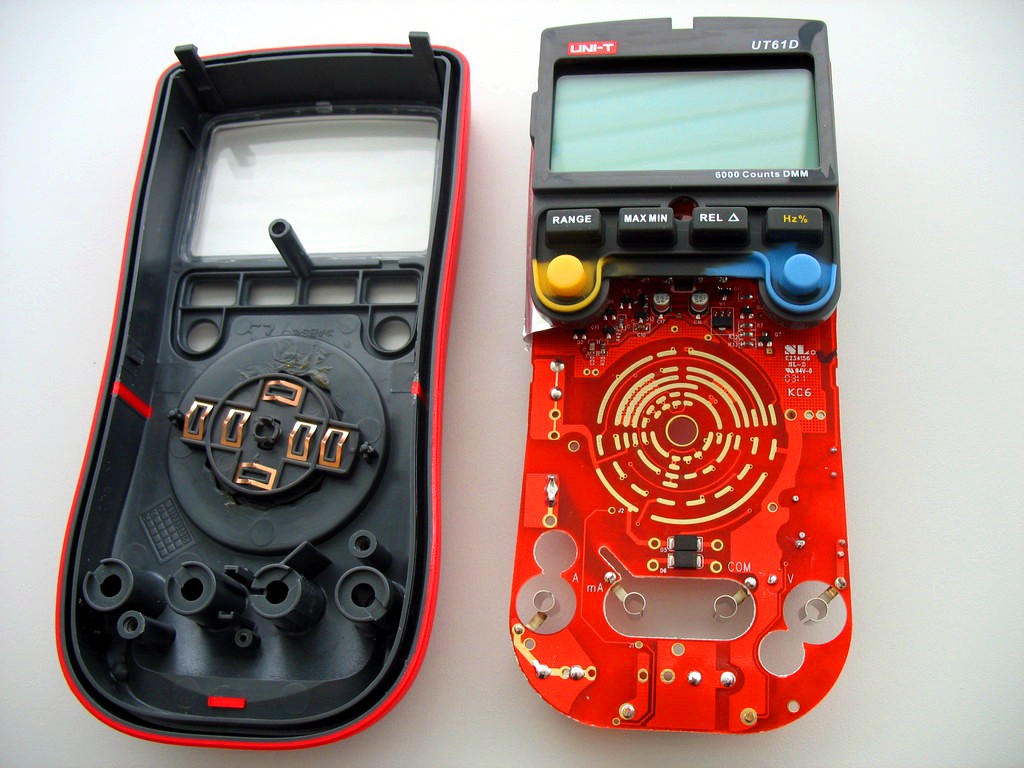

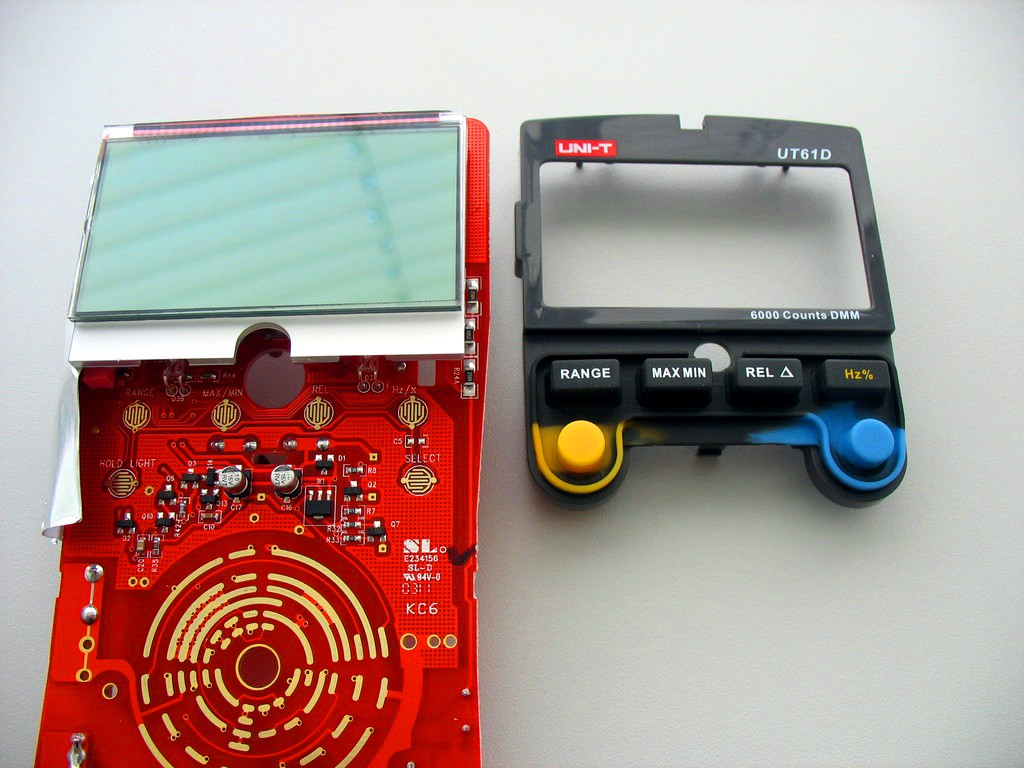

Uni T Ut61d Device Open3

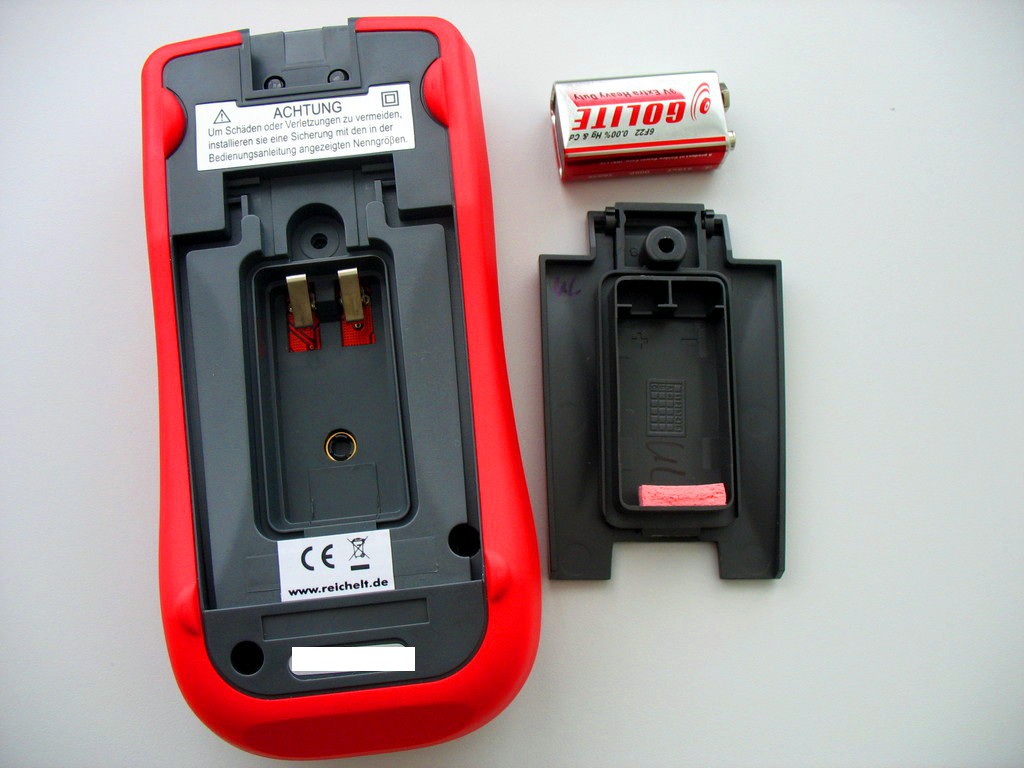

Uni T Ut61d Battery

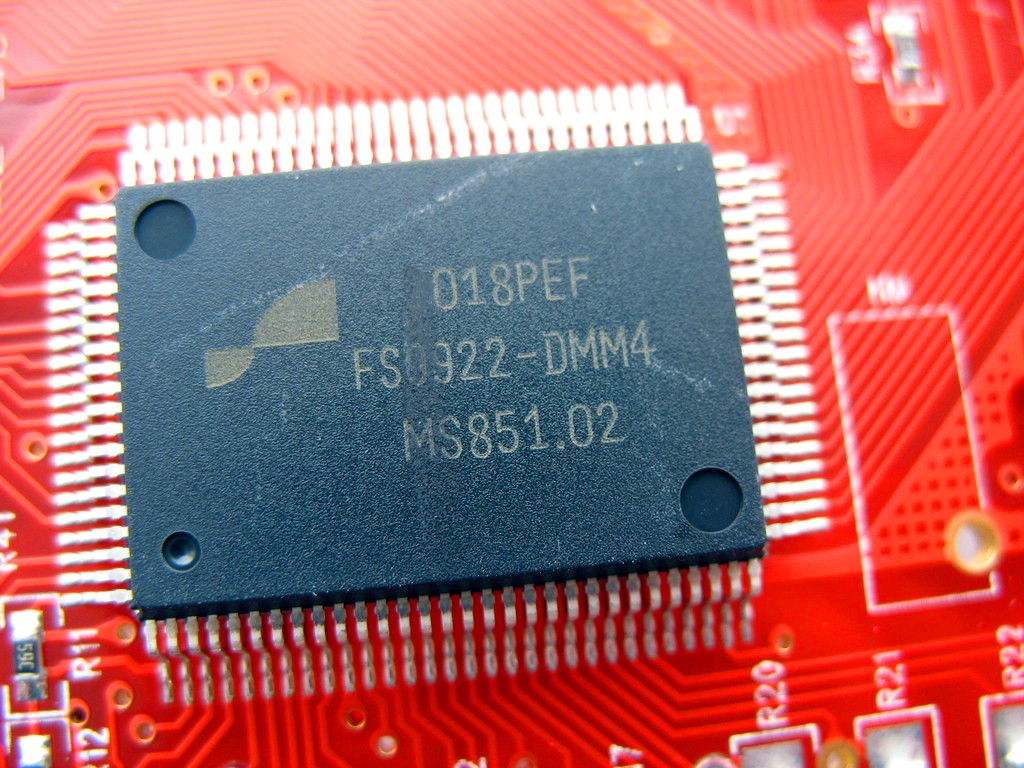

Uni T Ut61d Fs9922 Dmm4

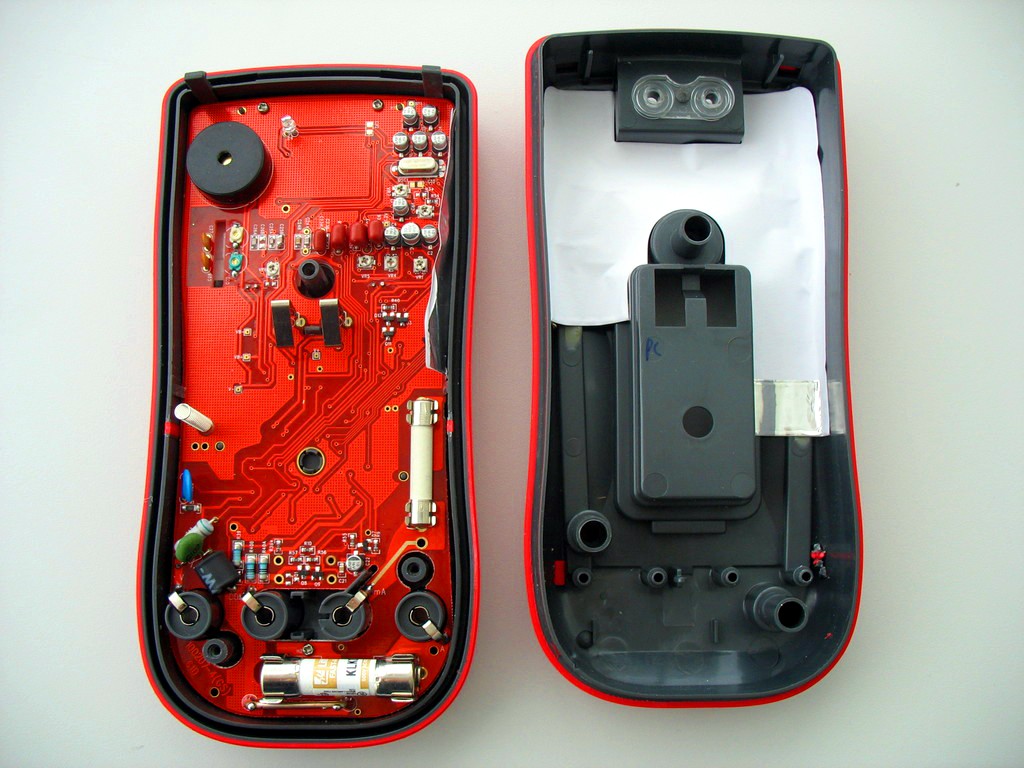

Uni T Ut61d Device Open1

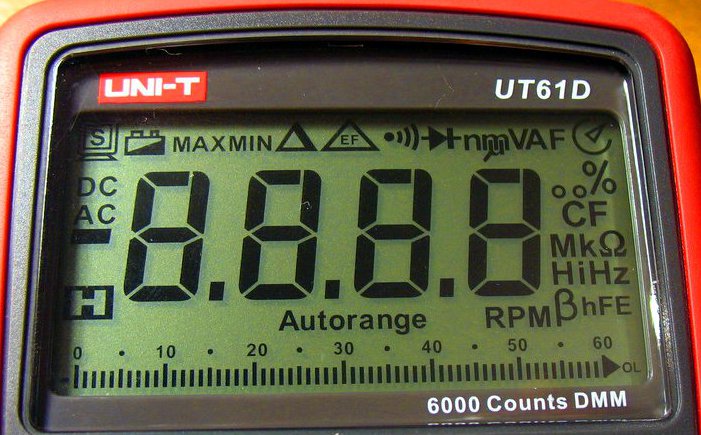

Uni T Ut61d Lcd

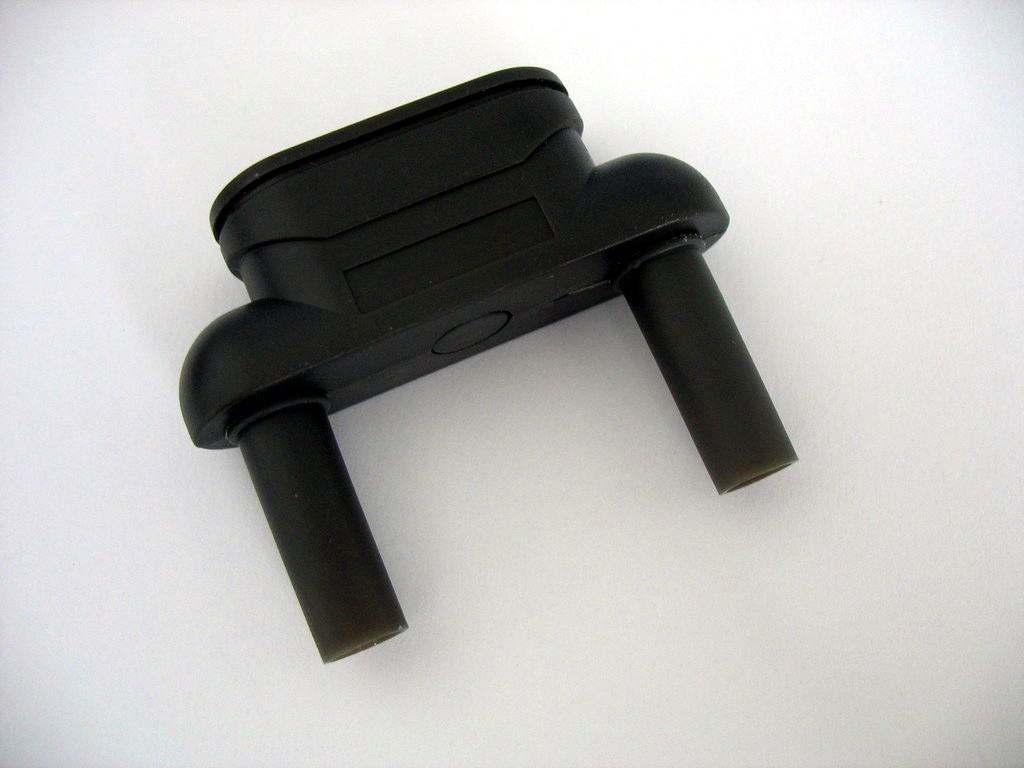

Uni T Ut61d Testadapter1

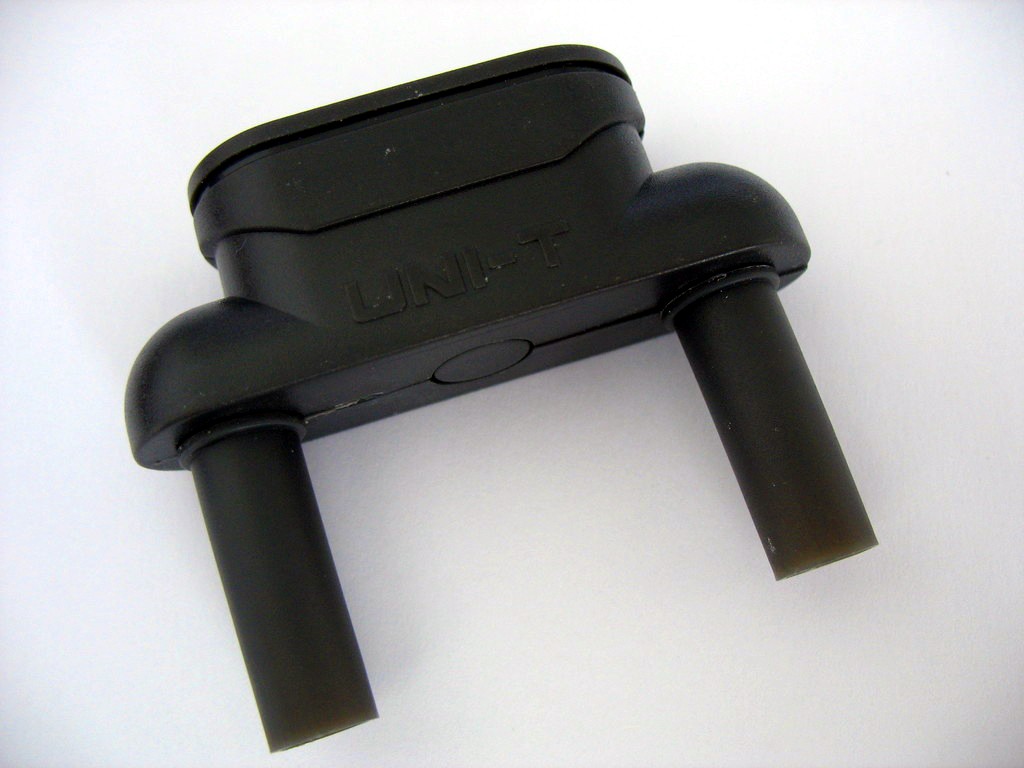

Uni T Ut61d Testadapter2

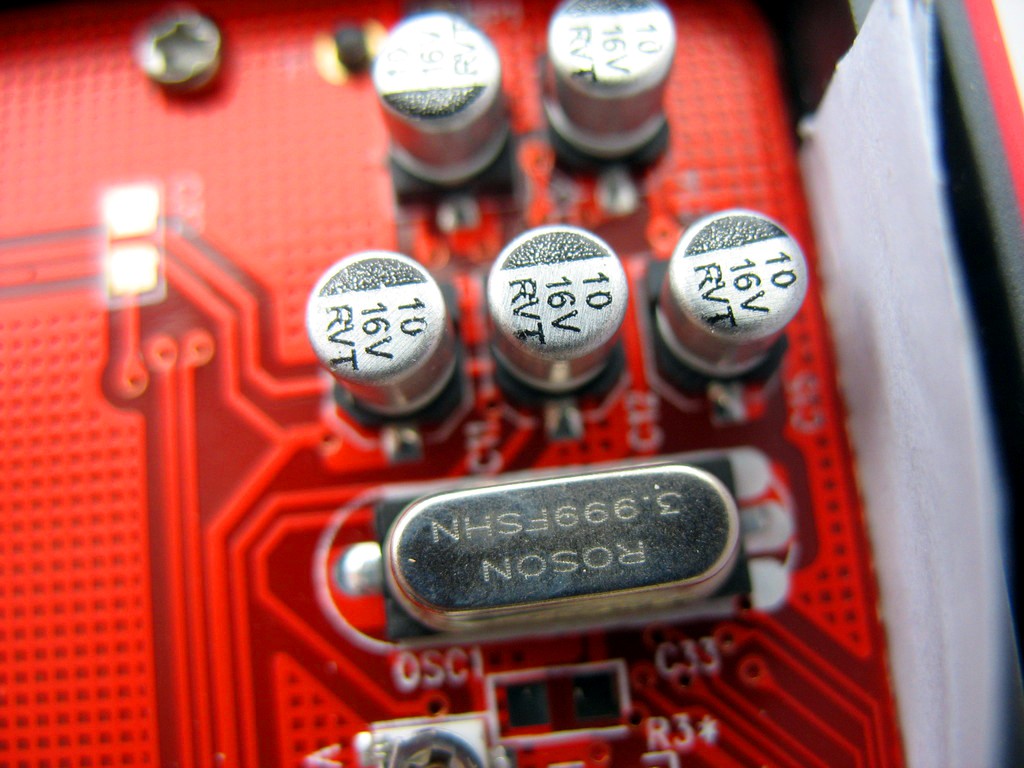

Uni T Ut61d Crystal

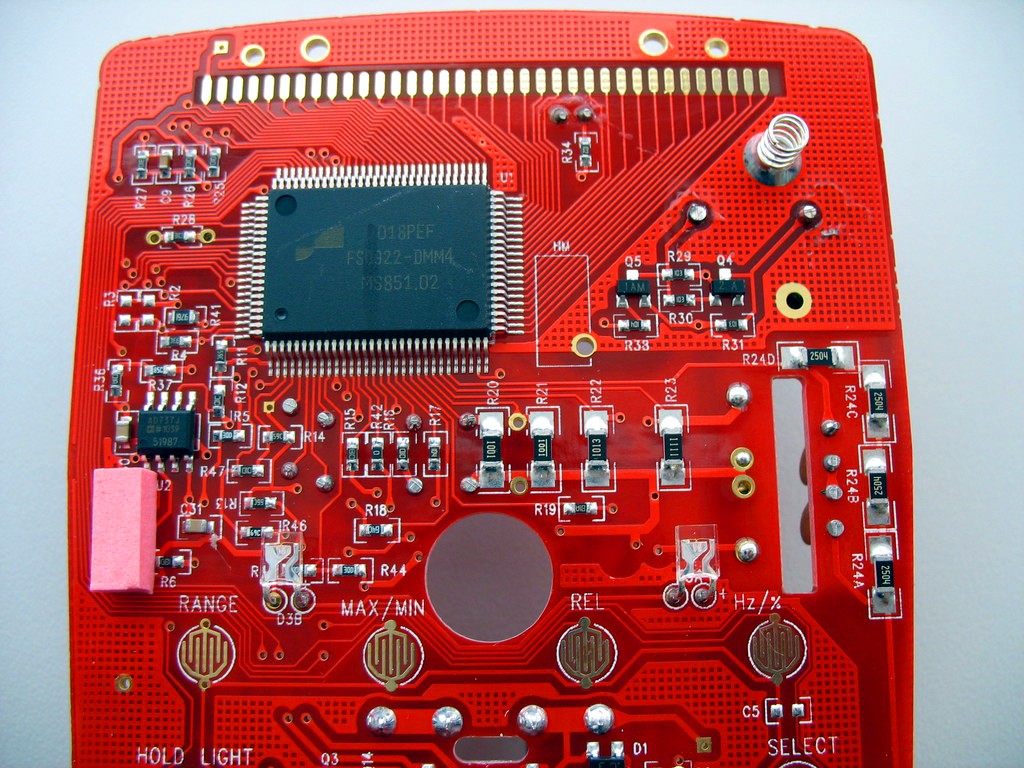

Uni T Ut61d Pcb Front Top
Uni T Ut61d Device Open2

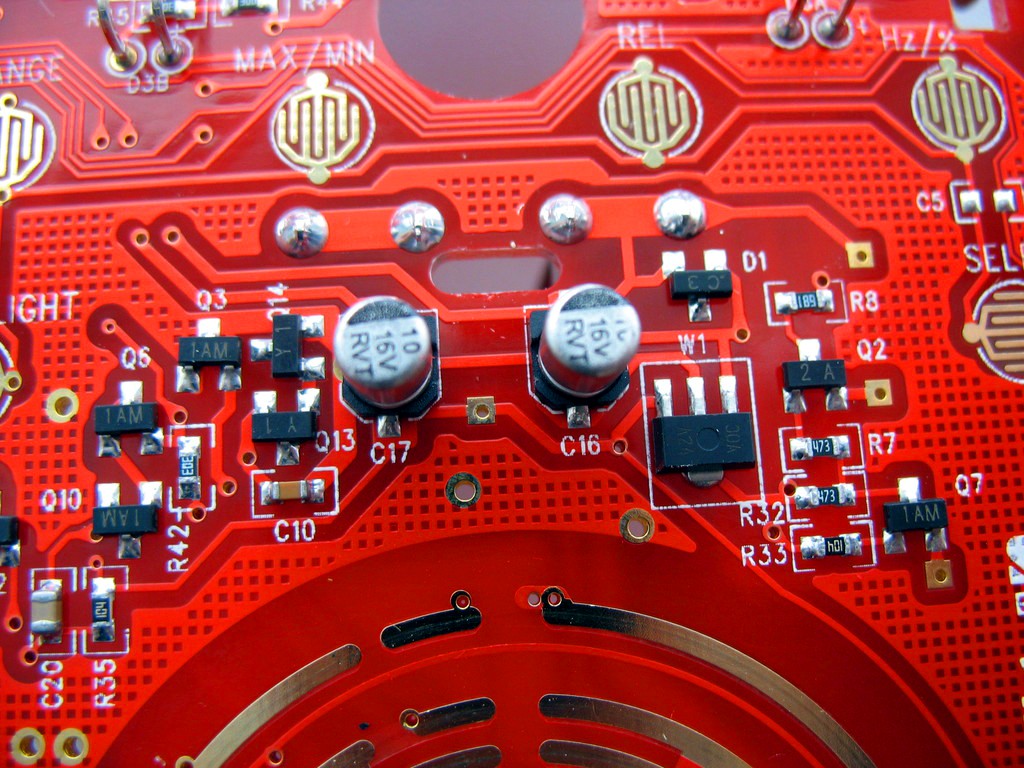

Uni T Ut61d Pcb Front Middle
Protocol¶
See Multimeter_ICs#Fortune_Semiconductor_FS9922-DMM4 for the DMM IC protocol. Depending on the cable, additional transport-specific decoding is needed, though.
