UNI-T UT60E¶
UNI-T UT60E¶
| Status | supported |
| Source code | serial-dmm |
| Counts | 4000 |
| IEC 61010-1 | CAT III (1000V) / CAT IV (600V) |
| Connectivity | RS232 / USB |
| Measurements | voltage, current, resistance, capacitance, frequency, temperature, duty cycle, diode, continuity |
| Features | autorange, true-rms, data hold, relative, backlight |
| Website | uni-trend.com |
The UNI-T UT60E is a 4000 count CAT III (1000V) / CAT IV (600V) handheld digital multimeter with RS232 or USB connectivity.
It is similar to the Voltcraft VC-840, but not the same device/PCB (and also not just a rebranded device).
Hardware¶
- Multimeter IC: Fortune Semiconductor FS9721_LP3 (datasheet)
- Low power, True RMS-to-DC converter: Analog Devices AD737J (datasheet)
- JFET input single operational amplifier: ST TL062 (markings: "ST 062C EZ749") (datasheet)
- Crystal: 4MHz
- Fuses: 10A/250V and 500mA/250V (glass fuses)
RS232 cable:
USB cable:
Photos¶
Ut60e U4 Ad737j

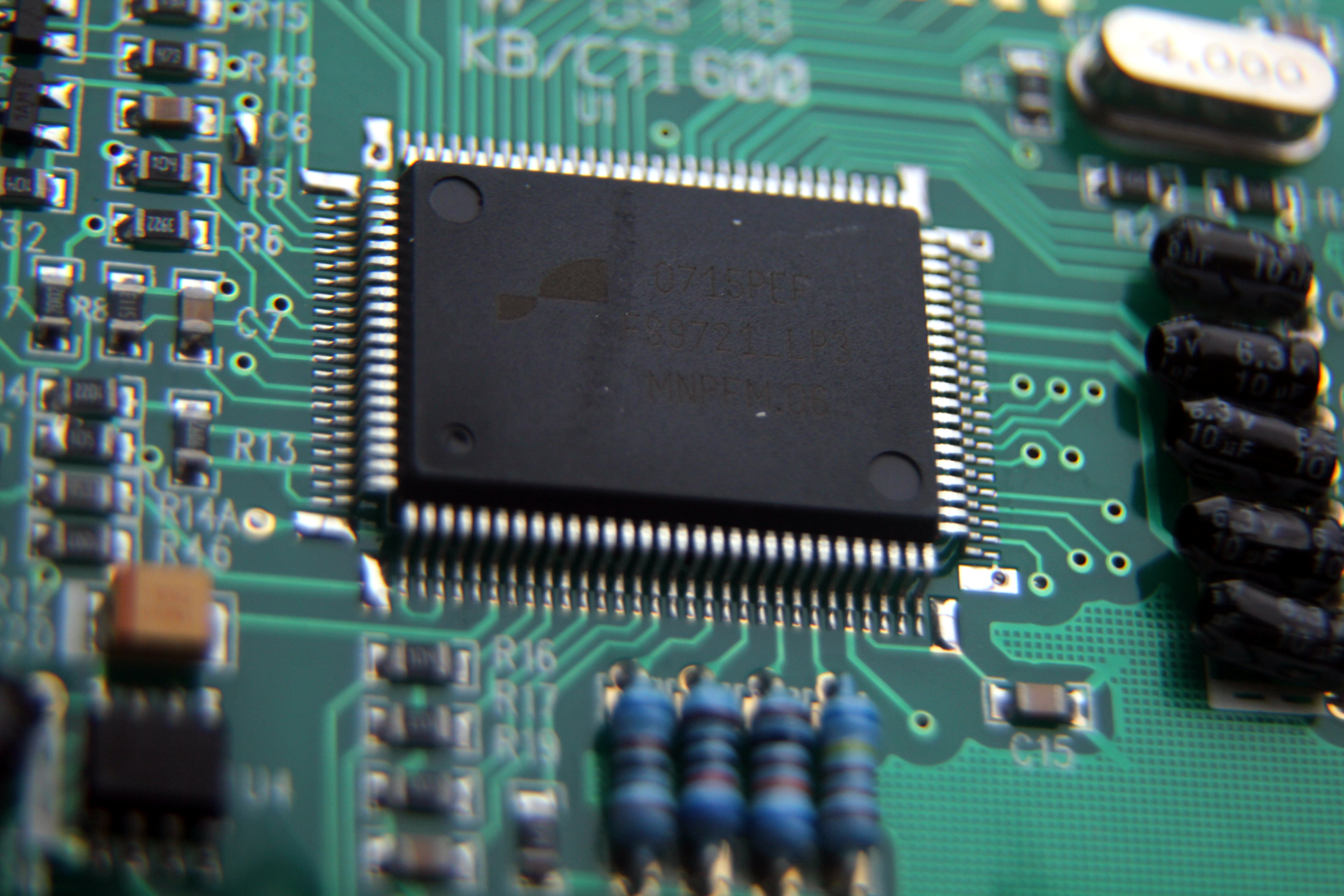

Ut60e U1 Fs9721 Lp3

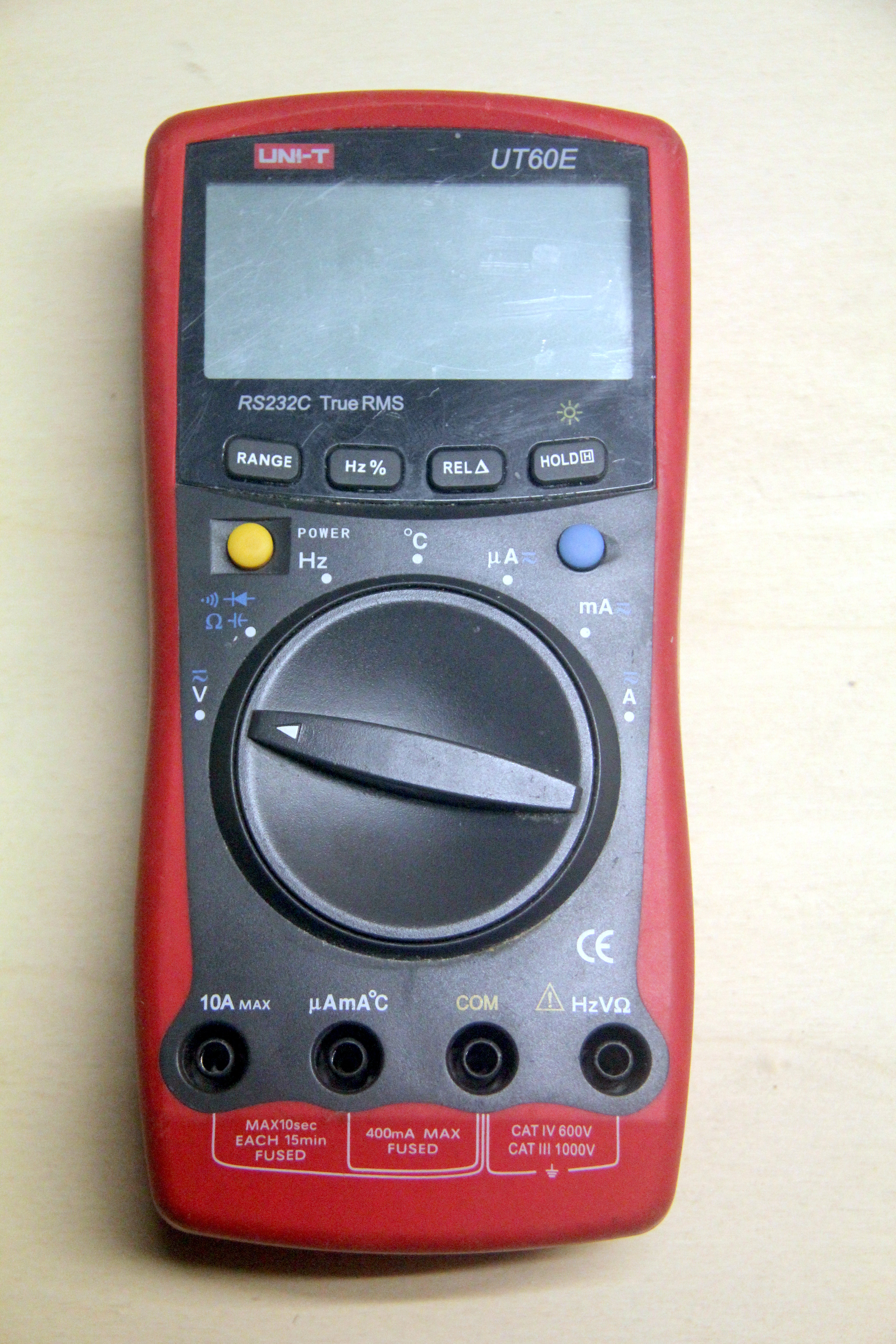

Ut60e Front

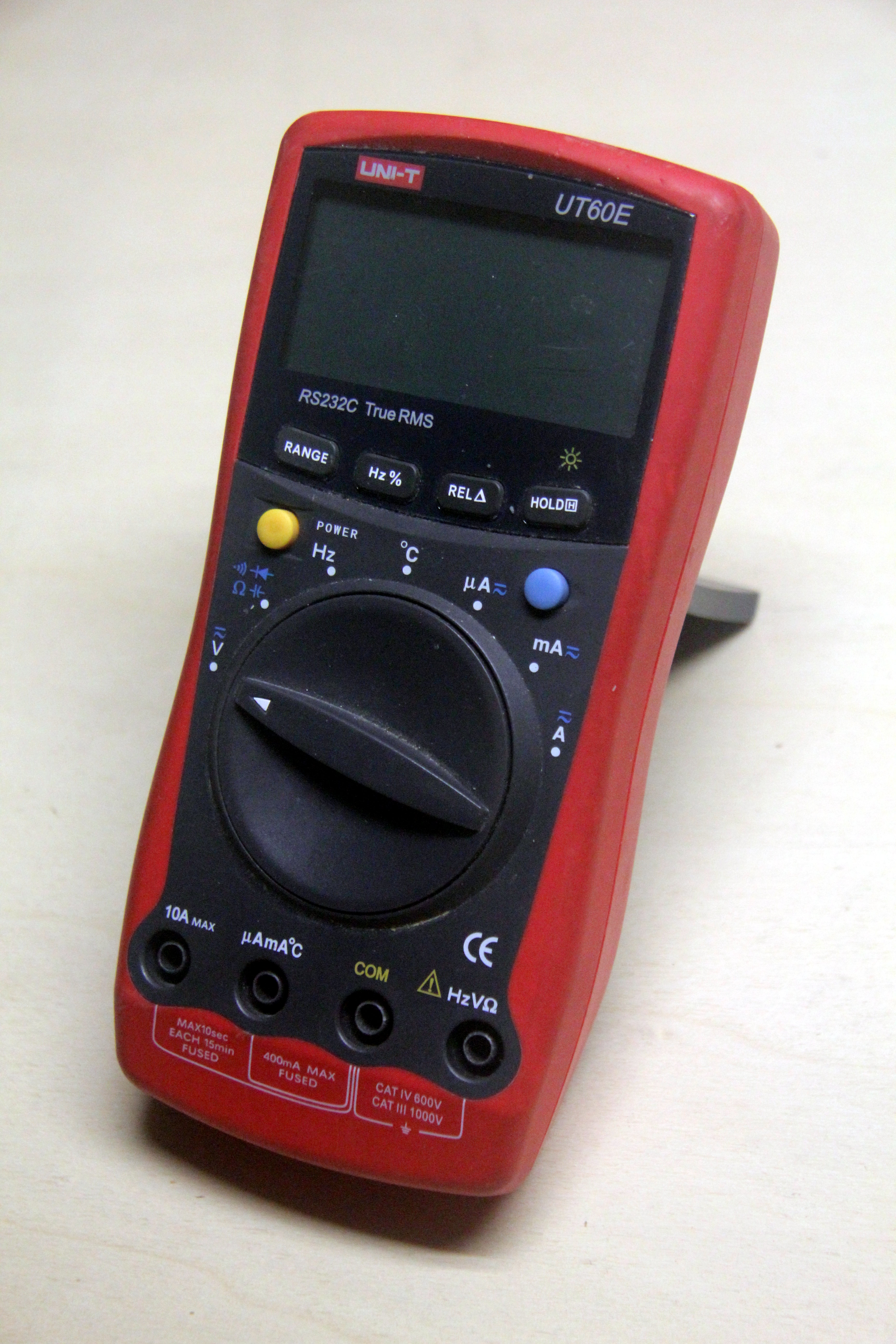

Ut60e Perspect

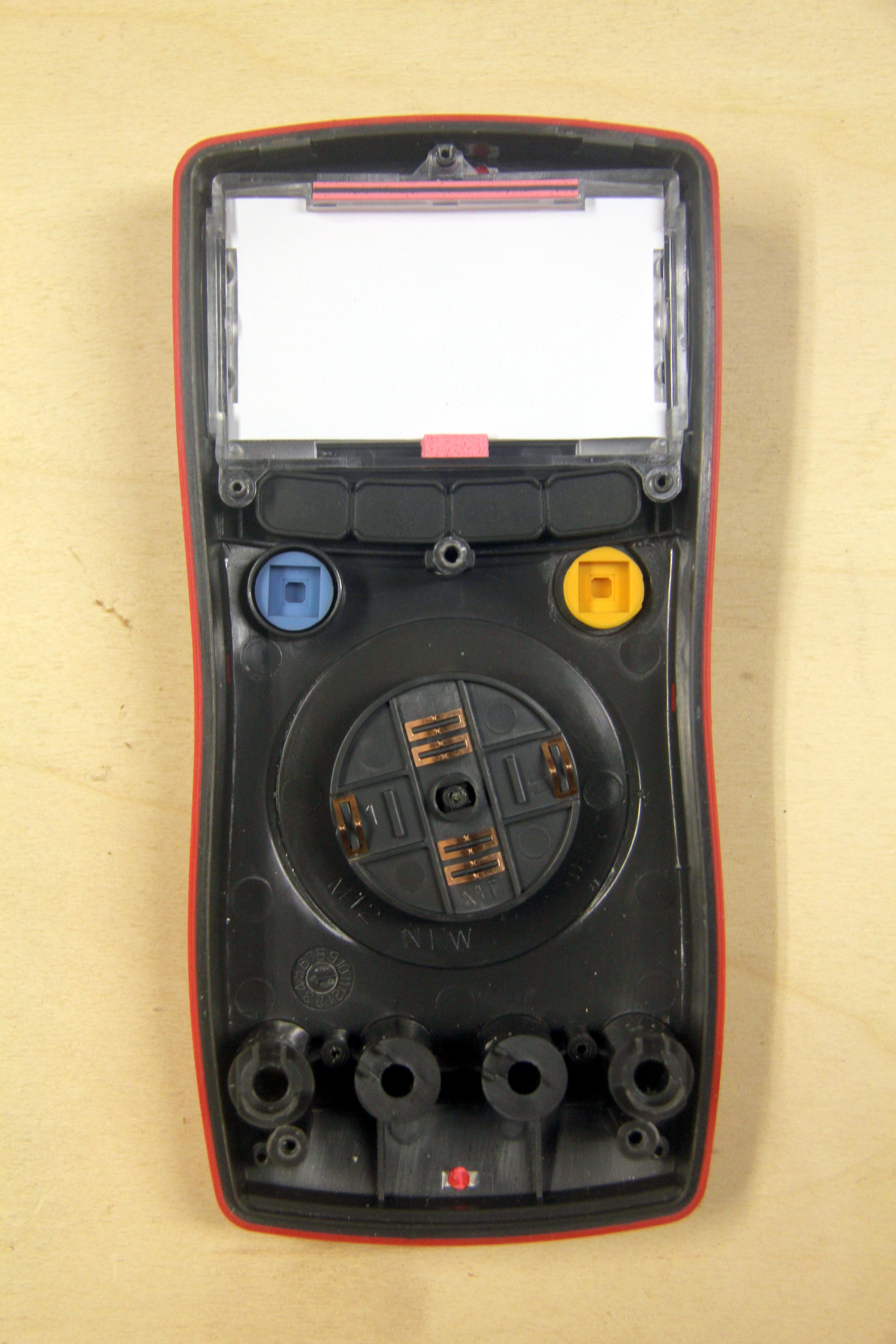

Ut60e Front In

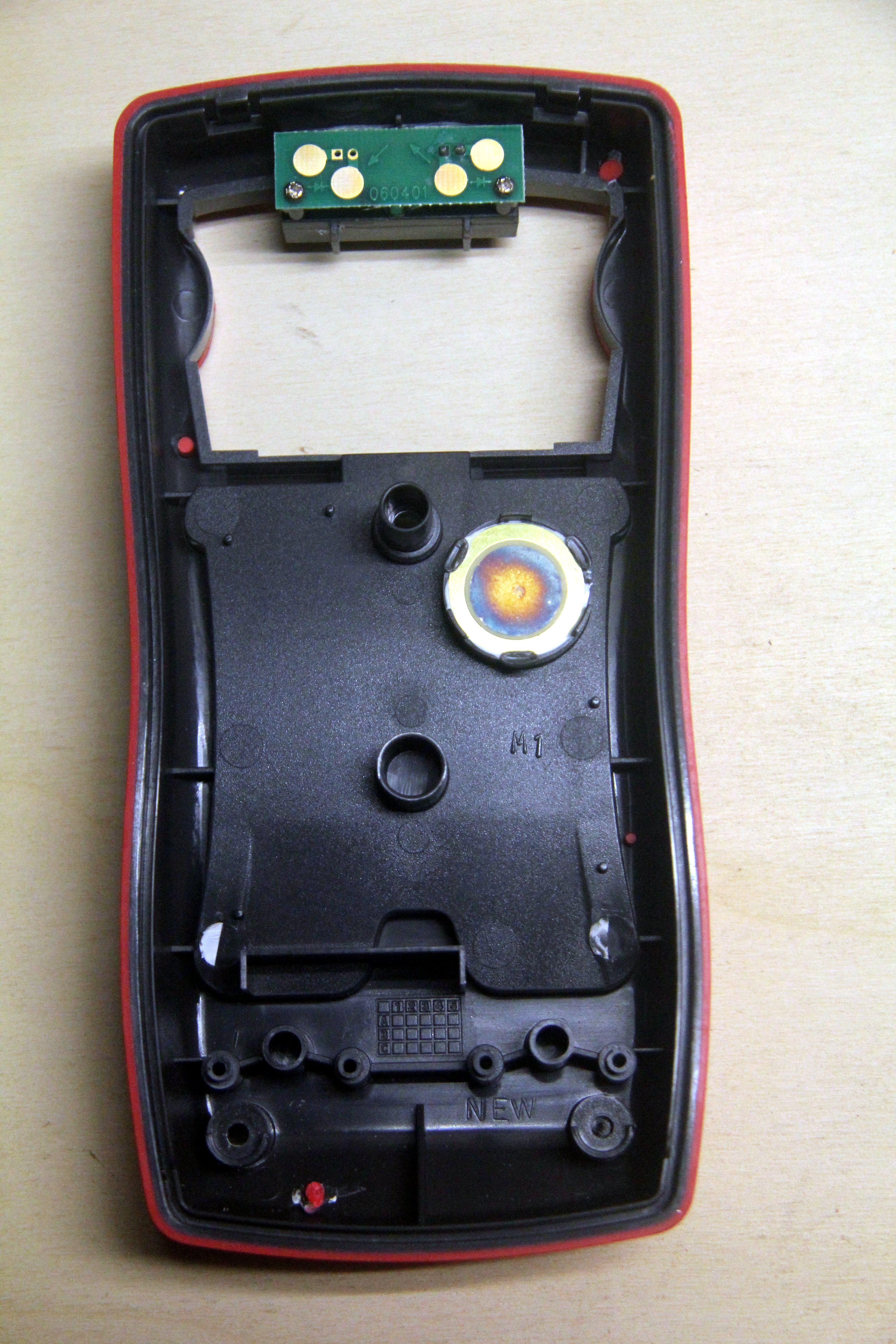

Ut60e Back In

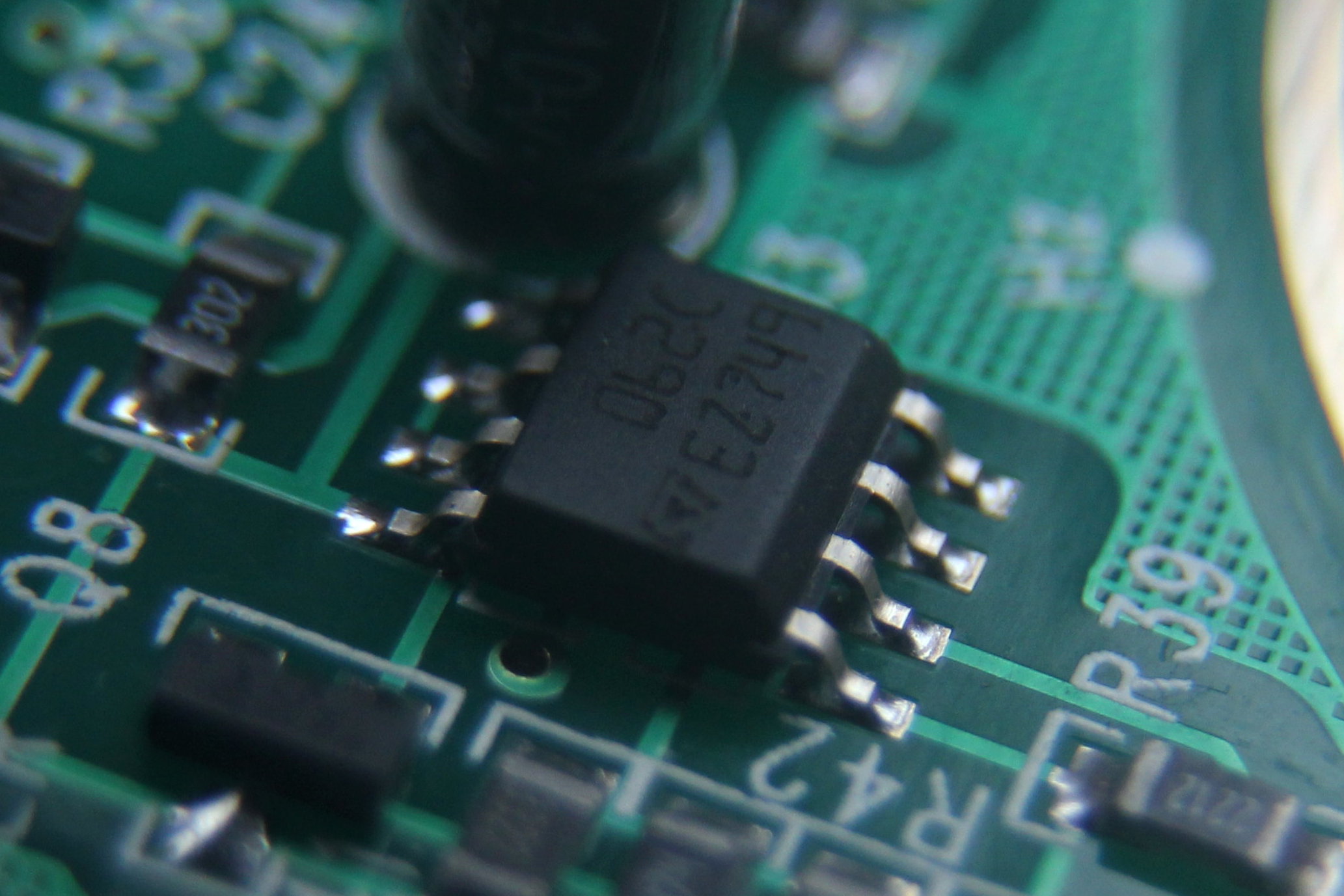

Ut60e U3 062c

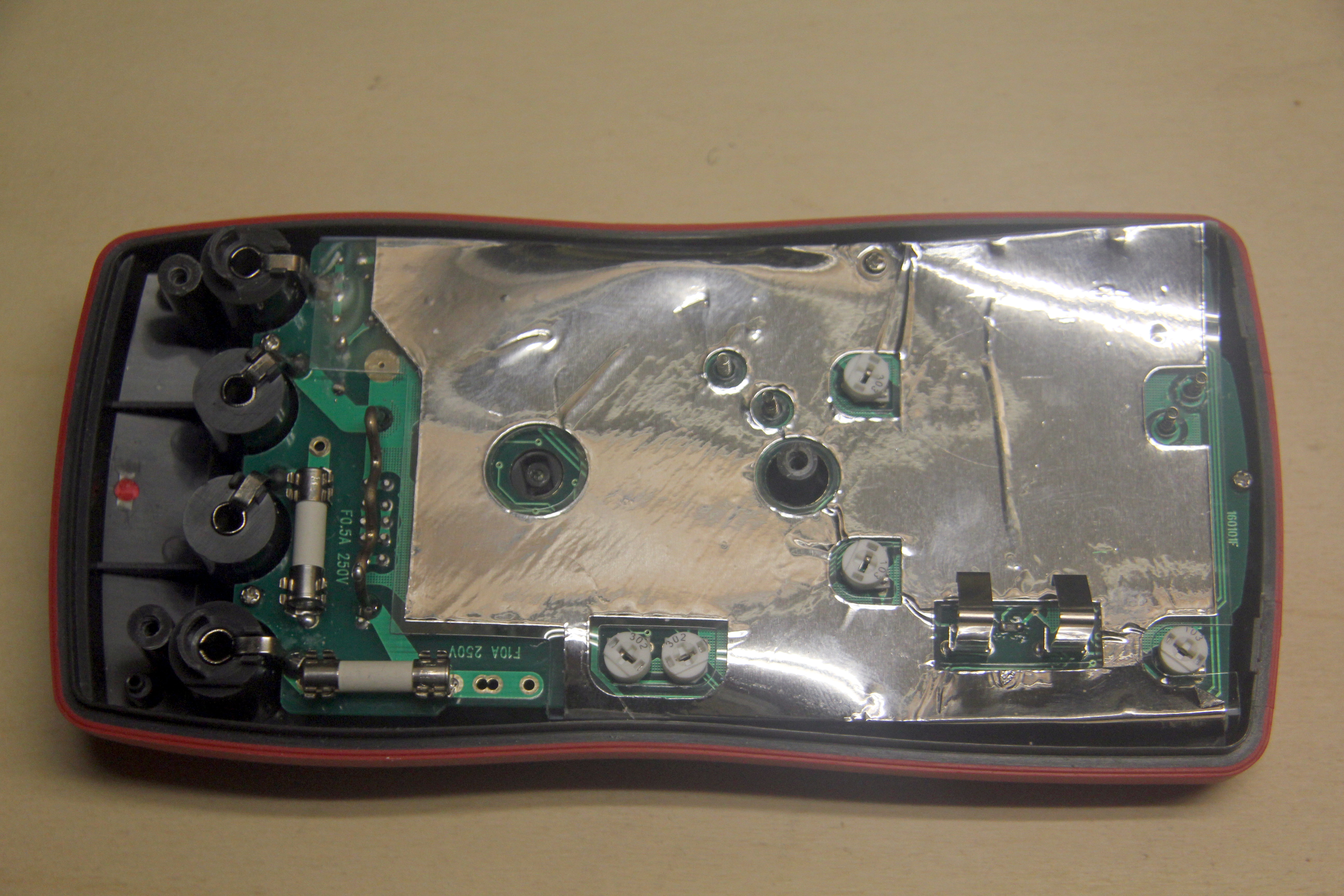

Ut60e Pcb Back Shield

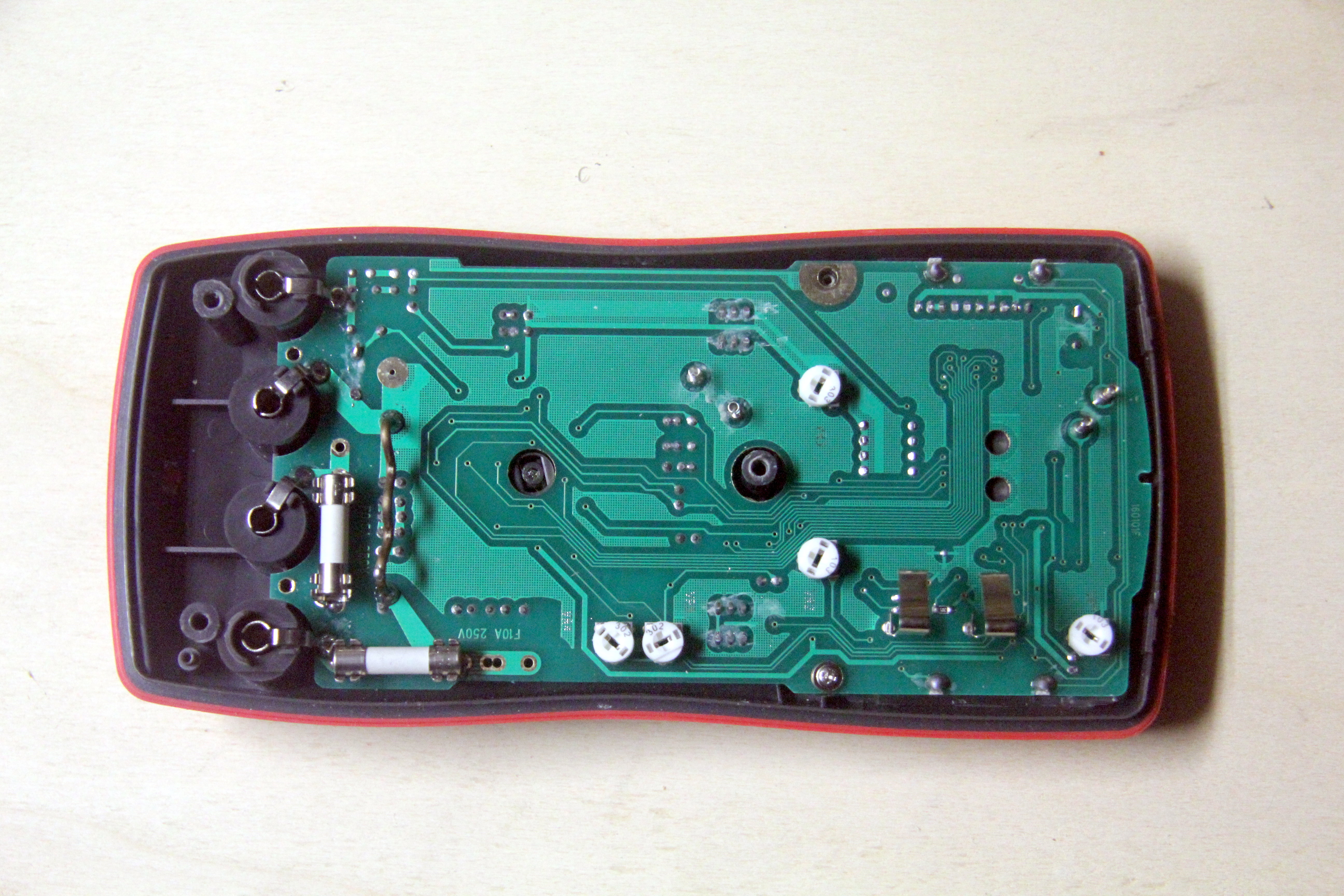

Ut60e Pcb Back

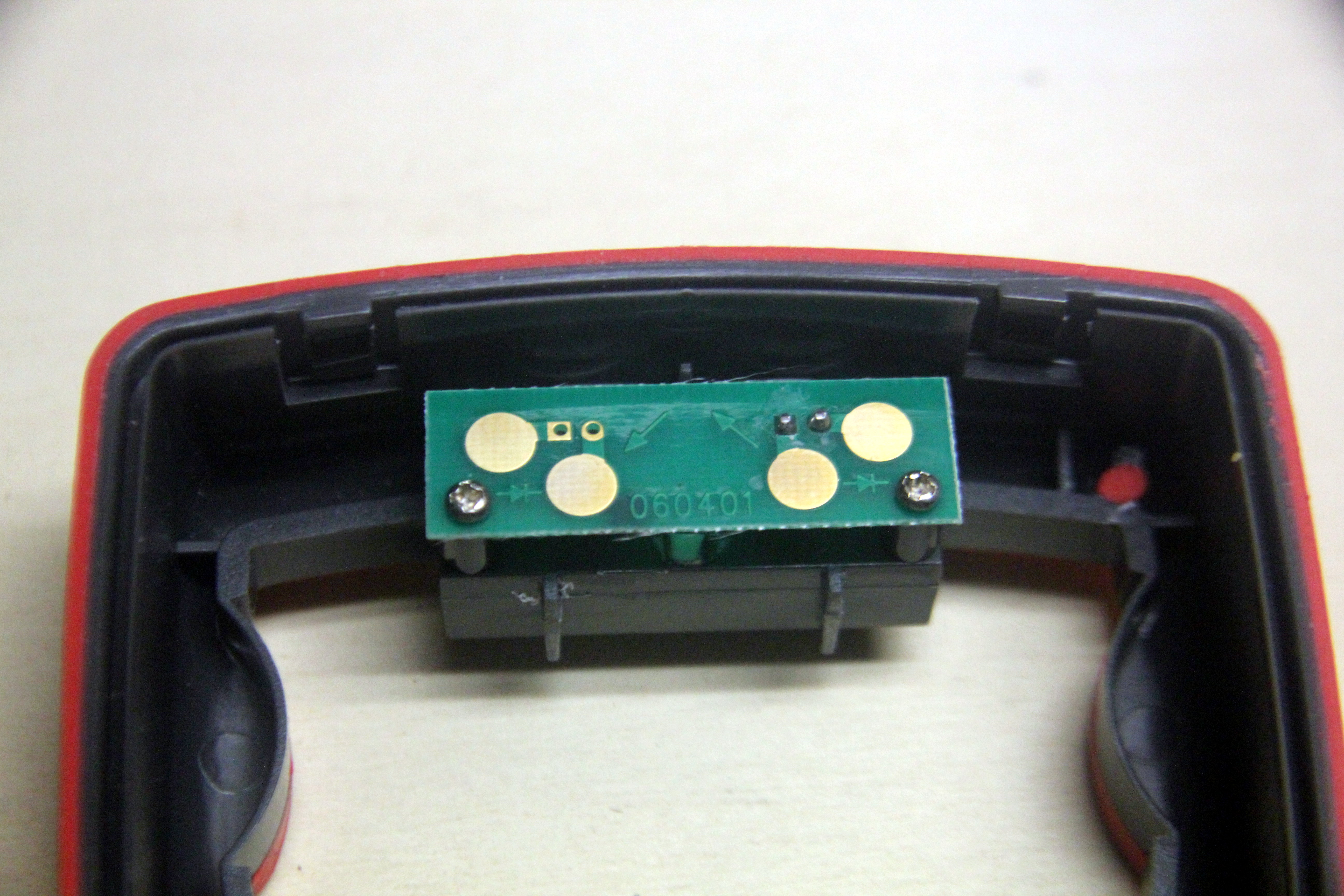

Ut60e Ir

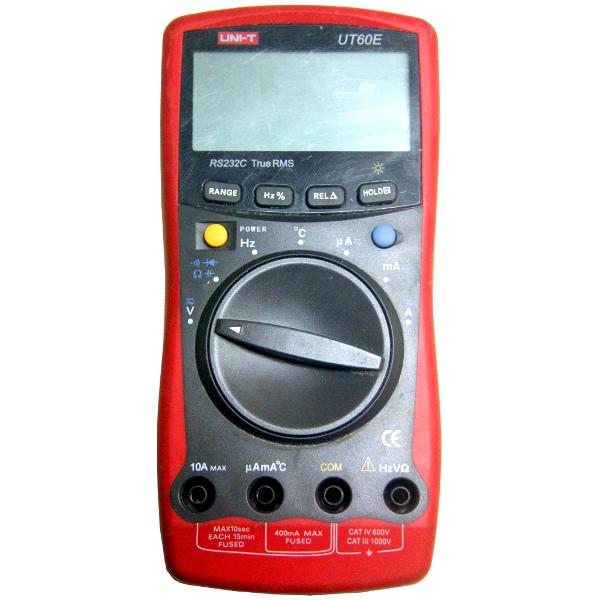

Ut60e Front Alpha

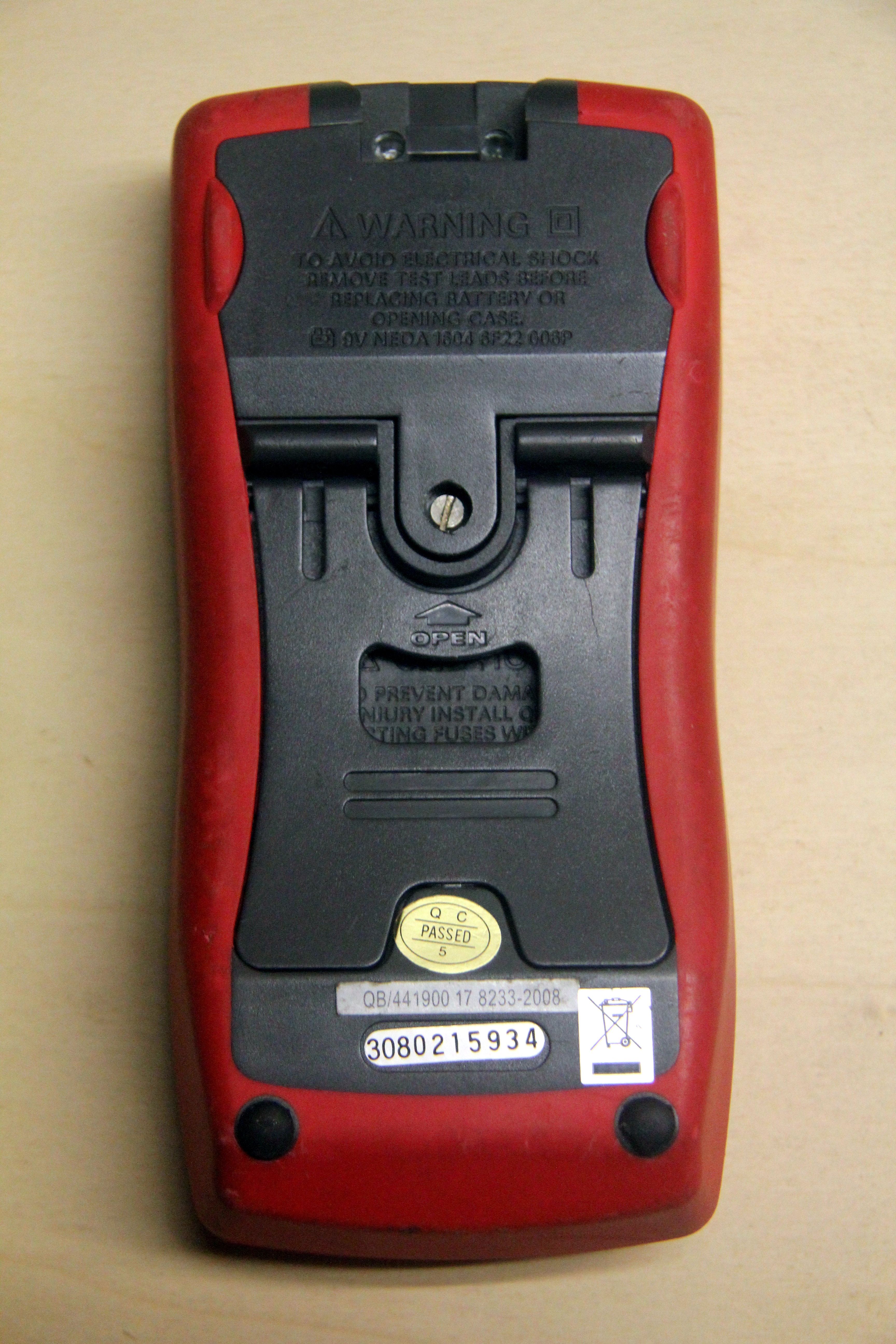

Ut60e Back

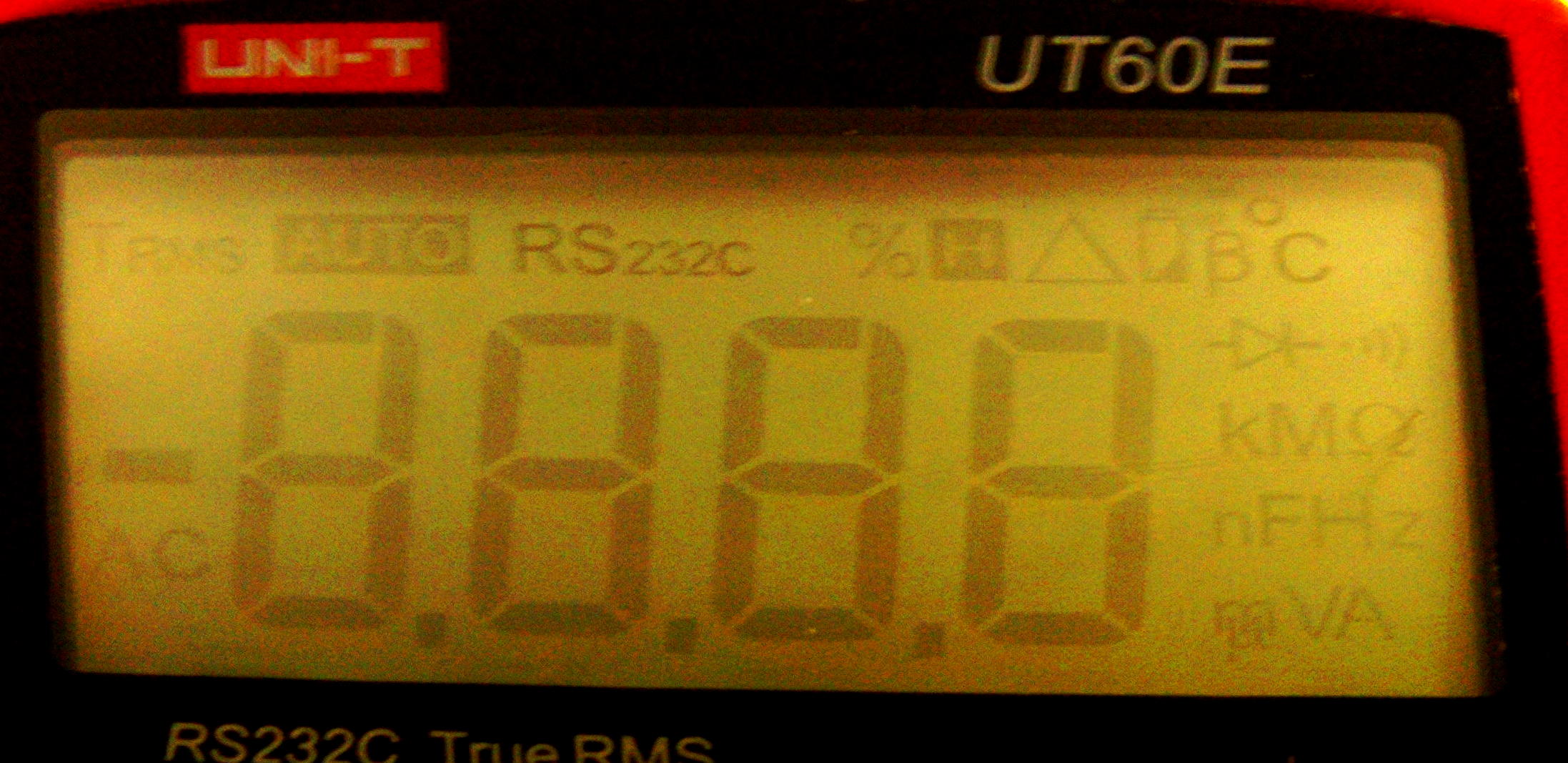

Ut60e Lcd

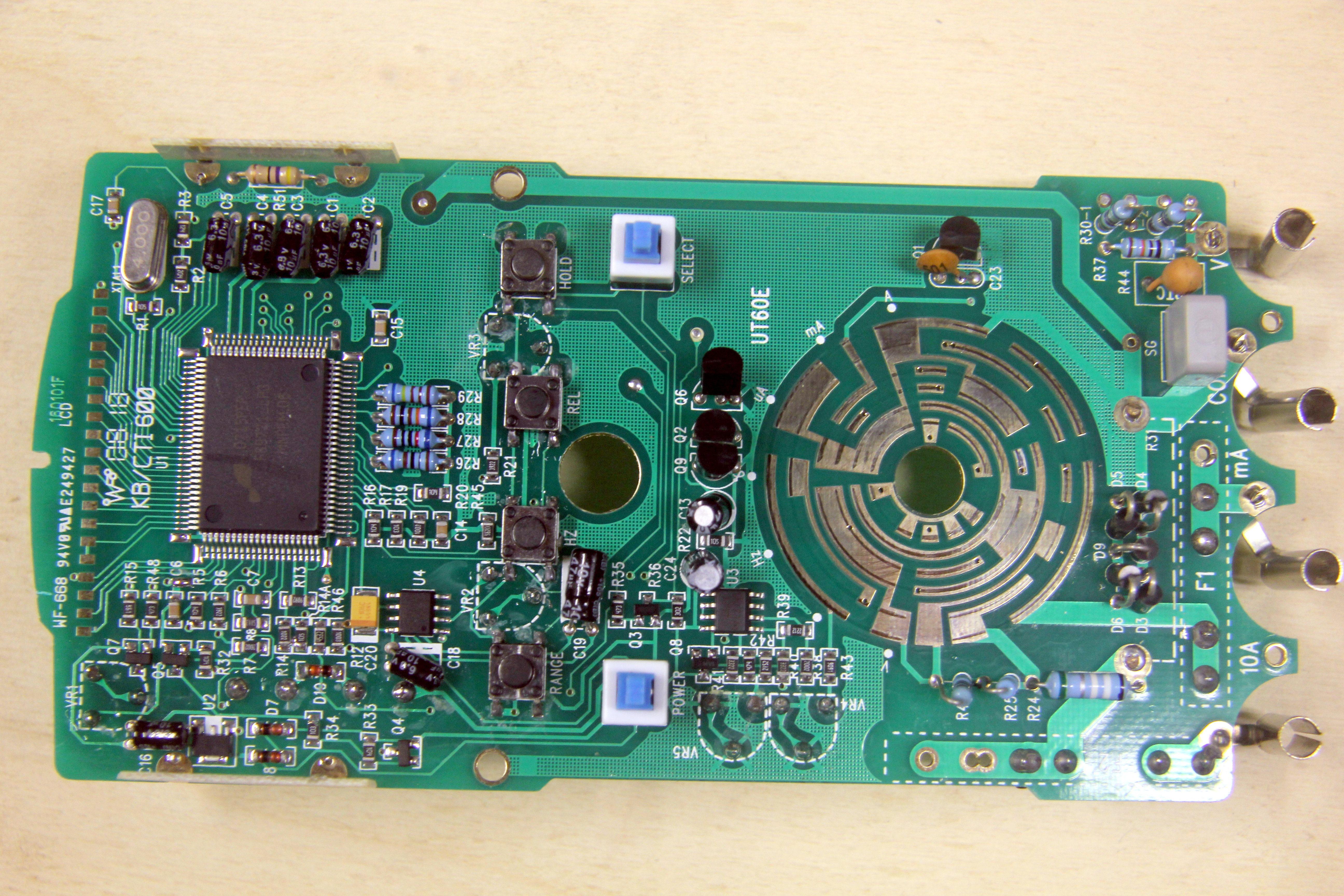

Ut60e Pcb Front
Protocol¶
See Multimeter_ICs#Fortune_Semiconductor_FS9721_LP3.
Serial data transmission is always enabled on this multimeter.
Resources¶
- Manual
- Vendor software
- Henrik Haftmann: DMM.exe etc. (Windows software for various UNI-T DMMs, and lots of device/protocol info)
- Henrik Haftmann: UT60E log and protocol docs
- postcogito.org: UT60E Decoder Program
- perfec.to: Uni-T UT60E RS-232 Data Logging
- forums.ni.com: Short protocol description
- lionelsacks.com: Exercies: Reading out the Unit-Trend UT60E in Linux
- forums.ni.com: Another UT60E forum thread
