Tenma 72-7745¶


Status	supported
Counts	4000
IEC 61010-1	CAT III (1000V) / CAT IV (600V)
Connectivity	RS232 / USB
Measurements	voltage, current, resistance, capacitance, frequency, duty cycle, temperature, diode, continuity
Features	autorange, true-rms, data hold, relative, backlight
Website	farnell.com

The Tenma 72-7745 is a 4000 count CAT III (1000V) / CAT IV (600V) handheld digital multimeter with RS232/USB connectivity.

It is a rebadged UNI-T UT60E.

Photos¶

Tenma 72 7745 Pcb Top

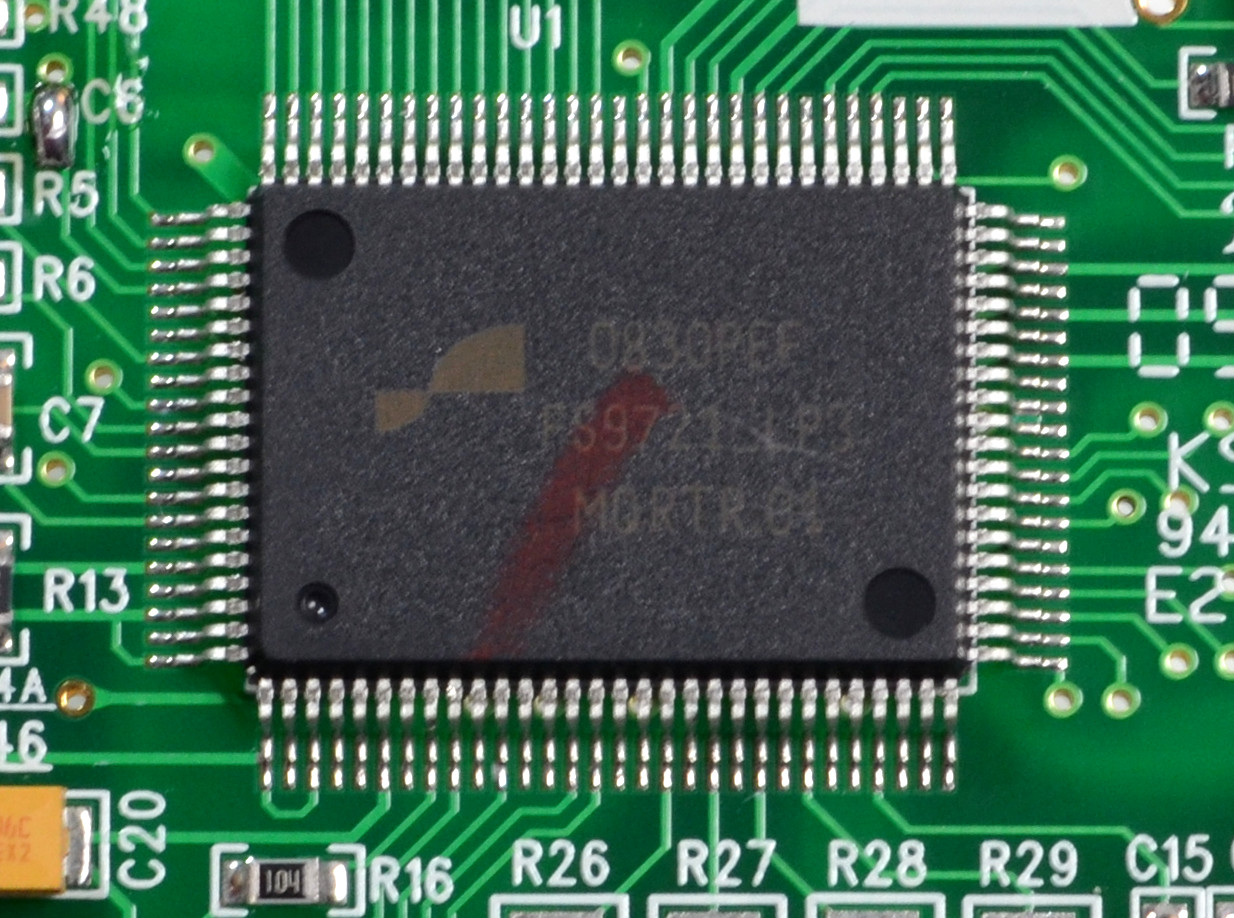

Tenma 72 7745 Pcb Detail

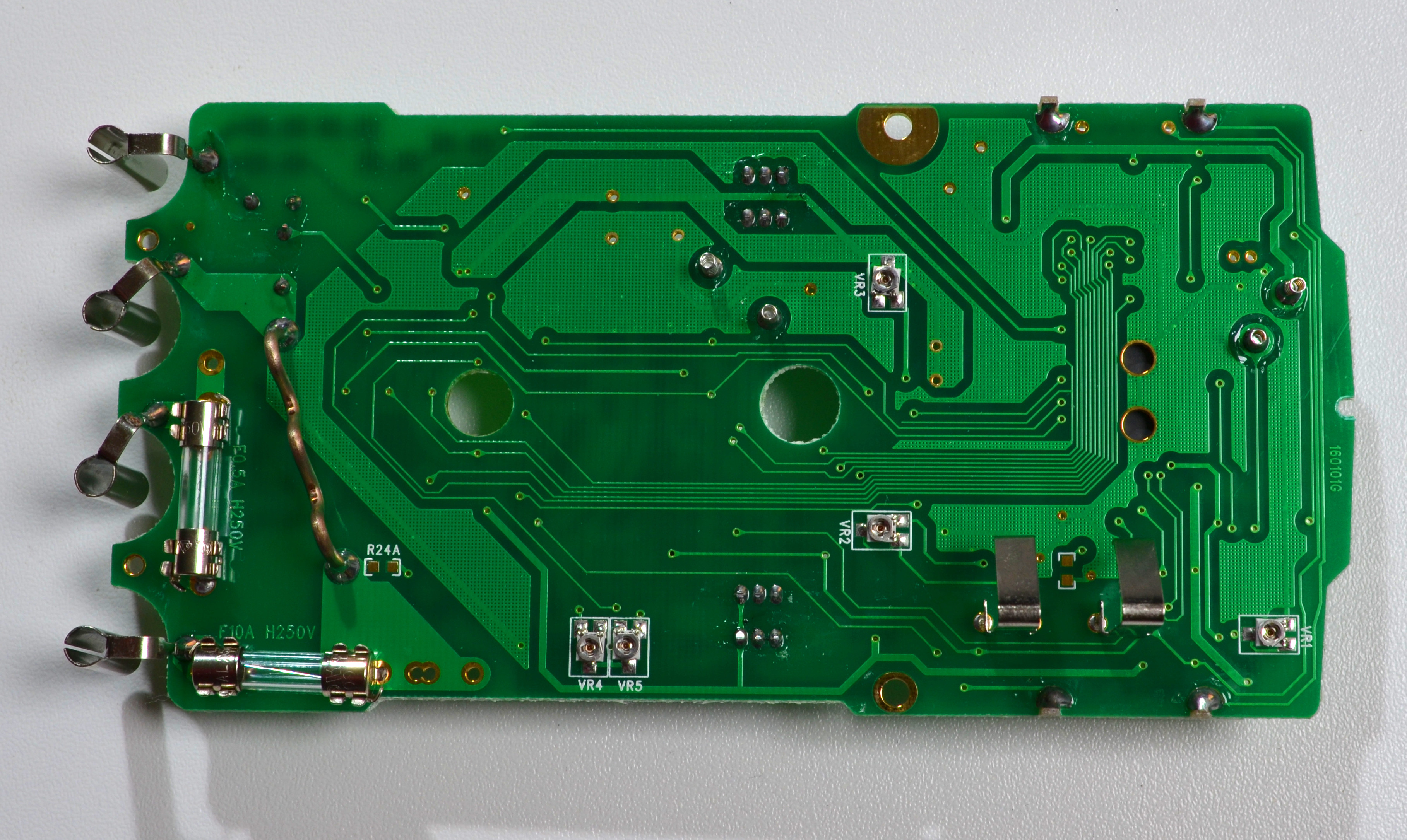

Tenma 72 7745 Pcb Bottom

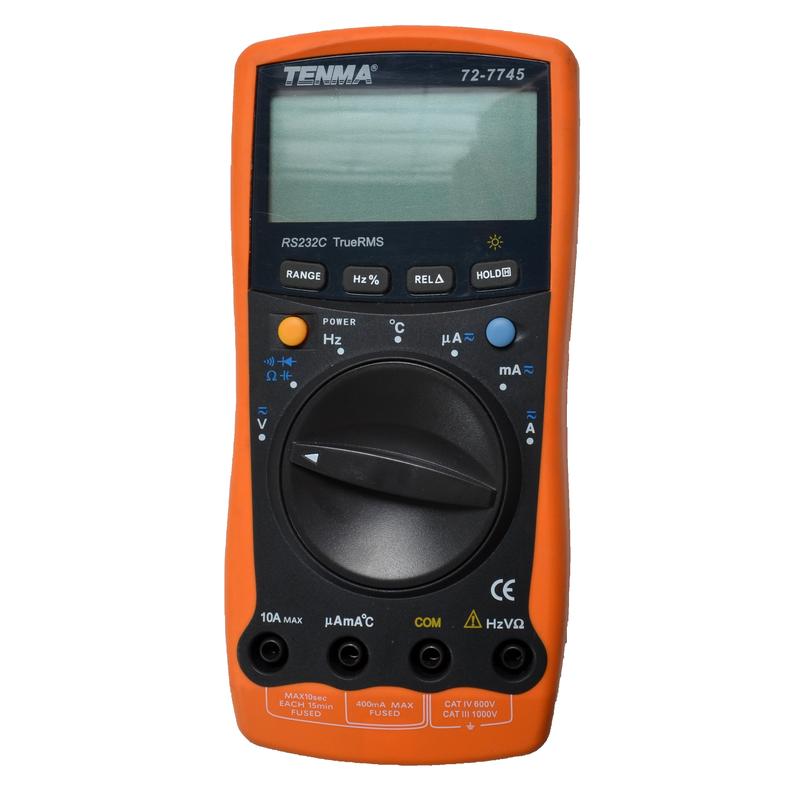

Tenma 72 7745
