Tenma 72-1016¶
Tenma 72-1016¶
| Status | planned |
| Counts | 6000 |
| IEC 61010-1 | CAT III (1000V) / CAT IV (600V) |
| Connectivity | RS232, USB |
| Measurements | voltage, current, resistance, capacitance, frequency, temperature, diode, continuity, transistor |
| Features | autorange, true-rms, data hold, relative, backlight |
| Website | farnell.com |
The Tenma 72-1016 is a 6000 count CAT III (1000V) / CAT IV (600V) bench multimeter with RS232/USB connectivity.
It is a rebadged UNI-T UT803.
USB connectivity is via the WCH CH9325 chip, and thus encapsulated according to that protocol.
Hardware¶
- Cyrustek ES51986A multimeter chip
- WCH CH9325 serial-USB converter
Photos¶
Ut803 Fuse Pcb
Ut803 Main Pcb Top

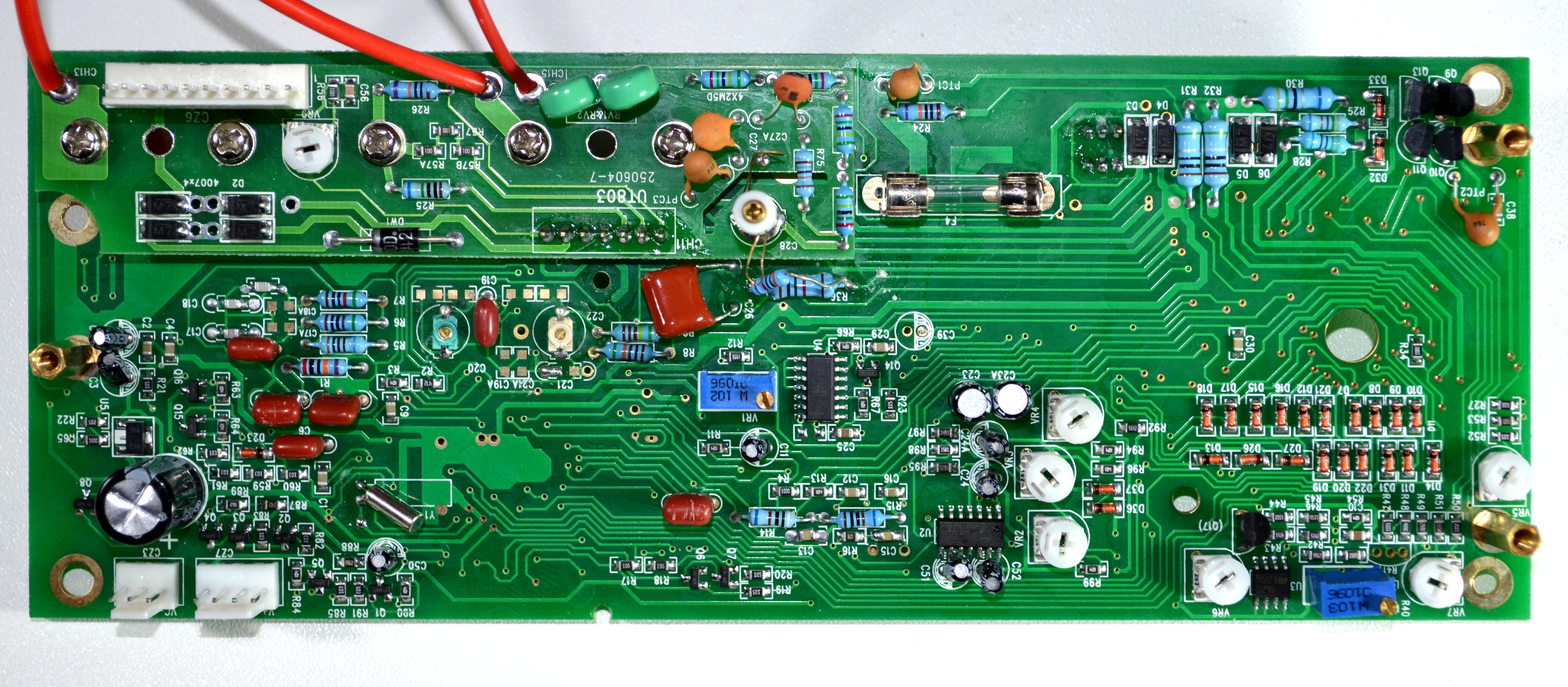

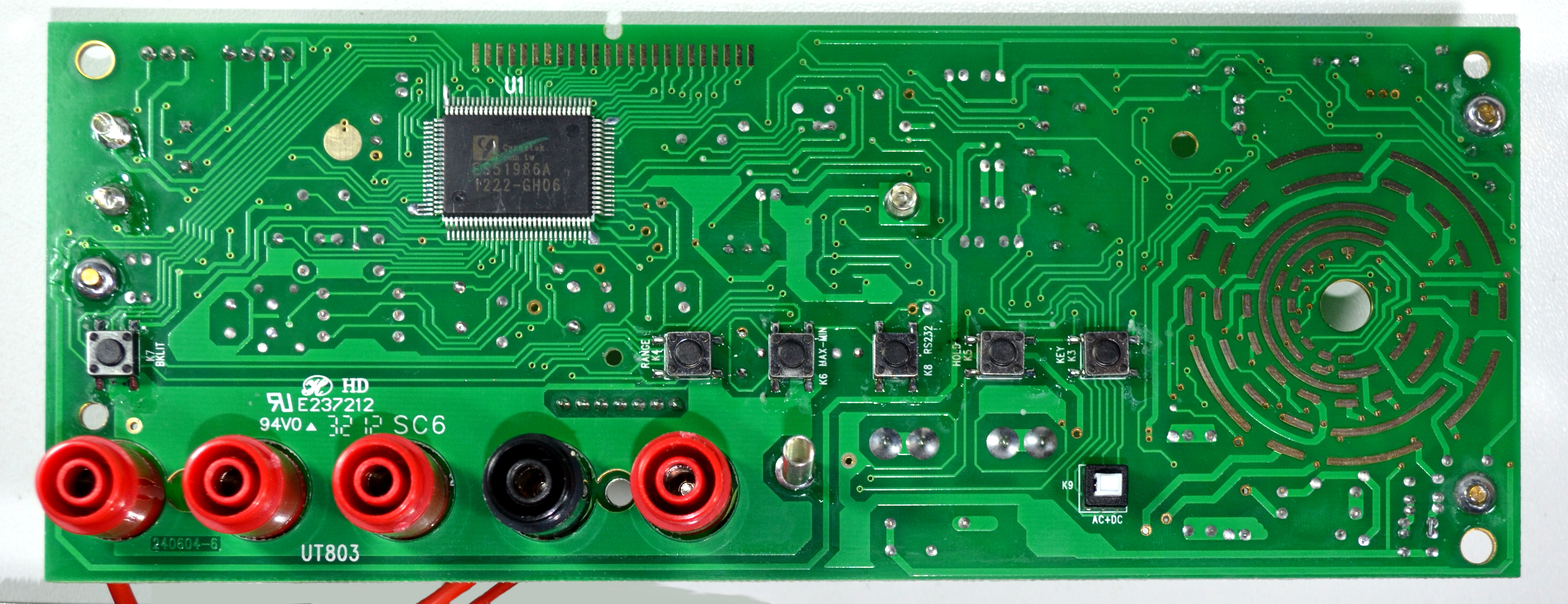

Ut803 Main Pcb Bottom

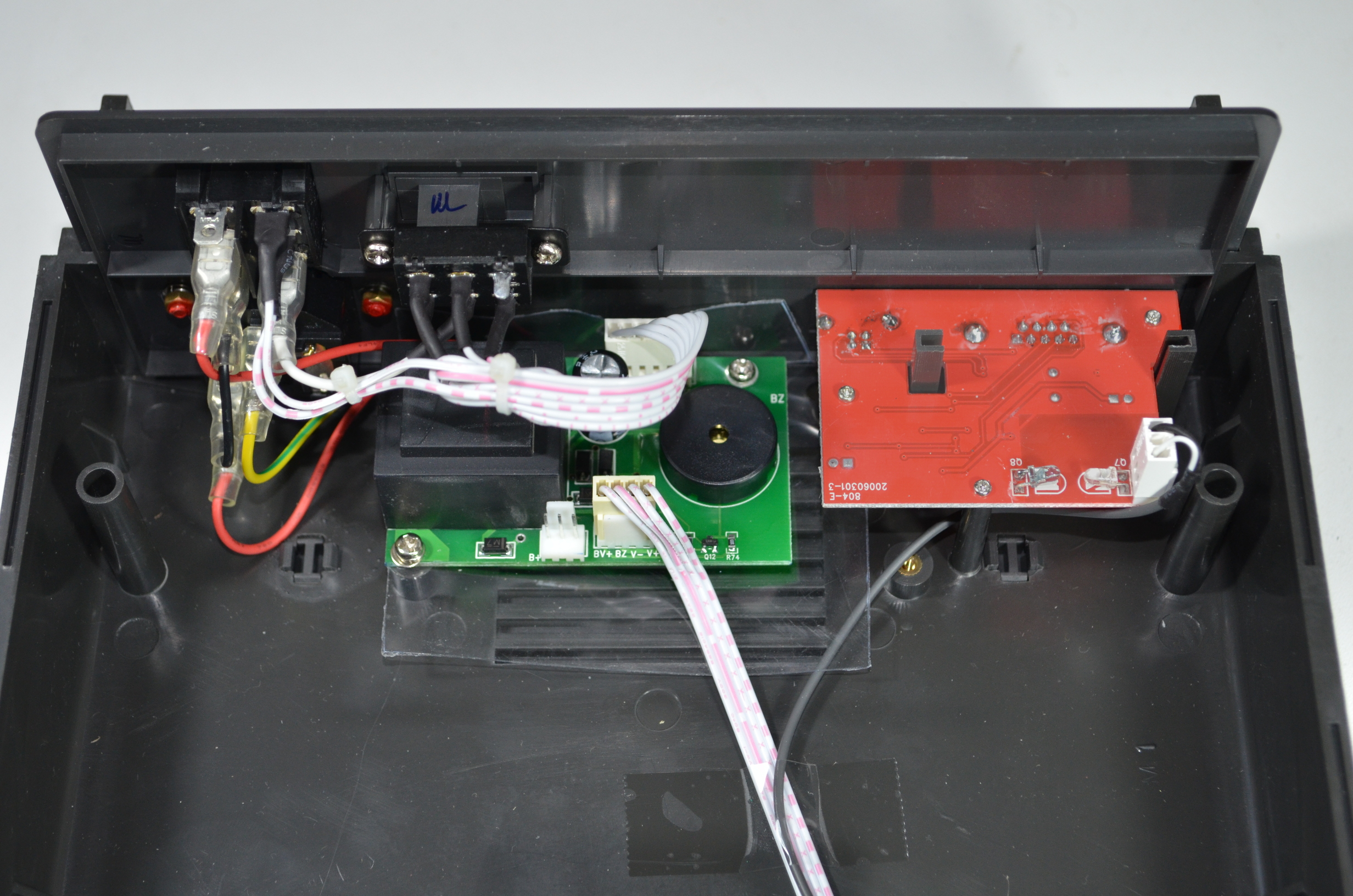

Ut803 Power And Comms
Ut803 Comms Pcb Top

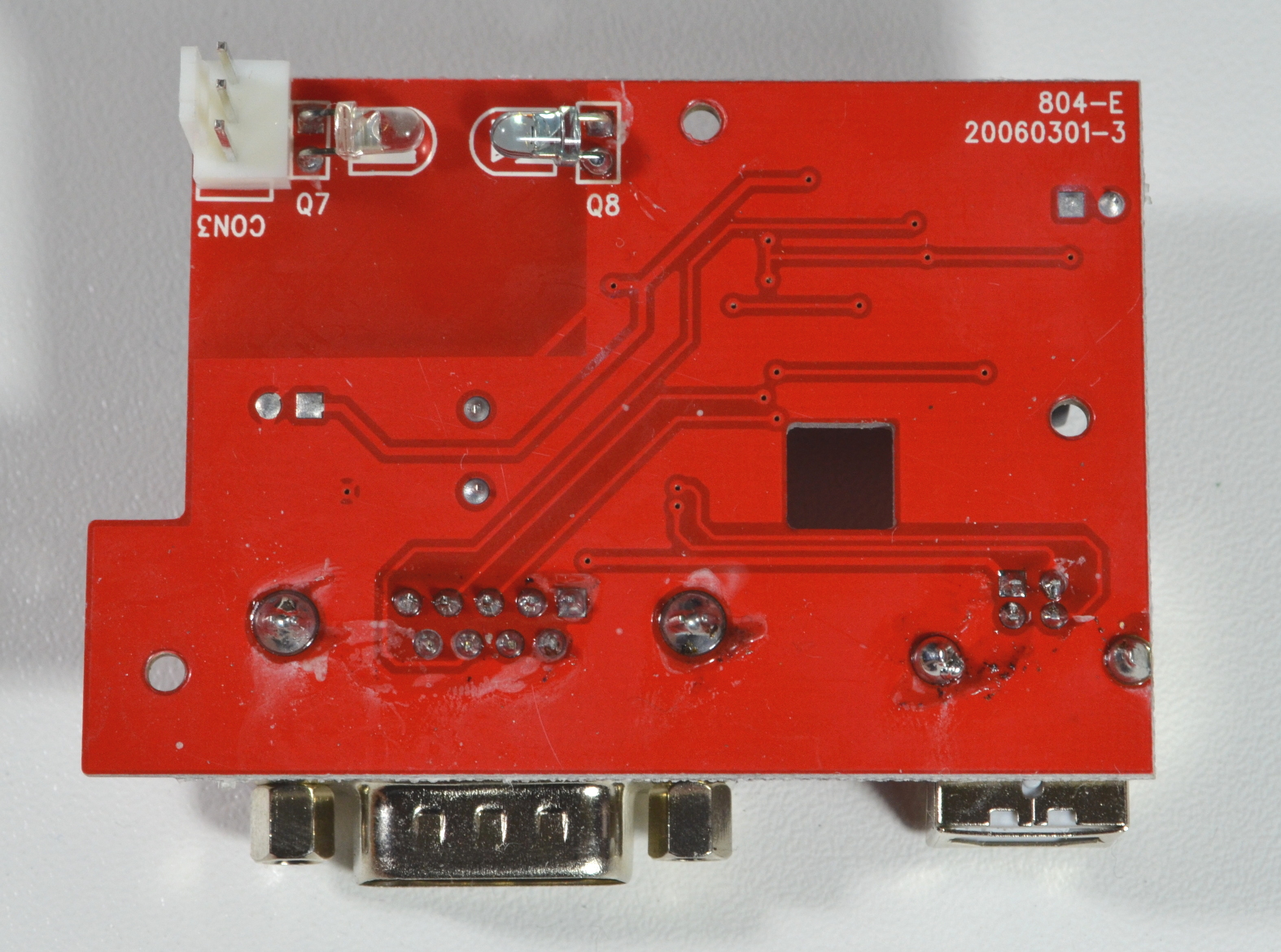

Ut803 Comms Pcb Bottom

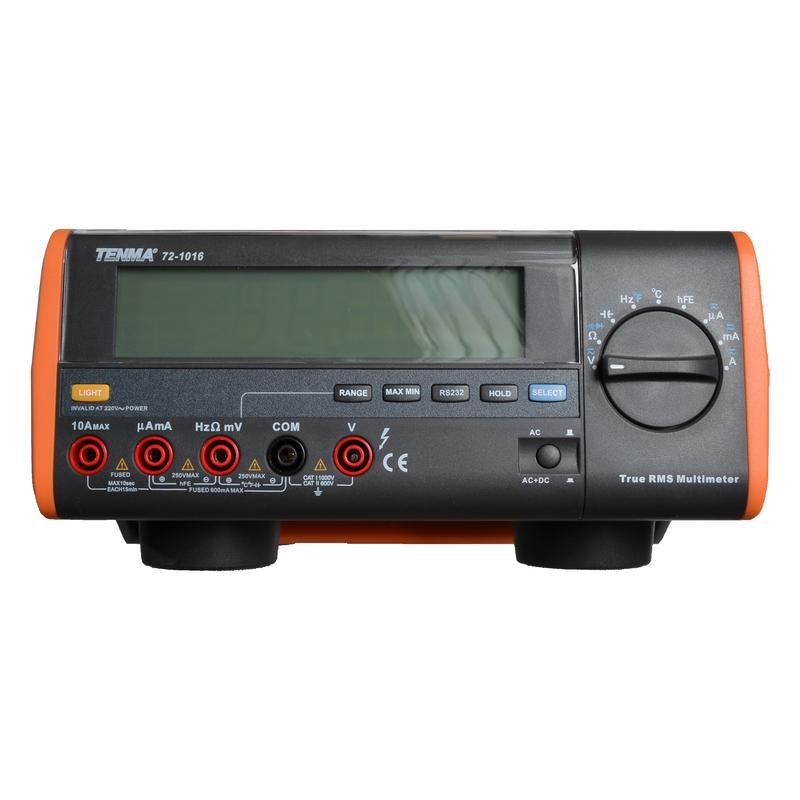

Tenma 72 1016

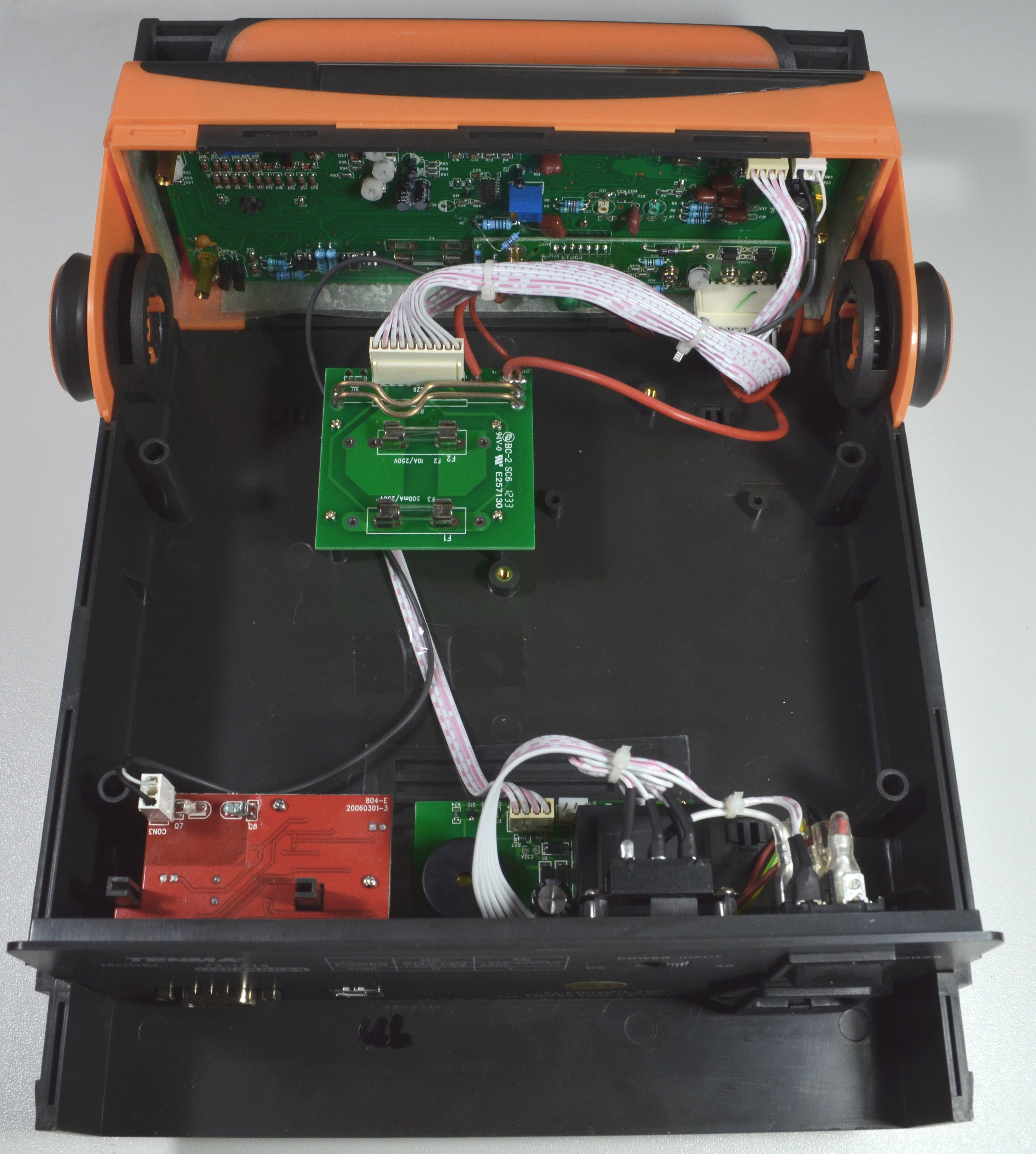

Ut803 Air
