TekPower TP4000ZC¶
TekPower TP4000ZC¶
| Status | supported |
| Source code | serial-dmm |
| Counts | 4000 |
| IEC 61010-1 | CAT II (600V) |
| Connectivity | RS232 |
| Measurements | voltage, resistance, continuity, diode, capacitance, frequency, temperature, current, duty cycle |
| Features | autorange, data hold, relative |
| Website | tekpower.us |
The TekPower TP4000ZC is a 4000 counts, CAT II (600V) handheld digital multimeter with RS232 connectivity.
This multimeter is a rebadged Digitek DT4000ZC.
Hardware¶
Multimeter:
- Multimeter IC: The microcontroller is an unidentifiable plastic blob (based on the communication protocol, probably a Fortune Semiconductor FS9721_LP3)
- LM358 opamp
- HEF4013BT flip-flop
- The RS-232 connector is a standard 3.5m stereo jack, with the ring left unconnected. The transmitter is optically insulated from the rest of the device.
Cable:
- See Device_cables#Digitek_DT4000ZC_cable.
- The DB-9 connector has a loopback resistor between the RX and TX pins.
Photos¶
Tp4000zc Chip

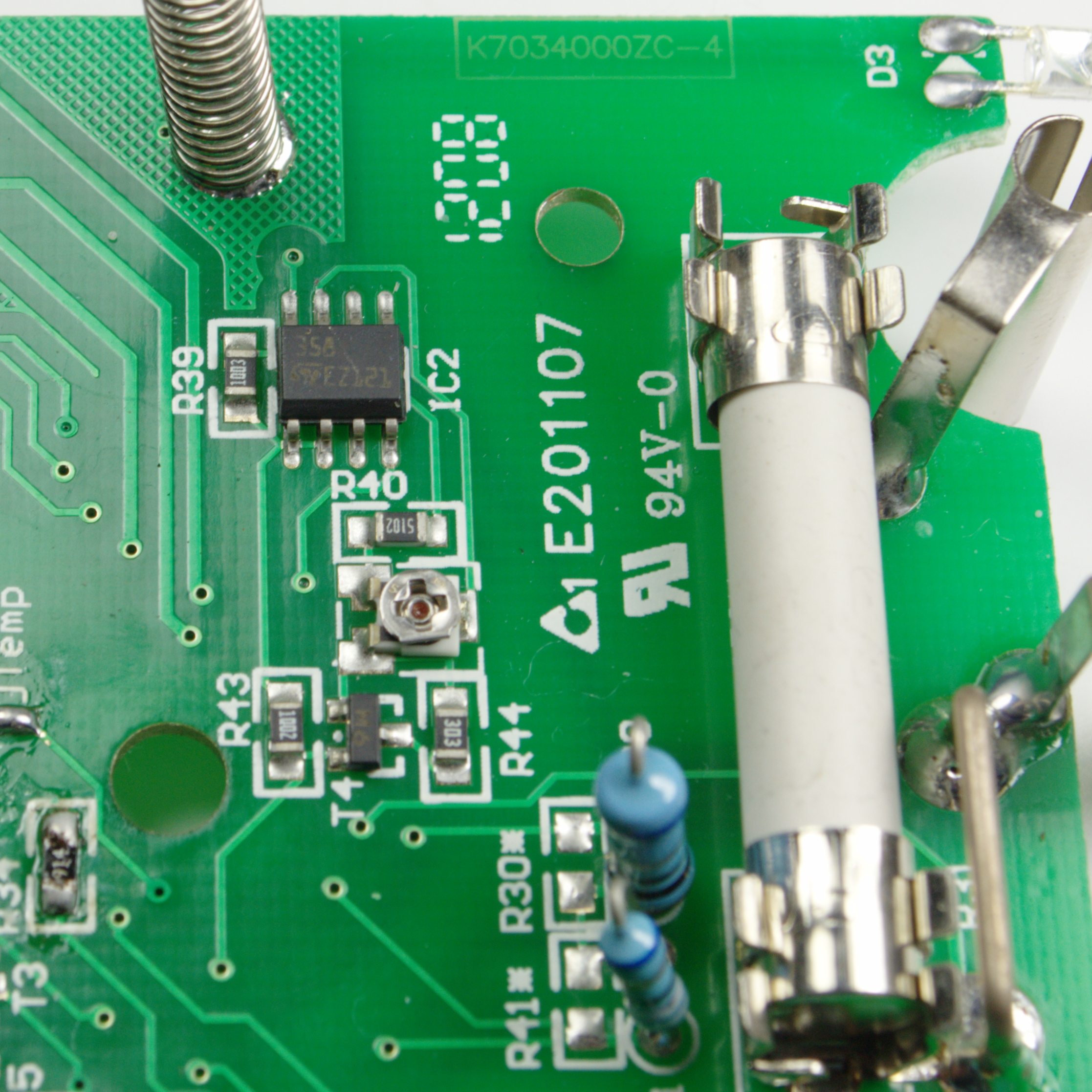

Tp4000zc Chip Lm358

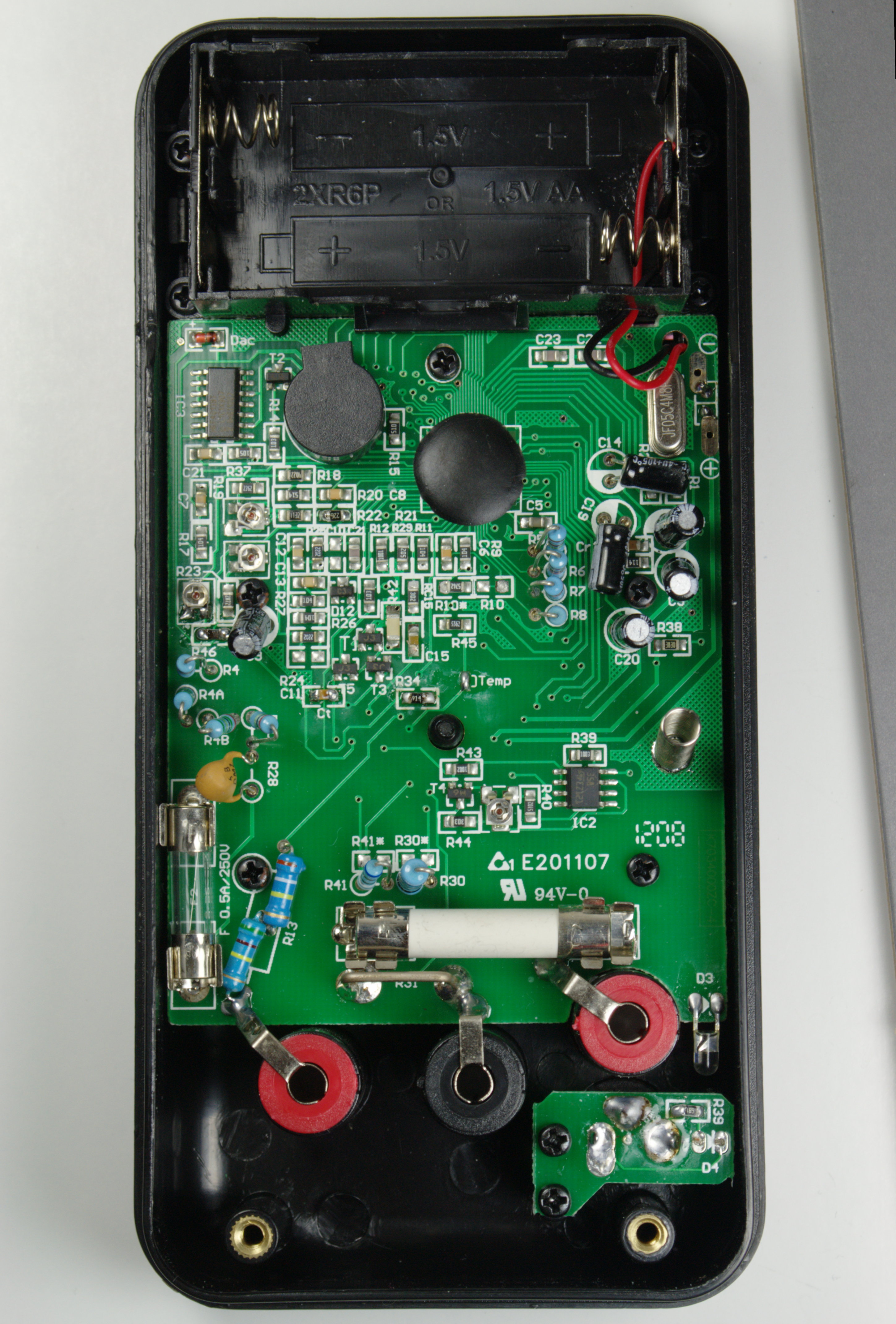

Tp4000zc Open Back

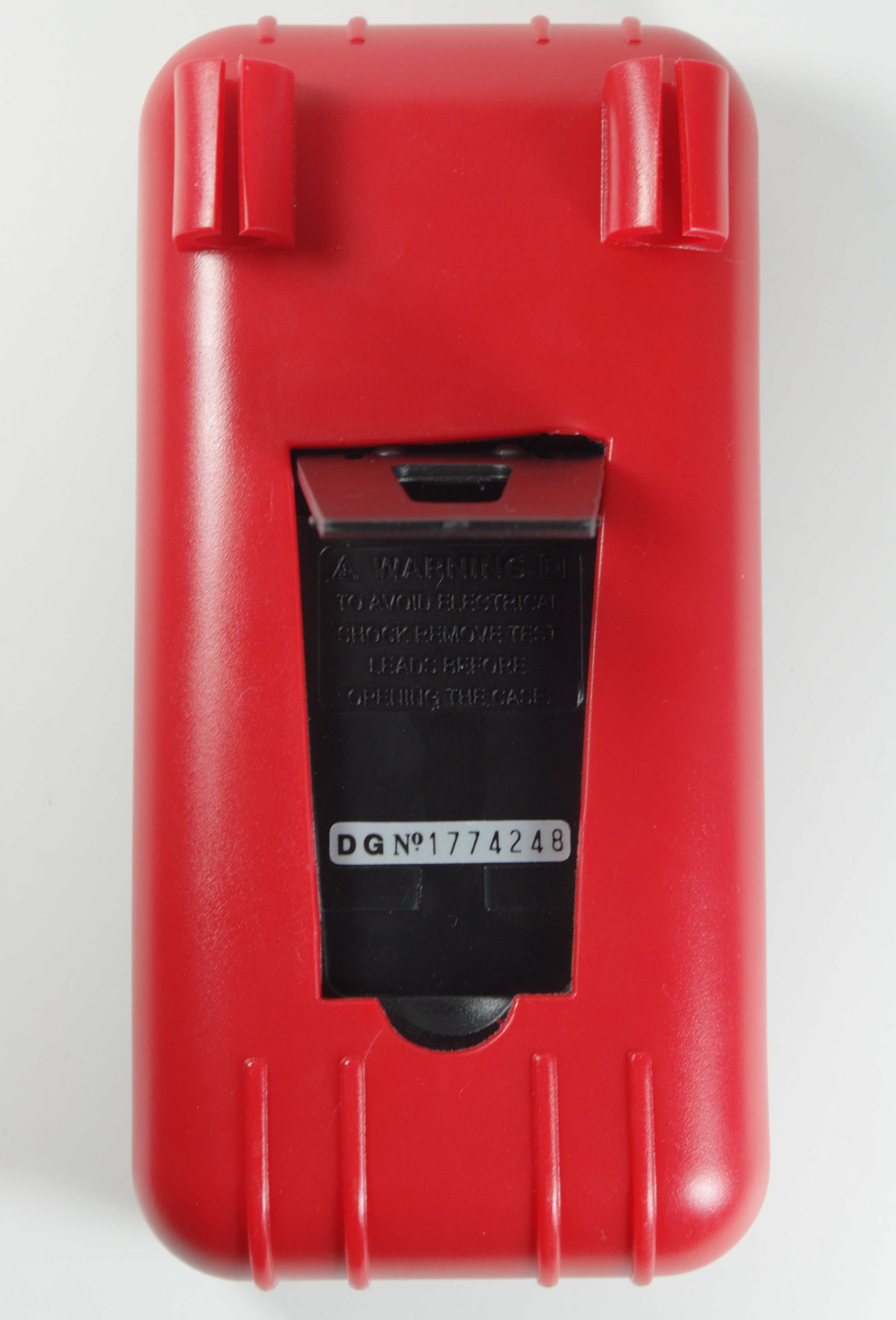

Tp4000zc Back

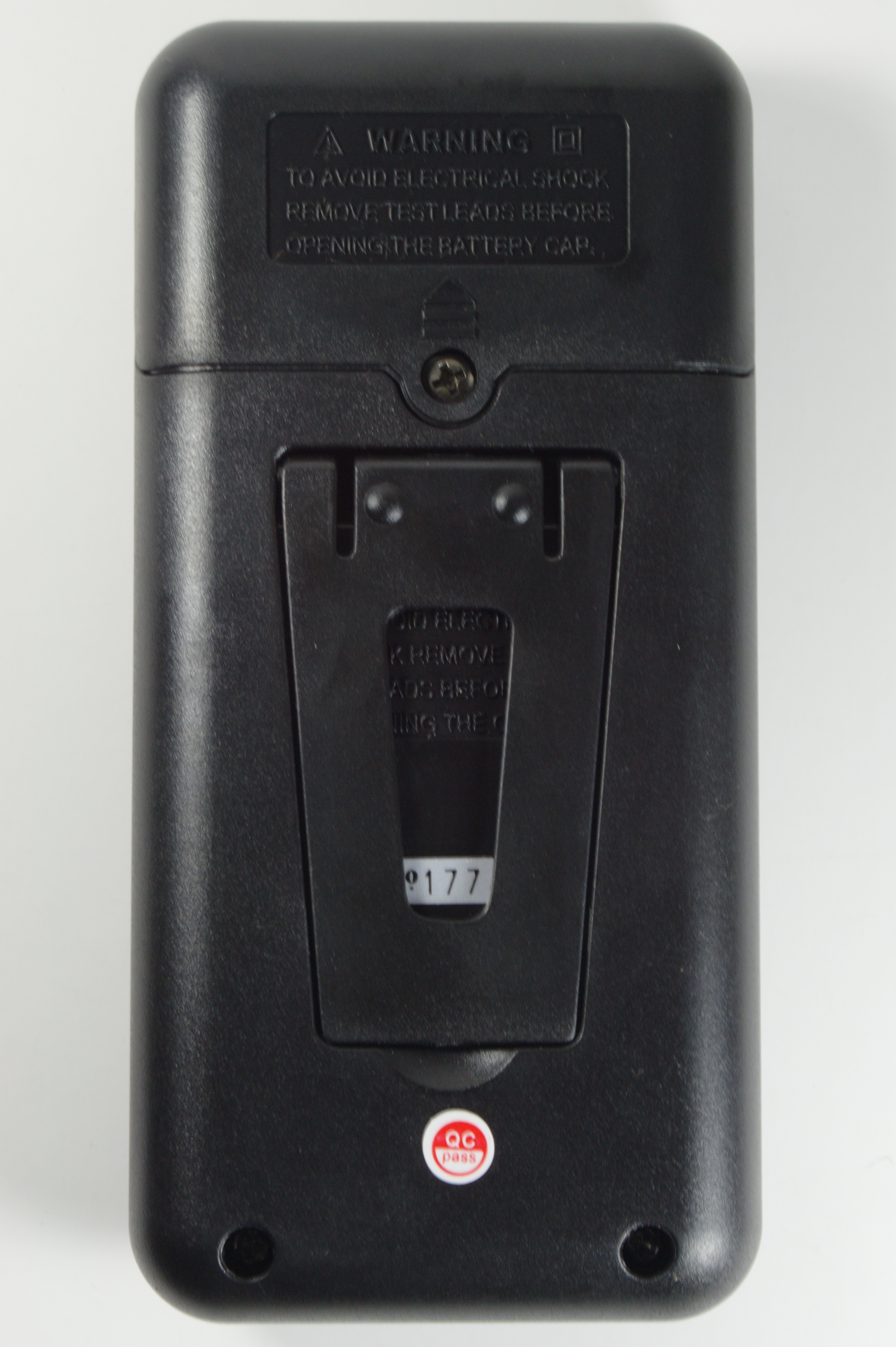

Tp4000zc Back Nocover

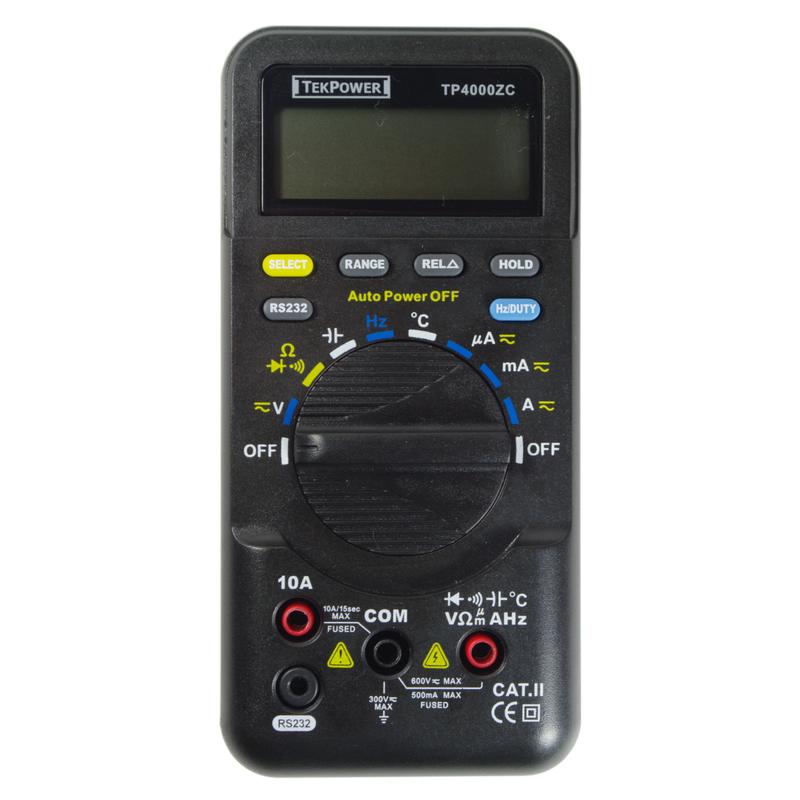

Tp4000zc Front Nocover

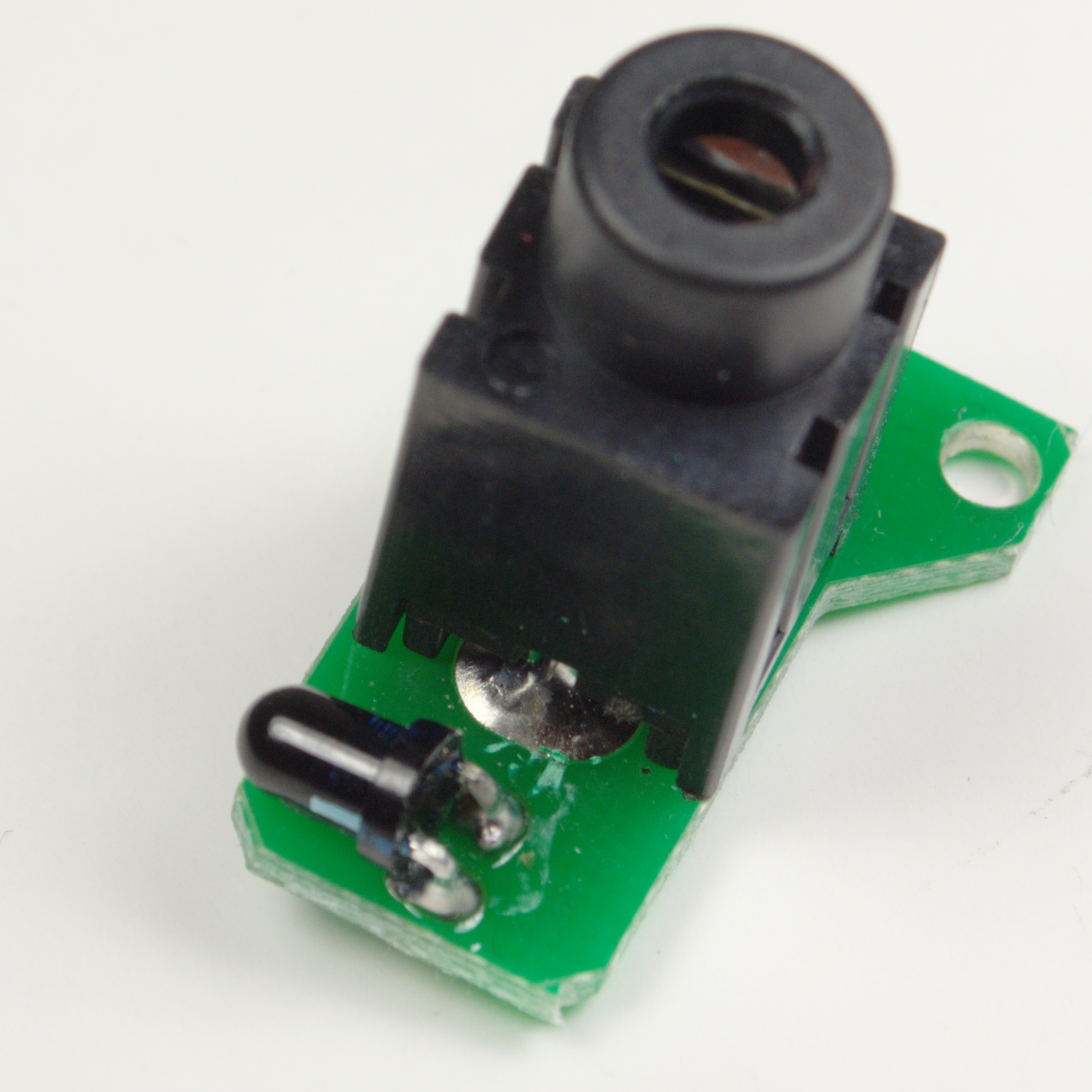

Tp4000zc 232 Module

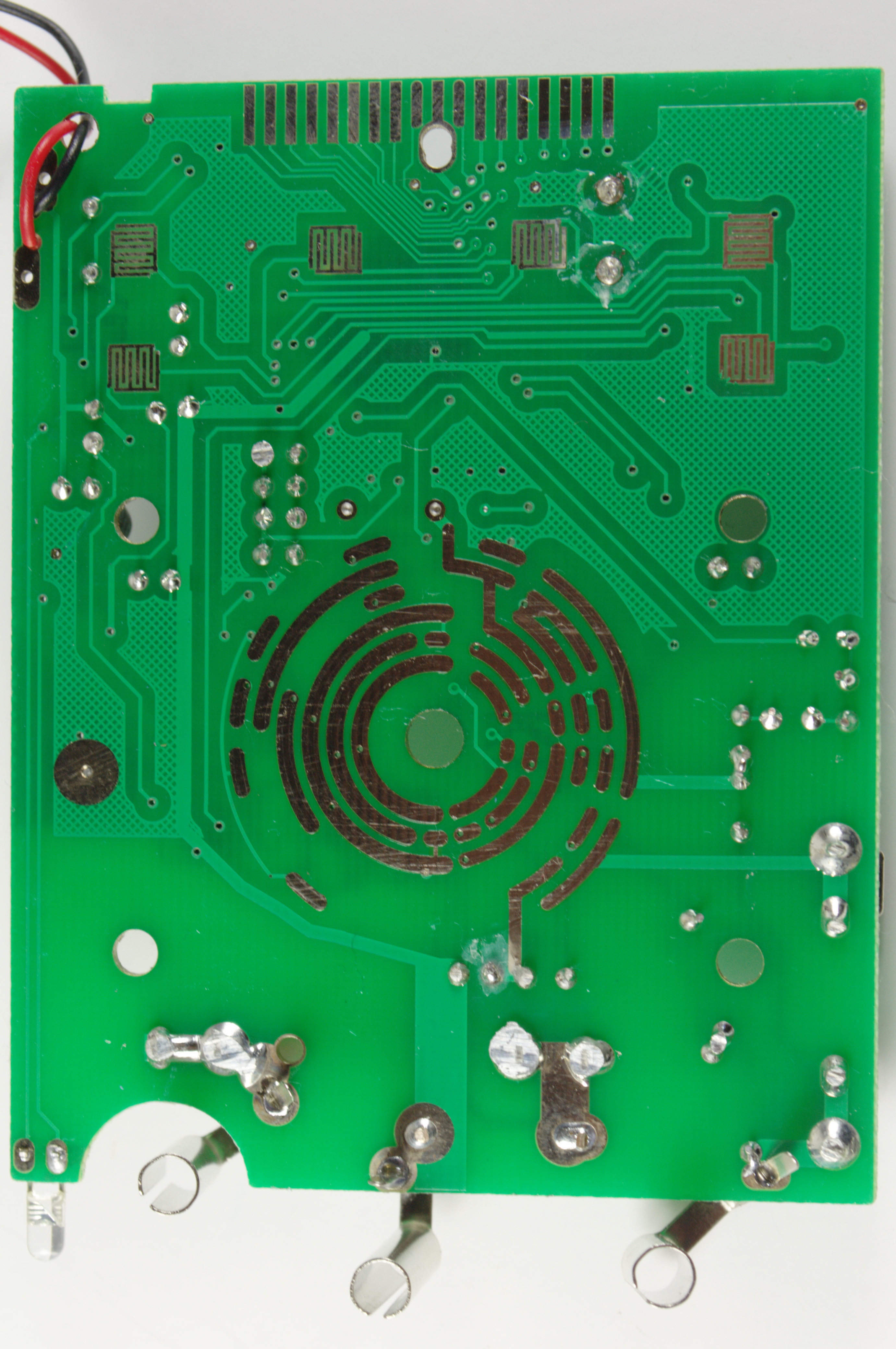

Tp4000zc Pcb Front

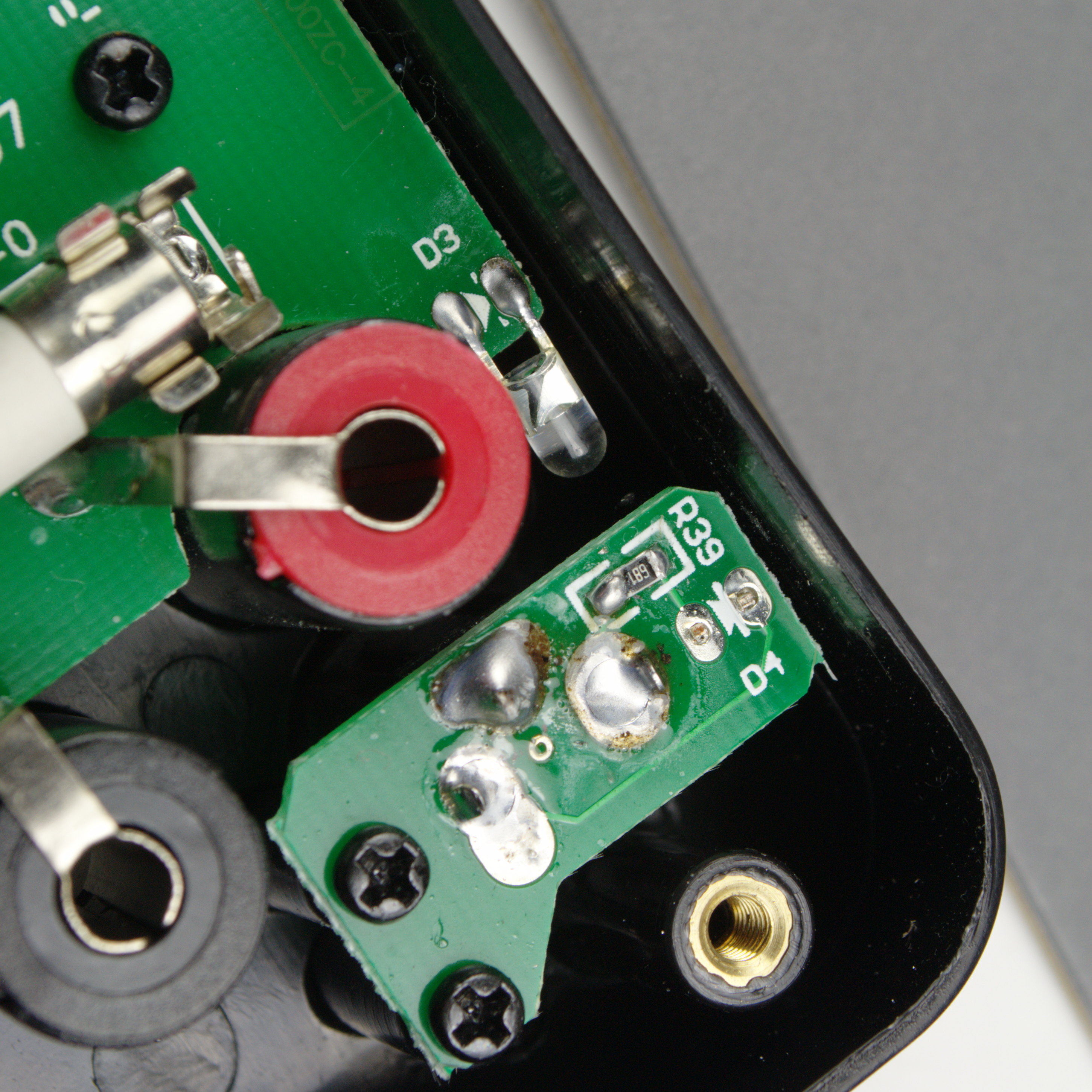

Tp4000zc 232 Optoisolation

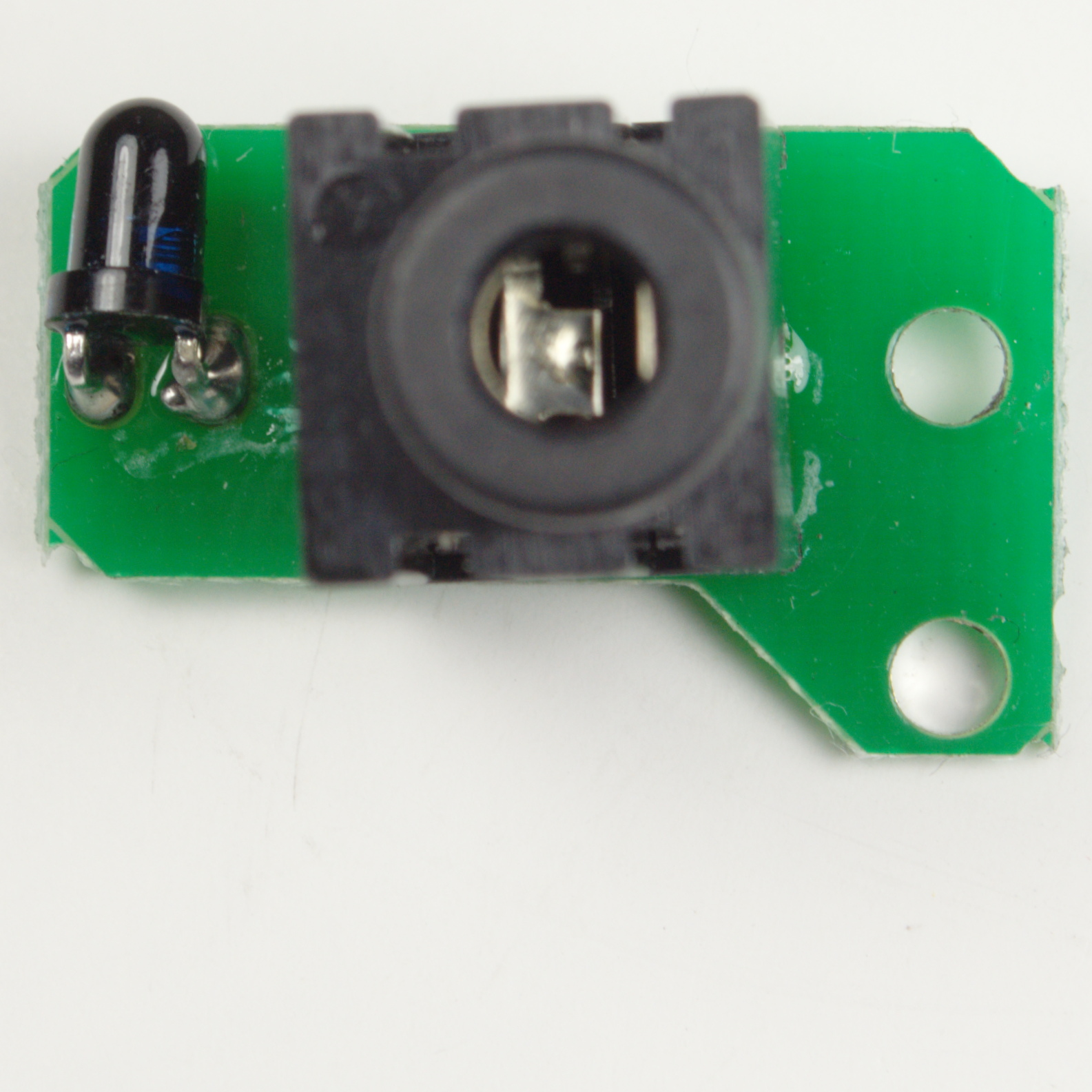

Tp4000zc 232 Pcb Front

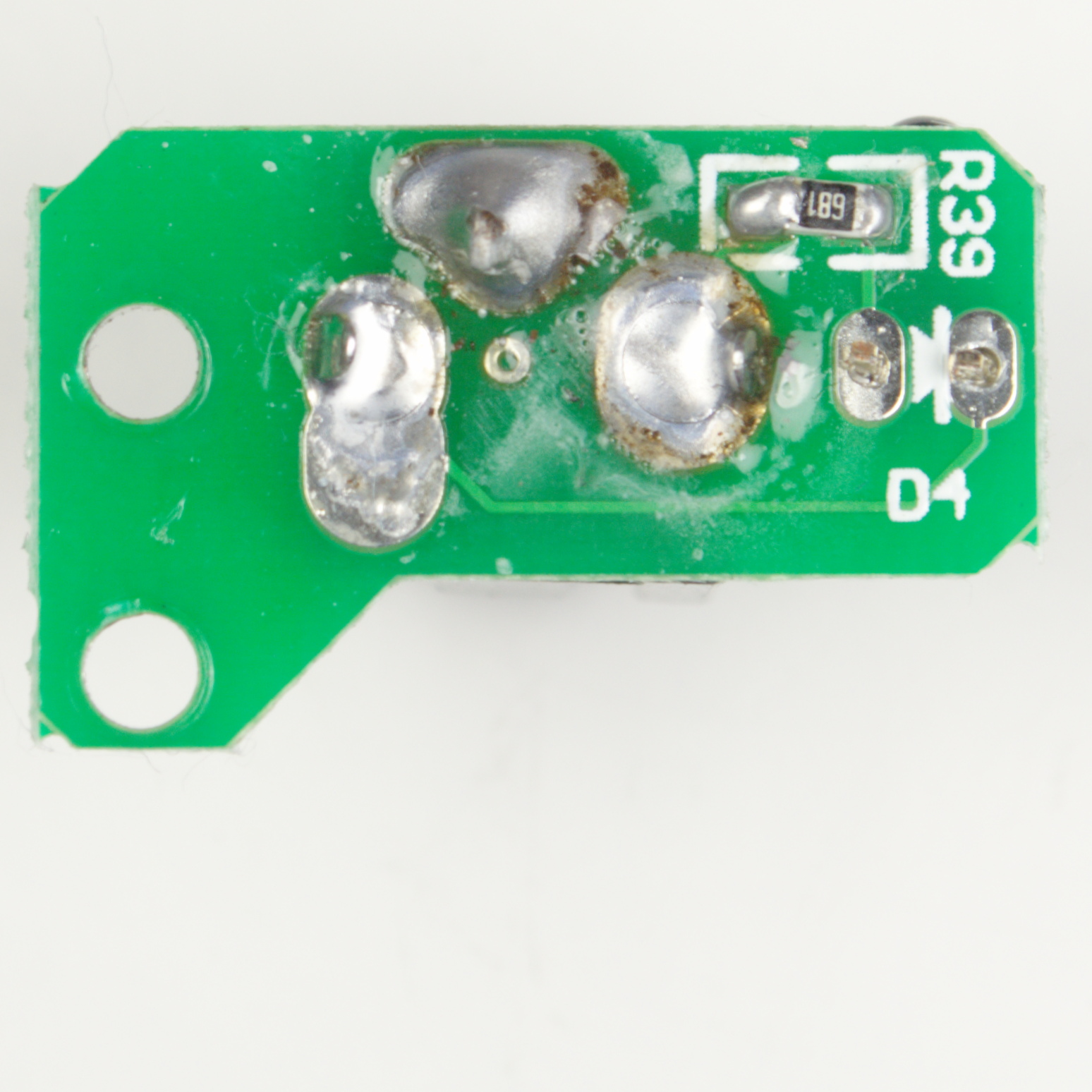

Tp4000zc 232 Pcb Back

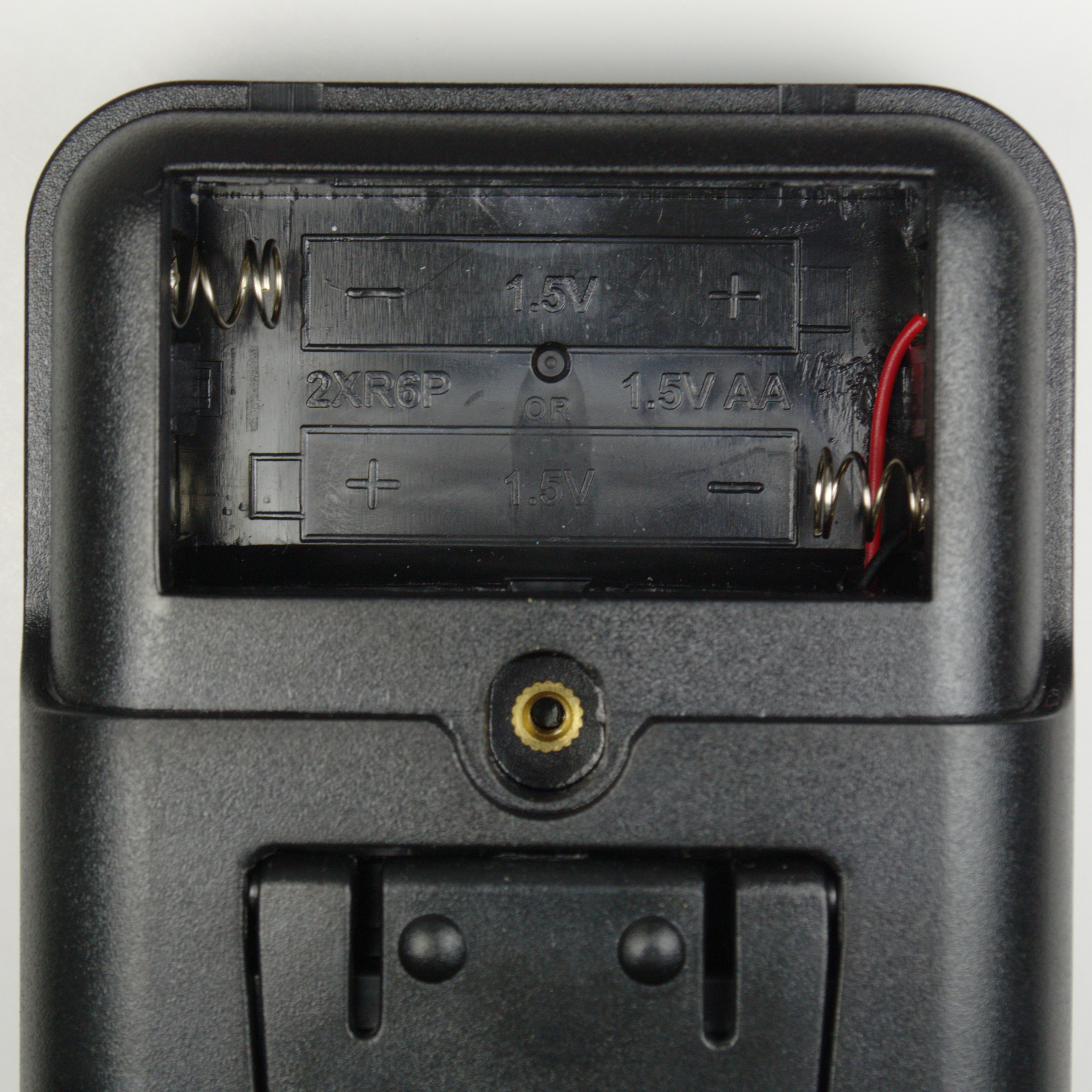

Tp4000zc Batt

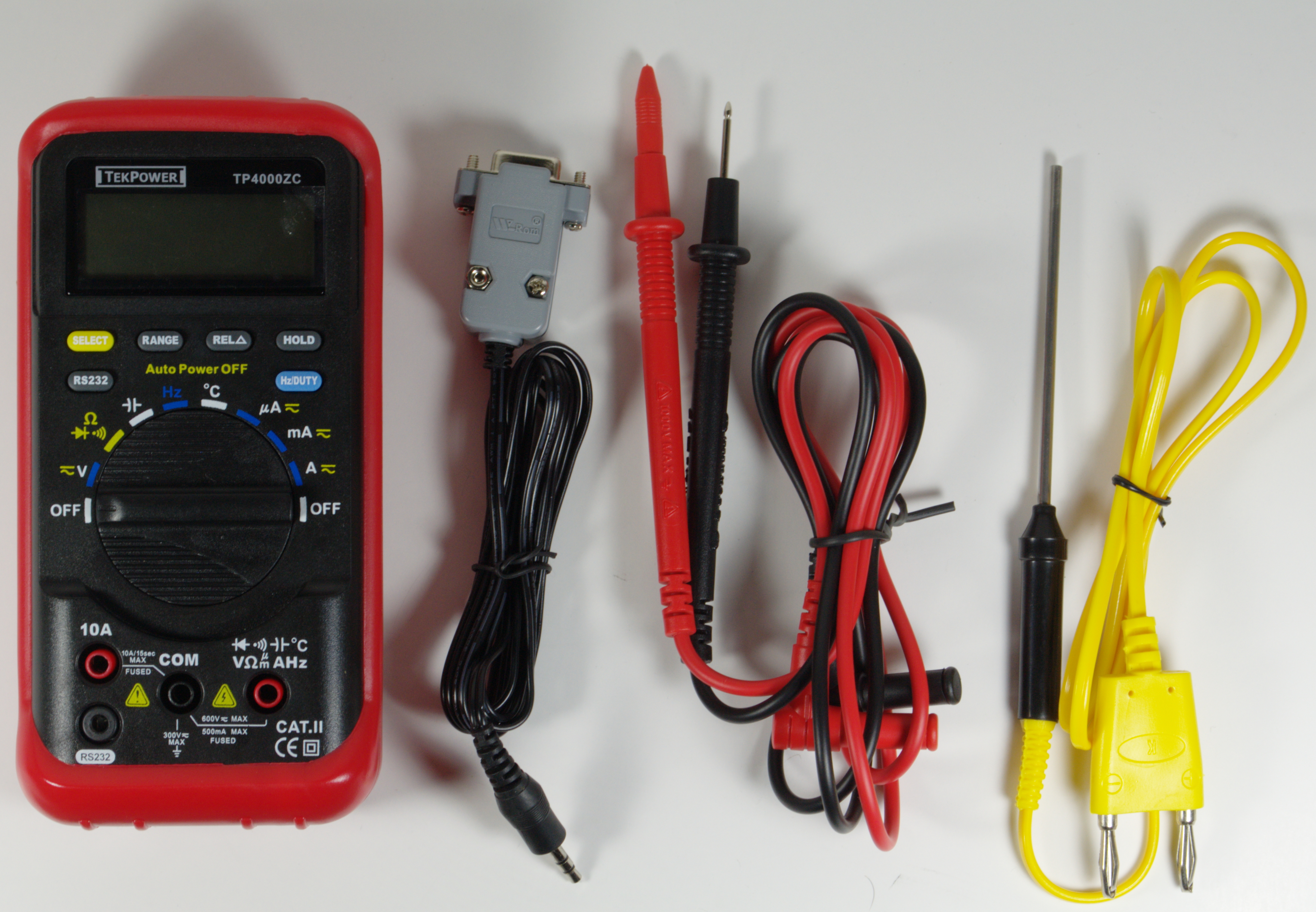

Tp4000zc Contents

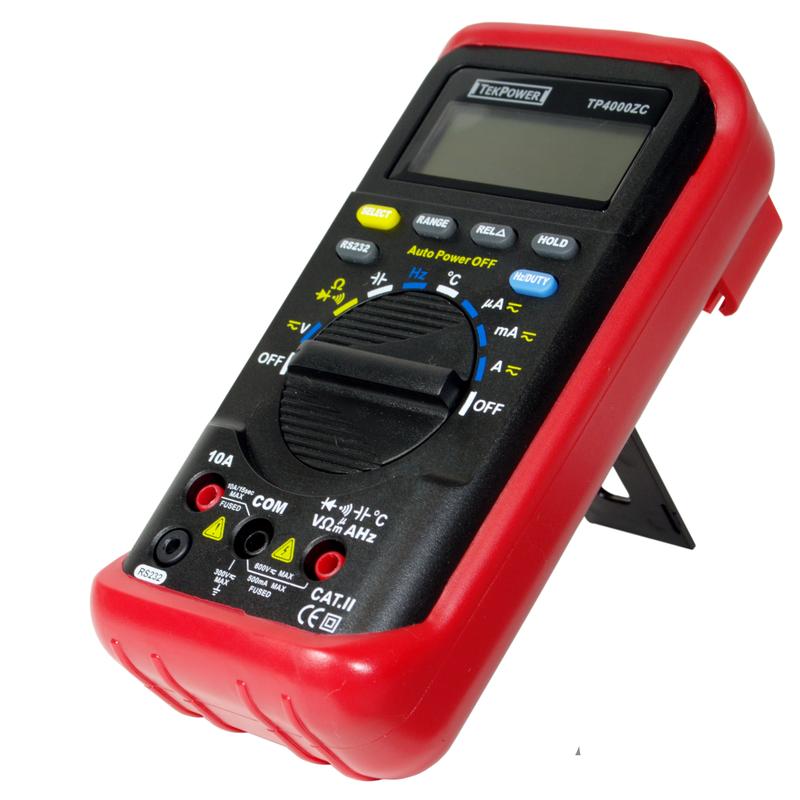

Tp4000zc Angle

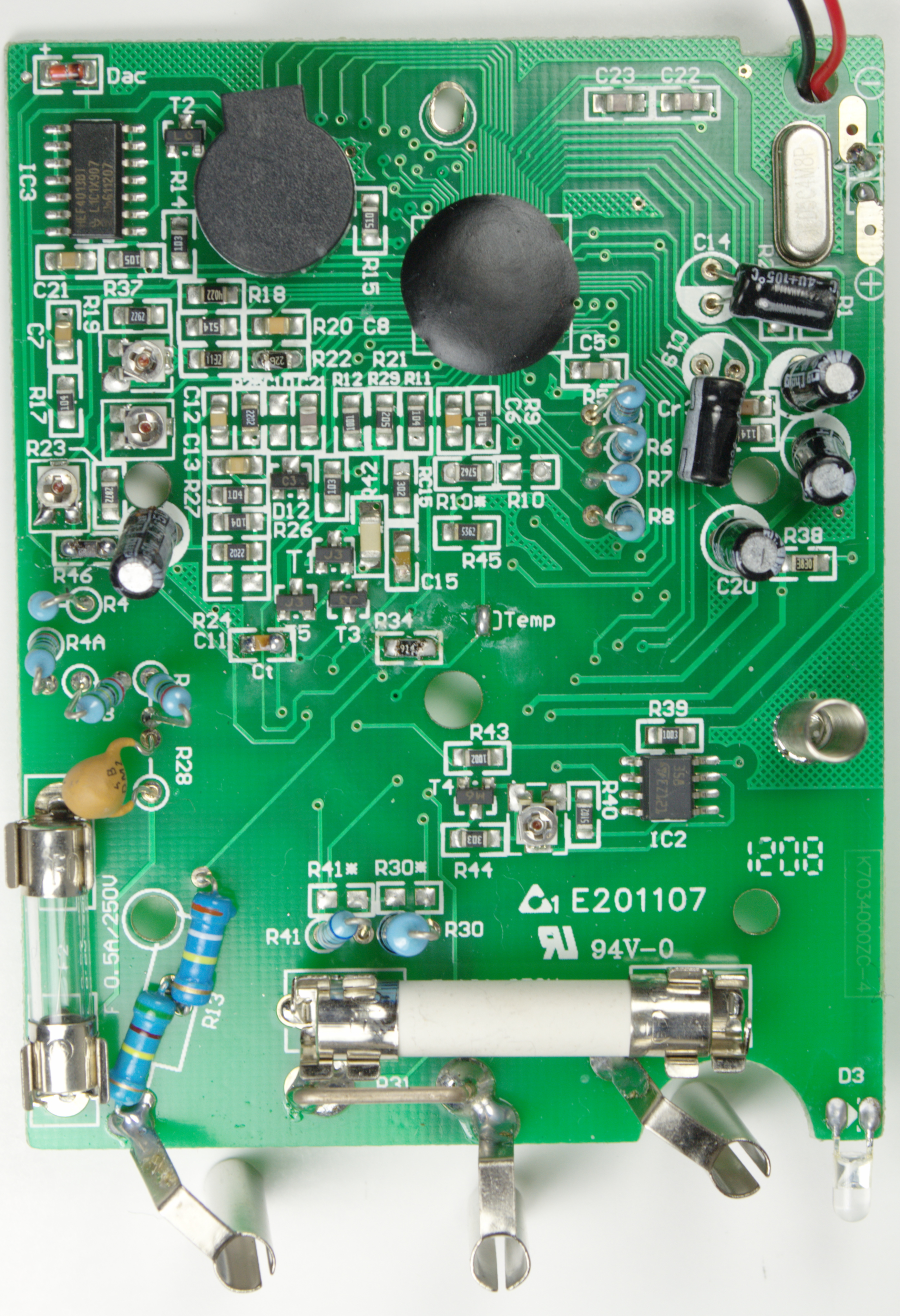

Tp4000zc Pcb Back

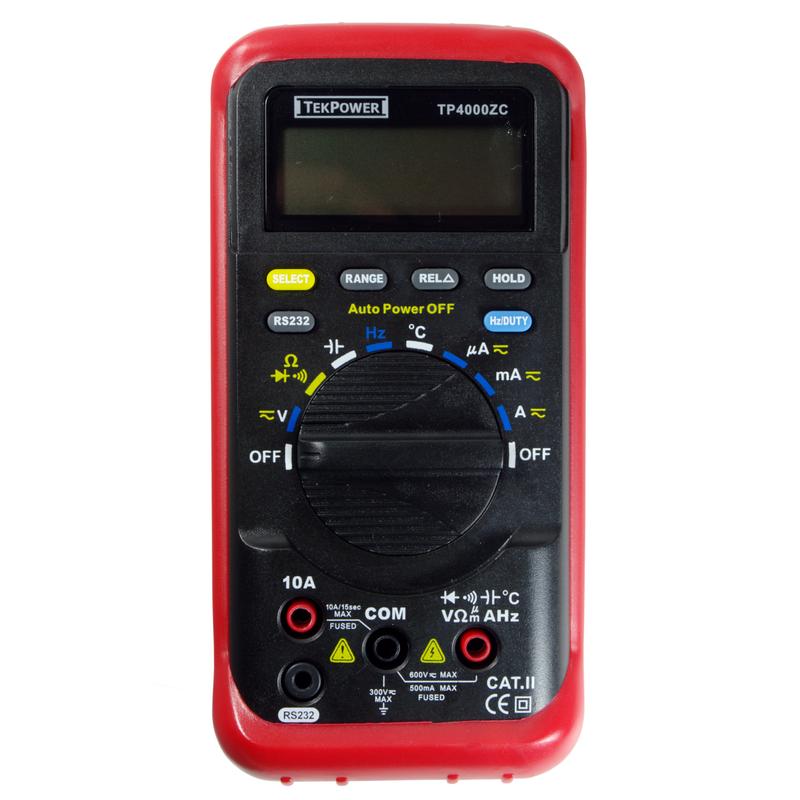

Tp4000zc Front

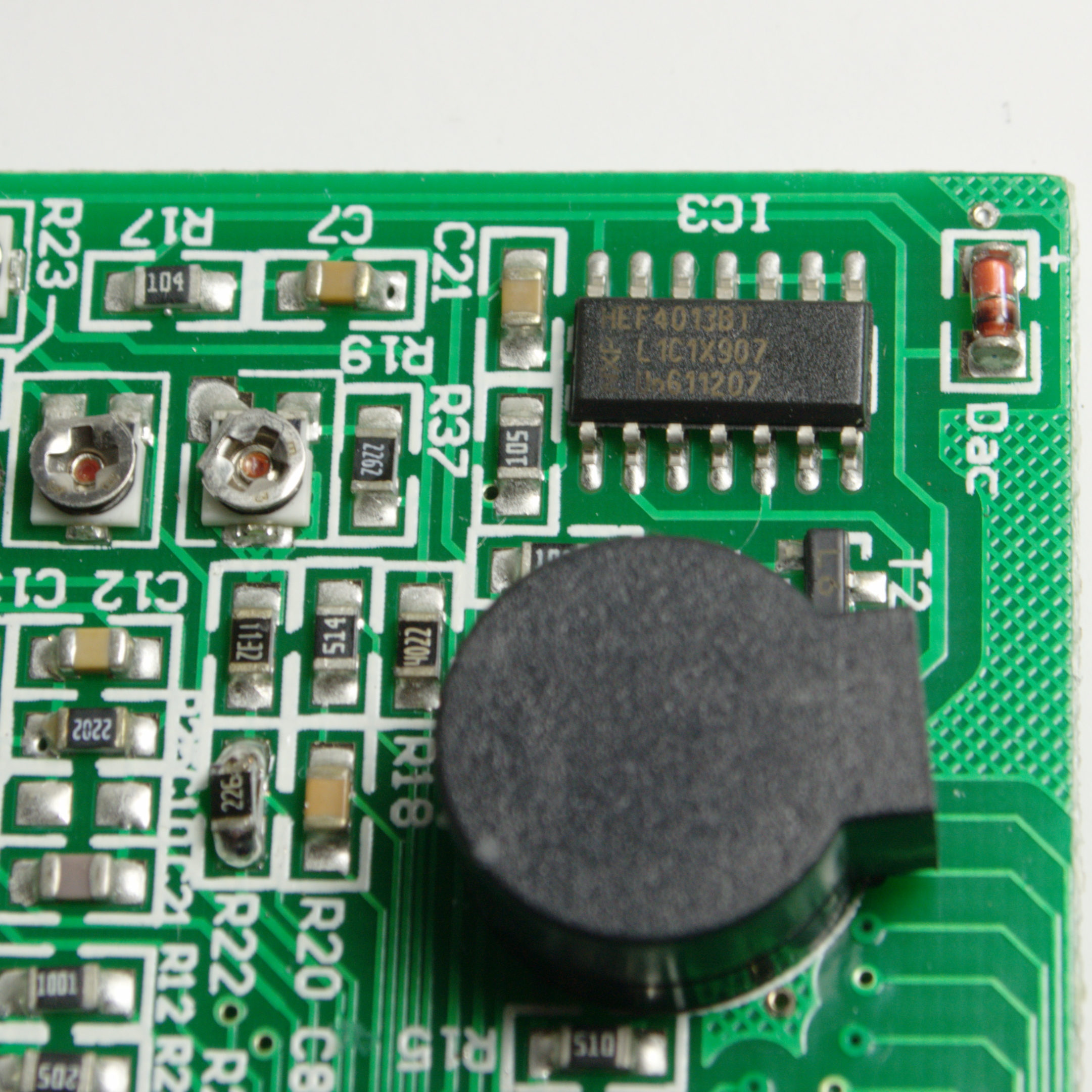

Tp4000zc Chip Hef4013bt

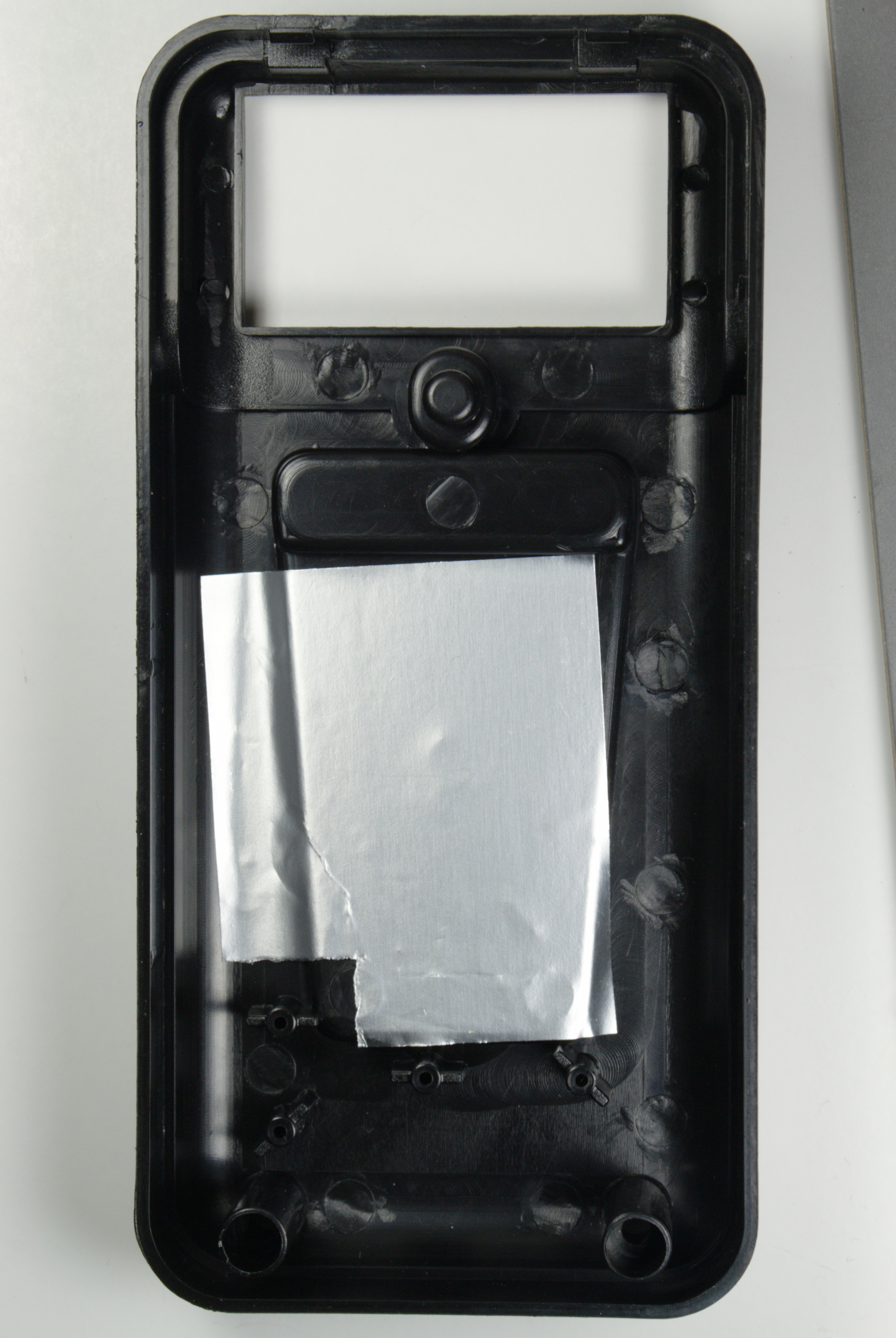

Tp4000zc Open Front

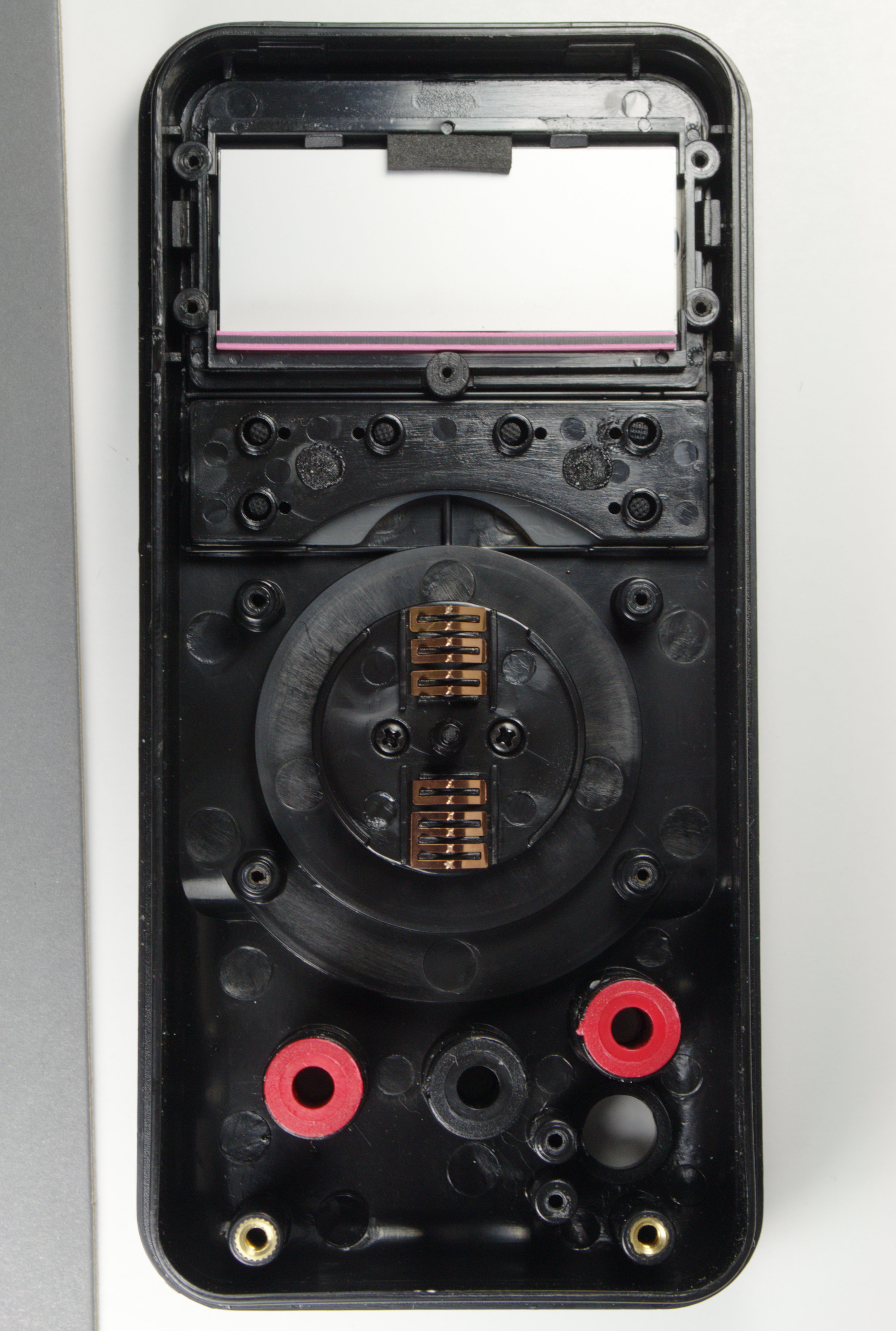

Tp4000zc Open Front Noboard
Protocol¶
See Multimeter_ICs#Fortune_Semiconductor_FS9721_LP3.
User bit 2 is used to indicate temperature measurement in degrees Celsius.
