Siemens B1026¶
Siemens B1026¶
| Status | supported |
| Source code | norma-dmm |
| Counts | 21000 |
| IEC 61010-1 | CAT II 600 V |
| Connectivity | RS232, proprietary cable |
| Measurements | voltage, current, resistance, capacitance, temperature, diode, continuity |
| Features | autorange, data hold, bargraph, backlight |
| Website | set.nl |
The Siemens B1026 is a 21000 counts, CAT II (600 V) handheld digital multimeter with optional RS232 connectivity.
The RS232 interface requires an internal interface board (below the 5 holes in the back of the case), a special cable and (for use with PC) adaptor. Depending on the model, they came with the device or were available as accessory Interface B9102, 7KB9102-8DD.
See Norma DM950 for further information on all models of the series, including RS232 interface.
Hardware¶
- Fuses 2A: F 2A/250V DIN 41660-F2
- 10A: FF 12,5A/500 V, >20kA/AC
- TODO
Photos¶
Siemens B1026 4

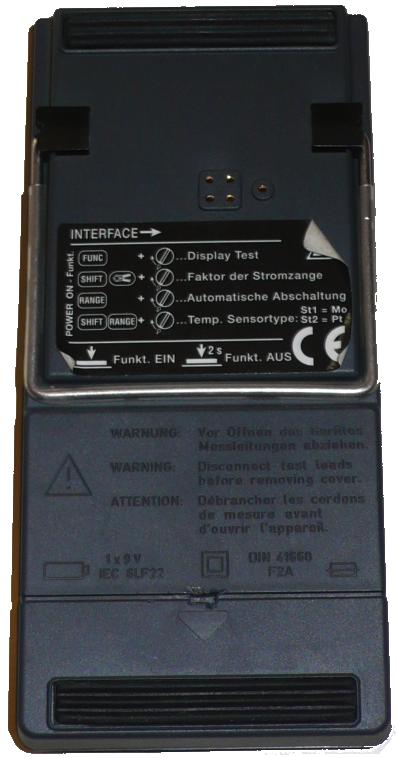

Siemens B1026 2
Siemens B1026 Logo

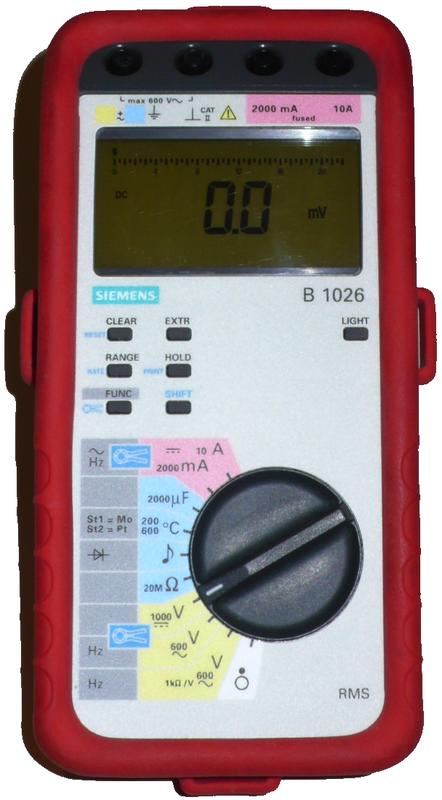

Siemens B1026 1

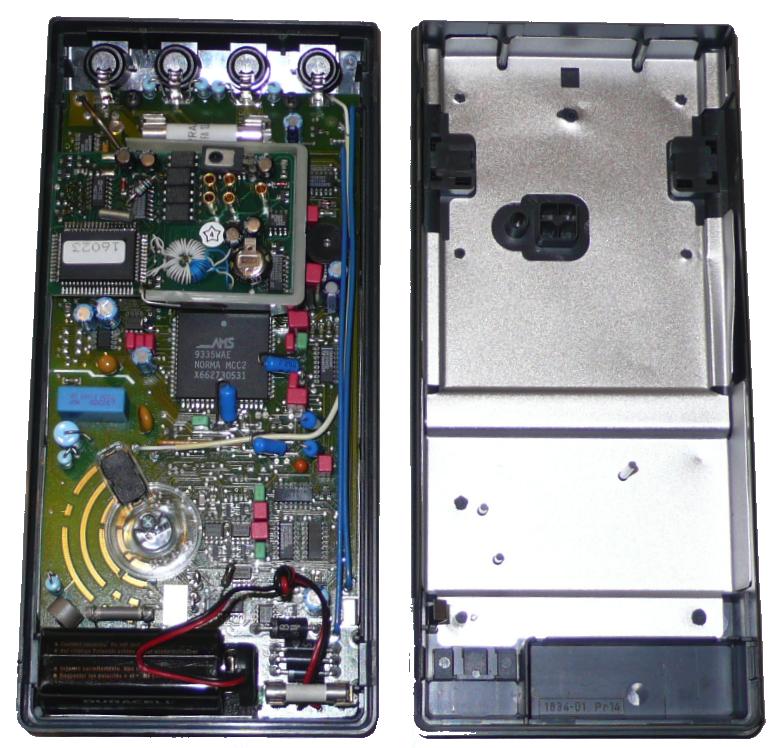

Siemens B1026 3
