PeakTech 4390¶
PeakTech 4390¶
| Status | planned |
| Counts | 6000 |
| IEC 61010-1 | CAT III (600V) |
| Connectivity | USB/serial |
| Measurements | voltage, current, resistance, capacitance, frequency, temperature, duty cycle, diode, continuity |
| Features | autorange, true-rms, data hold, min/max, rel, bargraph, backlight |
| Website | peaktech.de |
The PeakTech 4390 is a 6000 counts, CAT III (600V) handheld digital multimeter with USB connectivity.
Note: This is not the same device as the PeakTech 4390A, despite the very similar name.
See PeakTech 4390/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- Silicon Labs CP2102 USB to UART bridge controller
Photos¶
Dmm

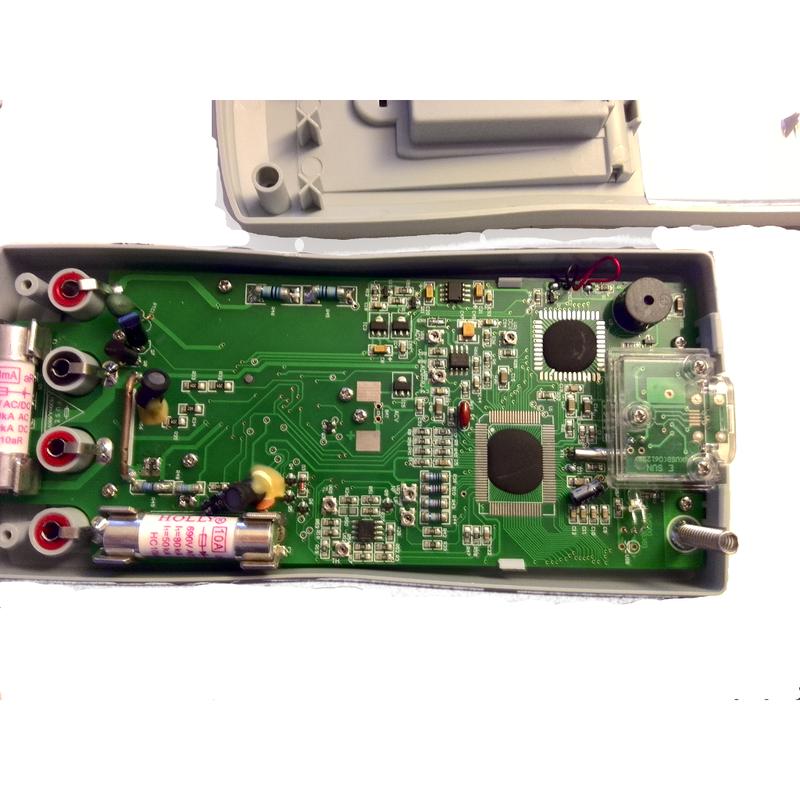

Main Board G View

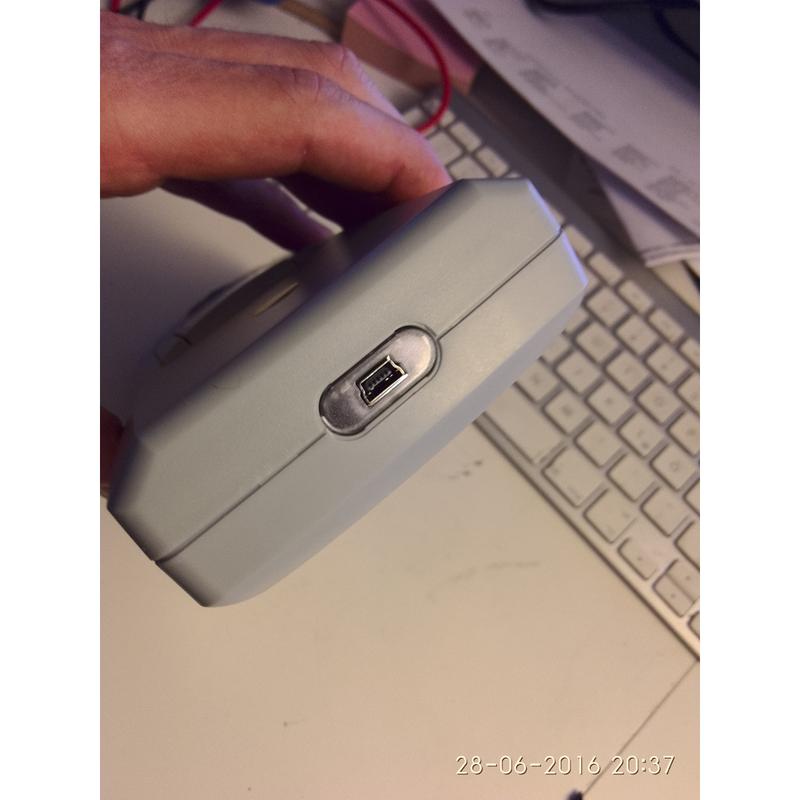

Usb Conn

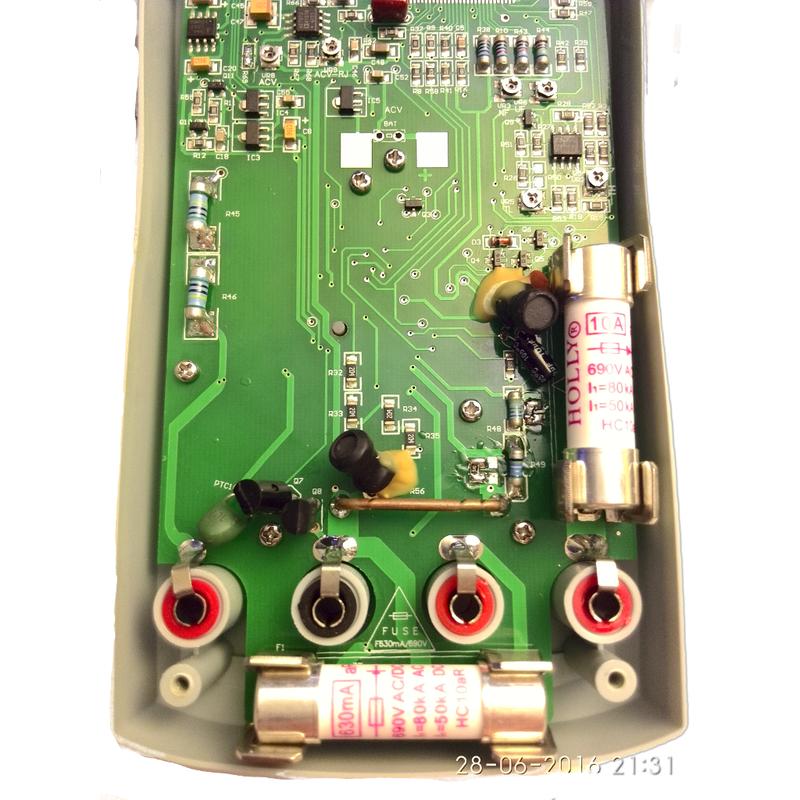

Main Back B

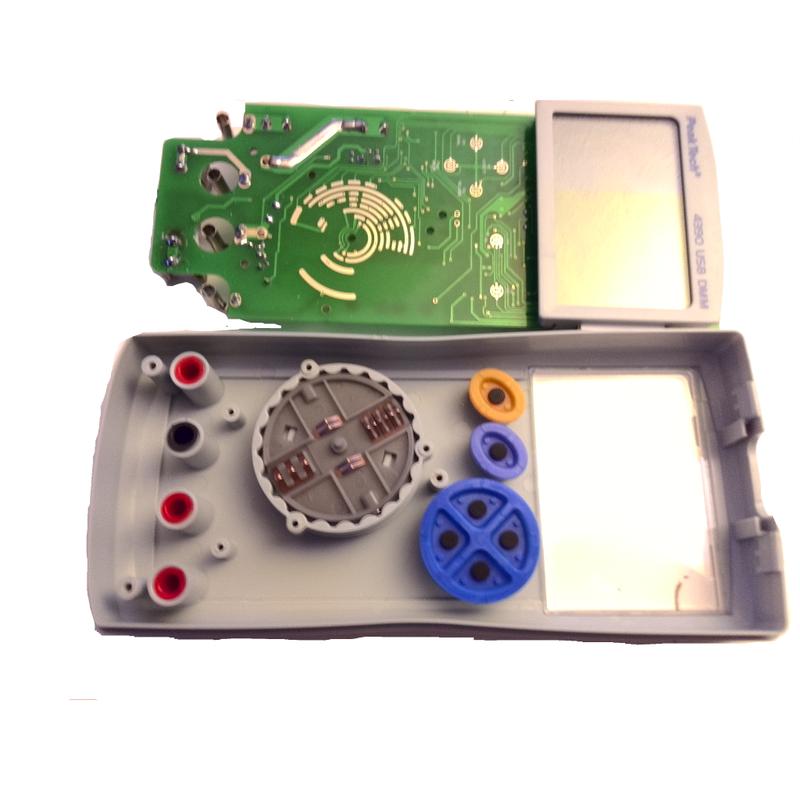

Main Front G View

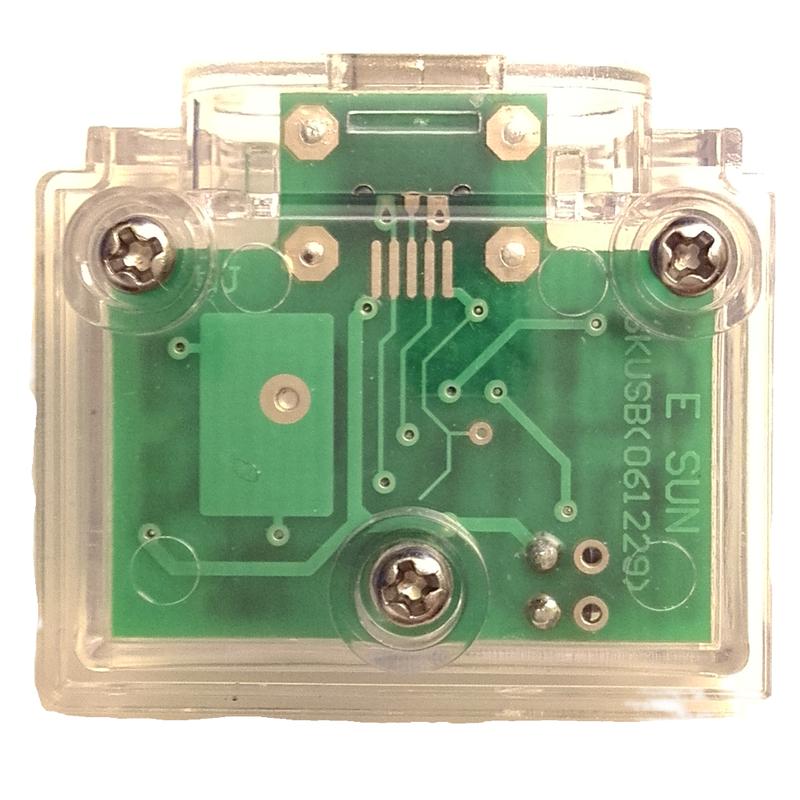

Comm Back

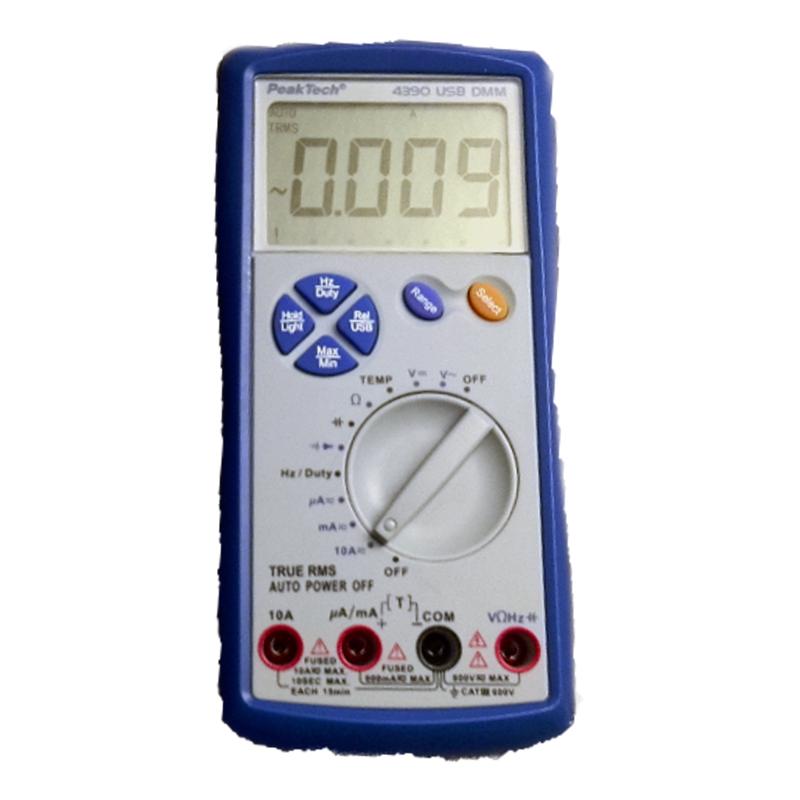

Peaktech 4390 Mugshot

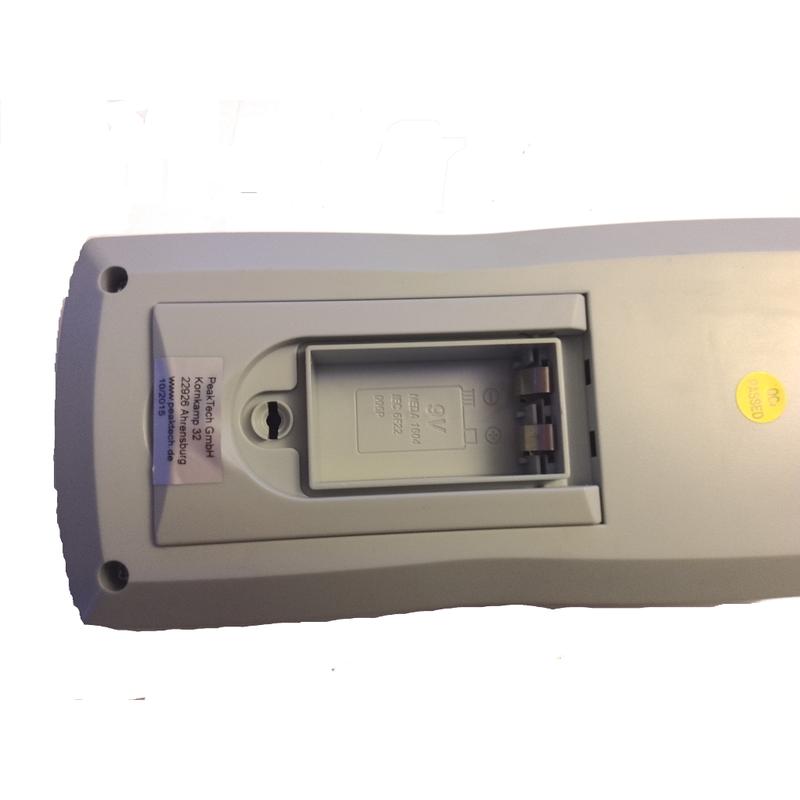

Img 20160628 203835

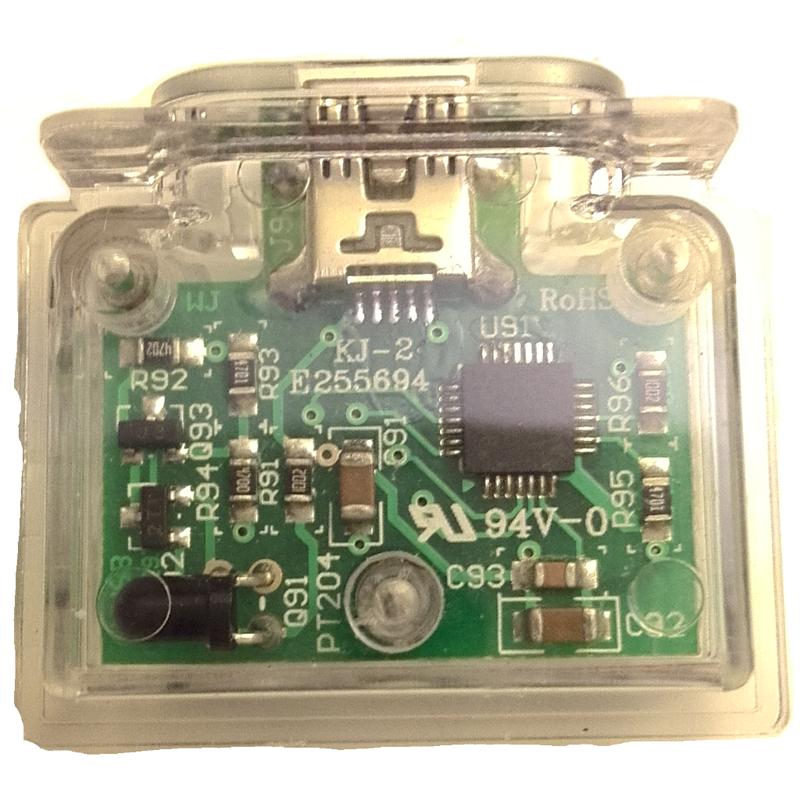

Comm Front

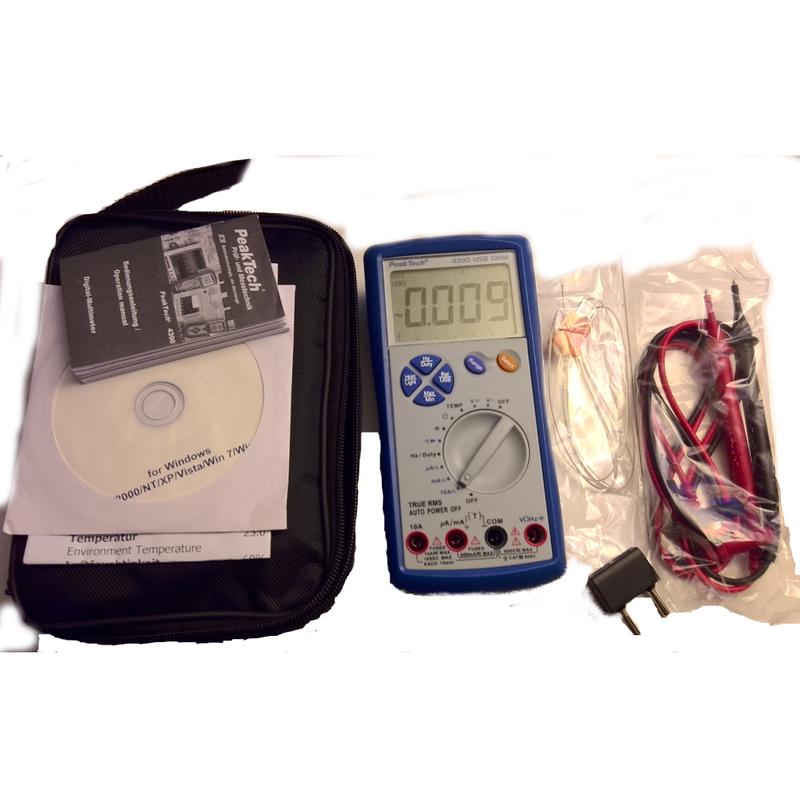

Box Content

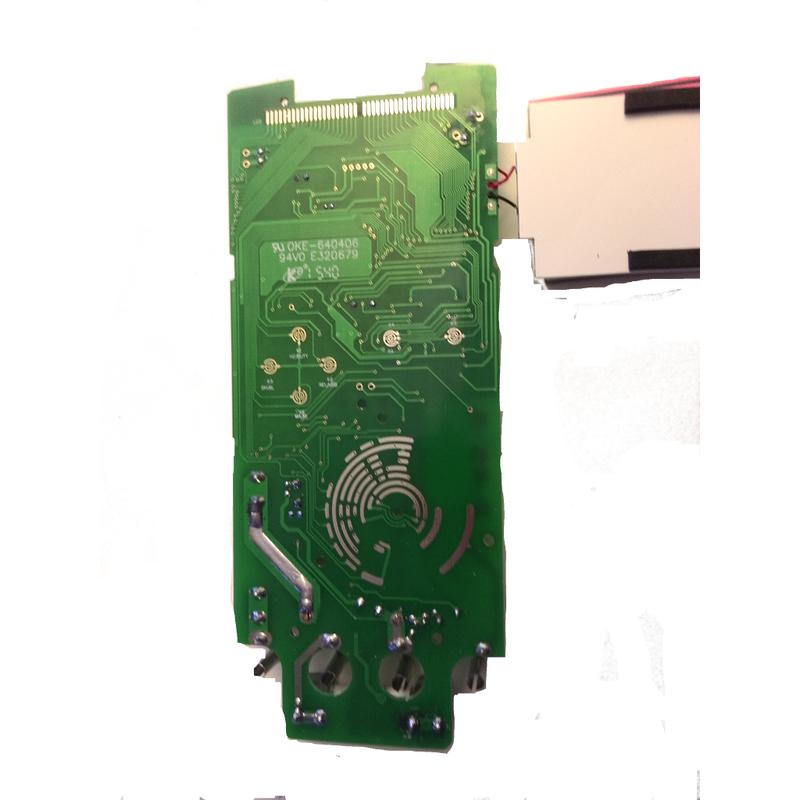

Main Front Screen

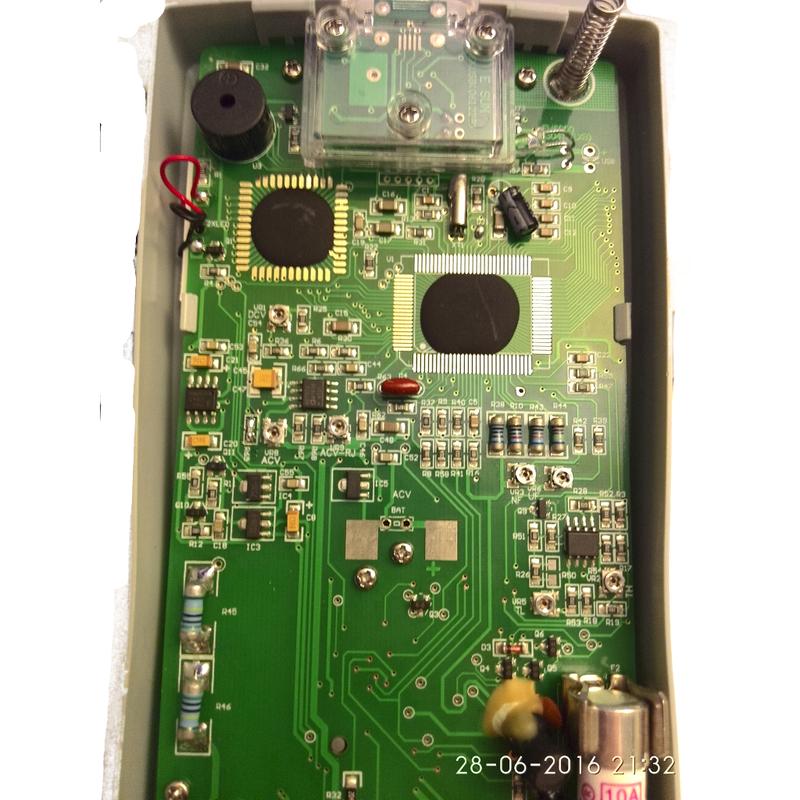

Main Back T
