PeakTech 4380¶
PeakTech 4380¶
| Status | planned |
| Source code | serial-dmm |
| Counts | 4000 |
| IEC 61010-1 | CAT II (1000V) |
| Connectivity | RS232 |
| Measurements | milivoltage, voltage, frequency, logic, continuity, resistance, capacitance, hFE, temperature, inductance, current |
| Features | Auto-range, true-RMS, bar-graph, secondary display, signal out, data hold, min/max, relative, 10 reading memory |
The PeakTech 4380 is a 4000 counts, CAT II (1000V) handheld digital multimeter with RS232 connectivity.
This is a rebadged Metex M-3860D multimeter.
Hardware¶
- Maxim MAX134CMH
Photos¶
Peaktech 4380 Pcb Stacked Back

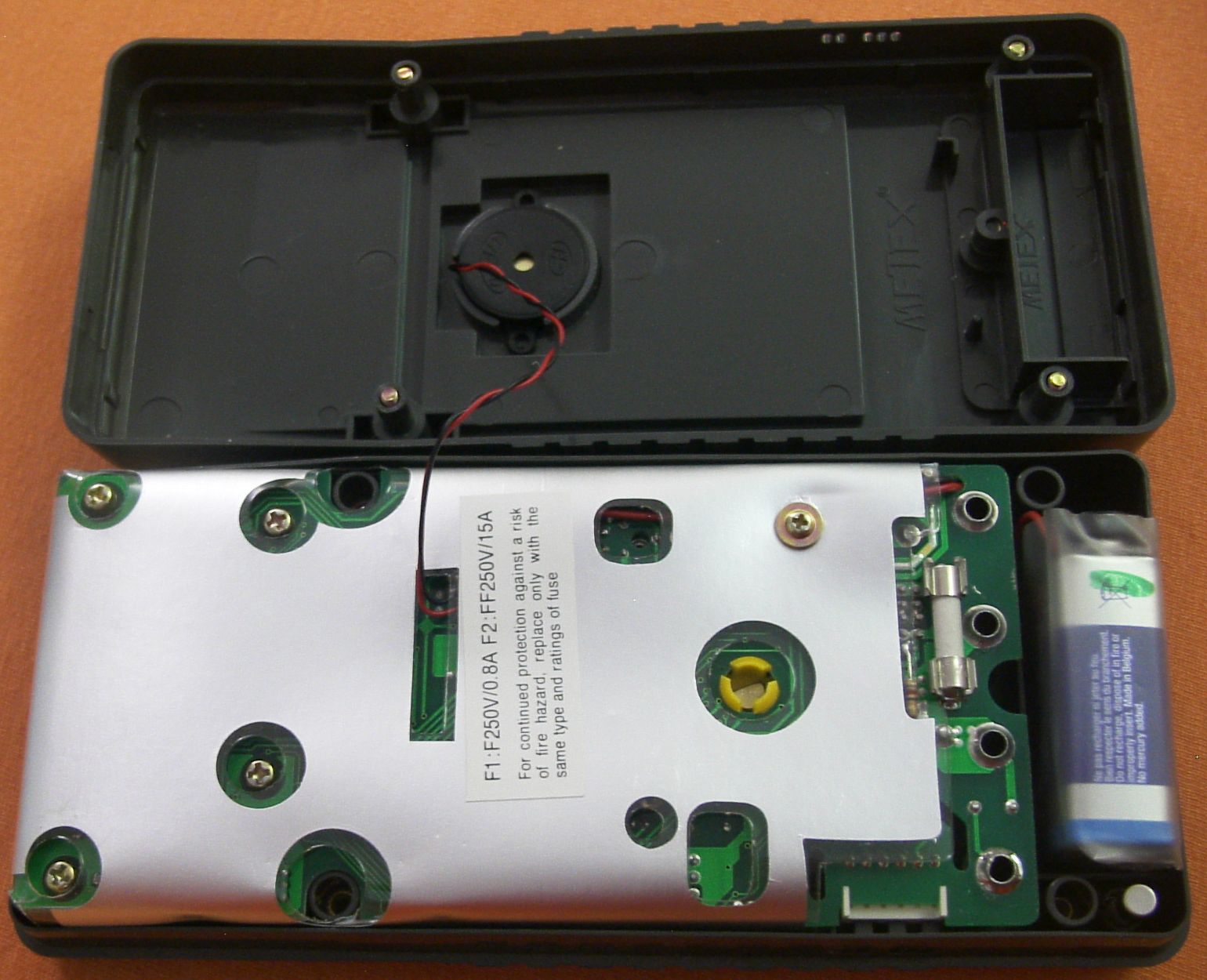

Peaktech 4380 Open

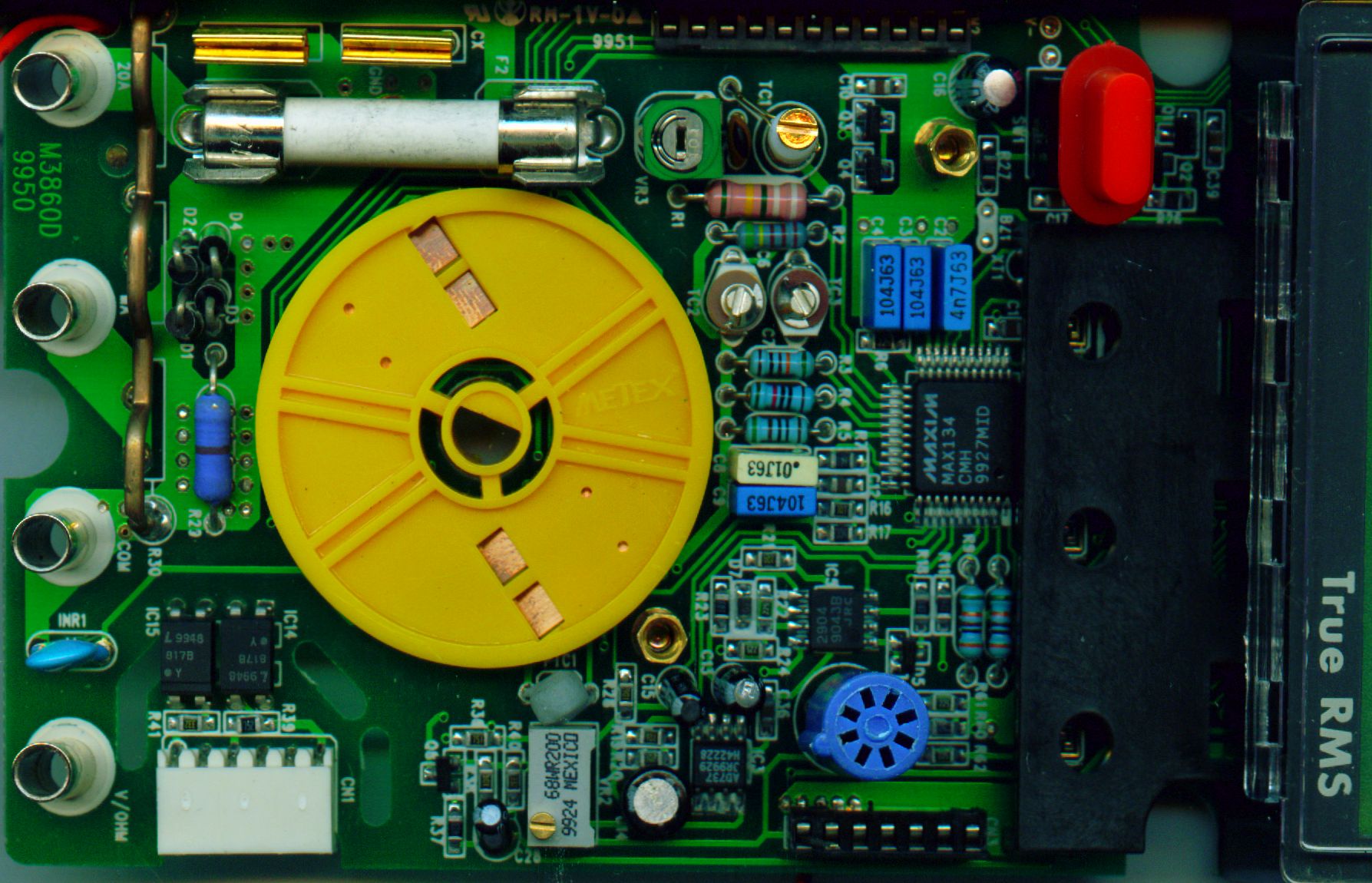

Peaktech 4380 Mainboard

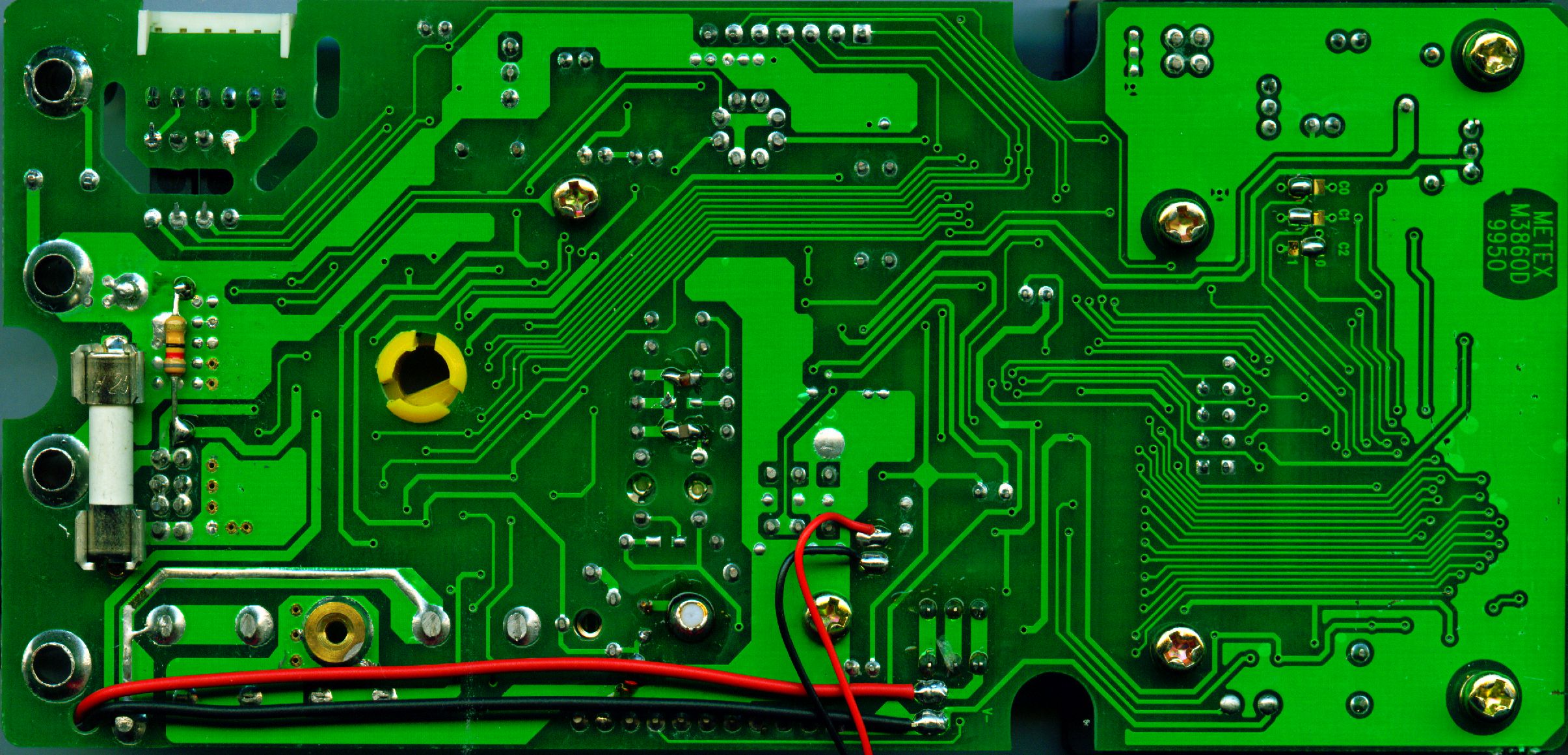

Peaktech 4380 Mainboard Back
Peaktech 4380 Software

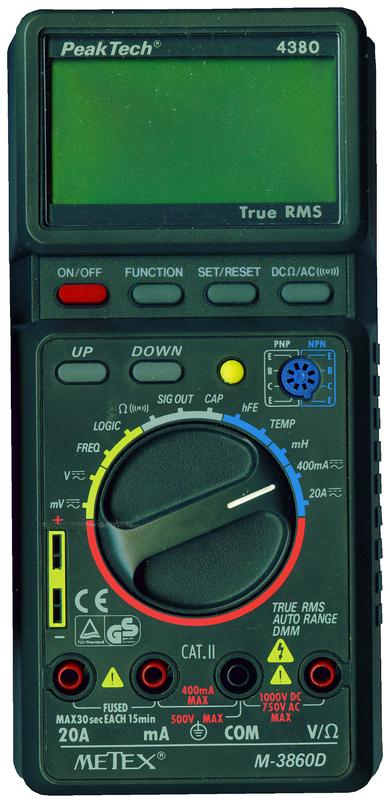

Peaktech 4380 Full Front

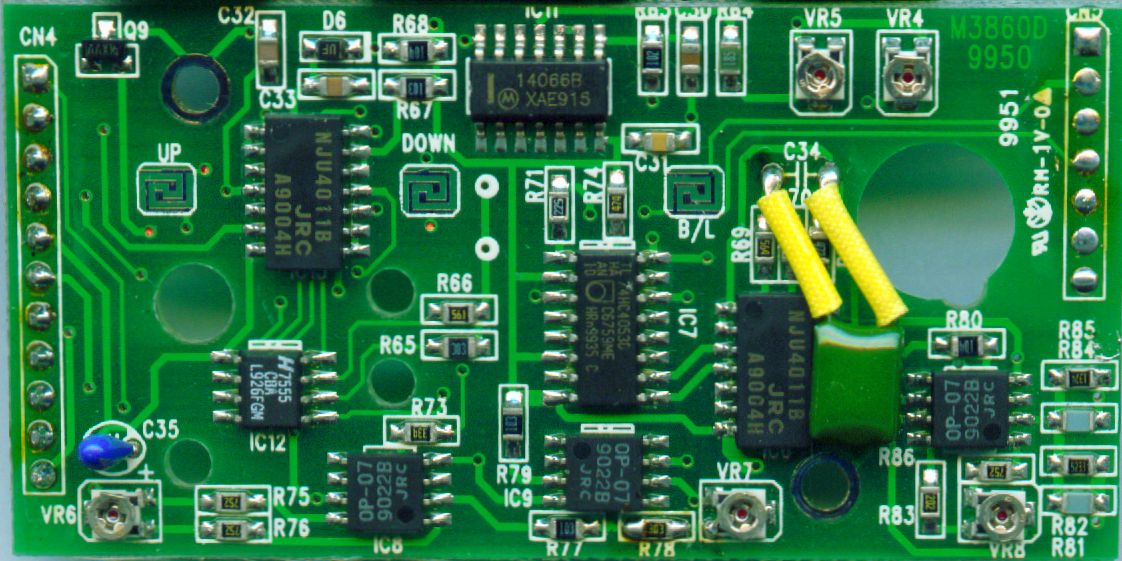

Peaktech 4380 Pcb Stacked

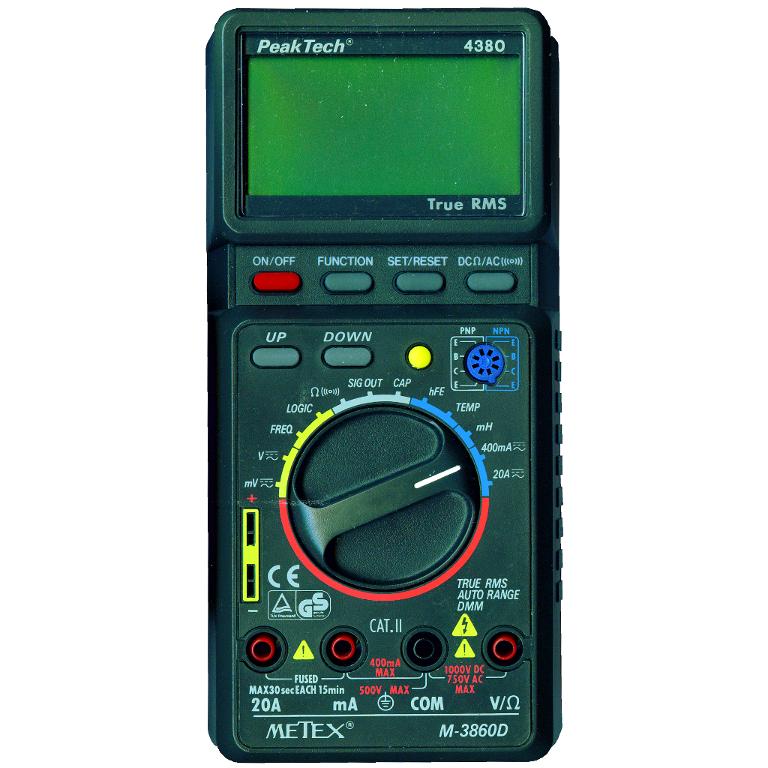

Peaktech 4380 Mugshot

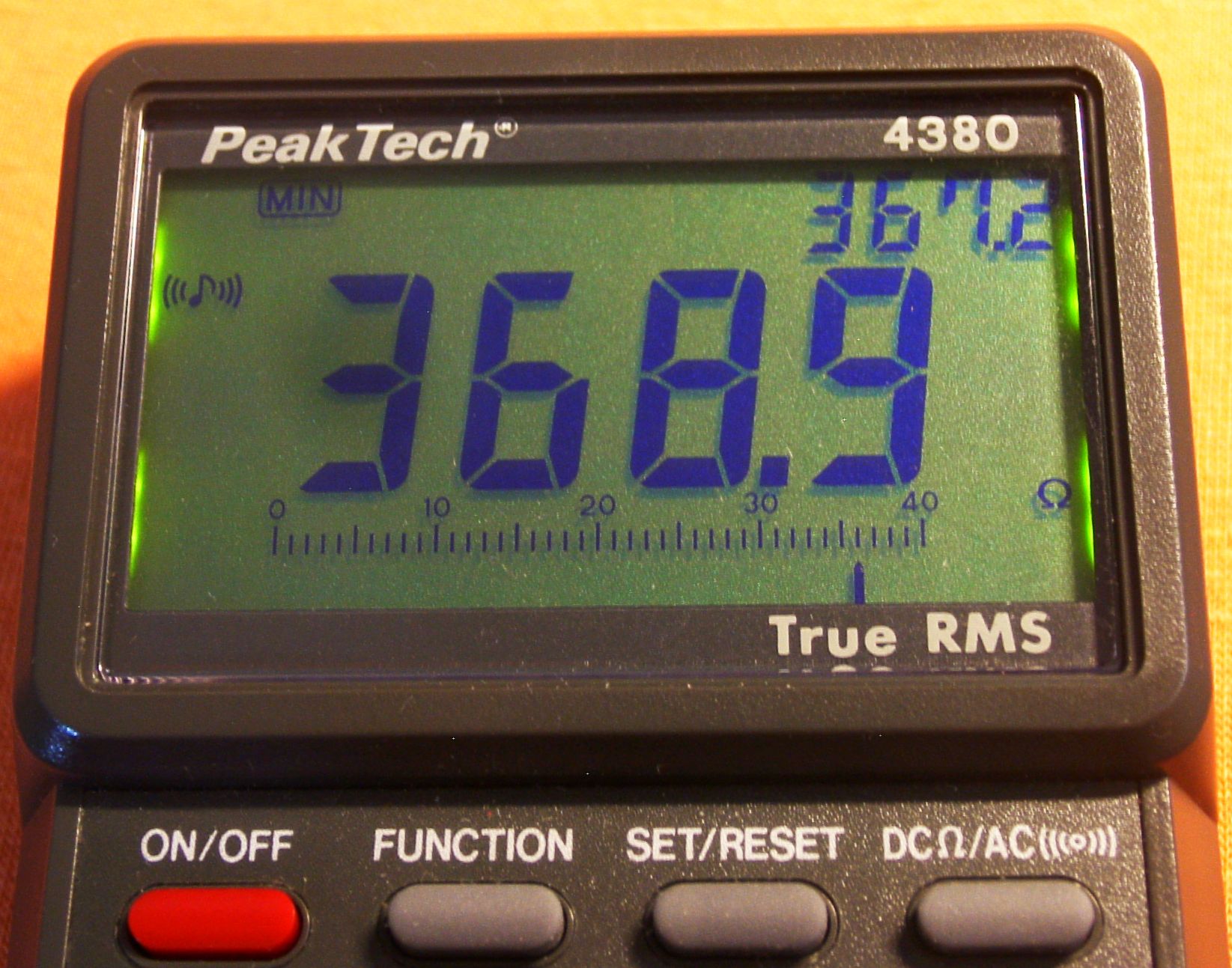

Peaktech 4380 Display

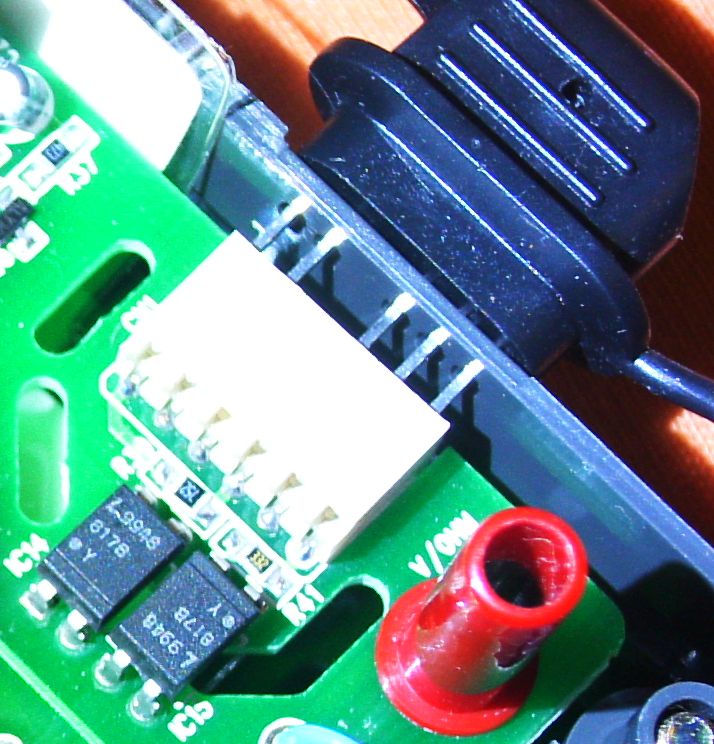

Peaktech 4380 Interface Connected
Protocol¶
1200 baud, likely Metex 14-byte ASCII protocol.
Resources¶
-
[](./img/PeakTech_4380_software.jpg)
Vendor software
