Metex M-3850M

Metex M-3850M

Metex M-3850M
Status supported
Source code serial-dmm
Counts 4000
IEC 61010-1 —
Connectivity RS232
Measurements voltage, current, hFE, logic, capacitance, frequency, resistance, continuity, diode
Features hold, relative, min/max, bargraph

The Metex M-3850M is a 4000 counts true rns, handheld digital multimeter with RS232 connectivity.

Hardware

RS232 cable:

Photos

Metex M3850m Pack Back Metex M3850m Pack Back

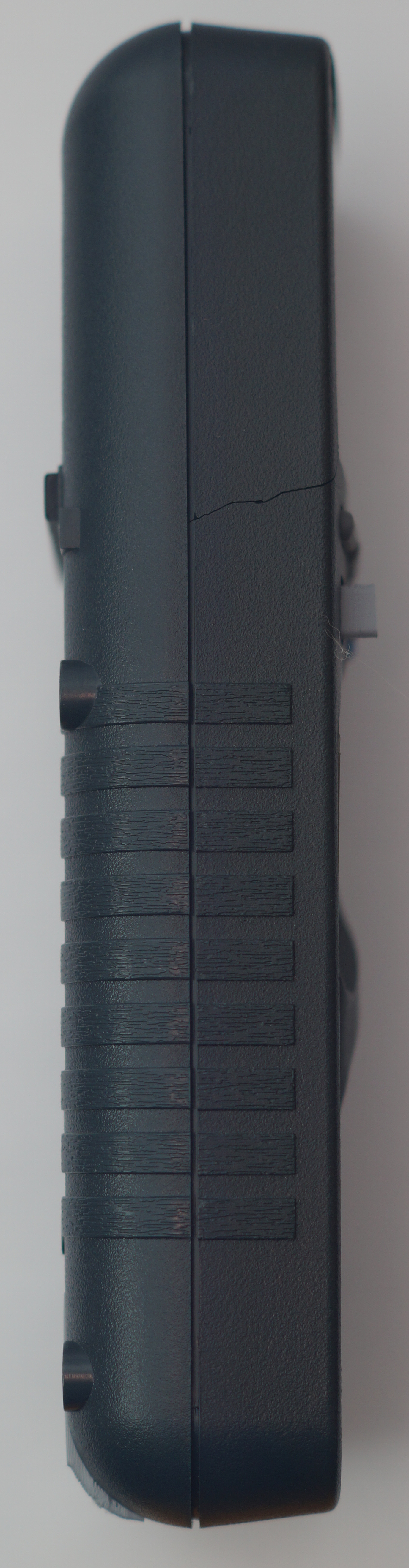

Metex M3850m Side Metex M3850m Side

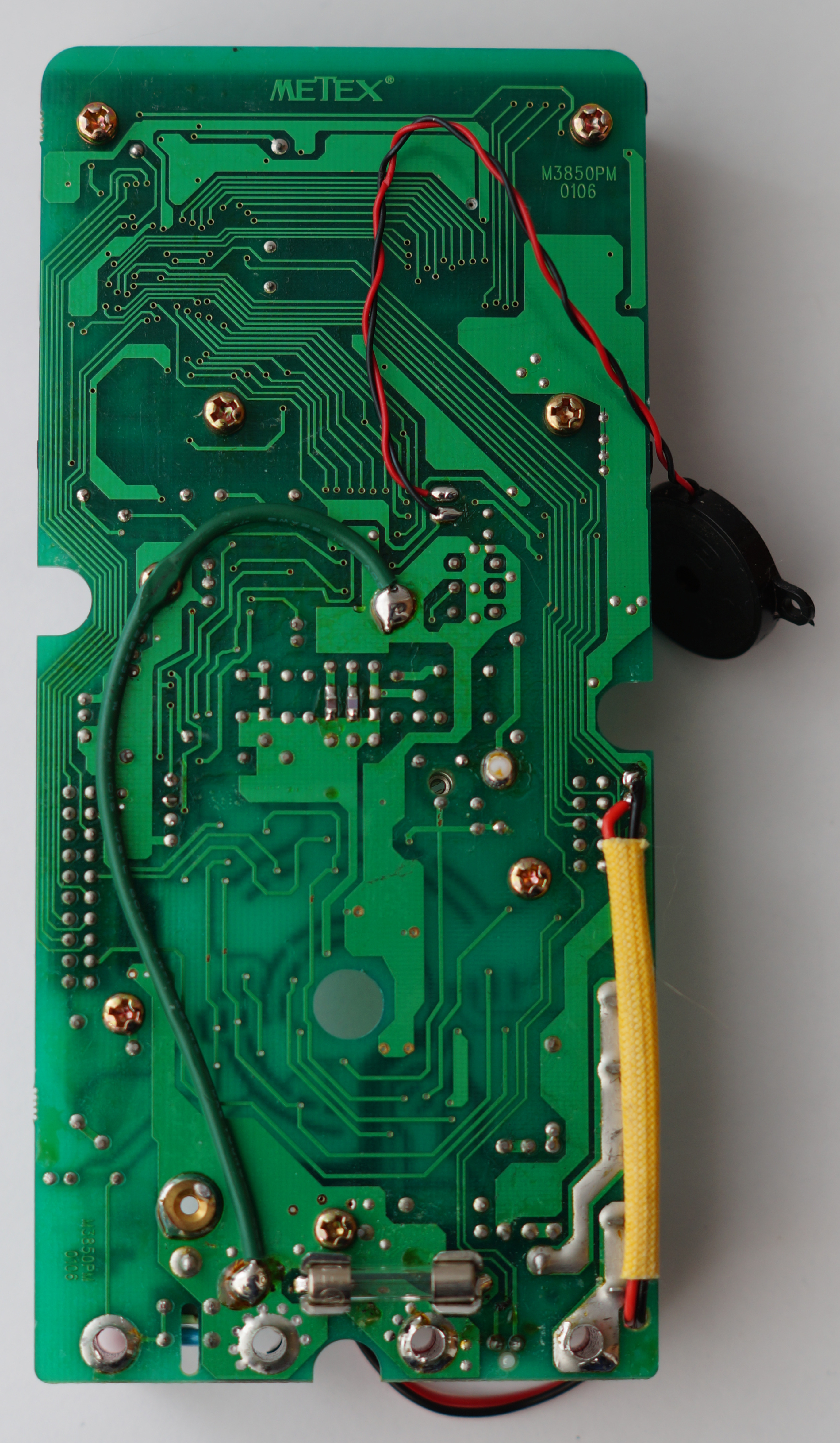

Metex M3850m Lower Back Metex M3850m Lower Back

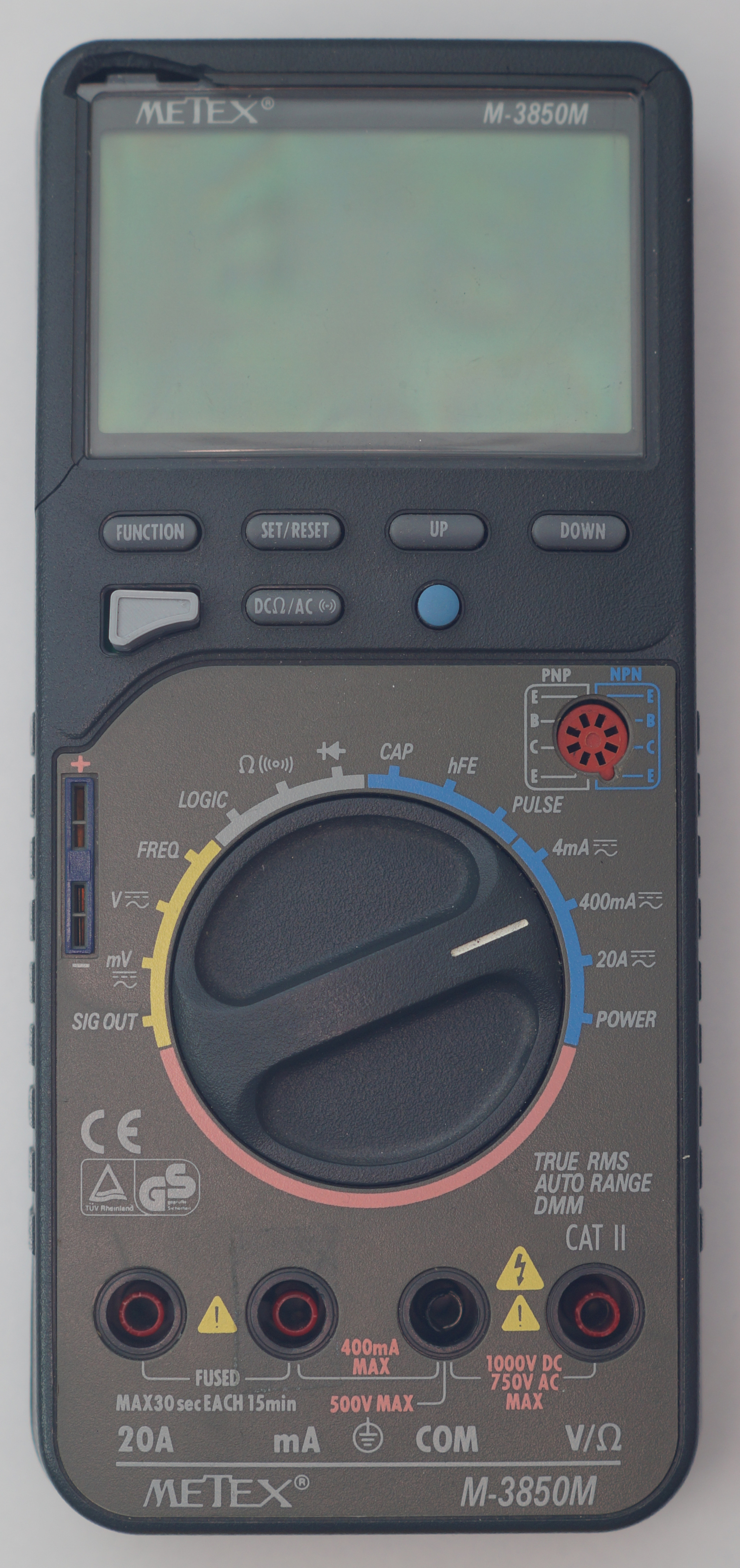

Metex M3850m Front Metex M3850m Front

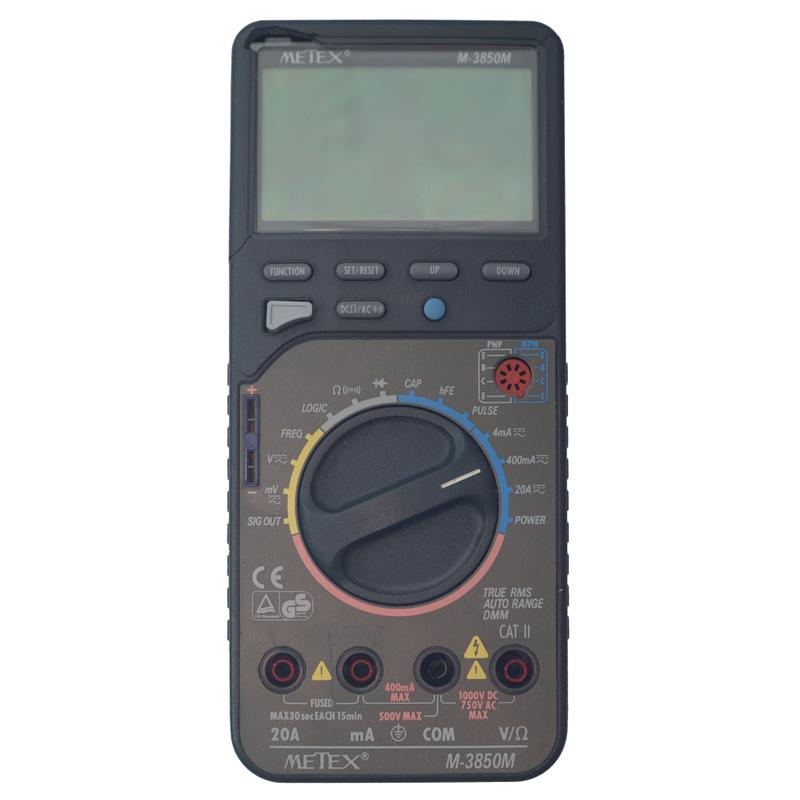

Metex M3850m Mugshot Metex M3850m Mugshot

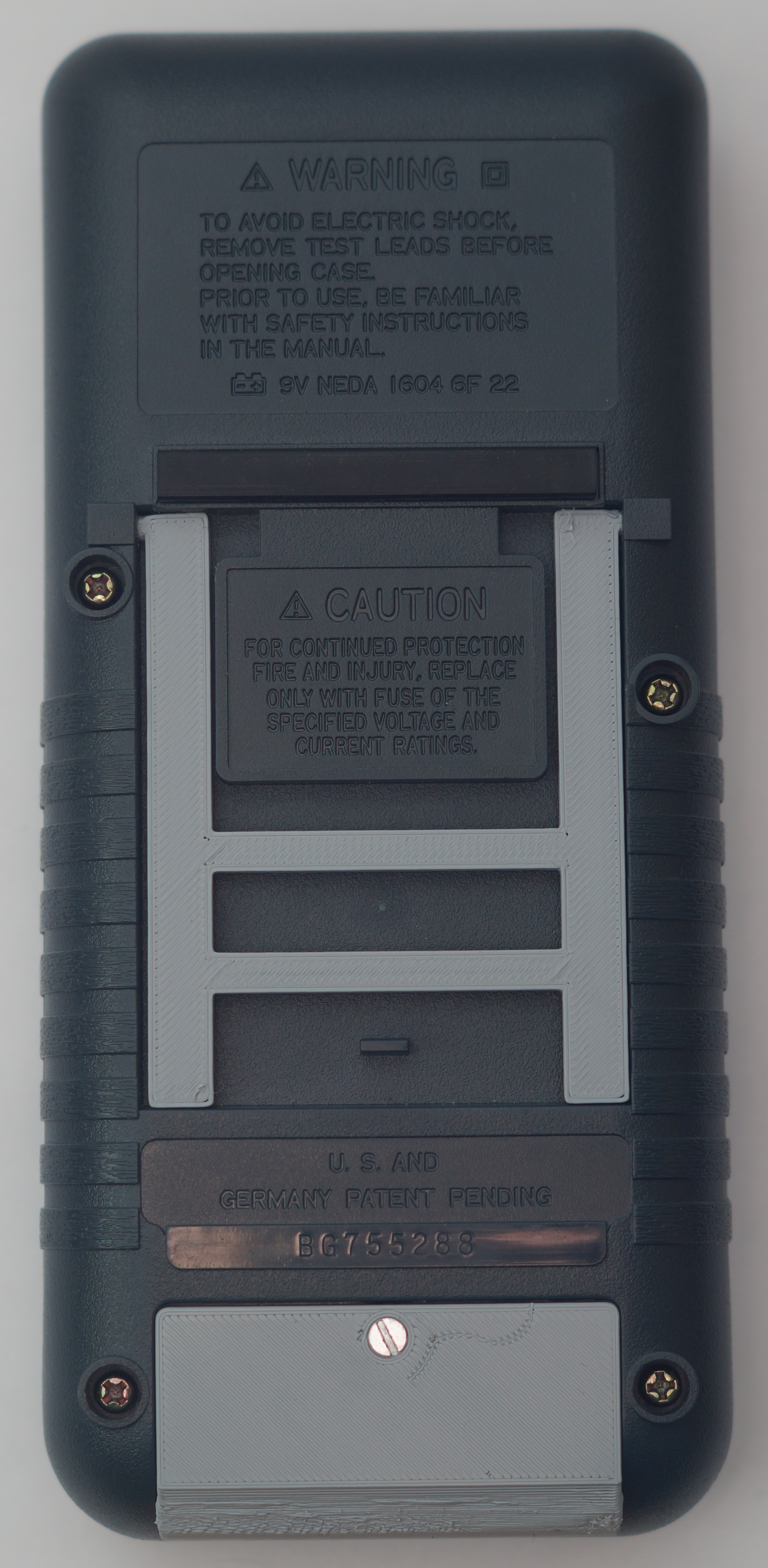

Metex M3850m Back Metex M3850m Back

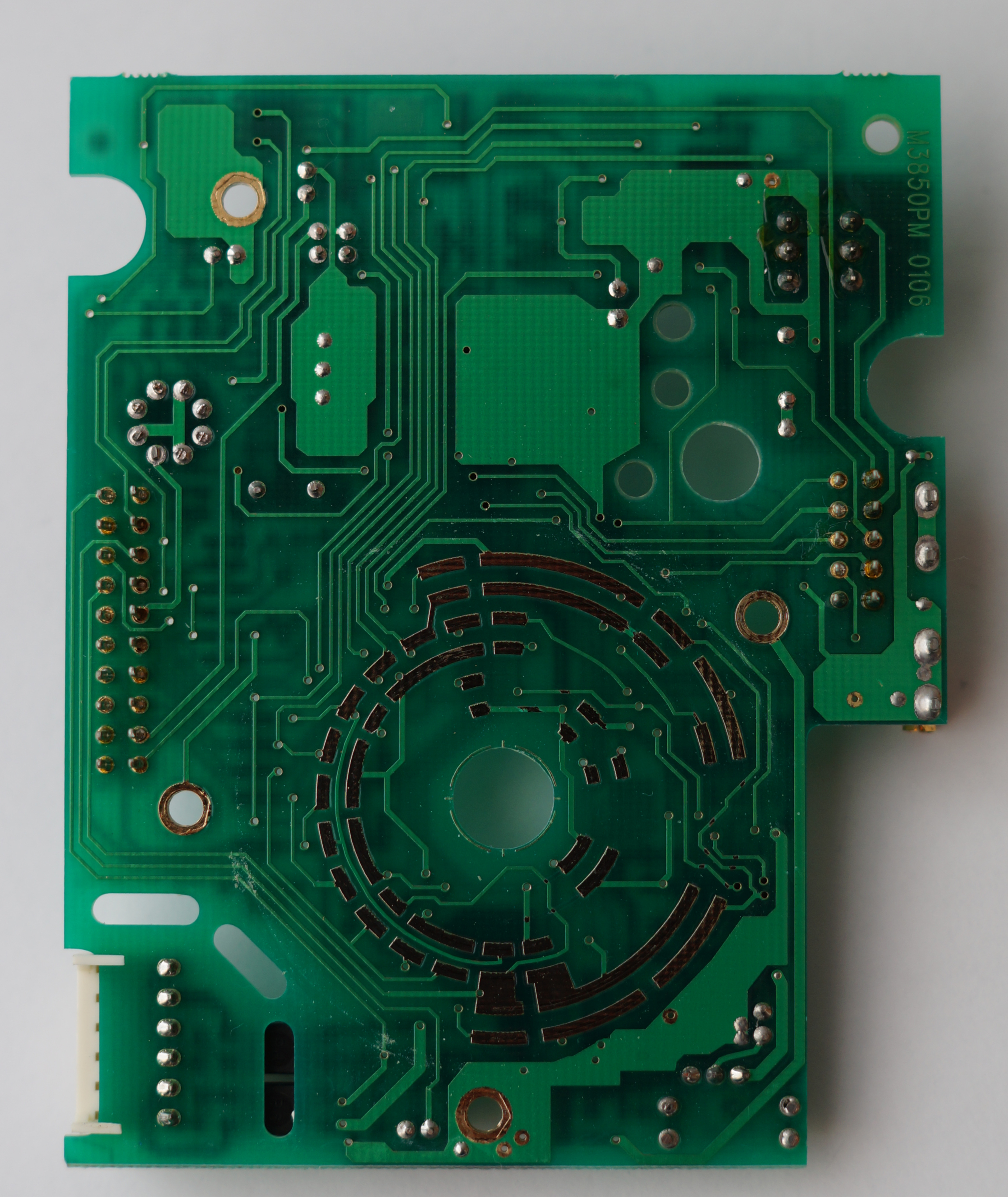

Metex M3850m Upper Back Metex M3850m Upper Back

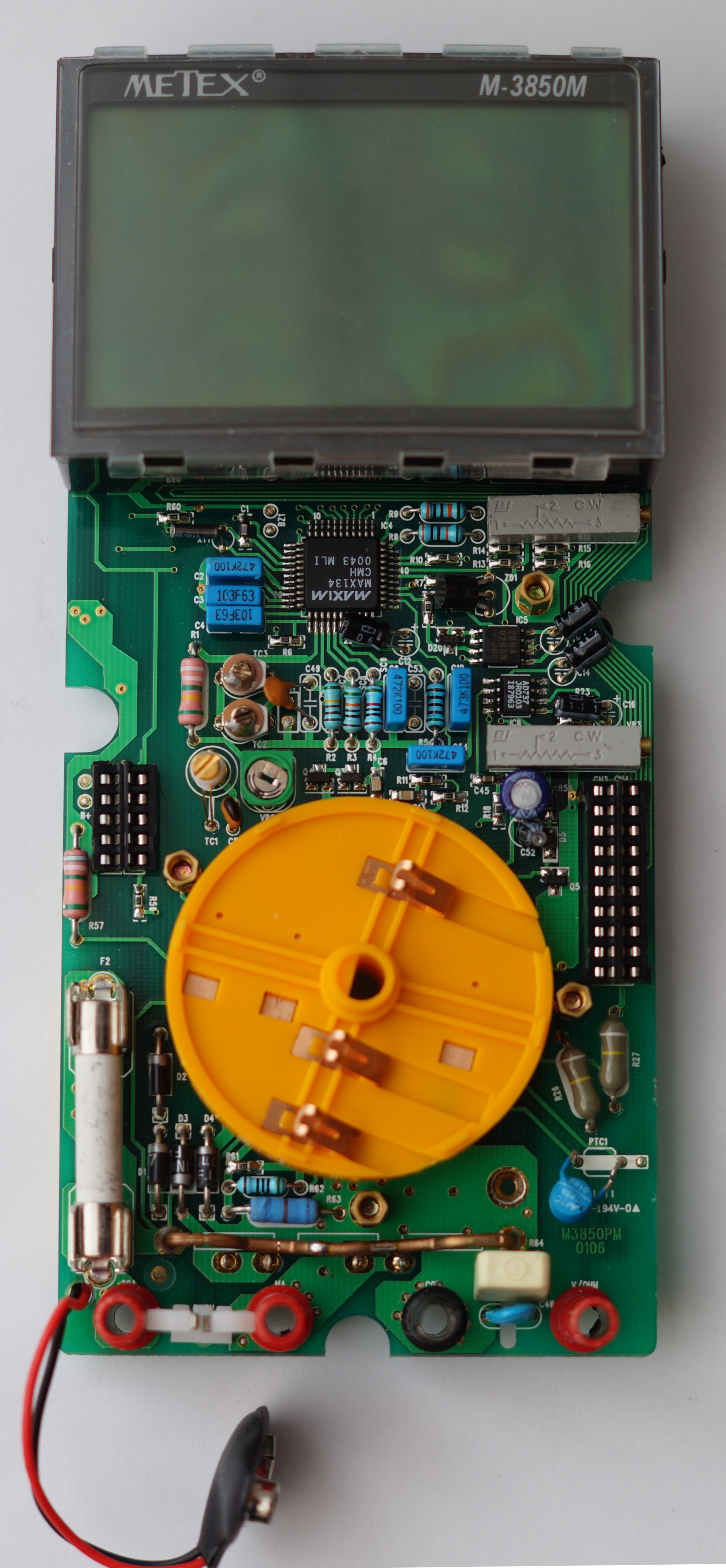

Metex M3850m Lower Front Knob Metex M3850m Lower Front Knob

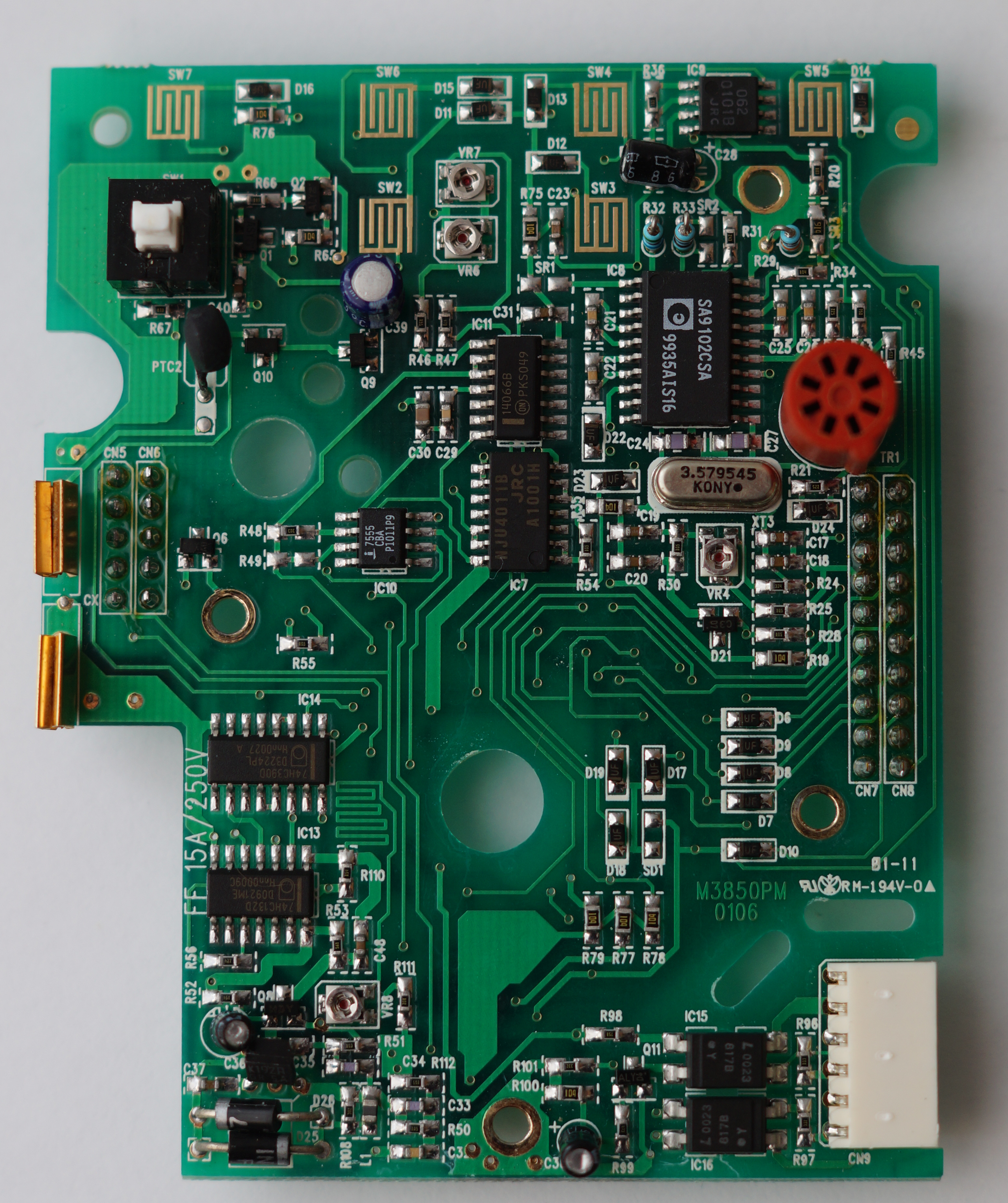

Metex M3850m Upper Front Metex M3850m Upper Front

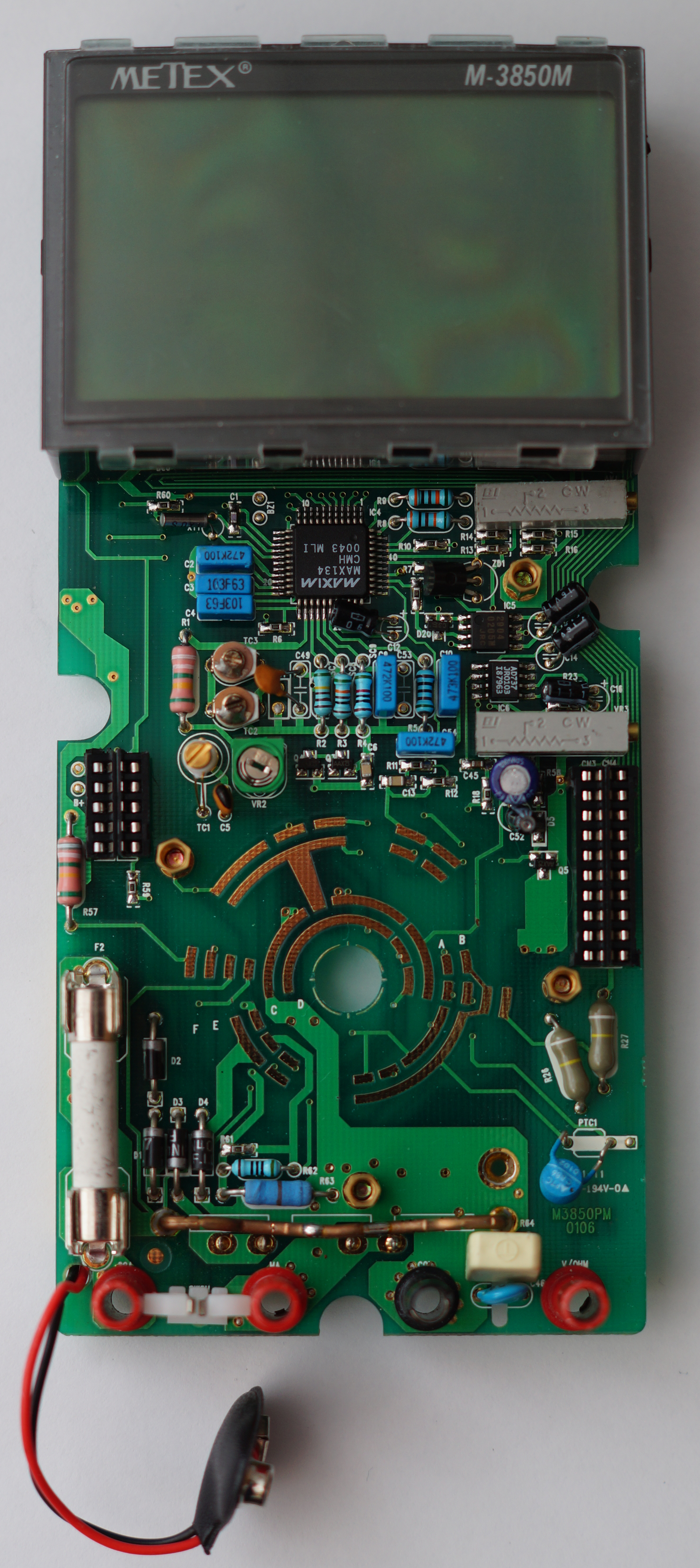

Metex M3850m Lower Front Metex M3850m Lower Front

Protocol

See Multimeter ICs#Alternative_Protocol. This device works with the Metex M-3860M driver. It appears as a 4 channel device, the first one corresponding to the main display, the other three channels to the small multi-purpose displays beneath.
