GW Instek GDM-9061¶


Status	supported
Source code	scpi-dmm
Counts	1200000
IEC 61010-1	CAT II 300V
Connectivity	LAN, USB, RS232, Digital IO, GPIB (option)
Measurements	voltage, current, resistance, frequency, diode, temperature, capacitance
Features	autorange, readings memory, four-wire resistance, dual measurement
Website	gwinstek.com

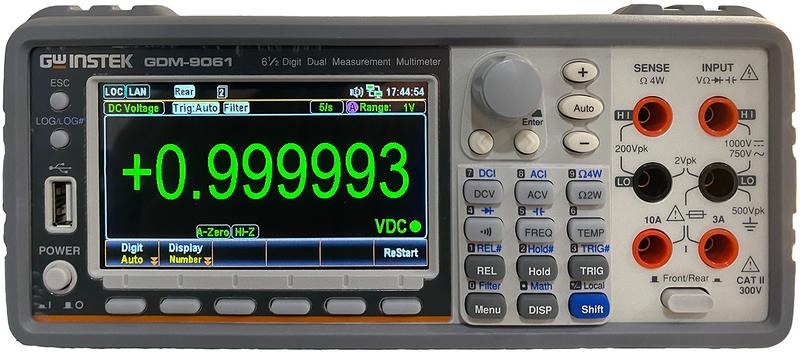

The GW Instek GDM-9061 is a 6.5 digits (1200000 counts) with 0.0035% DCV accuracy bench digital multimeter with LAN, USB and RS232 connectivity. GPIB option is available as user installable module.

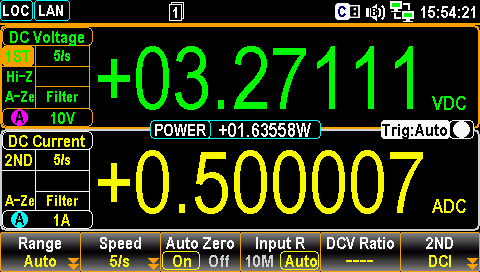

Meter has dual measurement mode, that allows two simultaneous measurements, like voltage and current, or AC voltage and frequency.

GDM-9060 is a 0.0075% accuracy version of this same meter.

Specifications¶

Header 1	Header 2
DC VOLTAGE
Range	100mV, 1V, 10V, 100V, 1000V 5 ranges
Accuracy	±(0.0035% rdg + 5 digits)
Input Impedance	10MΩ, 10GΩ
AC VOLTAGE True RMS
Range	100mV, 1V, 10V, 100V, 750V 5 ranges
Accuracy	10Hz~20kHz : ±(0.06% rdg + 0.03% range)
Input Impedance	1.1MΩ in parallel with approx. 100pF
DC CURRENT
Range	100uA, 1mA, 10mA, 100mA, 1A, 3A, 10A 7 ranges
Accuracy	100mA : ±(0.050% rdg + 0.005% range))
	0A range : ±(0.150% rdg + 0.010% range)
