Fluke 287/289

Fluke 287/289

Fluke 287/289
Status supported
Source code fluke-dmm
Counts 50000
IEC 61010-1 CAT III (1000V), CAT IV (6000V)
Connectivity USB
Measurements voltage, resistance, continuity, conductance, capacitance, diode, temperature, current
Features hold, min, max, backlight
Website 287289

The Fluke 287 and 289 are 50000-count handheld digital multimeters.

Hardware

Photos

Fluke 287 Pcb Bottom Detail 2 Fluke 287 Pcb Bottom Detail 2

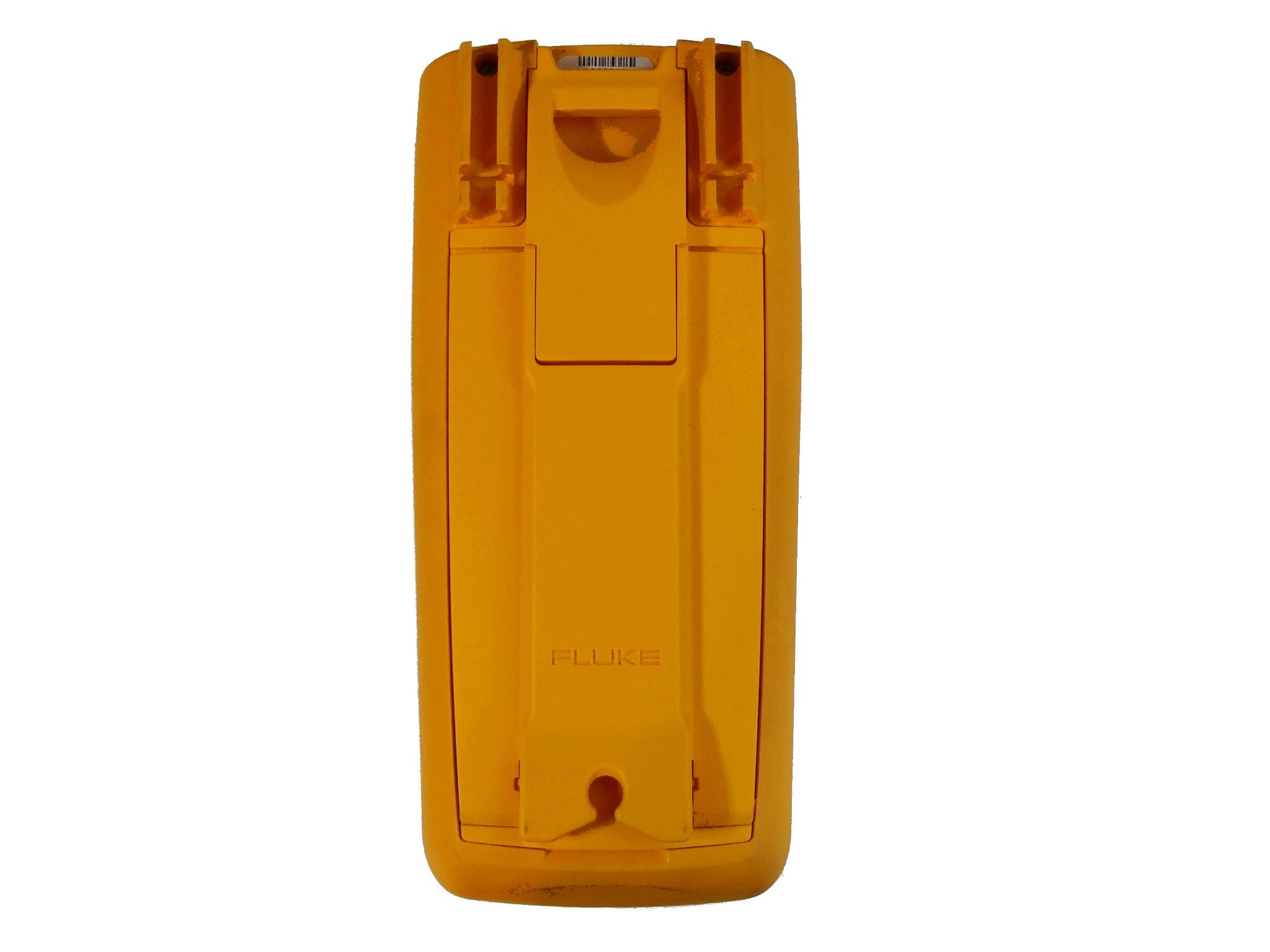

Fluke 287 Back Fluke 287 Back

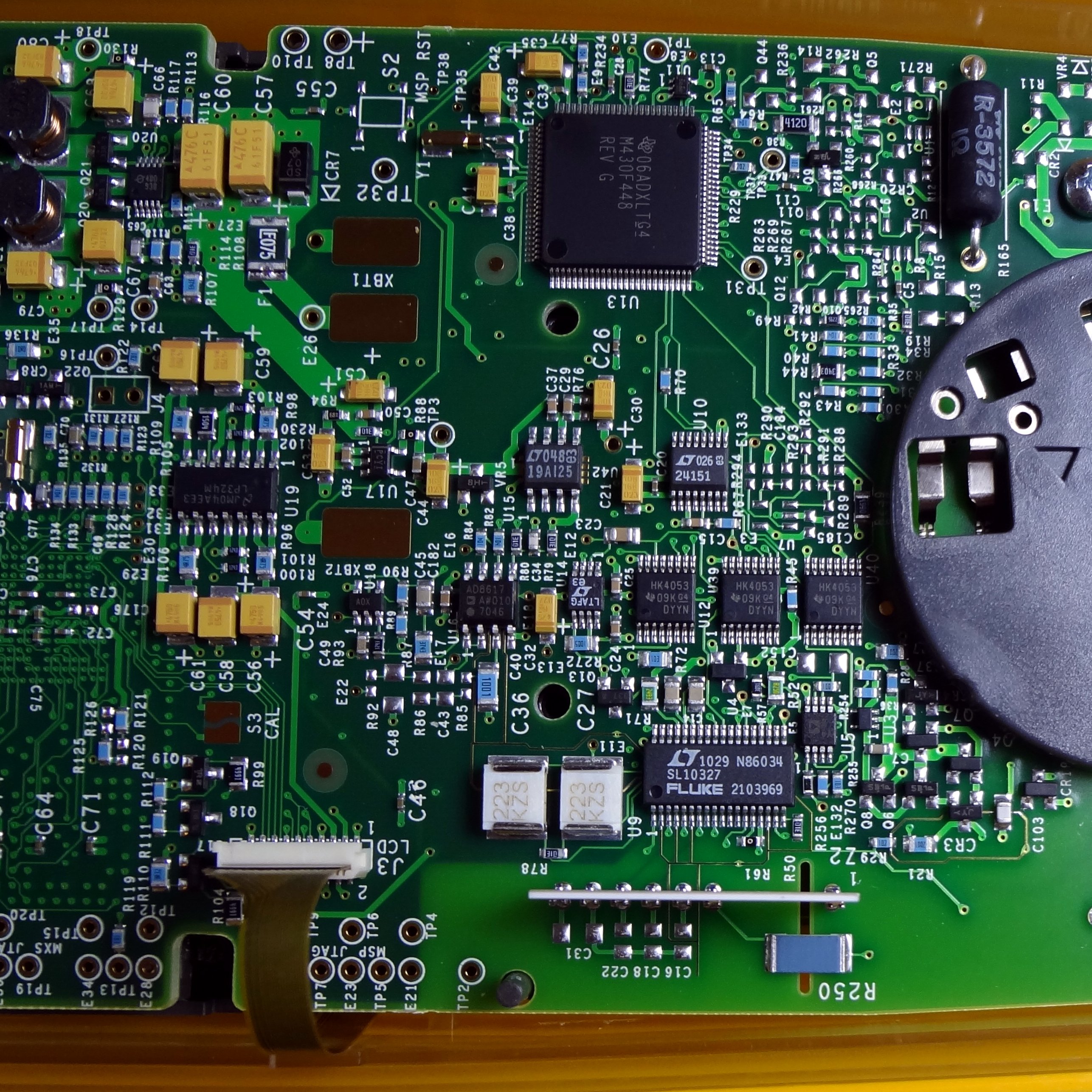

Fluke 287 Pcb Top Detail 2 Fluke 287 Pcb Top Detail 2

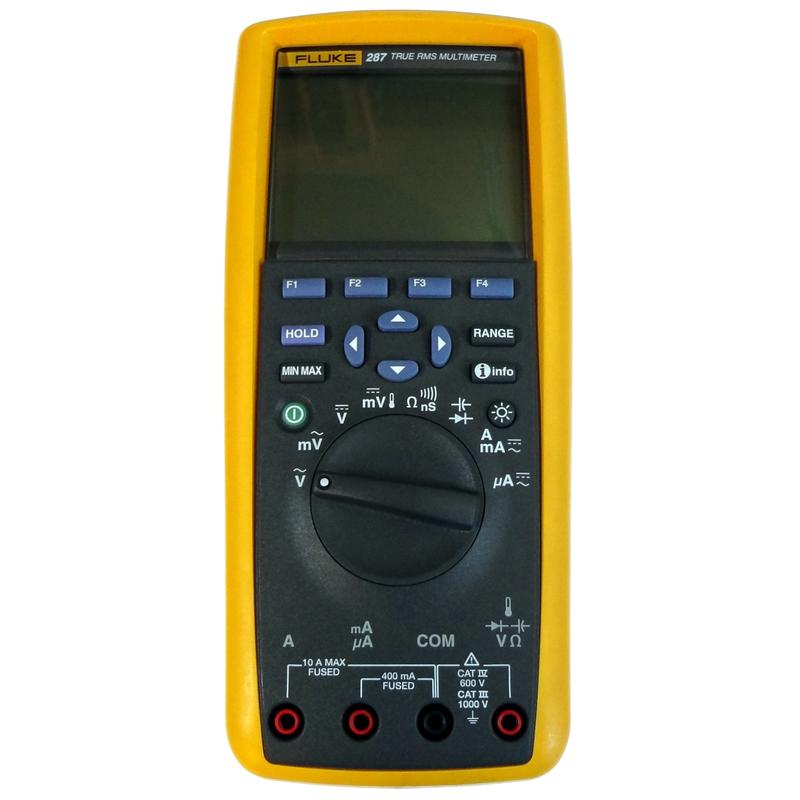

Fluke 287 Fluke 287

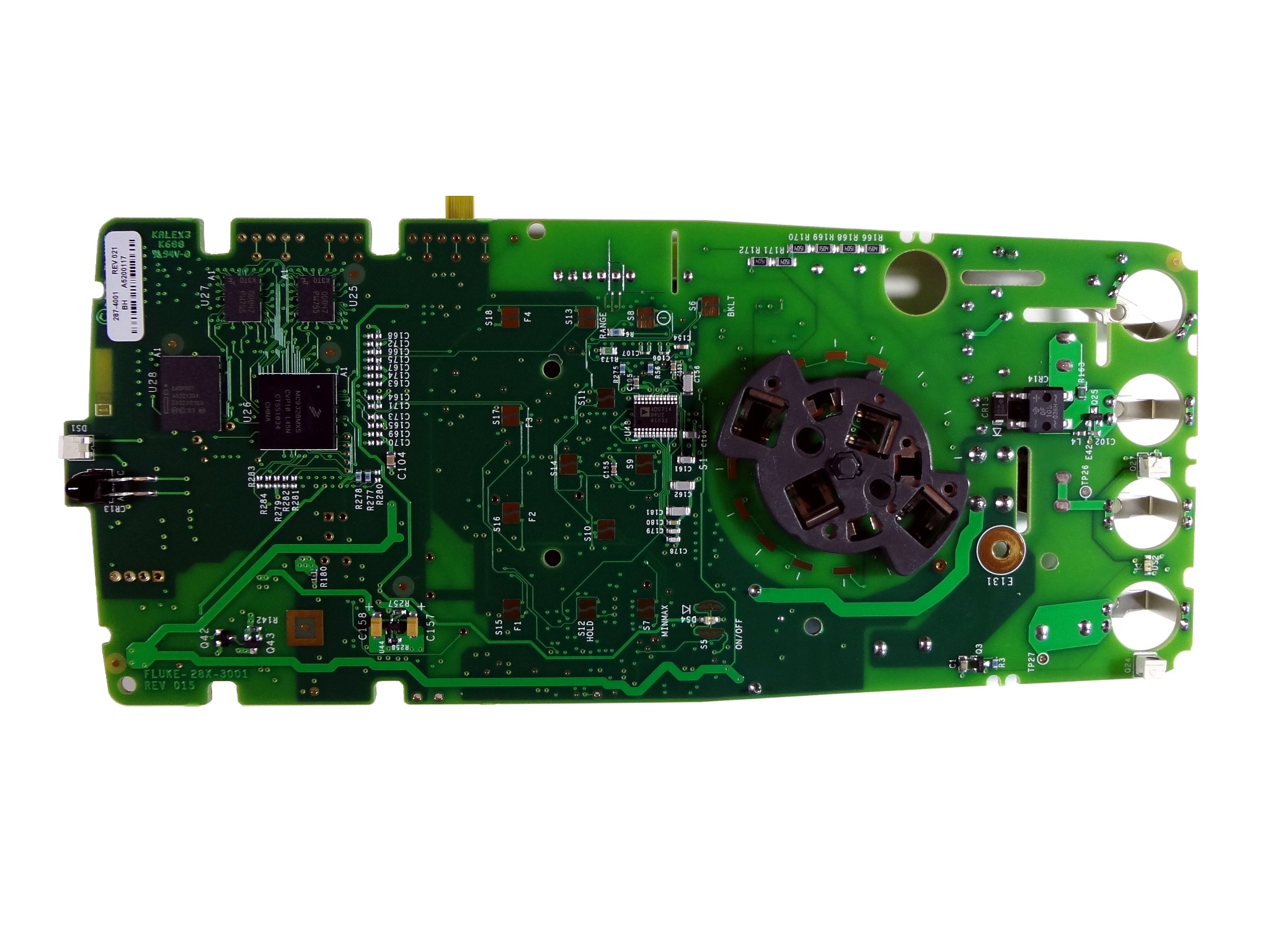

Fluke 287 Pcb Bottom Fluke 287 Pcb Bottom

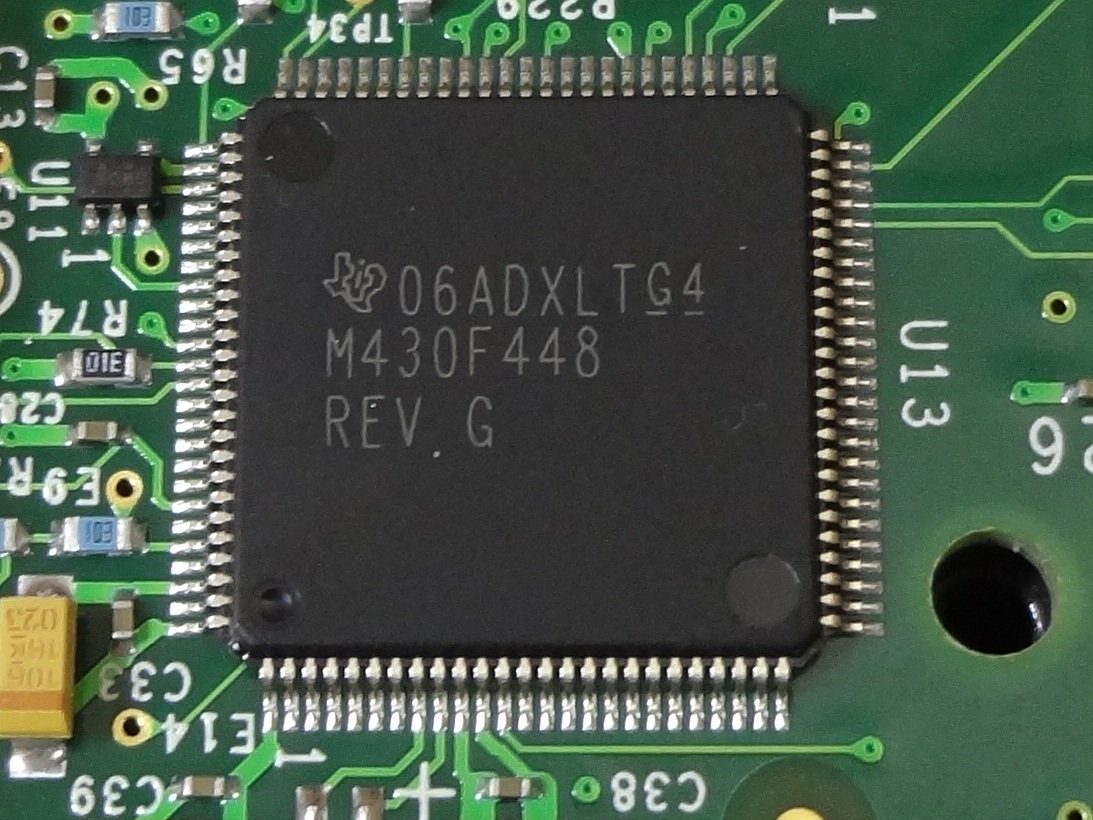

Fluke 287 Pcb Top Detail 1 Fluke 287 Pcb Top Detail 1

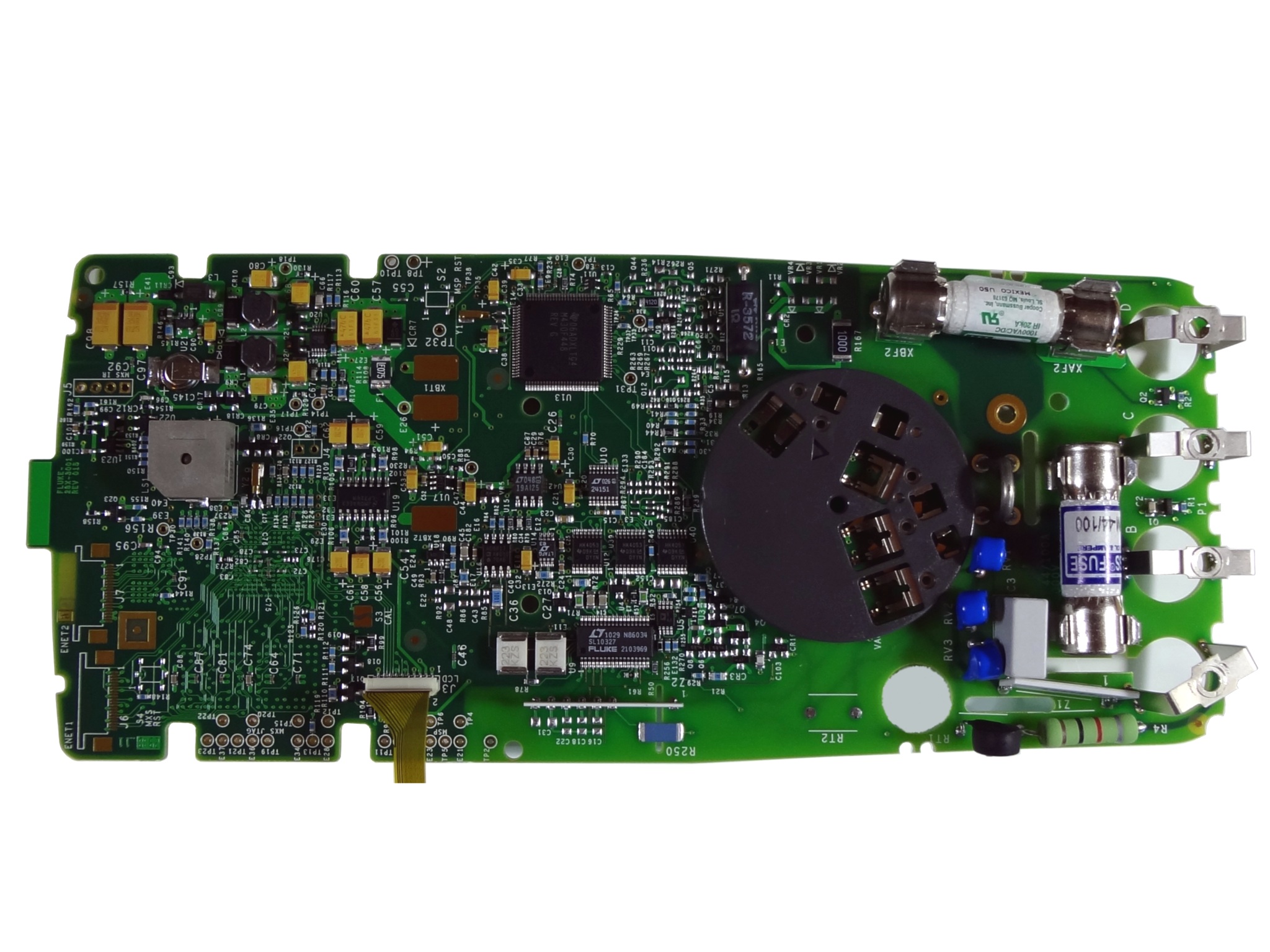

Fluke 287 Pcb Top Fluke 287 Pcb Top

Fluke 287 Fluke 287

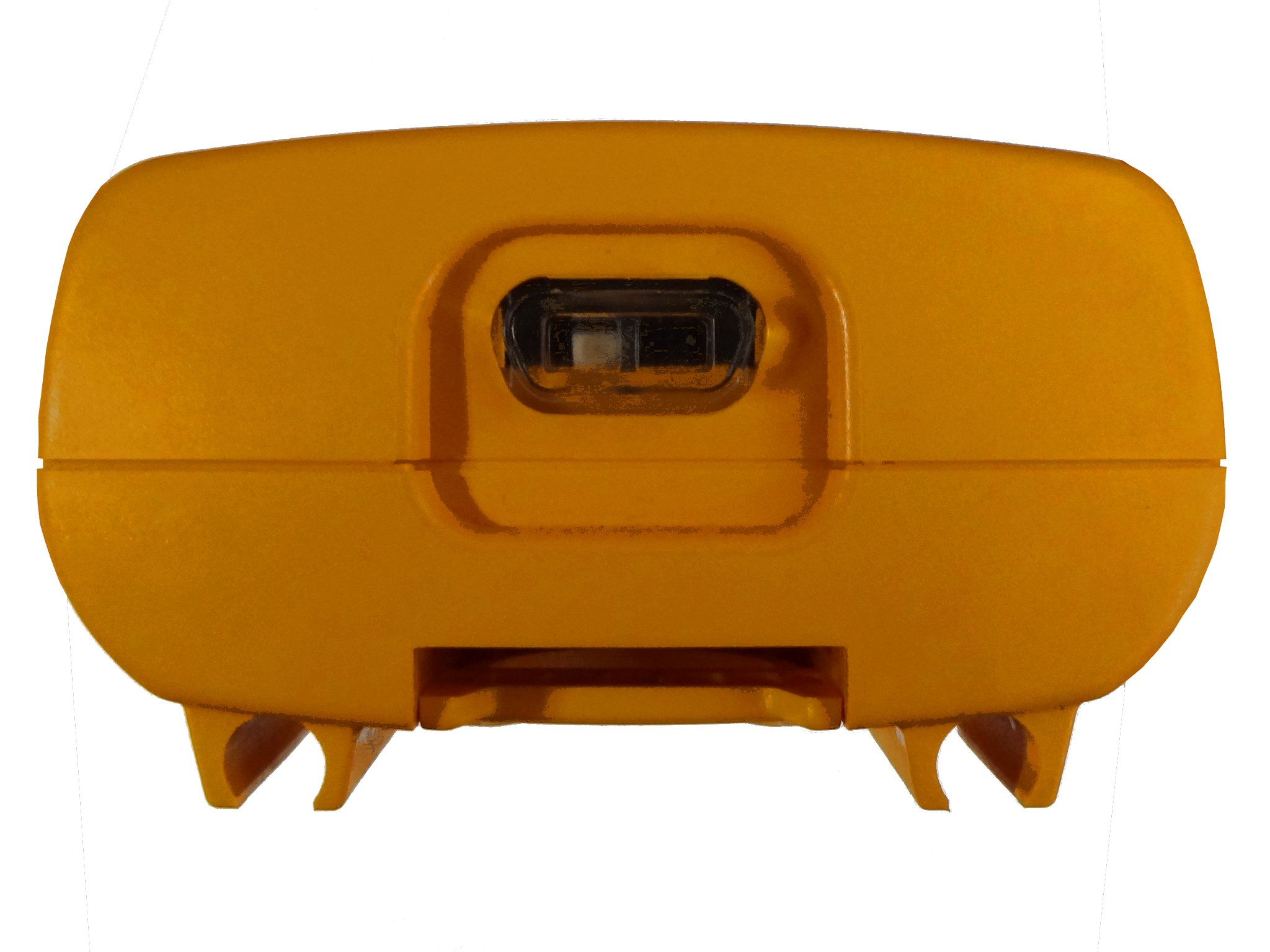

Fluke 287 Top Fluke 287 Top

Resources
