Agilent 34401A¶
Agilent 34401A¶
| Status | supported |
| Source code | scpi-dmm |
| IEC 61010-1 | CAT II (300V) |
| Connectivity | GPIB, RS232 |
| Measurements | voltage, current, 2- and 4-wire resistance, diode, continuity, frequency, period |
| Features | autorange, true RMS, data hold, relative |
| Website | keysight.com |
The HP 34401A / Agilent 34401A is a 6.5 digits CAT II (300V) bench multimeter.
Photos¶
Agilent 34401a Front

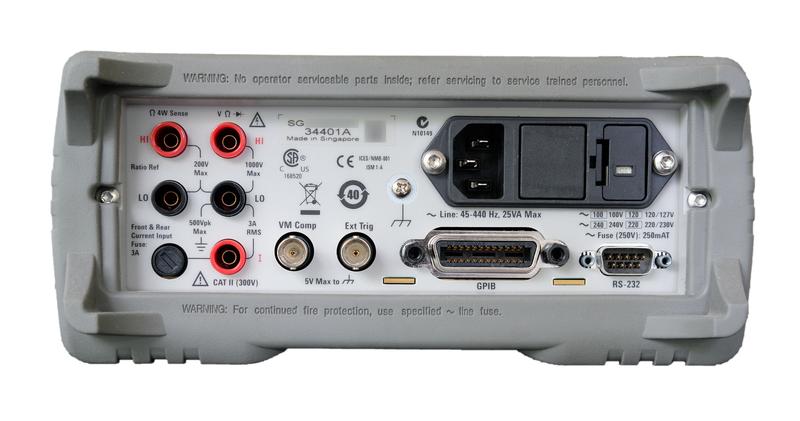

Agilent 34401a Back
Example use¶
Depending on your type of connection you have to can either use the RS232 connection parameter or the GPIB connection parameter. Examples:
**--driver=scpi-dmm:conn=/dev/ttyUSB0**
or
**--driver=scpi-dmm:conn=libgpib/hp34401a**
Check the capabilities of the meter's driver, and current state of settings:
$ **sigrok-cli -d scpi-dmm:conn=/dev/ttyUSB0 --show**
Get or set the meter's current function:
$ **sigrok-cli -d scpi-dmm:conn=/dev/ttyUSB0 --get measured_quantity**
$ **sigrok-cli -d scpi-dmm:conn=/dev/ttyUSB0 -c measured_quantity=voltage/dc --set**
Acquire measurement data, in the current mode or in another specified mode:
$ **sigrok-cli -d scpi-dmm:conn=/dev/ttyUSB0 --continuous**
$ **sigrok-cli -d scpi-dmm:conn=/dev/ttyUSB0 --time 10s**
$ **sigrok-cli -d scpi-dmm:conn=/dev/ttyUSB0 --samples 10 -c measured_quantity=current/dc**
