Noname LHT00SU1¶
Noname LHT00SU1¶
| Status | supported |
| Source code | fx2lafw |
| Channels | 8 + 1 |
| Samplerate | 8ch @ 24MHz, 8+1ch @ 12MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | Digital: 0V — +5.3VAnalog: ±10V |
| Threshold voltage | Fixed: VIH=1.4V, VIL=0.8V |
| Memory | none |
| Compression | none |
| Price range | $20 - $25 |
| Website | aliexpress.com |
The Noname LHT00SU1 is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate, with 1 additional analog channel (theoretically 2, but only one of them can be used at a time; 3MHz analog bandwidth).
It is a clone of the CWAV USBee AX-Pro.
In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.
Note: fx2lafw currently doesn't support switching between the two possible analog channels, 1ACH will be used unconditionally.
See Noname LHT00SU1/Info for some more details (such as lsusb -v output) on the device.
Hardware¶

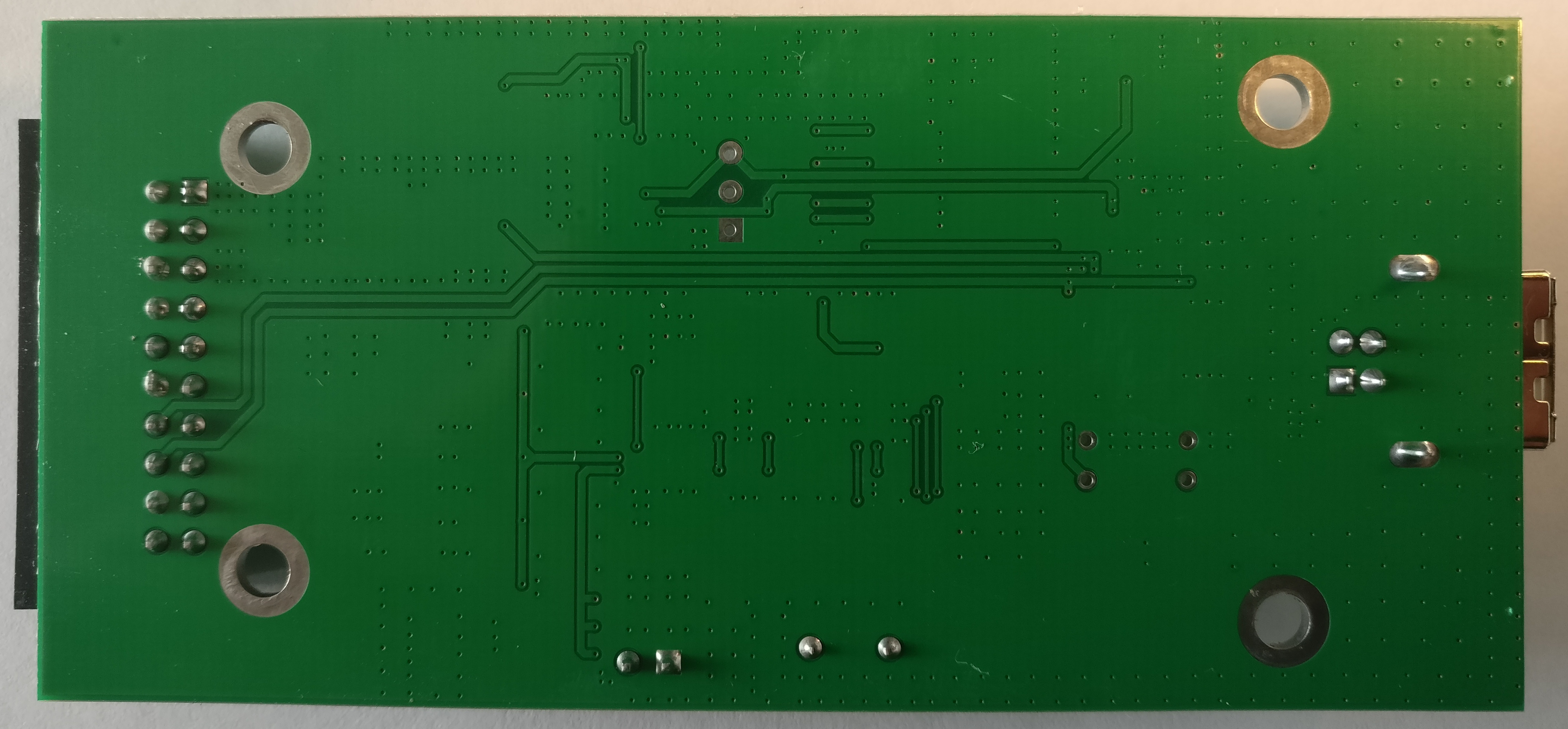

There's a jumper on the PCB which write-protects the I²C EEPROM when set (it ships in that state) by keeping the WP pin at 3.3V.
Photos¶
Noname Lht00su1 Cypress Fx2

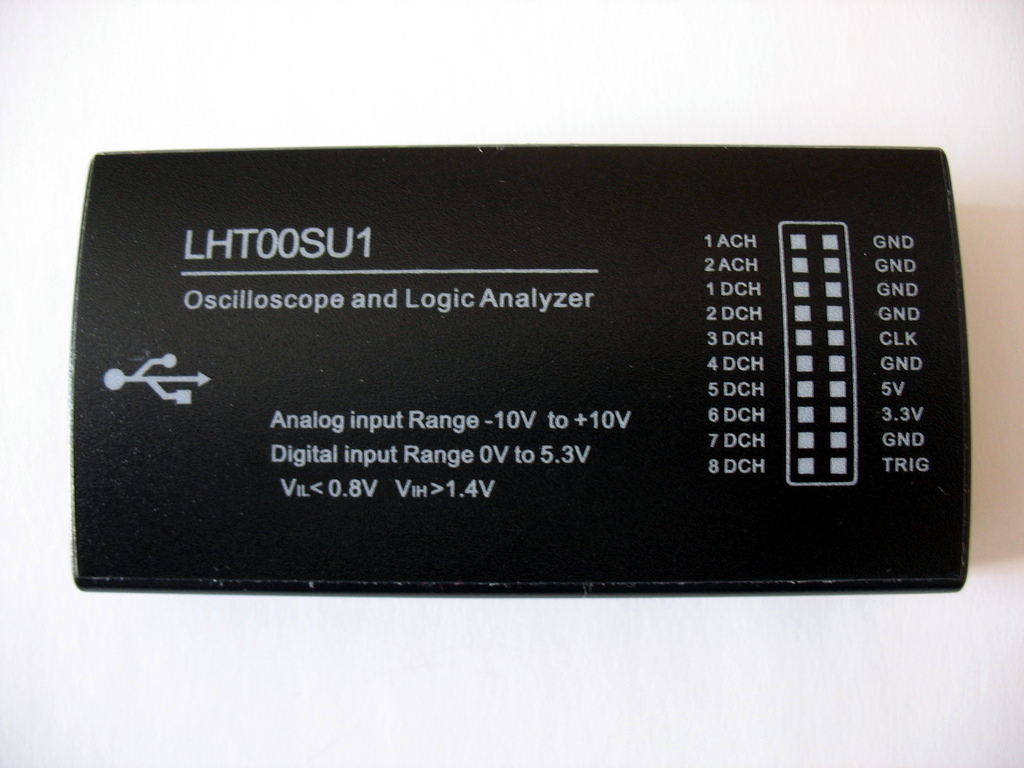

Noname Lht00su1 Device Top
Linsou21 V1 3 Pcb Bottom

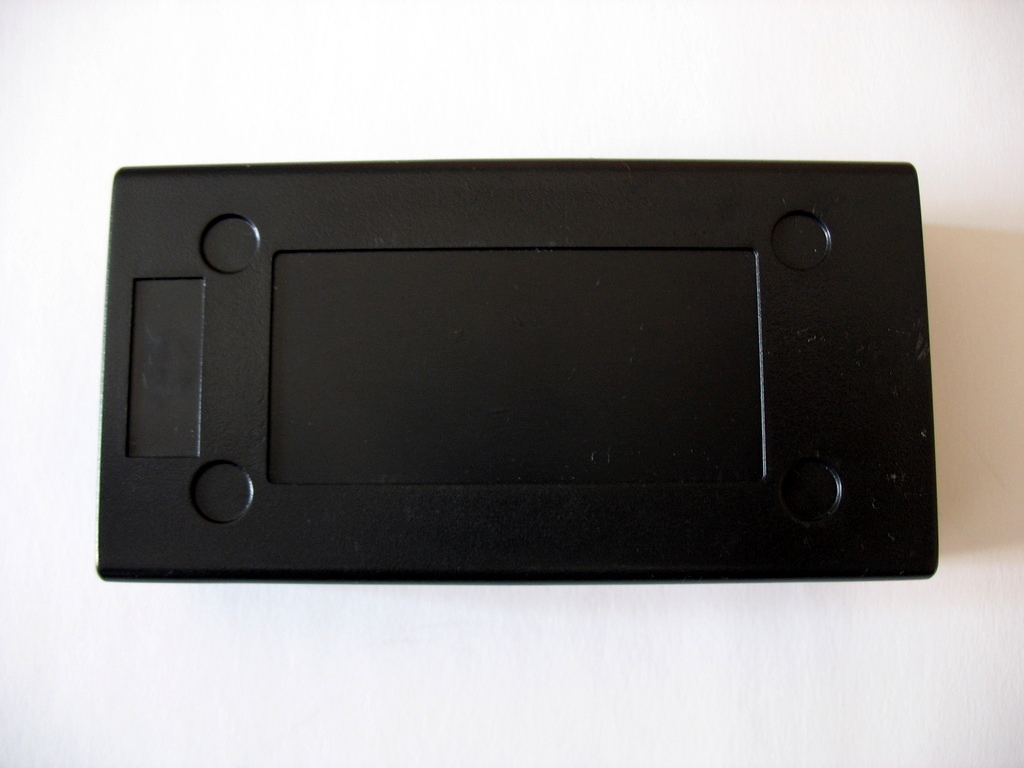

Noname Lht00su1 Device Bottom

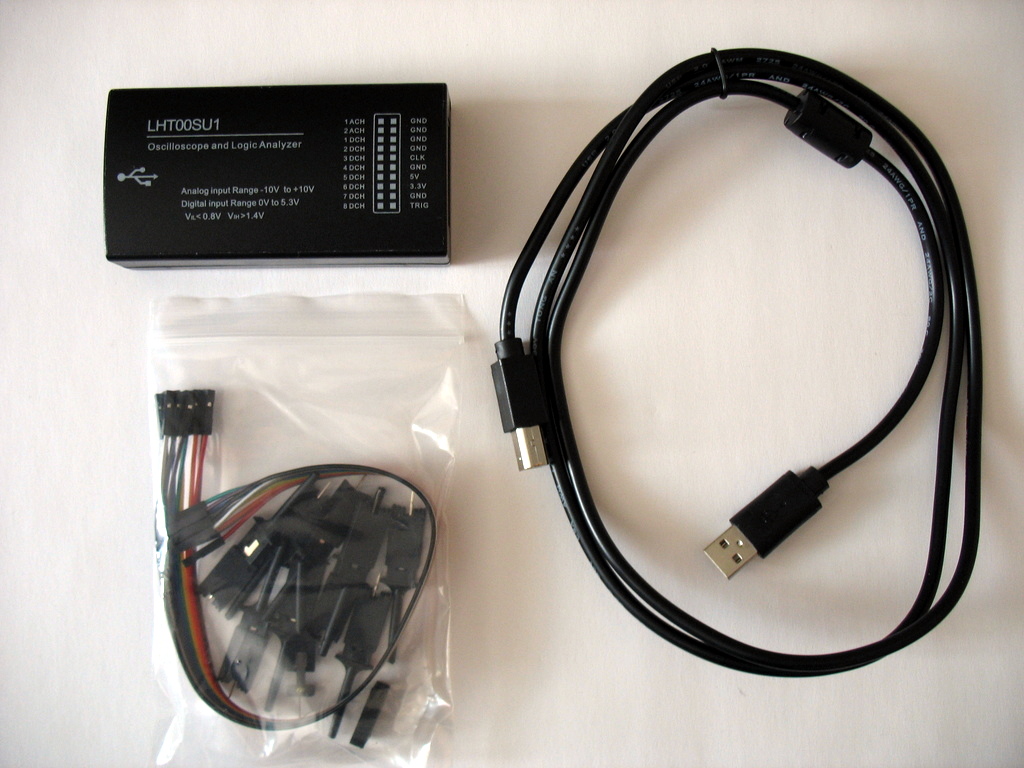

Noname Lht00su1 Package Contents

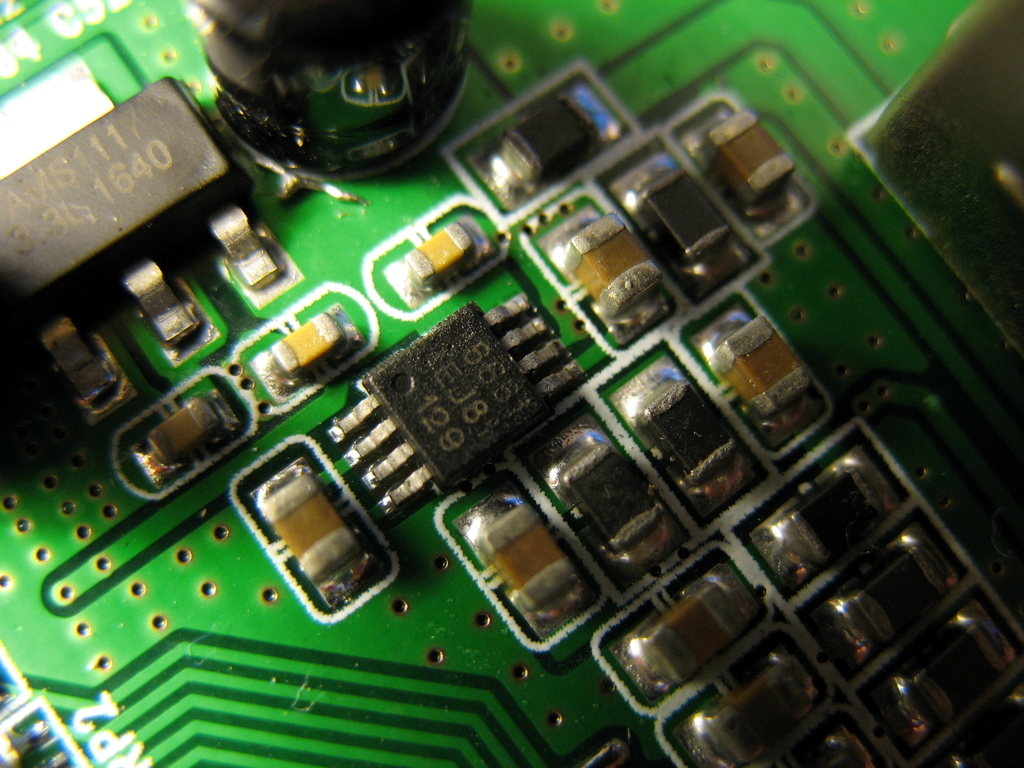

Noname Lht00su1 So8

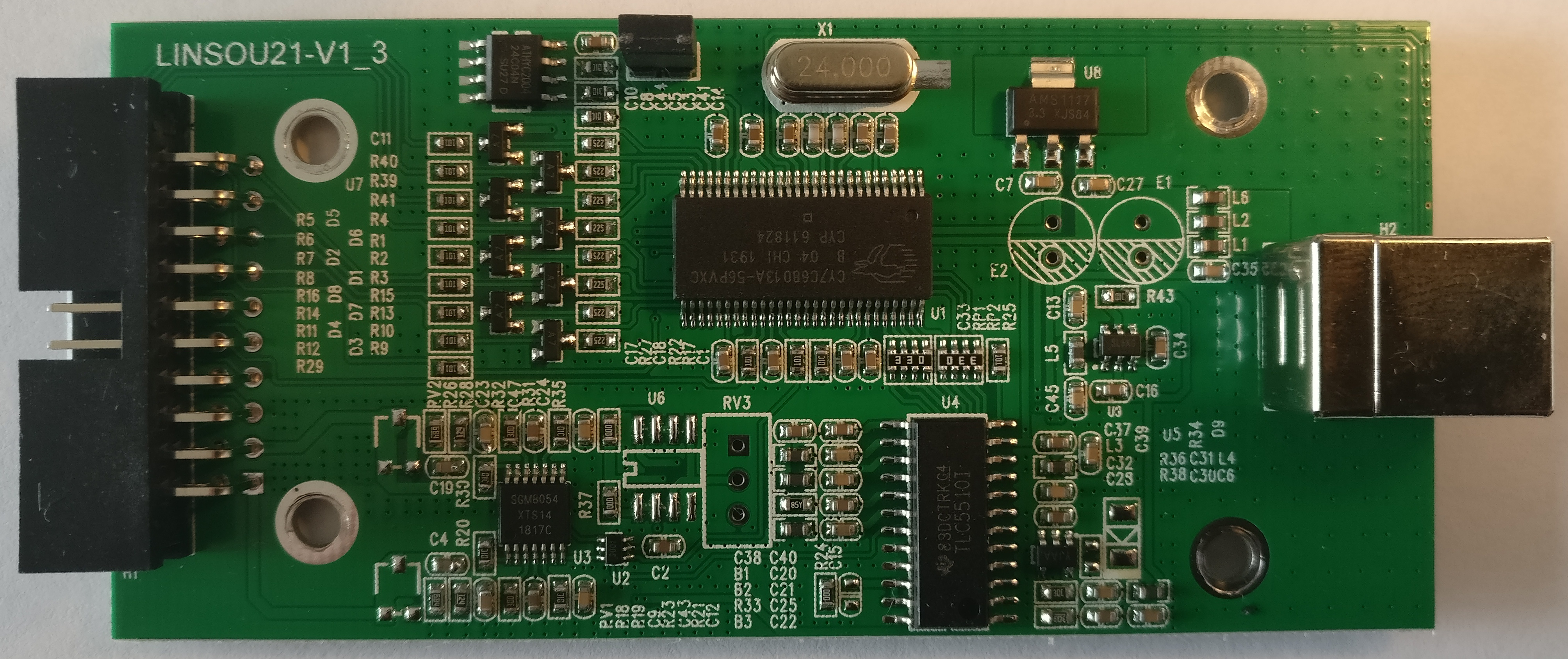

Linsou21 V1 3 Pcb Top

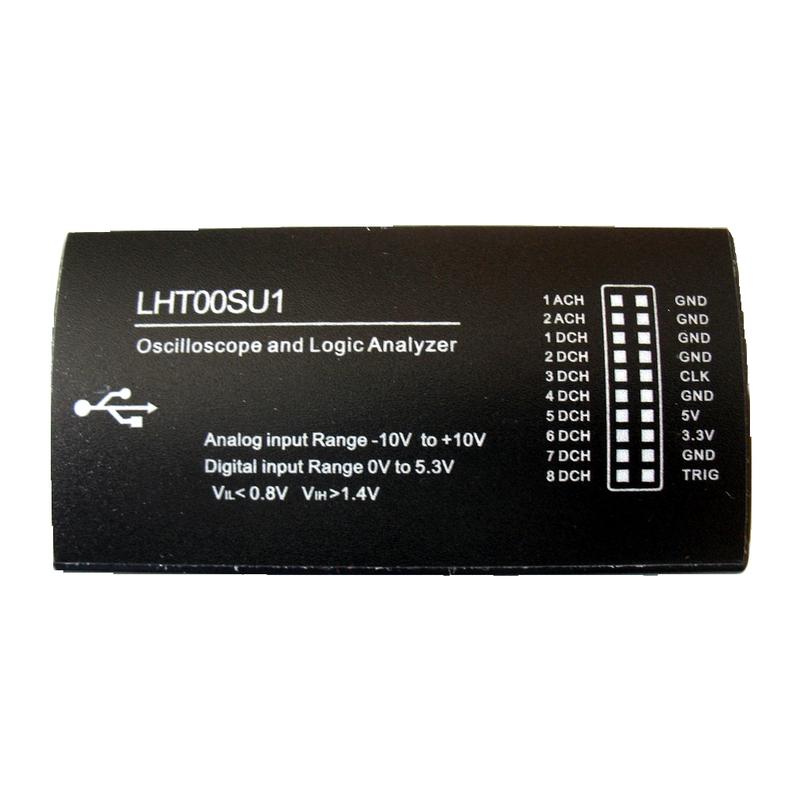

Noname Lht00su1 Mugshot

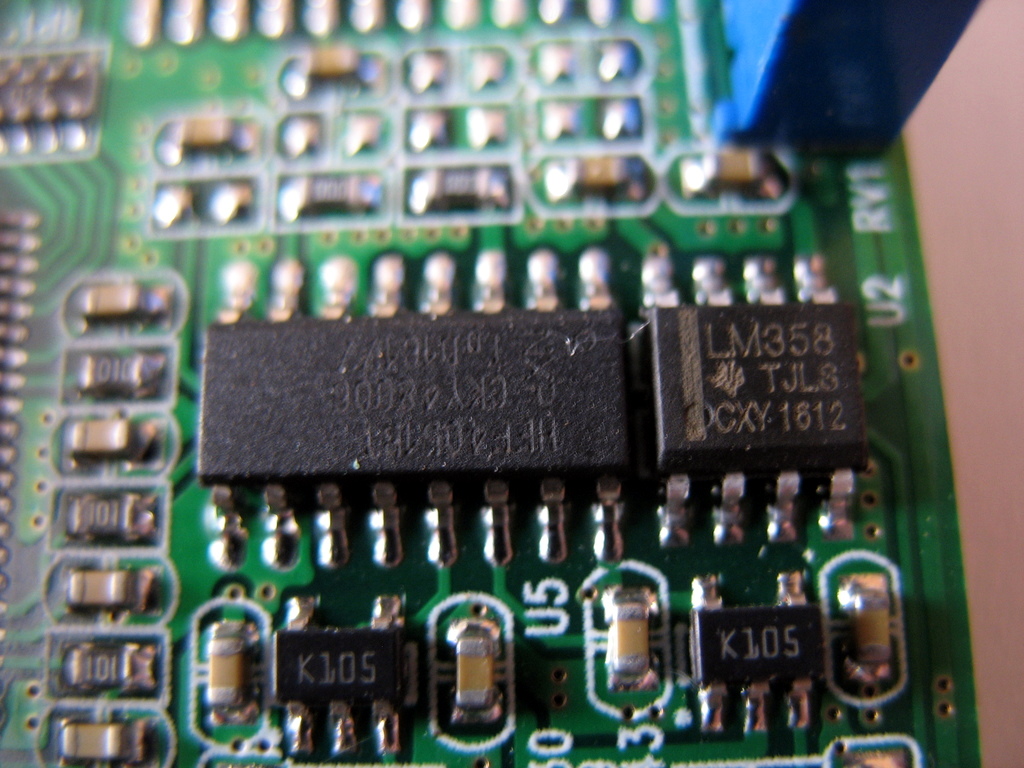

Noname Lht00su1 Lm358

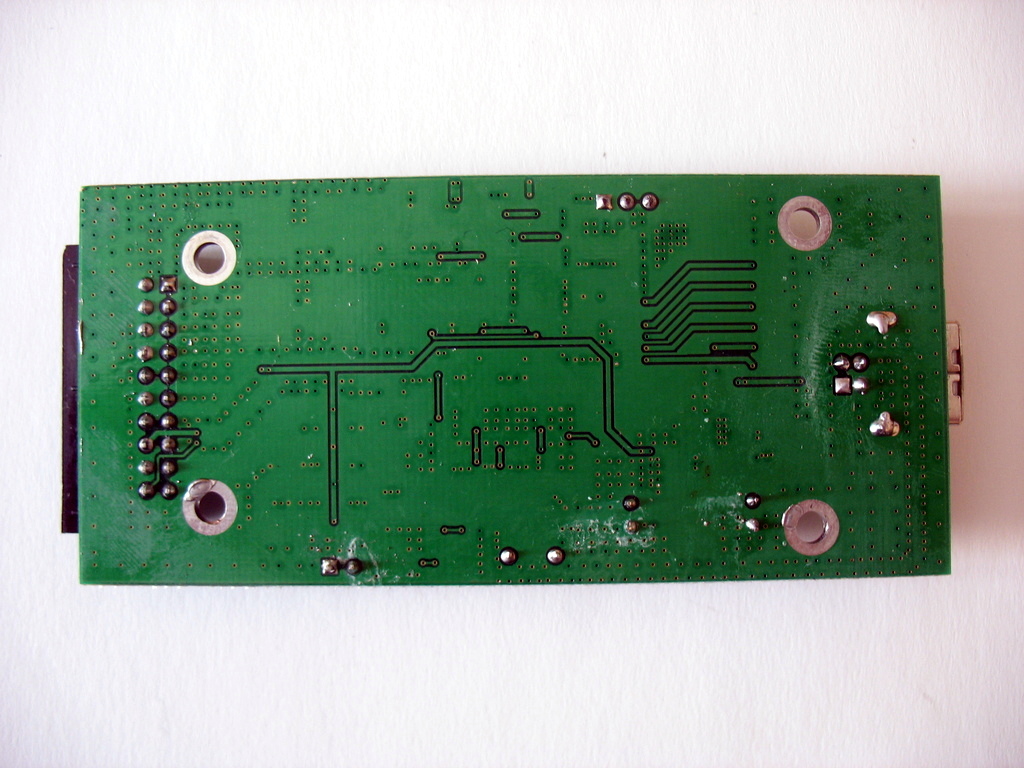

Noname Lht00su1 Pcb Bottom

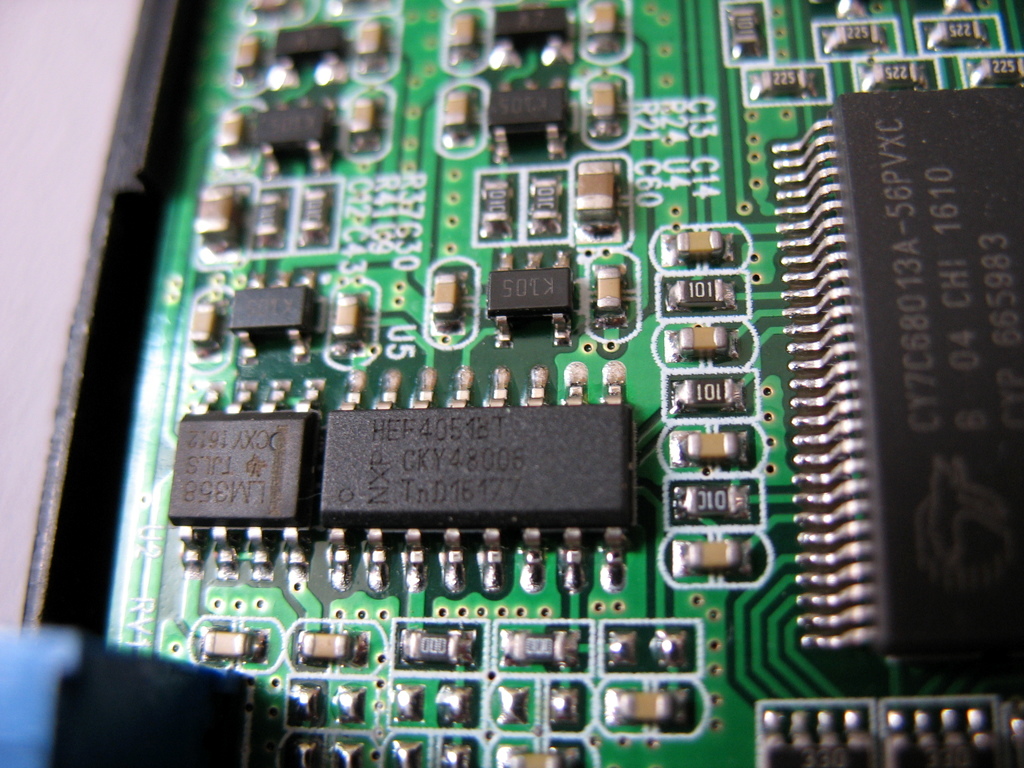

Noname Lht00su1 Hef4051bt

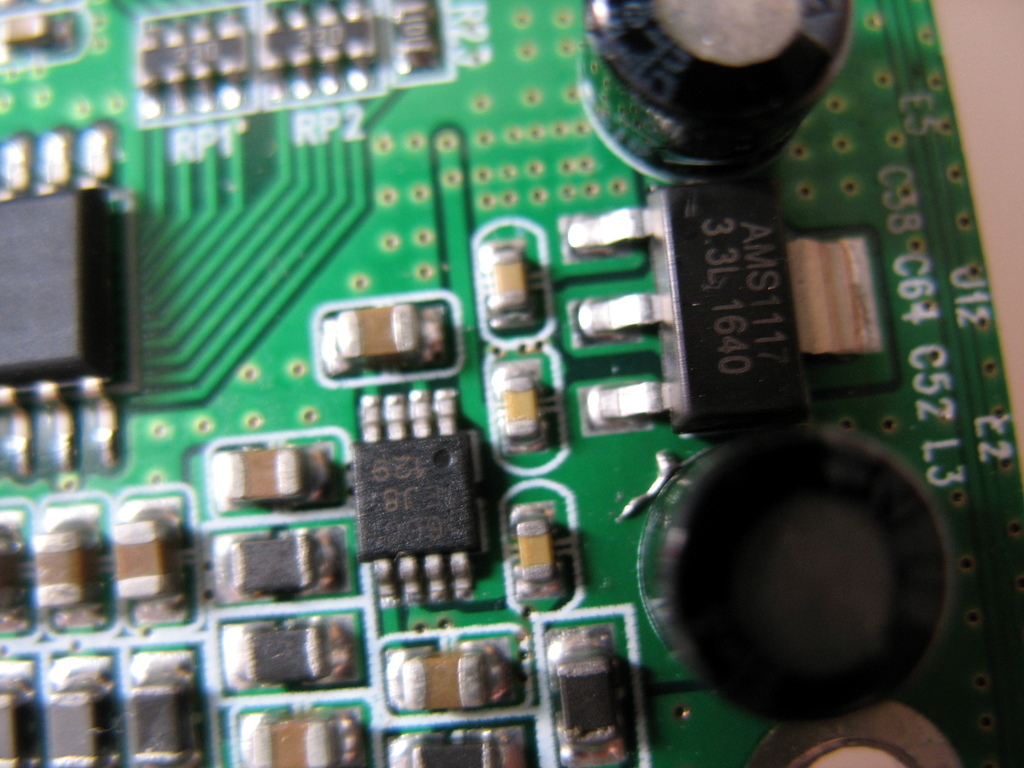

Noname Lht00su1 Ams1117

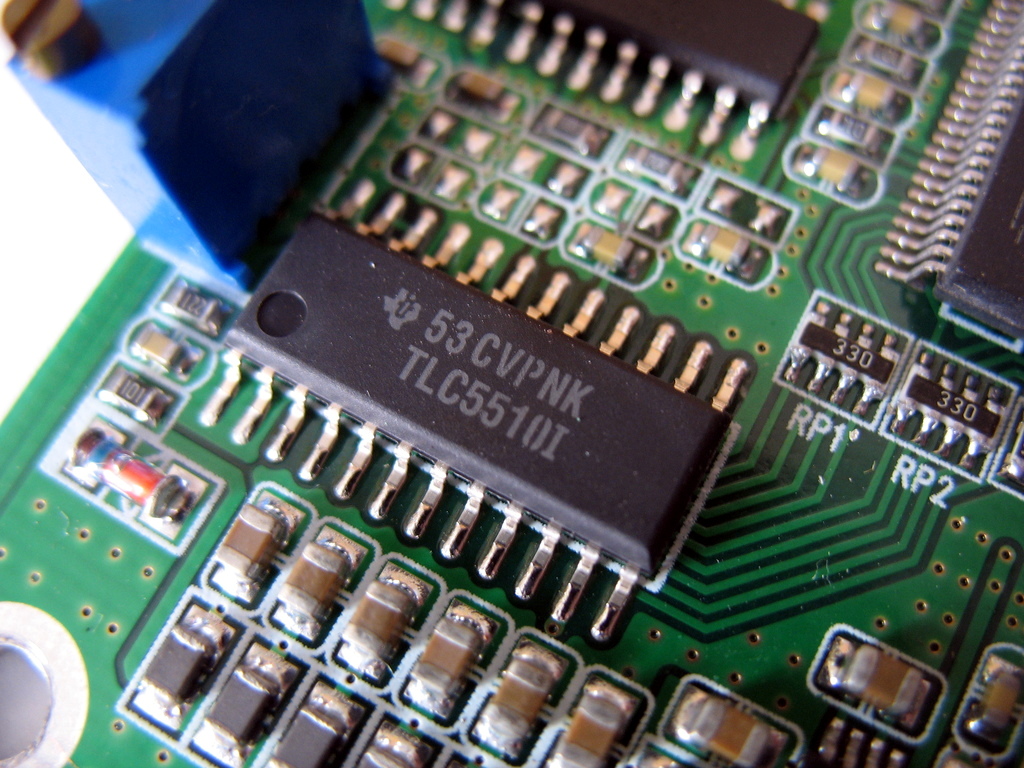

Noname Lht00su1 Tlc5510i

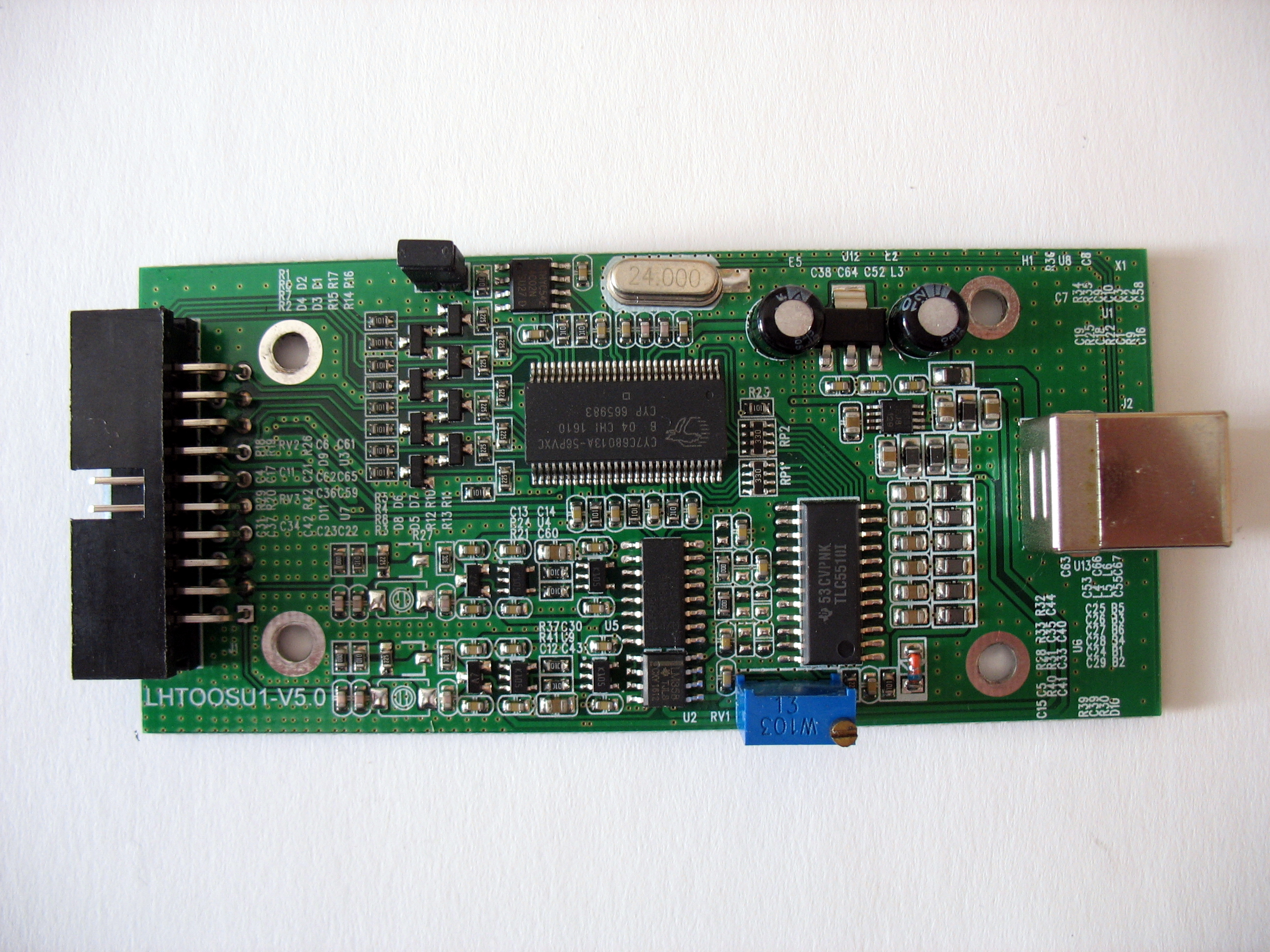

Noname Lht00su1 Pcb Top

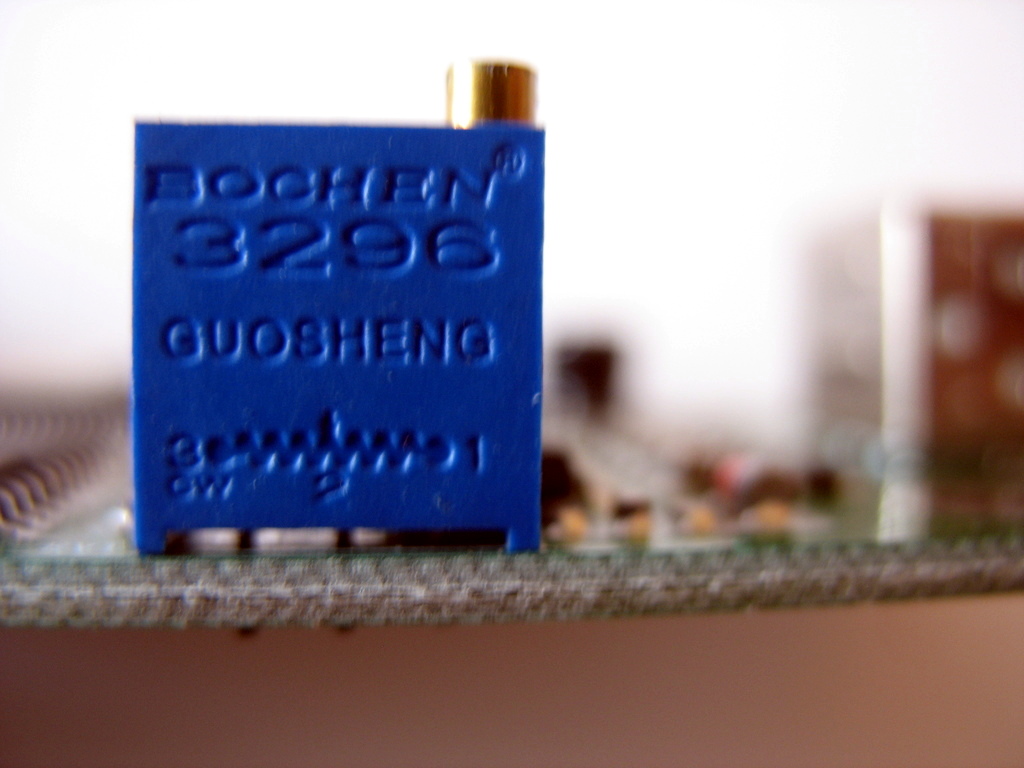

Noname Lht00su1 Bochen 3296

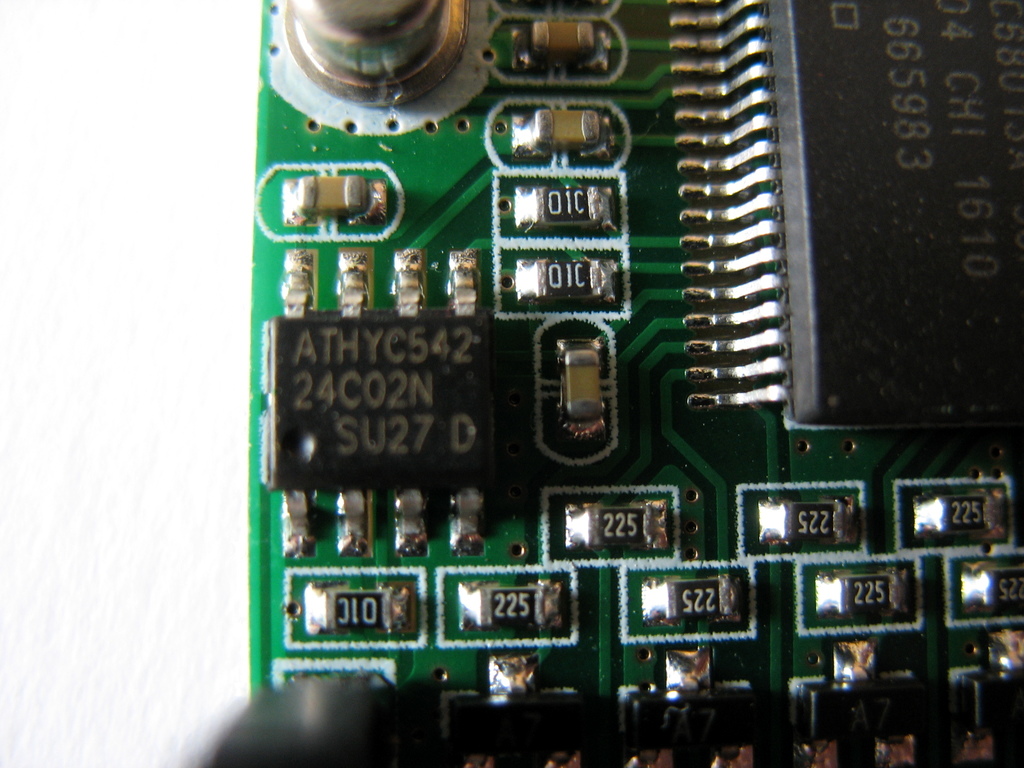

Noname Lht00su1 24c02n
