LabNation SmartScope¶
LabNation SmartScope¶
| Status | planned |
| Channels | 8 |
| Samplerate | 100MHz |
| Samplerate (state) | — |
| Triggers | low, high, rising, falling, edge |
| Min/max voltage | ? |
| Threshold voltage | Fixed: VIL=0.8V, VIH=2.0V |
| Memory | 4Msamples (8MByte SDRAM) |
| Compression | ? |
| Website | lab-nation.com |
The LabNation SmartScope is a USB-based mixed-signal oscilloscope (100 MS/s, 45MHz bandwidth), 8-channel logic analyzer (100MHz), arbitrary waveform generator / function generator.
See LabNation SmartScope/Info for some more details (such as lsusb -v output) on the device.
Hardware¶
- FPGA (3840 logic cells): Xilinx XC6SXL4 (datasheet)
- 64Mbit SDRAM: Alliance Memory AS4C4M16S (datasheet)
- Dual-channel, 8-bit, 100Msps ADC: Maxim MAX19506 (datasheet)
- 8-bit microcontroller with full-speed USB: Microchip PIC18F14K50 (datasheet)
- Single-pole normally-closed SOP OptoMOS relay: Ixys CPC1125N (datasheet)
- 250MHz, rail-to-rail I/O, CMOS dual opamp: Texas Instruments OPA2354 (datasheet)
- Quad buffer/line driver with 3-state outputs: Diodes Incorporated 74LVC126A (datasheet)
- 0480000 OCP1332 1725
- 4x CGA4V
- S03A
Photos¶
Lab Nation Smartscope Pcb Top

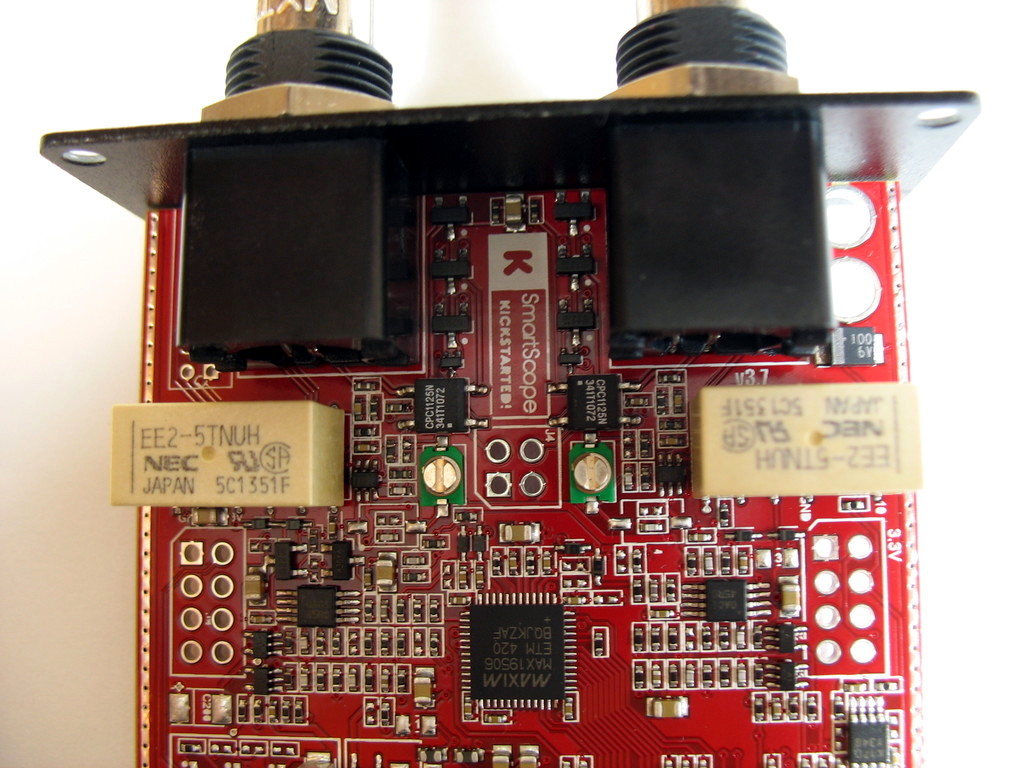

Lab Nation Smartscope Pcb Analog Frontend

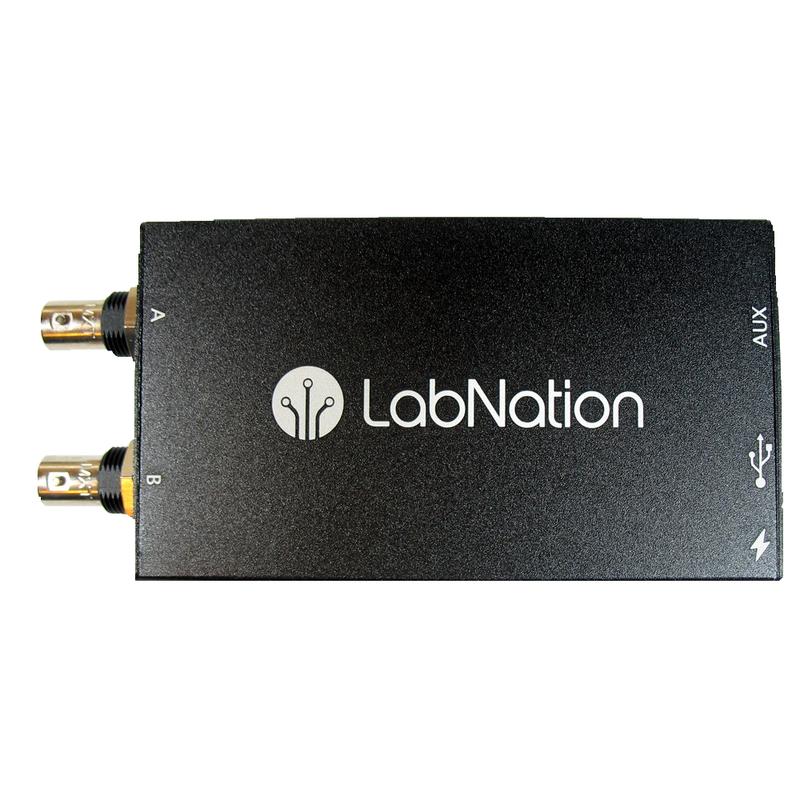

Lab Nation Smartscope Mugshot

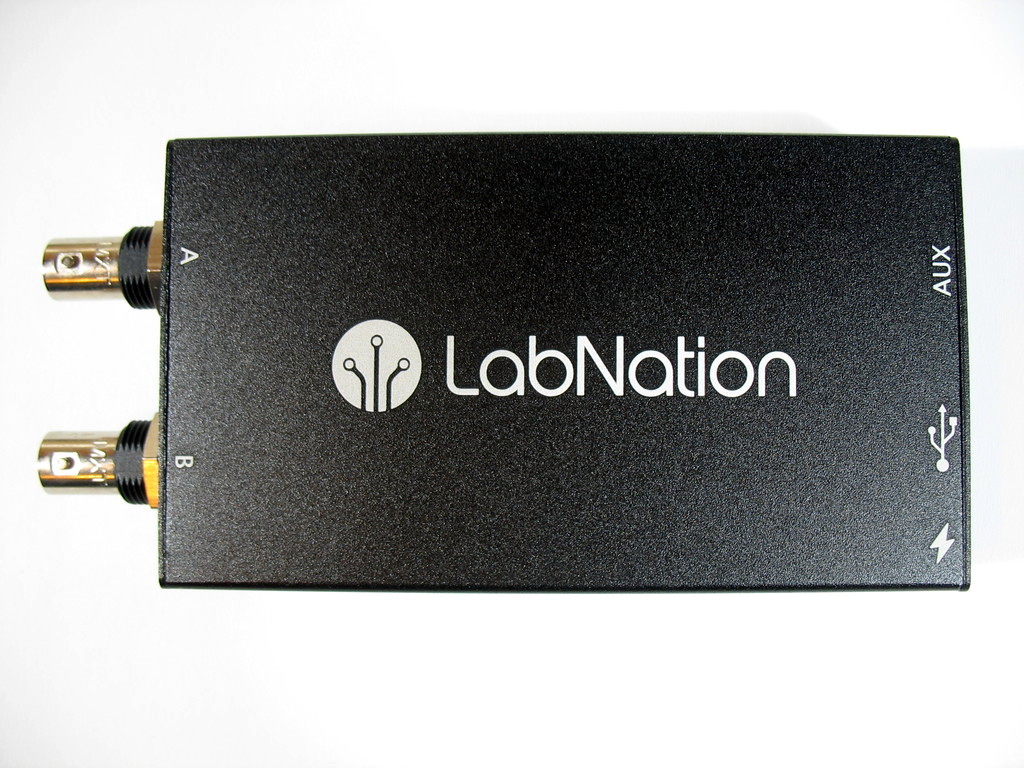

Lab Nation Smartscope Device Top

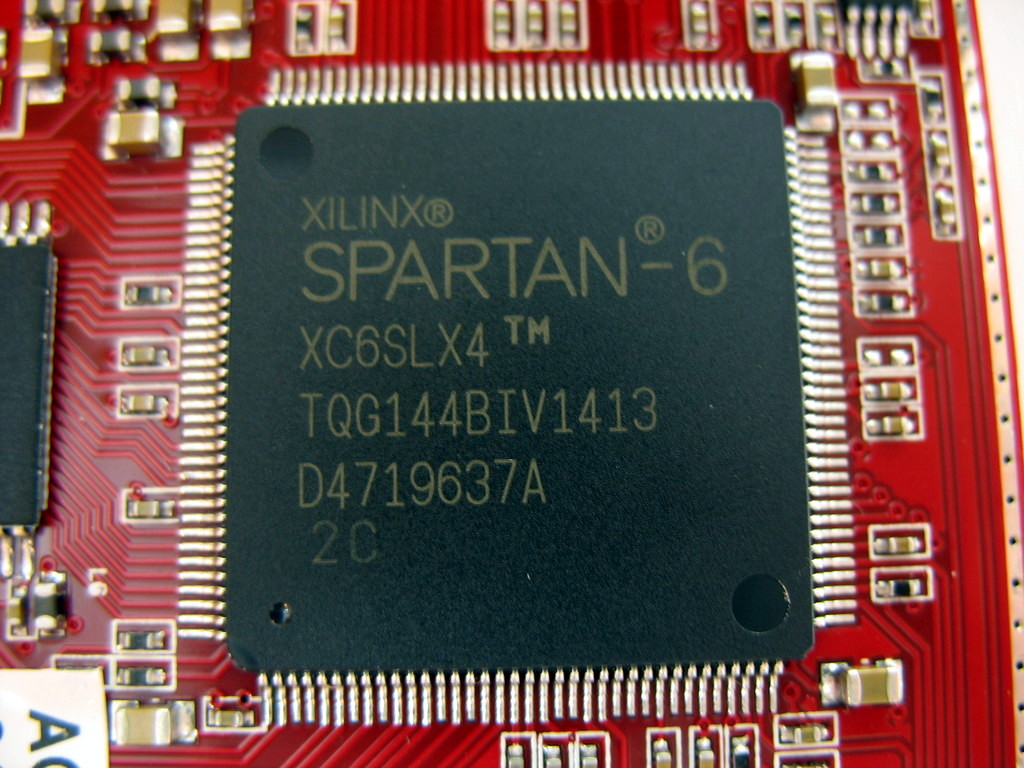

Lab Nation Smartscope Xilinx Spartan6 Xc6slx4

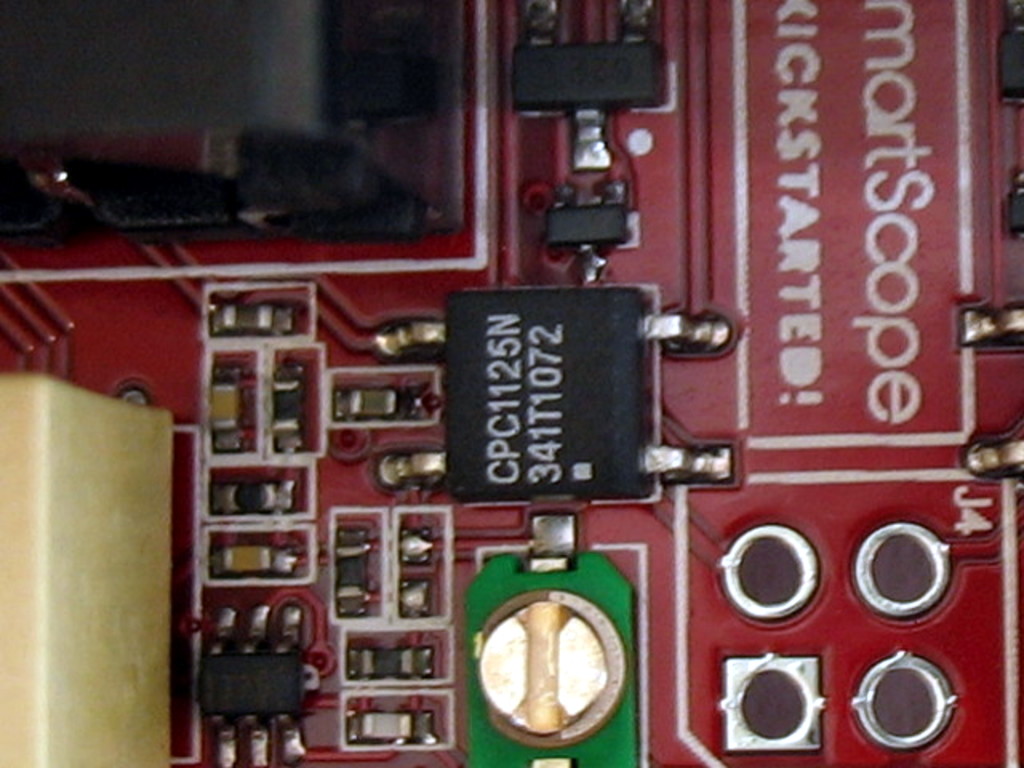

Lab Nation Smartscope Cpc1125n

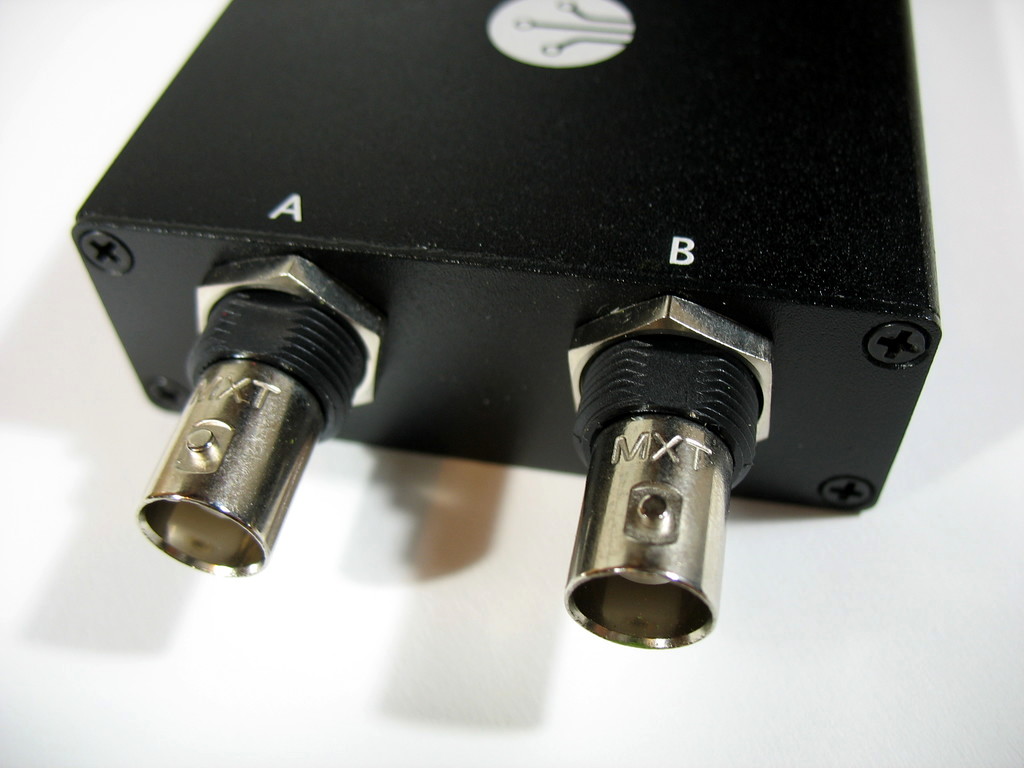

Lab Nation Smartscope Device Probe Connector

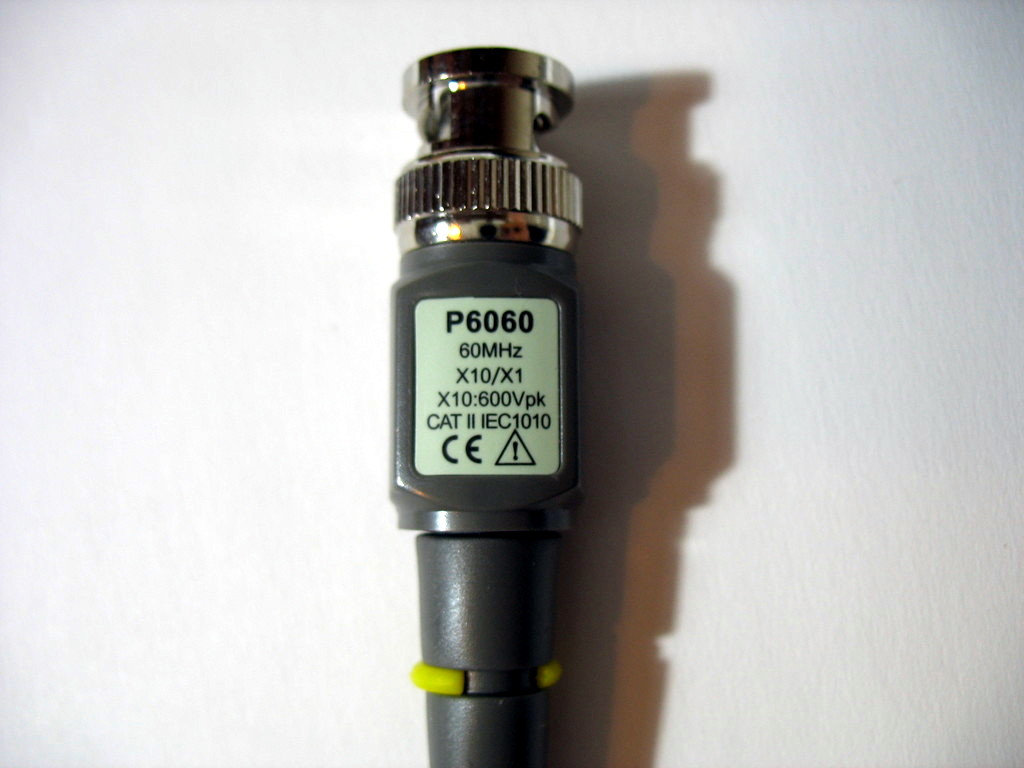

Lab Nation Smartscope P6060

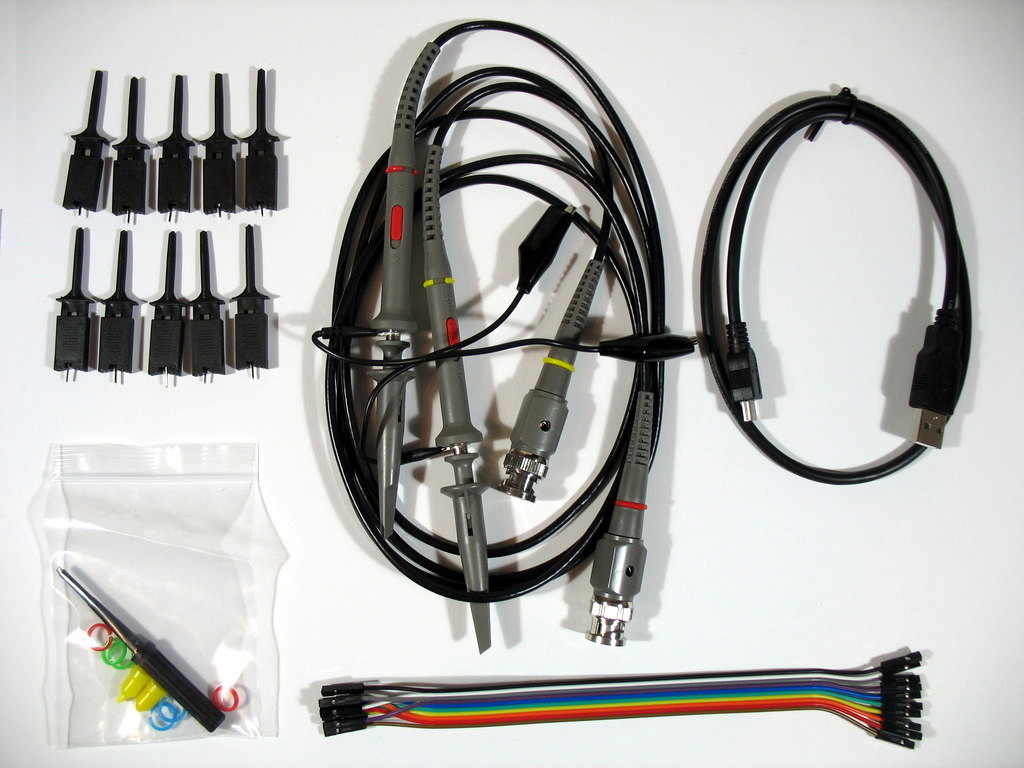

Lab Nation Smartscope Cables Probes
Lab Nation Smartscope Package Bottom

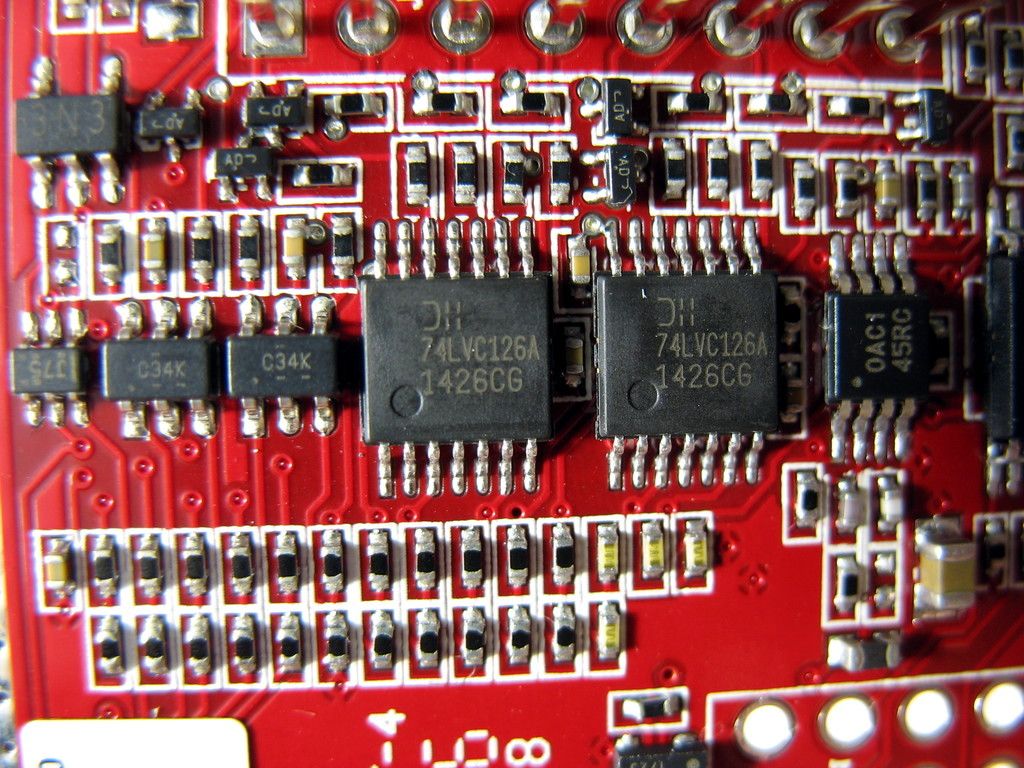

Lab Nation Smartscope 74lvc126a

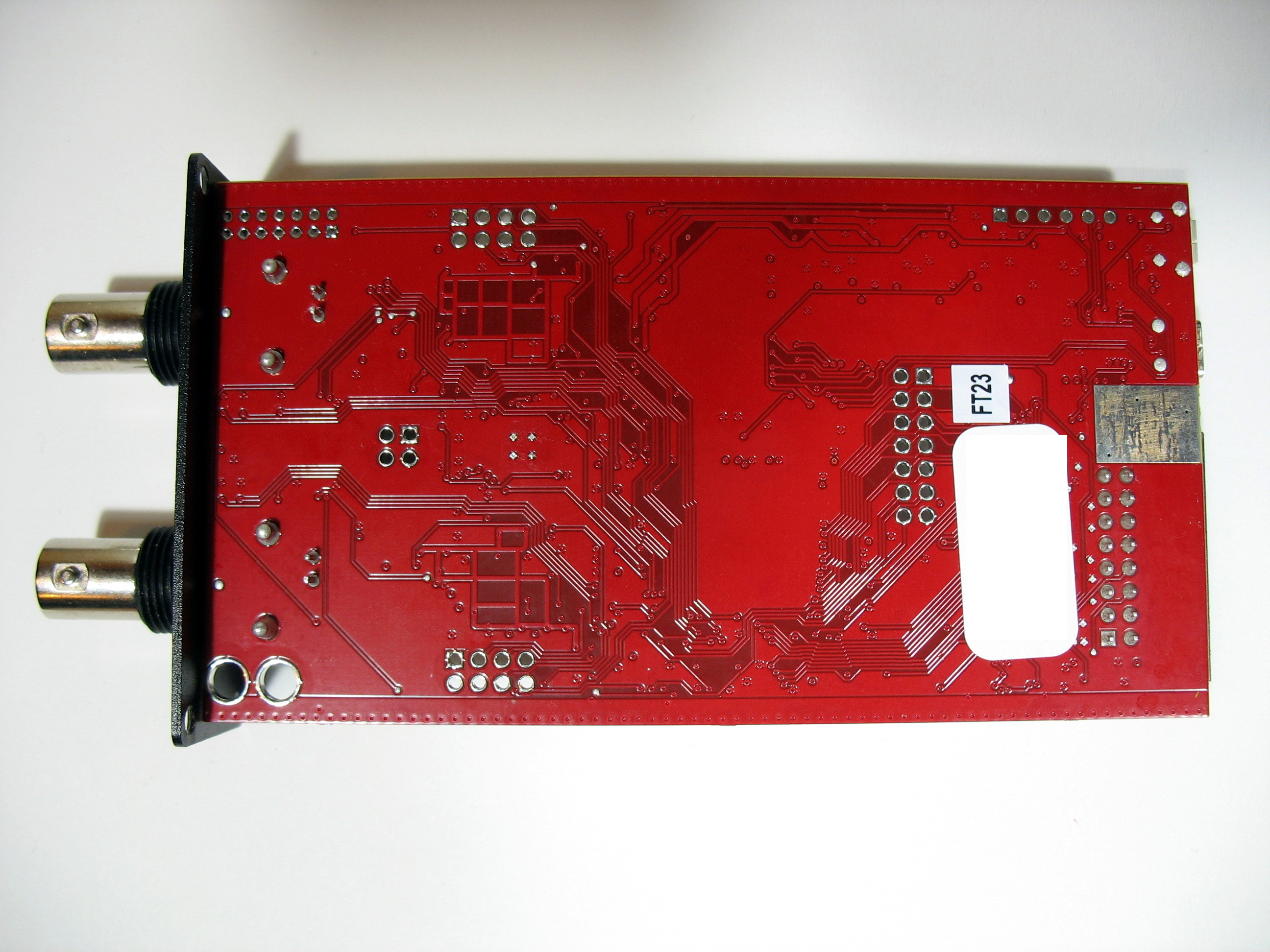

Lab Nation Smartscope Pcb Bottom

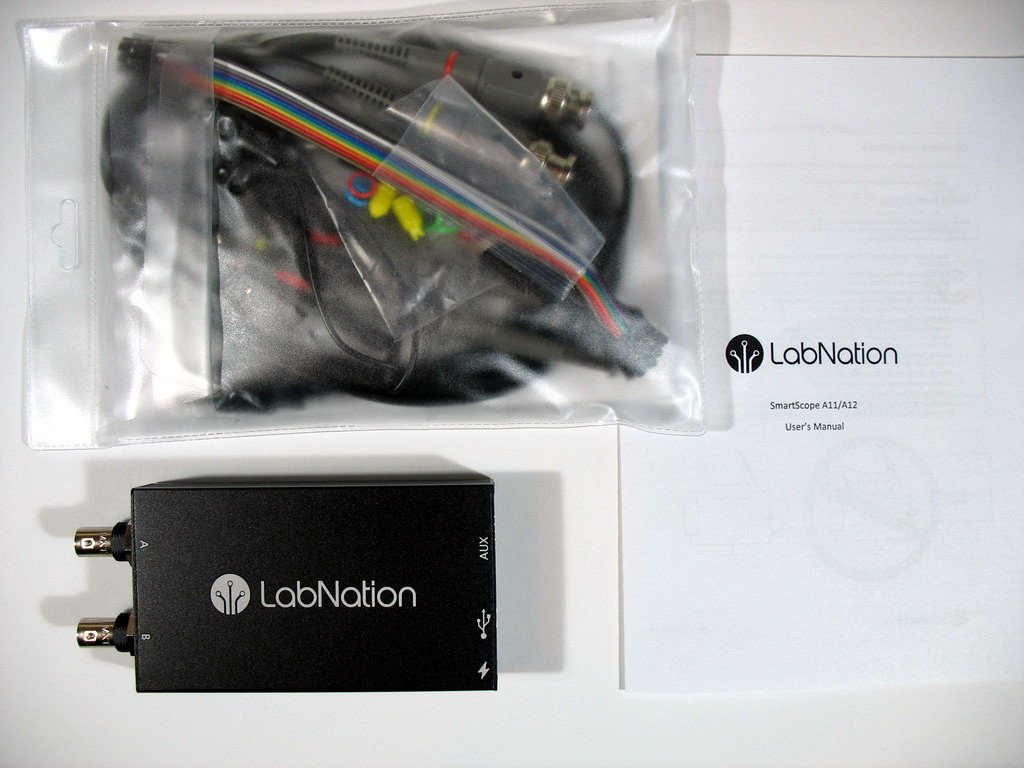

Lab Nation Smartscope Package Contents
Lab Nation Smartscope Package Top

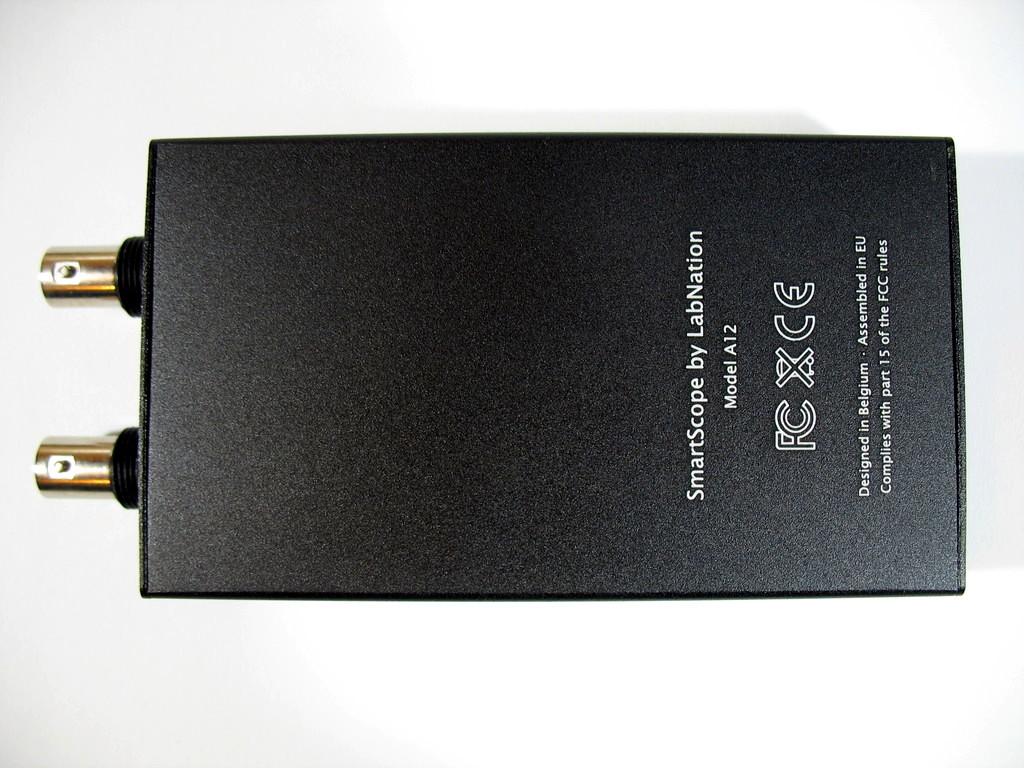

Lab Nation Smartscope Device Bottom

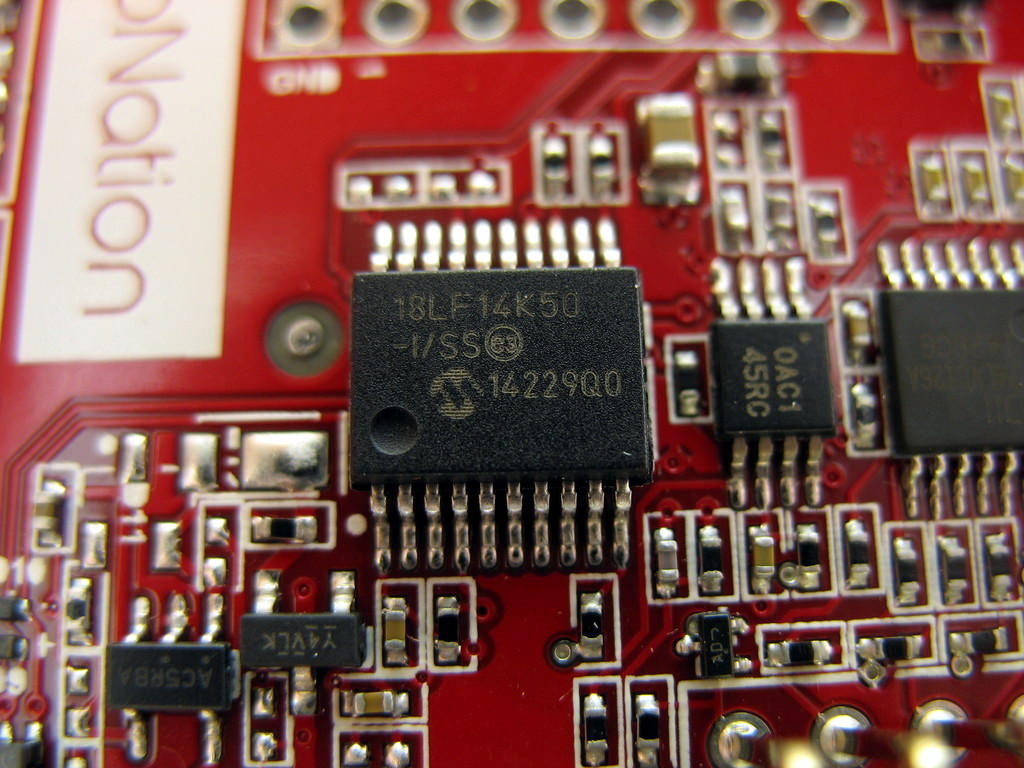

Lab Nation Smartscope Microchip Pic 18lf14k50 I Ss

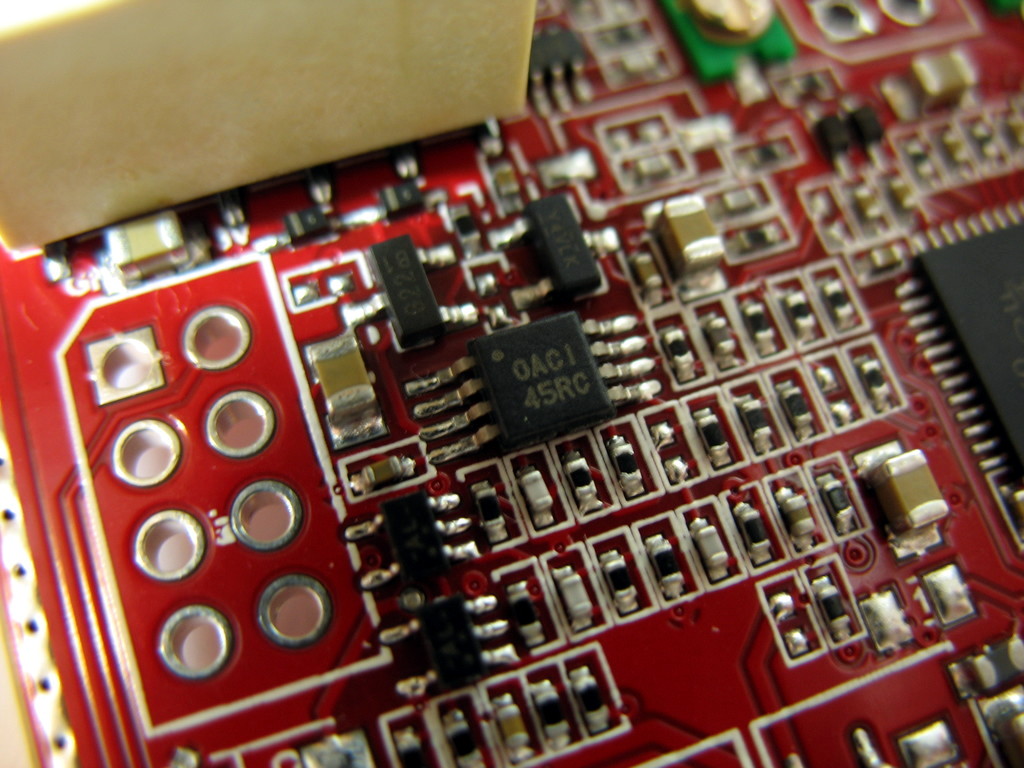

Lab Nation Smartscope Oaci 45rc

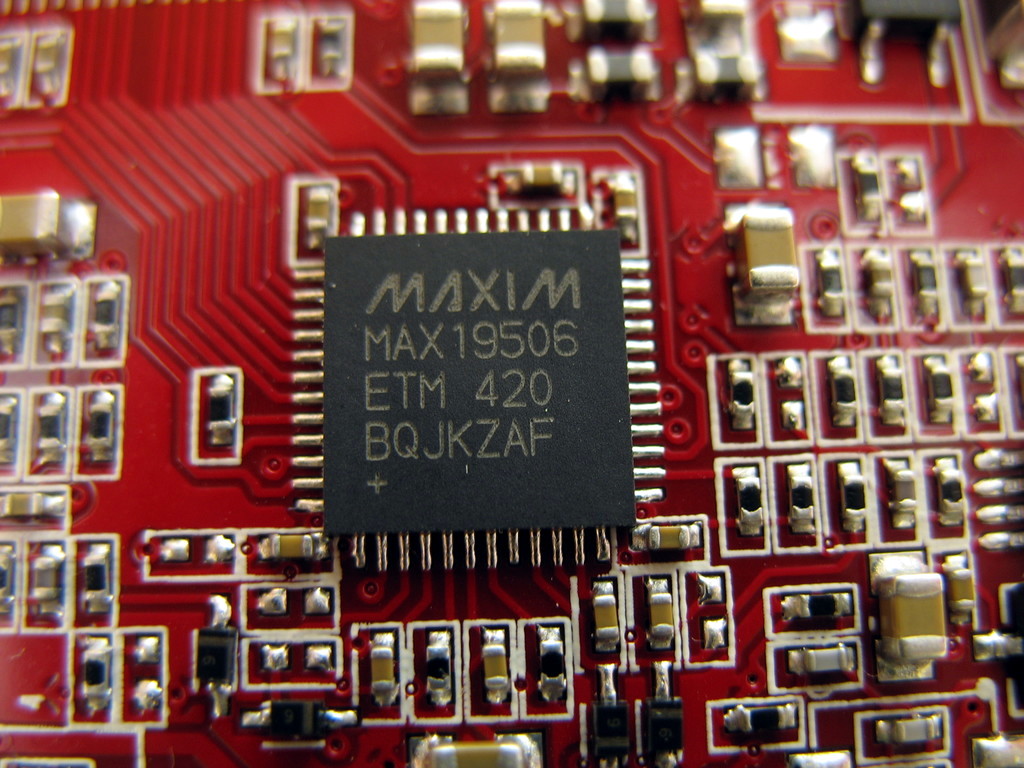

Lab Nation Smartscope Maxim Max19506

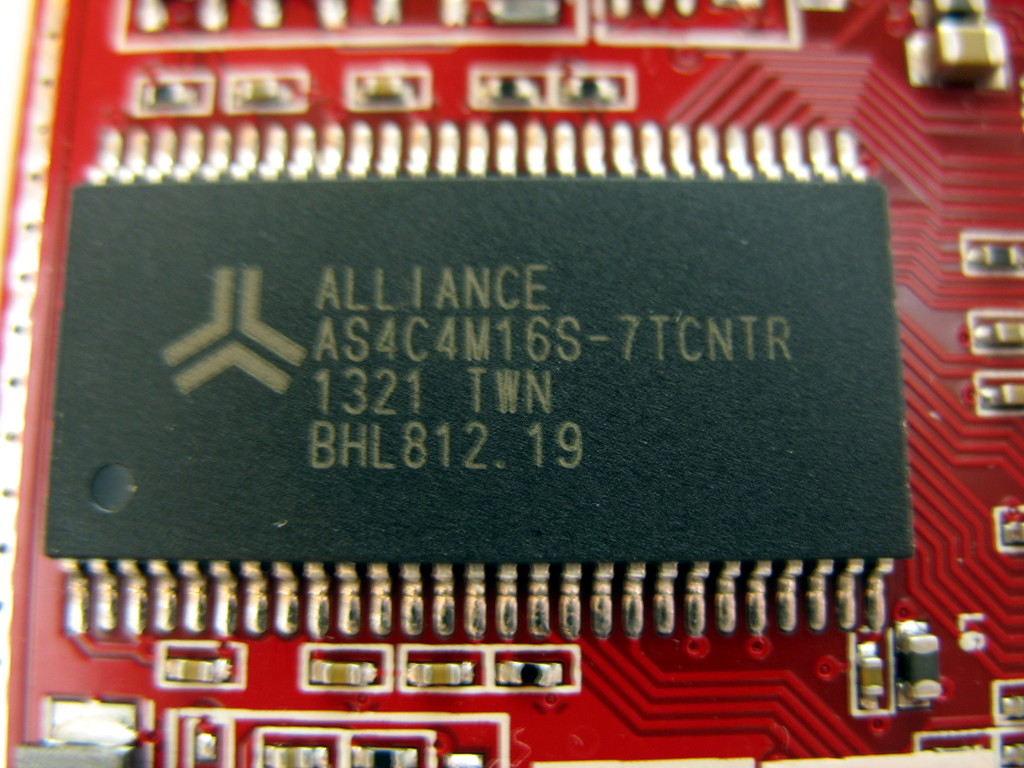

Lab Nation Smartscope Alliance As4c4m16s 7tcntr

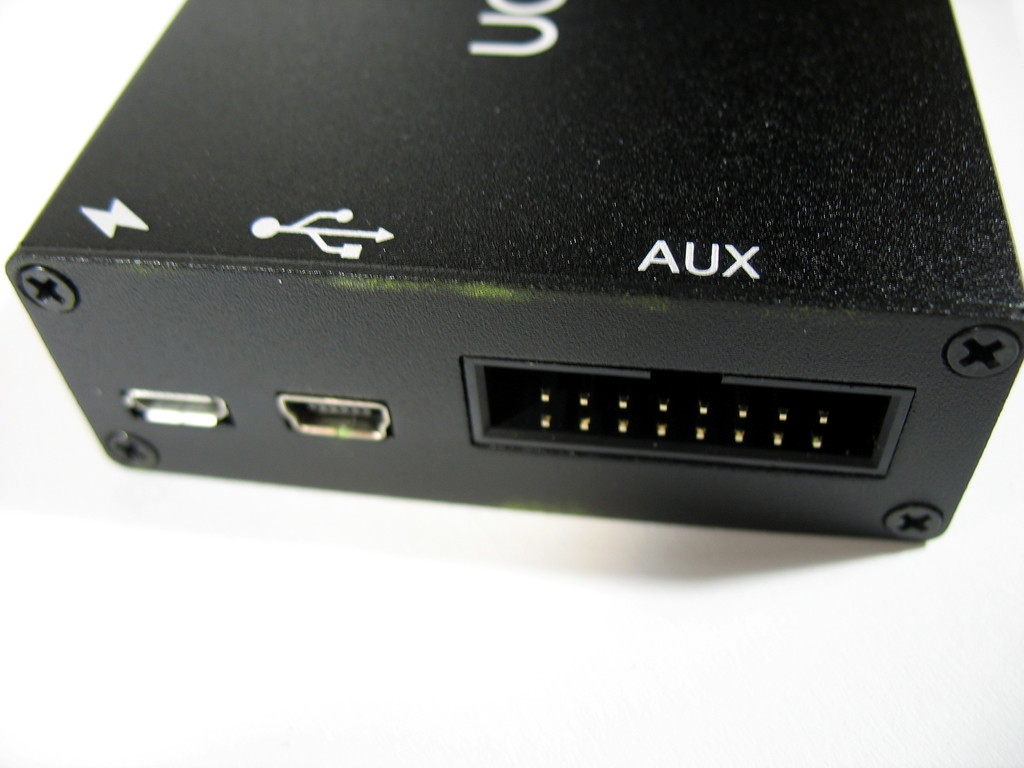

Lab Nation Smartscope Device Connector
Protocol¶
Progress¶
Detection and bitstream loading implemented in libsigrok driver. Scope init and acquisition WIP in python test code. See https://github.com/karlp/libsigrok/tree/devel/labnation
