HT USBee-DxPro

HT USBee-DxPro

HT USBee-DxPro
Status planned
Source code fx2lafw
Channels 8/16 + 2
Samplerate 24MHz
Samplerate (state) —
Triggers none (SW-only)
Min/max voltage ?
Memory none
Compression none
Website banggood.com

The HT USBee-DxPro is a USB-based, 16-channel logic analyzer with up to 24MHz sampling rate, and with 2 additional analog channels.

It is a clone of the CWAV USBee DX.

See HT USBee-DxPro/Info for some more details (such as lsusb -v output) on the device.

Note: Due to the fact that this device has two FX2 chips behind a USB hub inside, this will need extra code to enumerate correctly in sigrok.

Hardware

Photos

Ht Usbee Dxpro Version Ht Usbee Dxpro Version

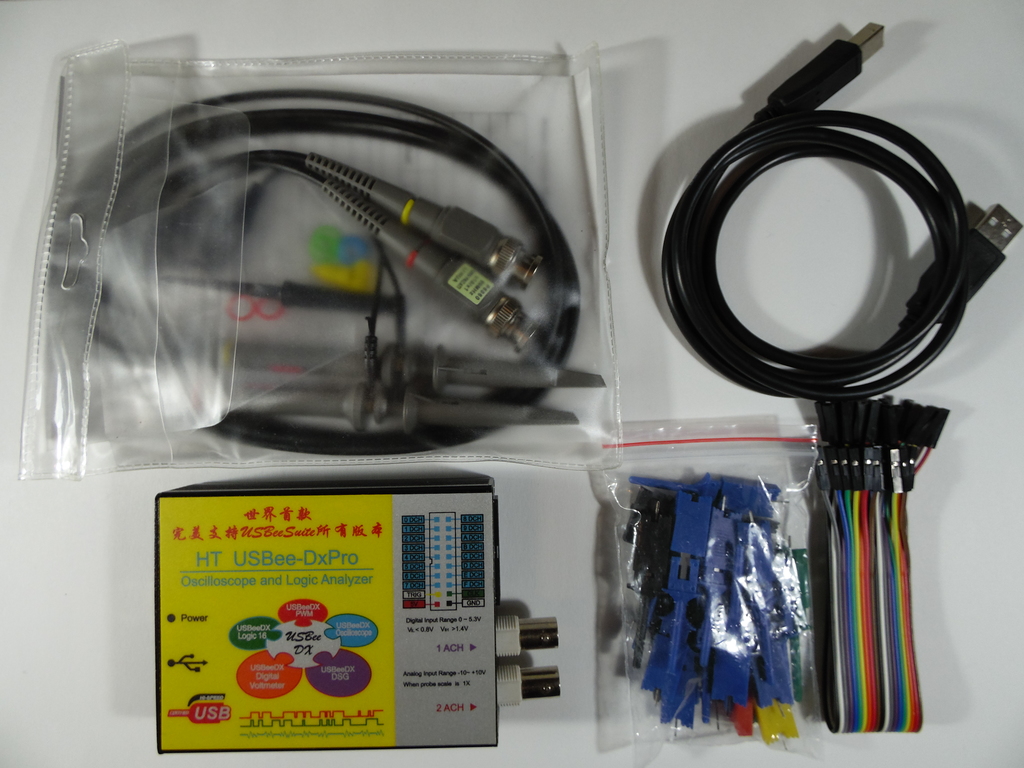

Ht Usbee Dxpro Package Contents Ht Usbee Dxpro Package Contents

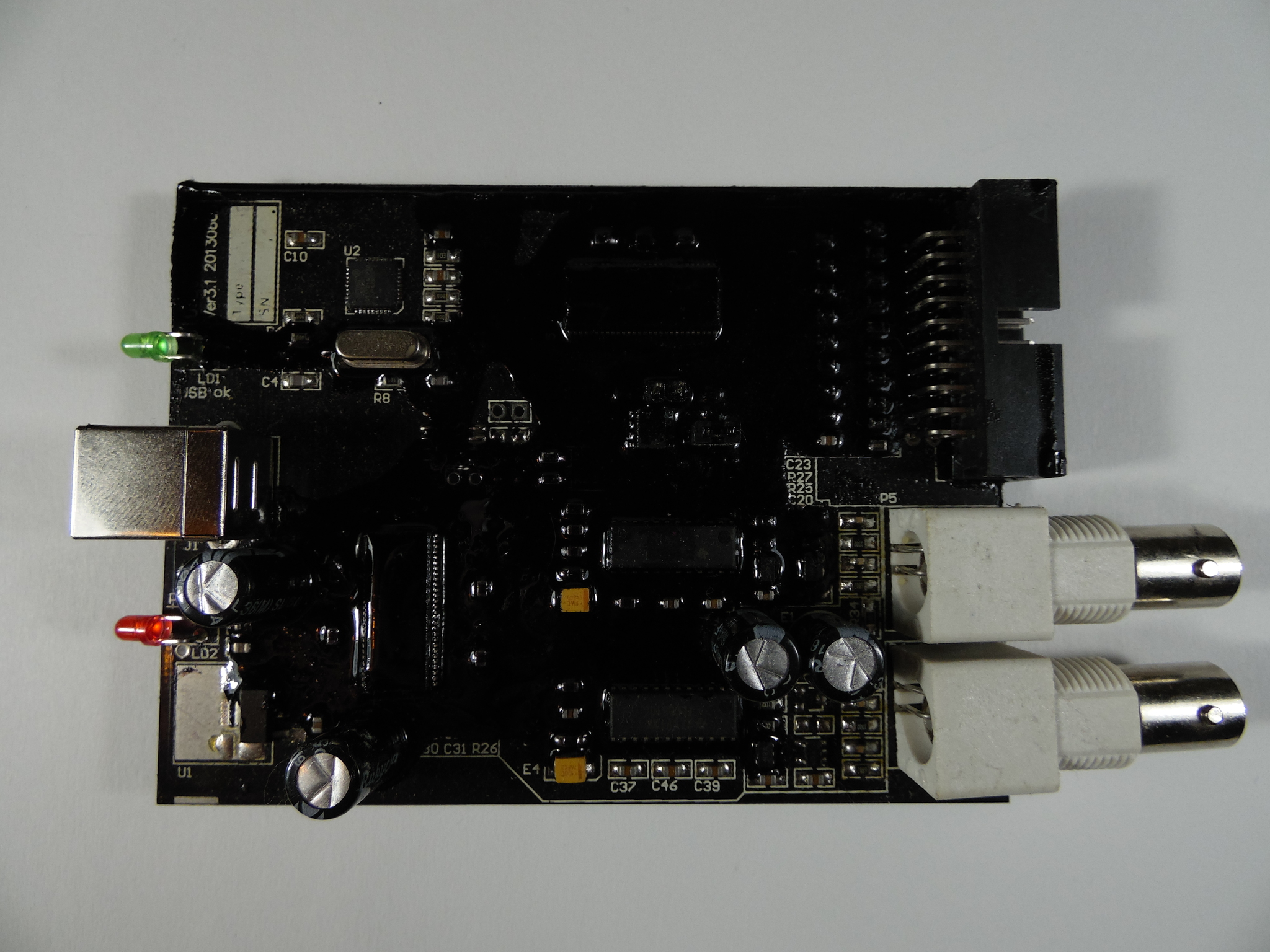

Ht Usbee Dxpro Pcb Top Ht Usbee Dxpro Pcb Top

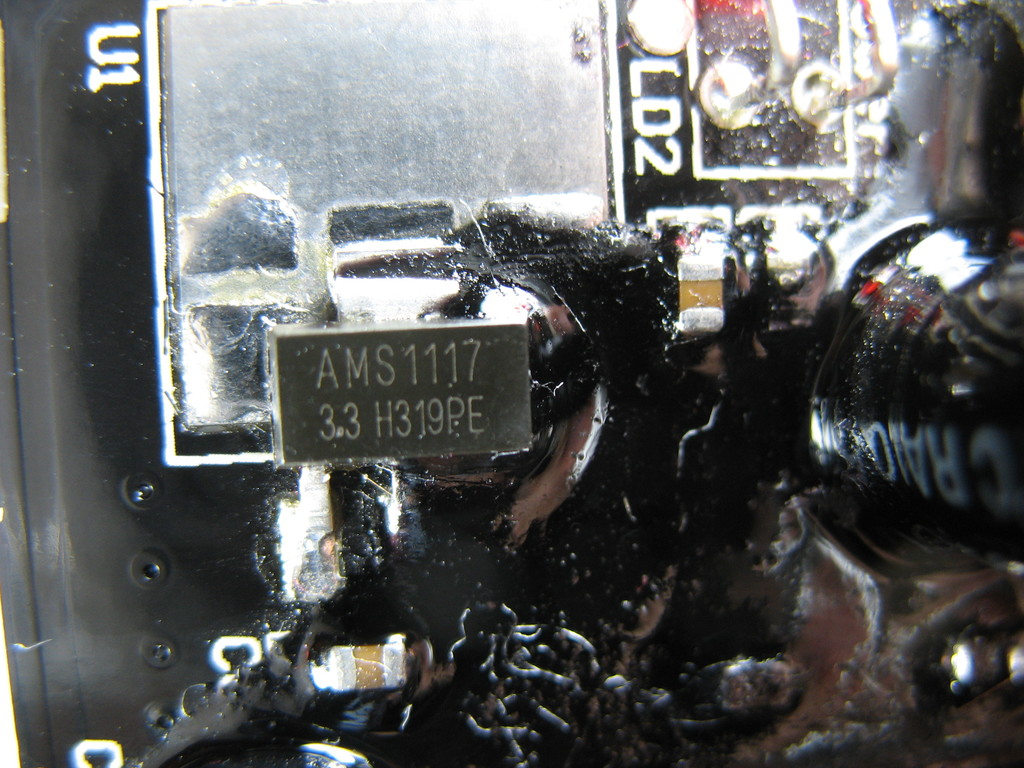

Ht Usbee Dxpro Ams1117 Ht Usbee Dxpro Ams1117

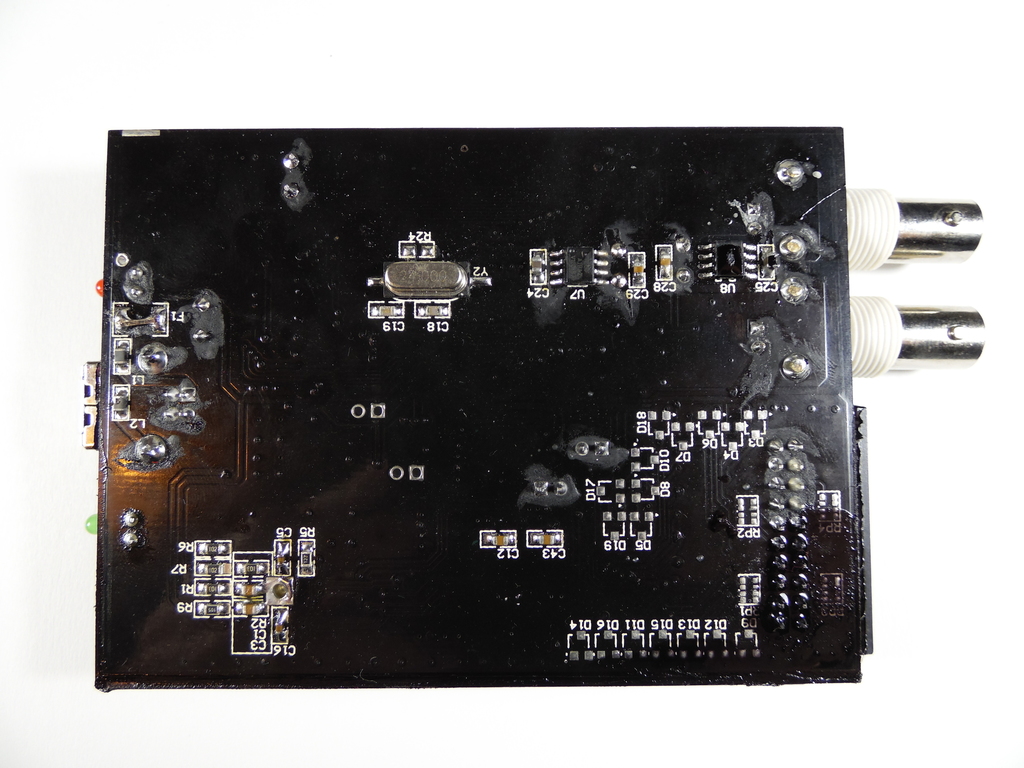

Ht Usbee Dxpro Pcb Bottom Ht Usbee Dxpro Pcb Bottom

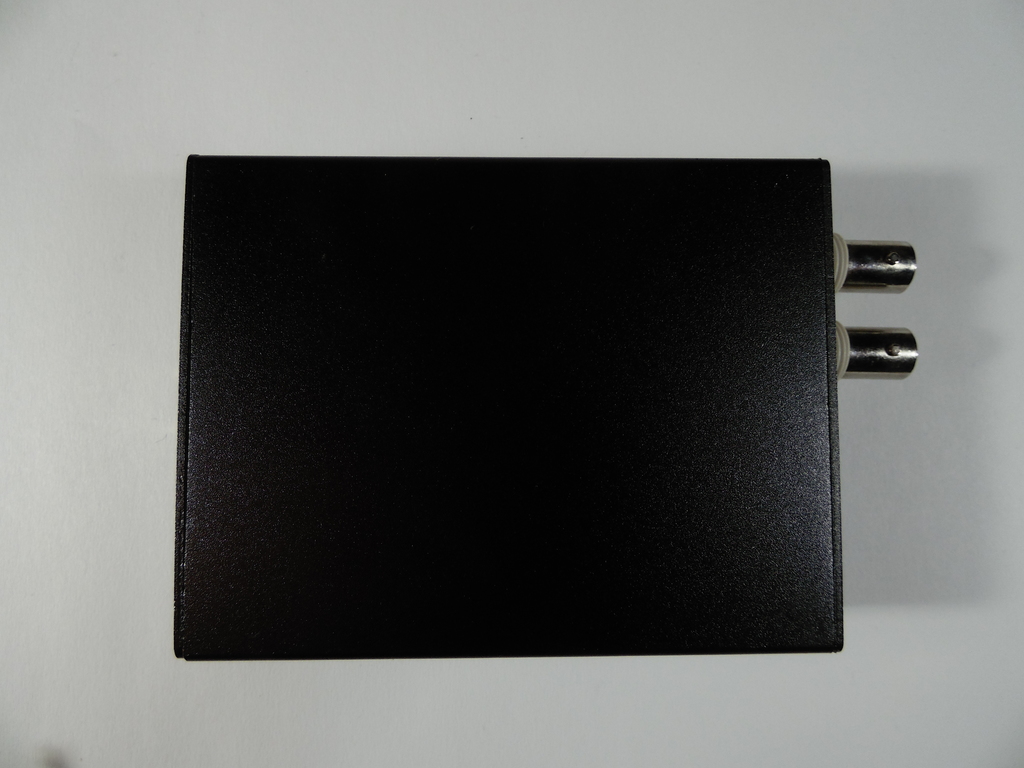

Ht Usbee Dxpro Device Bottom Ht Usbee Dxpro Device Bottom

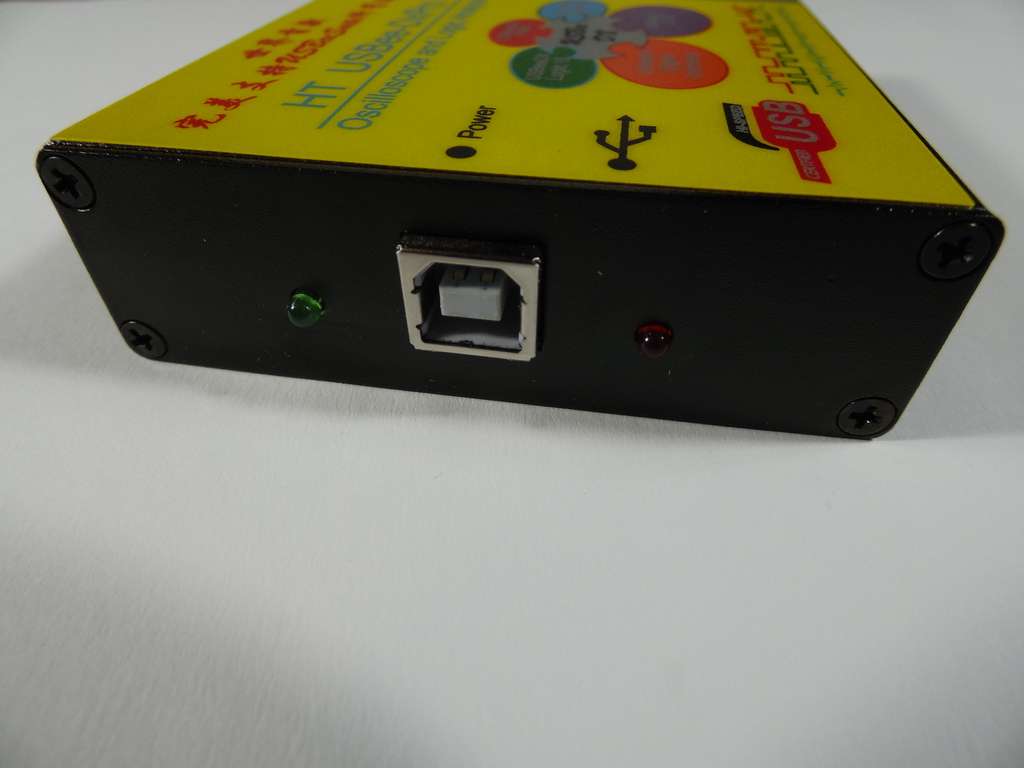

Ht Usbee Dxpro Usb Ht Usbee Dxpro Usb

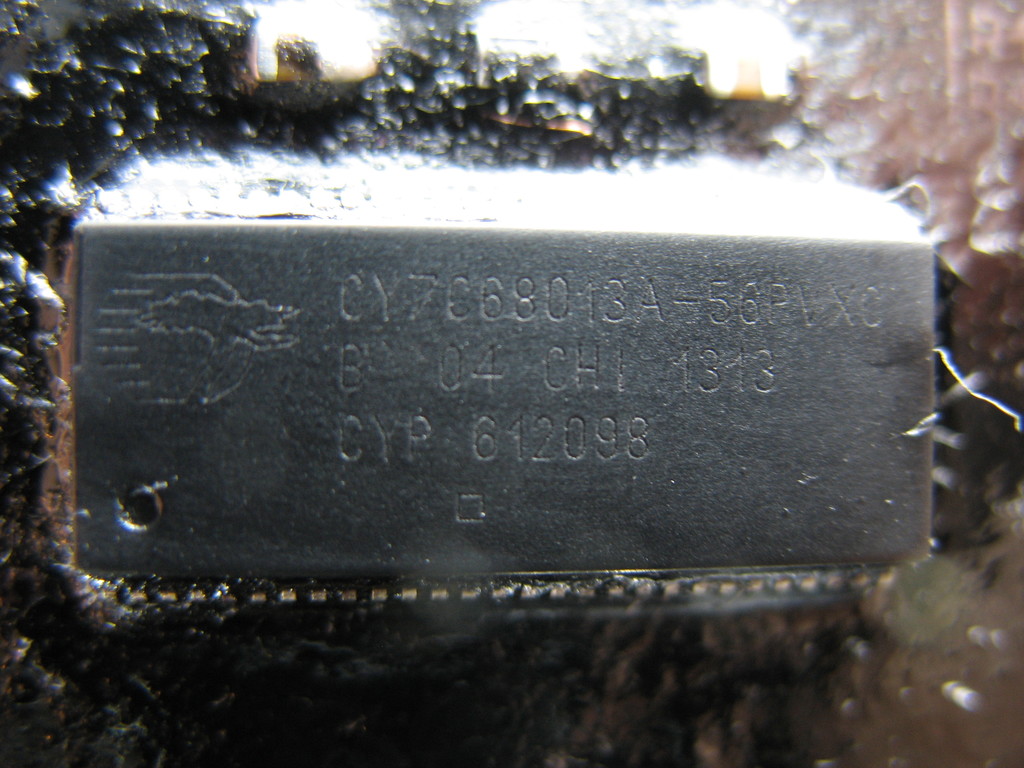

Ht Usbee Dxpro Cypress Fx2 1 Ht Usbee Dxpro Cypress Fx2 1

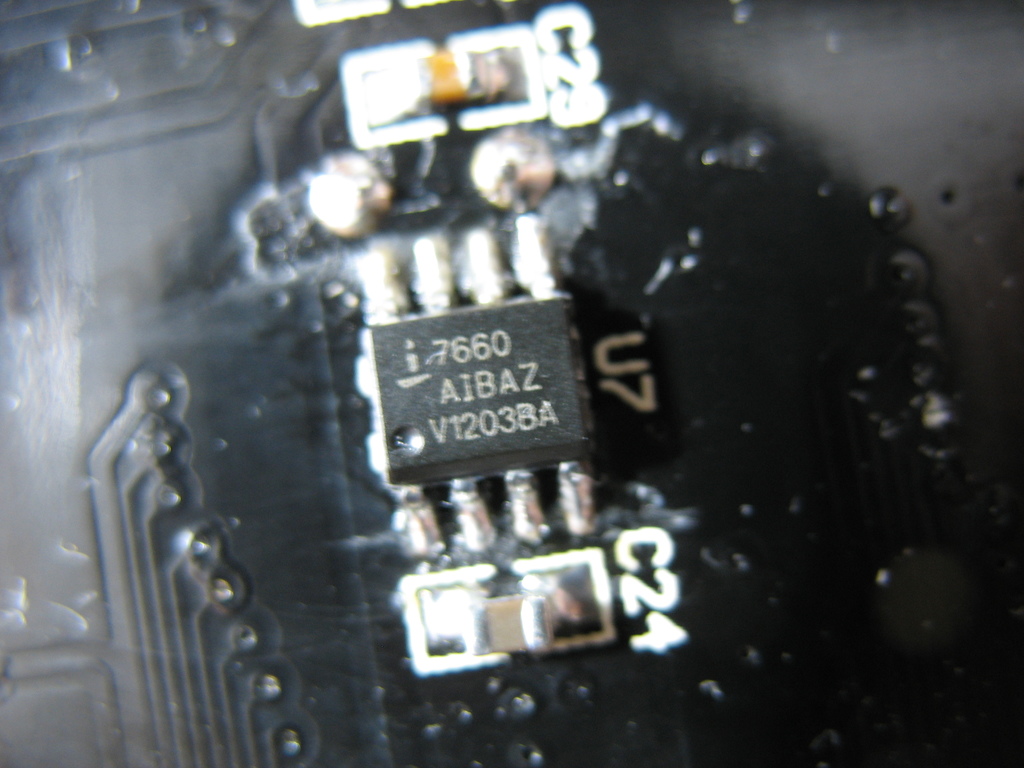

Ht Usbee Dxpro 7660 2 Ht Usbee Dxpro 7660 2

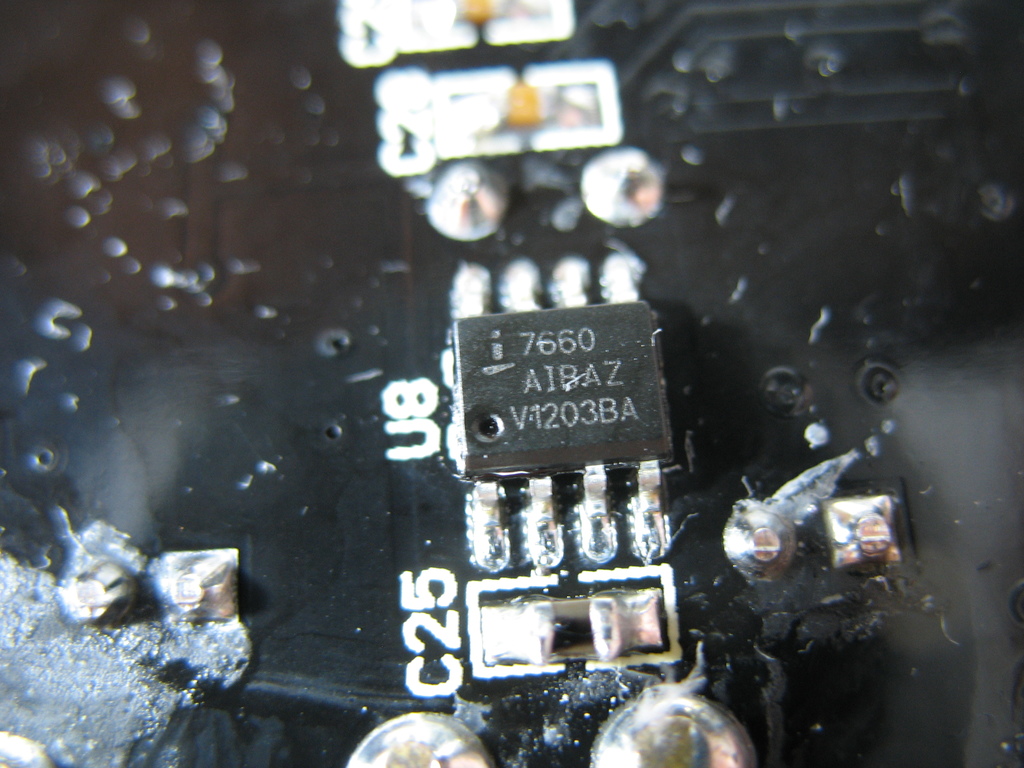

Ht Usbee Dxpro 7660 1 Ht Usbee Dxpro 7660 1

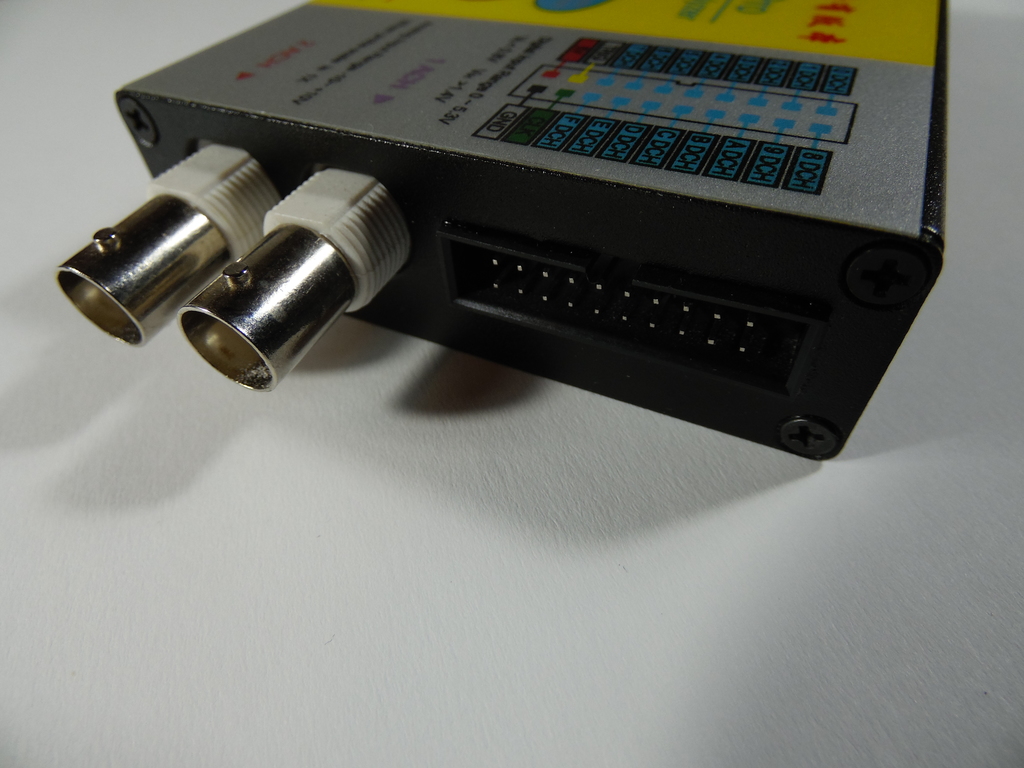

Ht Usbee Dxpro Connectors Ht Usbee Dxpro Connectors

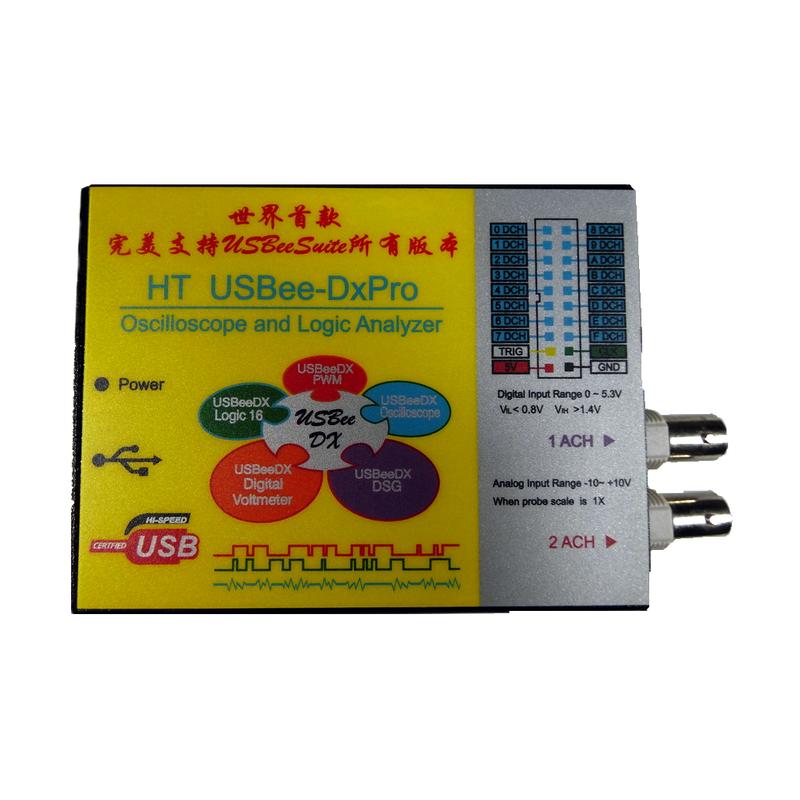

Ht Usbee Dxpro Mugshot Ht Usbee Dxpro Mugshot

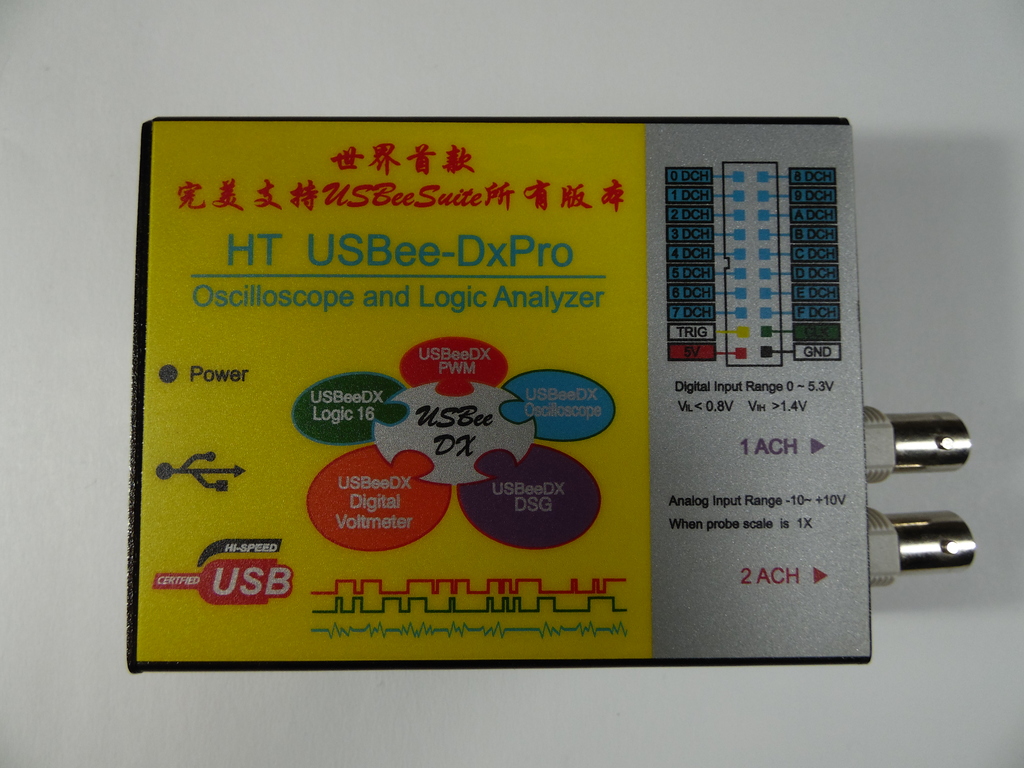

Ht Usbee Dxpro Device Top Ht Usbee Dxpro Device Top

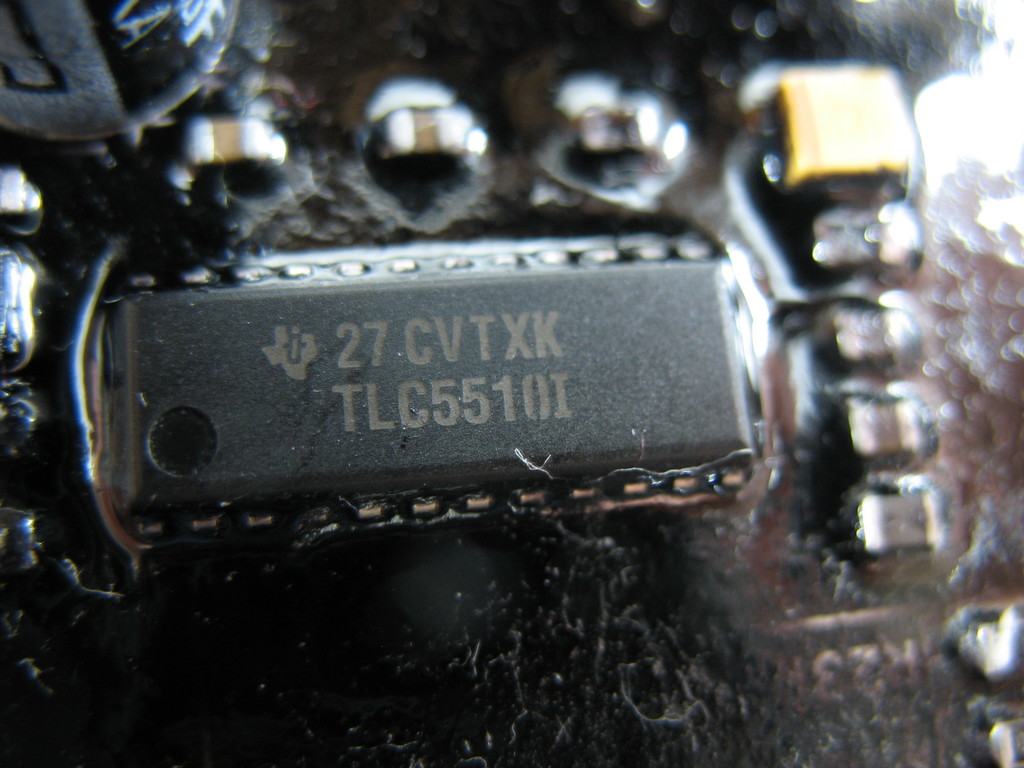

Ht Usbee Dxpro Tlc5510i 2 Ht Usbee Dxpro Tlc5510i 2

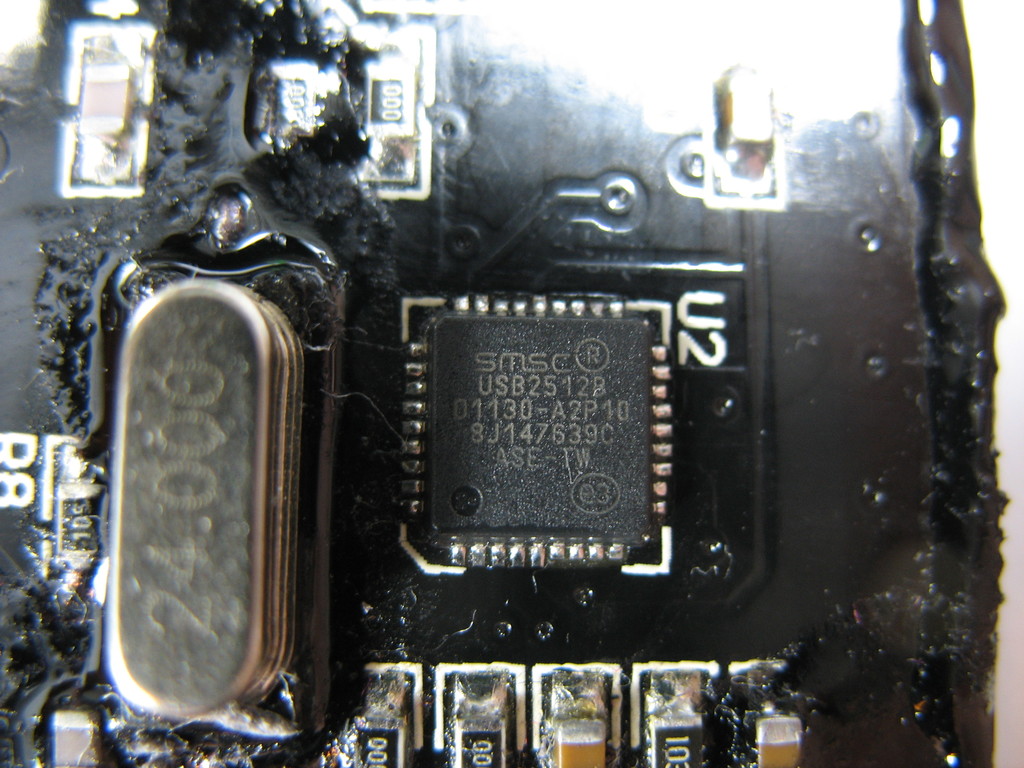

Ht Usbee Dxpro Smsc Usb2512b Ht Usbee Dxpro Smsc Usb2512b

Ht Usbee Dxpro Package Label Ht Usbee Dxpro Package Label

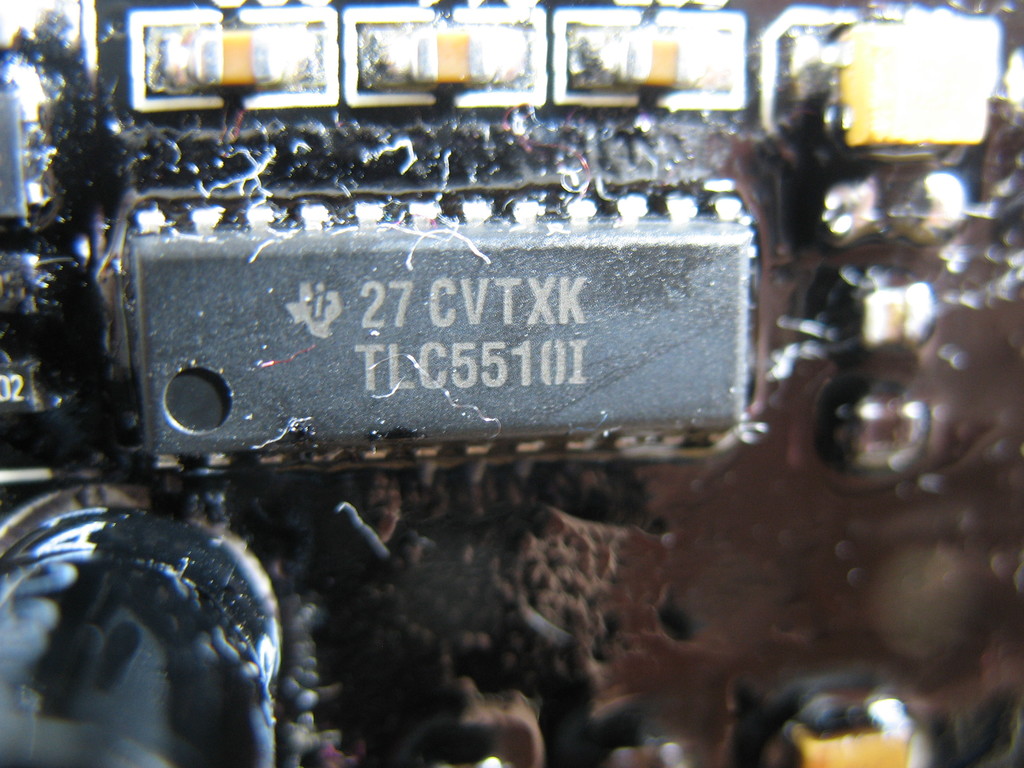

Ht Usbee Dxpro Tlc5510i 1 Ht Usbee Dxpro Tlc5510i 1

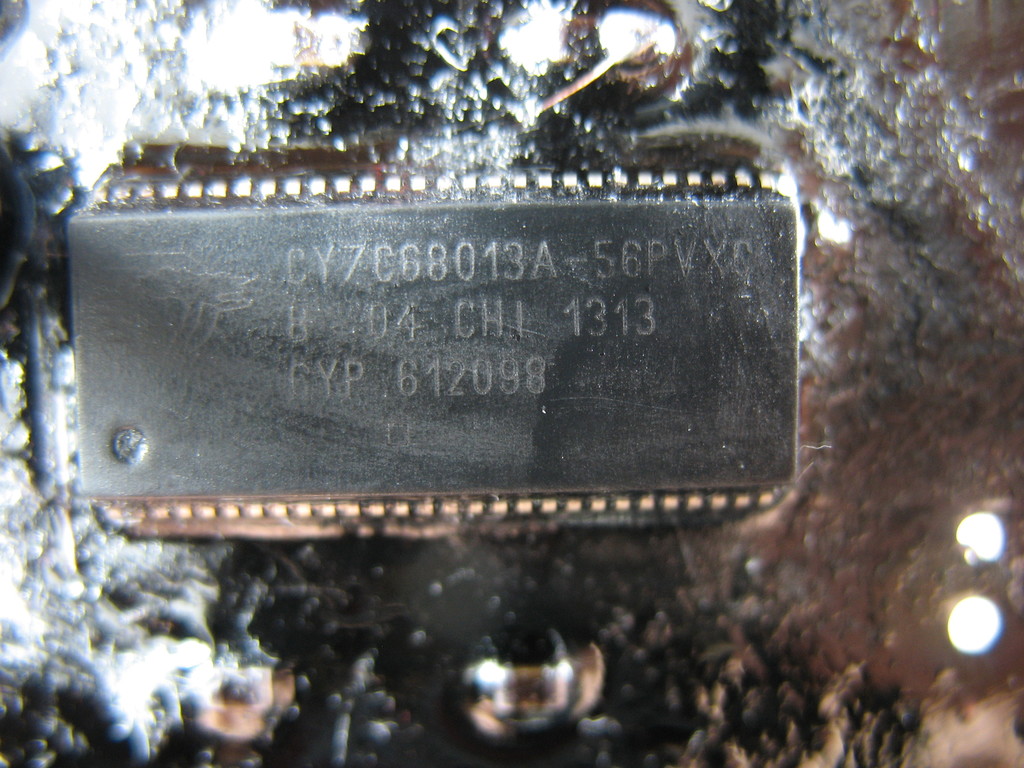

Ht Usbee Dxpro Cypress Fx2 2 Ht Usbee Dxpro Cypress Fx2 2

Protocol

Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
