HT USBee-AxPro¶


Status	supported
Source code	fx2lafw
Channels	8 + 1
Samplerate	8ch @ 24MHz, 8+1ch @ 12MHz
Samplerate (state)	—
Triggers	none (SW-only)
Min/max voltage	Digital: -1V — +6VAnalog: ±10V (±20V max)
Threshold voltage	Fixed: VIH=1.6V, VIL=1.4V
Memory	none
Compression	none
Price range	$35 - $45
Website	aliexpress.com

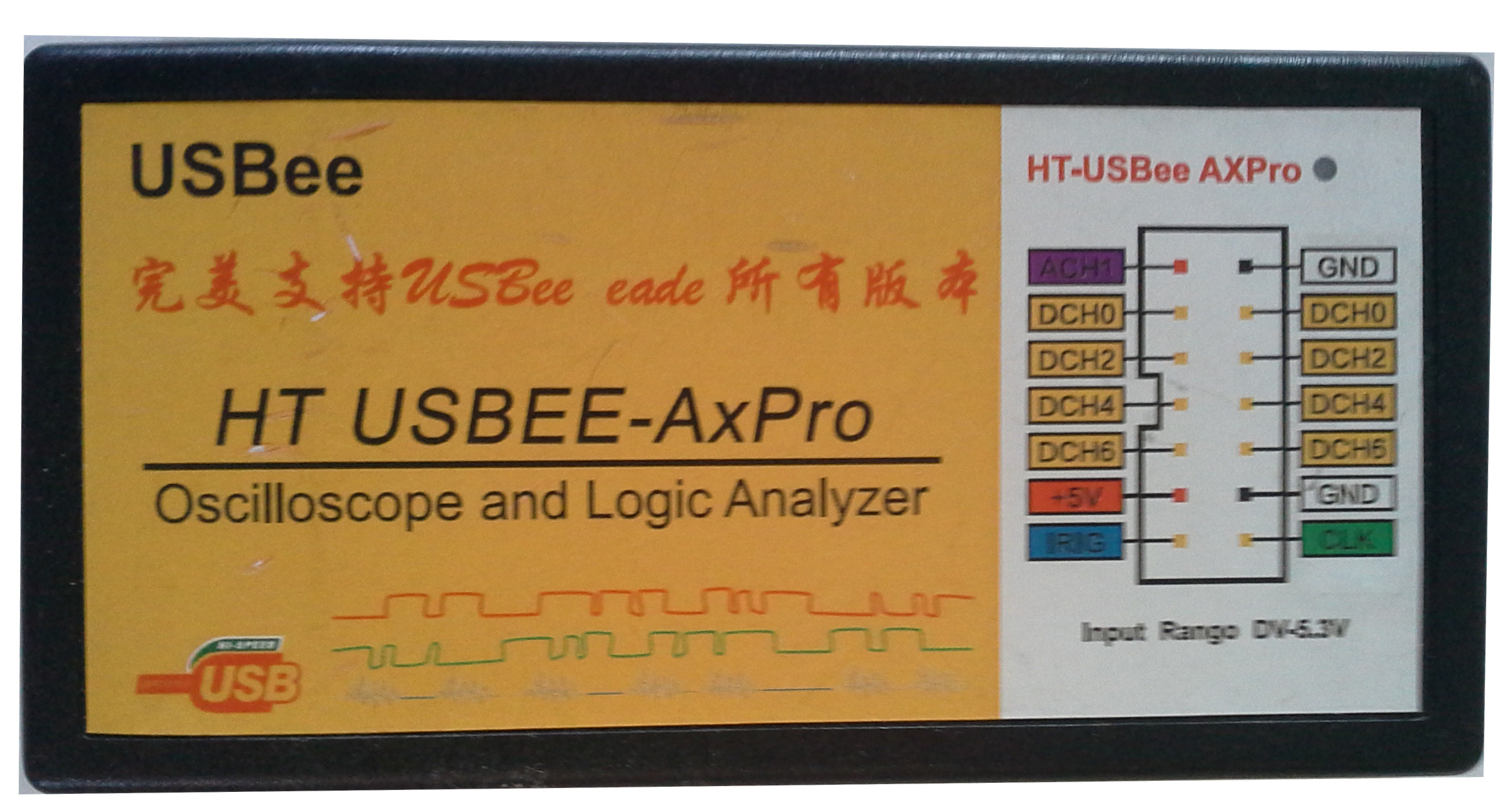

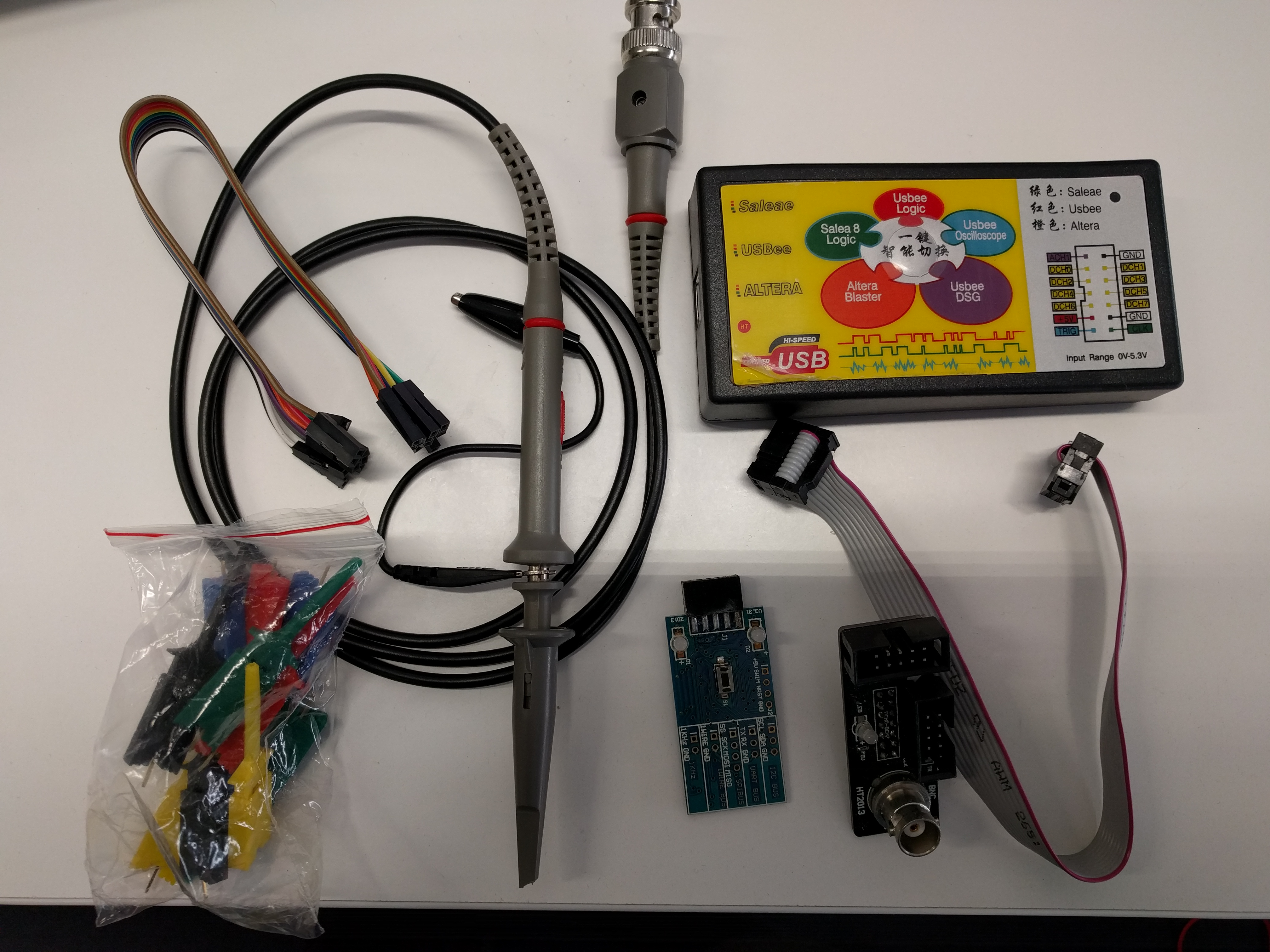

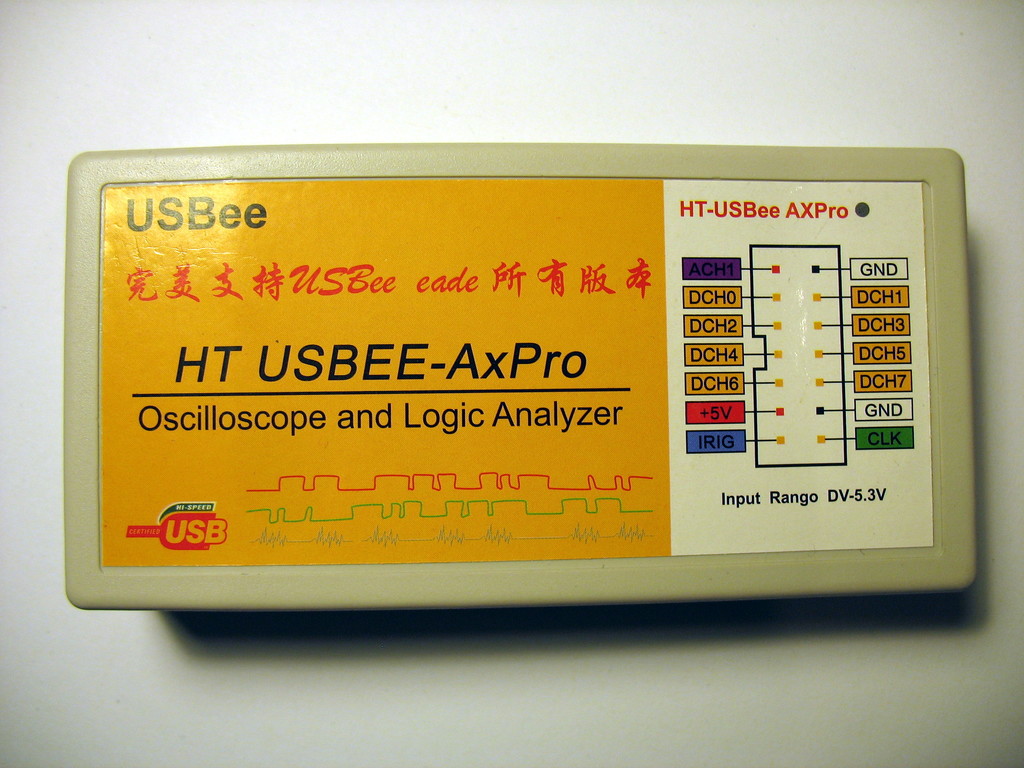

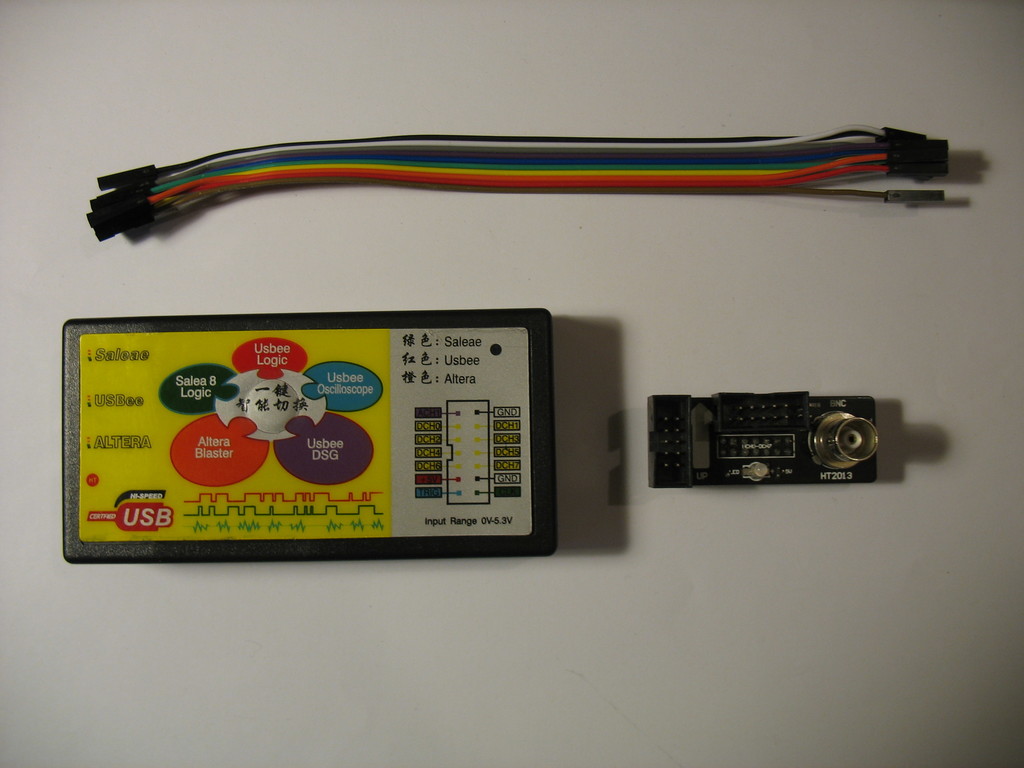

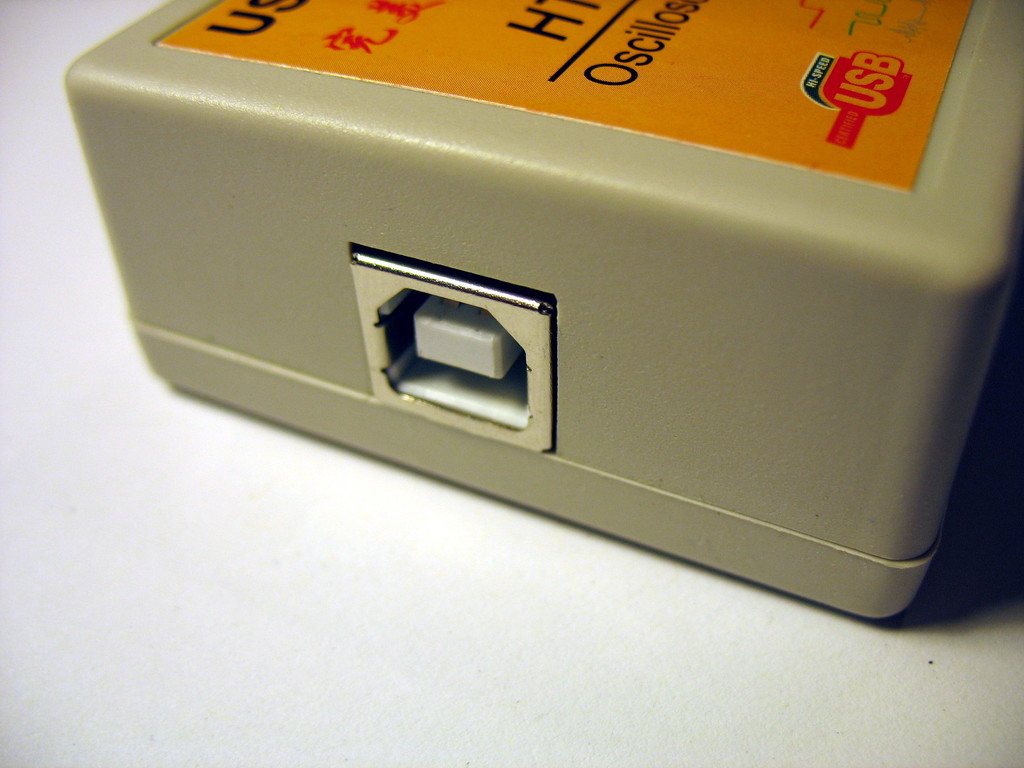

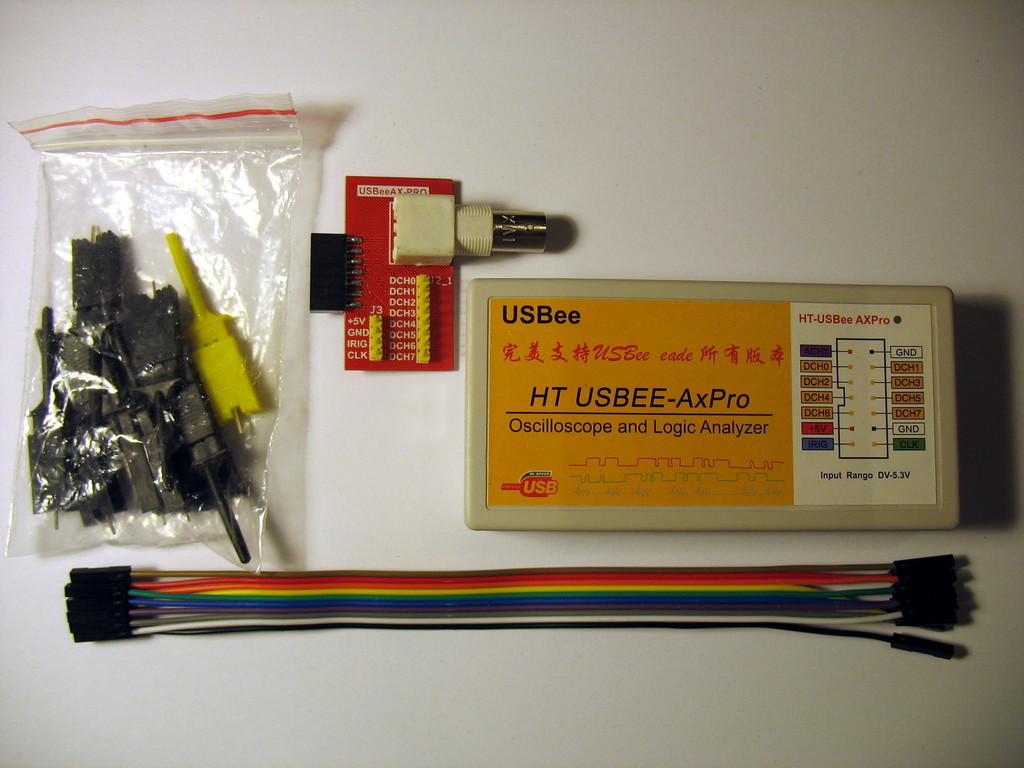

The HT USBee-AxPro is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate, with 1 additional analog channel (3MHz analog bandwidth).

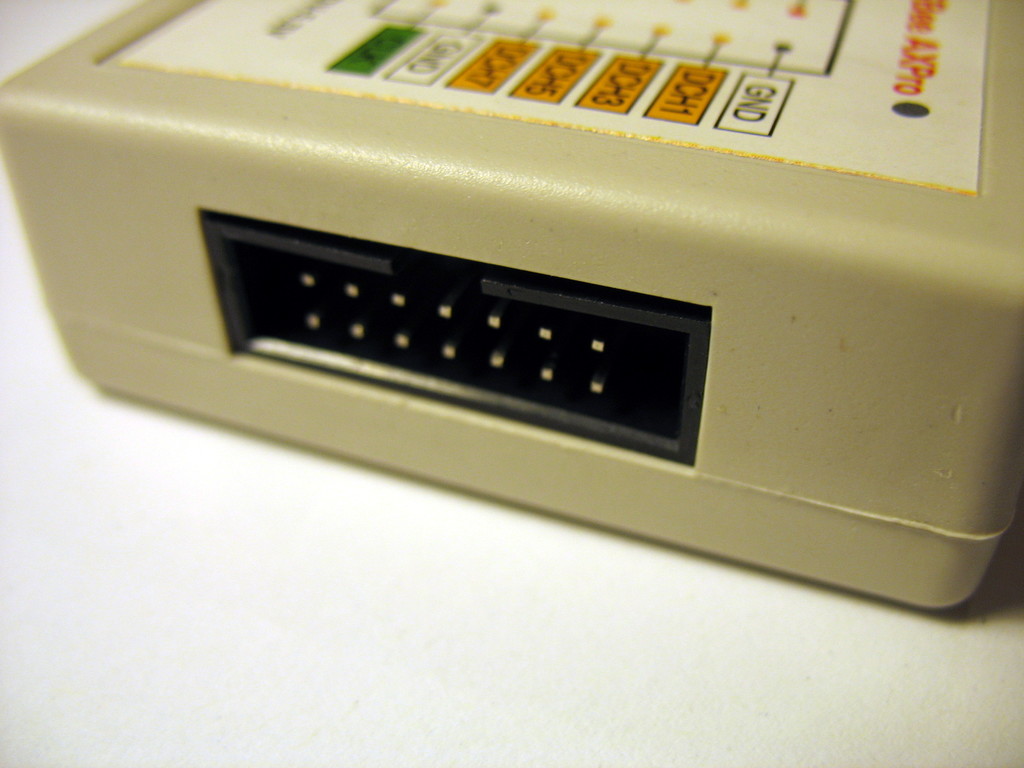

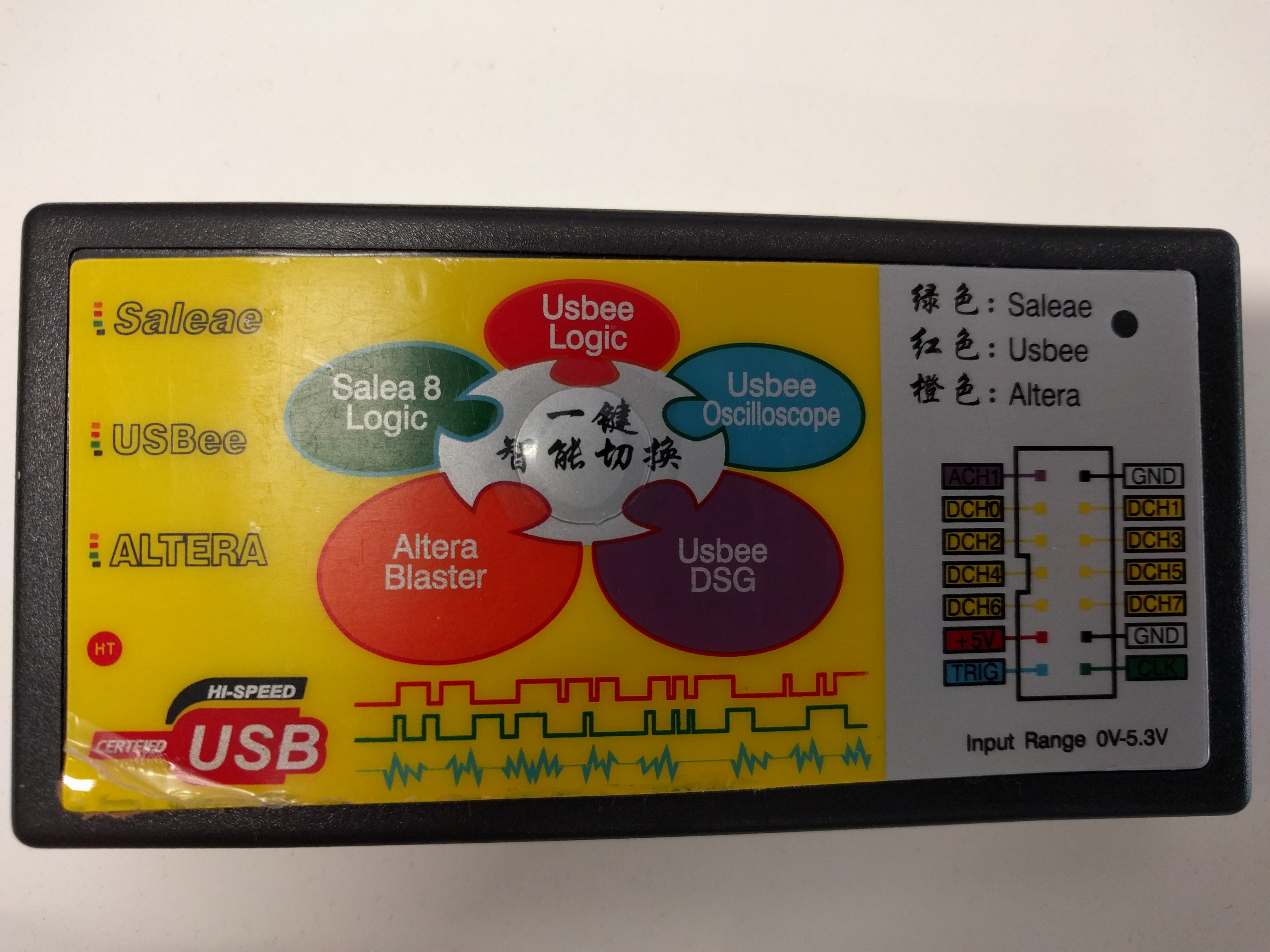

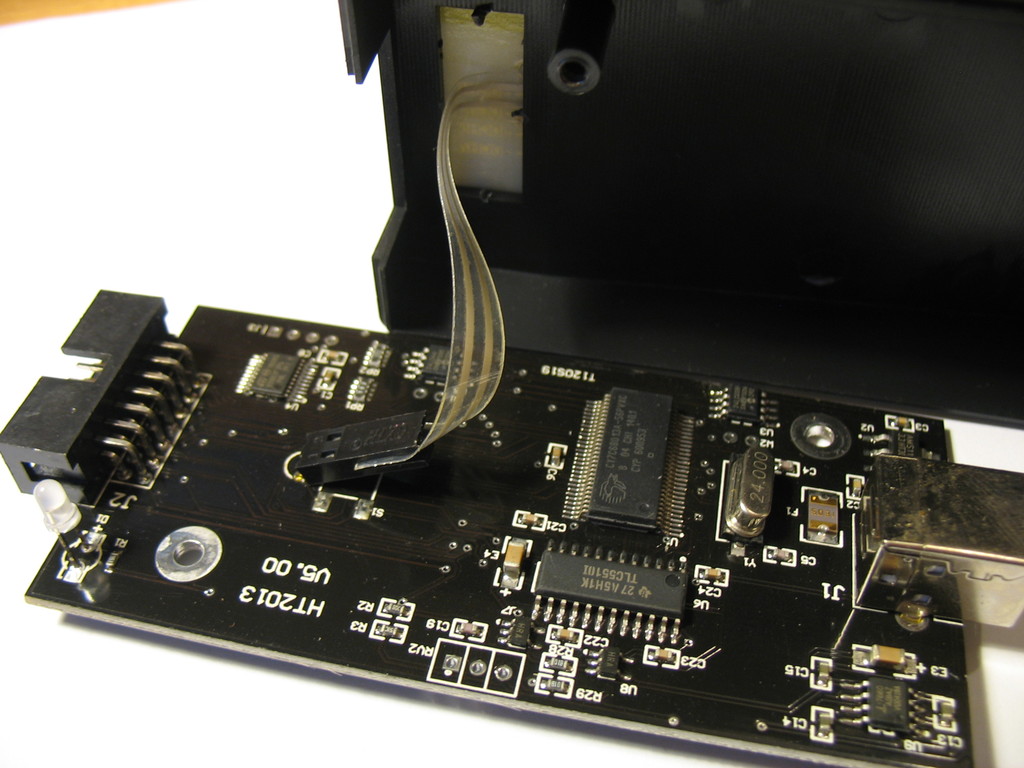

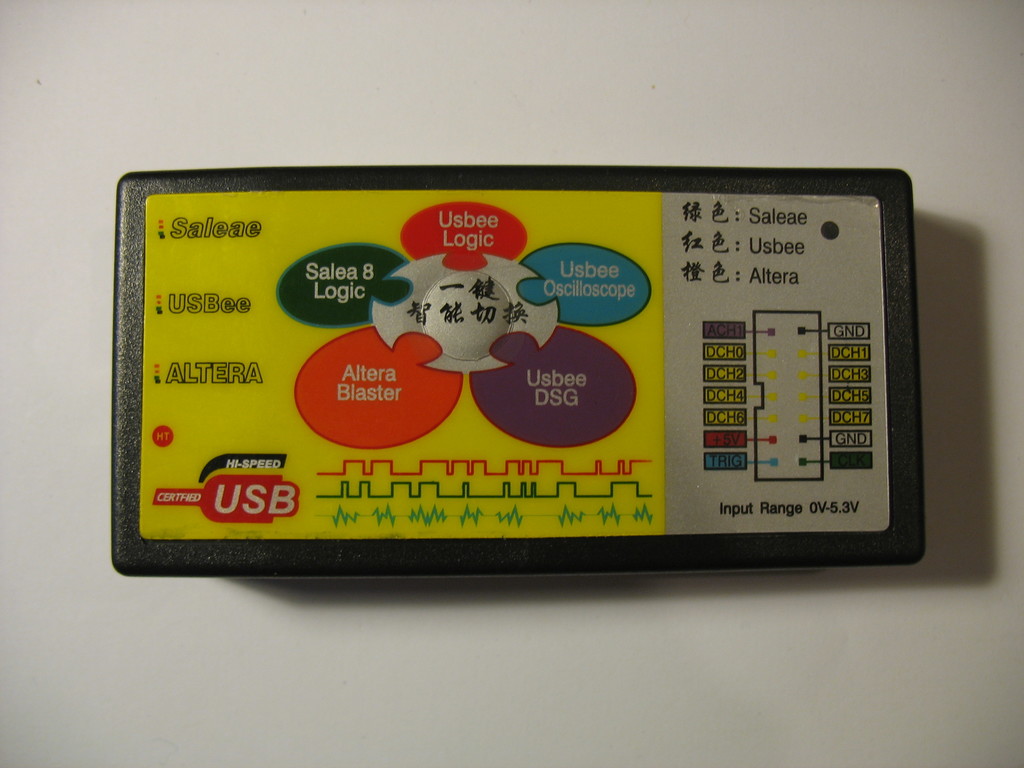

It is able to switch between USBee AX-Pro, Salea Logic and Altera USB blaster mode via a button. When pressing the button the USB VID/PID changes.

It is a clone of the CWAV USBee AX-Pro.

In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.

See HT USBee-AxPro/Info for some more details (such as lsusb -v output) on the device.

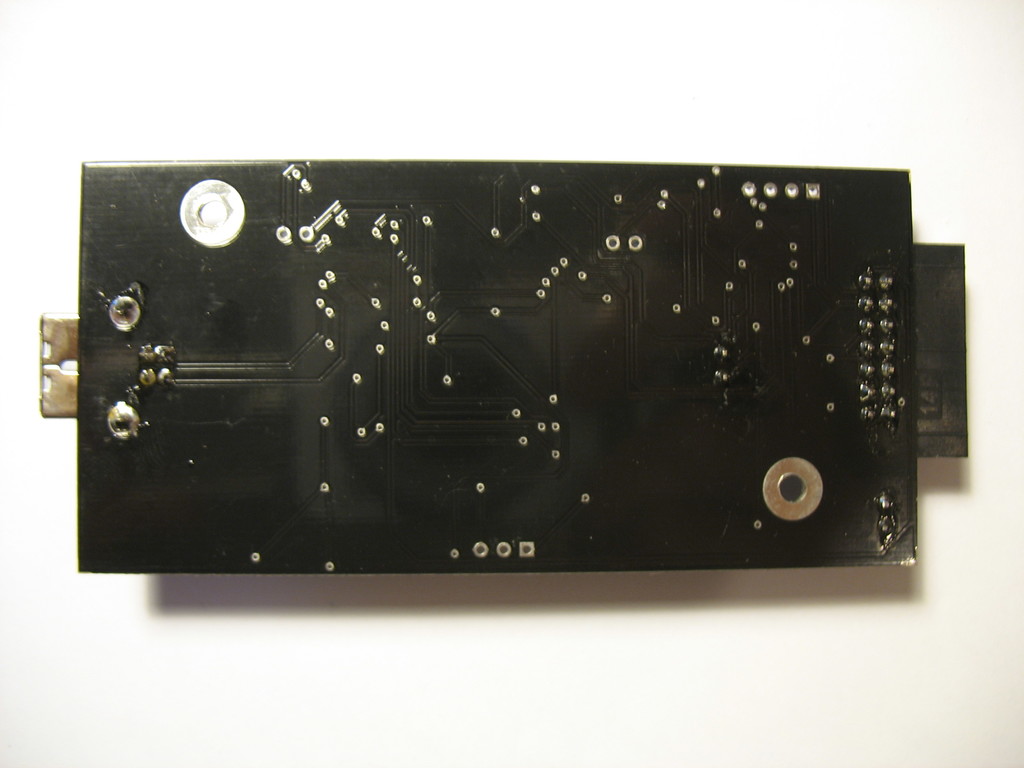

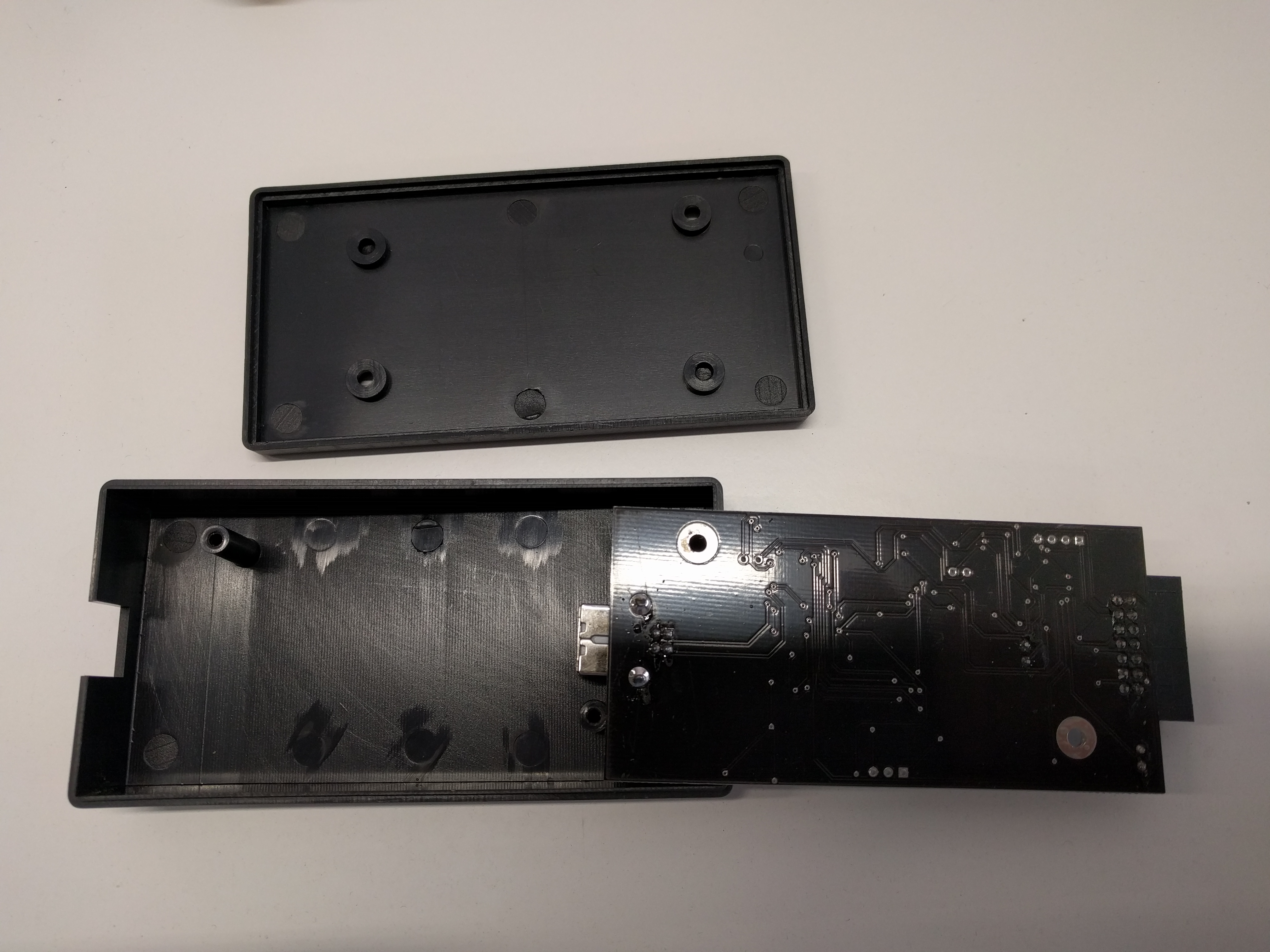

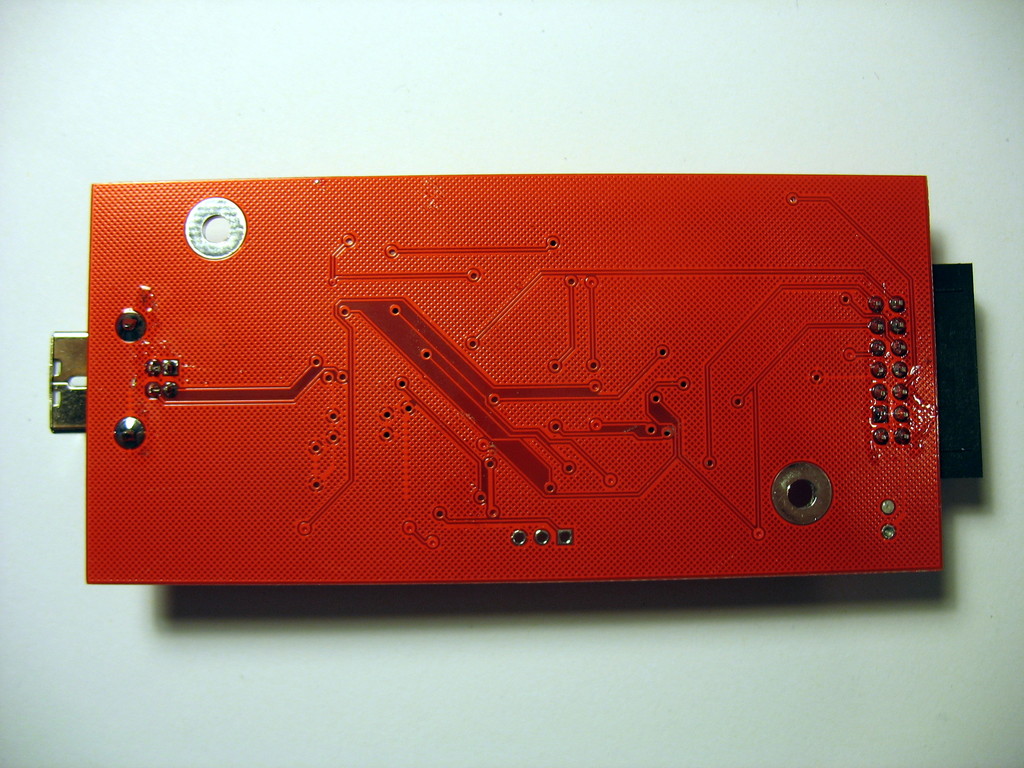

Hardware¶

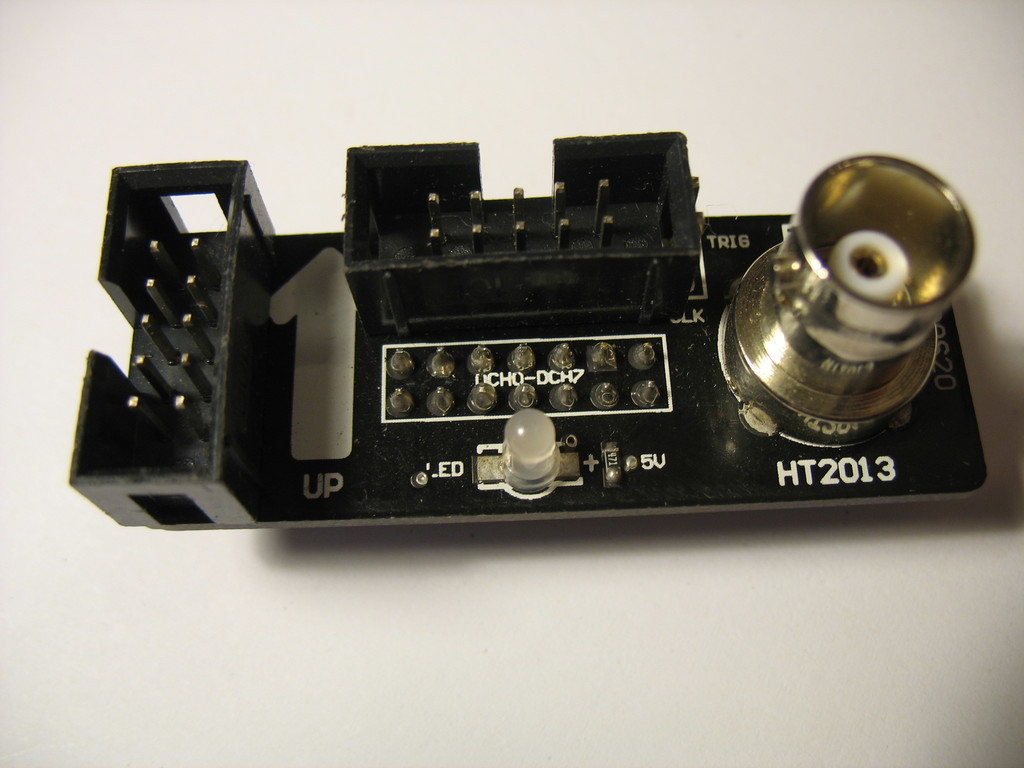

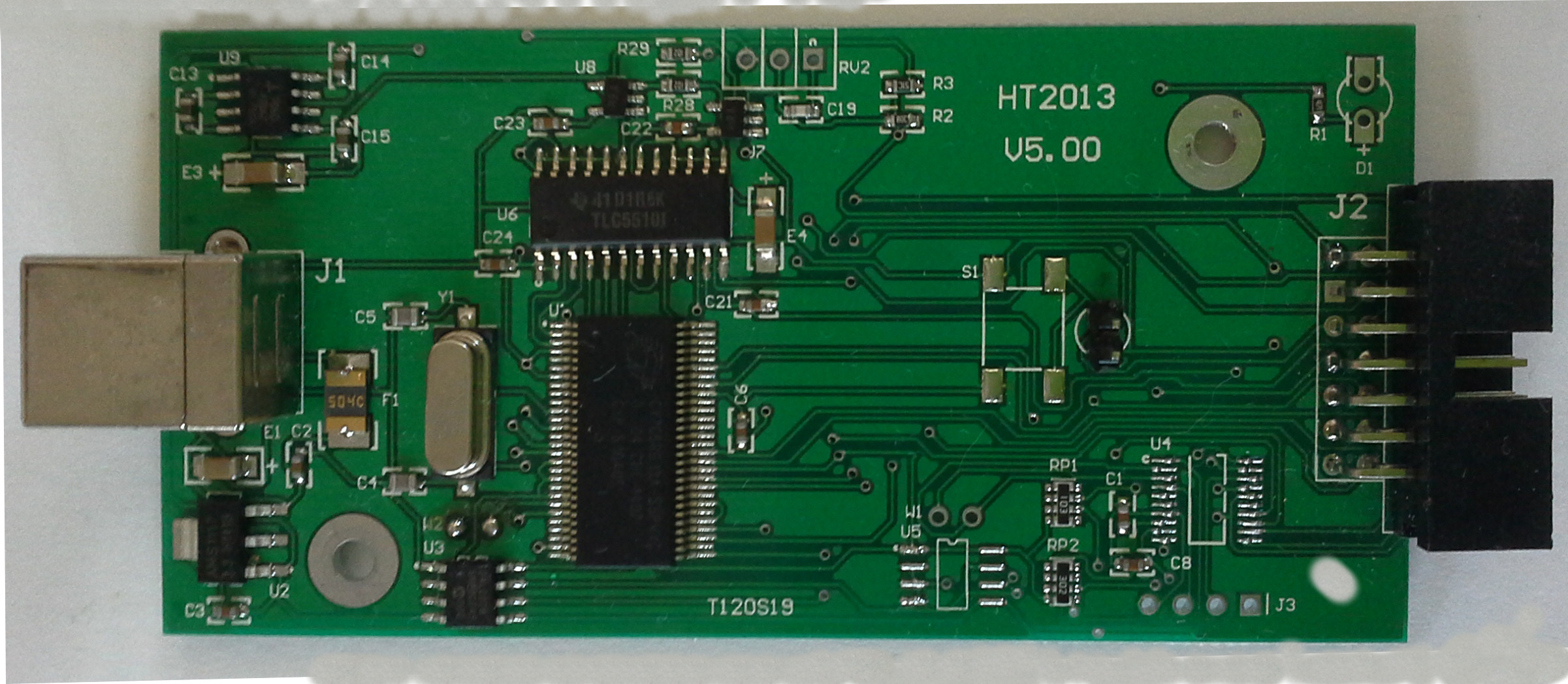

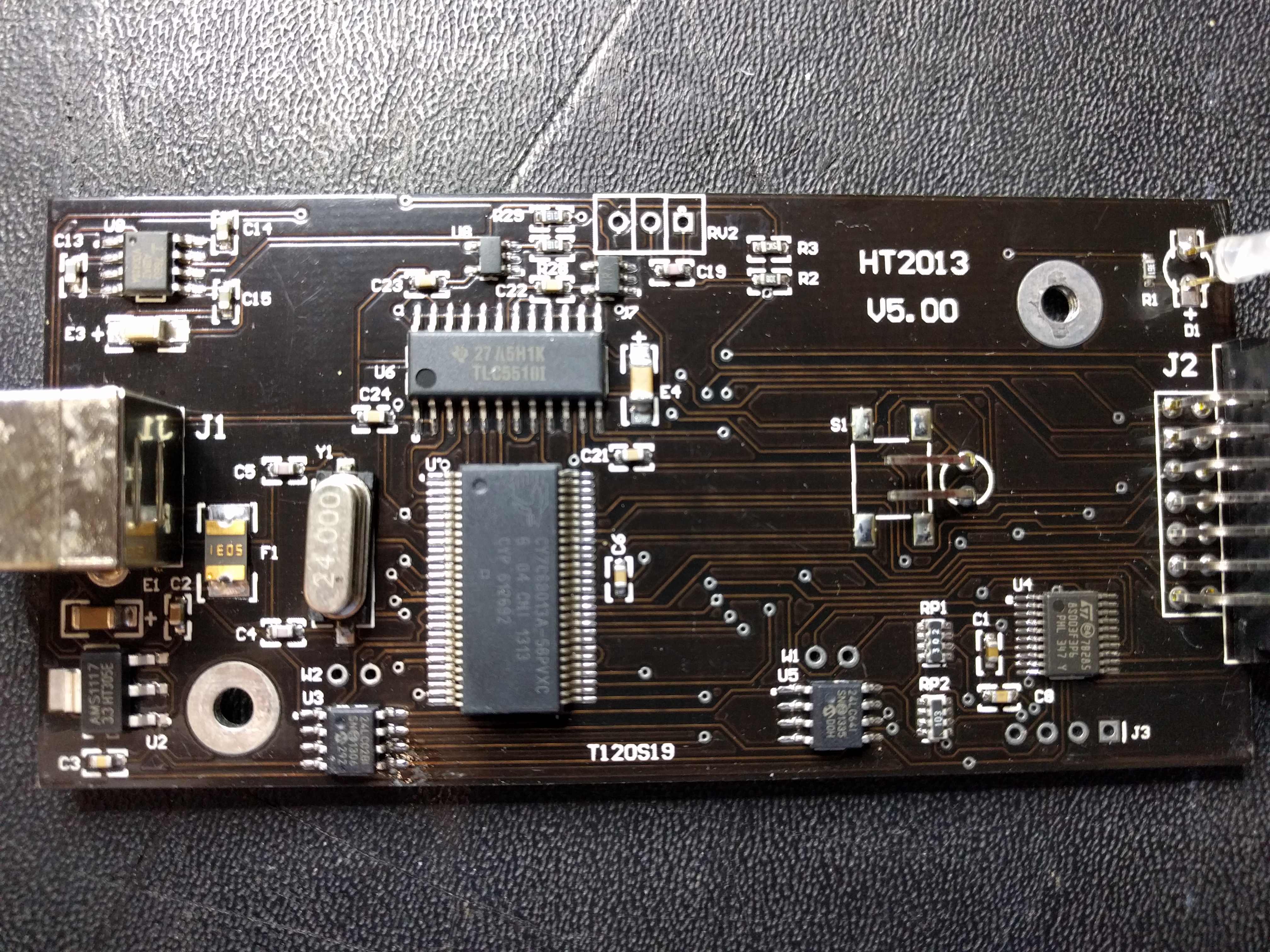

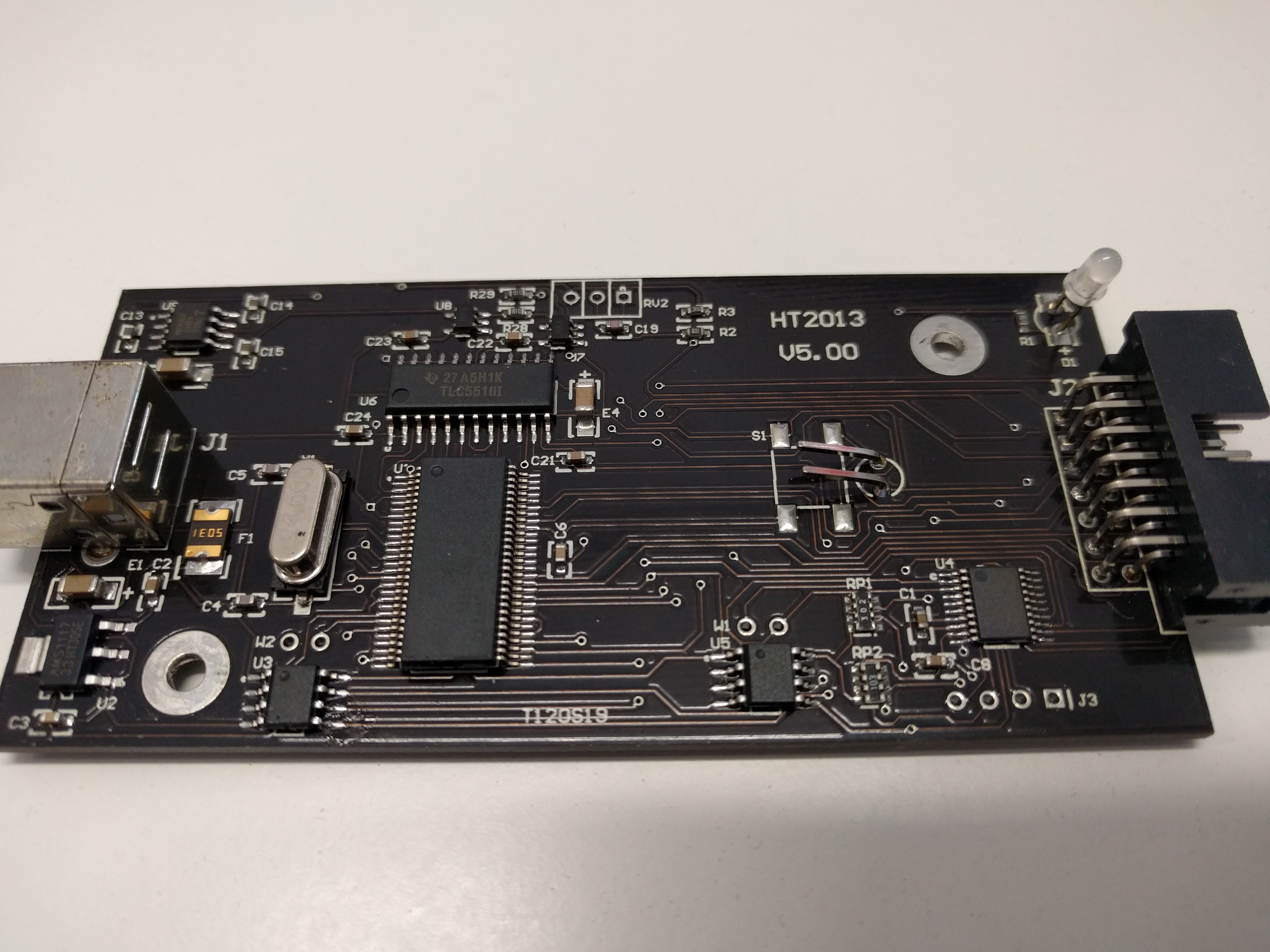

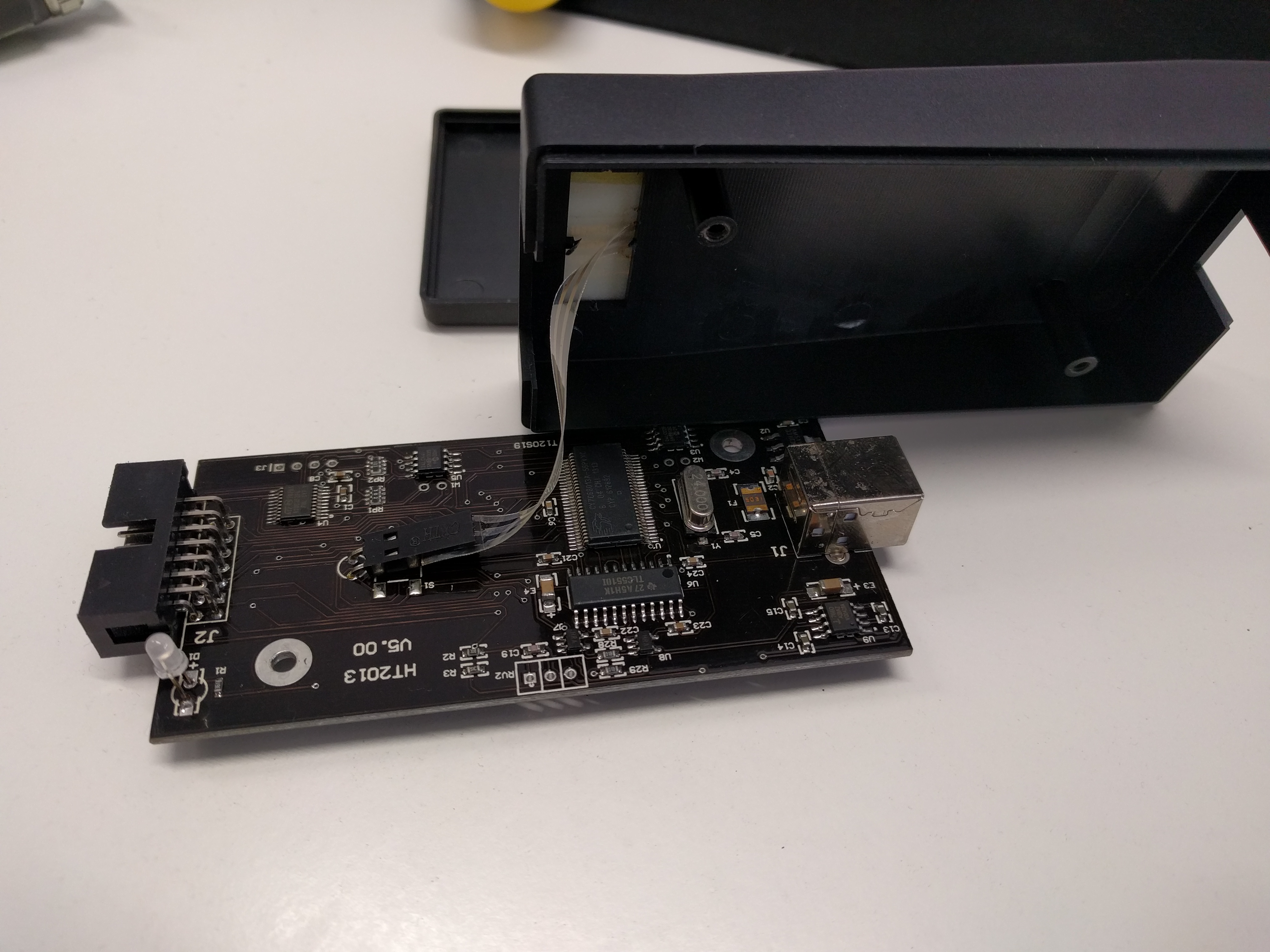

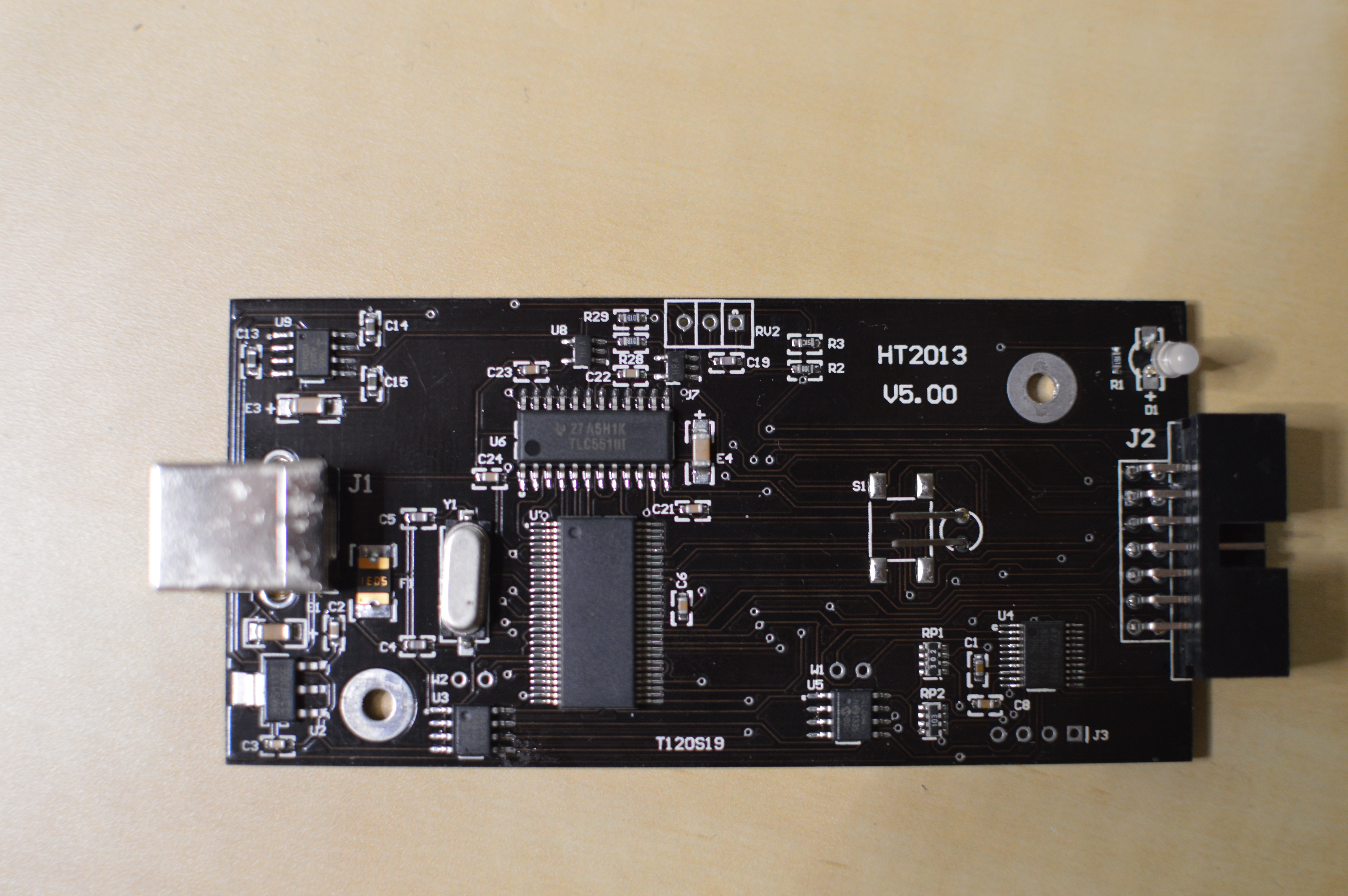

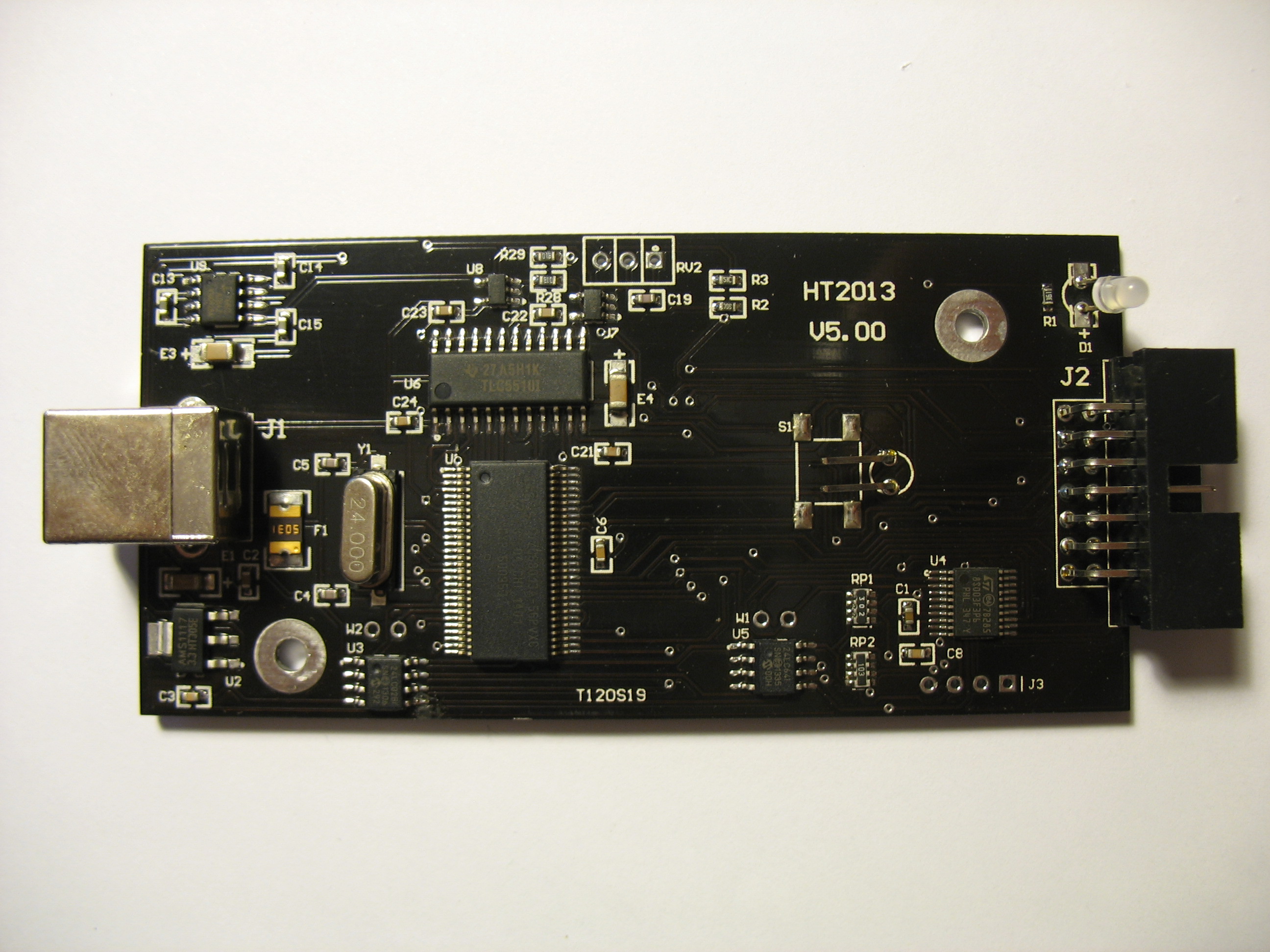

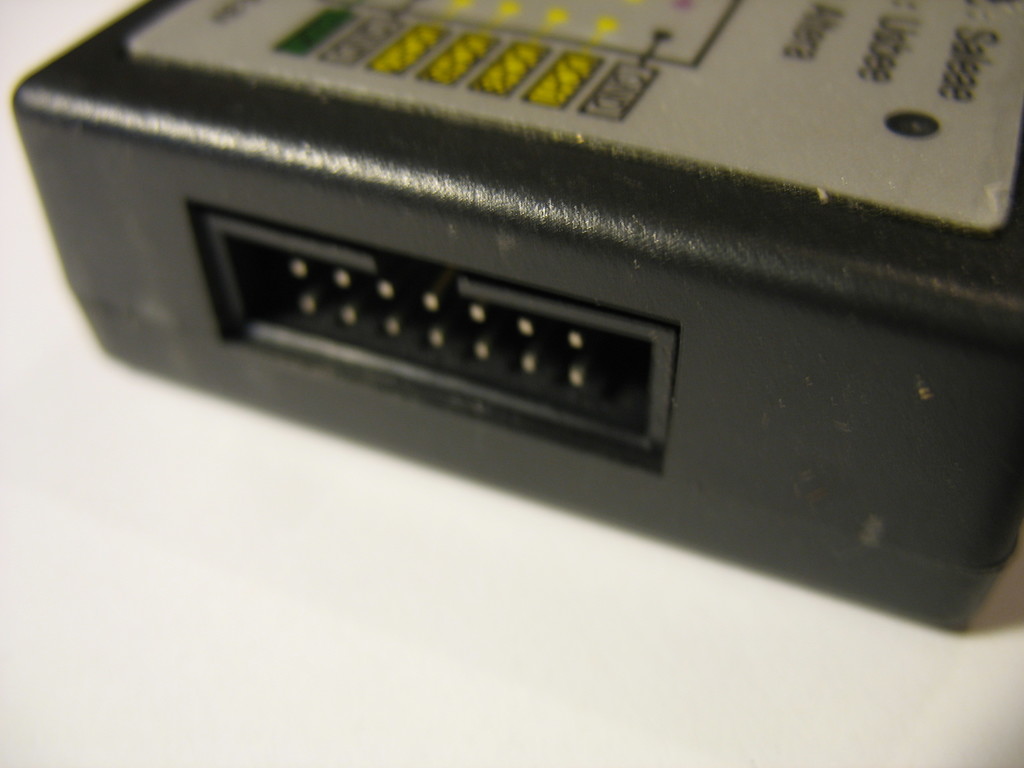

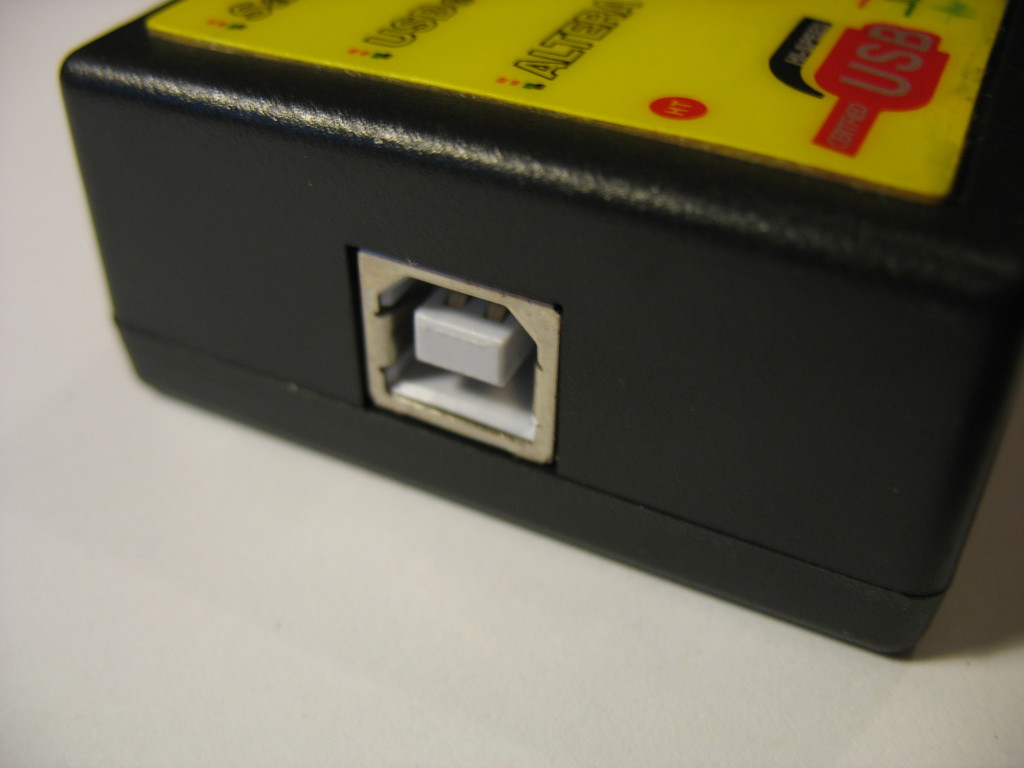

HT2013 V5.00:

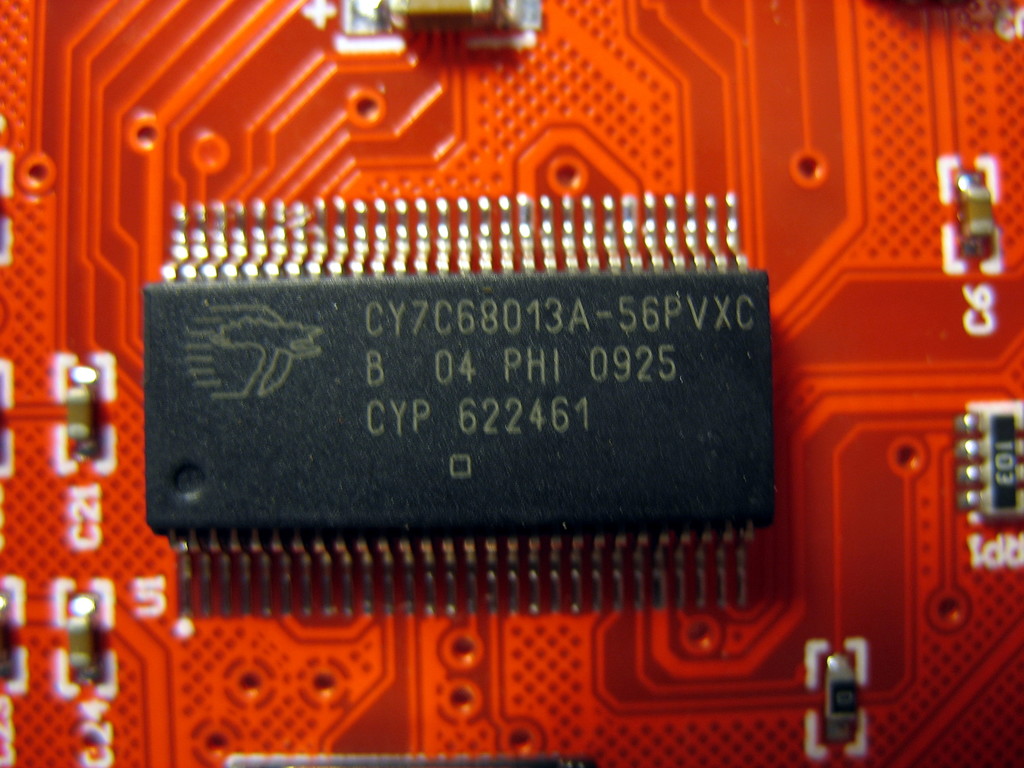

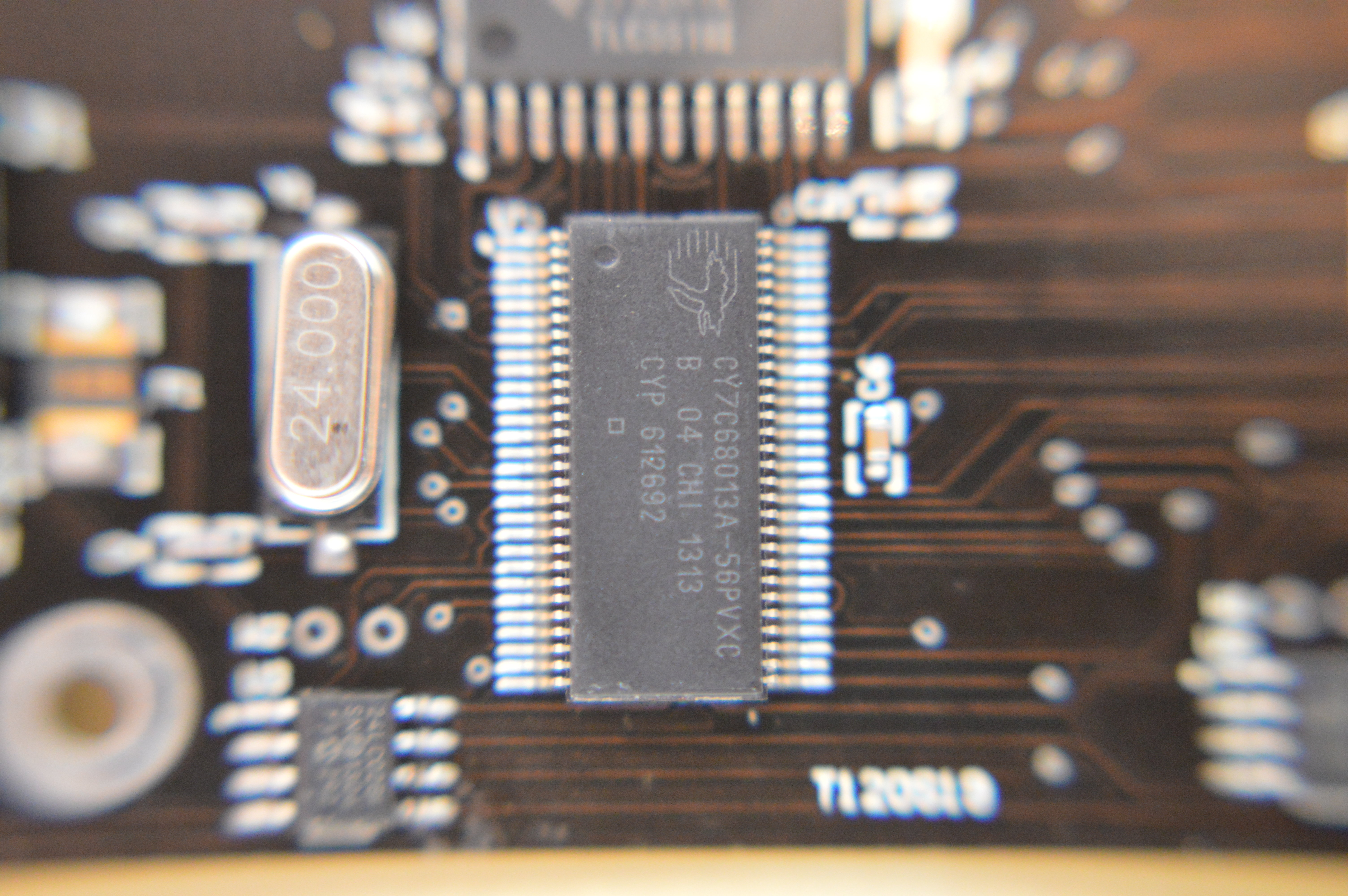

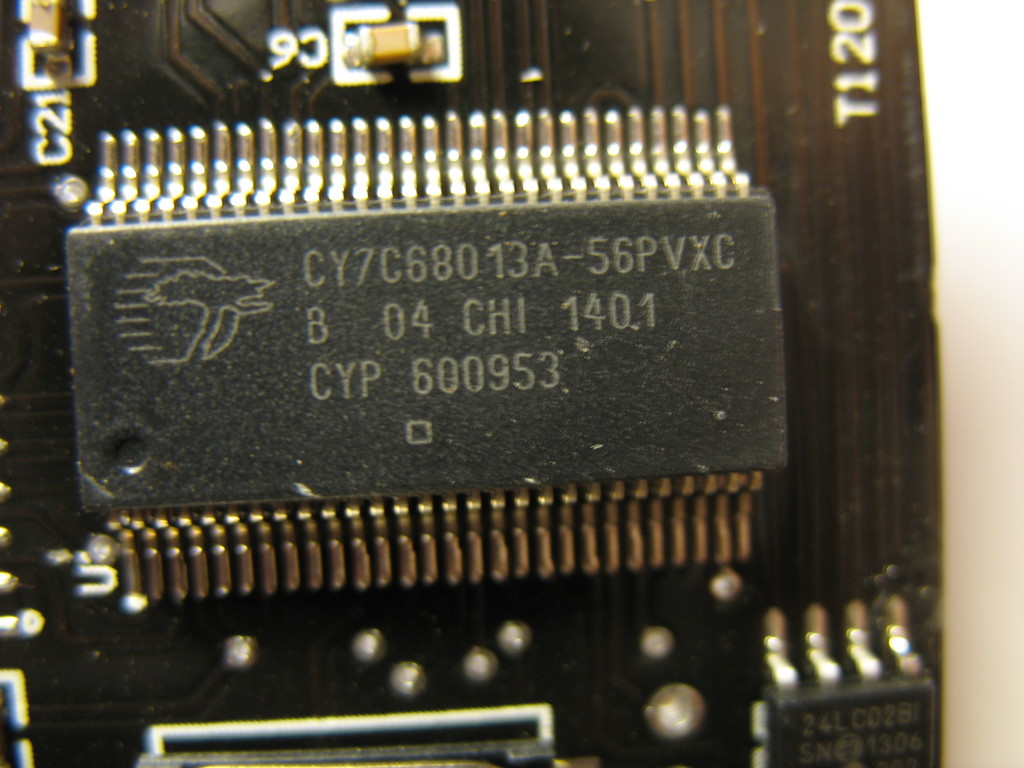

Main chip: Cypress CY7C68013A-56SSOP (FX2LP)

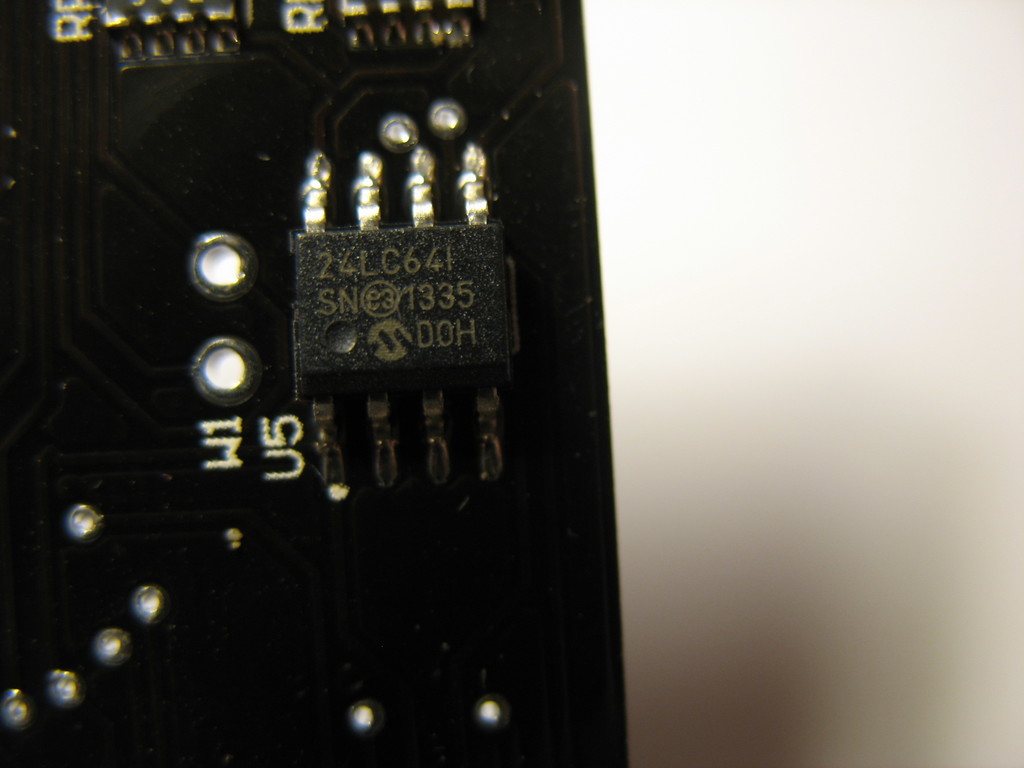

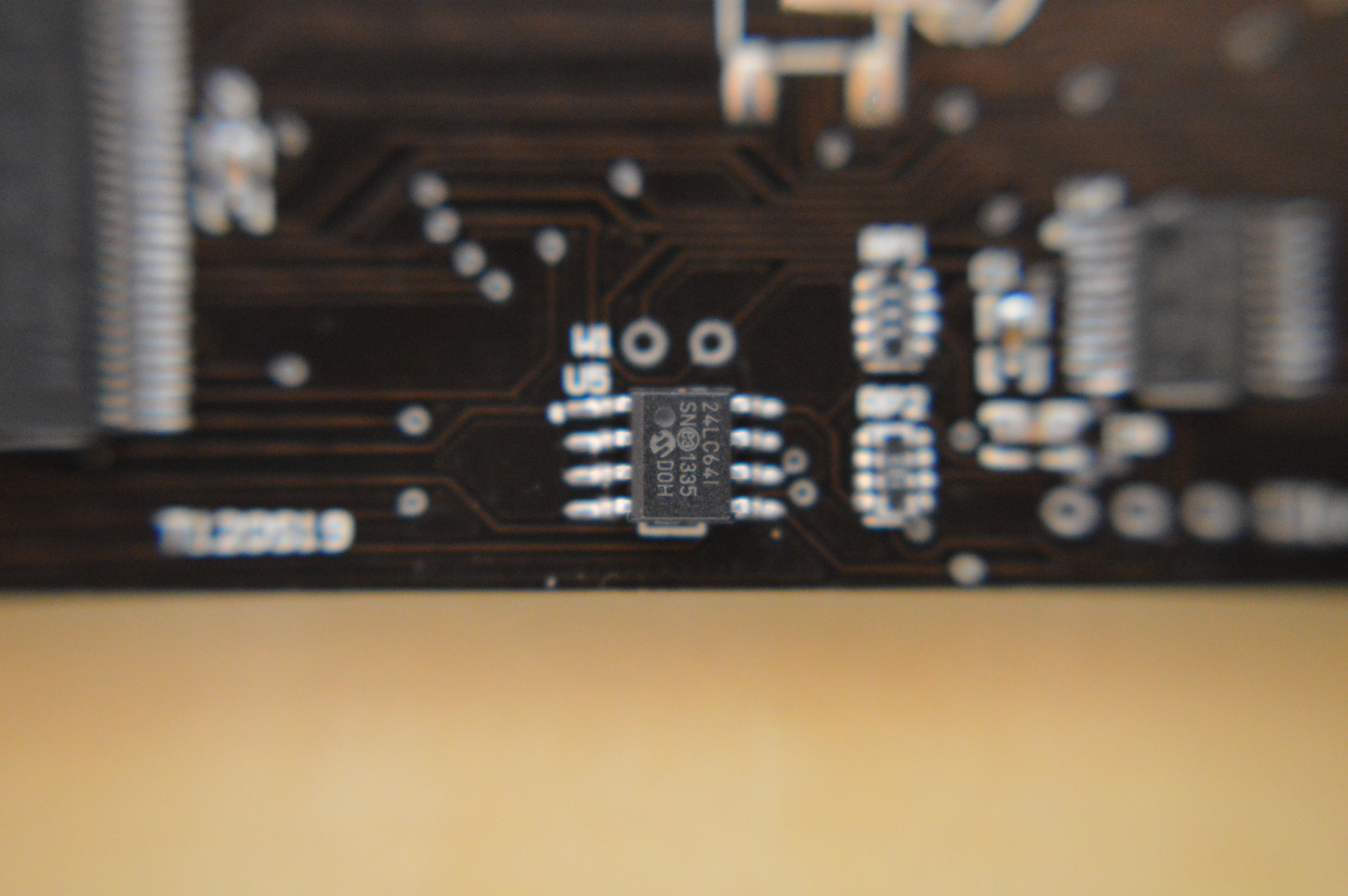

64Kbit I²C EEPROM: Microchip 24LC641

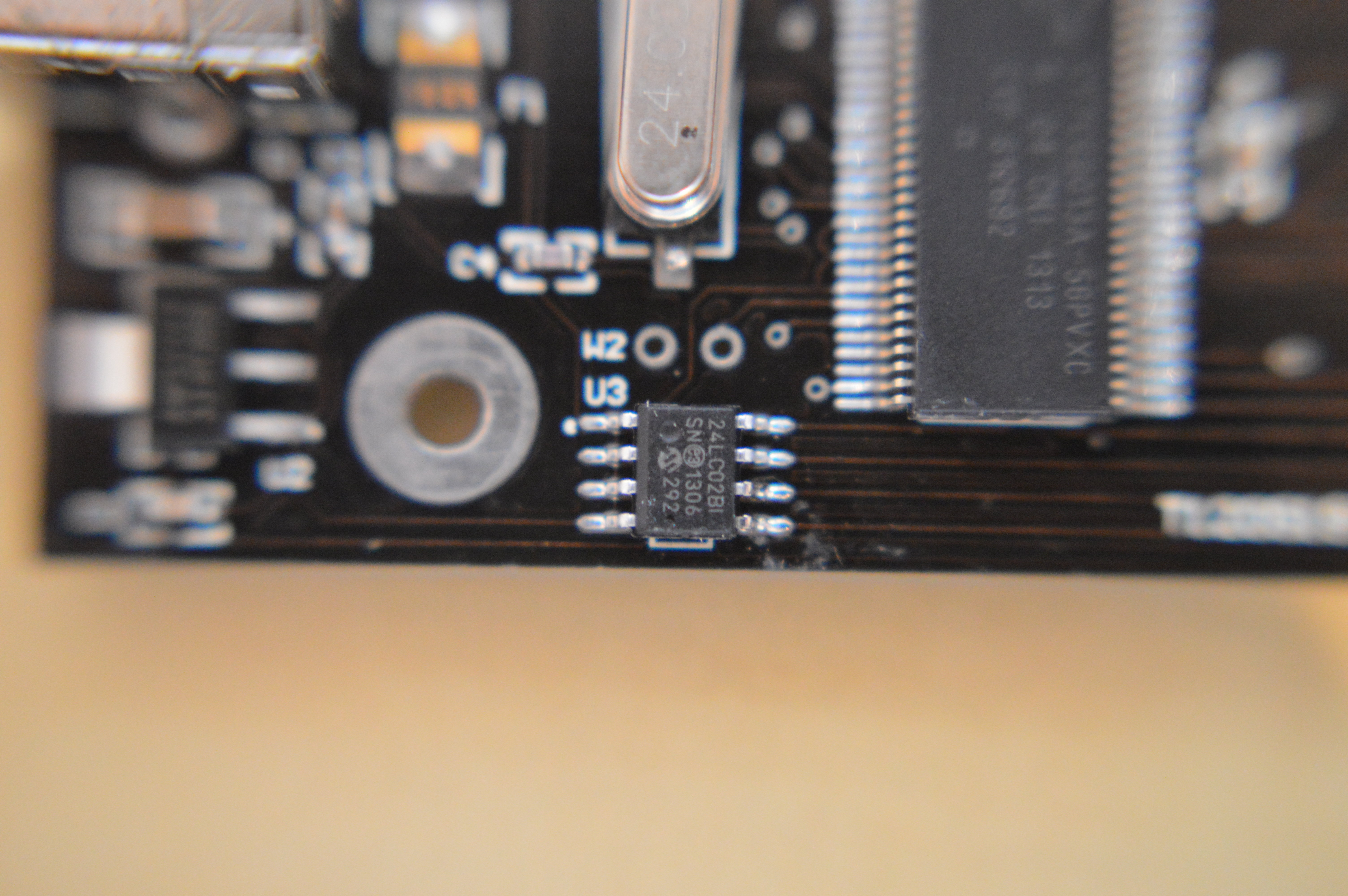

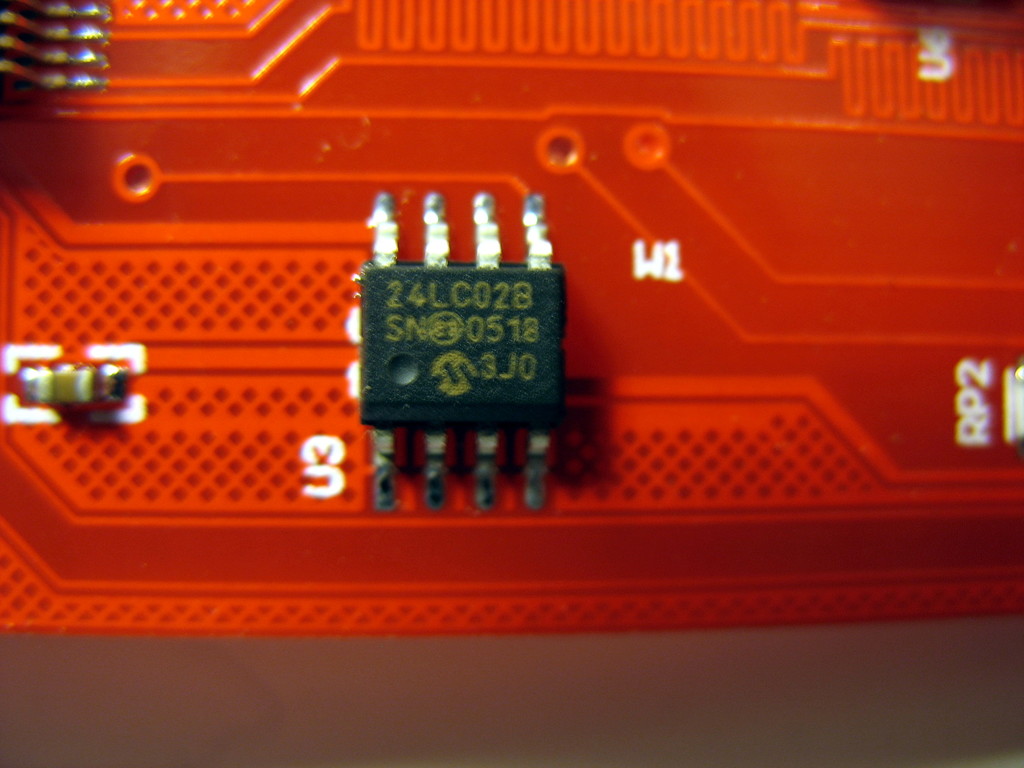

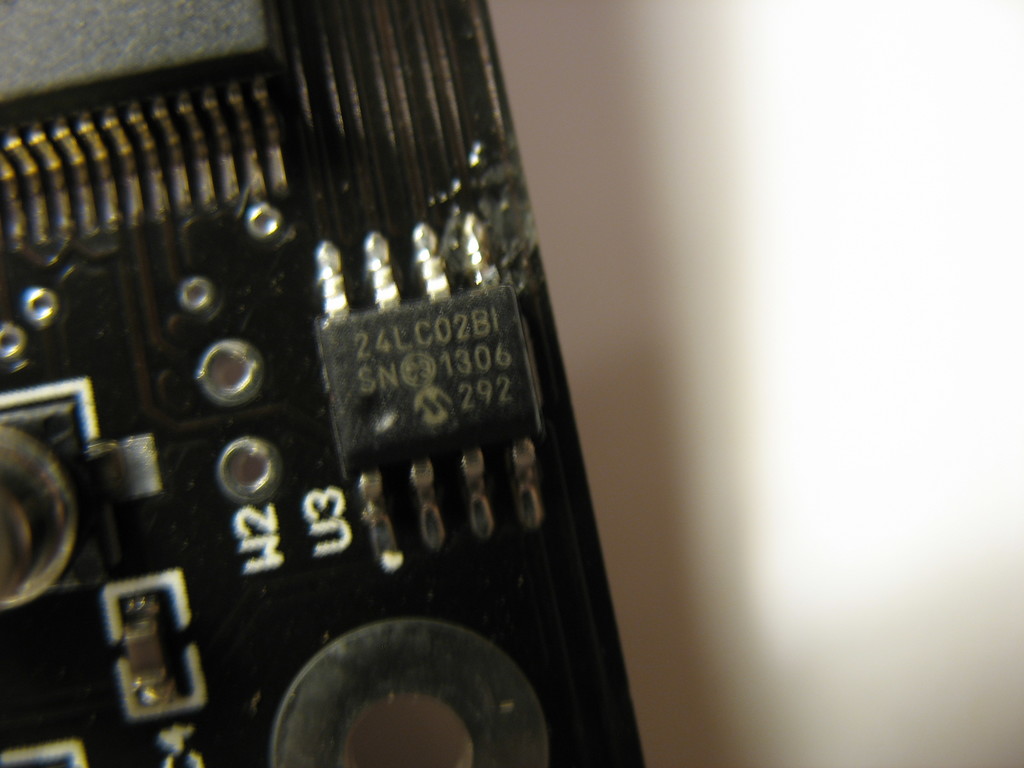

2Kbit I²C EEPROM: Microchip 24LC02B

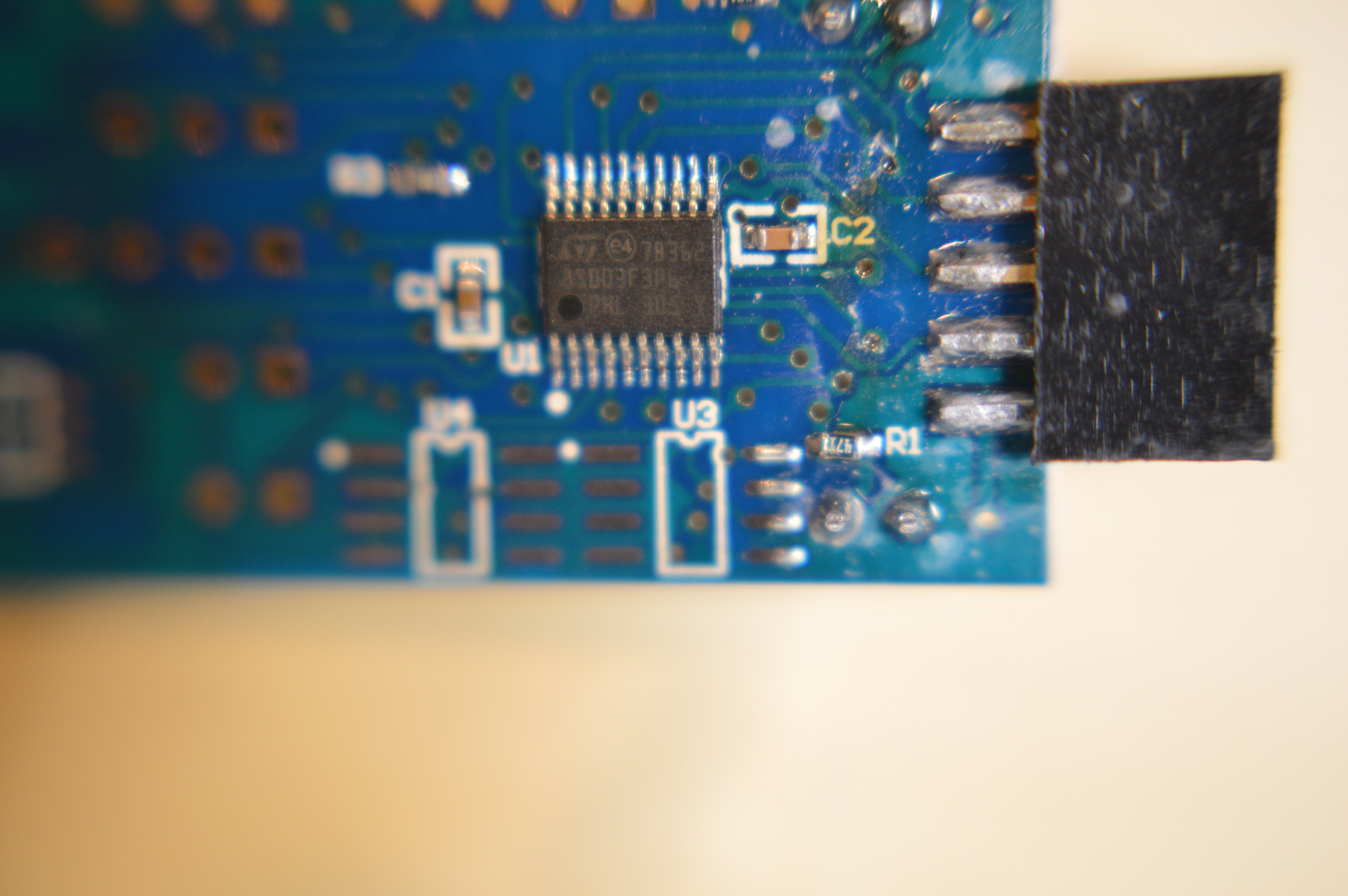

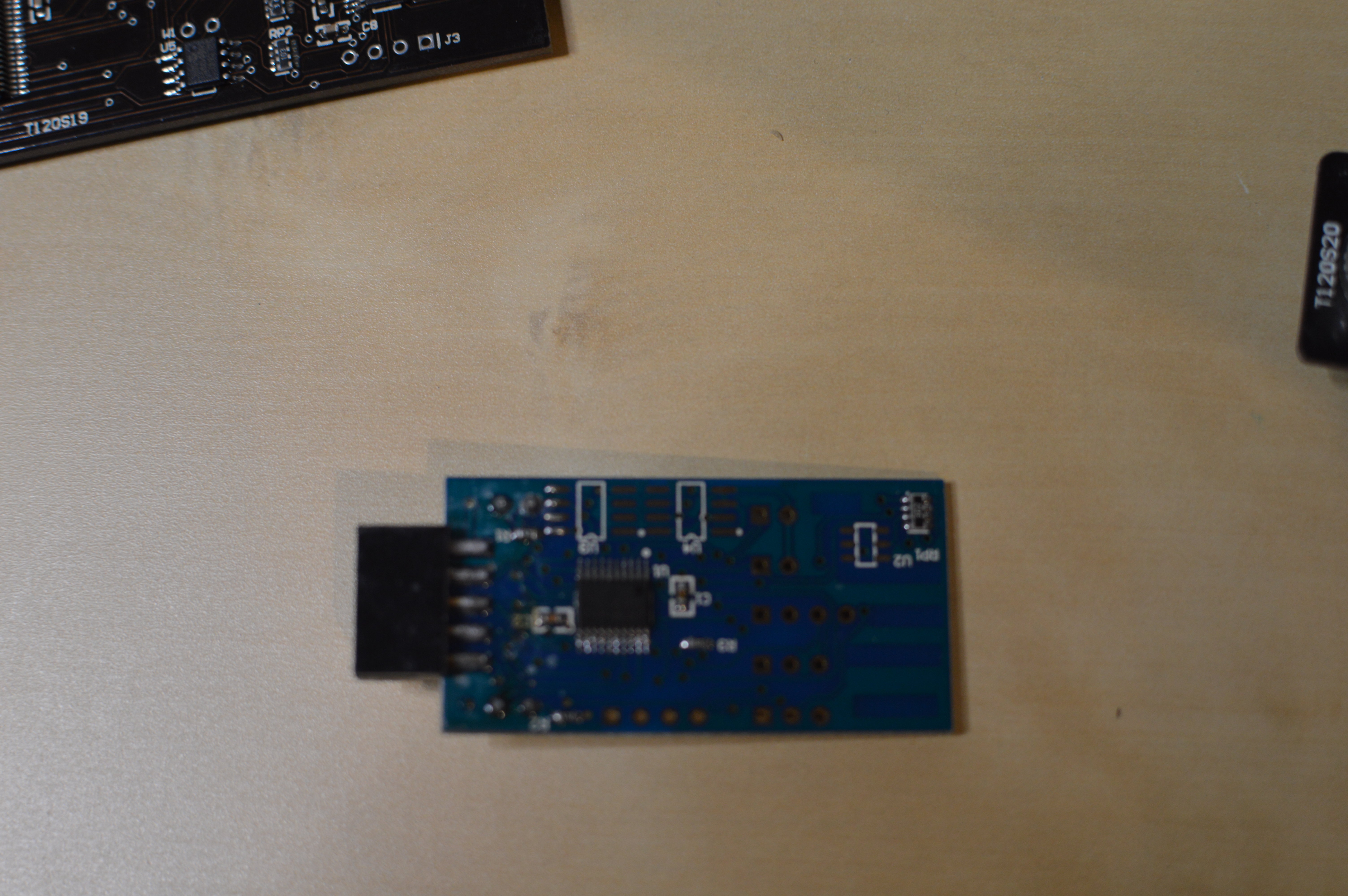

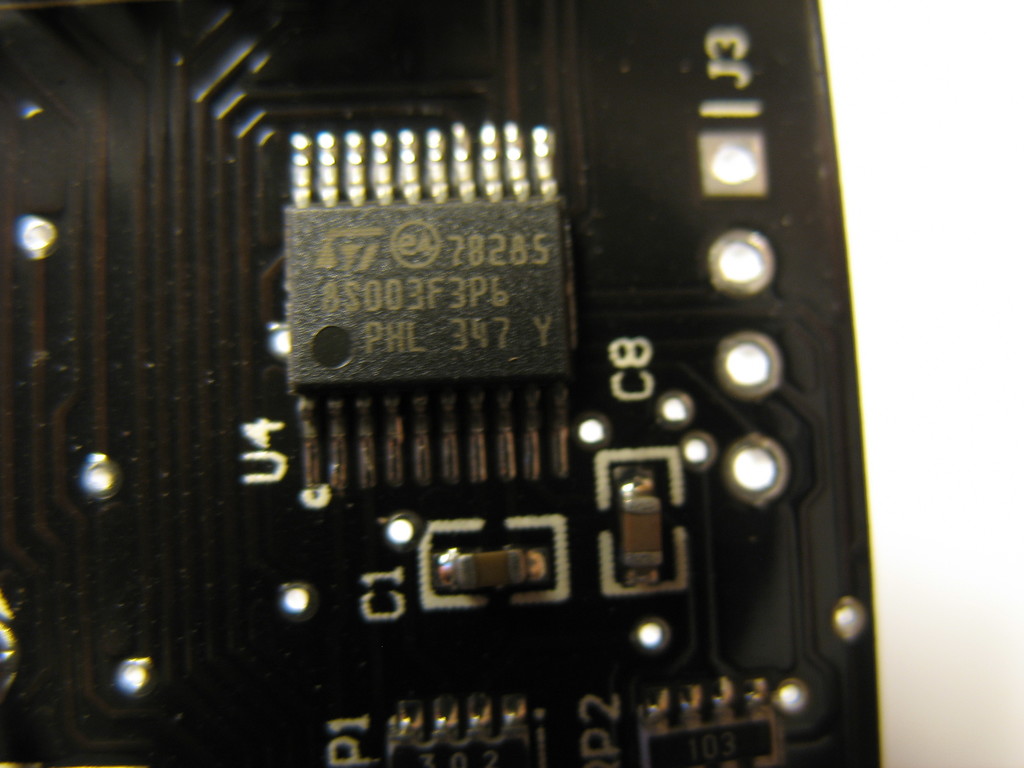

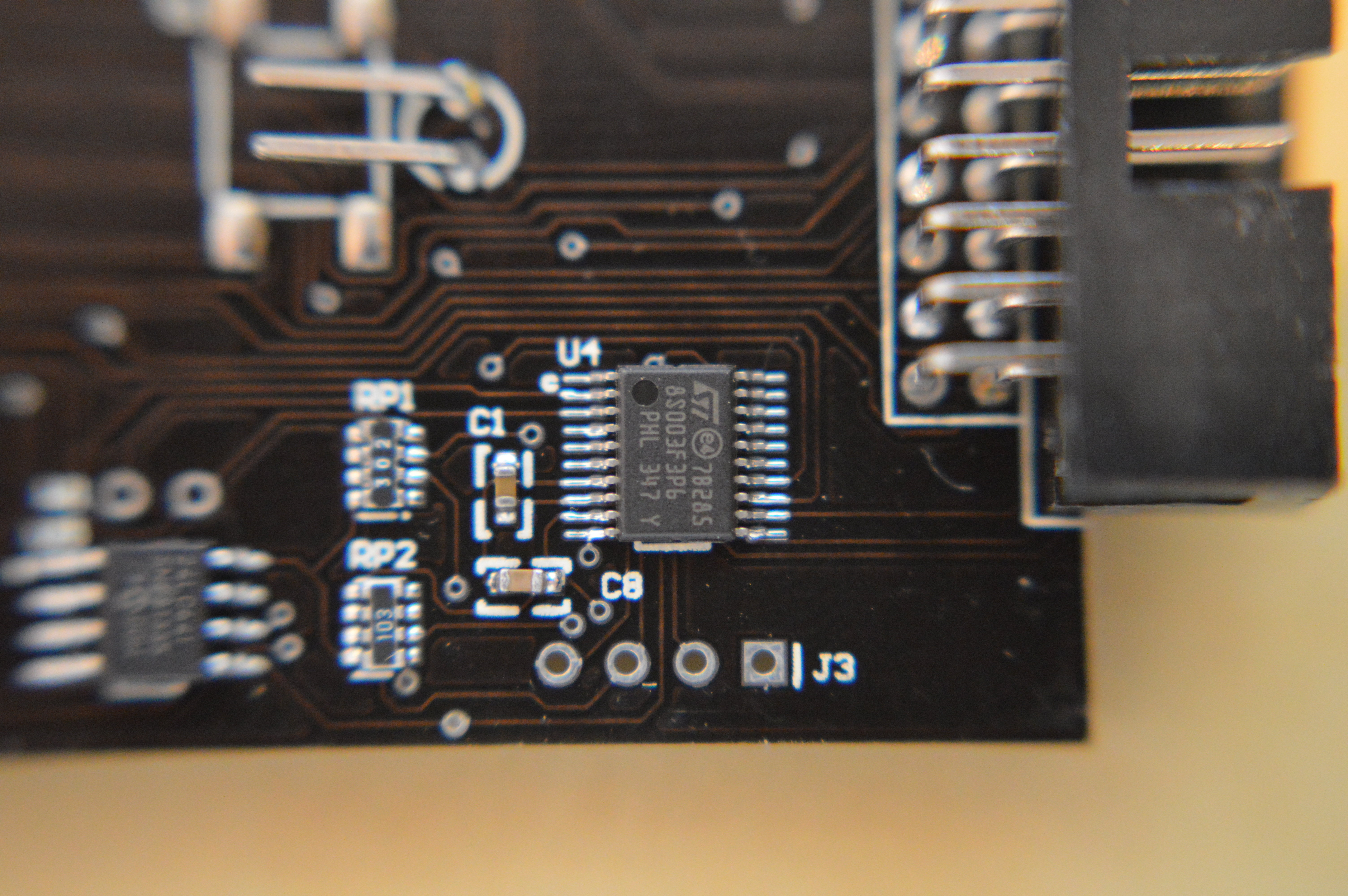

Auxiliary 8051 chip: ST STM8S003F3 (used for handling the button)

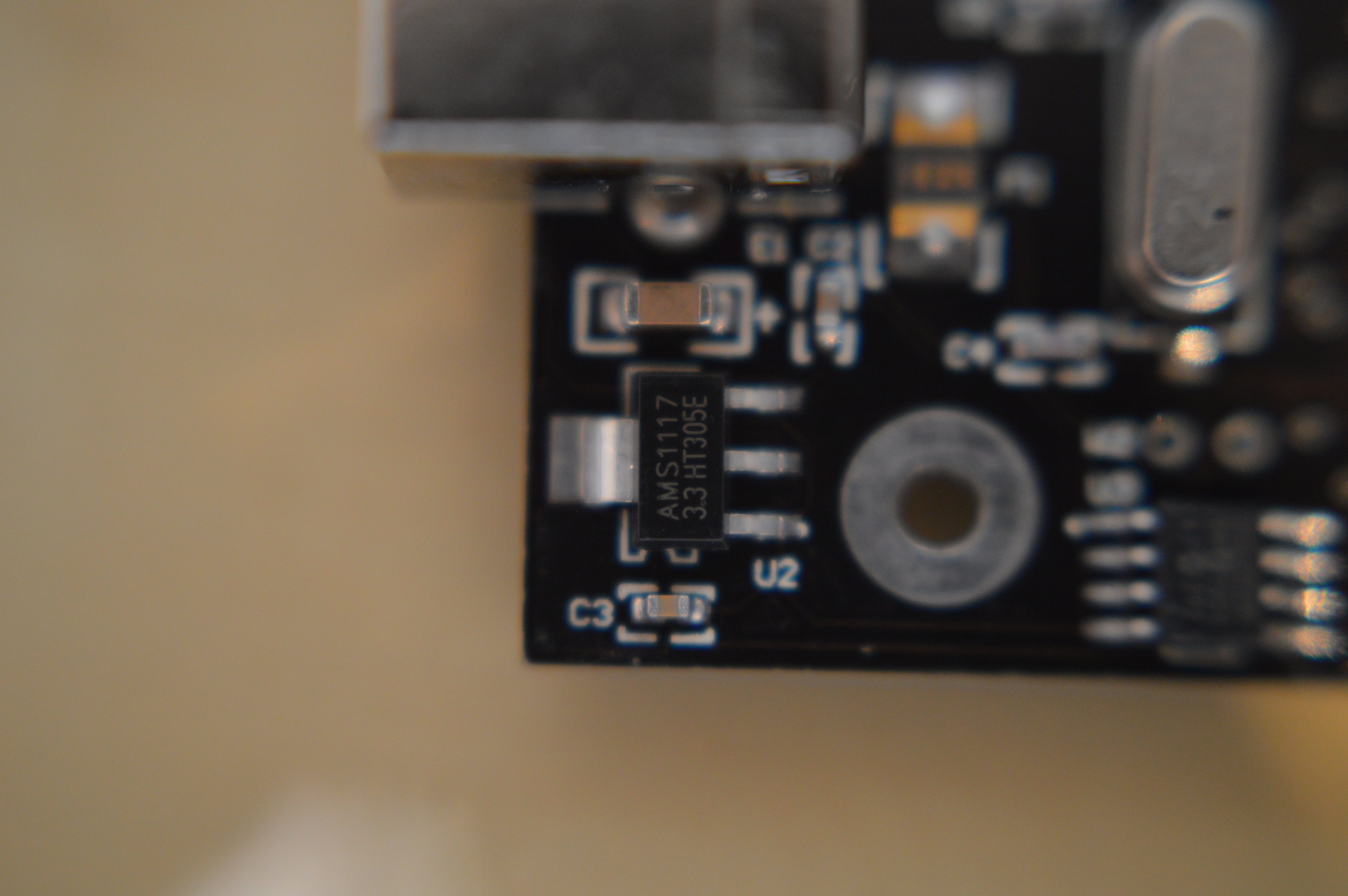

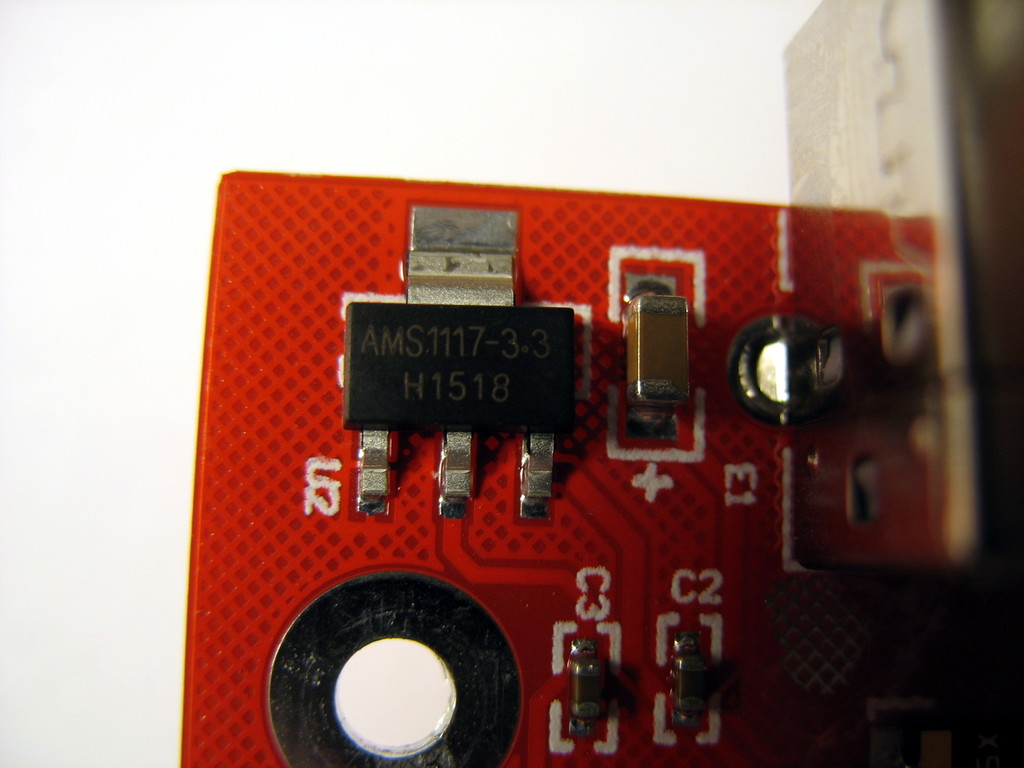

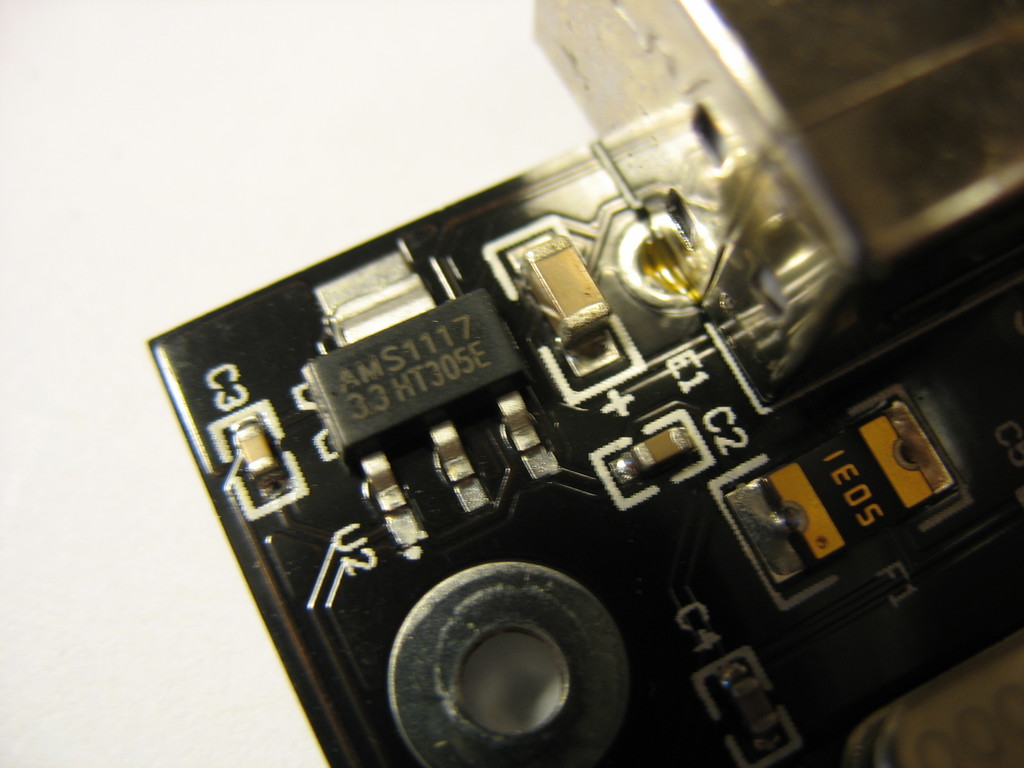

Supply voltage regulator: Advanced Monolithic Systems AMS1117-3.3

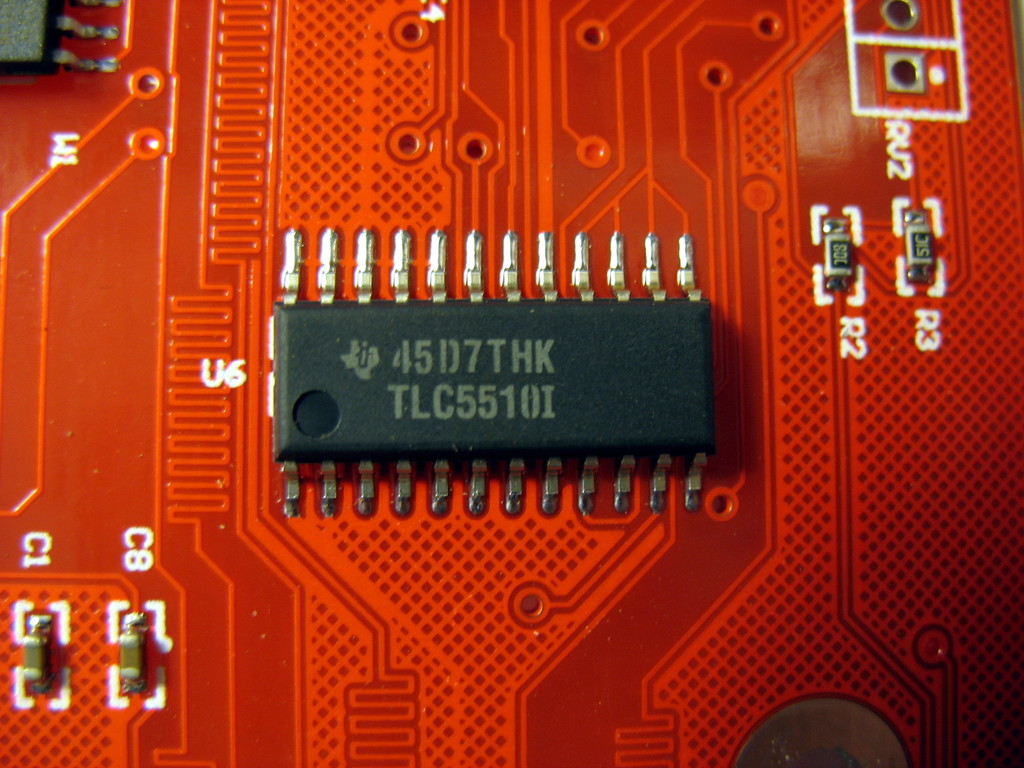

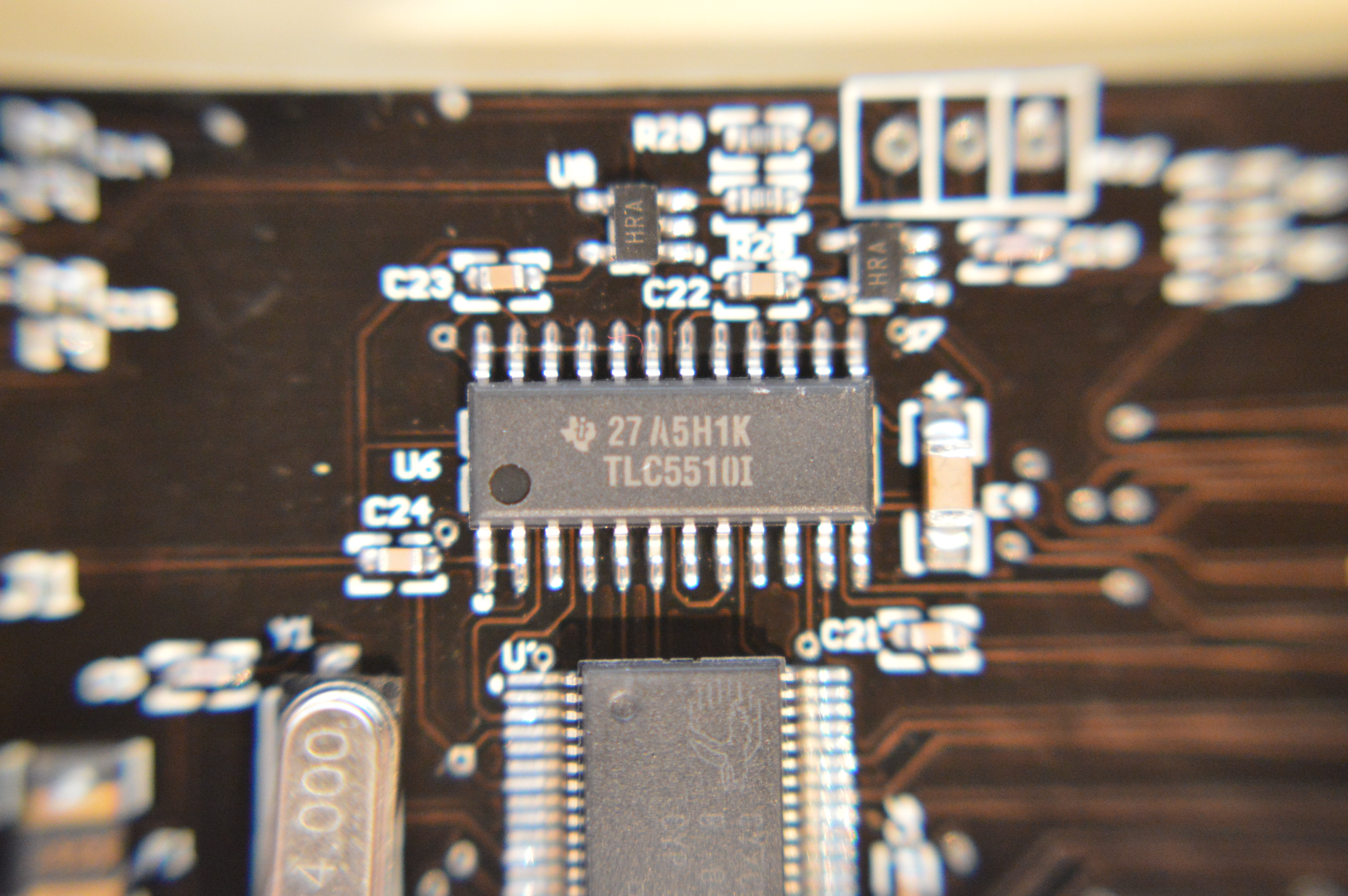

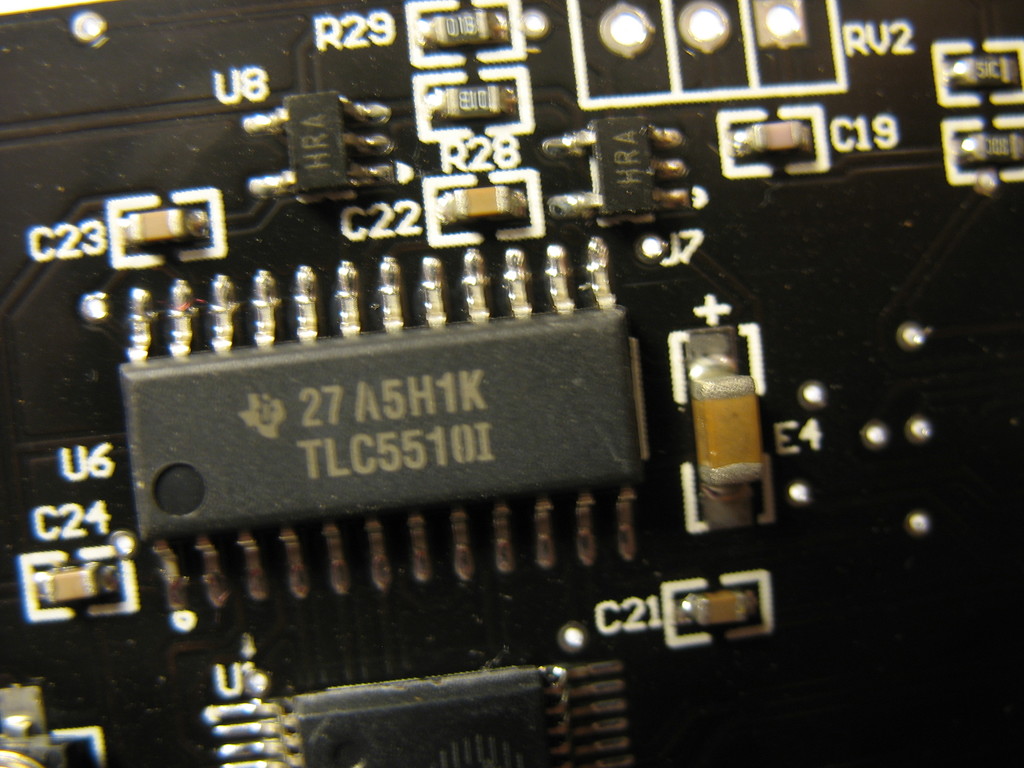

Analog-to-digital converter: Texas Instruments TLC5510I

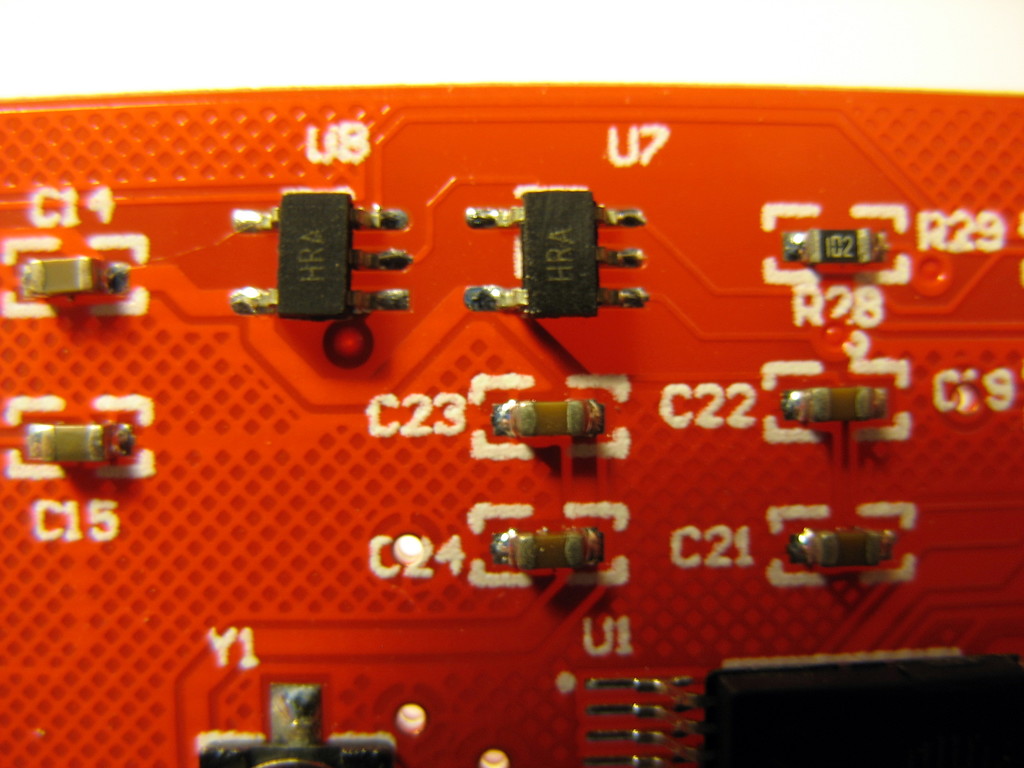

Analog input amplifiers: Analog Devices AD8065 (SMD marking "HRA")

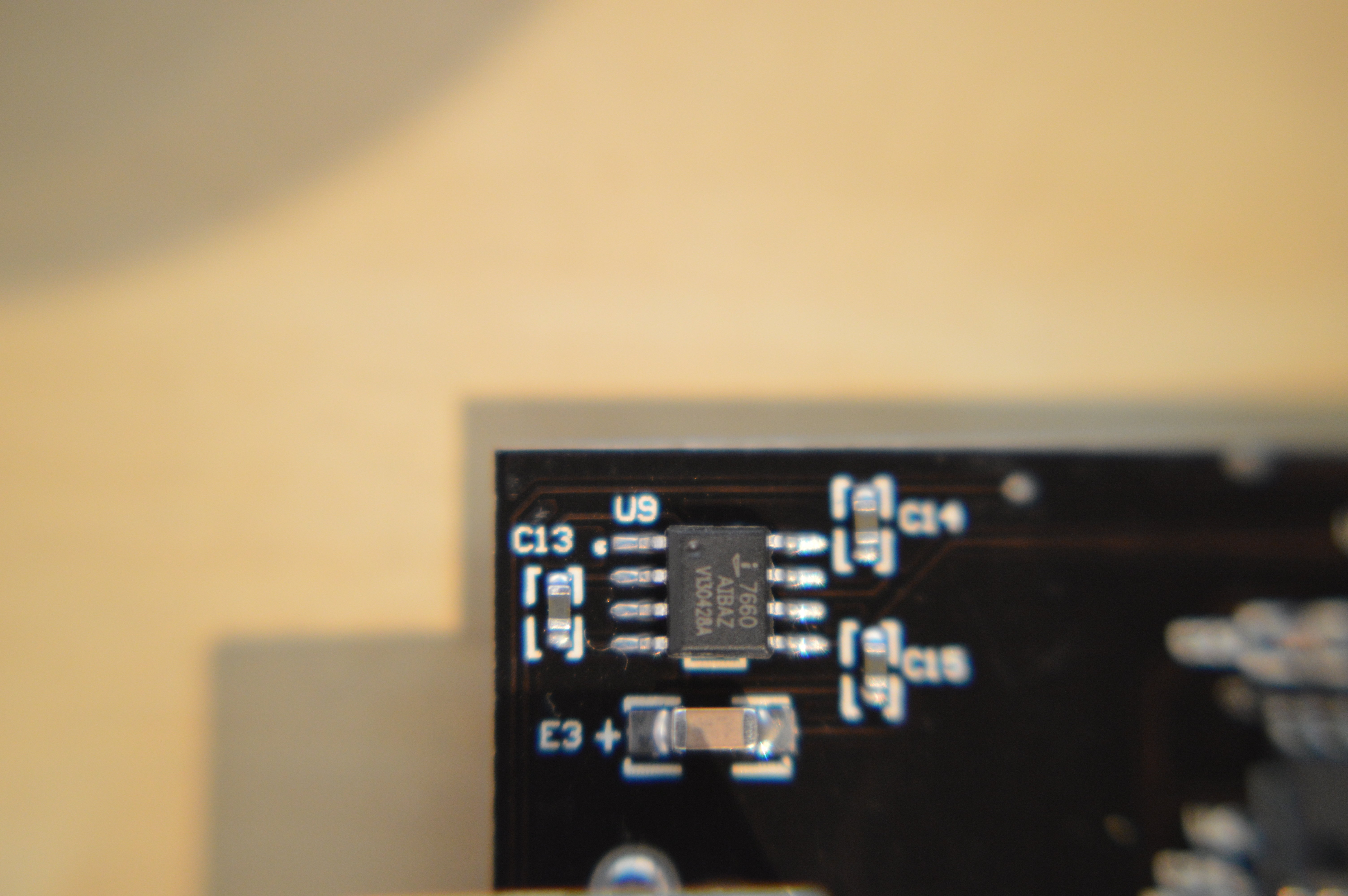

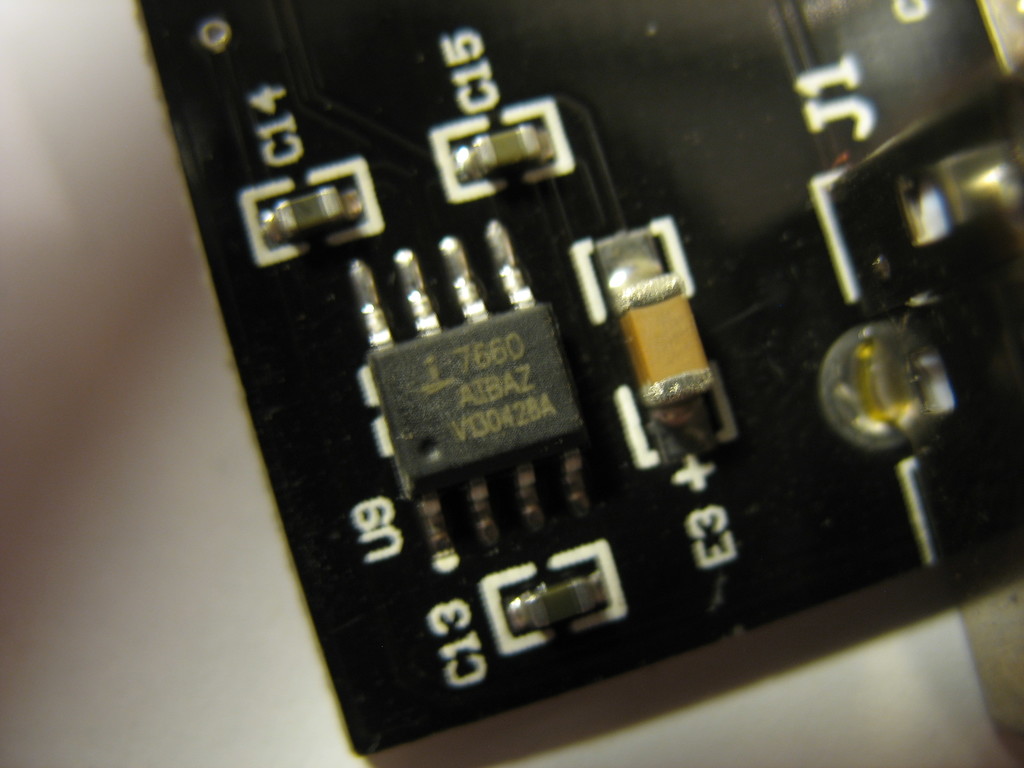

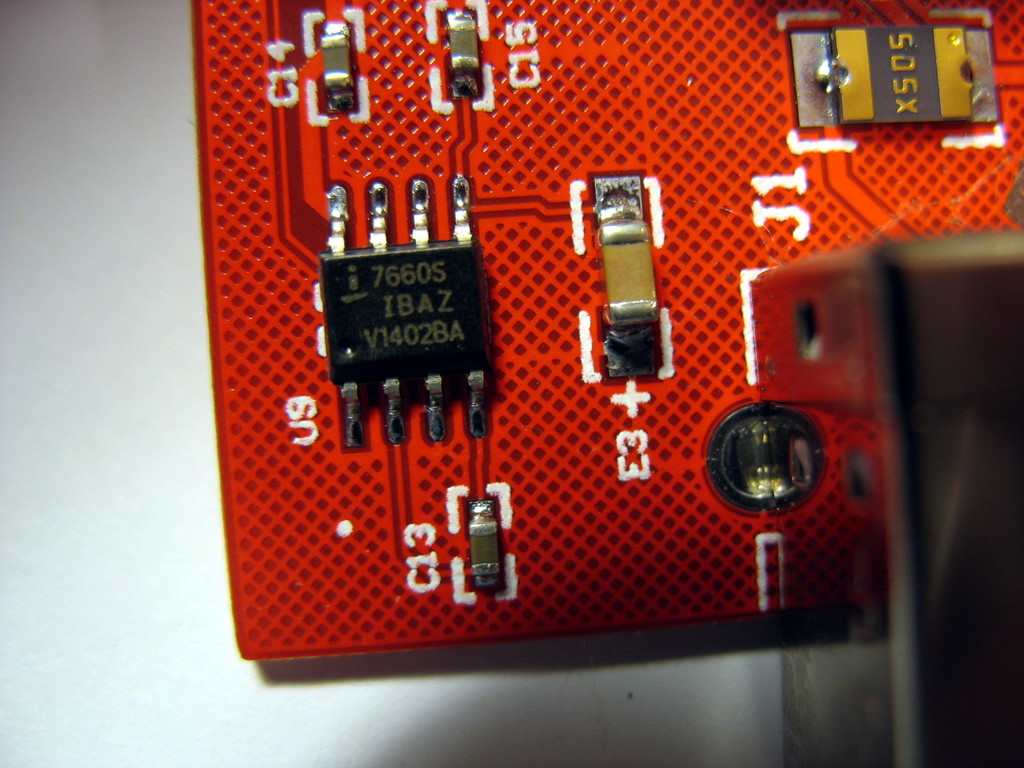

Analog amplifiers negative supply: Intersil ICL7660 (7660 AIBAZ V120428A)

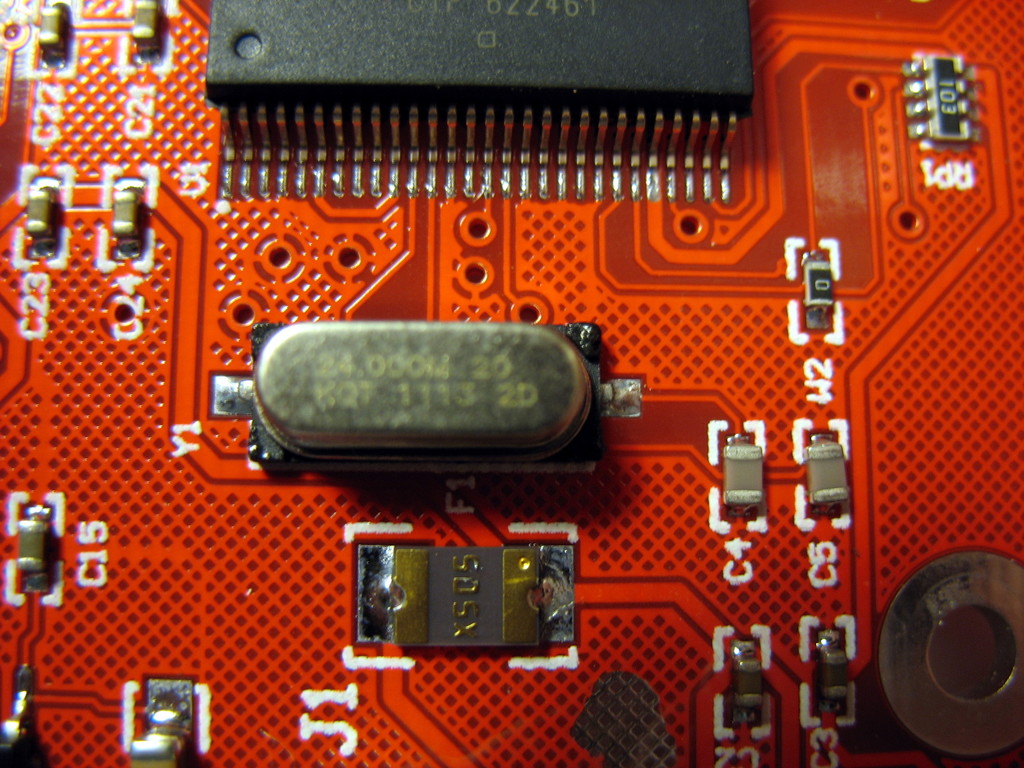

Crystal: 24MHz

FX2LP pin mappings¶

#	Pin	Destination	Remark
	CTL2	ADC_CLK	ADC clock
	PD0..7	ADC_D1..8	ADC data output

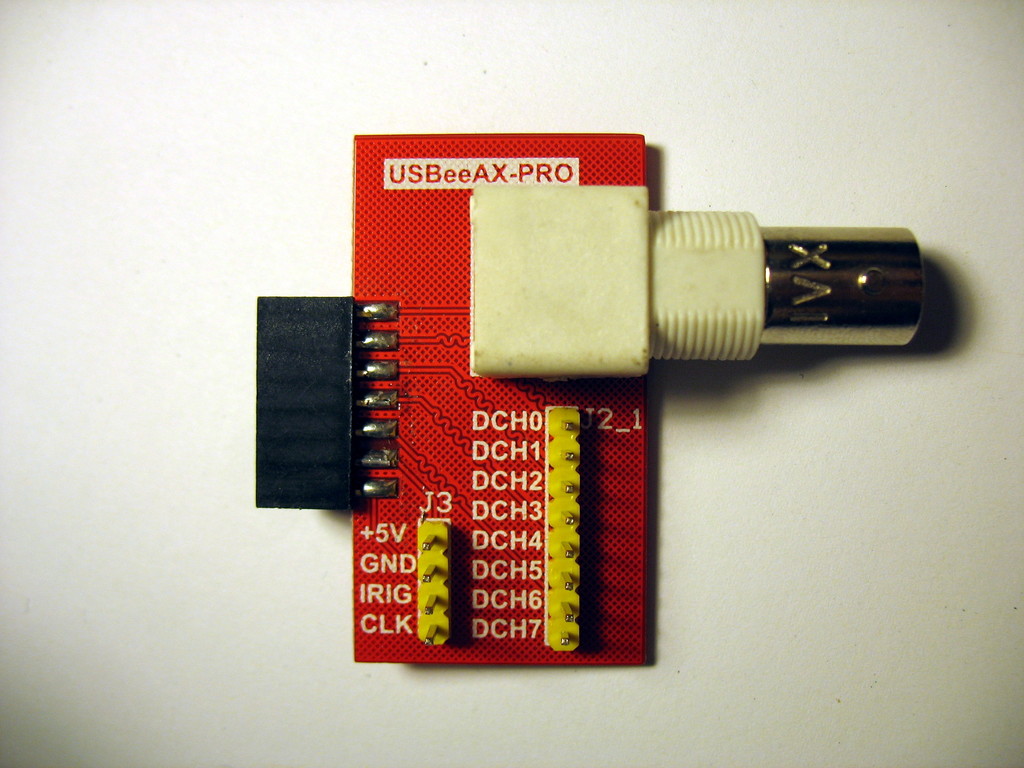

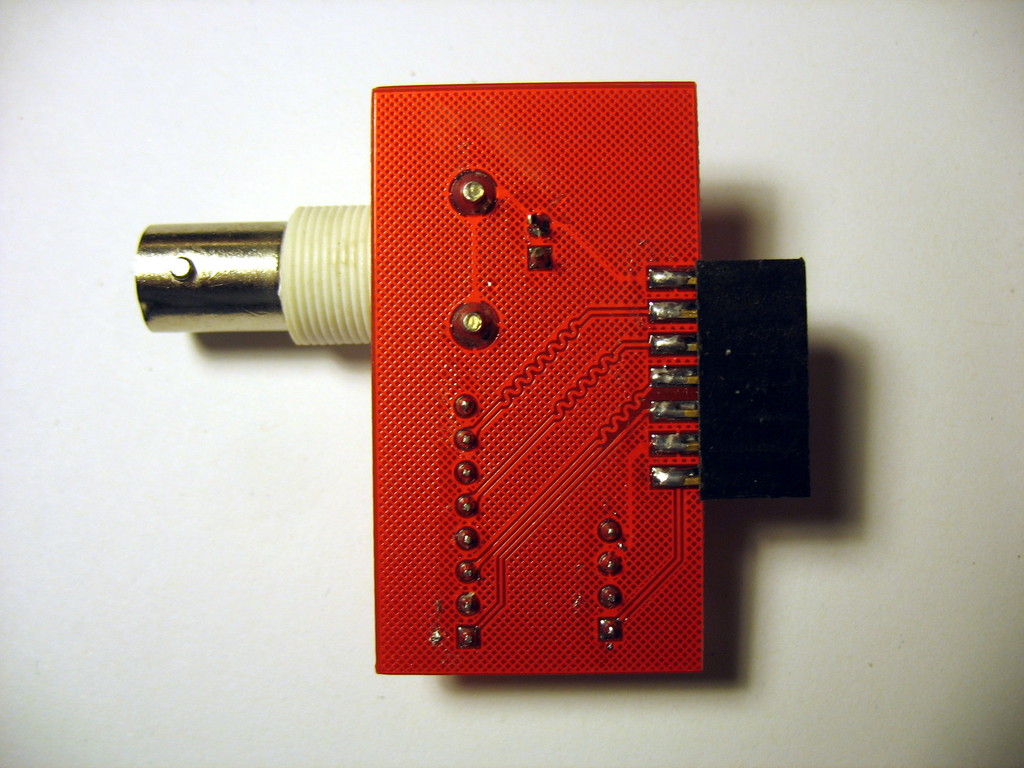

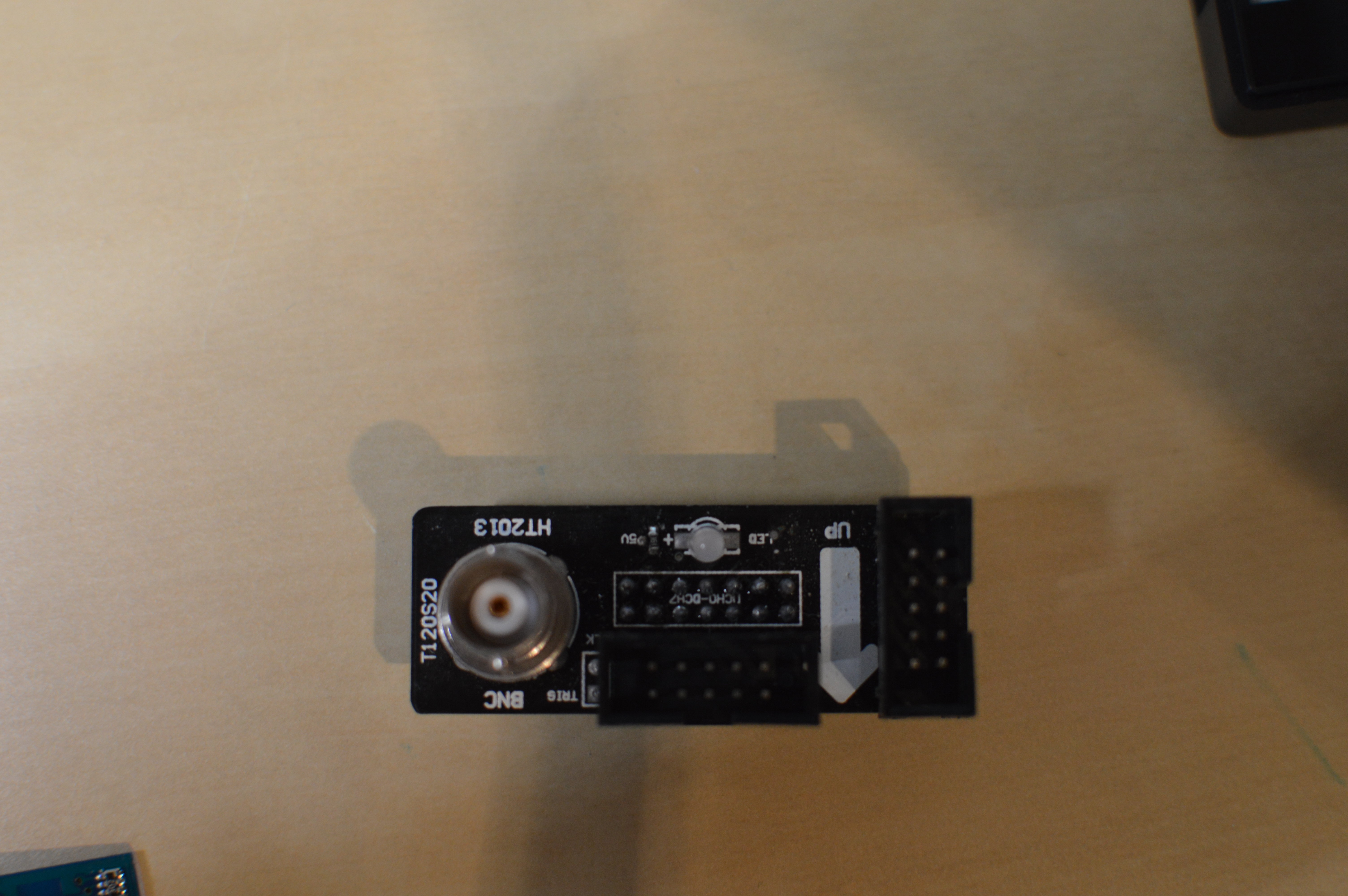

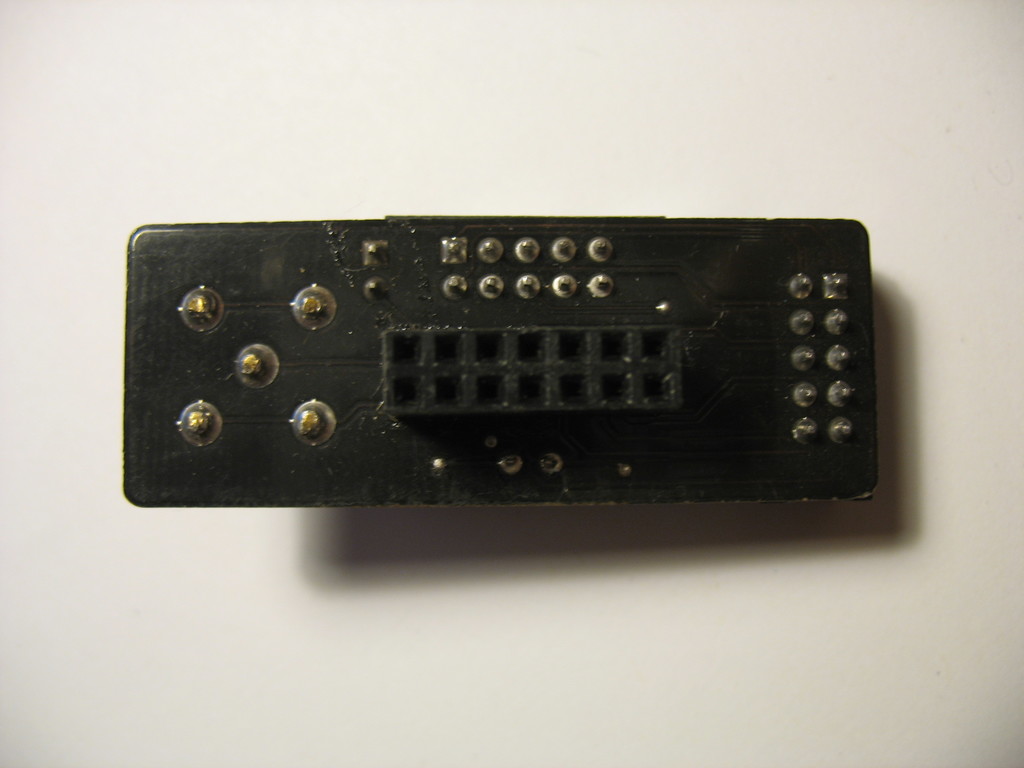

Analog frontend¶

Schematics:

Notes:

Some devices have R2 = 66.5Ω (instead of 66.5kΩ), this basically limits the range to -3.3V — +3.3V.
TLC5510 is used with ~3.3V "reference" from LDO output which is both out of the allowed range and is a major source of inaccuracy.
Some devices (probably those that do not have U5 populated) produce bogus min and max spikes when measuring certain voltages, this can probably be remedied by adding small (on the order of 10s pF) capacitance to U5 Vcc and GND pins or to the ADC CLK line.

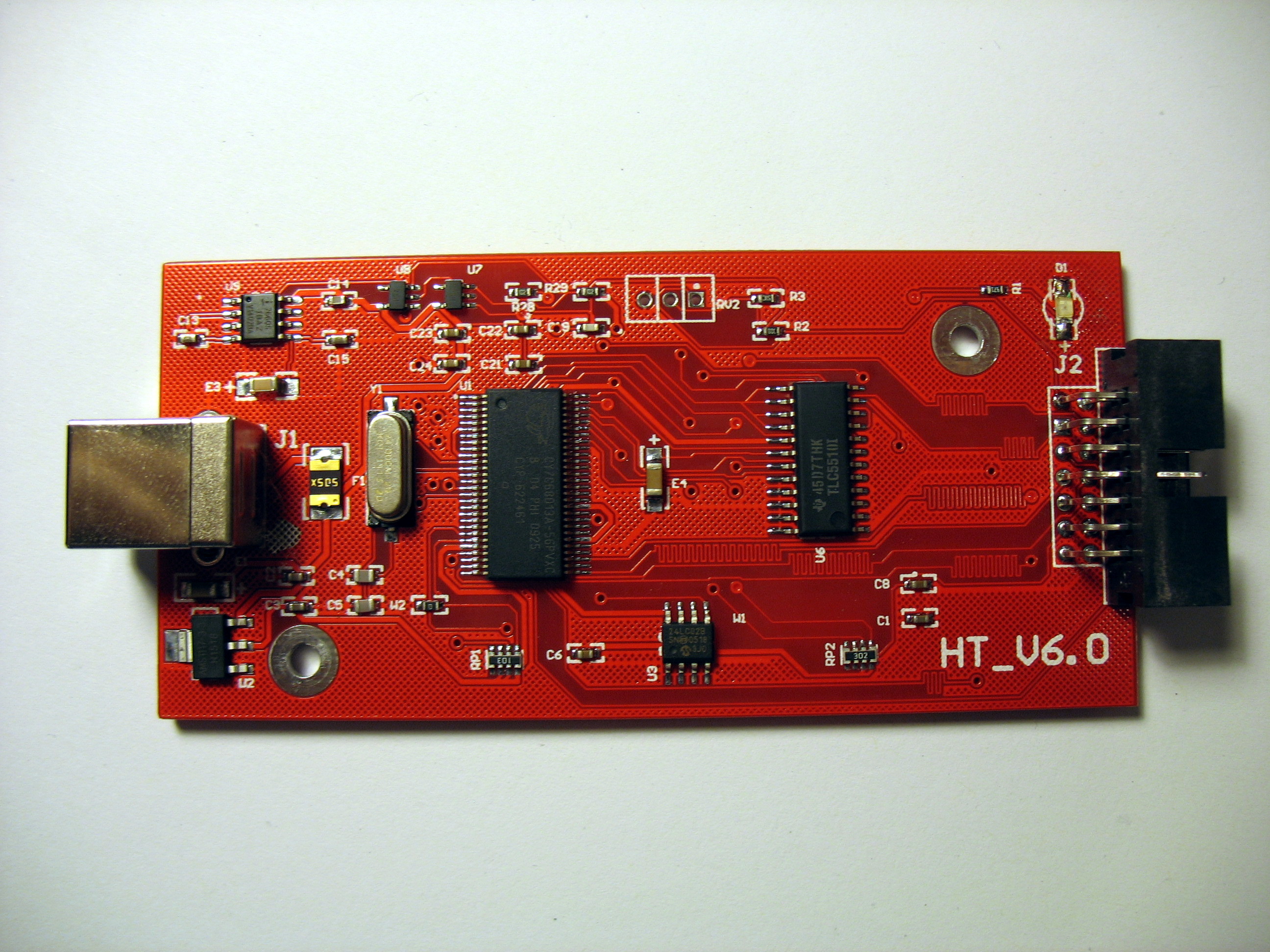

HT_V6.0:
