ZEROPLUS Logic Cube LAP-C(16032)

ZEROPLUS Logic Cube LAP-C(16032)

ZEROPLUS Logic Cube LAP-C(16032)
Status supported
Source code zeroplus-logic-cube
Channels 16
Samplerate 100MHz
Samplerate (state) 100MHz
Triggers pattern, edge
Min/max voltage -6V — +6V
Memory 32Kbits/channel
Compression yes ("max 8Mbits")
Website zeroplus.com.tw

The ZEROPLUS Logic Cube LAP-C(16032) is a USB-based, 16-channel logic analyzer with up to 100MHz samplerate.

See ZEROPLUS Logic Cube LAP-C(16032)/Info for some more details (such as lsusb -v output) on the device.

See ZEROPLUS Logic Cube LAP-C series for information common to all devices in this series.

Hardware

  • Cypress CY7C1347G-250AXC (4Mbit pipelined sync SRAM, 250MHz)

See ZEROPLUS_Logic_Cube_LAP-C_series#Hardware for the hardware parts that are common to all devices in this series.

Photos

Zeroplus Logic Cube Lapc 16032 Pcb Back Zeroplus Logic Cube Lapc 16032 Pcb Back

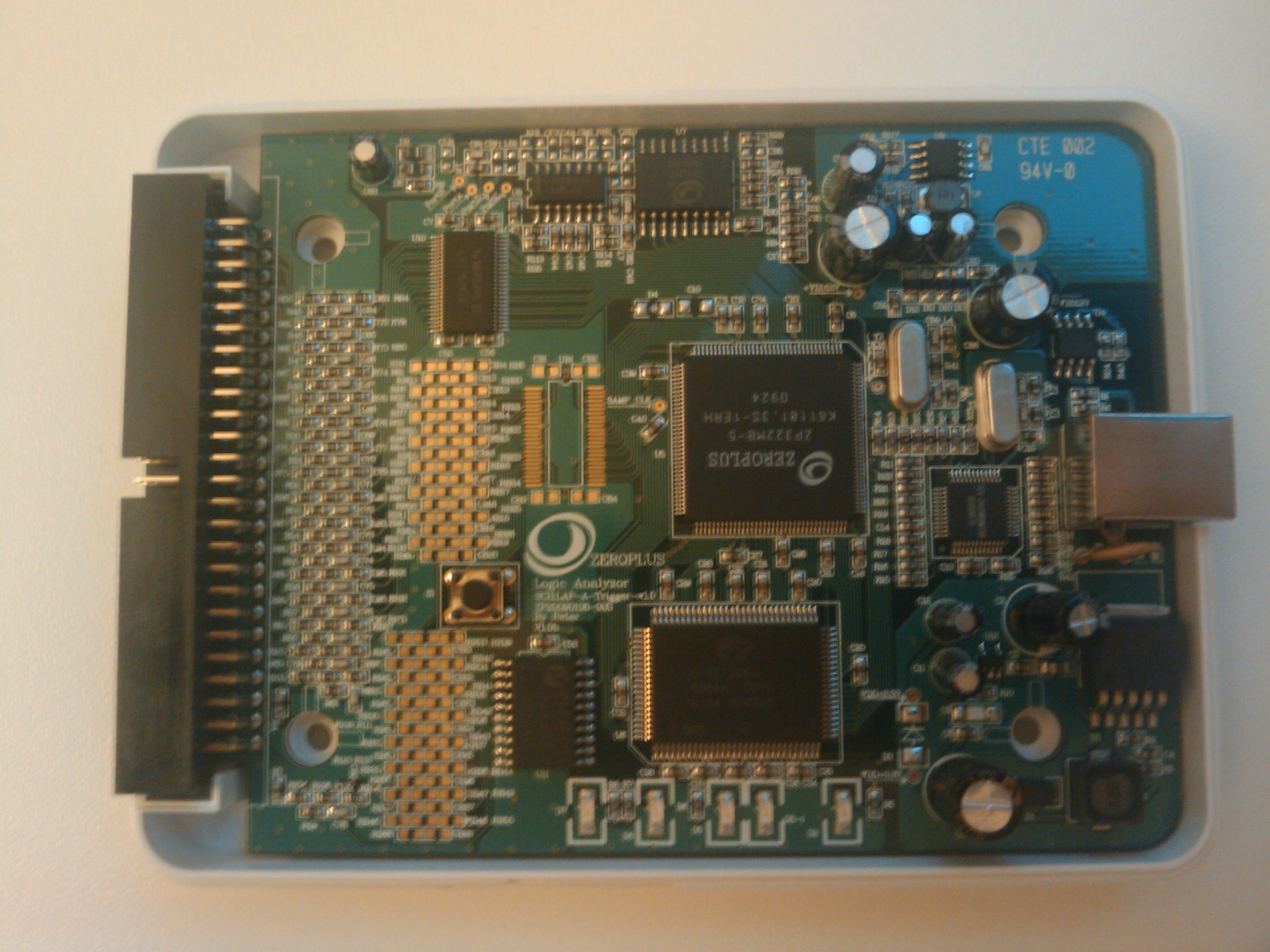

Zeroplus Pcb Zeroplus Pcb

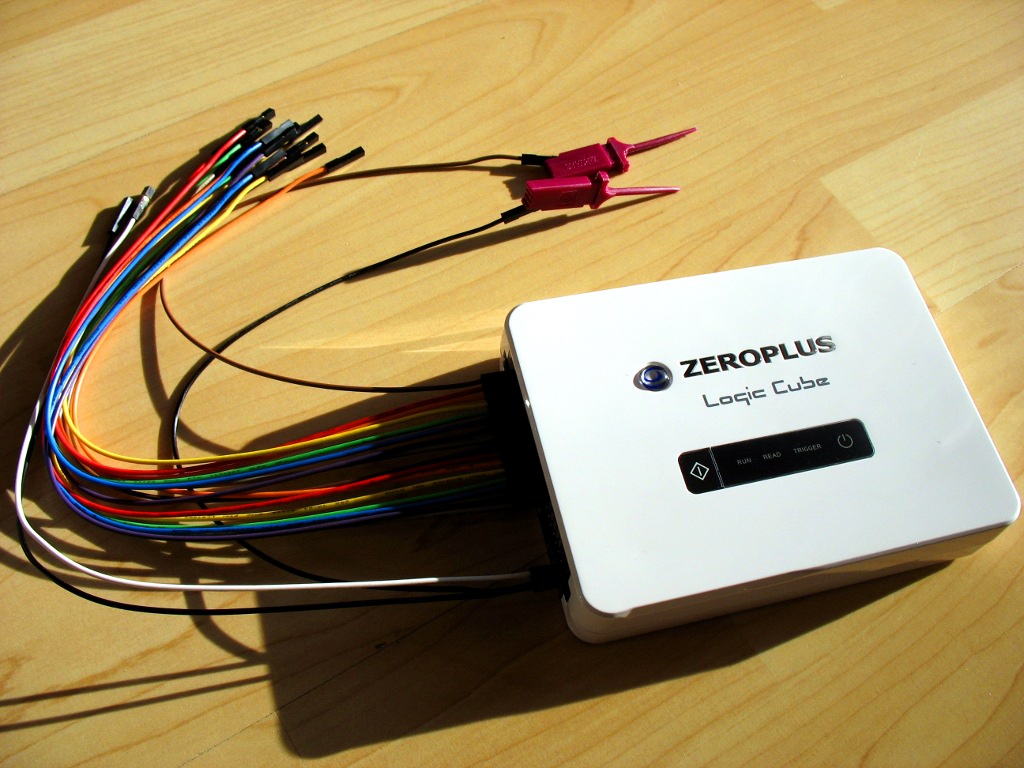

Zeroplus Logic Cube Lapc 16032 Probes Zeroplus Logic Cube Lapc 16032 Probes

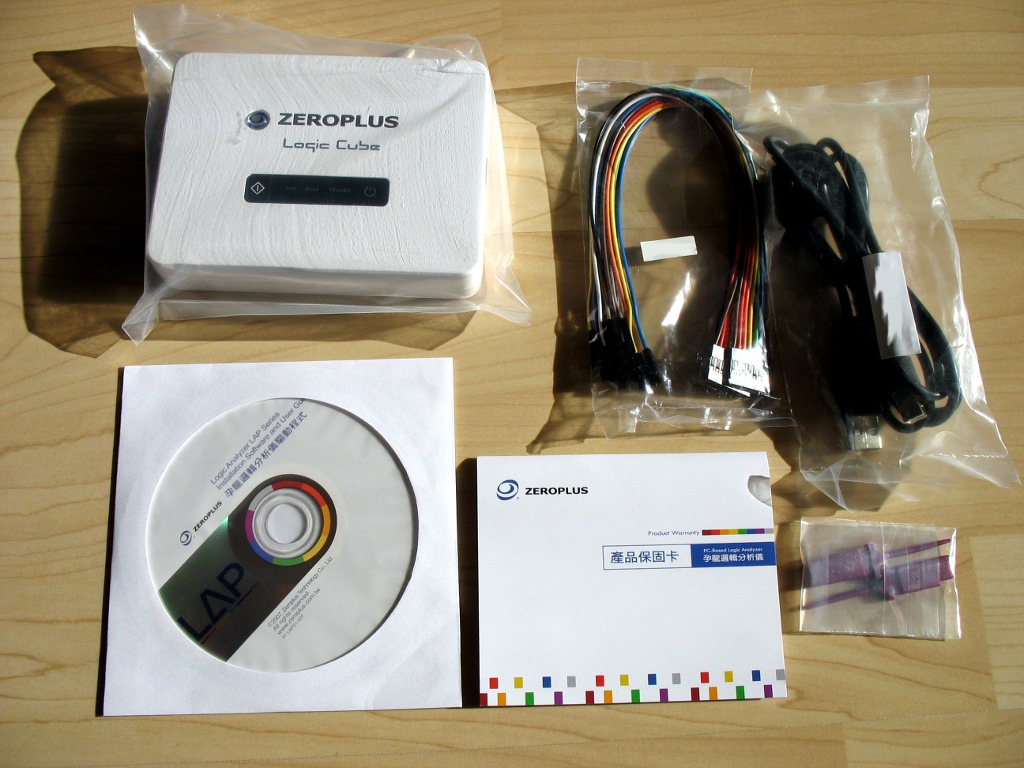

Zeroplus Logic Cube Lapc 16032 Stuff Zeroplus Logic Cube Lapc 16032 Stuff

Zeroplus Logic Cube Lapc 16032 Packaging Back Zeroplus Logic Cube Lapc 16032 Packaging Back

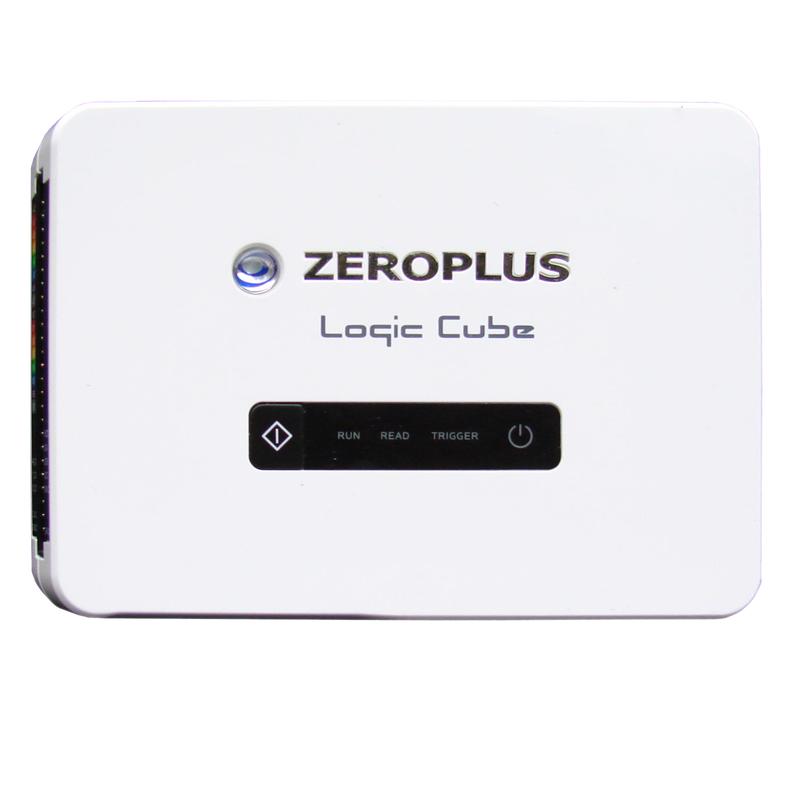

Zeroplus Logic Cube Zeroplus Logic Cube

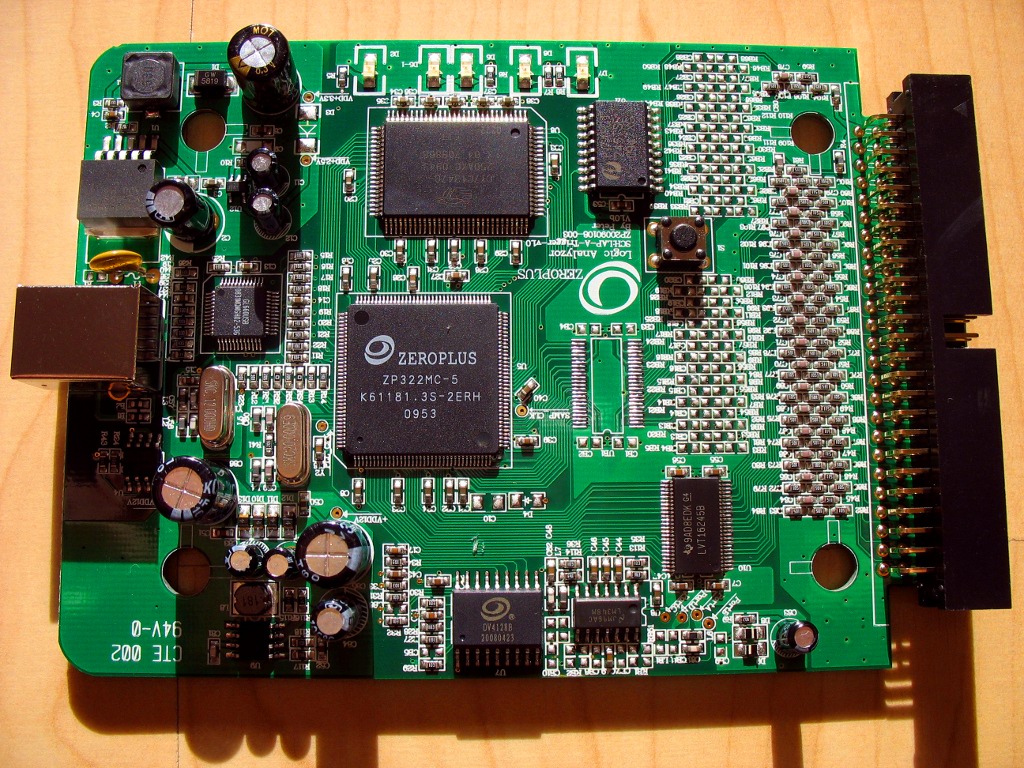

Zeroplus Logic Cube Lapc 16032 Pcb Front Zeroplus Logic Cube Lapc 16032 Pcb Front

Zeroplus Logic Cube Zeroplus Logic Cube

Zeroplus Logic Cube Lapc 16032 Packaging Front Zeroplus Logic Cube Lapc 16032 Packaging Front

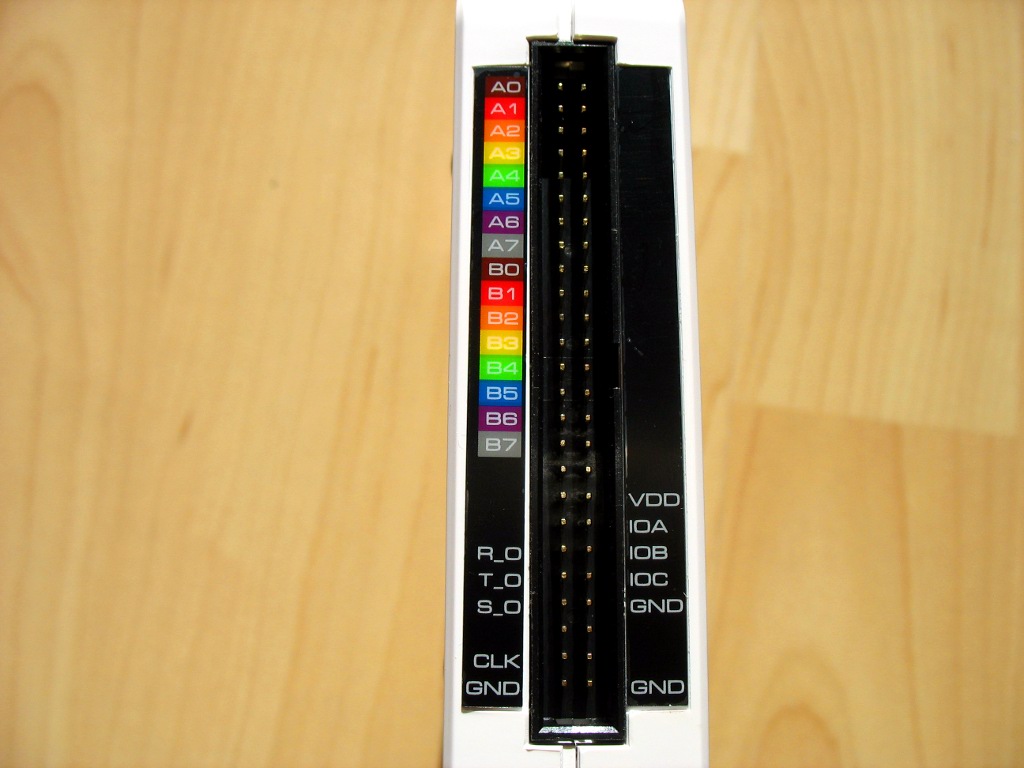

Zeroplus Logic Cube Lapc 16032 Pins Zeroplus Logic Cube Lapc 16032 Pins

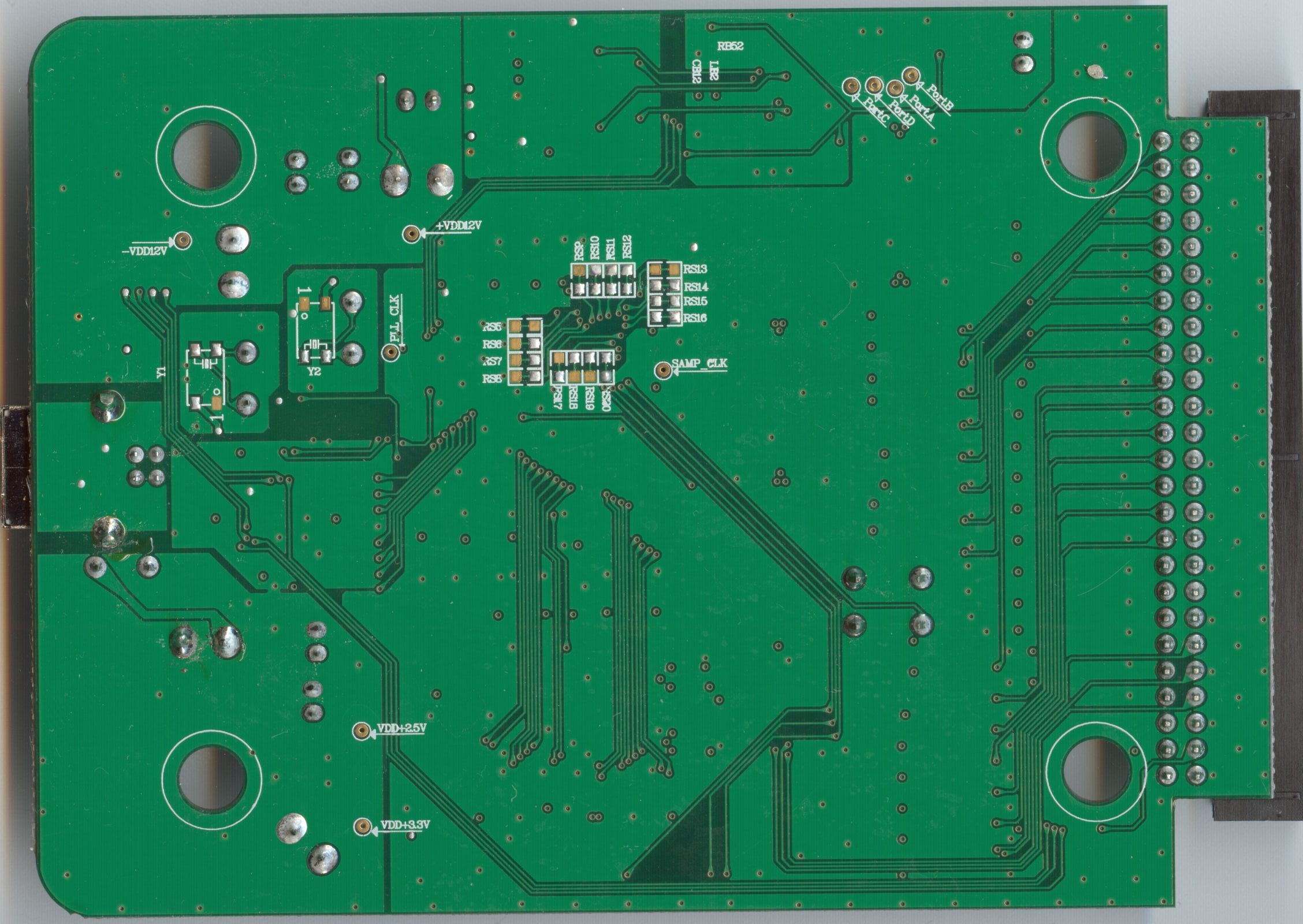

Zeroplus Lapc16032 Highres Bottom Zeroplus Lapc16032 Highres Bottom

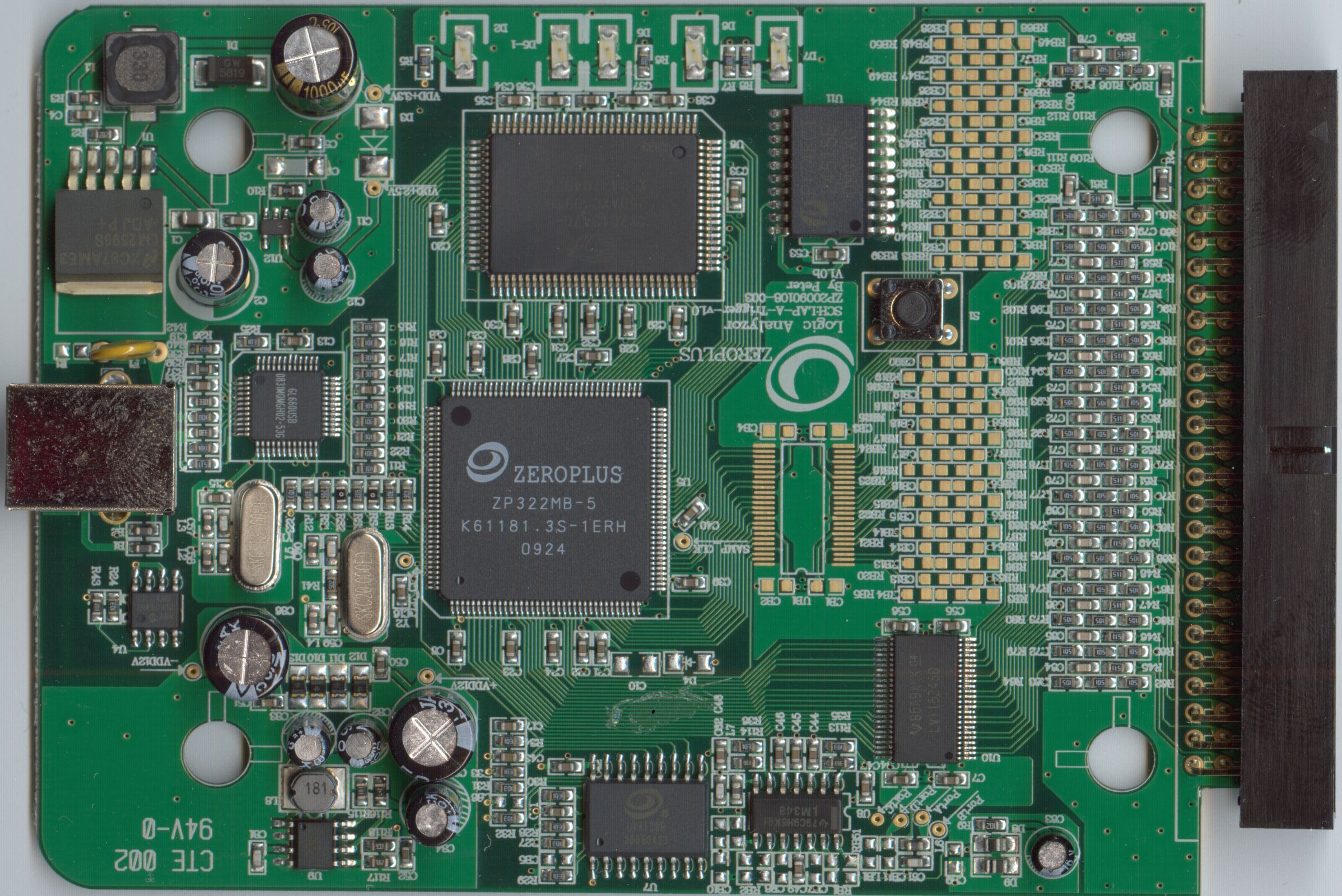

Zeroplus Lapc16032 Highres Top Zeroplus Lapc16032 Highres Top

Protocol

See ZEROPLUS_Logic_Cube_LAP-C_series#Protocol.
