ZEROPLUS LAP-16128U¶
ZEROPLUS LAP-16128U¶
| Status | supported |
| Source code | zeroplus-logic-cube |
| Channels | 16 |
| Samplerate | 200MHz |
| Samplerate (state) | 100MHz |
| Triggers | pattern, edge |
| Min/max voltage | -6V — +6V |
| Memory | 128Kbits/channel |
| Compression | yes ("max 32Mbits") |
| Website | zeroplus.com.tw |
The ZEROPLUS LAP-16128U is a USB-based, 16-channel logic analyzer with up to 200MHz sampling rate.
See ZEROPLUS LAP-16128U/Info for more details (such as lsusb -v output) about the device.
See ZEROPLUS Logic Cube LAP-C series for information common to all devices in this series.
Hardware¶
- Cypress CY7C1347G-250AXC (4Mbit pipelined sync SRAM, 250MHz)
See ZEROPLUS_Logic_Cube_LAP-C_series#Hardware for the hardware parts that are common to all devices in this series.
Photos¶
Zeroplus Lap16128u Ti Lvt16245b

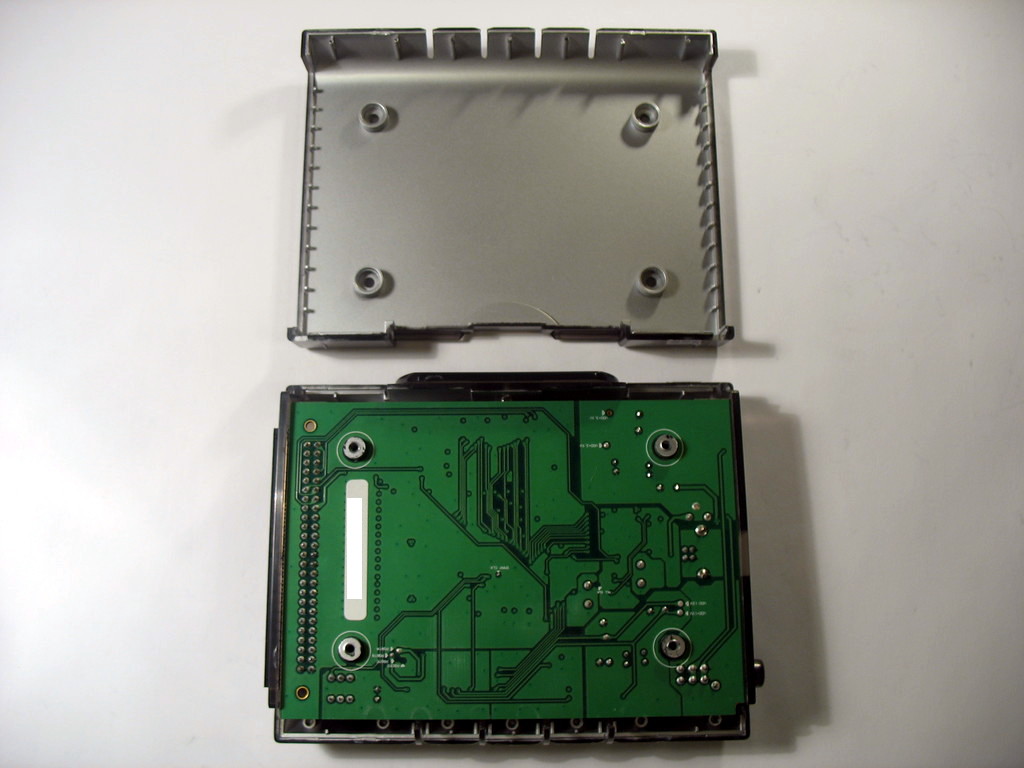

Zeroplus Lap16128u Device Open1

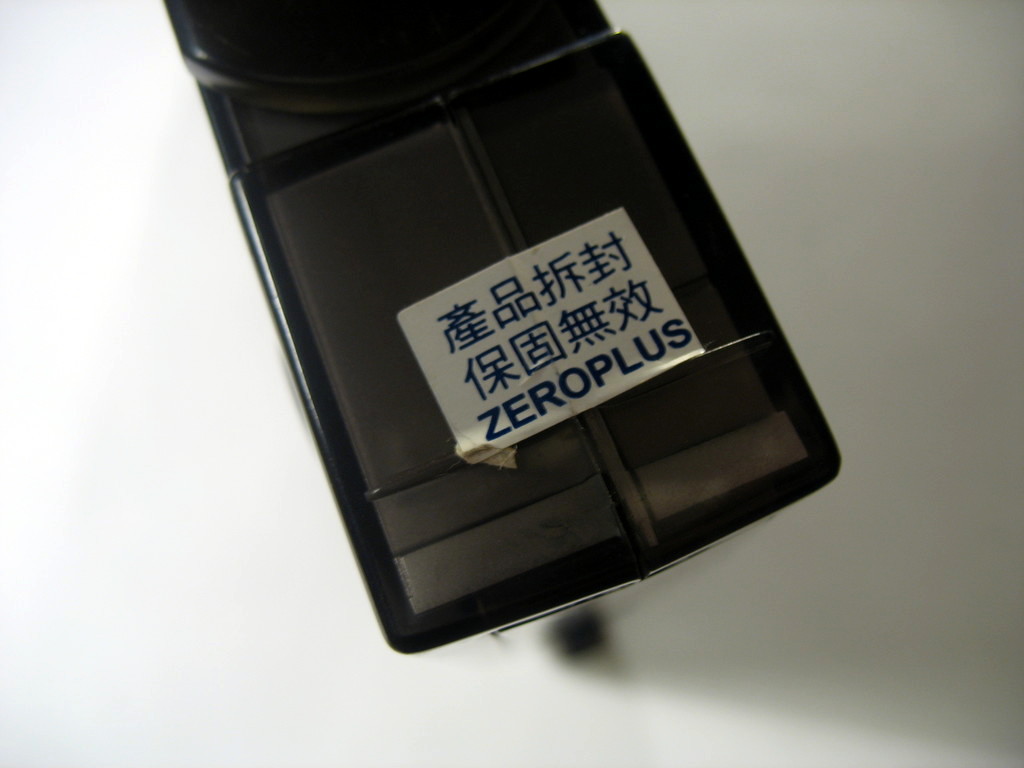

Zeroplus Lap16128u Device Bottom

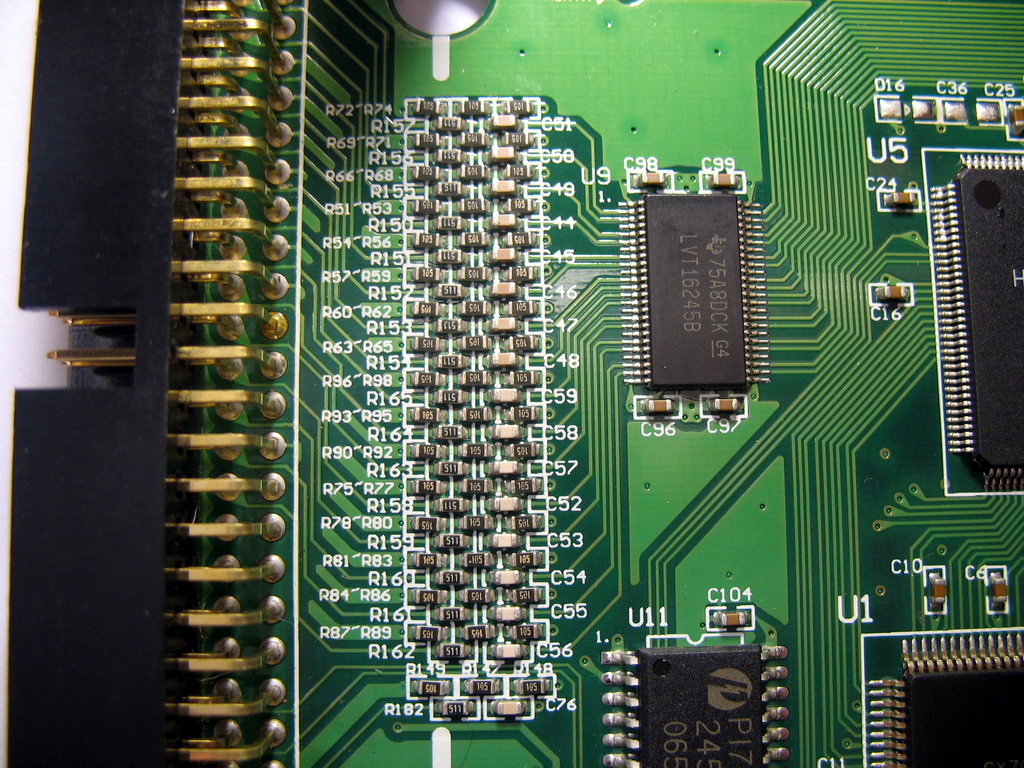

Zeroplus Lap16128u Input Protection

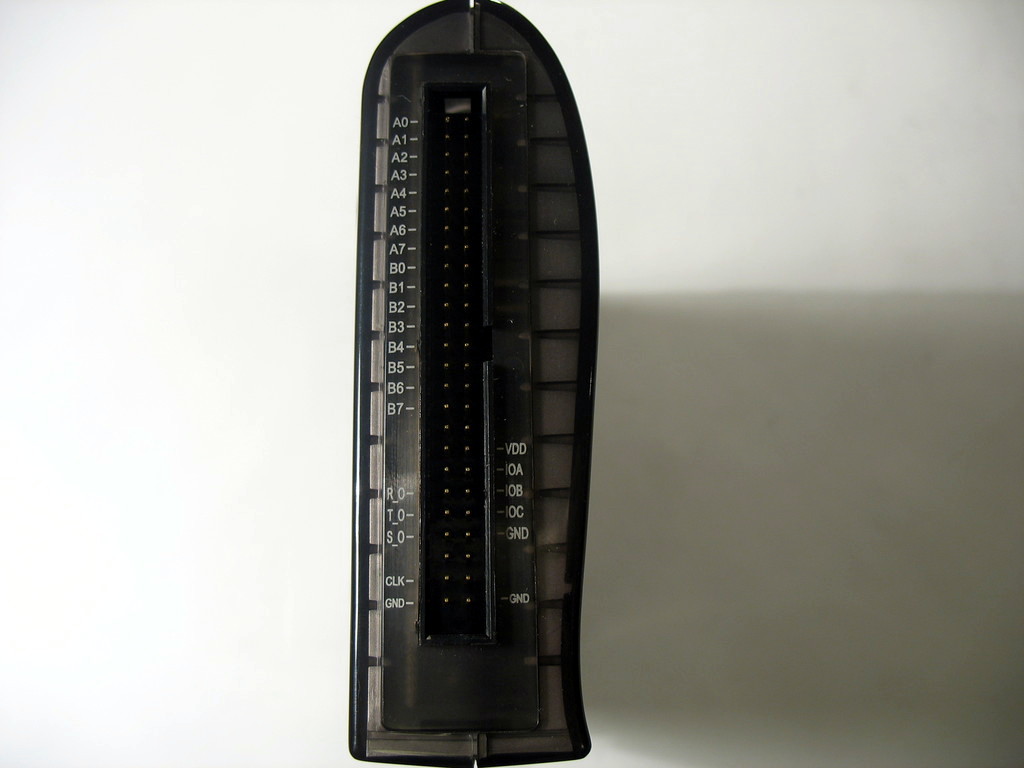

Zeroplus Lap16128u Device Connector

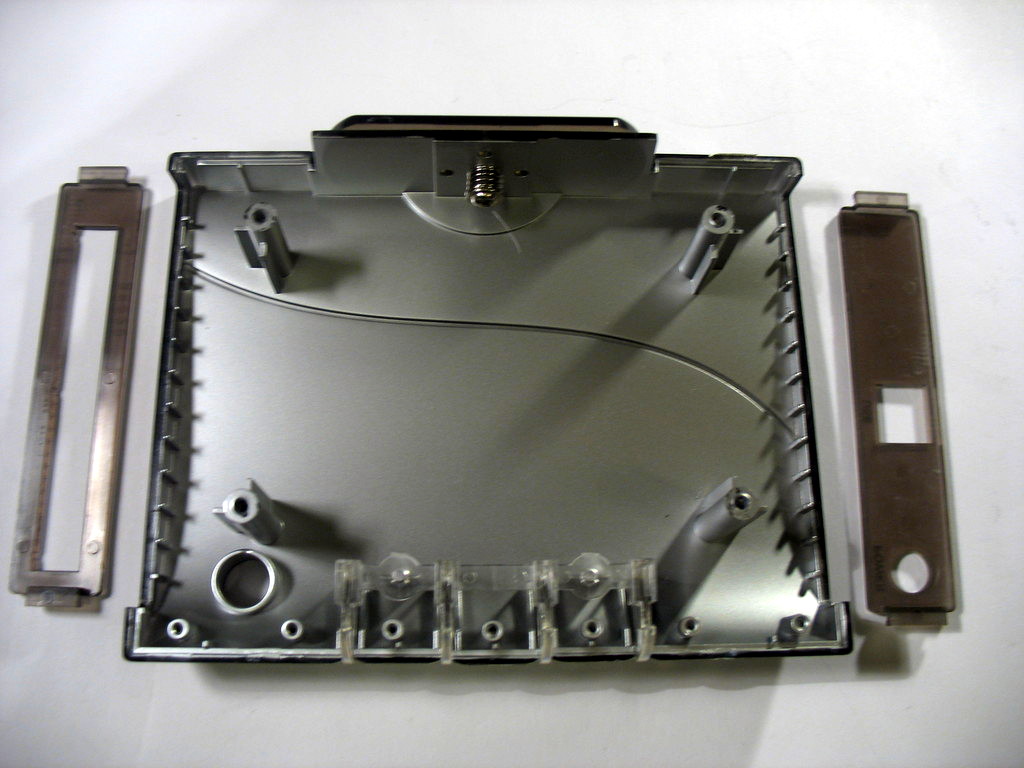

Zeroplus Lap16128u Device Open2

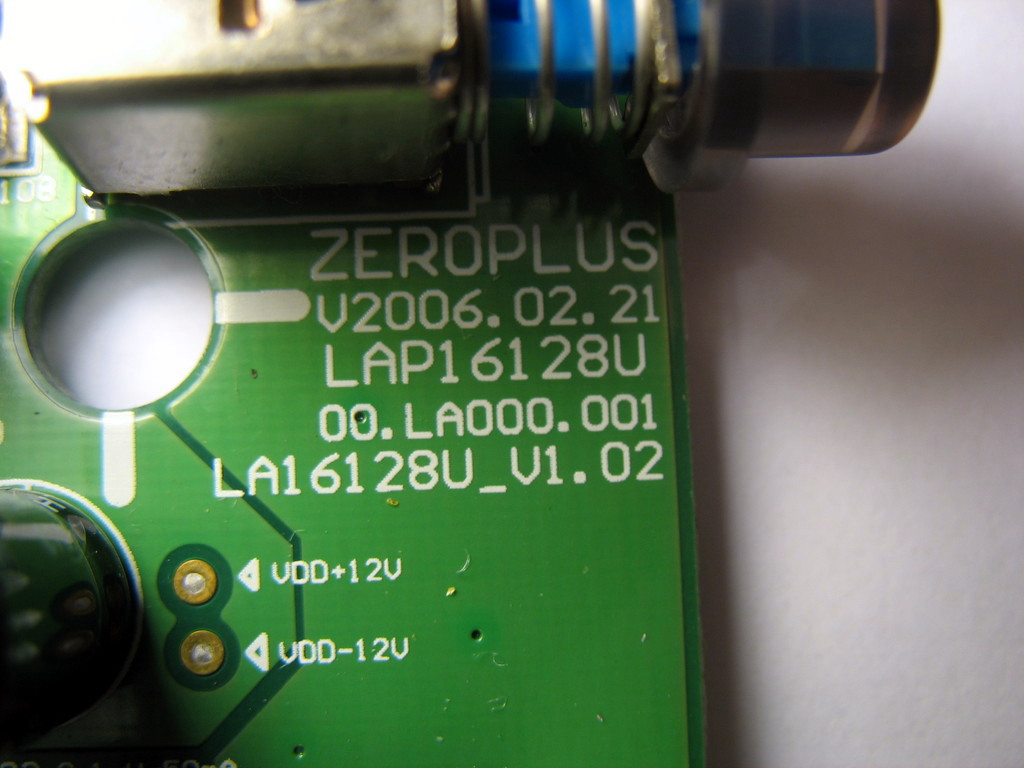

Zeroplus Lap16128u Pcb Markings

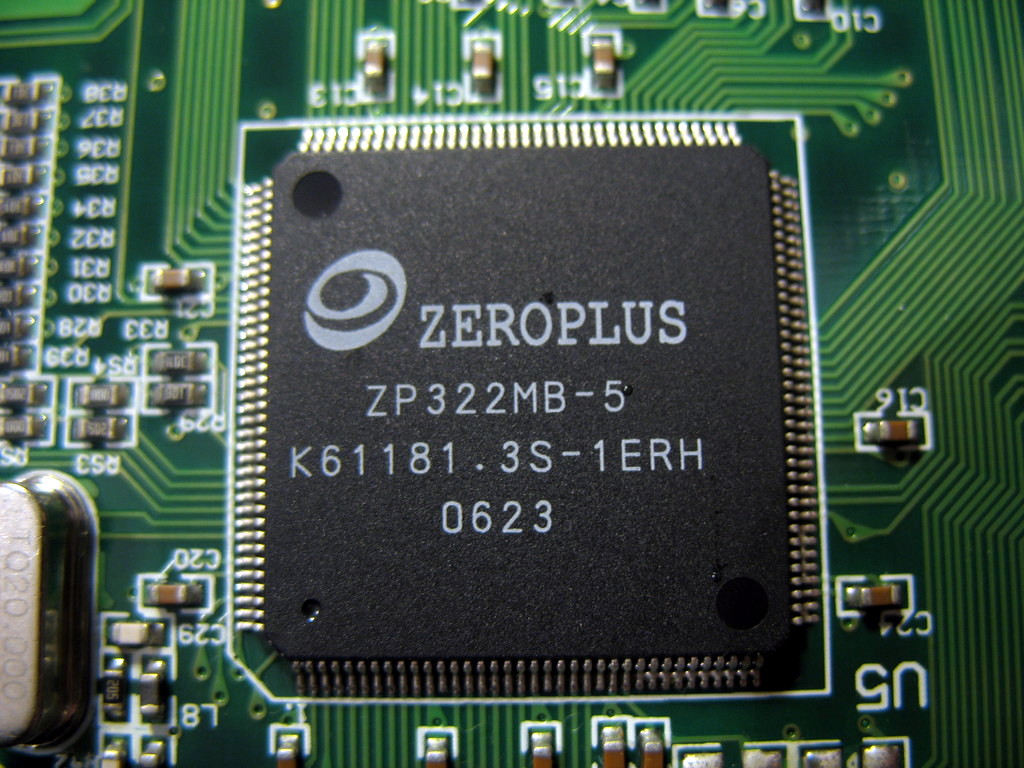

Zeroplus Lap16128u Zeroplus Tp322mb 5

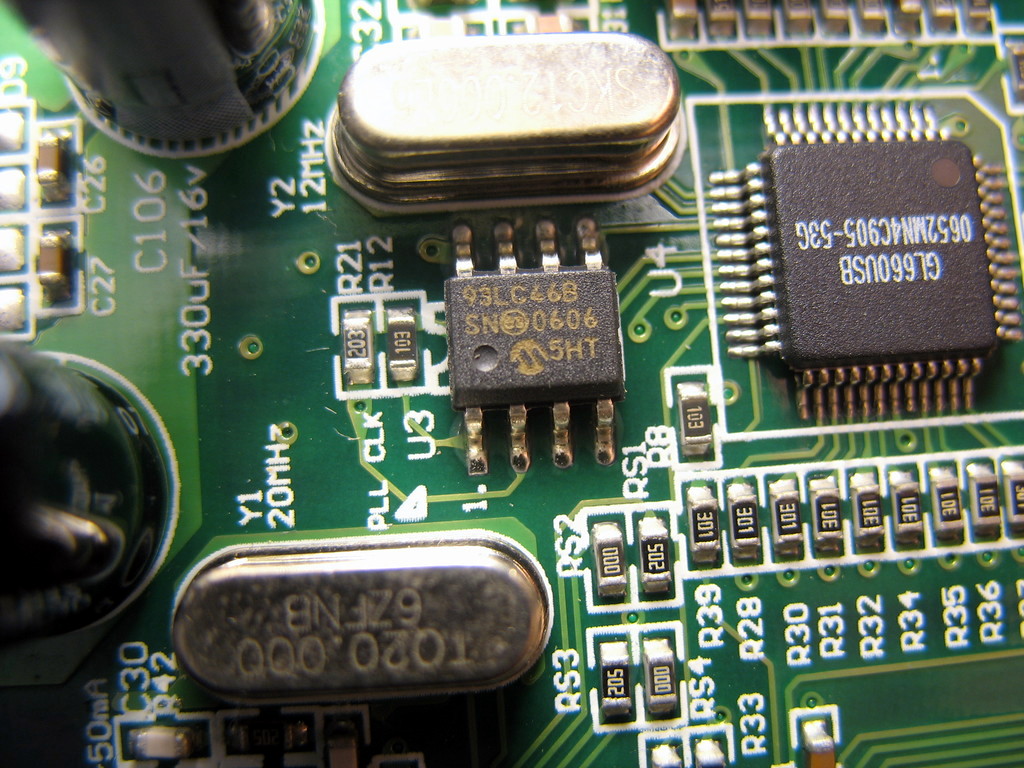

Zeroplus Lap16128u Microchip 93lc46b

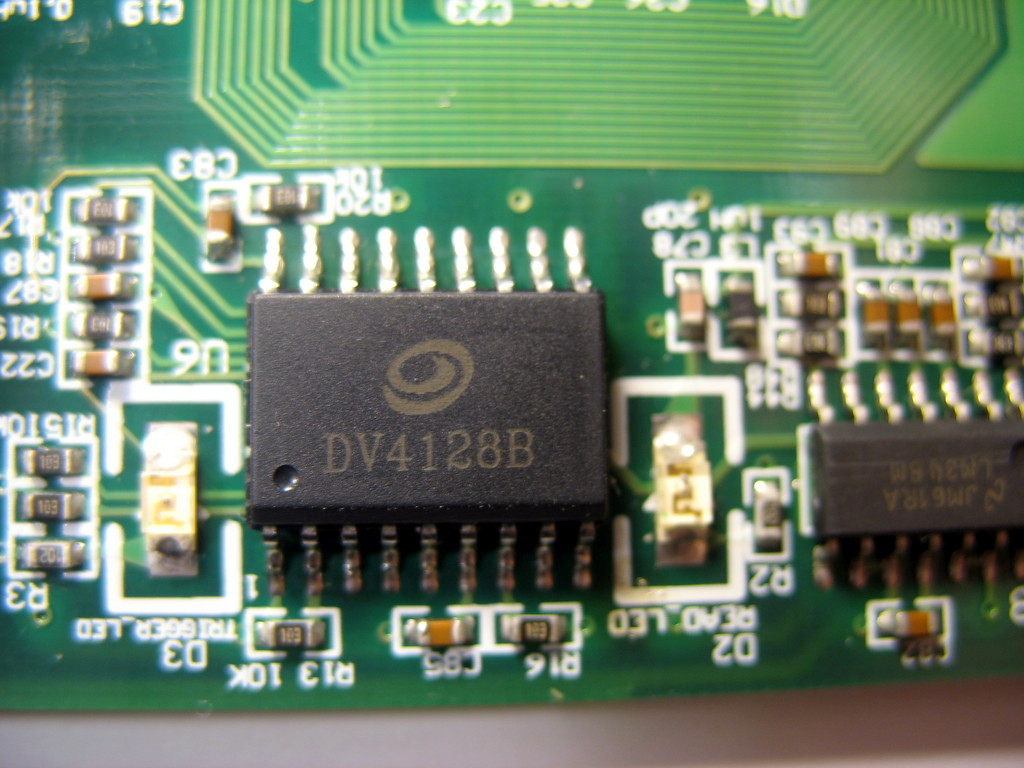

Zeroplus Lap16128u Zeroplus Dv4128b

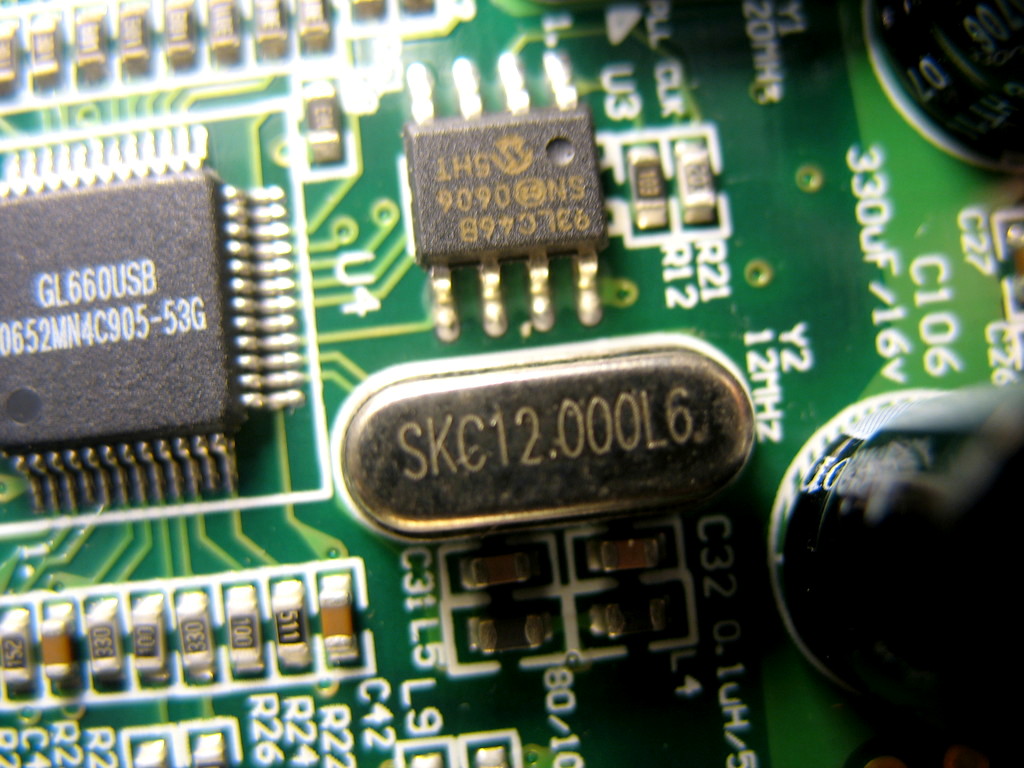

Zeroplus Lap16128u 12mhz Crystal

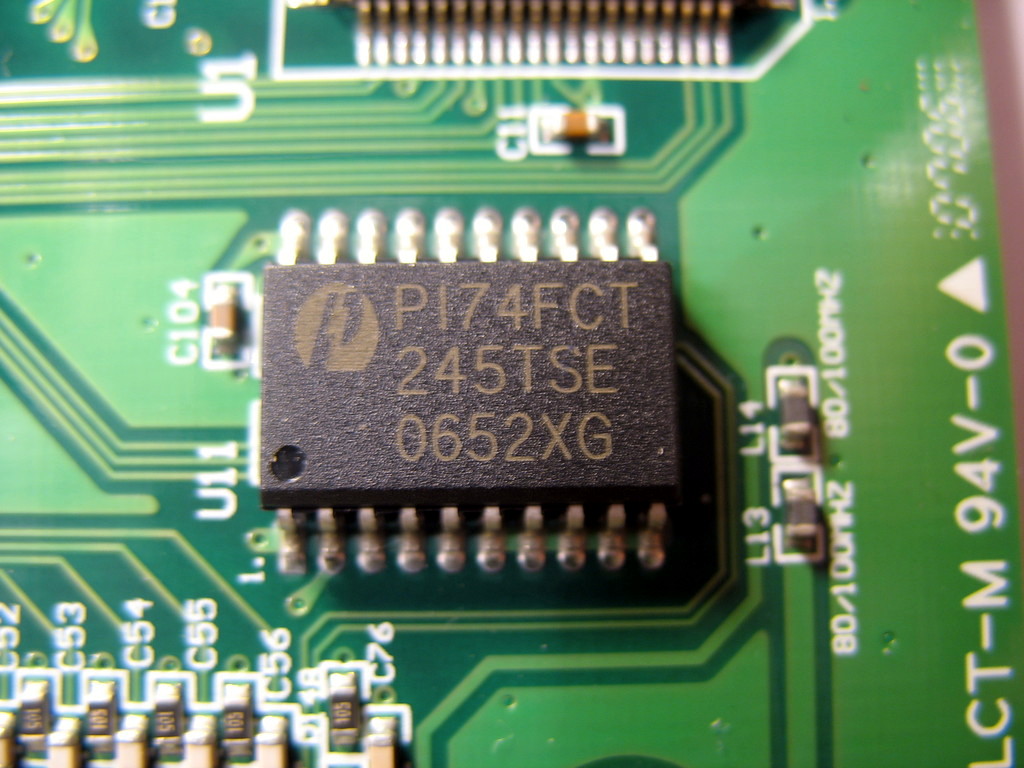

Zeroplus Lap16128u Pi74fct

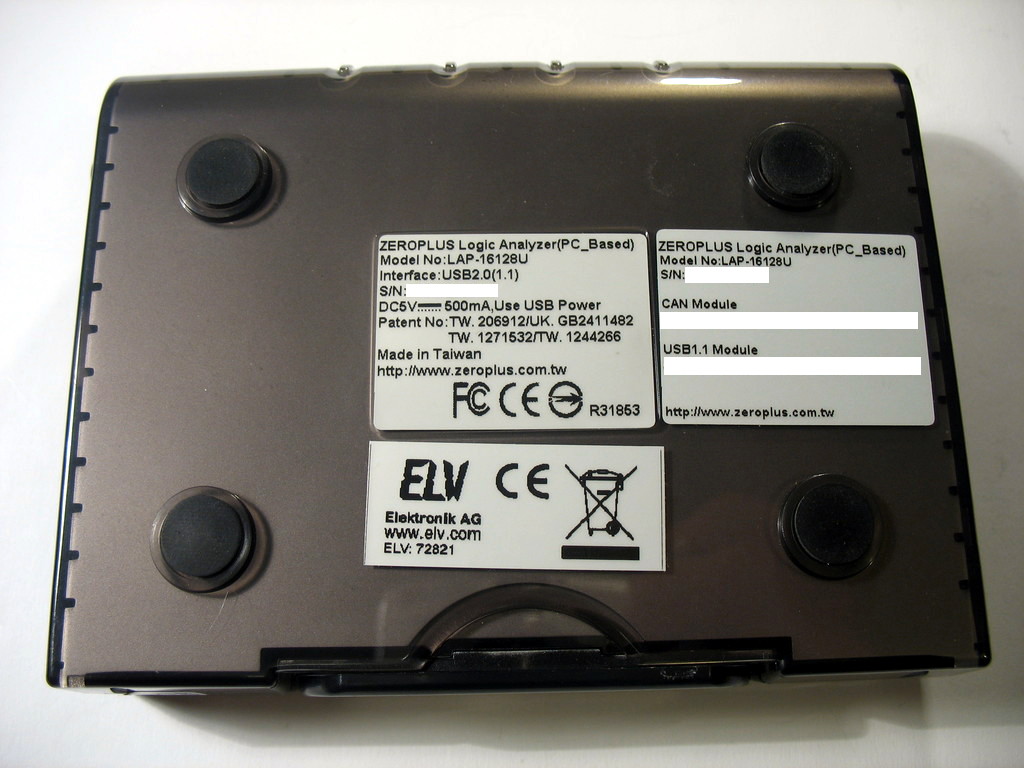

Zeroplus Lap16128u Device Back

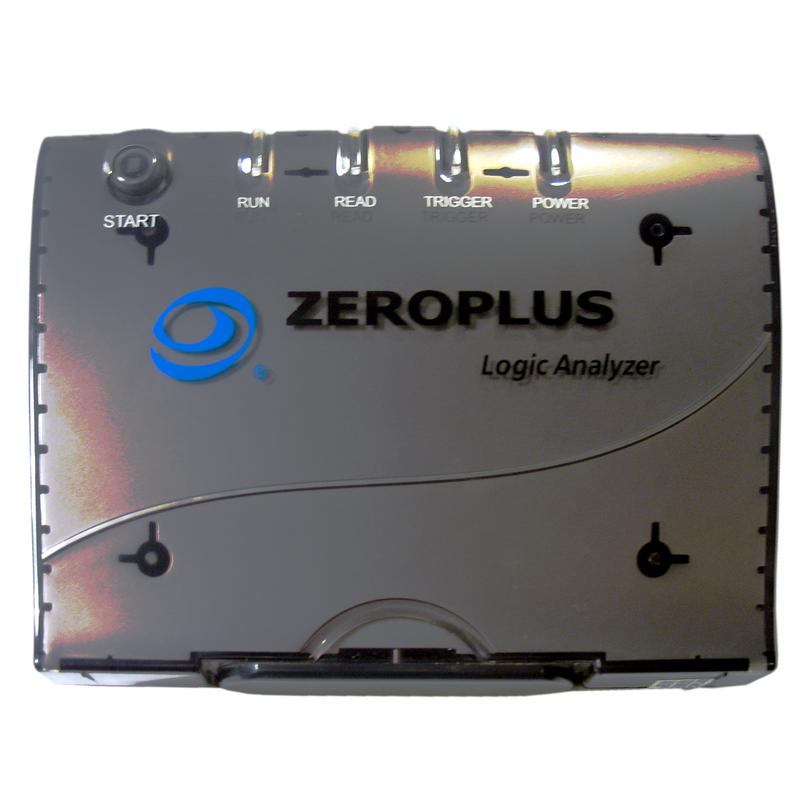

Zeroplus Lap 16128u

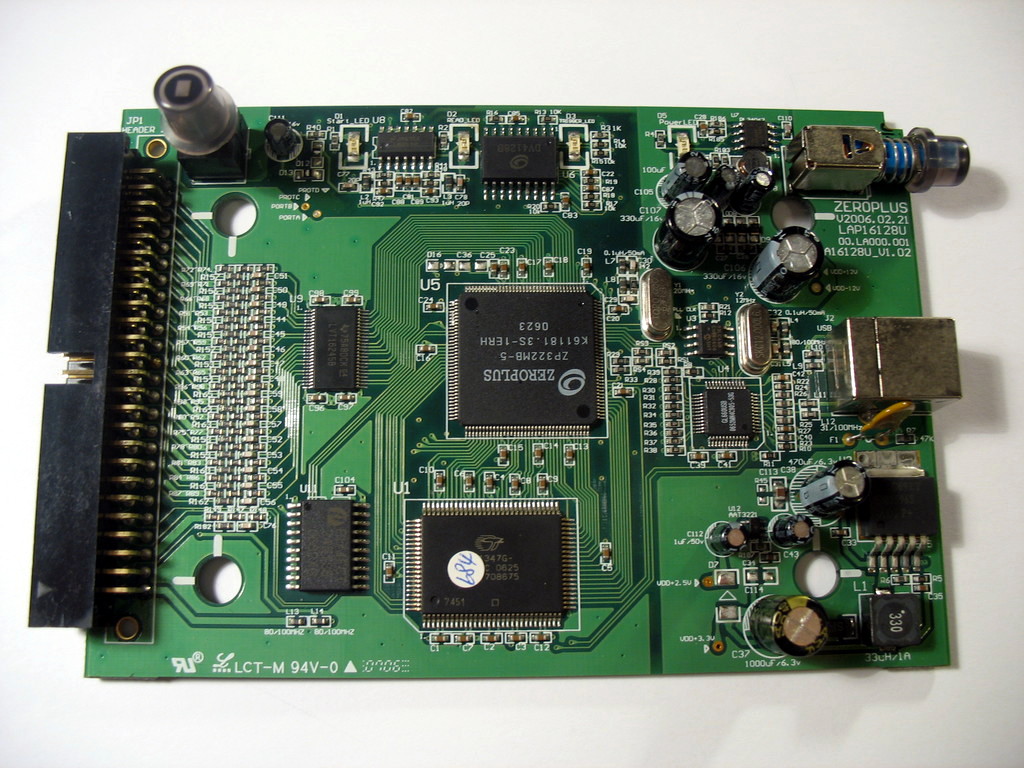

Zeroplus Lap16128u Pcb Top

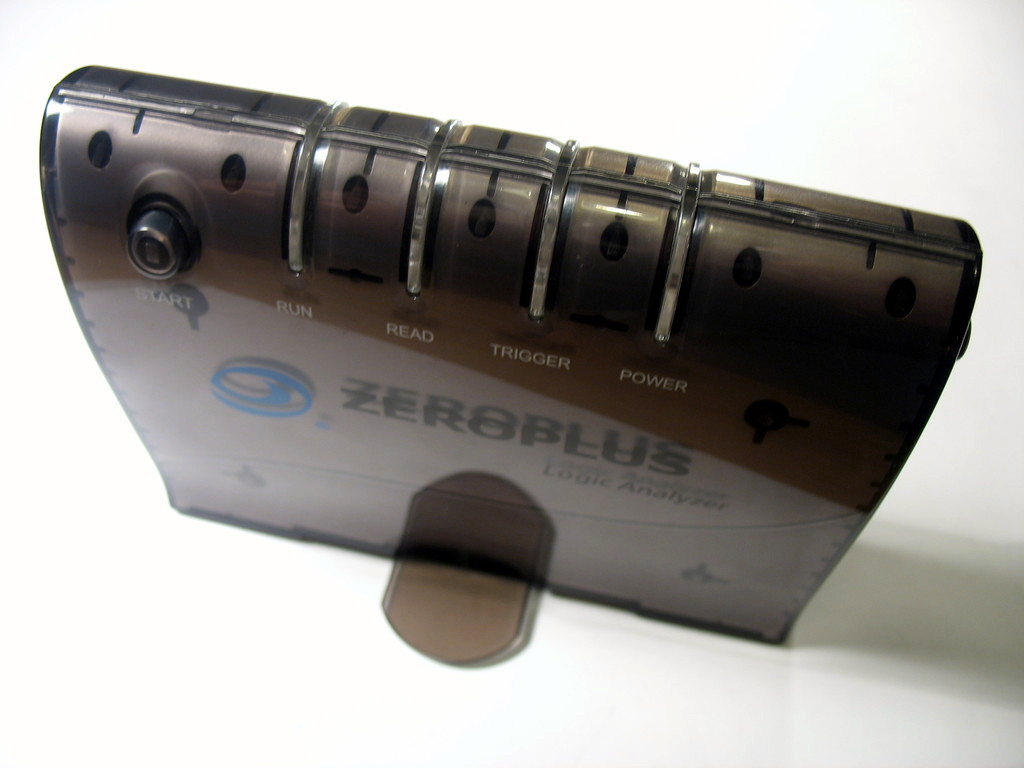

Zeroplus Lap16128u Device Side

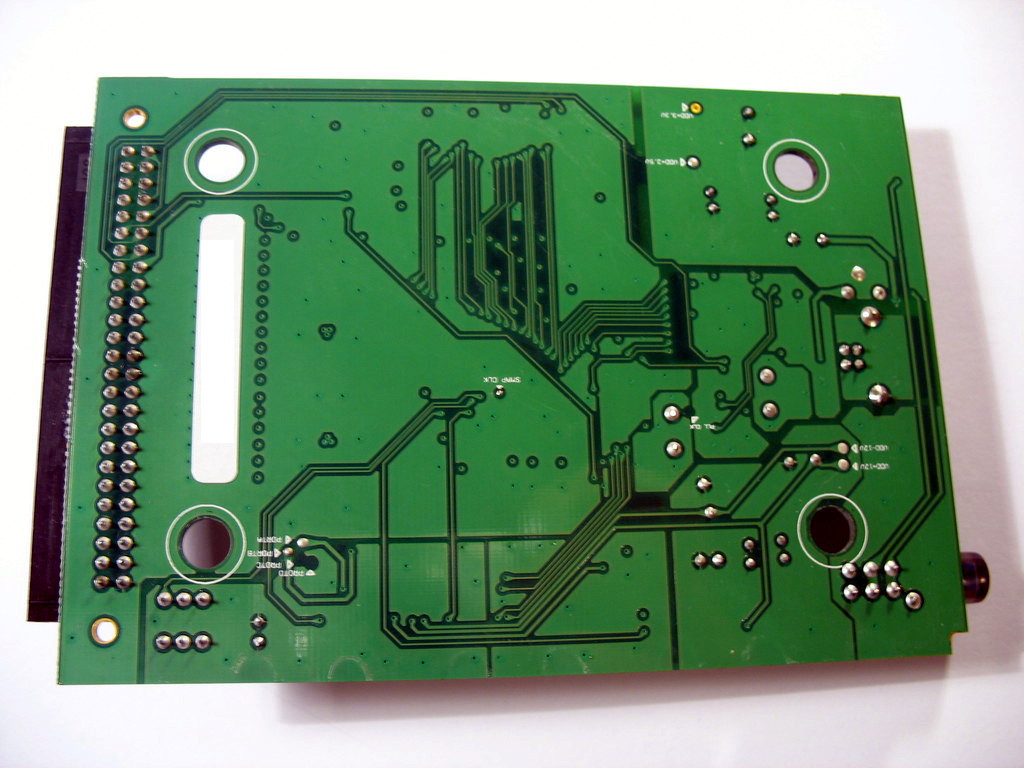

Zeroplus Lap16128u Pcb Bottom
Zeroplus Lap16128u Cypress Cy7c1347g 250axc

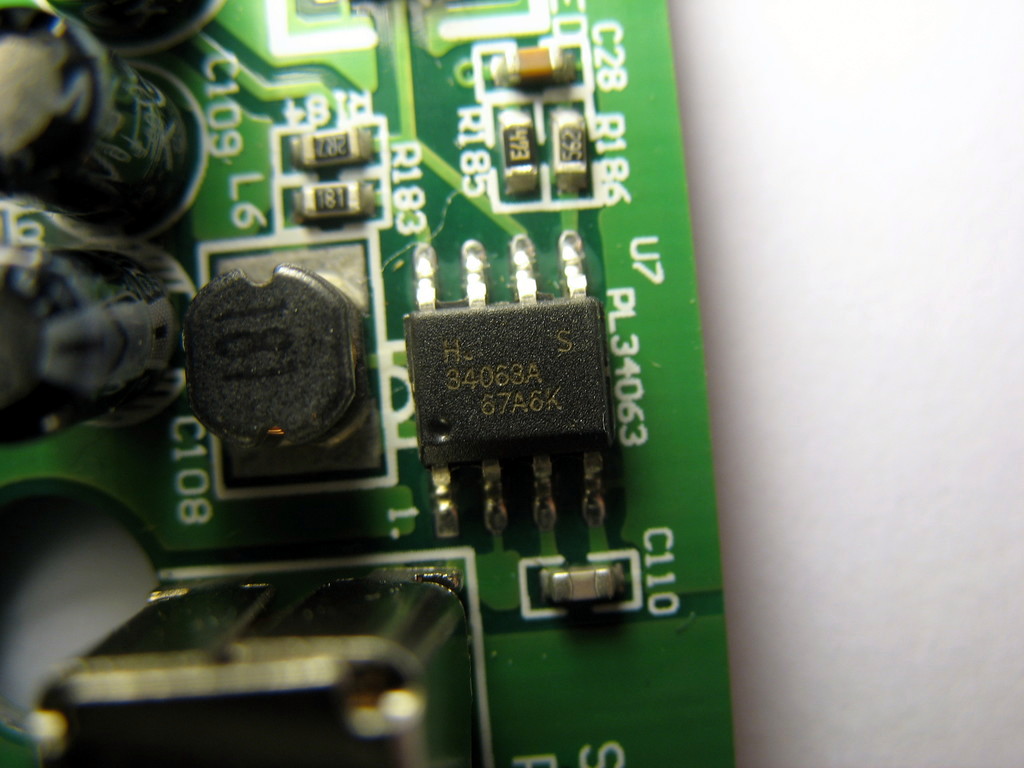

Zeroplus Lap16128u 34053a

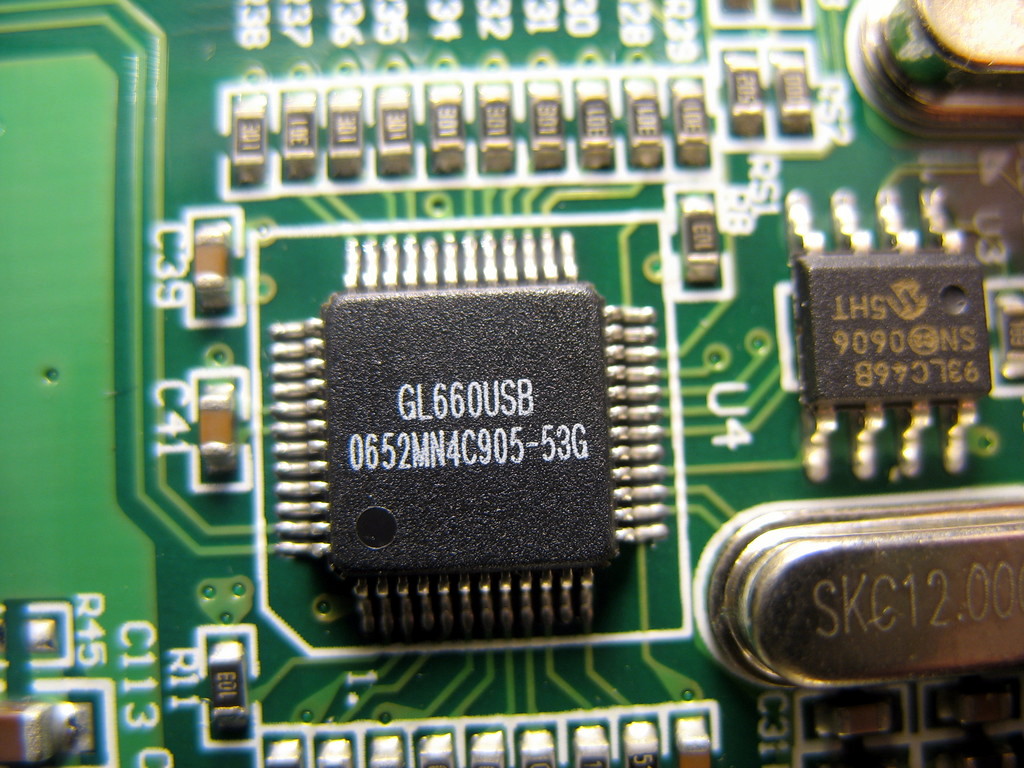

Zeroplus Lap16128u Genesys Gl660usb

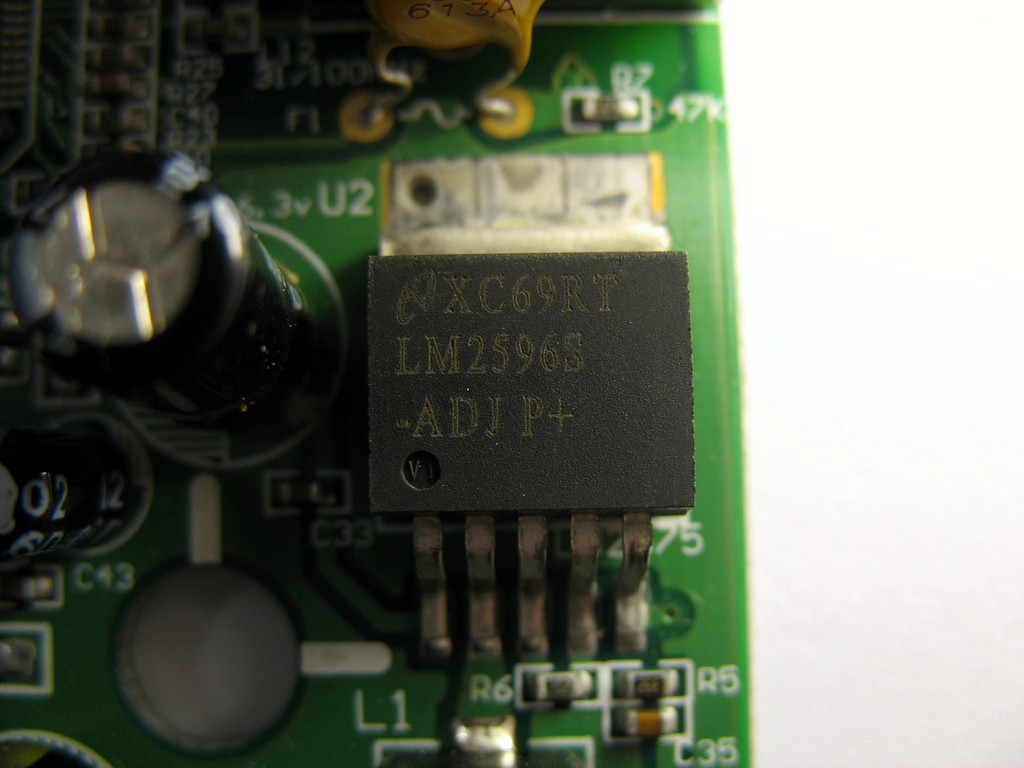

Zeroplus Lap16128u National Lm2596s

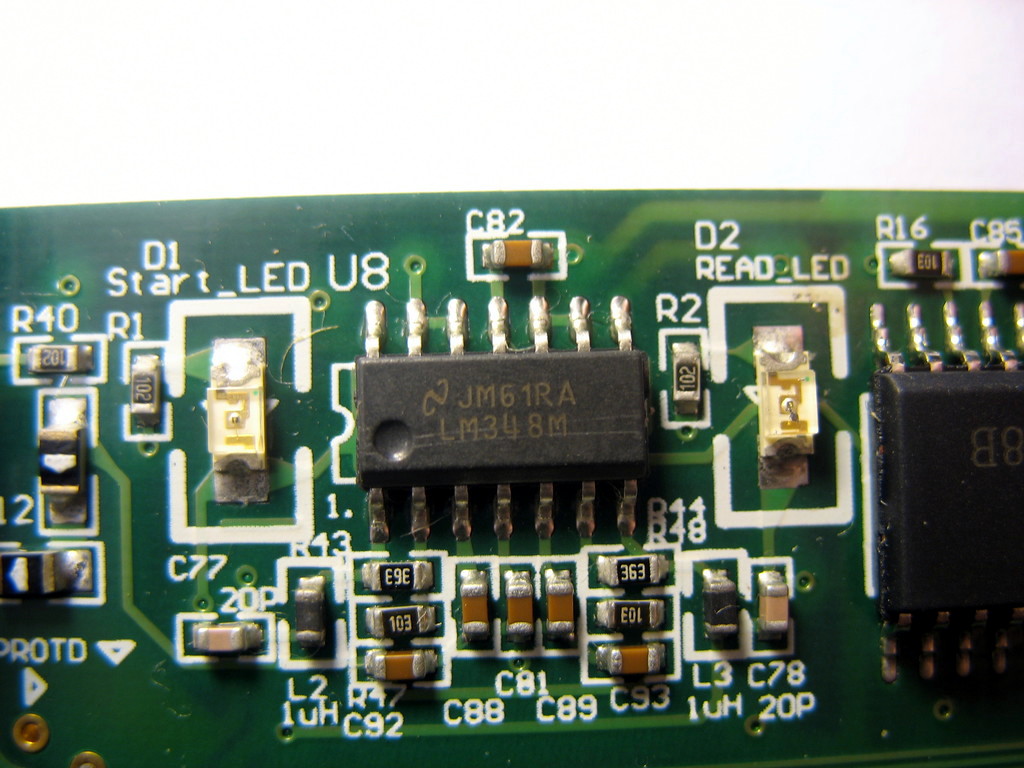

Zeroplus Lap16128u National Lm348m

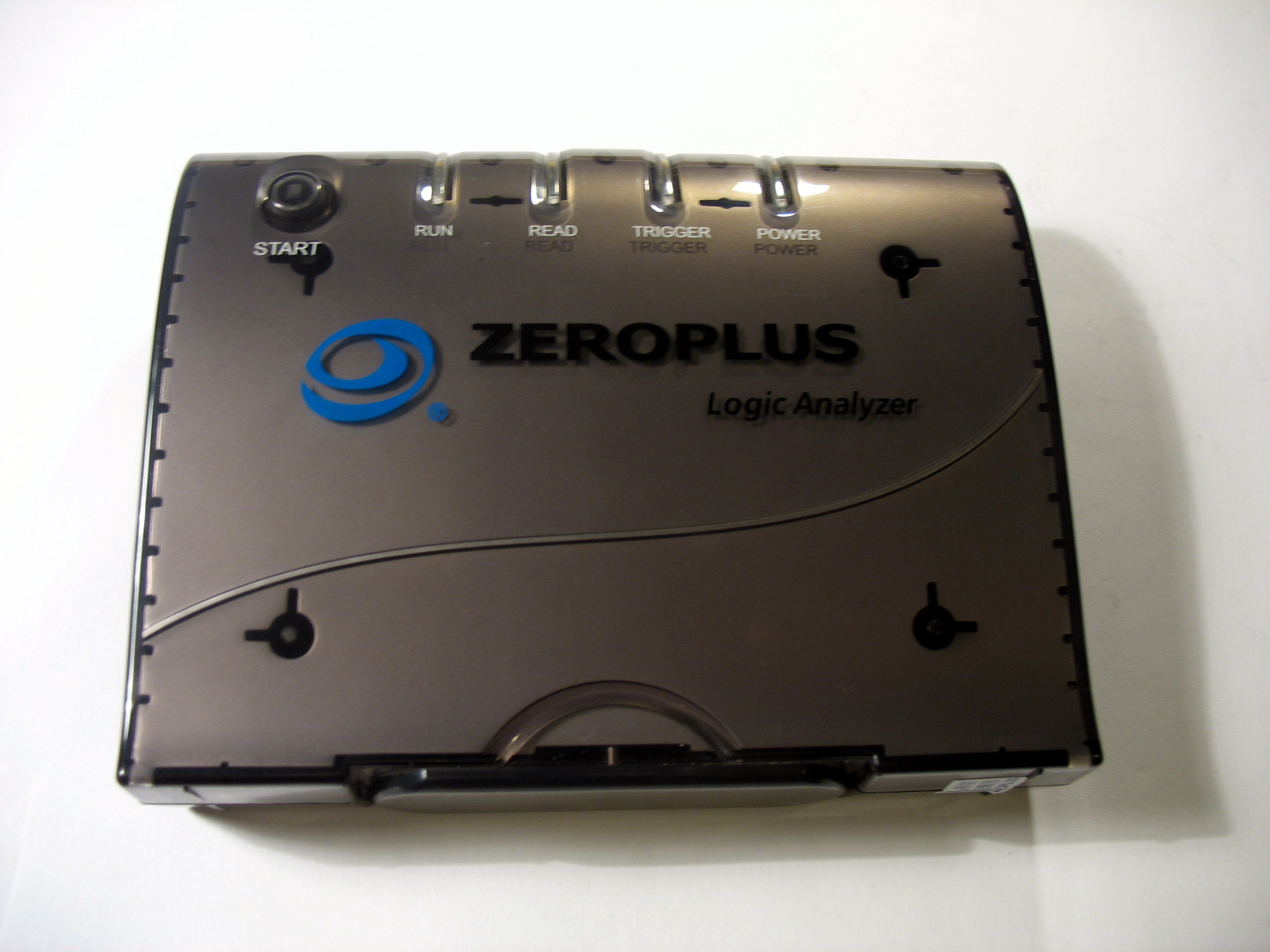

Zeroplus Lap 16128u Front
Protocol¶
See ZEROPLUS_Logic_Cube_LAP-C_series#Protocol.
