WayEngineer Saleae16¶
WayEngineer Saleae16¶
| Status | supported |
| Source code | saleae-logic16 |
| Channels | 3/6/9/16 |
| Samplerate | 100/50/32/16MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | -0.9V — 6V |
| Threshold voltage | configurable:for 1.8V to 3.6V systems: VIH=1.4V, VIL=0.7Vfor 5V systems: VIH=3.6V, VIL=1.4V |
| Memory | none |
| Compression | yes |
| Website | wayengineer.com |
The WayEngineer Saleae16 is a USB-based, 16-channel logic analyzer with 100/50/32/16MHz sampling rate (at 3/6/9/16 enabled channels).
This is a clone of the Saleae Logic16.
See WayEngineer Saleae16/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- FPGA: Xilinx Spartan-3A XC3S200A, 200K gates (datasheeet)
- USB interface chip: Cypress CY7C68013A-56LTXC (FX2LP) (datasheet)
- I²C EEPROM: Atmel 24C02N (markings: "ATMEL142 24C02N SU27 D") (datasheet)
- 3.3V voltage regulator: Advanced Monolithic Systems AMS1117-3.3 (datasheet, older datasheet)
- 1.2V voltage regulator: Advanced Monolithic Systems AMS1117-1.2 (datasheet, older datasheet)
- Crystal: 24.000
Photos¶
Wayengineer Saleae16 Ams1117 33

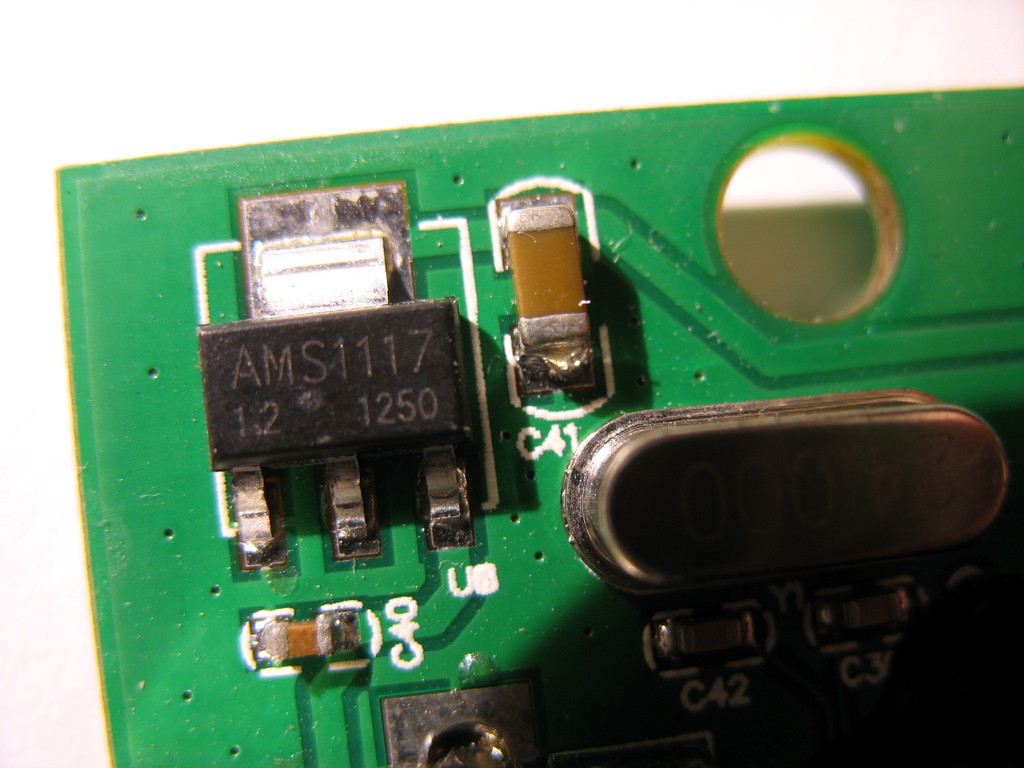

Wayengineer Saleae16 Ams1117 12

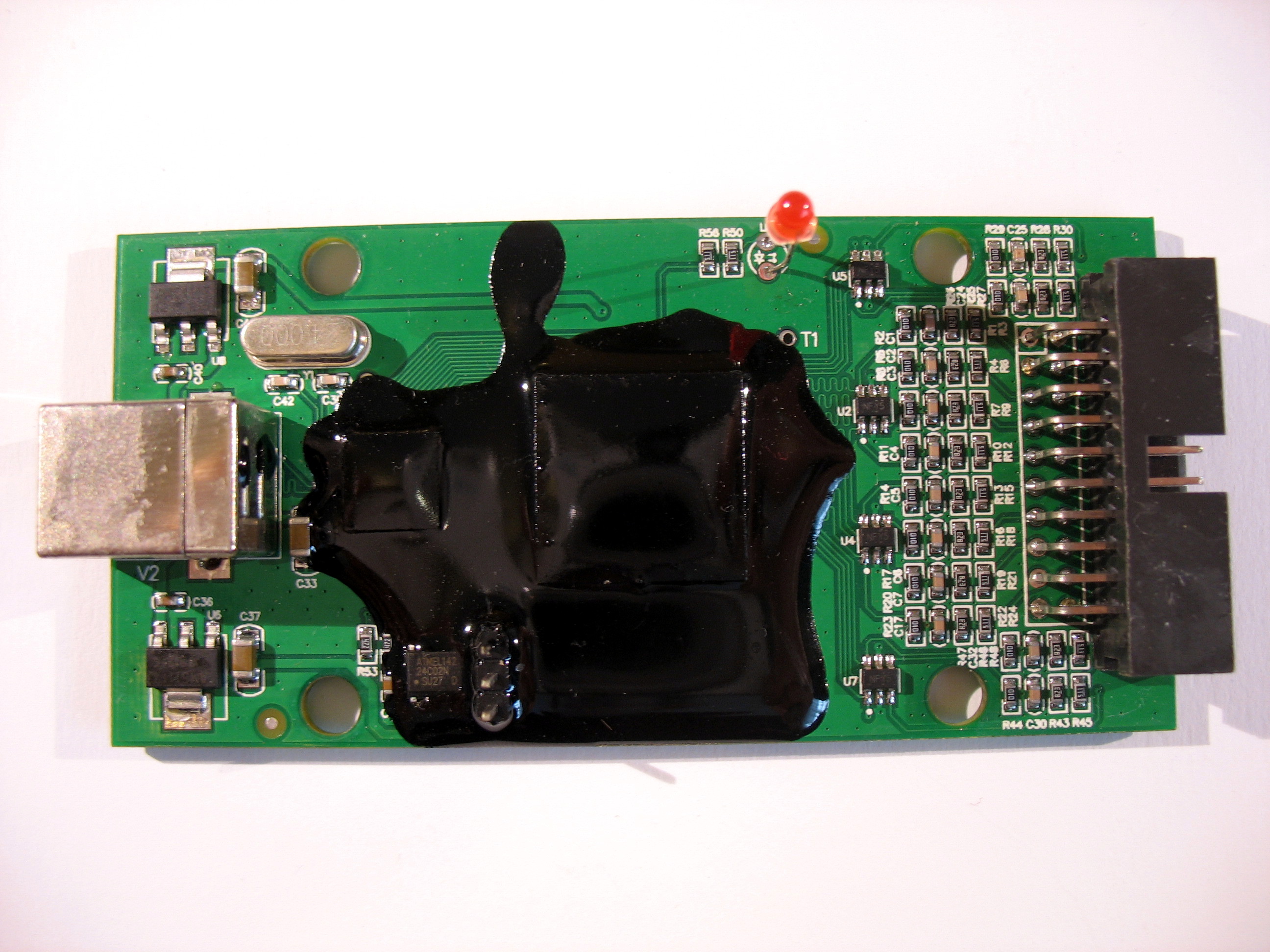

Wayengineer Saleae16 Pcb Top

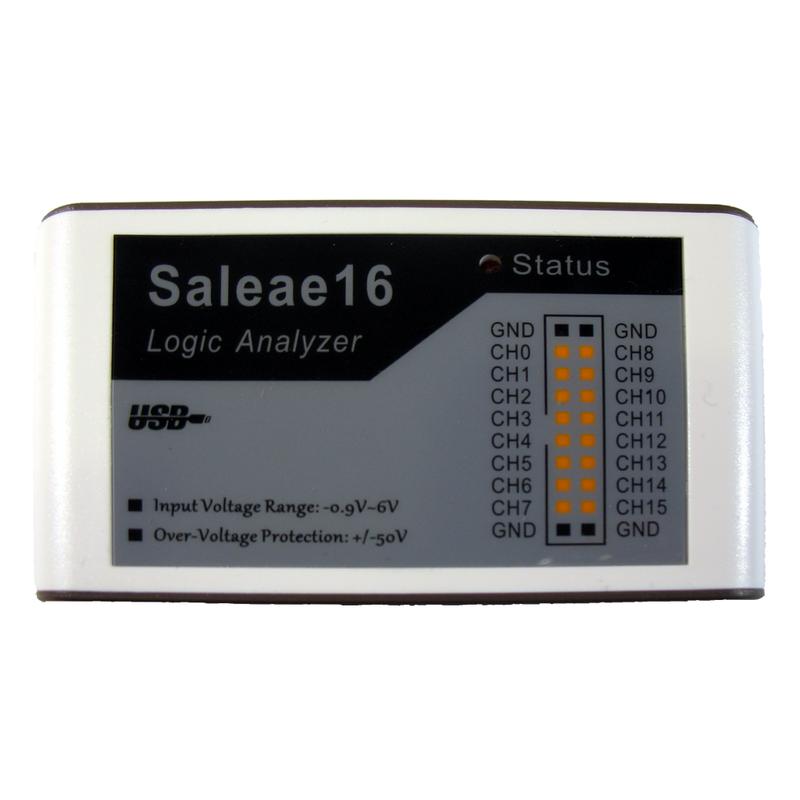

Wayengineer Saleae16

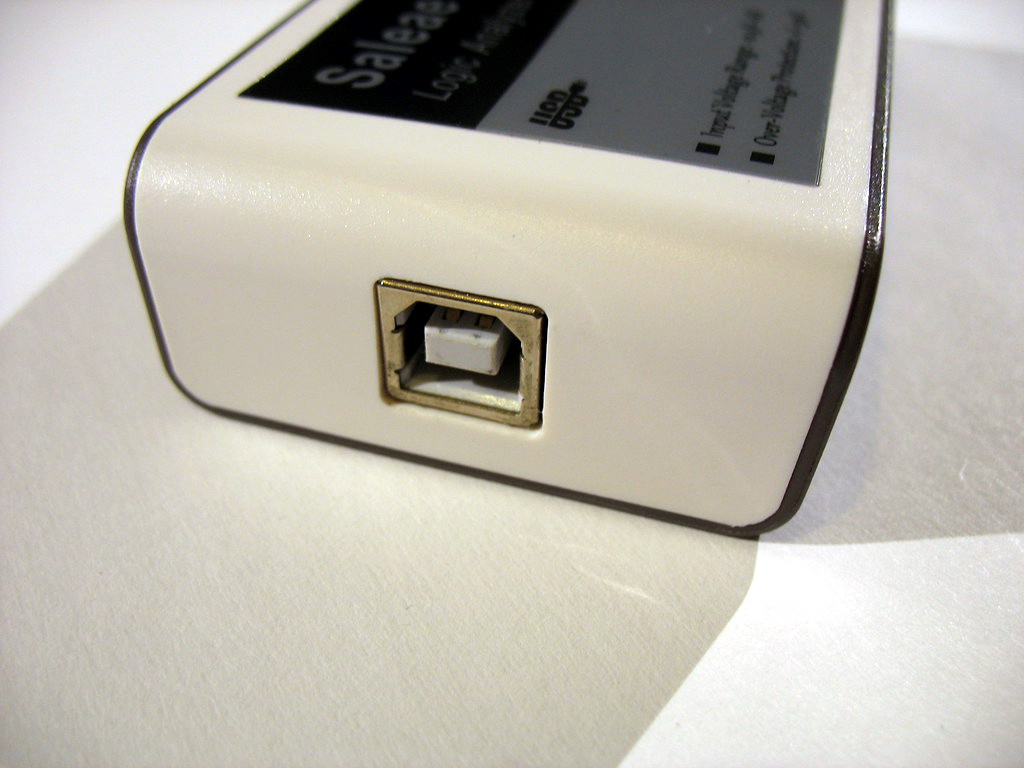

Wayengineer Saleae16 Device Usb

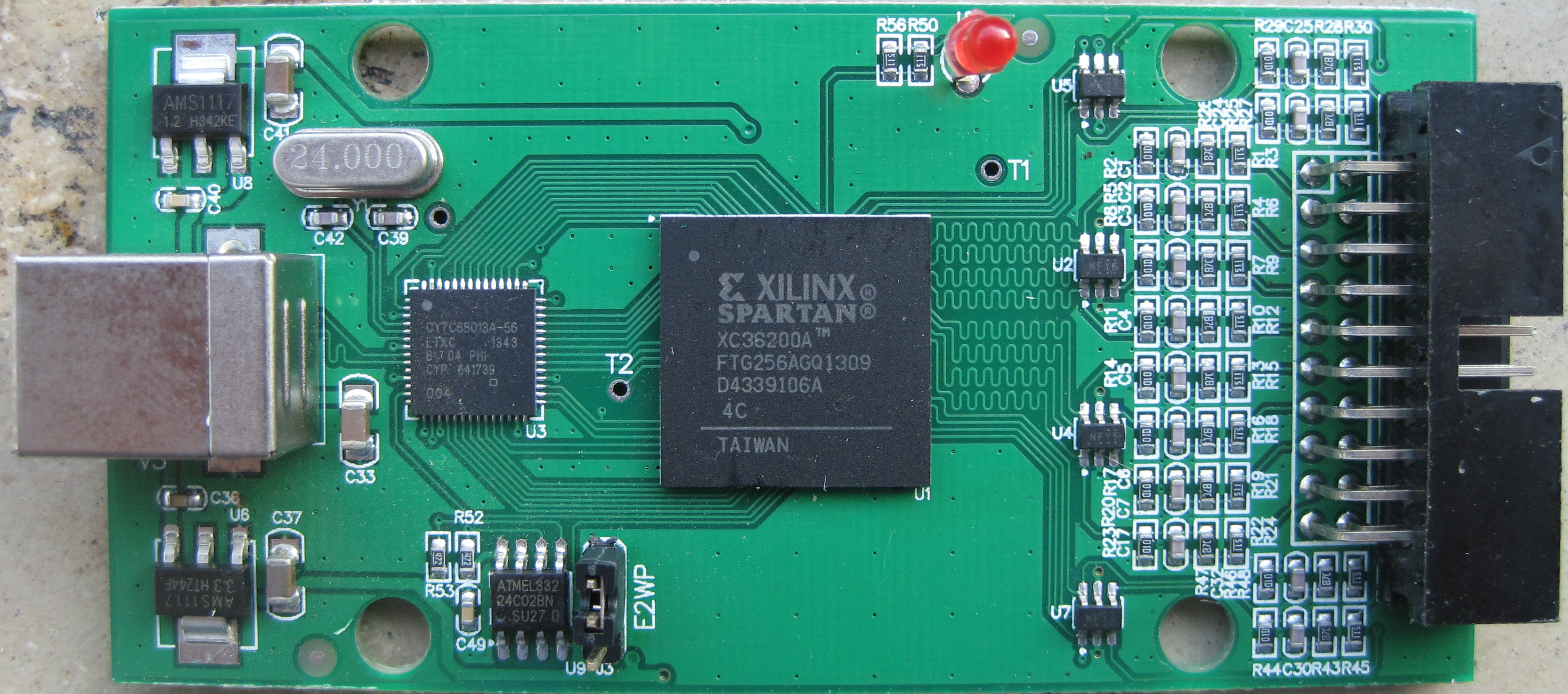

Wayengineer16 Board Top 2014 09

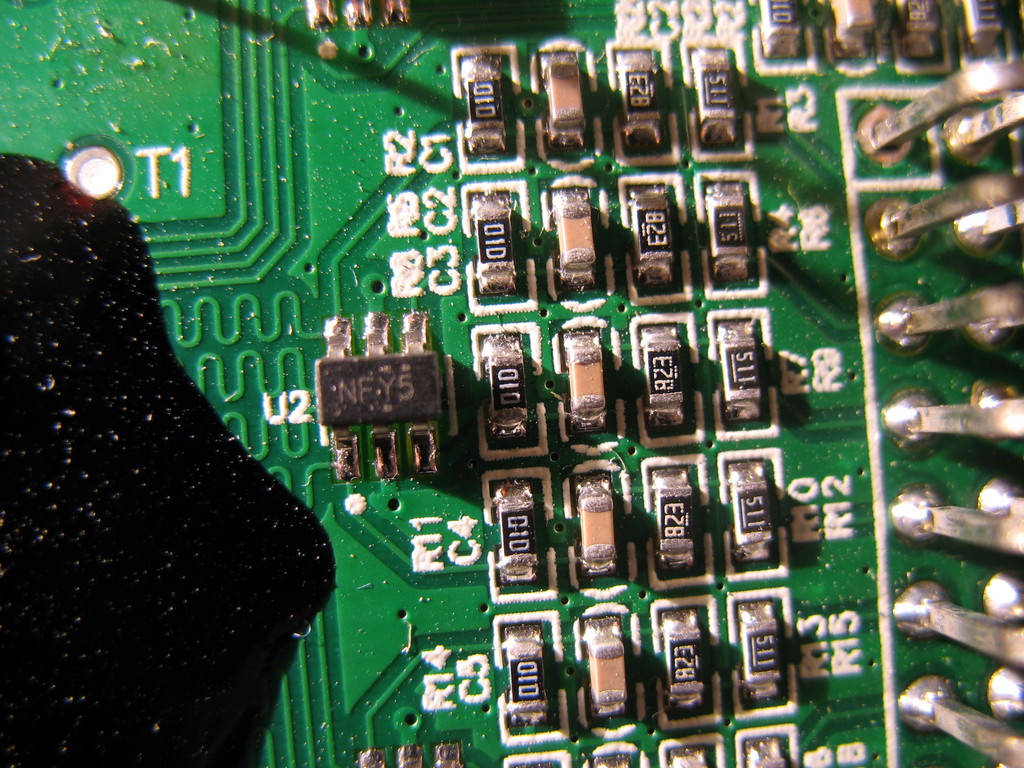

Wayengineer Saleae16 Input Stage

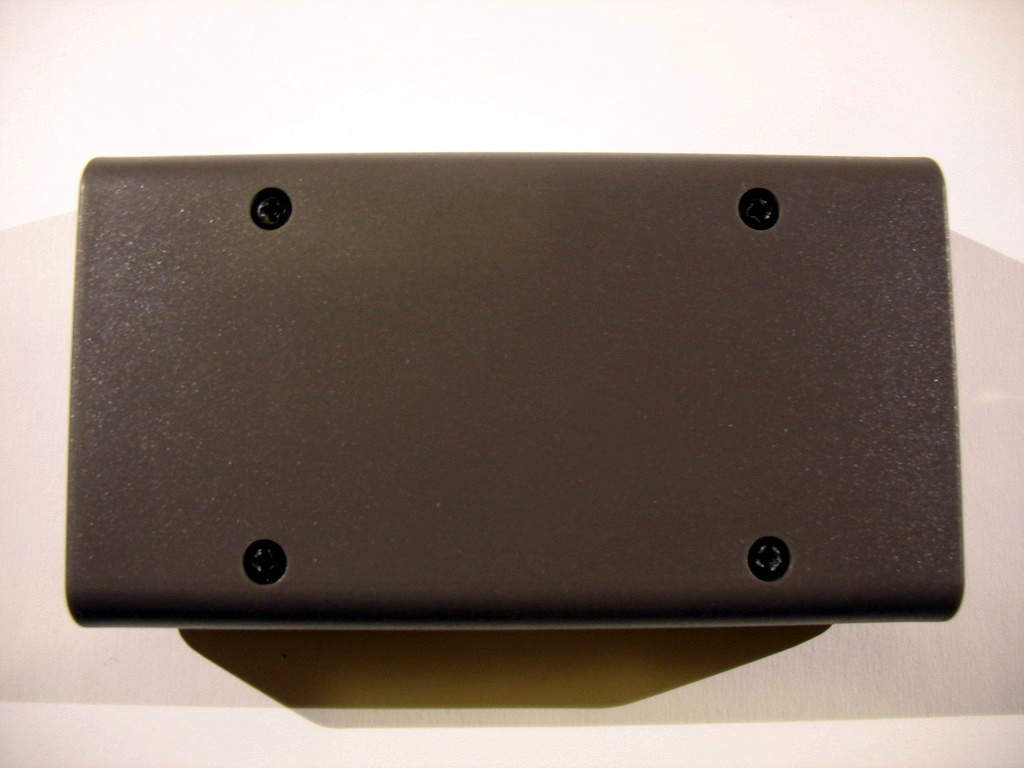

Wayengineer Saleae16 Device Bottom

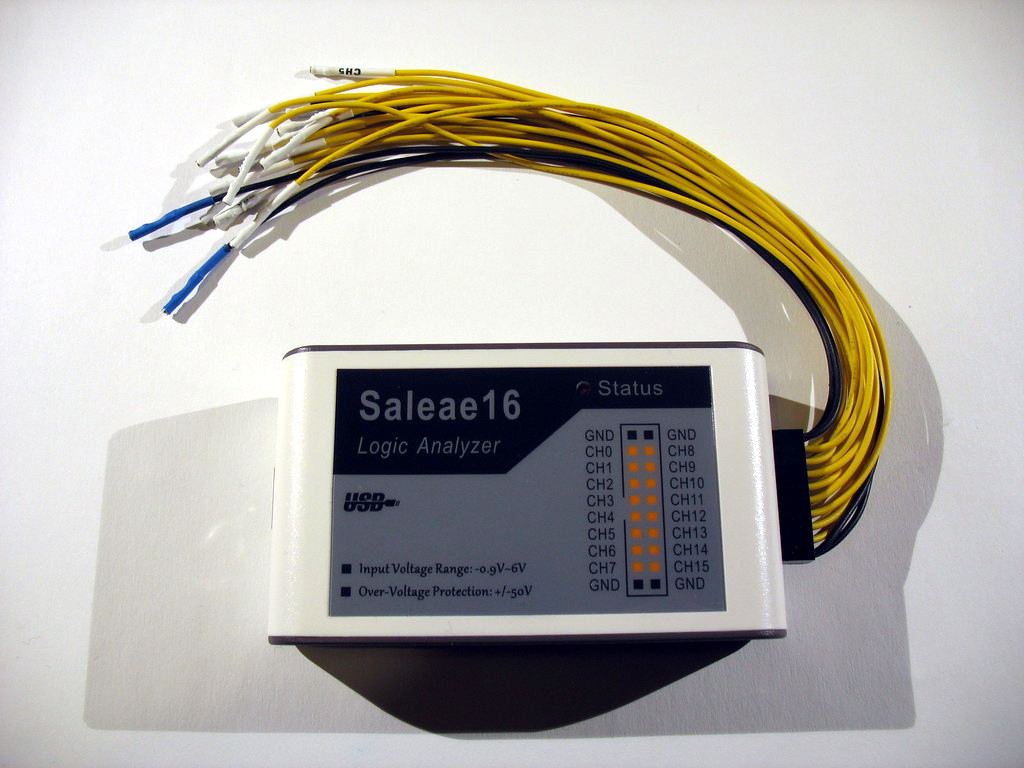

Wayengineer Saleae16 Device With Cable

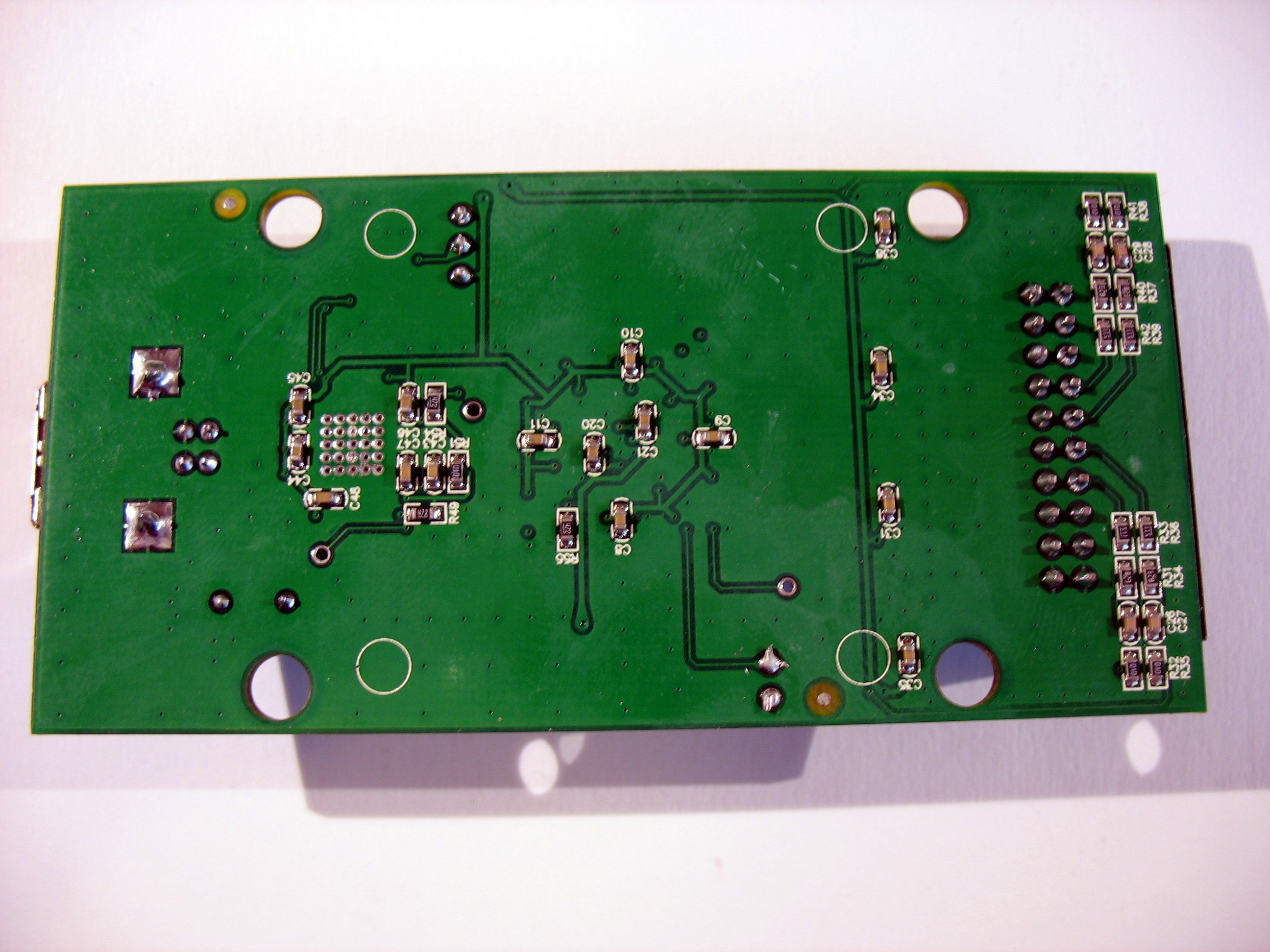

Wayengineer Saleae16 Pcb Bottom

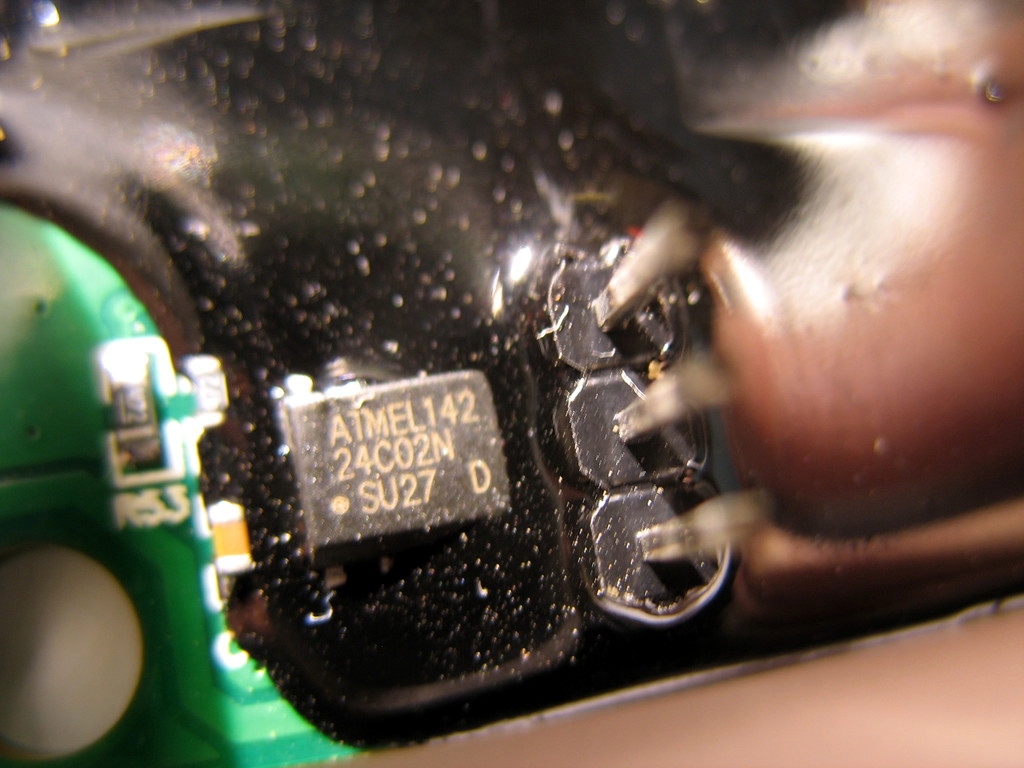

Wayengineer Saleae16 Atmel 24c02n

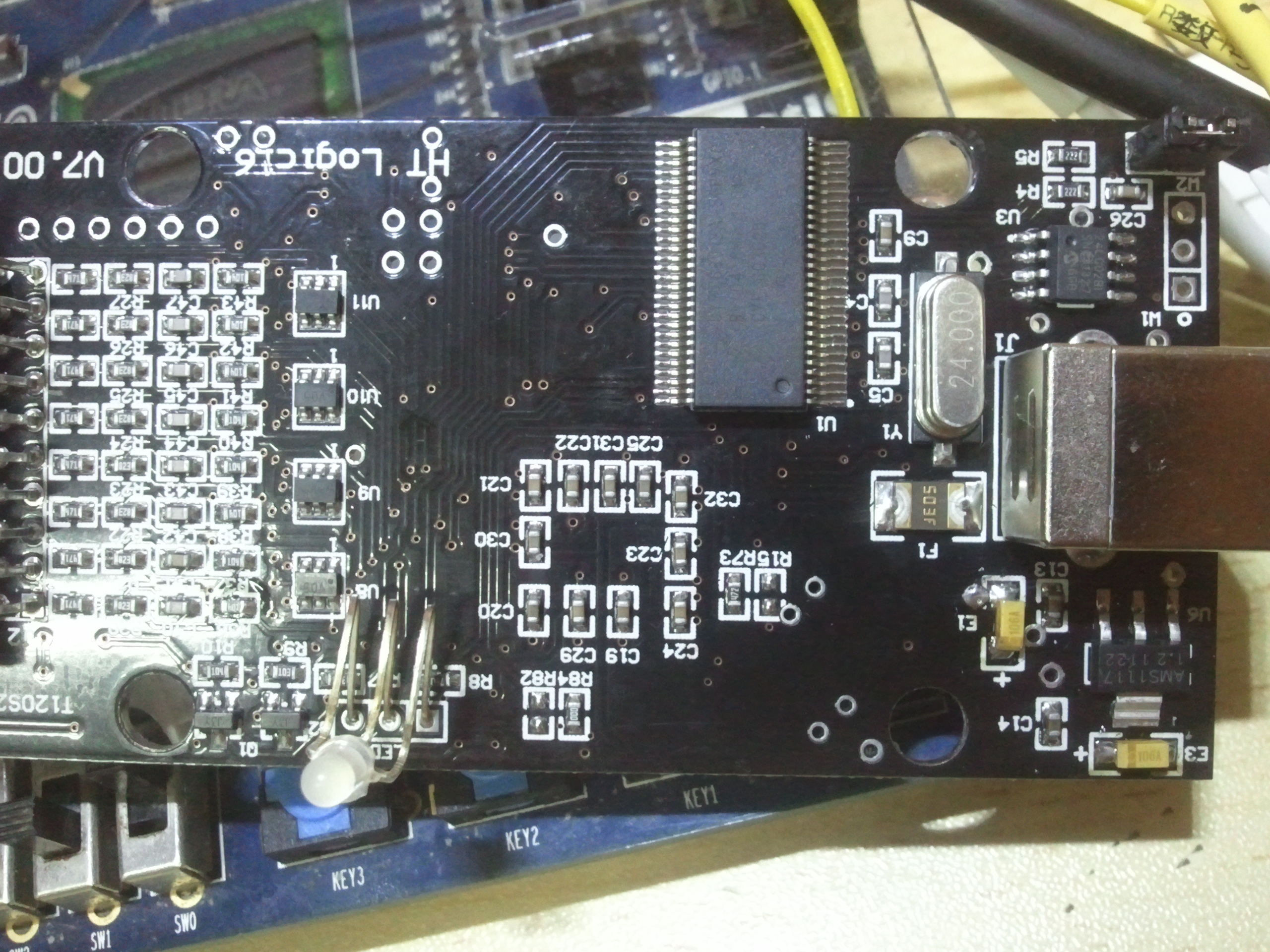

Wayengineer Saleae16 Fx2lp

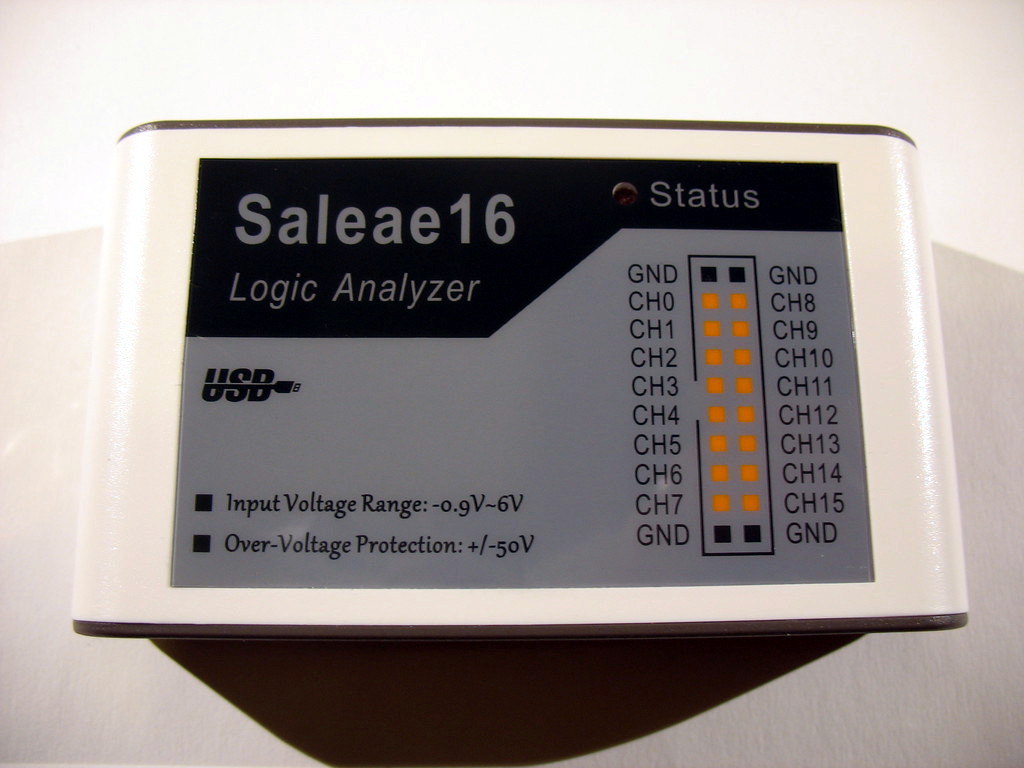

Wayengineer Saleae16 Device Top

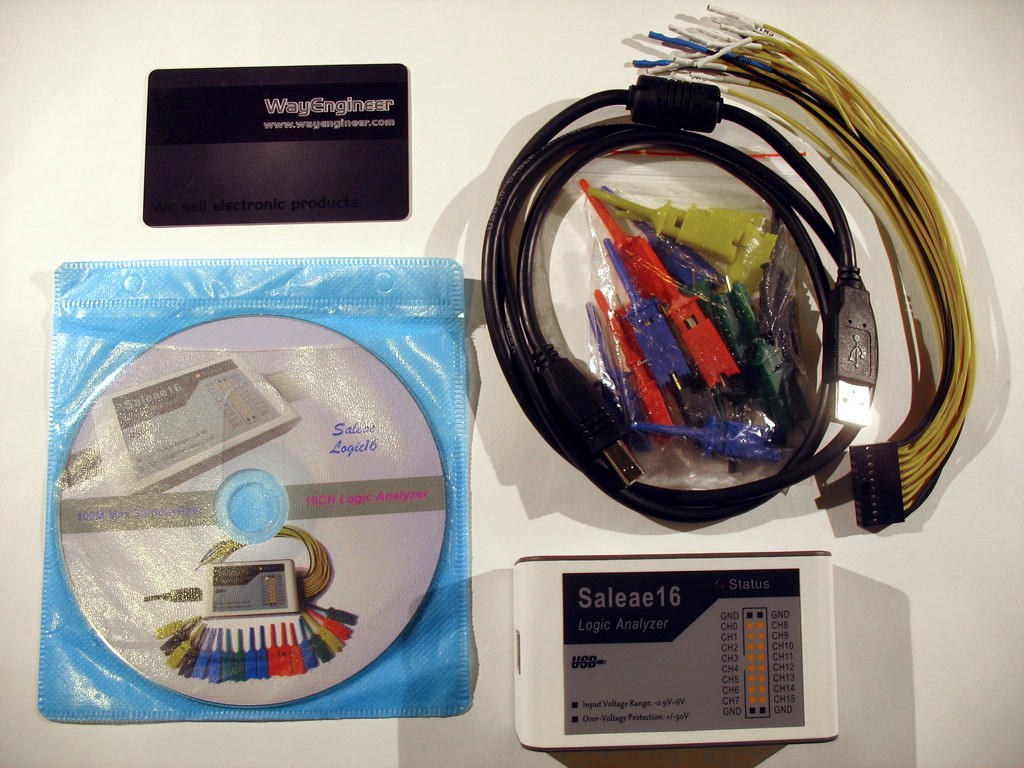

Wayengineer Saleae16 Package Contents

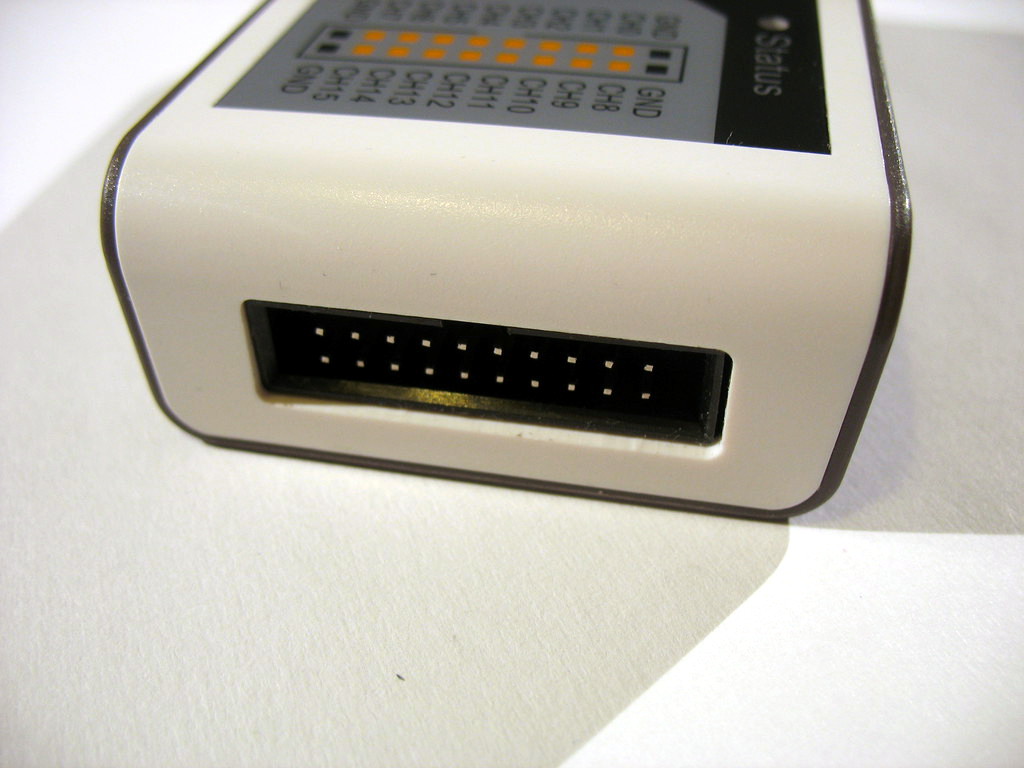

Wayengineer Saleae16 Device Connector

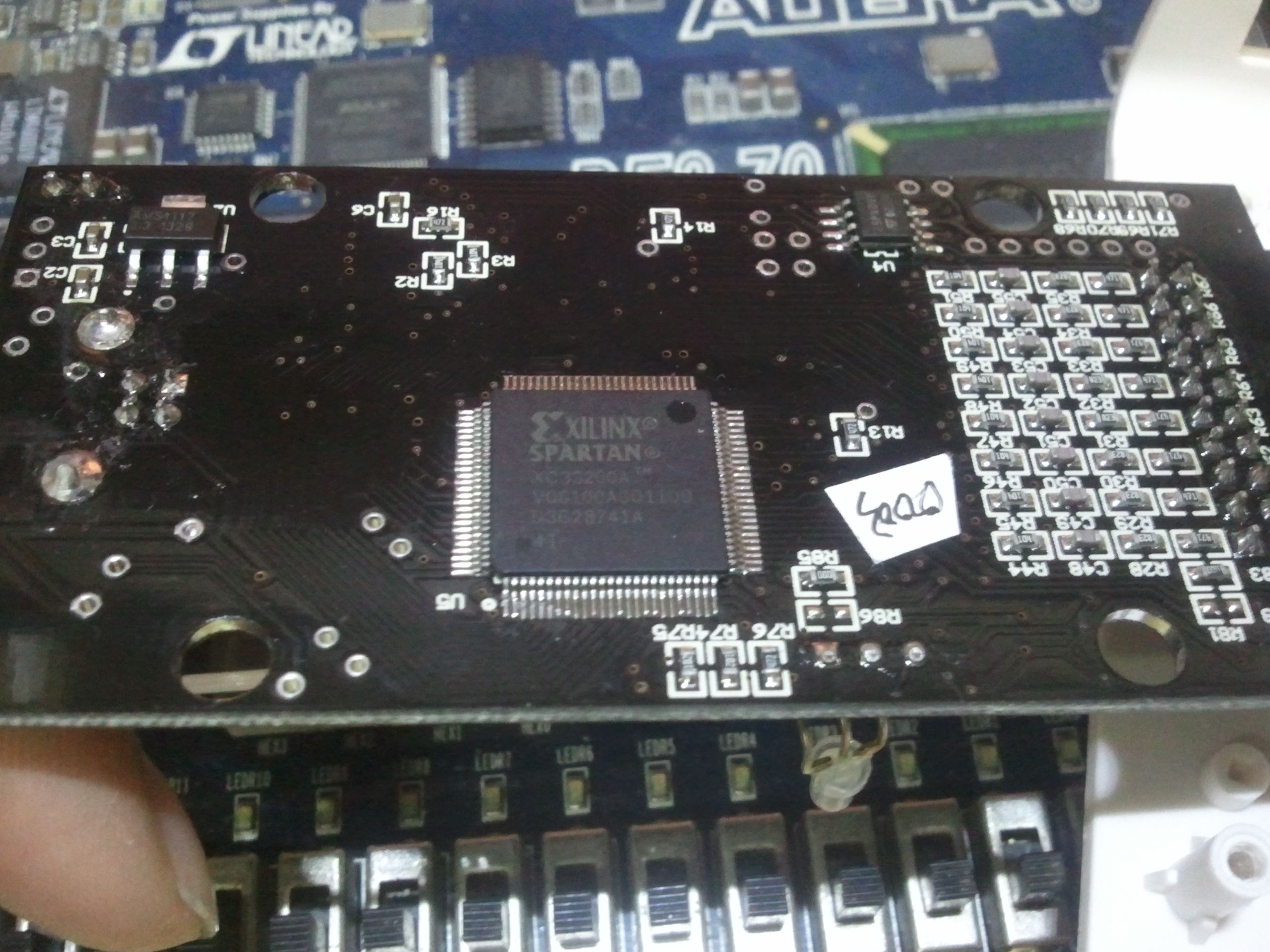

Wayengineer Saleae16 Xc3s200a
