TechTools DigiView DV1-100

TechTools DigiView DV1-100

TechTools DigiView DV1-100
Status planned
Channels 18
Samplerate 100MHz
Samplerate (state) ?
Triggers pattern, edge
Min/max voltage -5V - +10V
Memory 4.5 MBit
Compression yes, unknown
Website tech-tools.com

The TechTools DigiView DV1-100 is a USB-based, 18-channel logic analyzer with a max. samplerate of 100MHz.

See TechTools DigiView DV1-100/Info for more details (such as lsusb -vvv output) about the device.

Hardware

  • Quicklogic QL3025
  • GSI GS84036AT-166
  • Microchip 93LC46B
  • FTDI FT245BM
  • Maxim DS1233
  • IRF F7314
  • BCD AZ1086S
  • 100MHz crystal

Photos

Techtools Digiview Dv1 100 Pcb Top Techtools Digiview Dv1 100 Pcb Top

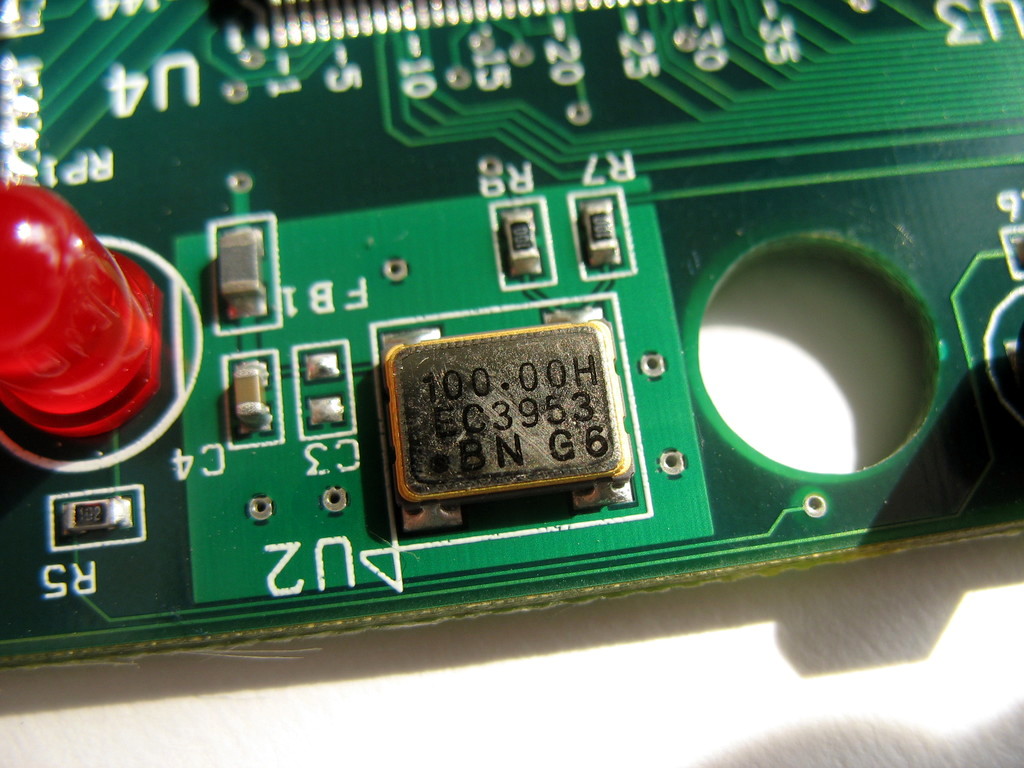

Techtools Digiview Dv1 100 100mhz Crystal Techtools Digiview Dv1 100 100mhz Crystal

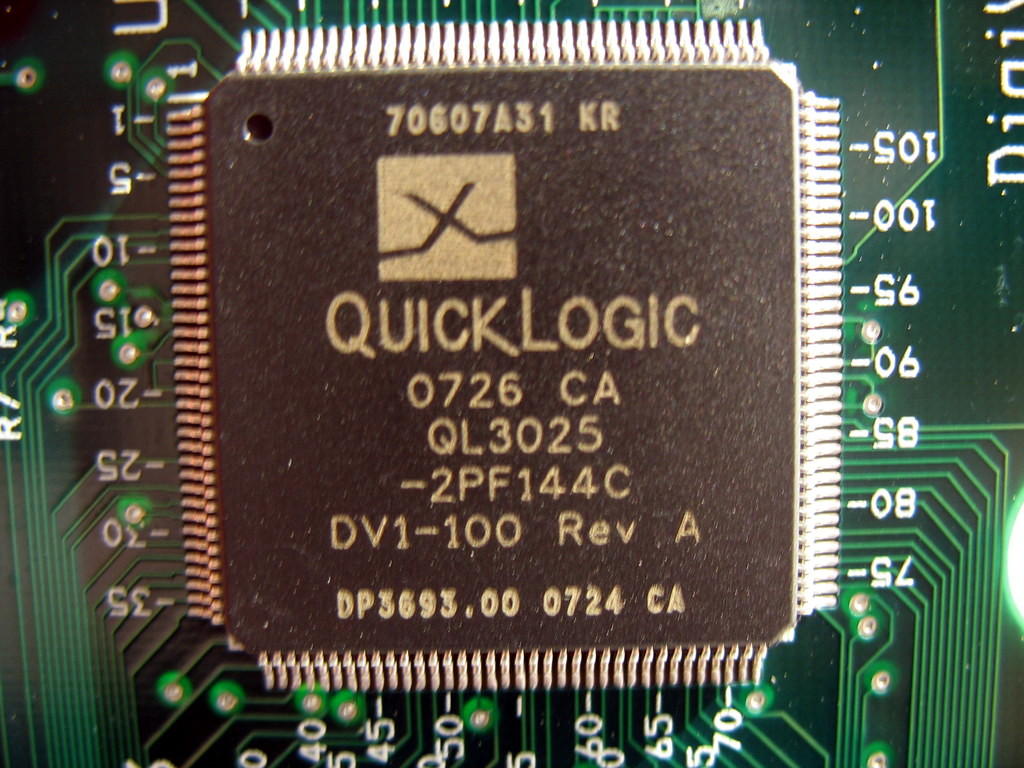

Techtools Digiview Dv1 100 Quicklogic Ql3025 Techtools Digiview Dv1 100 Quicklogic Ql3025

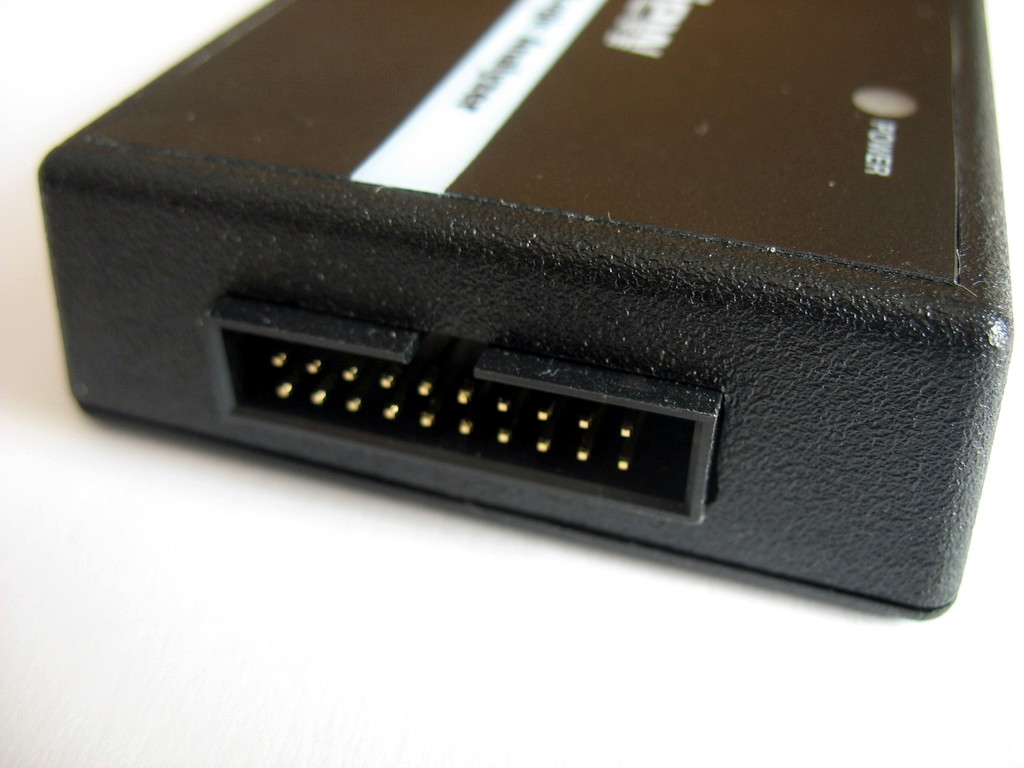

Techtools Digiview Dv1 100 Device Connector Techtools Digiview Dv1 100 Device Connector

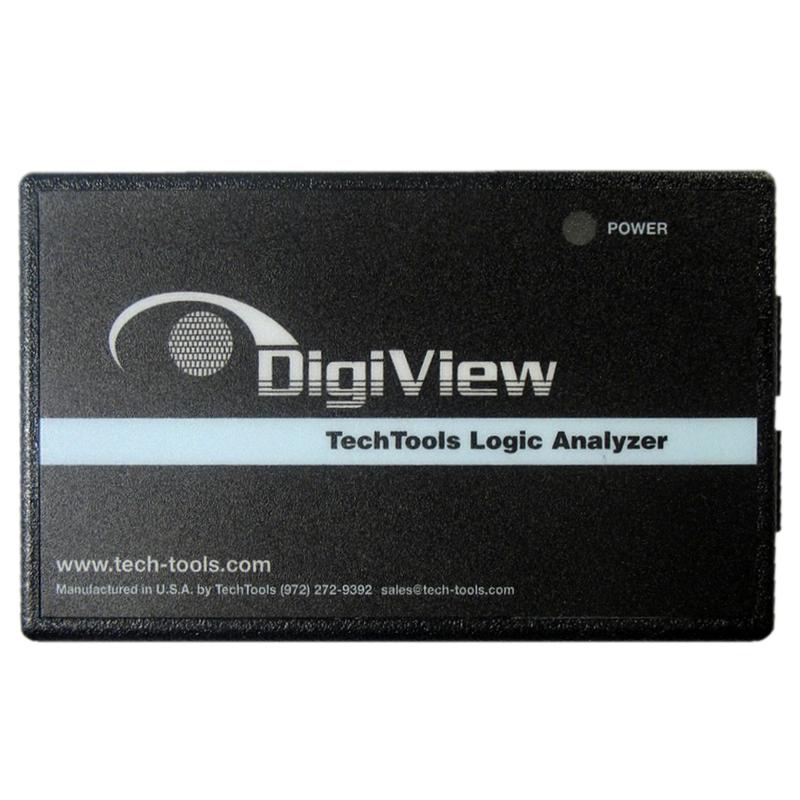

Techtools Digiview Dv1 100 Techtools Digiview Dv1 100

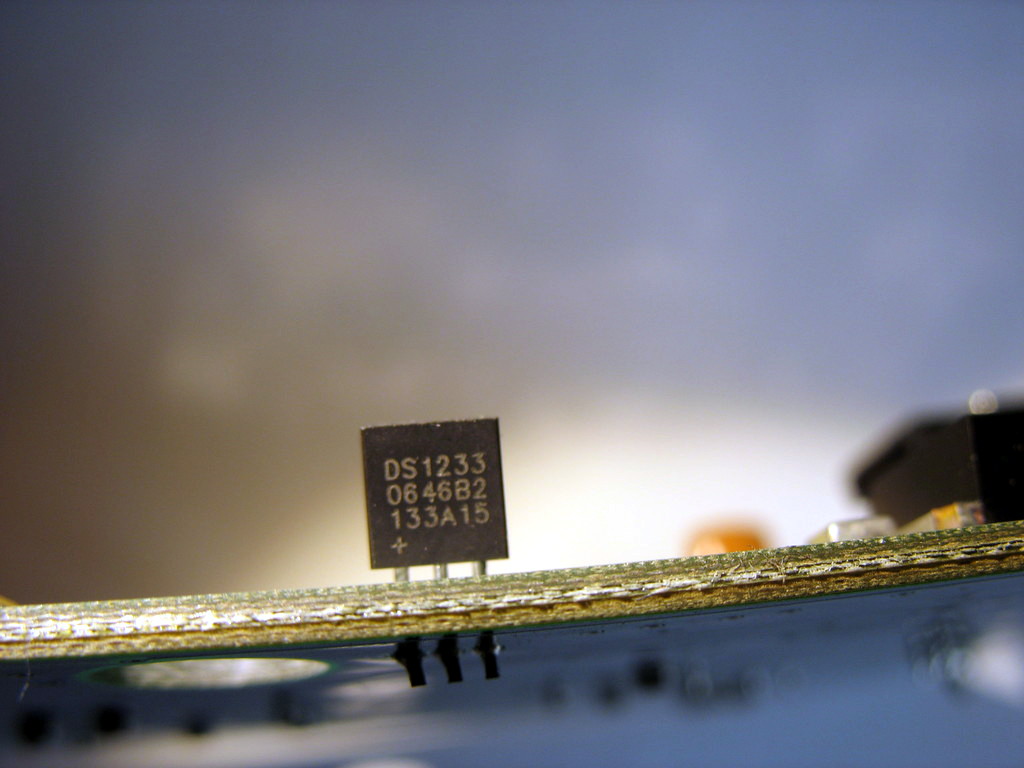

Techtools Digiview Dv1 100 Maxim Ds1233 Techtools Digiview Dv1 100 Maxim Ds1233

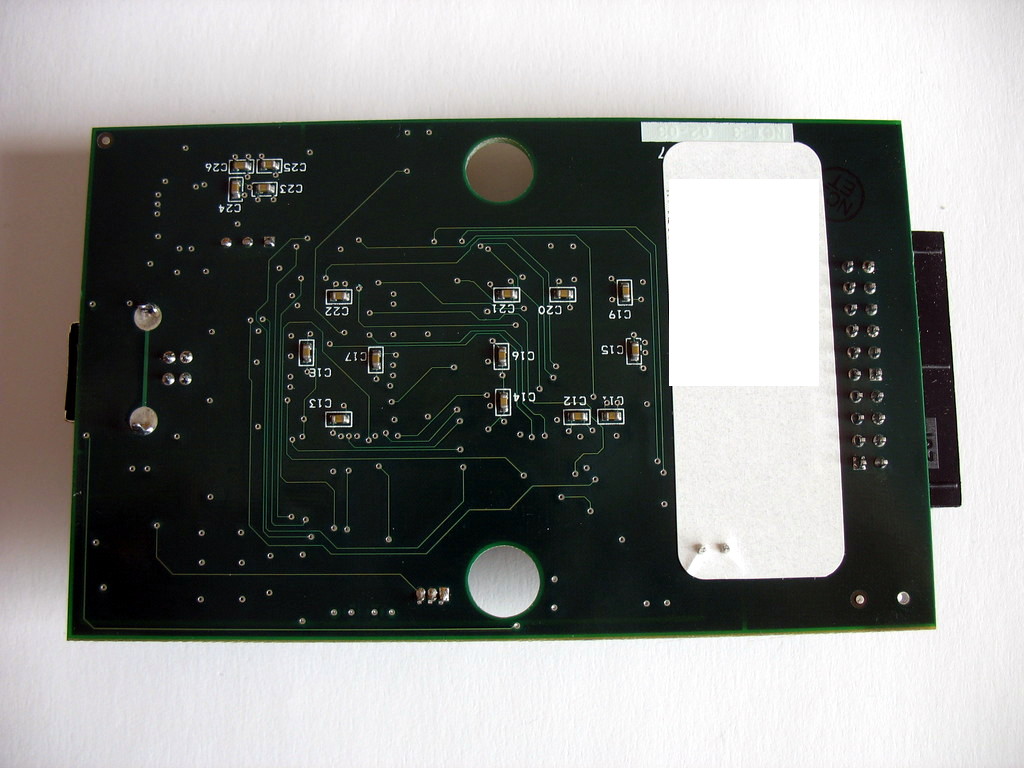

Techtools Digiview Dv1 100 Pcb Bottom Techtools Digiview Dv1 100 Pcb Bottom

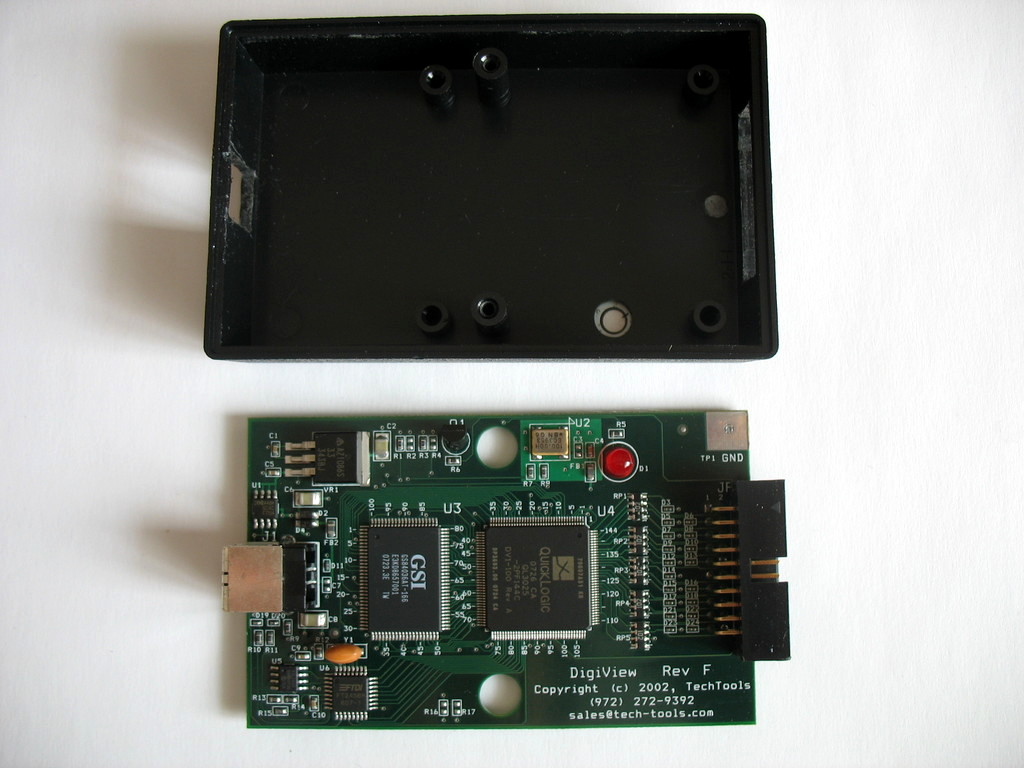

Techtools Digiview Dv1 100 Device Open Techtools Digiview Dv1 100 Device Open

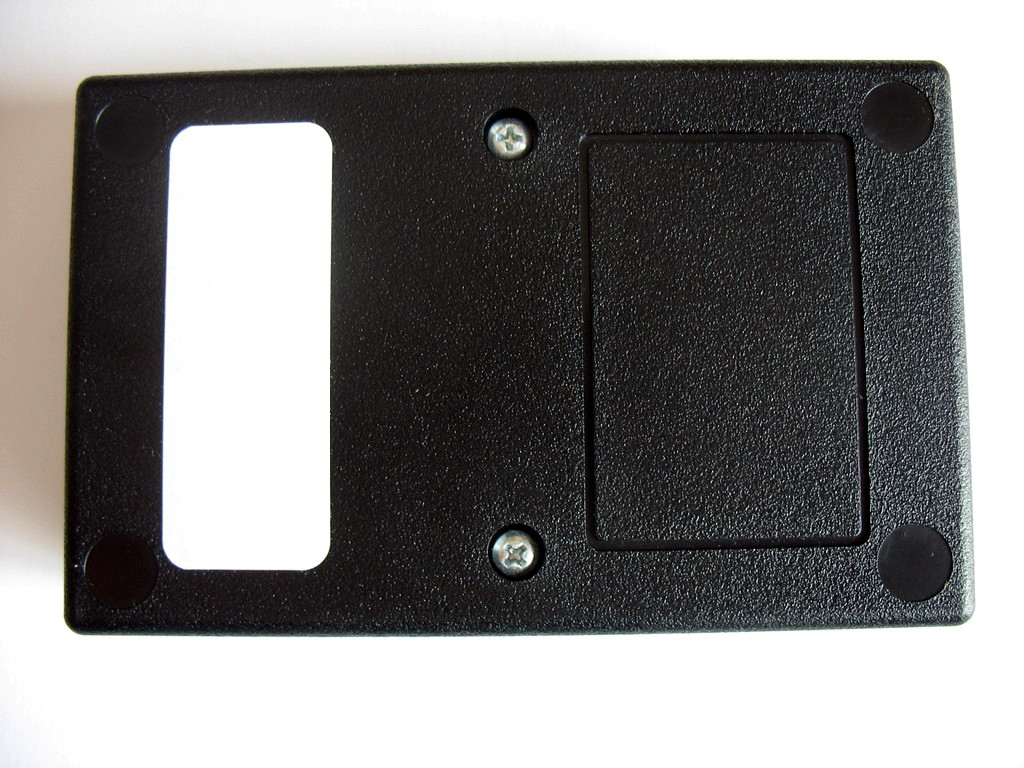

Techtools Digiview Dv1 100 Device Bottom Techtools Digiview Dv1 100 Device Bottom

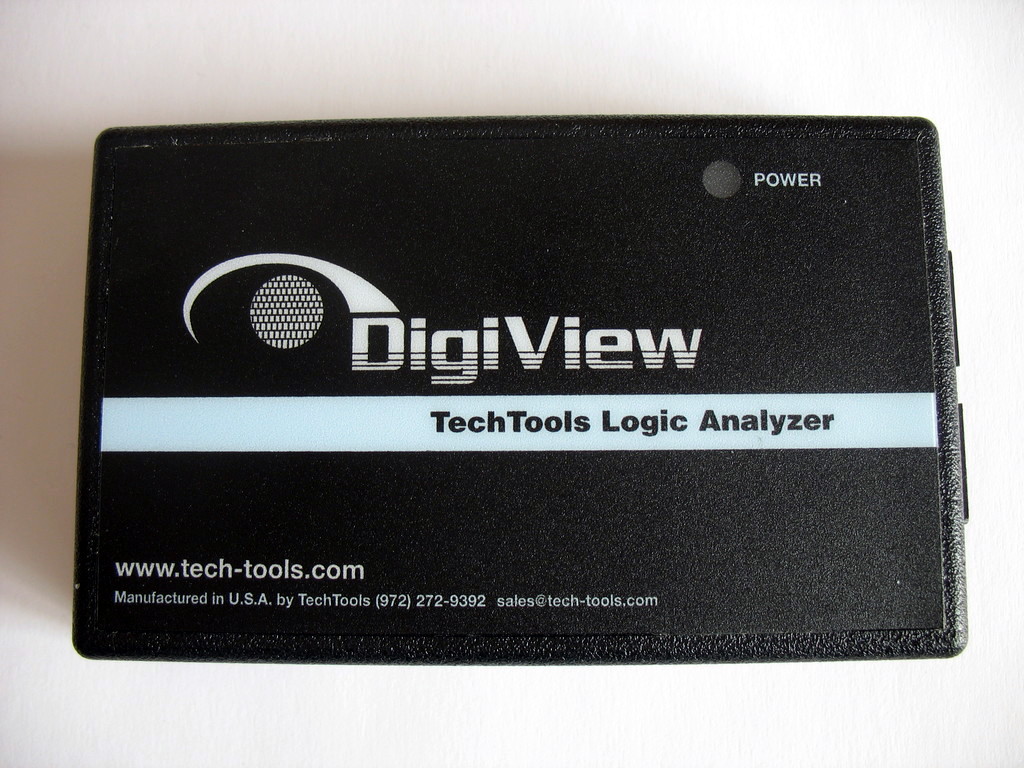

Techtools Digiview Dv1 100 Device Top Techtools Digiview Dv1 100 Device Top

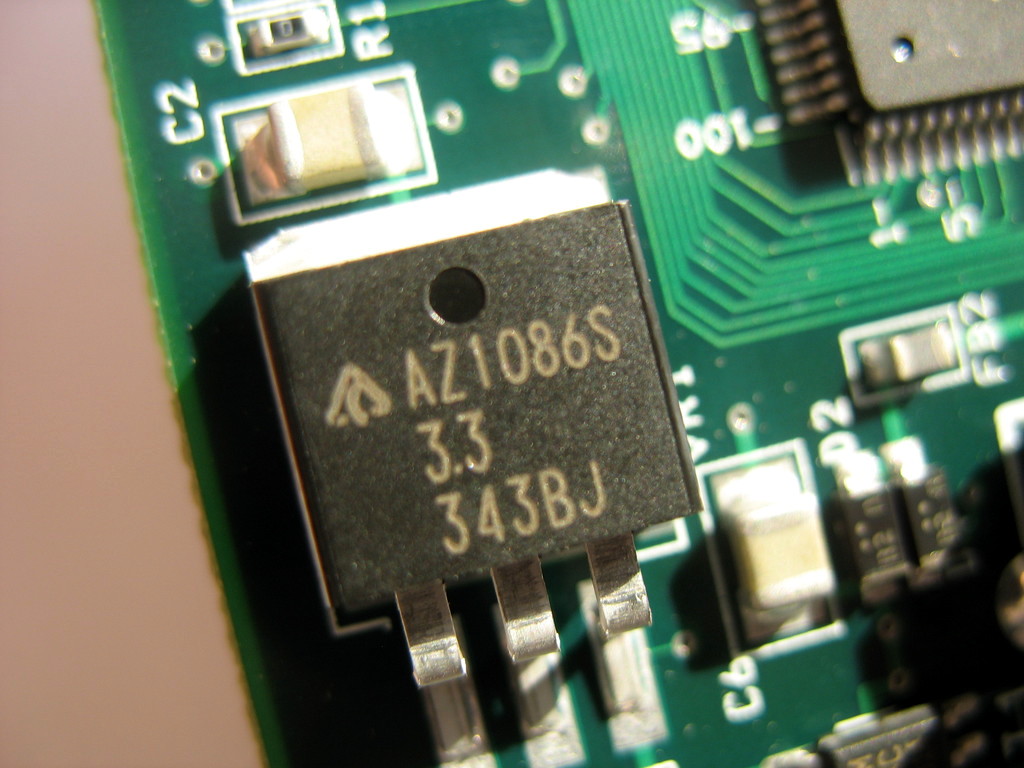

Techtools Digiview Dv1 100 Bcd Az1086s Techtools Digiview Dv1 100 Bcd Az1086s

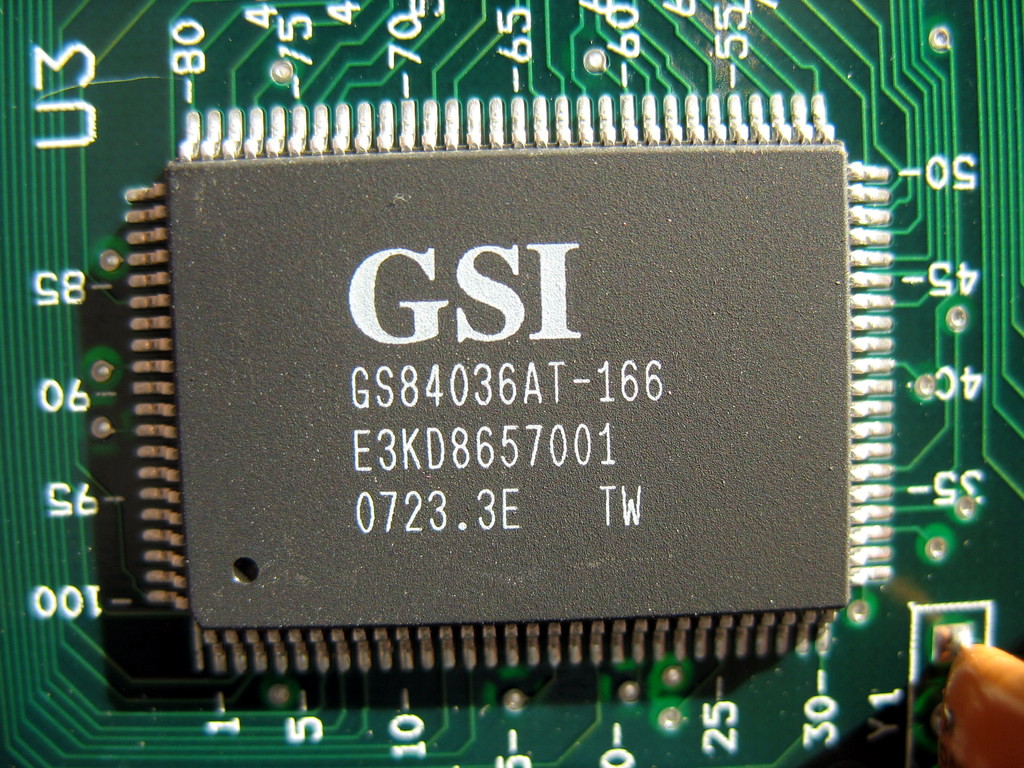

Techtools Digiview Dv1 100 Gsi Gs84036at 166 Techtools Digiview Dv1 100 Gsi Gs84036at 166

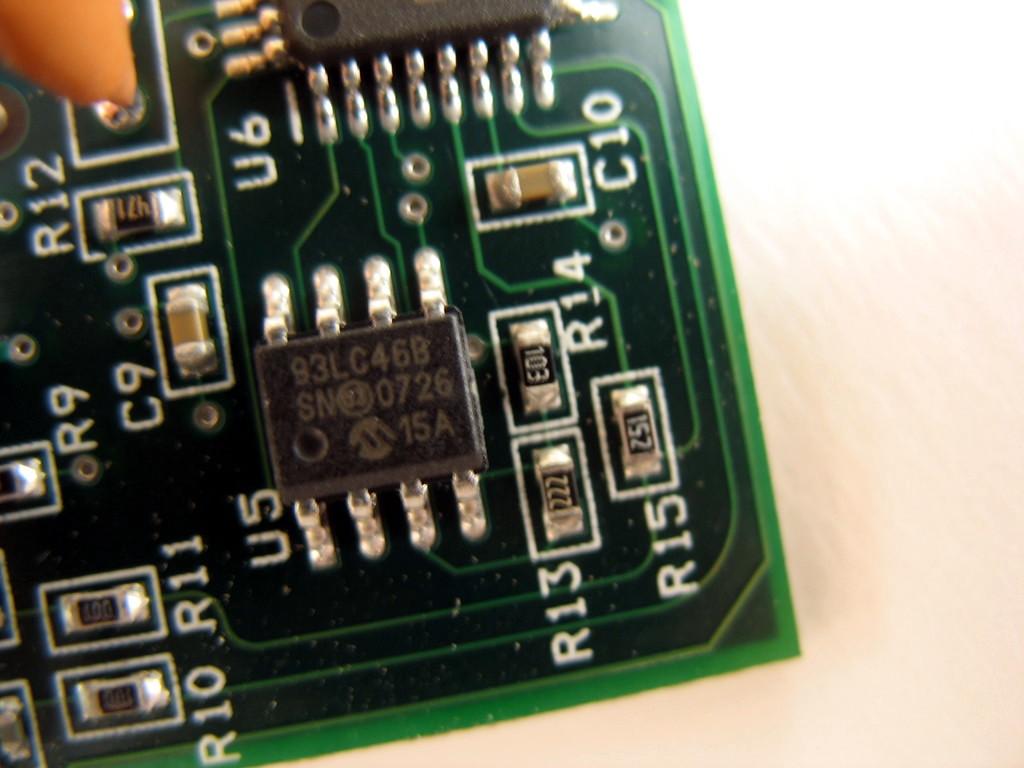

Techtools Digiview Dv1 100 Microchip 93lc46b Techtools Digiview Dv1 100 Microchip 93lc46b

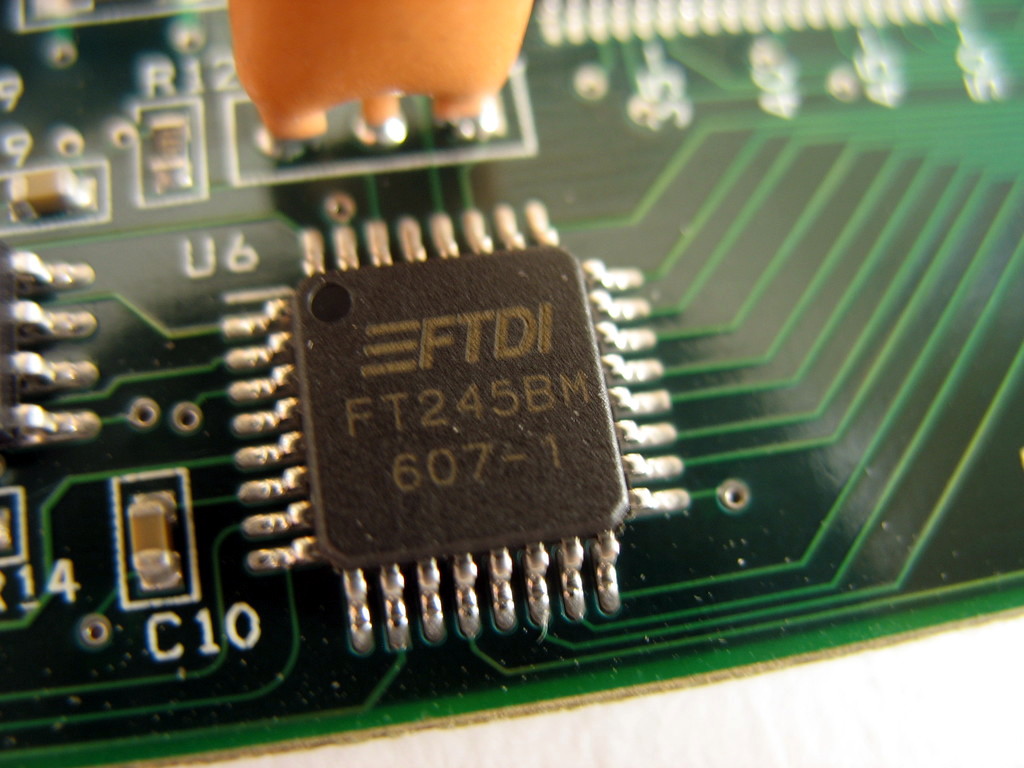

Techtools Digiview Dv1 100 Ftdi Ft245bm Techtools Digiview Dv1 100 Ftdi Ft245bm

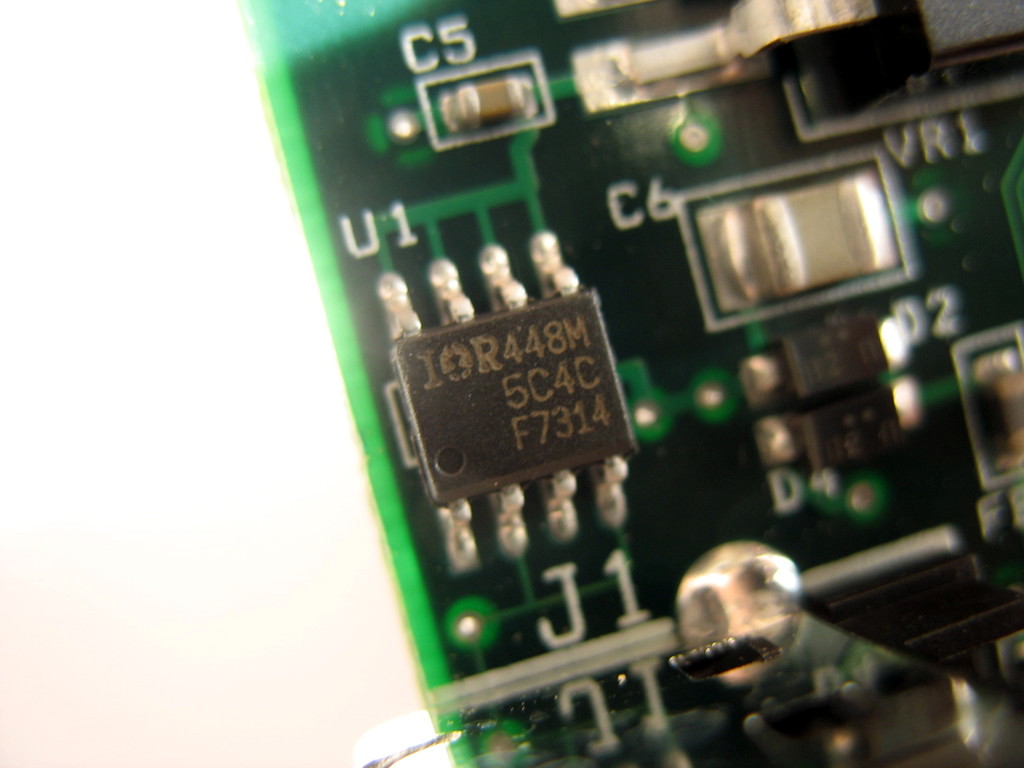

Techtools Digiview Dv1 100 Irf F7314 Techtools Digiview Dv1 100 Irf F7314

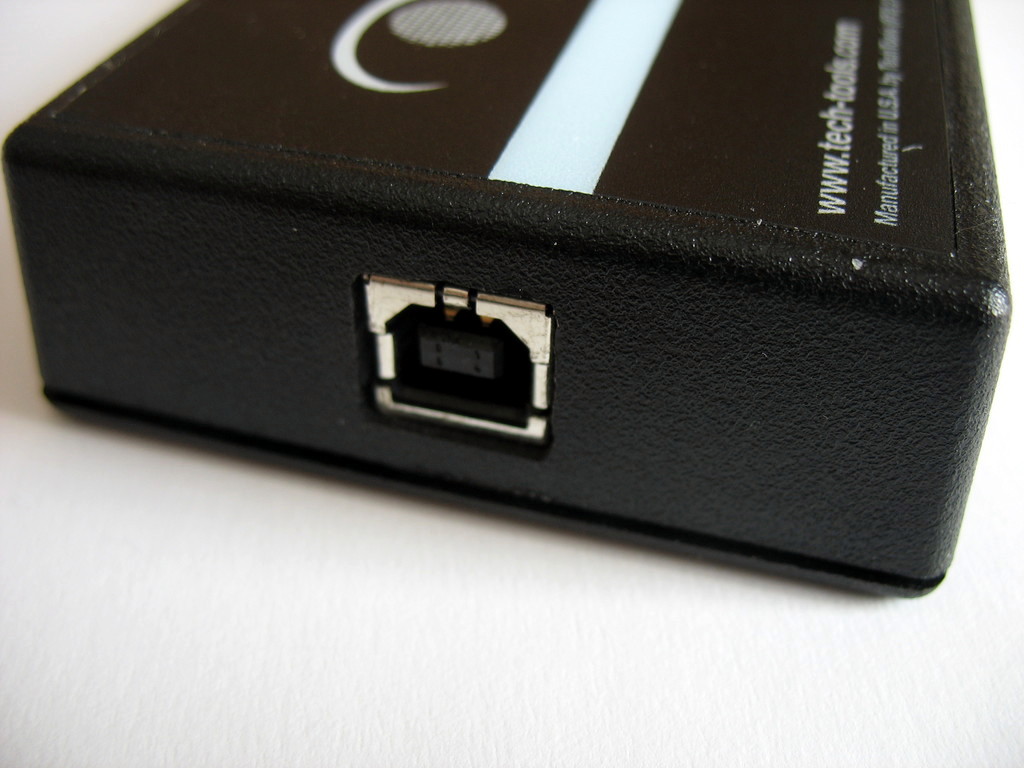

Techtools Digiview Dv1 100 Device Usb Techtools Digiview Dv1 100 Device Usb

Protocol

TODO.
