Sysclk LWLA1034

Sysclk LWLA1034

Sysclk LWLA1034
Status supported
Source code sysclk-lwla
Channels 34
Samplerate 125MHz (max)
Samplerate (state) ?
Triggers 34 + extern
Min/max voltage 0-5V
Threshold voltage ?
Memory 256Kbit/channel
Compression RLE
Website aliexpress.com

The Sysclk LWLA1034 is a USB-based, 34-channel logic analyzer with up to 125MHz sampling rate.

See Sysclk LWLA1034/Info for more details (such as lsusb -v output) about the device.

Hardware

  • Altera EP2C5Q208C8N (Cyclone II) FPGA
  • Cypress CY7C68013A-56 (FX2) USB interface chip
  • Cypress 256k×36 SRAM (likely a CY7C1361C-133AXC or similar)
  • STC15F104E 8051-based microcontroller

The not-installed 10-pin connector between the USB socket and the large capacitor seems to connect to the JTAG pins of the FPGA.

Photos

Sysclk Lwla1034 Pcb Top Sysclk Lwla1034 Pcb Top

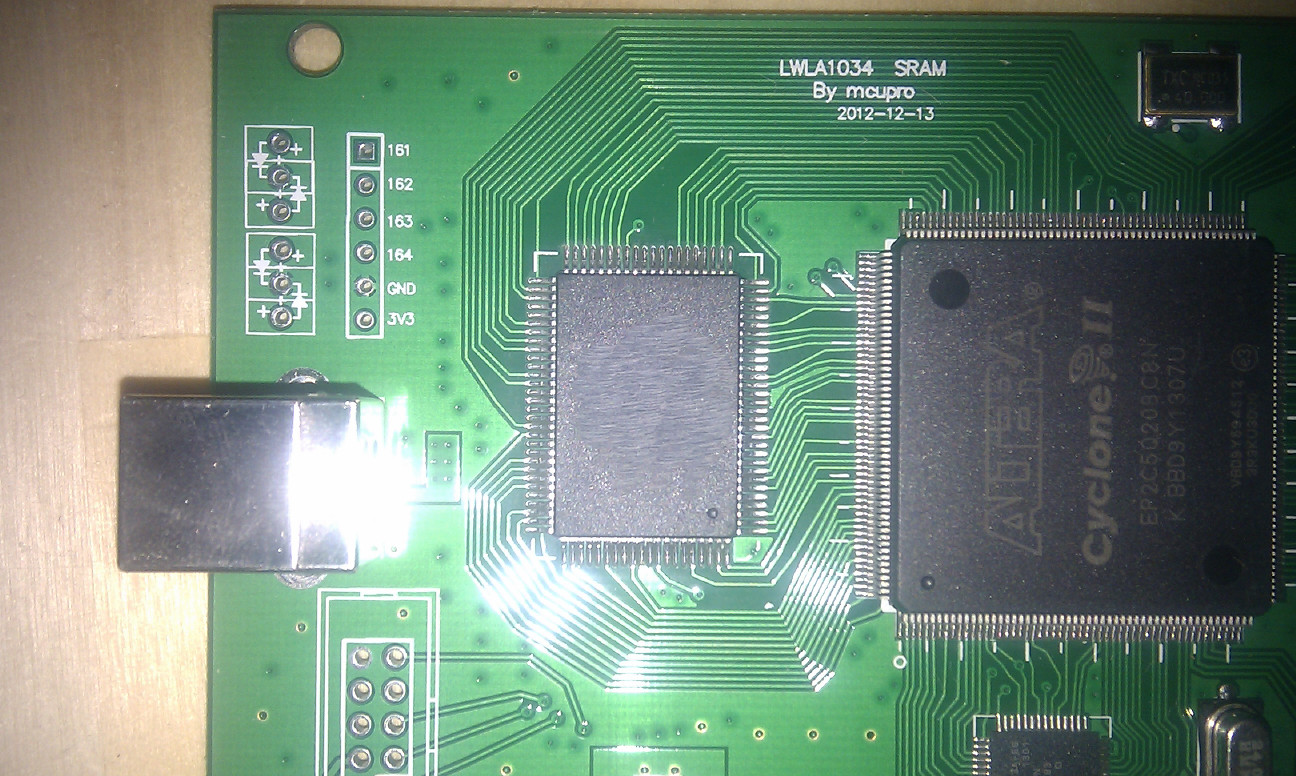

Sysclk Lwla1034 Pcb Closeup Sysclk Lwla1034 Pcb Closeup

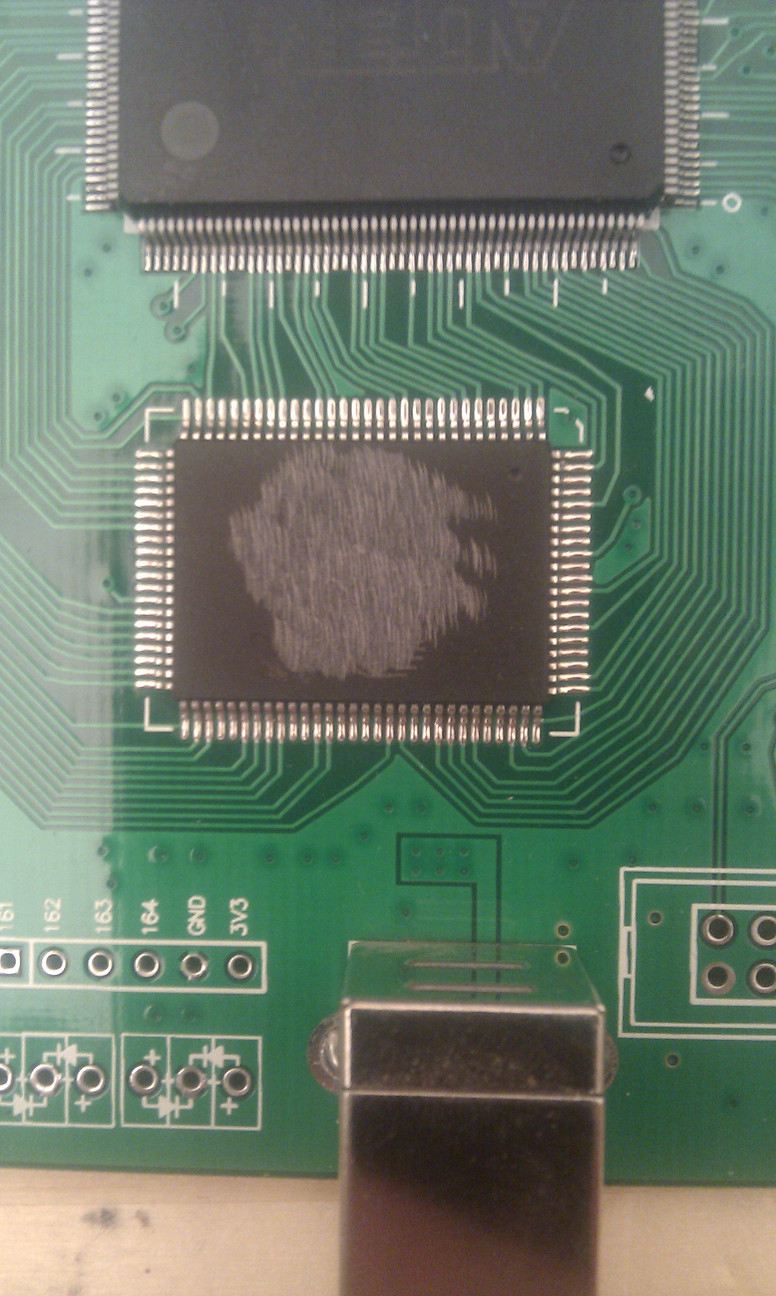

Sysclk Lwla1034 Chip3 Removed Marking Sysclk Lwla1034 Chip3 Removed Marking

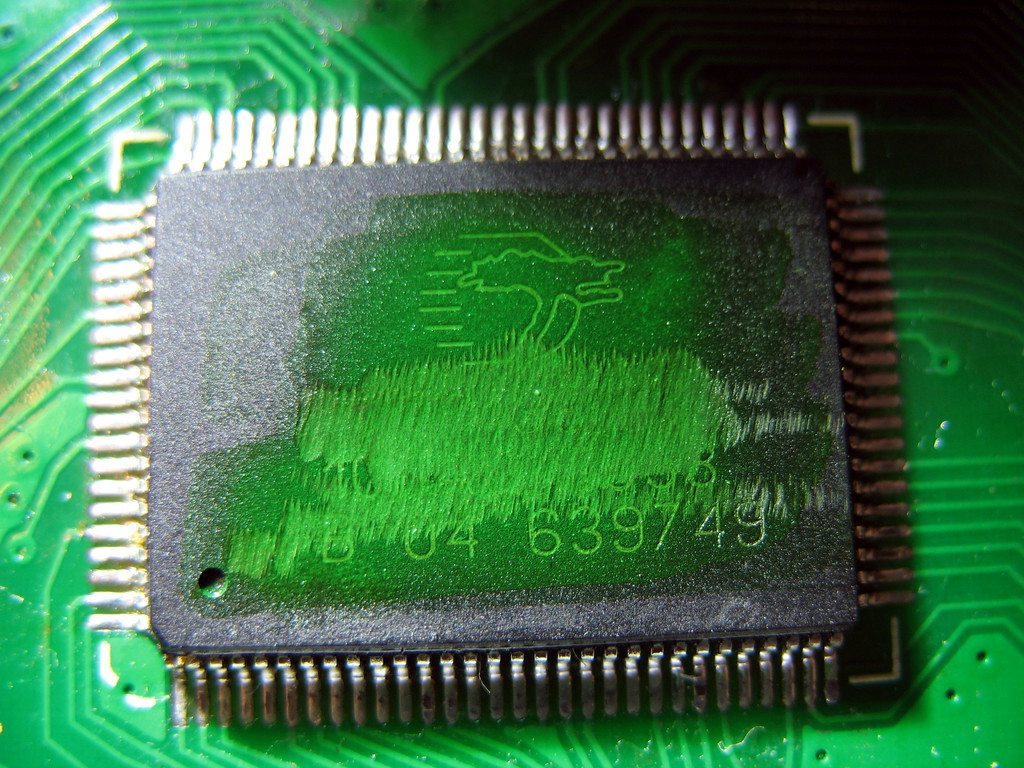

Sysclk Lwla1034 Cypress Sram Sysclk Lwla1034 Cypress Sram

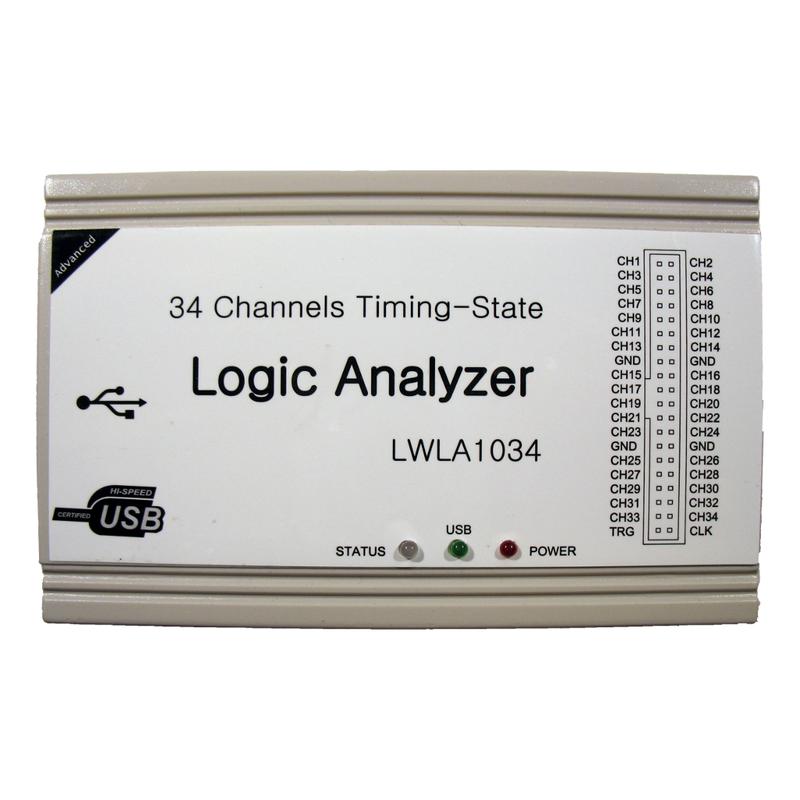

Sysclk Lwla1034 Mugshot Sysclk Lwla1034 Mugshot

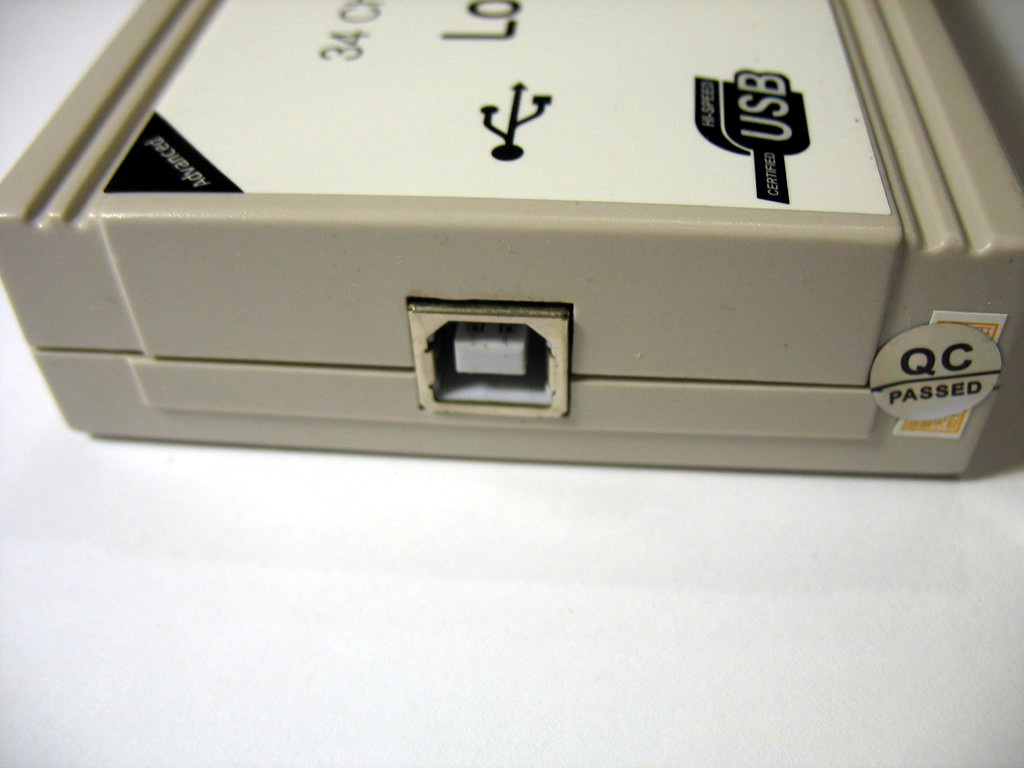

Sysclk Lwla1034 Device Usb Sysclk Lwla1034 Device Usb

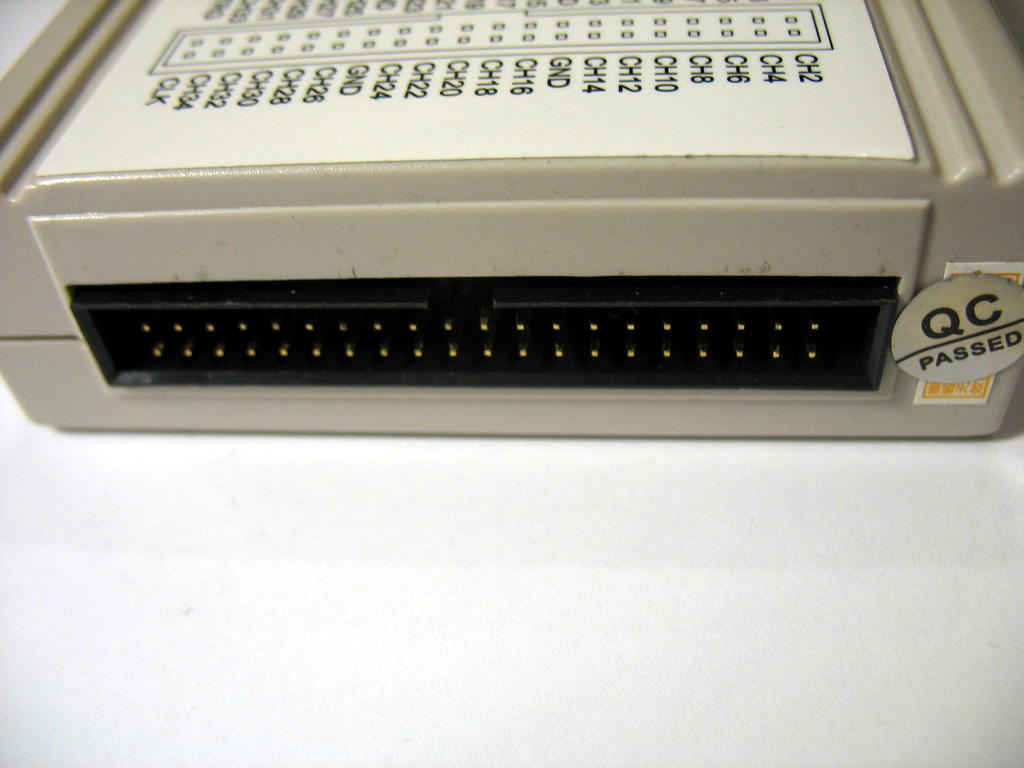

Sysclk Lwla1034 Device Connector Sysclk Lwla1034 Device Connector

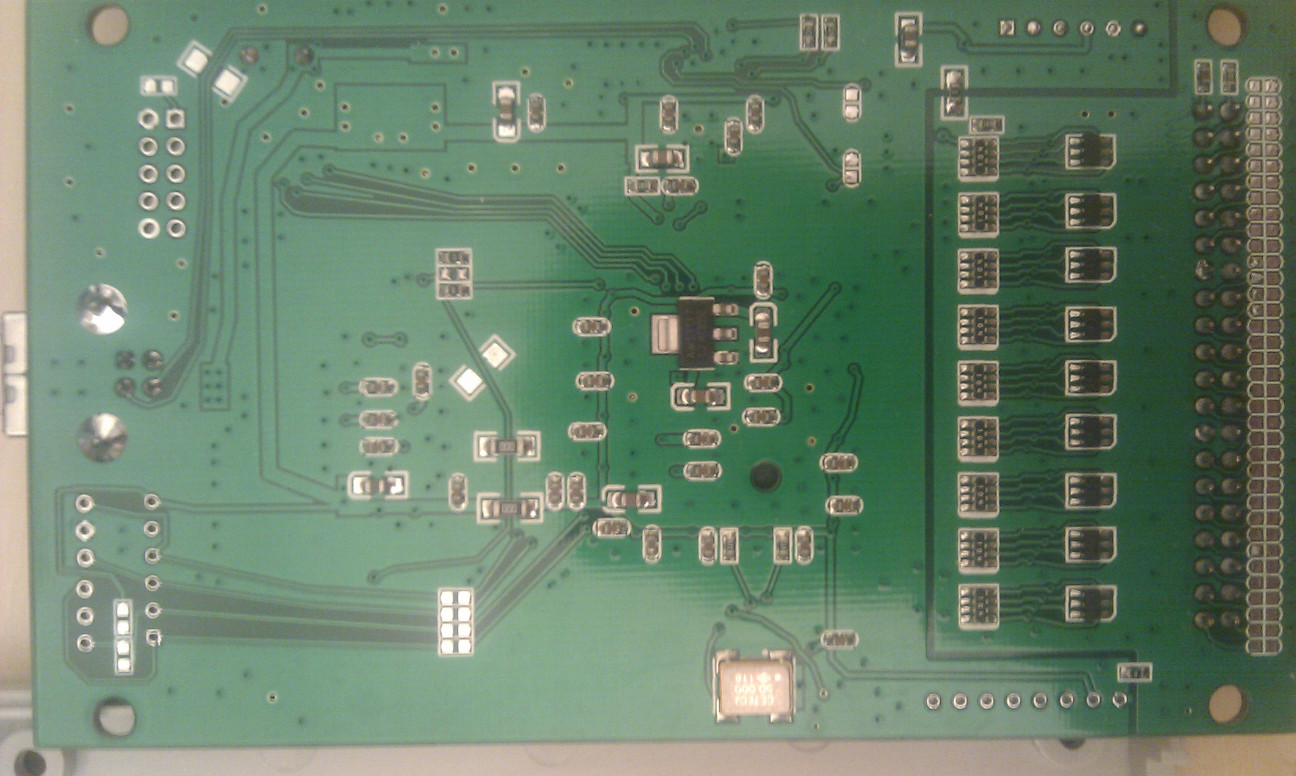

Sysclk Lwla1034 Pcb Bottom Sysclk Lwla1034 Pcb Bottom

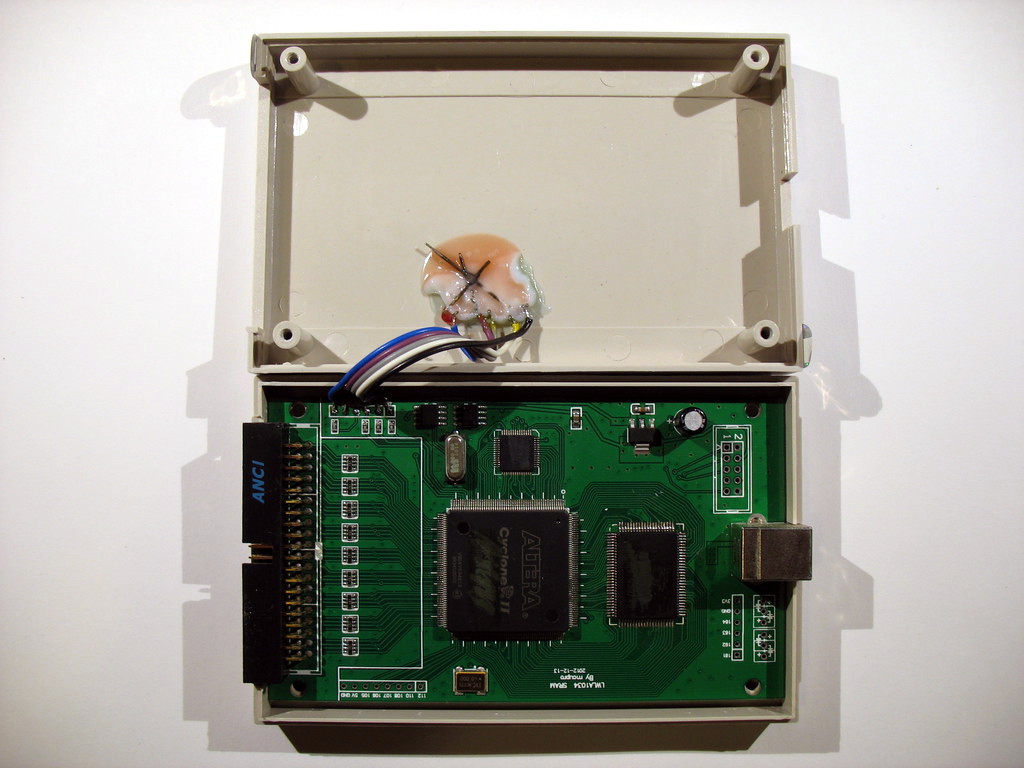

Sysclk Lwla1034 Device Open Sysclk Lwla1034 Device Open

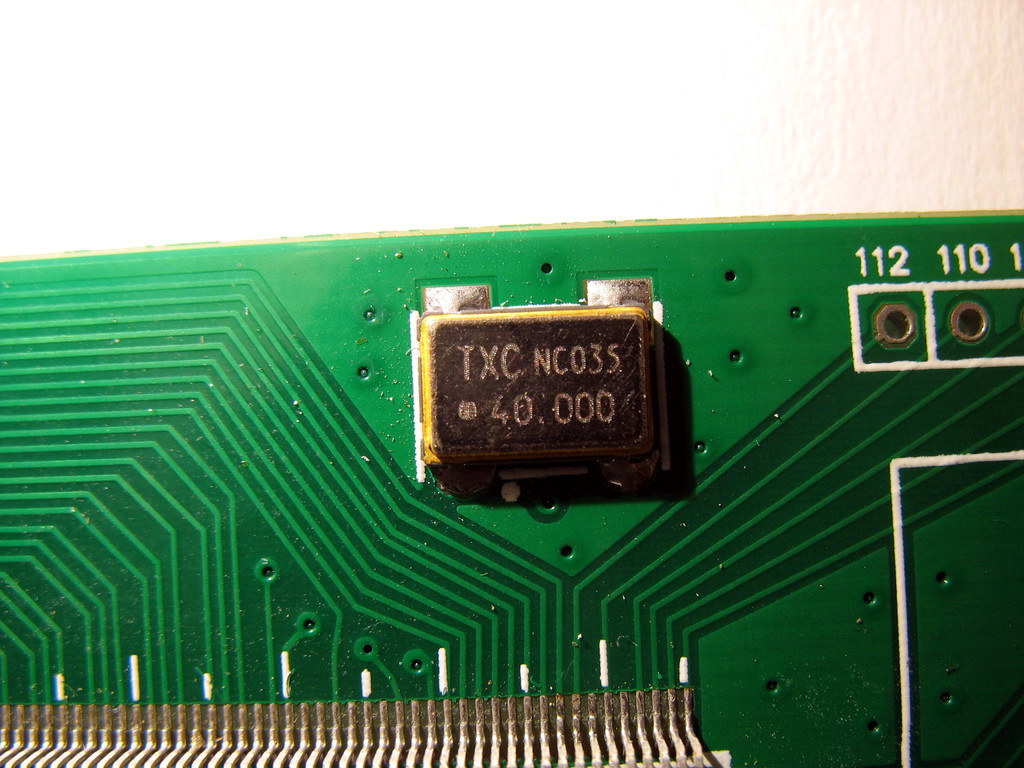

Sysclk Lwla1034 Crystal 40mhz Sysclk Lwla1034 Crystal 40mhz

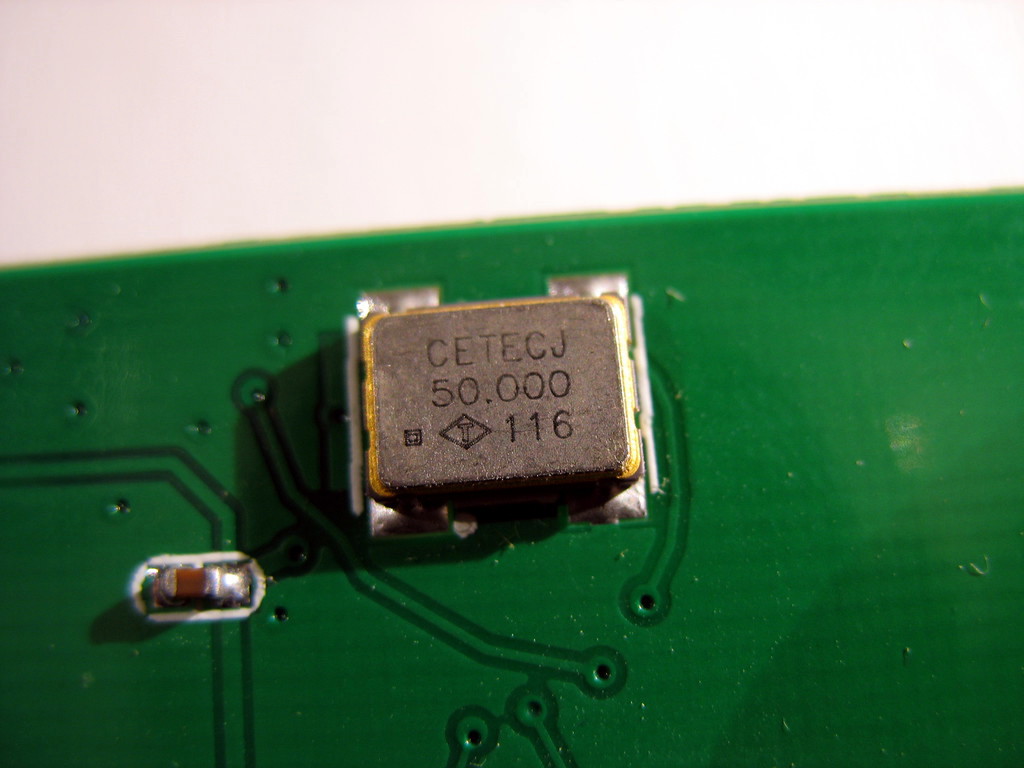

Sysclk Lwla1034 Crystal 50mhz Sysclk Lwla1034 Crystal 50mhz

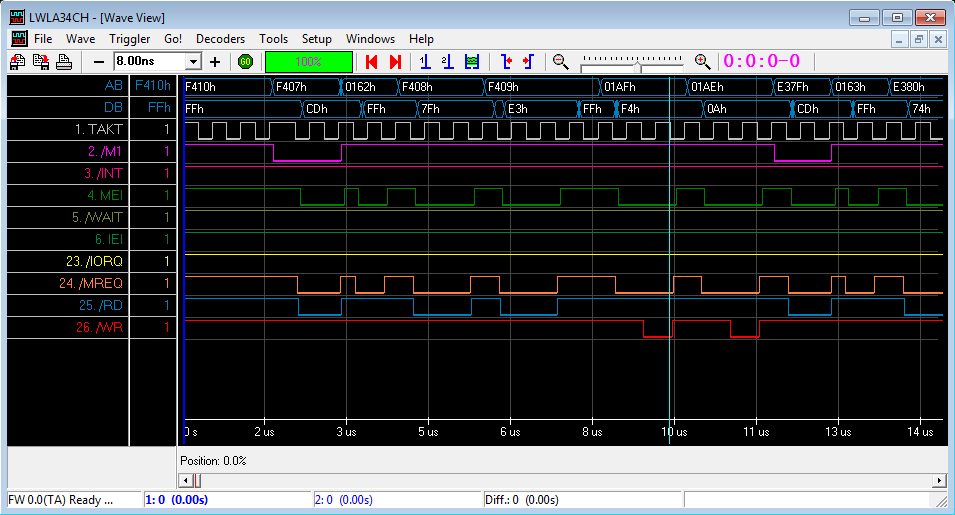

Sysclk Lwla1034 Software Sysclk Lwla1034 Software

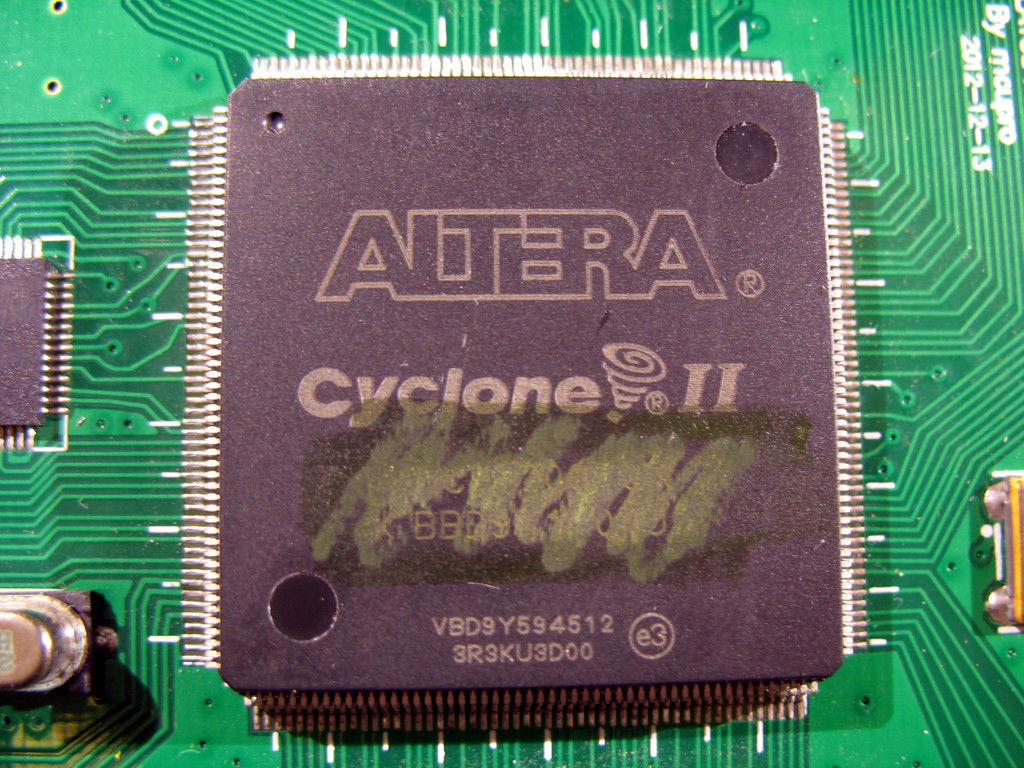

Sysclk Lwla1034 Altera Cyclone2 Sysclk Lwla1034 Altera Cyclone2

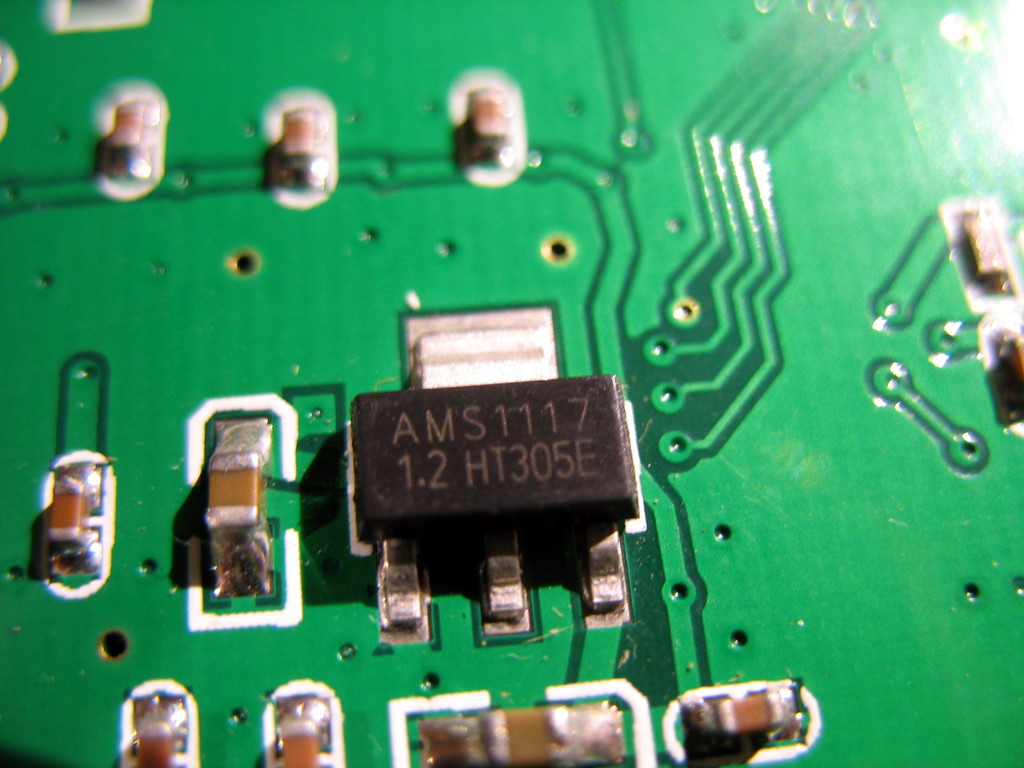

Sysclk Lwla1034 Ams1117 12 Sysclk Lwla1034 Ams1117 12

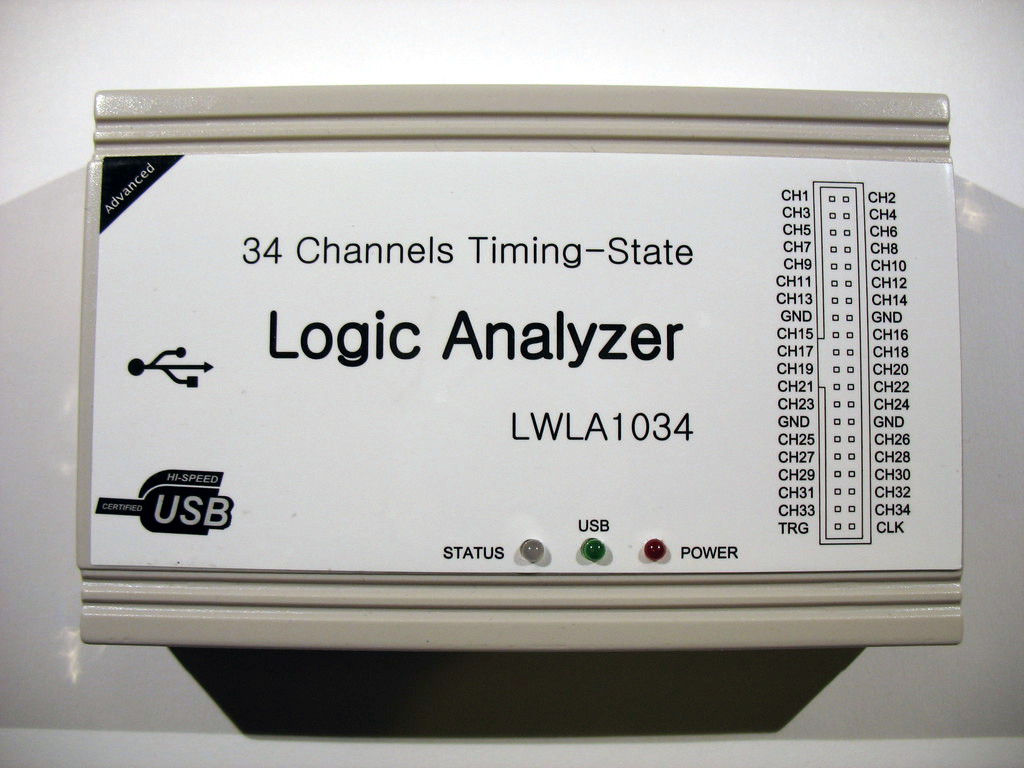

Sysclk Lwla1034 Device Top Sysclk Lwla1034 Device Top

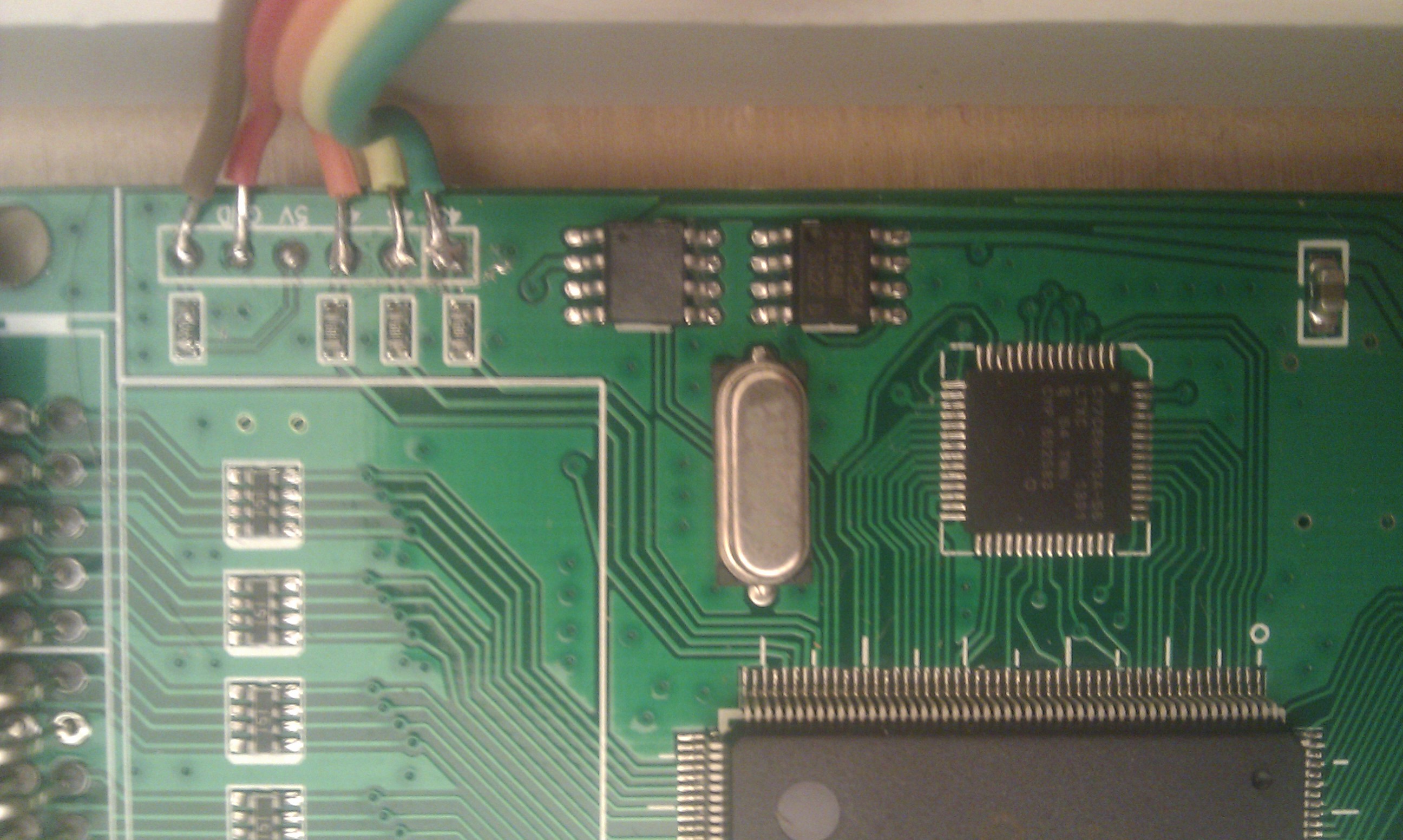

Sysclk Lwla1034 Chip2 Sysclk Lwla1034 Chip2

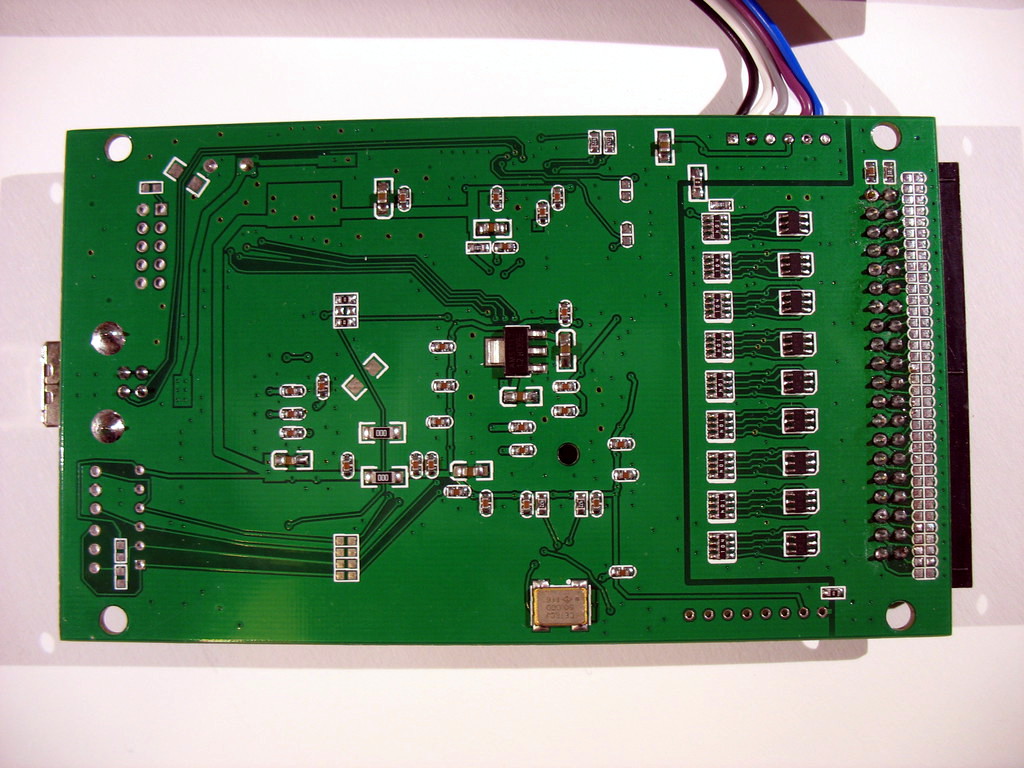

Sysclk Lwla1034 Pcb Bottom2 Sysclk Lwla1034 Pcb Bottom2

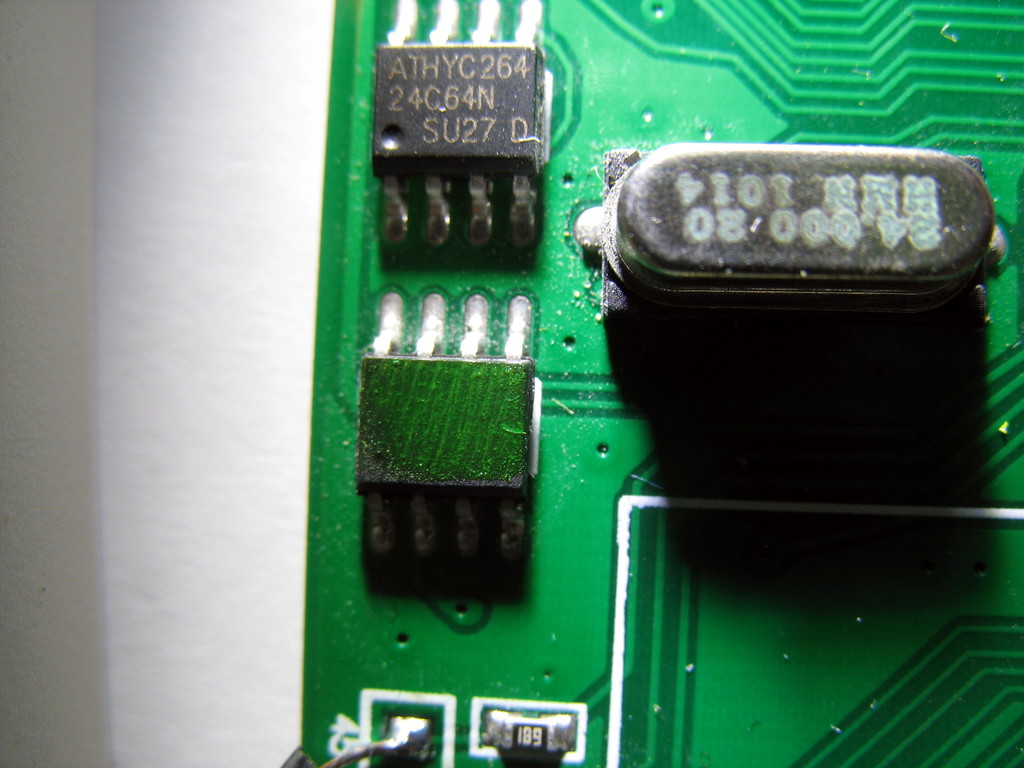

Sysclk Lwla1034 24c64n Otherso8 Crystal Sysclk Lwla1034 24c64n Otherso8 Crystal

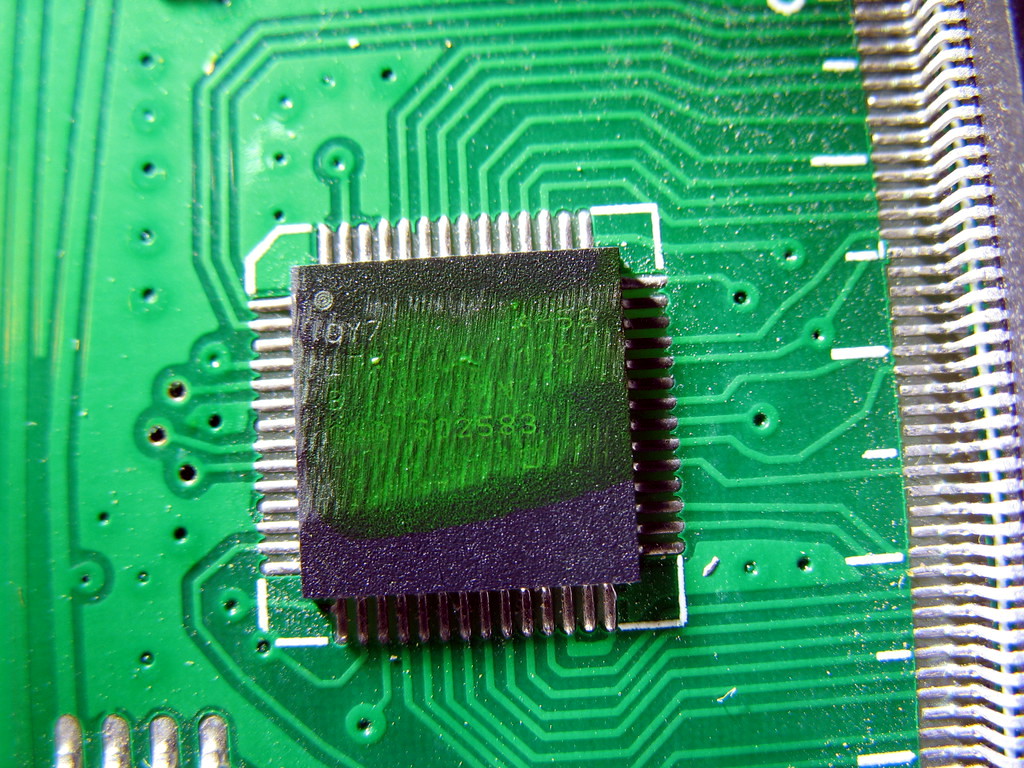

Sysclk Lwla1034 Cypress Fx2 Sysclk Lwla1034 Cypress Fx2

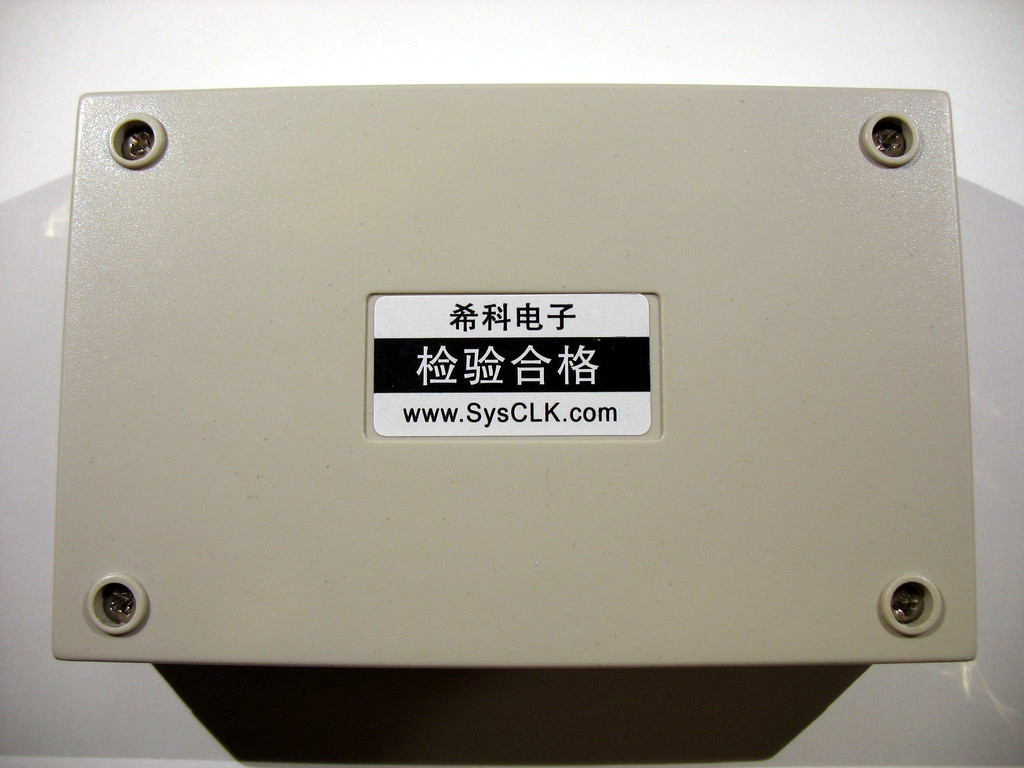

Sysclk Lwla1034 Device Bottom Sysclk Lwla1034 Device Bottom

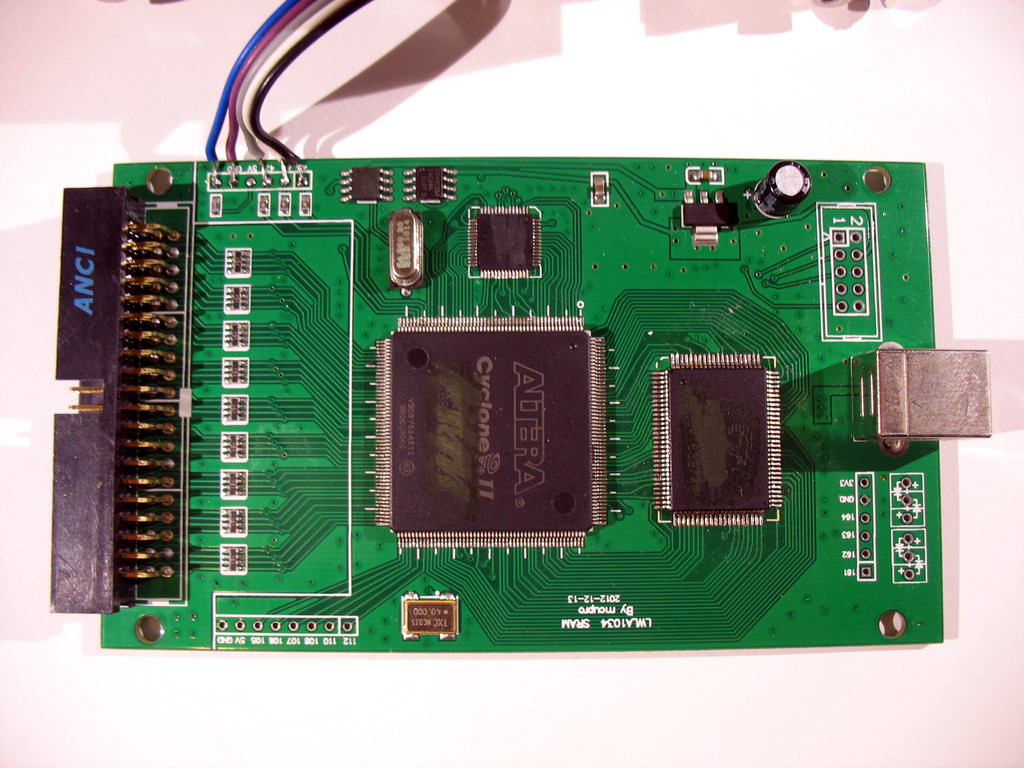

Sysclk Lwla1034 Pcb Top2 Sysclk Lwla1034 Pcb Top2

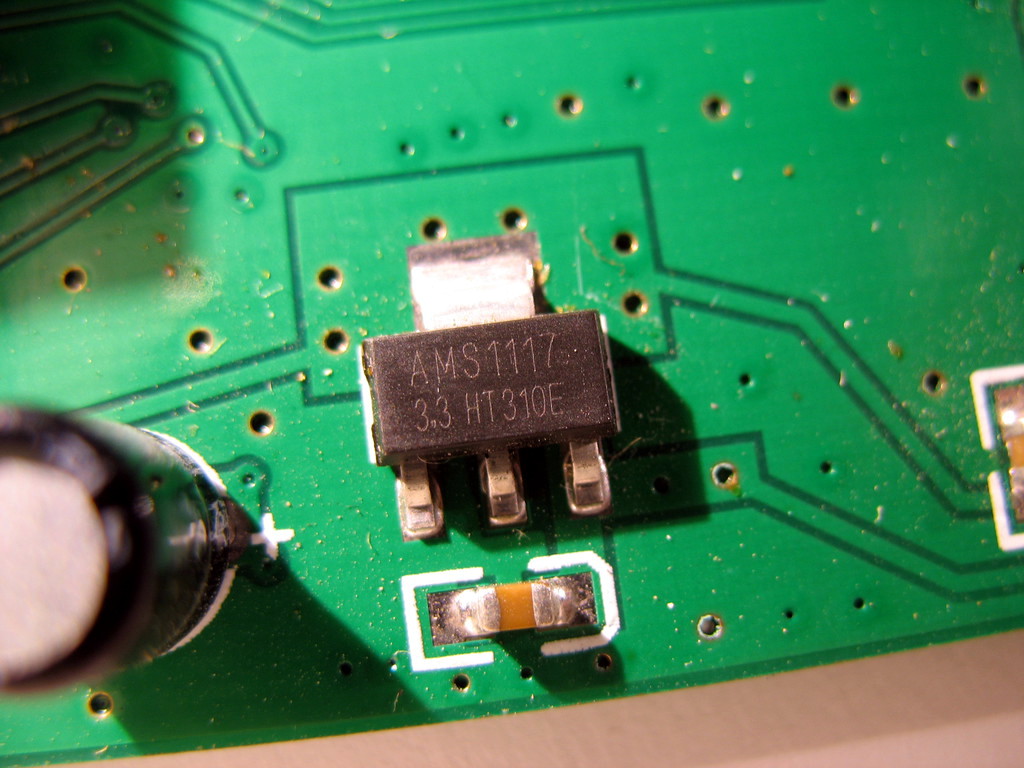

Sysclk Lwla1034 Ams1117 33 Sysclk Lwla1034 Ams1117 33

Software

Firmware

We have received permission from the vendor to distribute the FPGA bitstreams with sigrok. Thus, the bitstreams are now included in the sigrok-firmware module.

  • The FX2 firmware is loaded from an EEPROM on the board, so that the final USB device descriptor is immediately available on power-up.
  • Endpoint 4 is used exclusively for loading a new bitstream into the FPGA.
  • Endpoint 2 is used for sending commands to the FPGA firmware, with responses (if any) coming in from endpoint 6.

Reverse engineering of the vendor's custom protocol has been completed. See Sysclk LWLA1034/Protocol for the documentation.
