Robomotic MiniLogic¶
Robomotic MiniLogic¶
| Status | supported |
| Source code | fx2lafw |
| Channels | 8 |
| Samplerate | 24MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | -0.5V — 5.25V |
| Threshold voltage | Fixed: VIH=2.0V—5.25V, VIL=-0.5V—0.8V |
| Memory | none |
| Compression | none |
| Website | robomotic.com |
The Robomotic MiniLogic is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate.
It is a clone of the Saleae Logic.
In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.
See Robomotic MiniLogic/Info for more details (such as lsusb -vvv output) about the device.
Hardware¶
- Main chip: Cypress CY7C68013A-56PVXC (FX2LP) (datasheet)
- Octal 3-state non-inverting buffer/line-driver/line-receiver: 74HC244A (TODO: vendor?)
- 1A low-dropout voltage regulator (3.3V): Advanced Monolithic Systems AMS1117-3.3 (datasheet)
- 2K I2C serial EEPROM: 2x Microchip 24LC02BI (datasheet)
- 64K I2C serial EEPROM: Microchip 24LC64I (datasheet)
Photos¶
Robomotic Minilogic Microchip 24lc64i

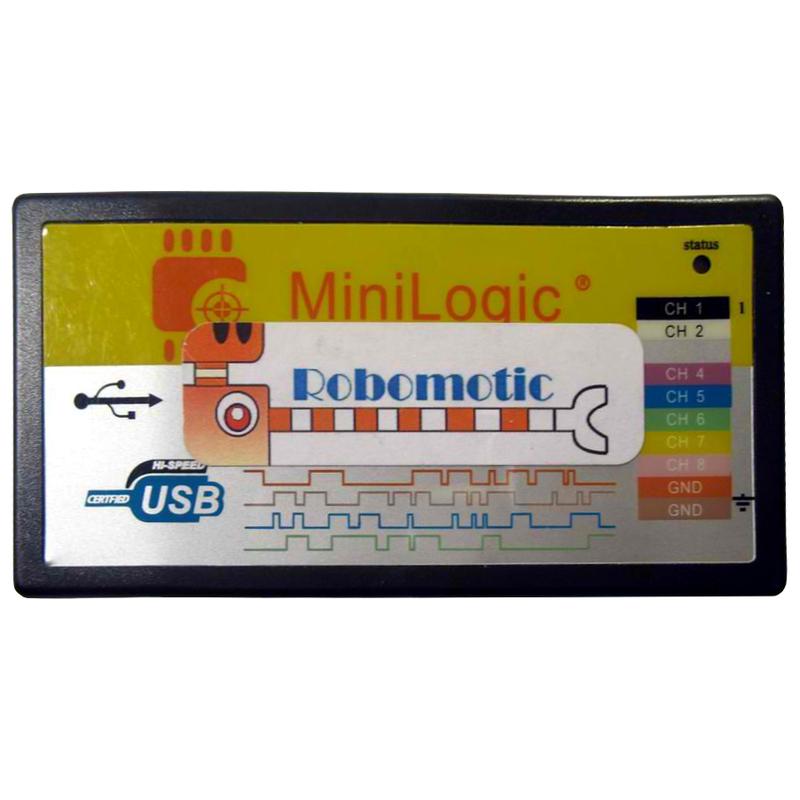

Robomotic Minilogic
Robomotic Minilogic

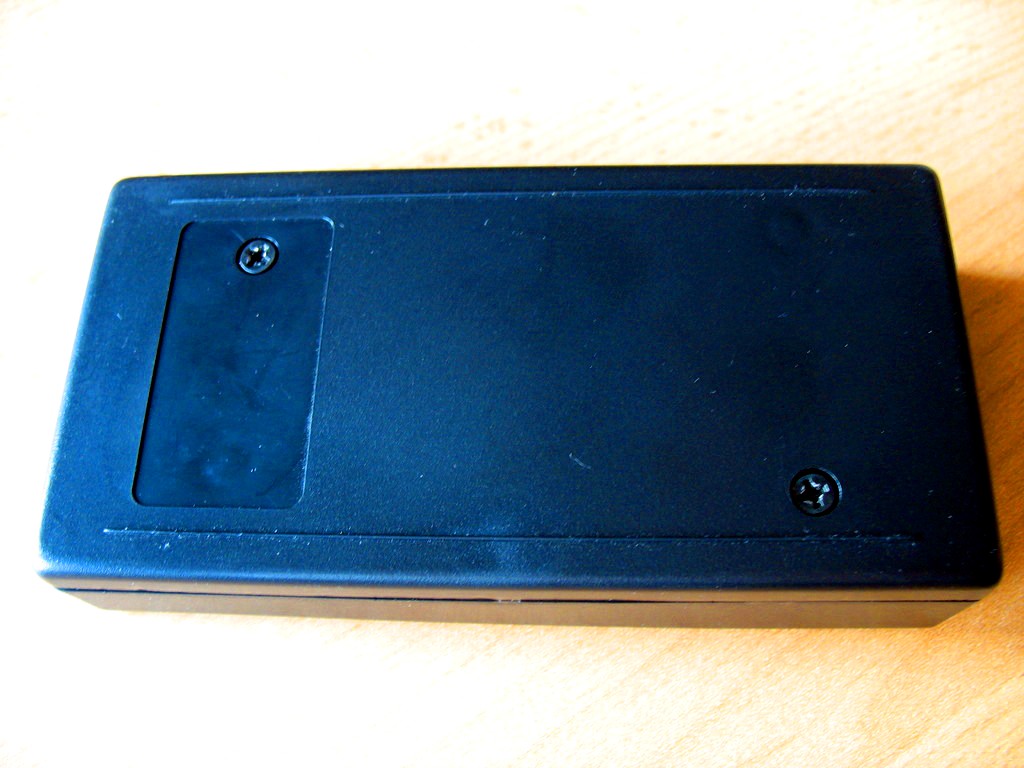

Robomotic Minilogic Back

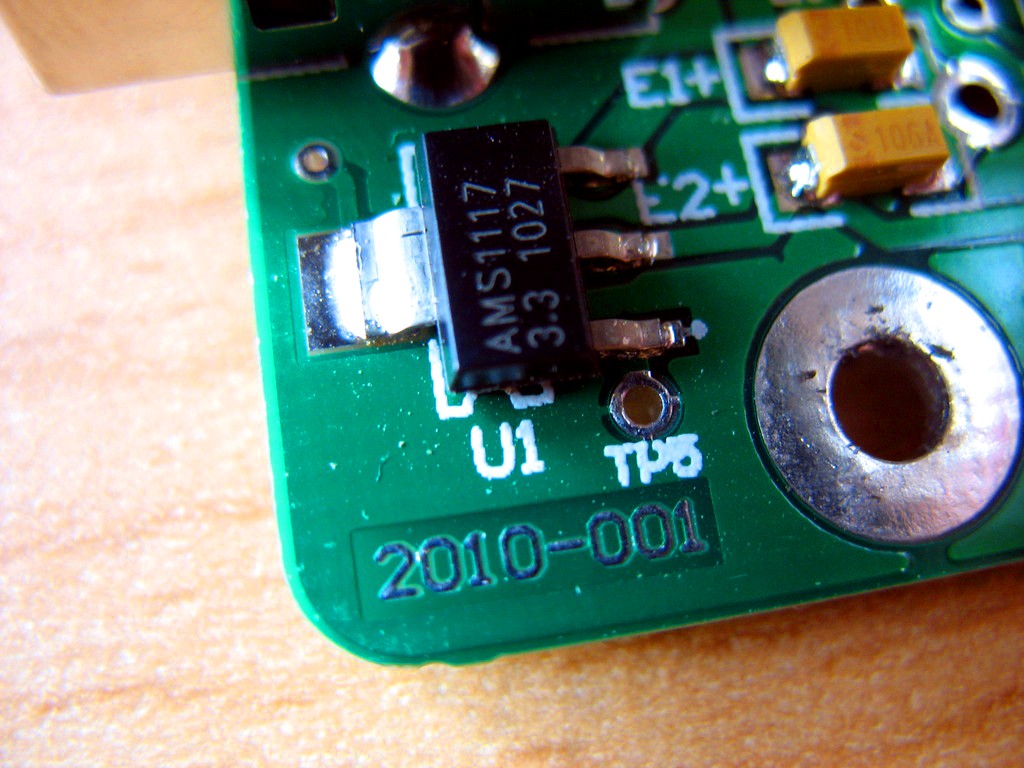

Robomotic Minilogic Ams1117

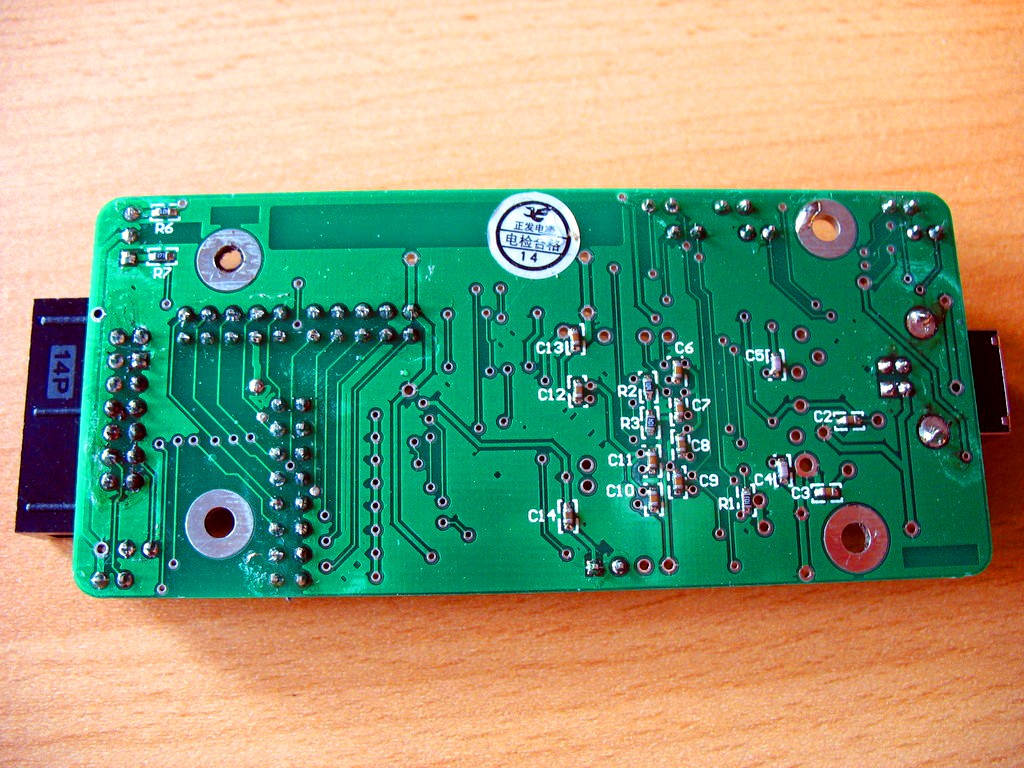

Robomotic Minilogic Pcb Back

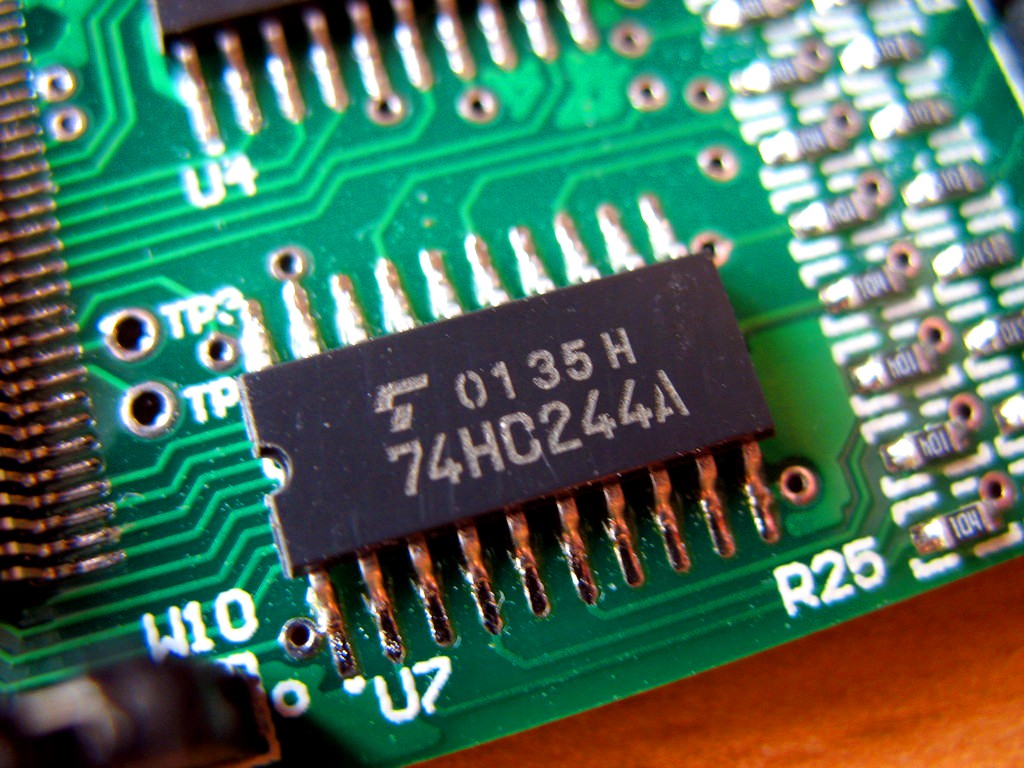

Robomotic Minilogic 74hc244a

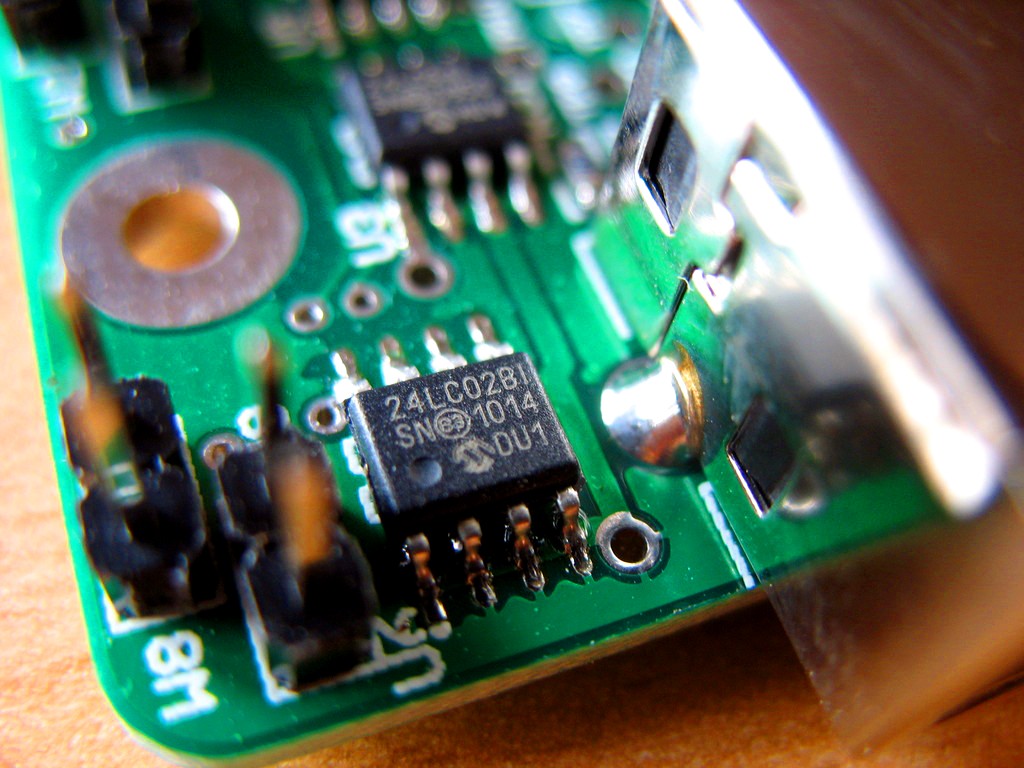

Robomotic Minilogic Microchip 24lc02bi

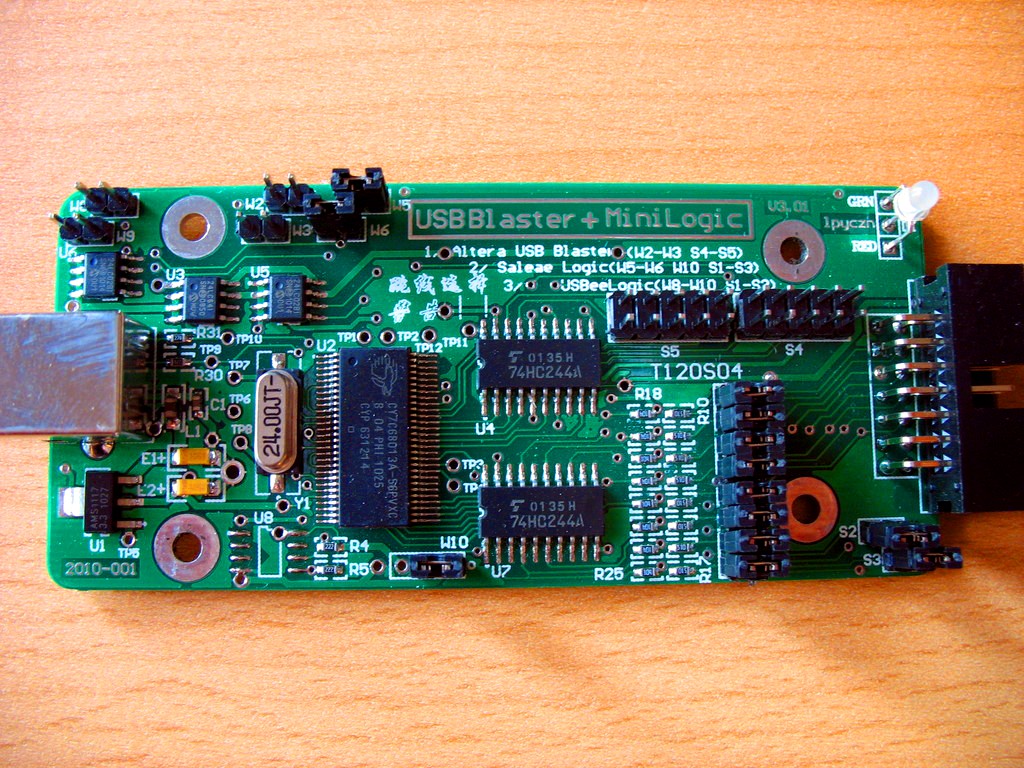

Robomotic Minilogic Pcb Front

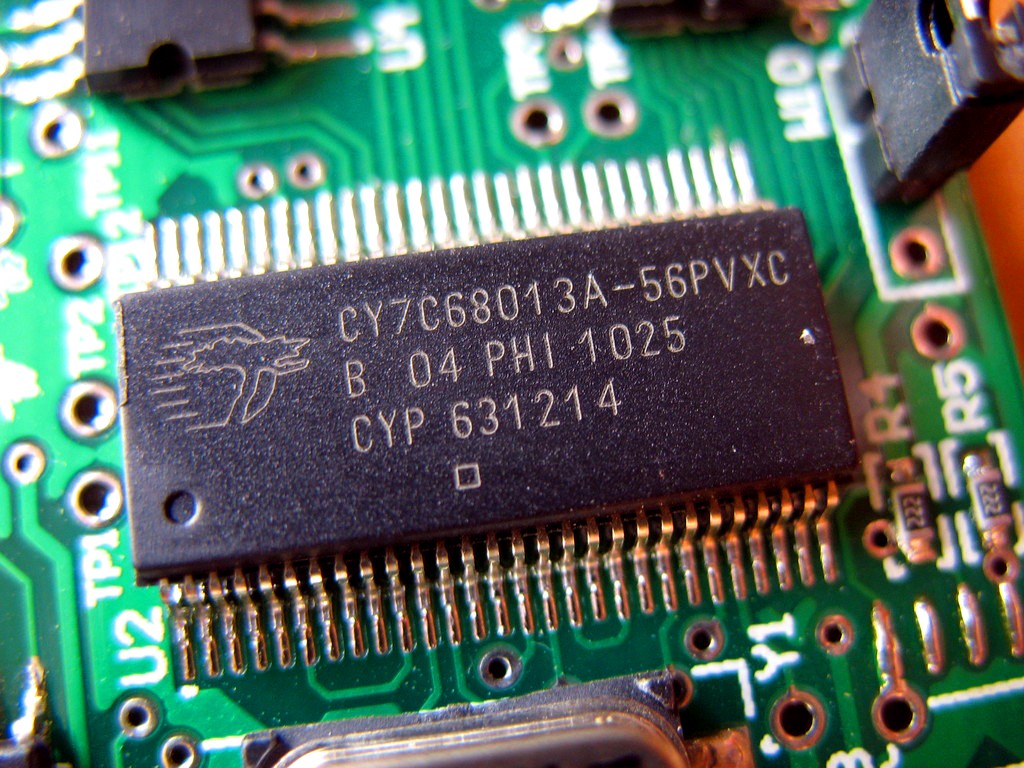

Robomotic Minilogic Cypress Fx2
Protocol¶
Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
Resources¶
TODO.
