Prist AKIP-9101¶
Prist AKIP-9101¶
| Status | supported |
| Source code | zeroplus-logic-cube |
| Channels | 16 |
| Samplerate | 200MHz |
| Samplerate (state) | 100MHz |
| Triggers | pattern, edge |
| Min/max voltage | -6V — +6V |
| Memory | 256Kbits/channel |
| Compression | yes |
| Website | prist.ru |
The Prist AKIP-9101 (АКИП-9101) is a USB-based, 16-channel logic analyzer with up to 200MHz sampling rate.
It is likely to be a rebranded ZEROPLUS LAP-C(16128+).
See Prist AKIP-9101/Info for more details (such as lsusb -v output) about the device.
See ZEROPLUS Logic Cube LAP-C series for information common to all devices in this series.
Hardware¶
TODO
Photos¶
Akip Rear

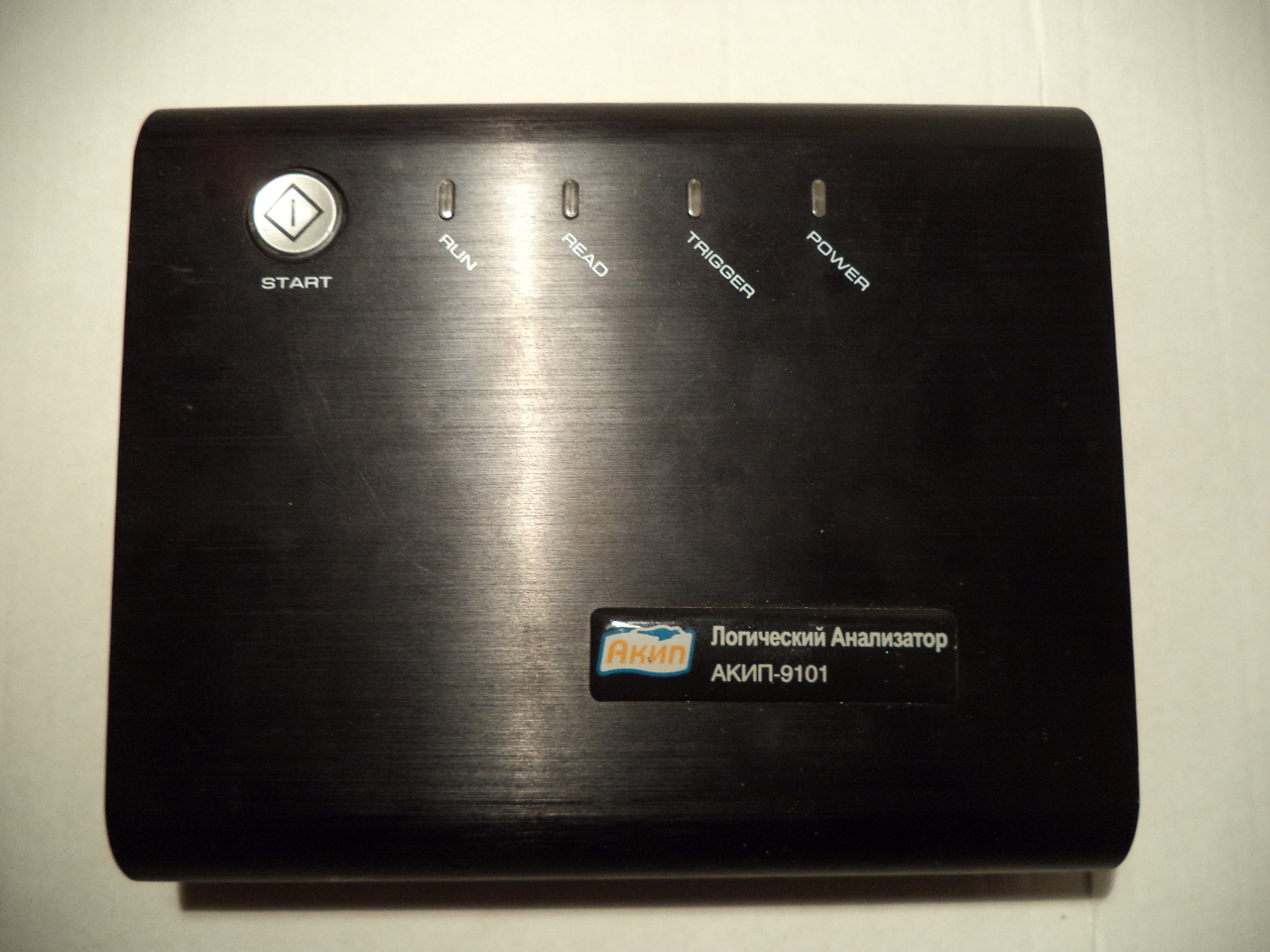

Akip Front

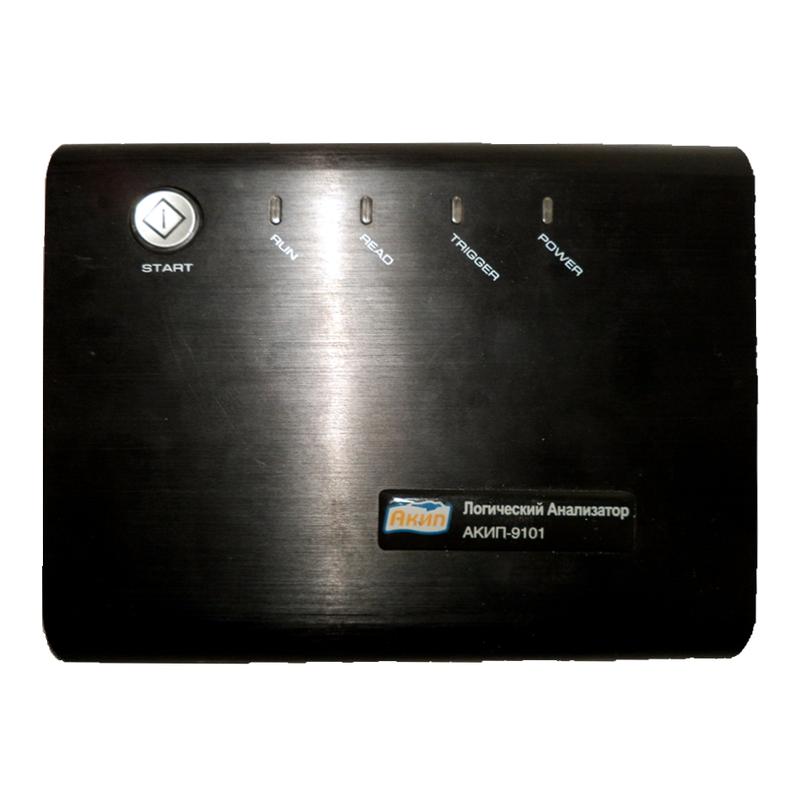

Prist Akip 9101 Mugshot

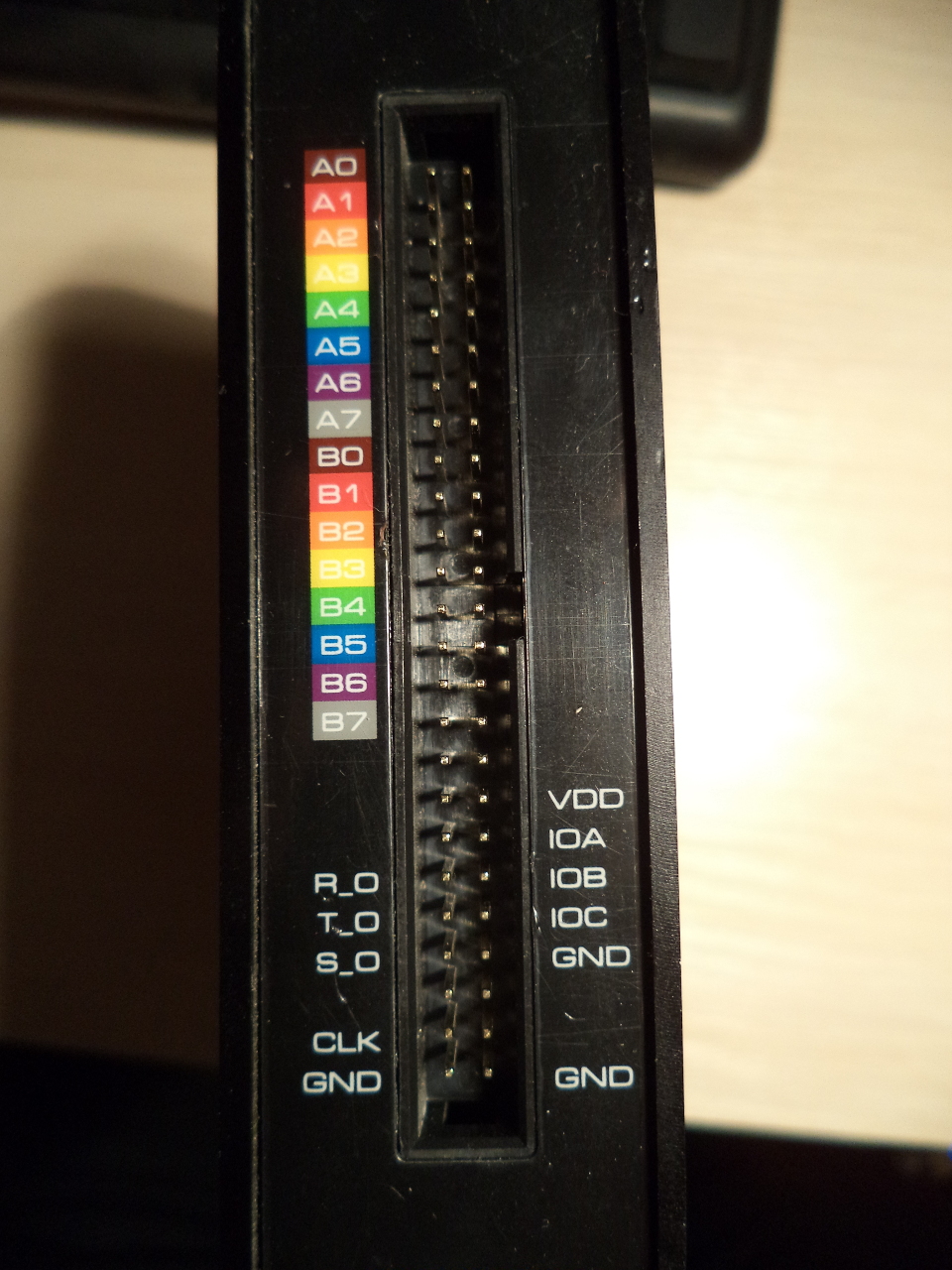

Akip Ports
Protocol¶
TODO.
