Noname XL-LOGIC16-100M¶
Noname XL-LOGIC16-100M¶
| Status | in progress |
| Source code | saleae-logic16 |
| Channels | 3/6/9/16 |
| Samplerate | 100/50/32/16MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | -0.9V — 6V |
| Threshold voltage | configurable:for 1.8V to 3.6V systems: VIH=1.4V, VIL=0.7Vfor 5V systems: VIH=3.6V, VIL=1.4V |
| Memory | none |
| Compression | yes |
| Price range | $30 - $35 |
| Website | aliexpress.com |
The Noname XL-LOGIC16-100M is a USB-based, 16-channel logic analyzer with up to 100MHz sampling rate.
It is labelled and sold as a Saleae Logic16 clone, and comes with "modified" Saleae Logic software on a CD-ROM.
See Noname XL-LOGIC16-100M/Info for more details (such as lsusb -v output) about the device.
Variants in same case¶
The 2015-1-8 version of the Mcupro_Logic16_clone comes in the same case as this device. Unlike this device, the mcupro version works with sigrok!
Hardware¶
A single Phillips head screw holds the case together. Most notable are the complete lack of test points or programming headers! There are some unpopulated resistor/capacitor pairs on the backside.

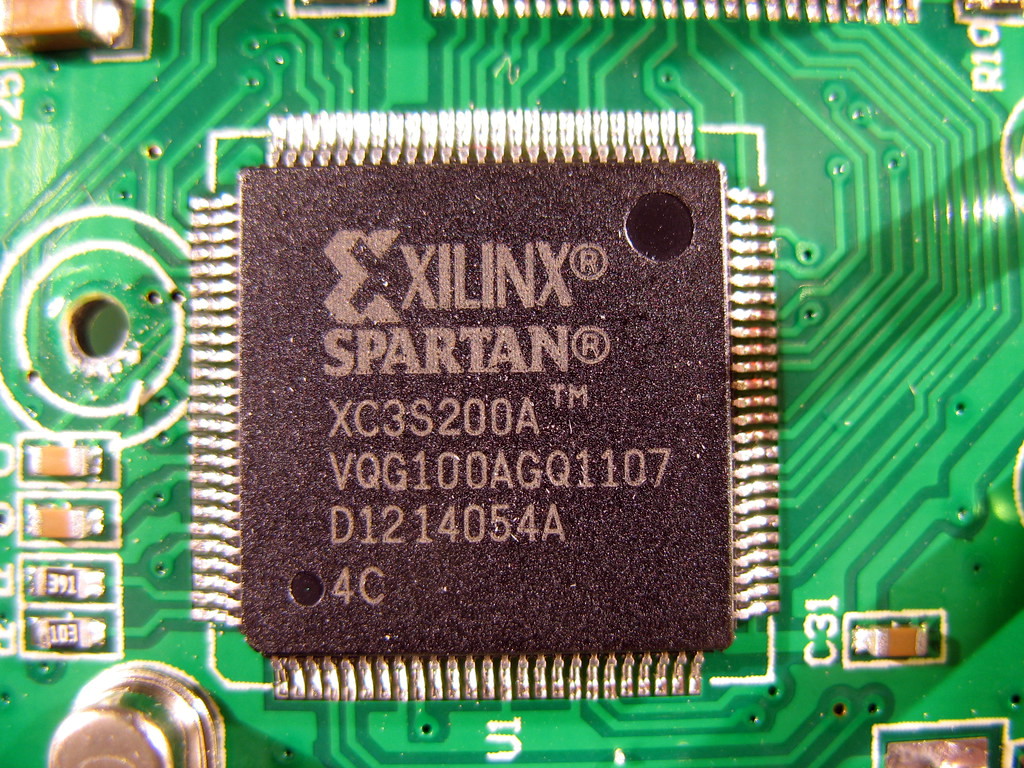

- FPGA: Xilinx Spartan-3A XC3S200A, 200K gates (datasheeet)
- USB interface chip: Cypress CY7C68013A-56PVXC (FX2LP) (datasheet)

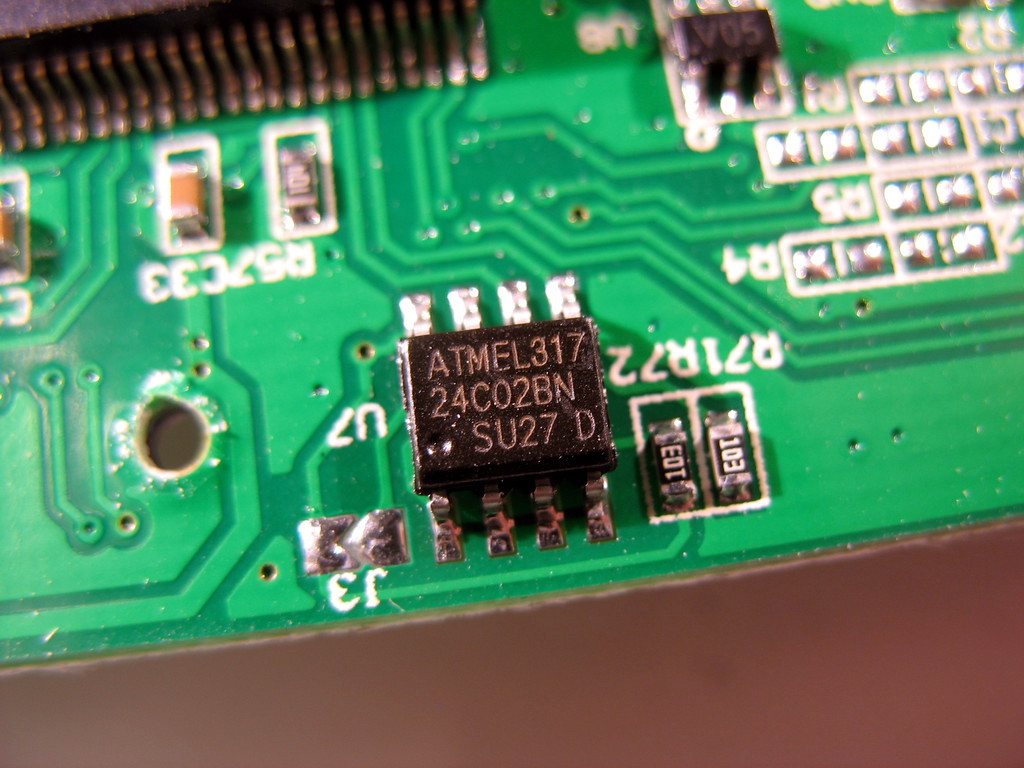

- I2C EEPROM: 2Kbit Atmel 24C02B (markings: "ATMEL317 24C02BN SU27 D") (datasheet)

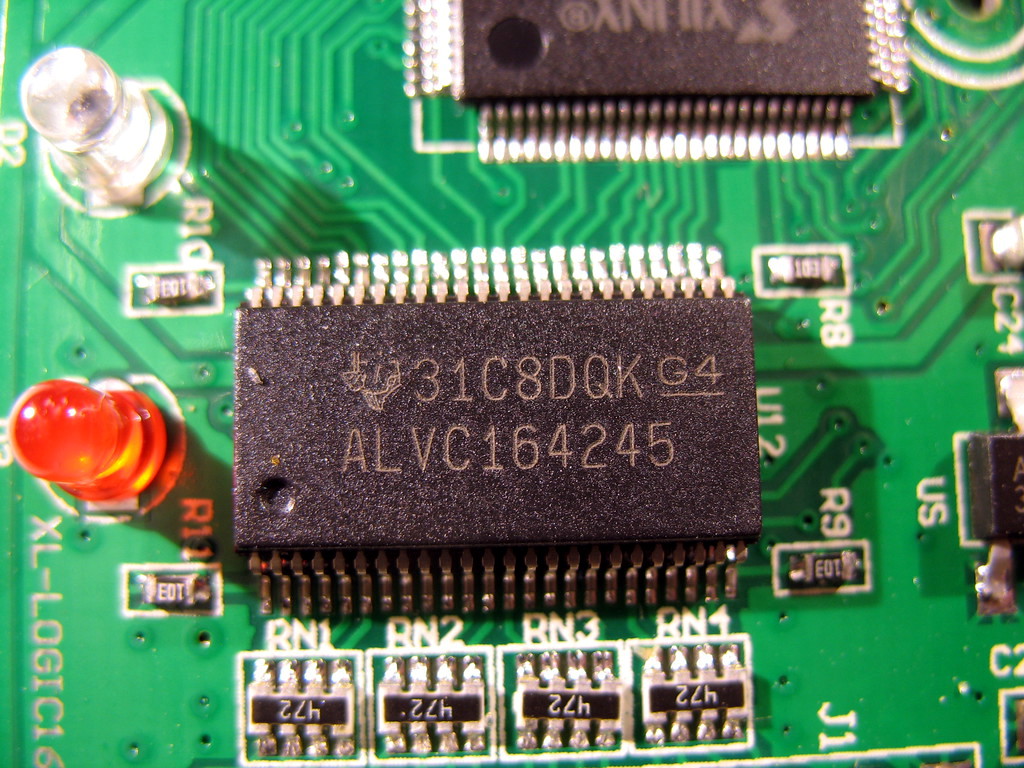

- 16-Bit 2.5V to 3.3V/3.3V to 5V level shifting transceiver with 3-state outputs: TI SN74ALVC164245 (datasheet)
- 3.3V voltage regulator: Advanced Monolithic Systems AMS1117-3.3 (datasheet, older datasheet)
- 1.2V voltage regulator: Advanced Monolithic Systems AMS1117-1.2 (datasheet, older datasheet)
- Crystal: 24.000
Three LEDs (USB/green, COM/blue, and RUN/red) are on the board.
Photos¶
Noname Xl Logic16 100m Cypress Fx2lp

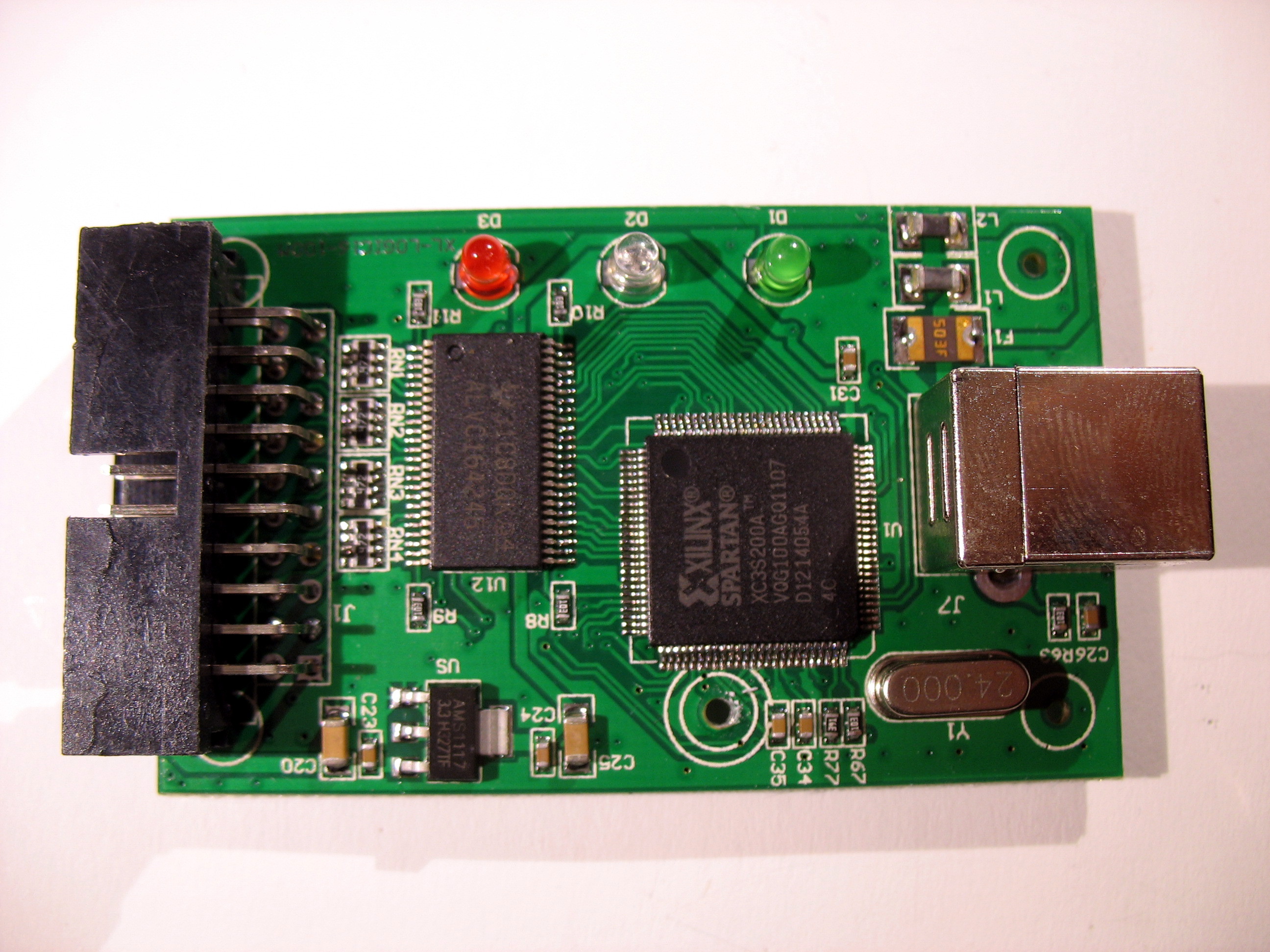

Noname Xl Logic16 100m Pcb Top

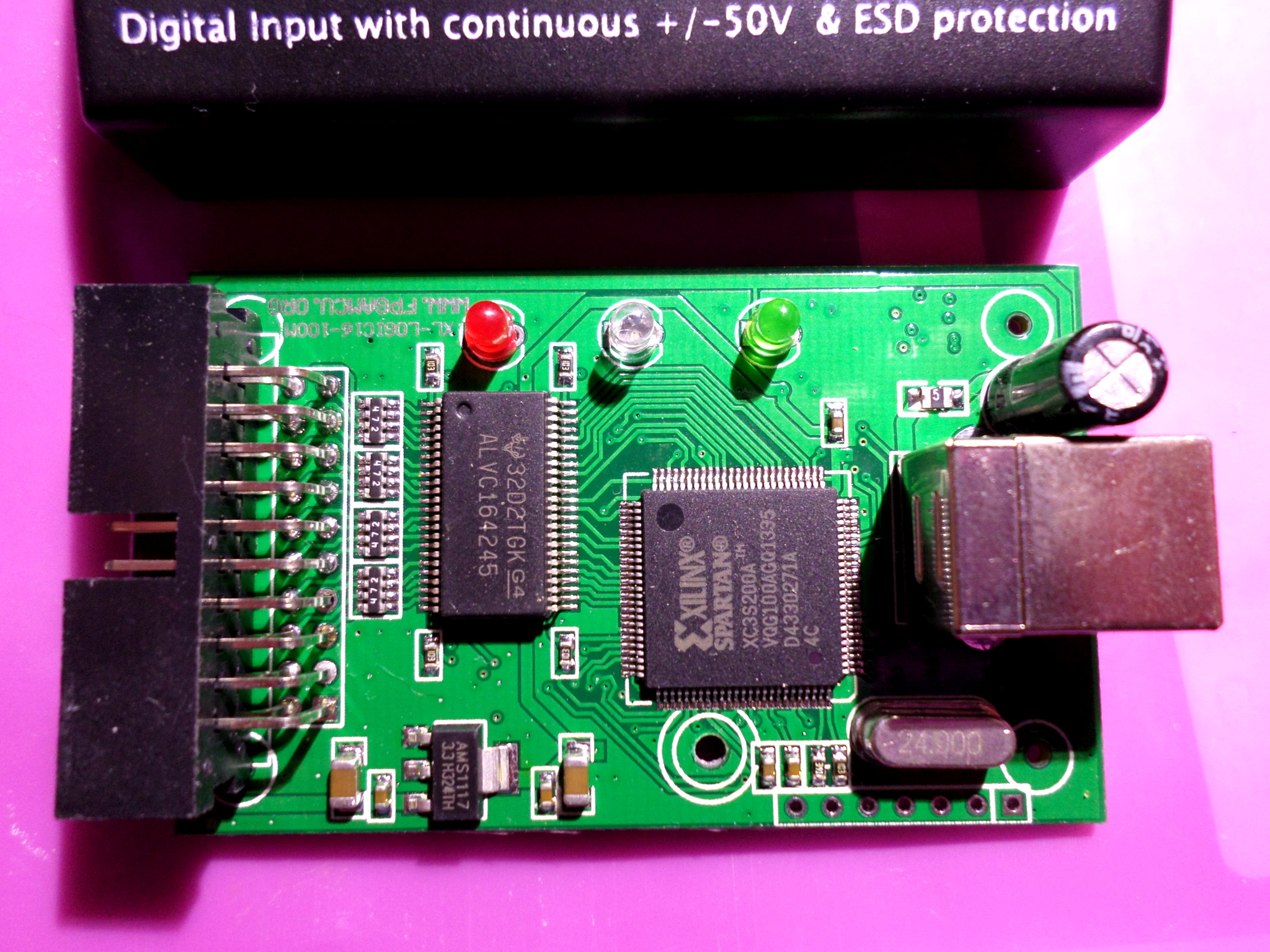

Xl Logic16 100m Black Pcb Top

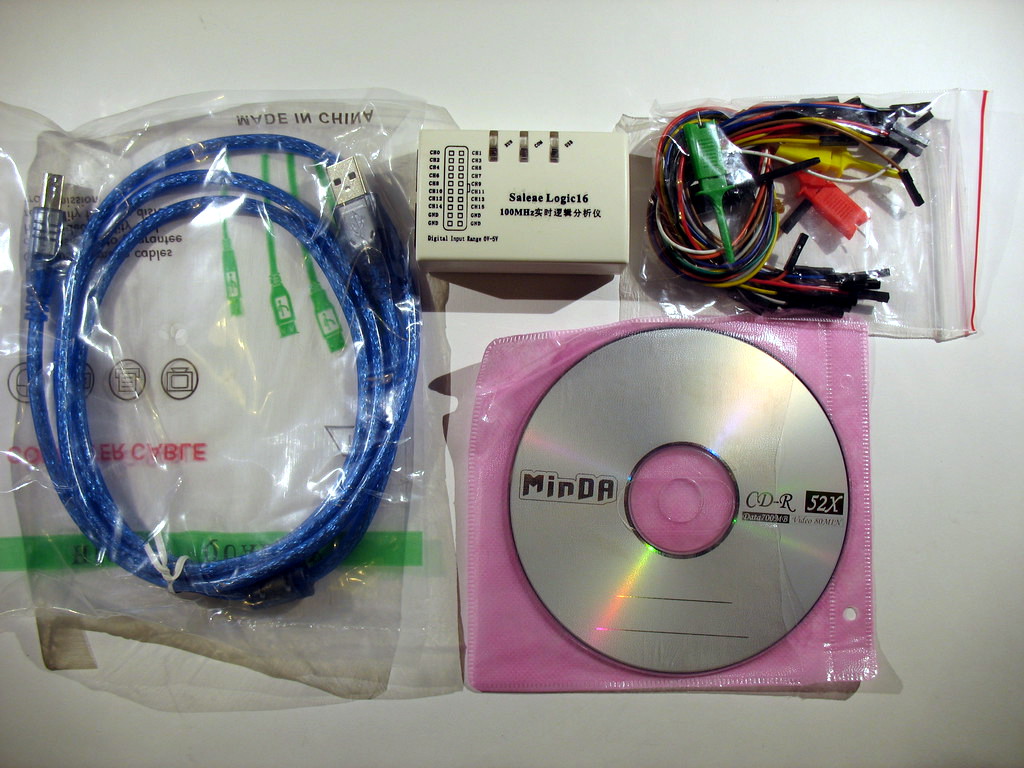

Noname Xl Logic16 100m Package

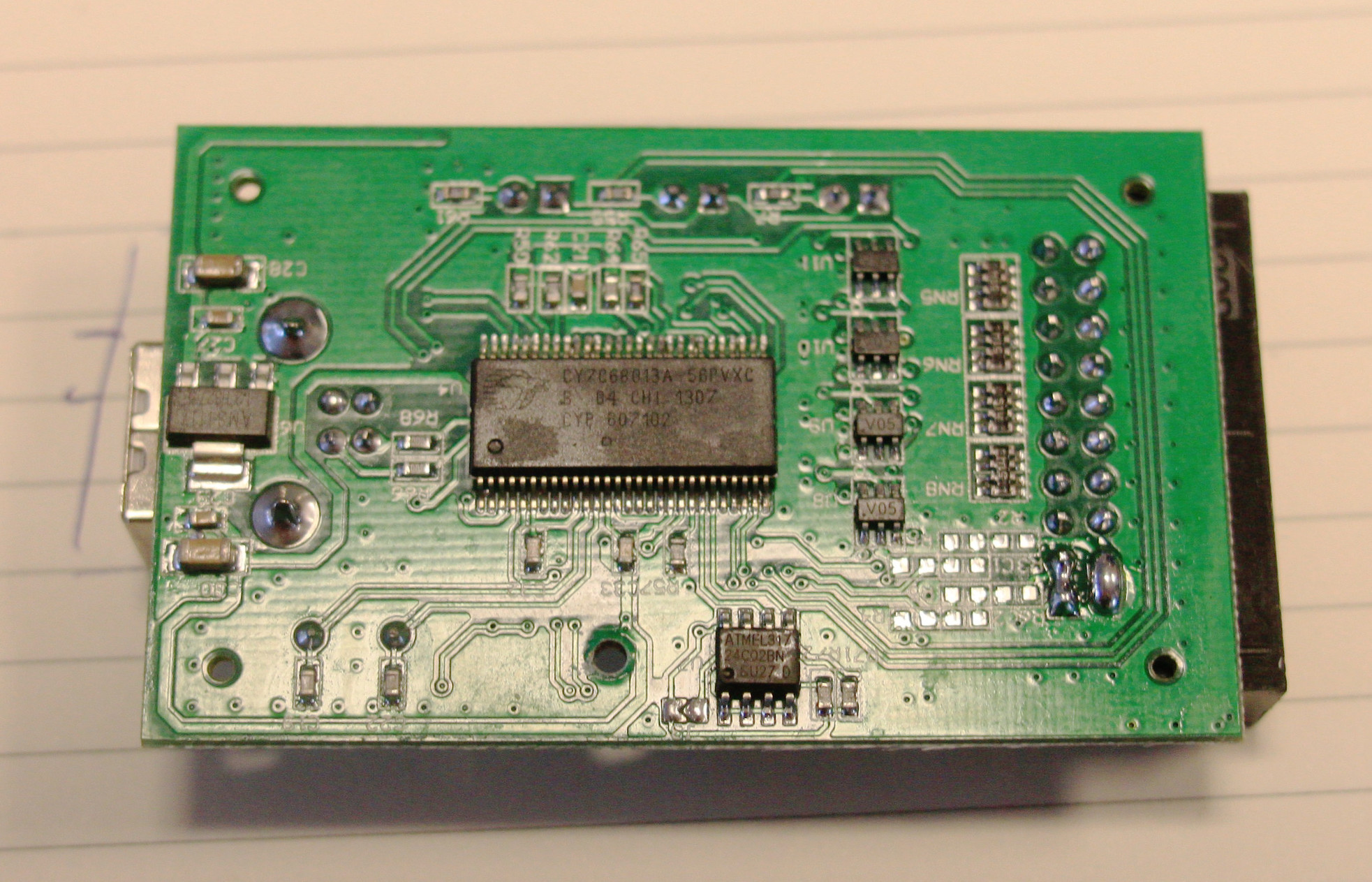

Xl Logic16 100m Pcb Bottom

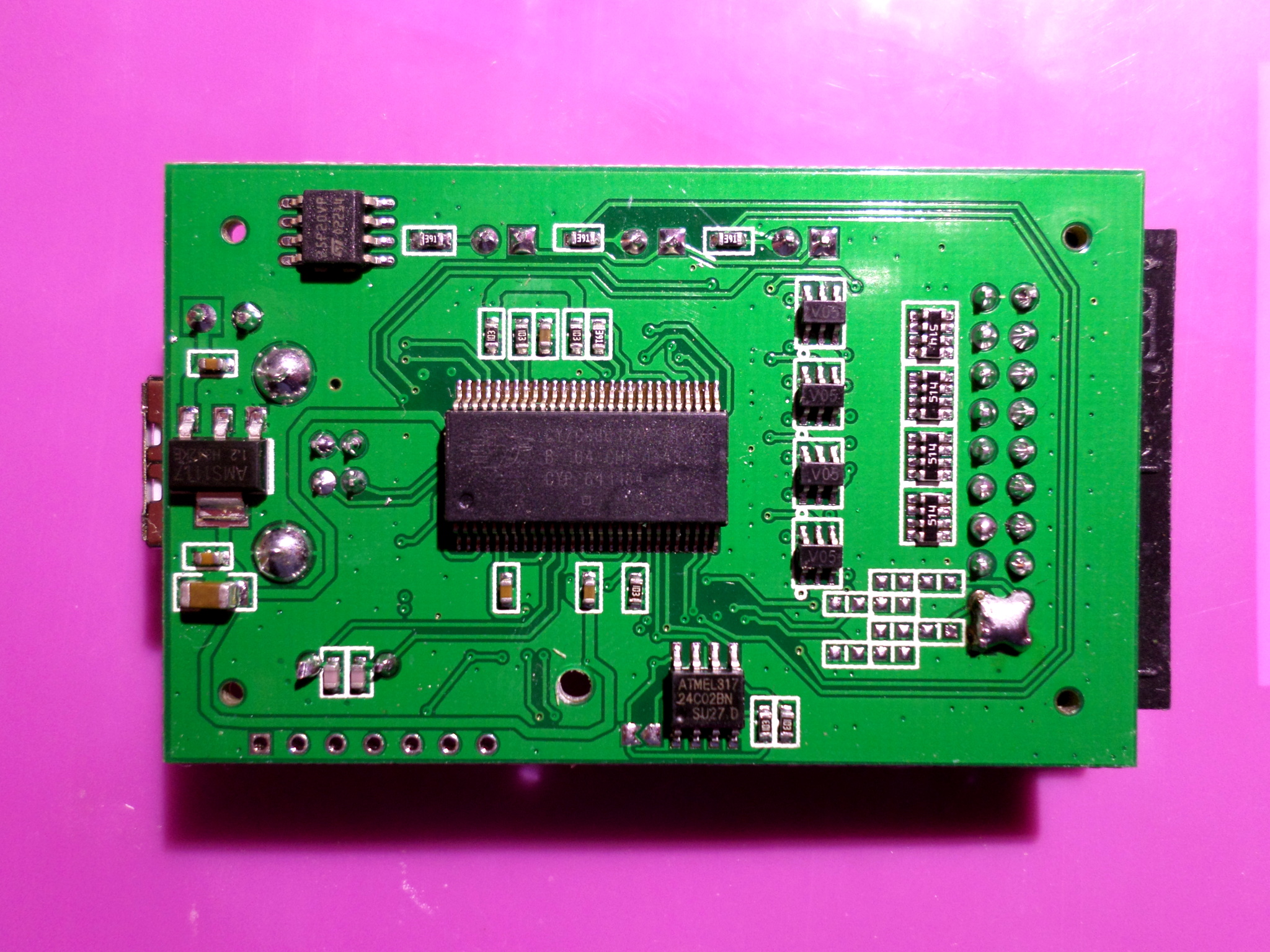

Xl Logic16 100m Black Pcb Bottom

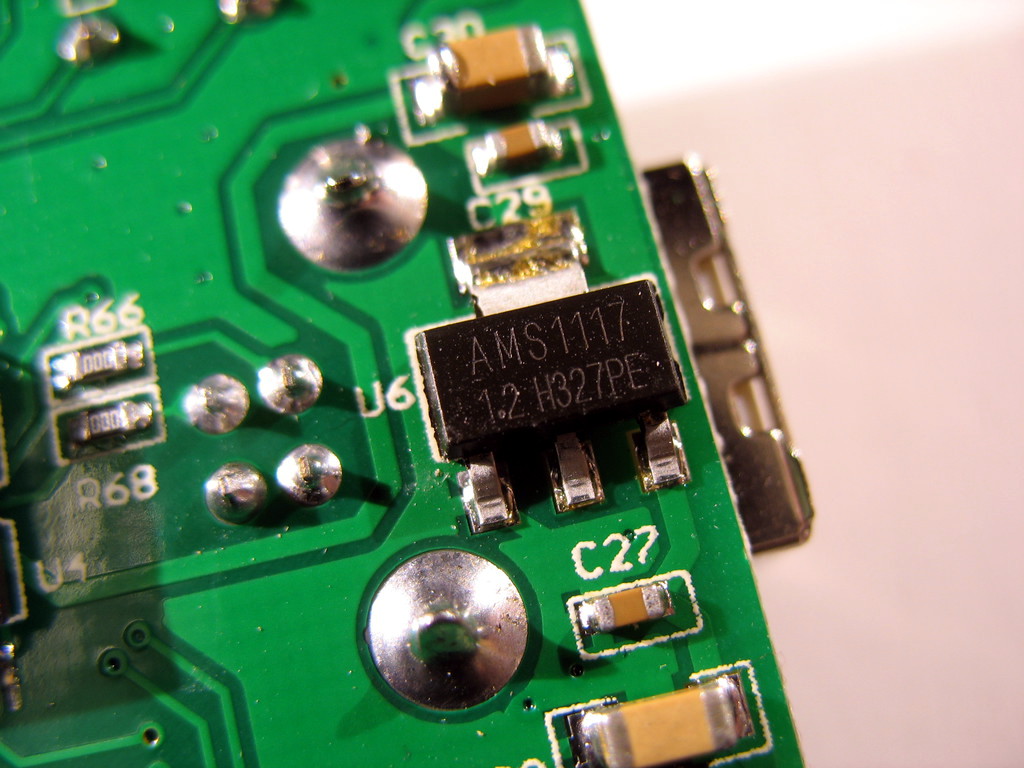

Noname Xl Logic16 100m Ams1117 12

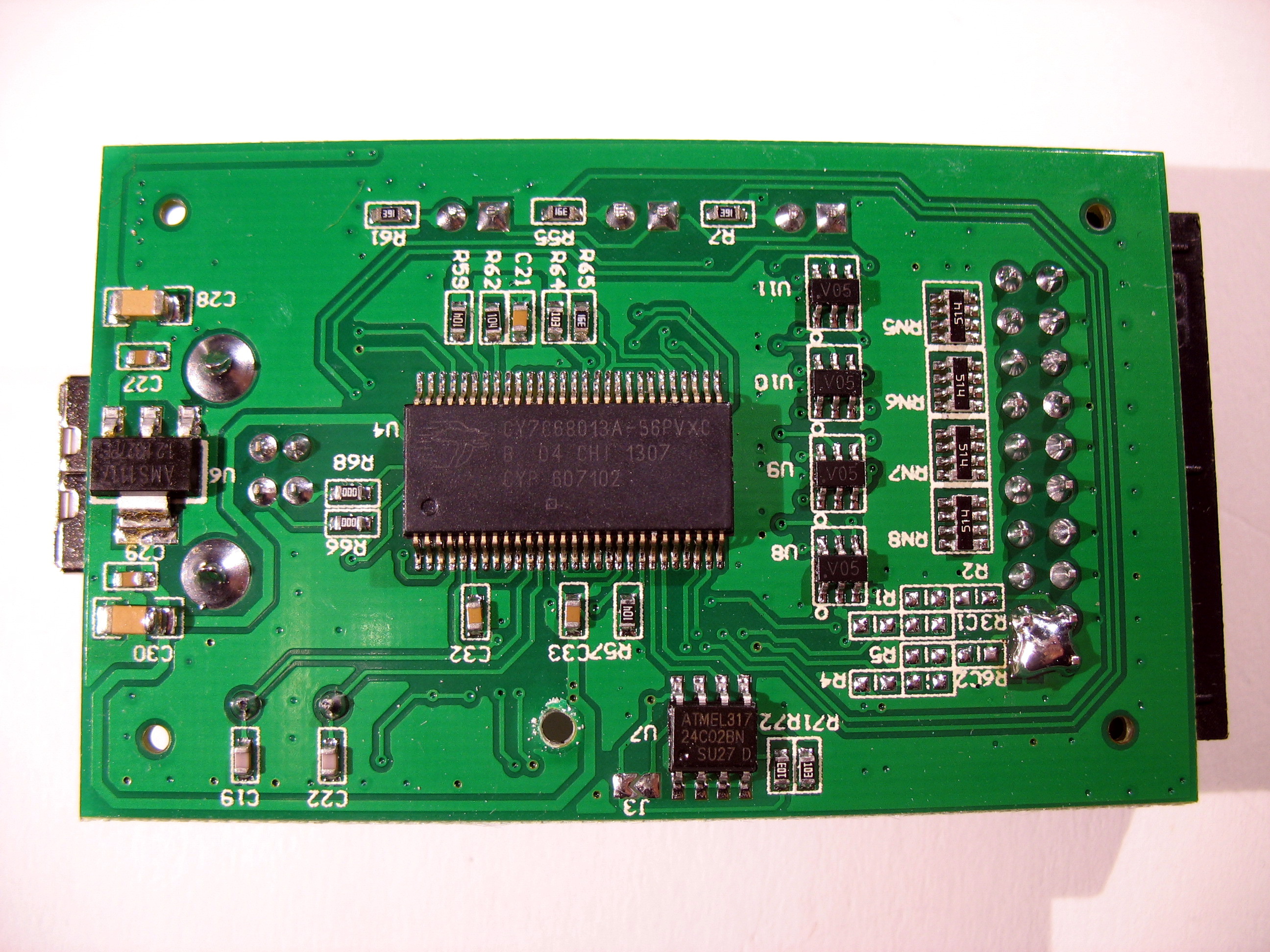

Noname Xl Logic16 100m Pcb Bottom

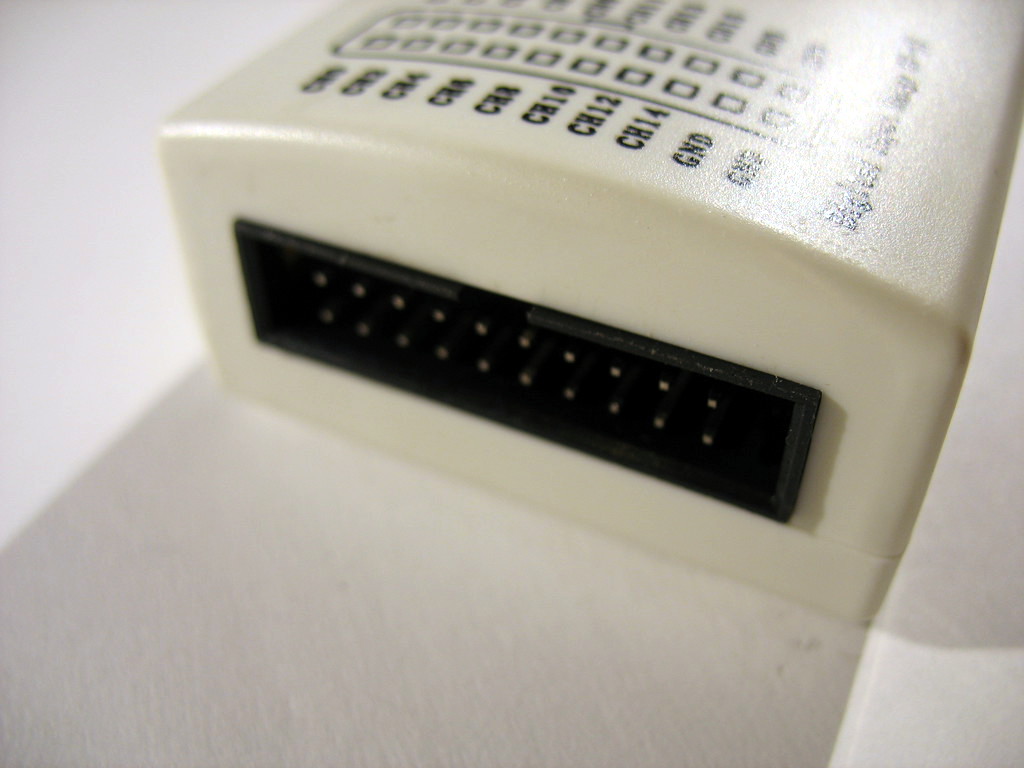

Noname Xl Logic16 100m Device Connector

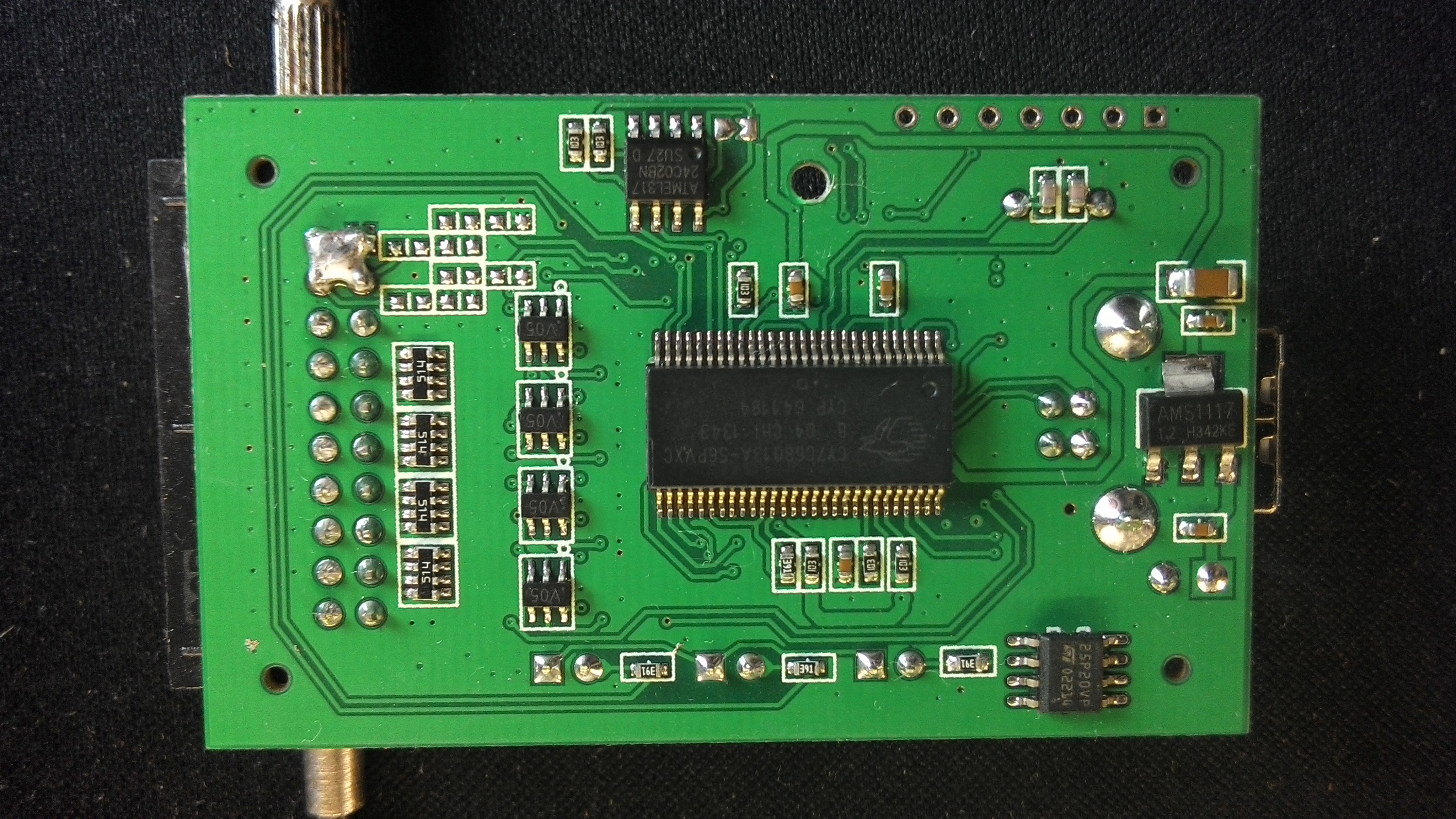

Xl Logic16 100m V2 Bottom

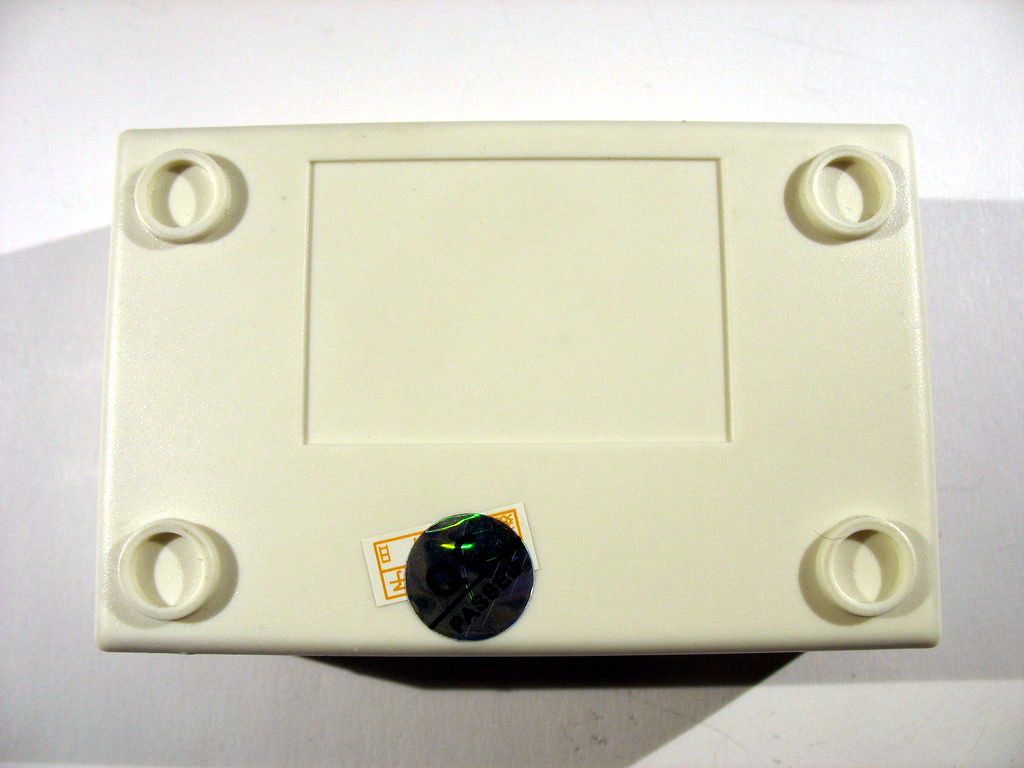

Noname Xl Logic16 100m Device Bottom

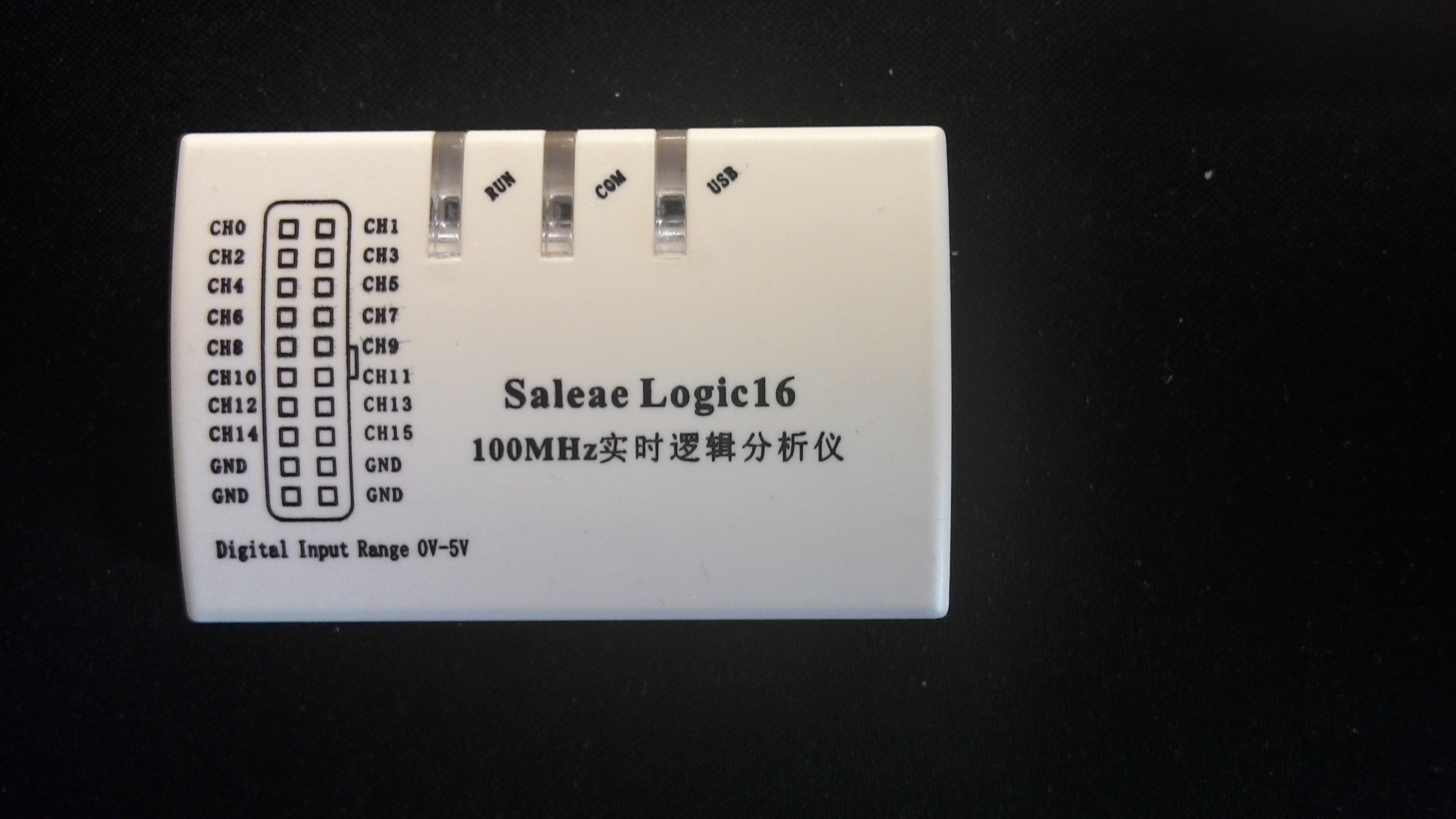

Xl Logic16 100m V2 External

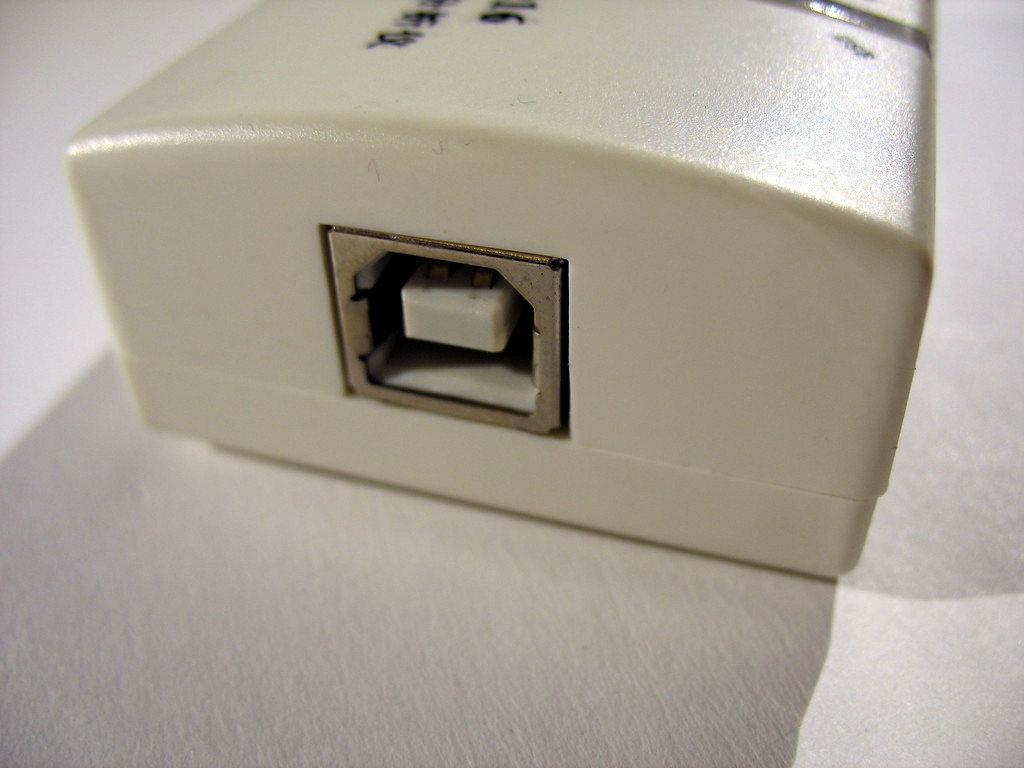

Noname Xl Logic16 100m Device Usb

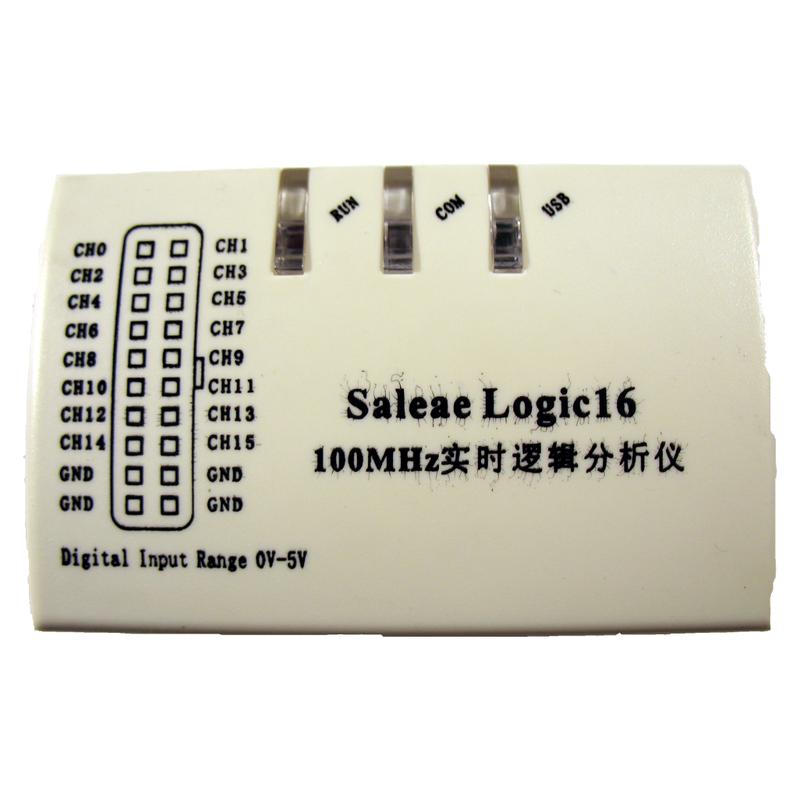

Noname Xl Logic16 100m Mugshot

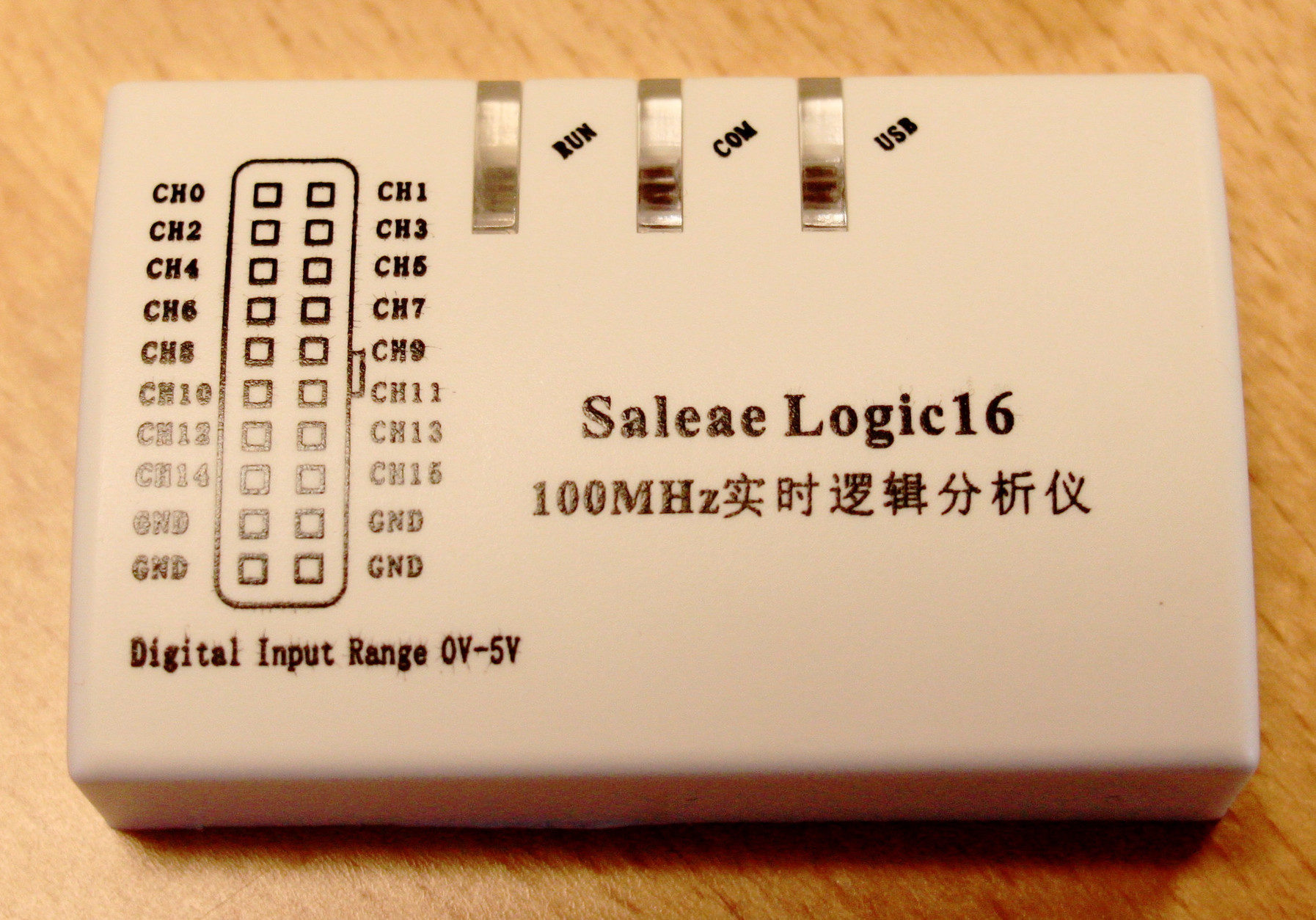

Xl Logic16 100m External

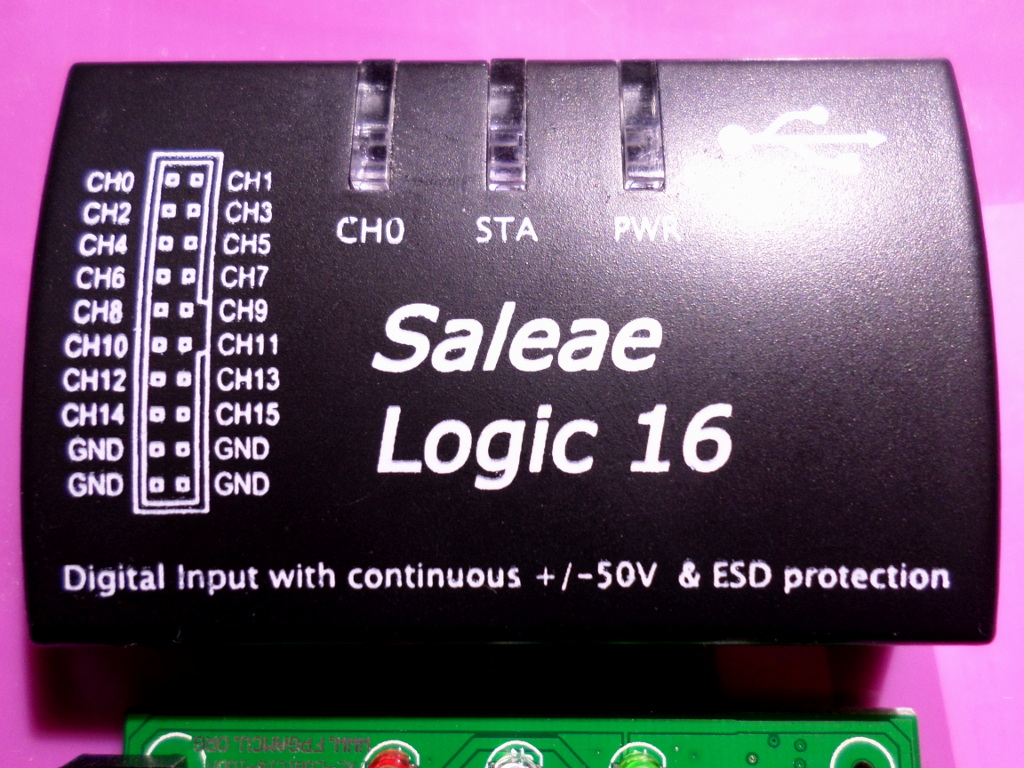

Xl Logic16 100m Black Device Top

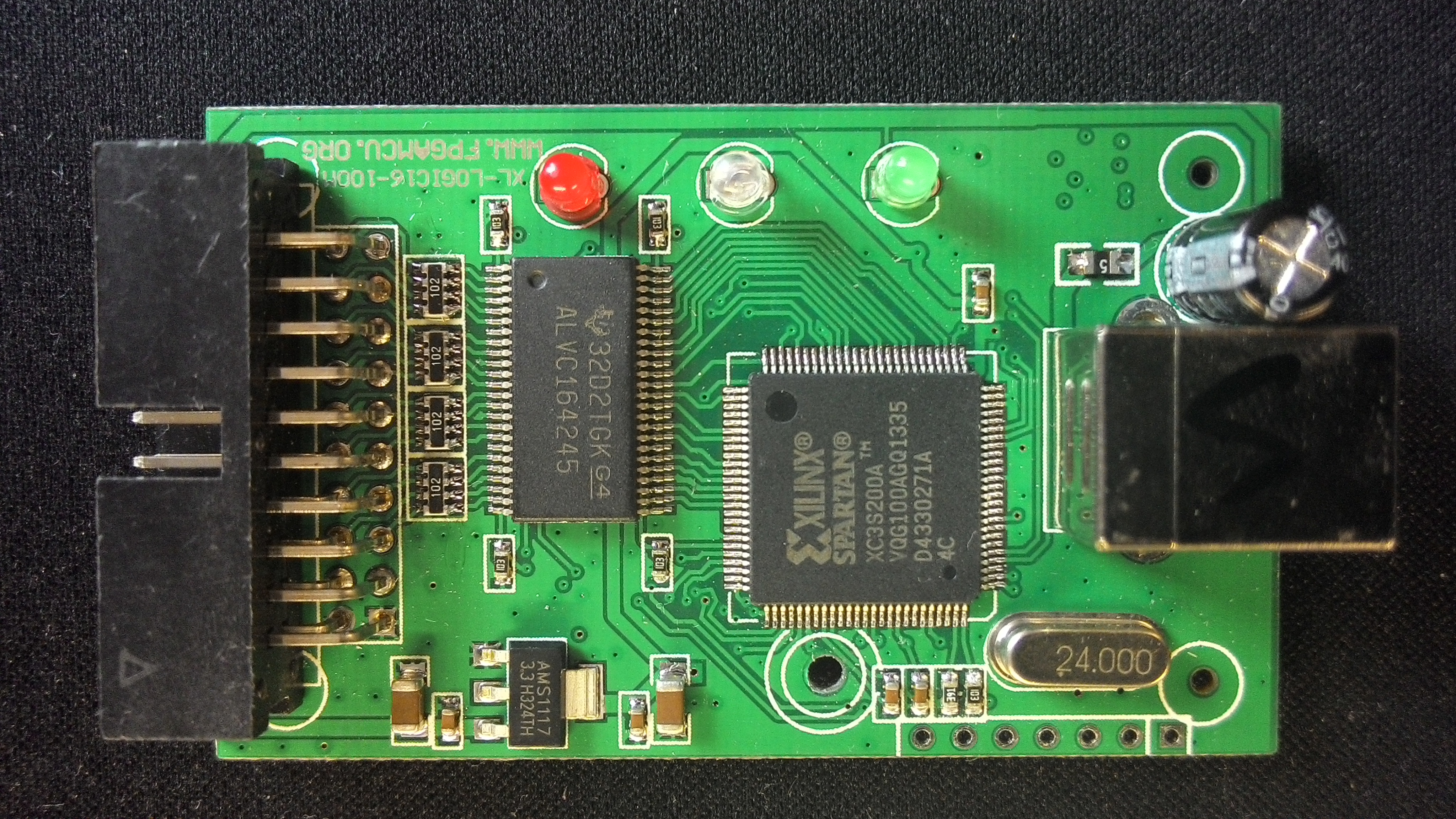

Xl Logic16 100m V2 Top

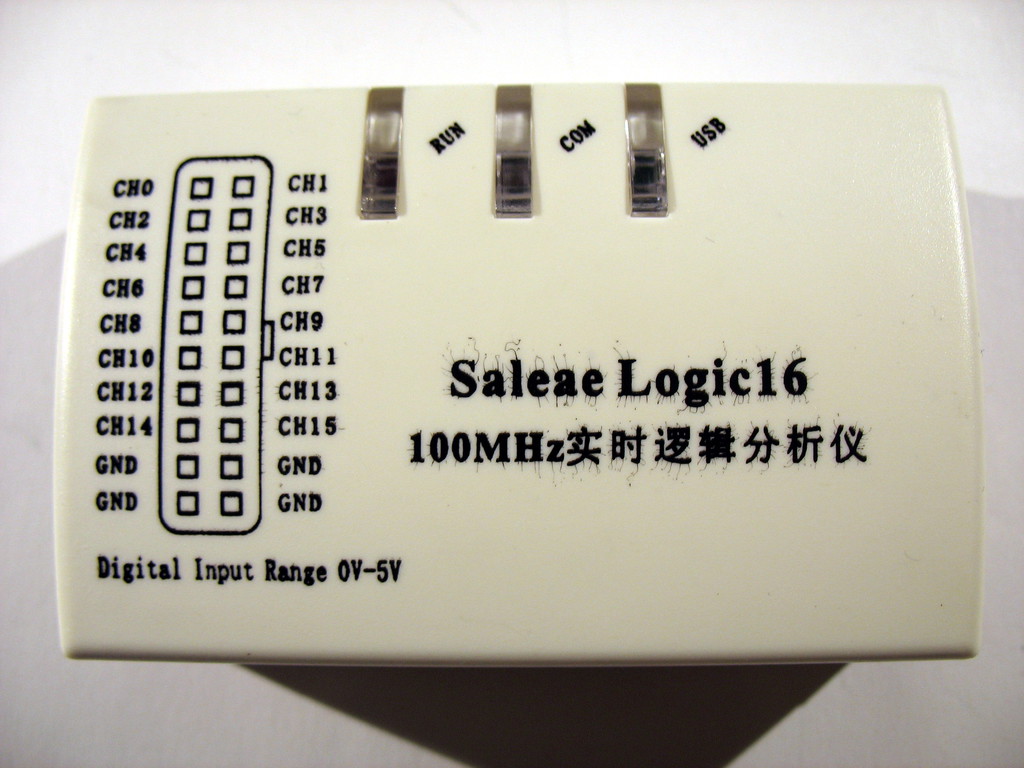

Noname Xl Logic16 100m Device Top
Noname Xl Logic16 100m Atmel 24c02bn
Noname Xl Logic16 100m Ti Alvc164245
Noname Xl Logic16 100m Xilinx Spartan Xc3s200a

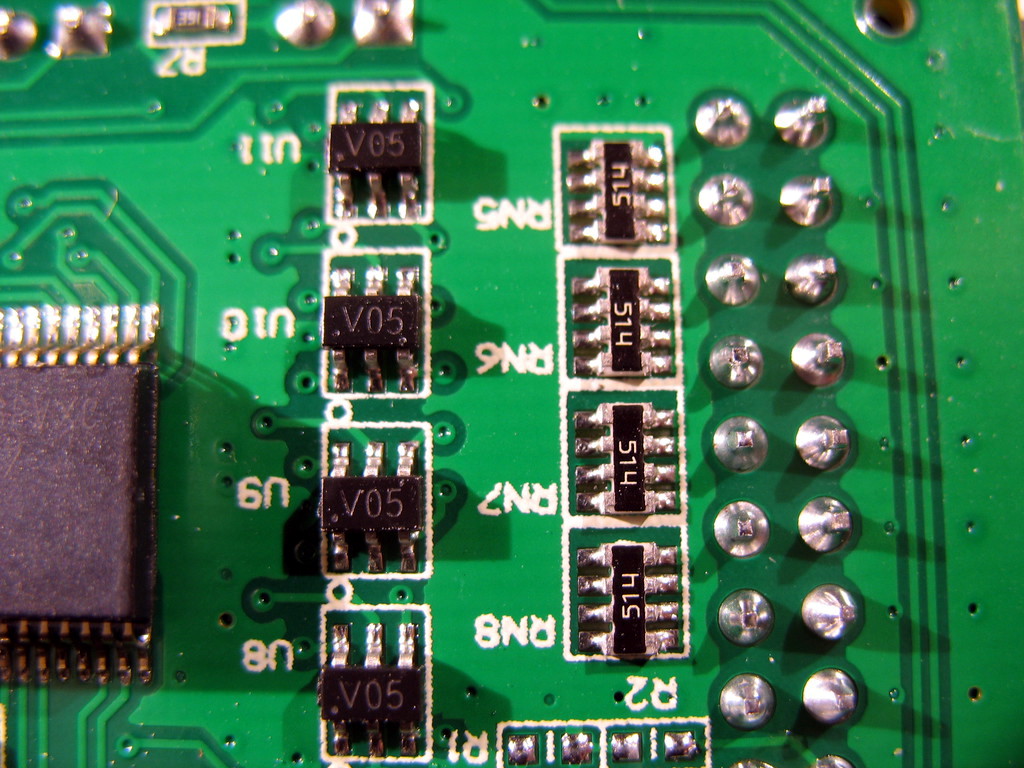

Noname Xl Logic16 100m V05

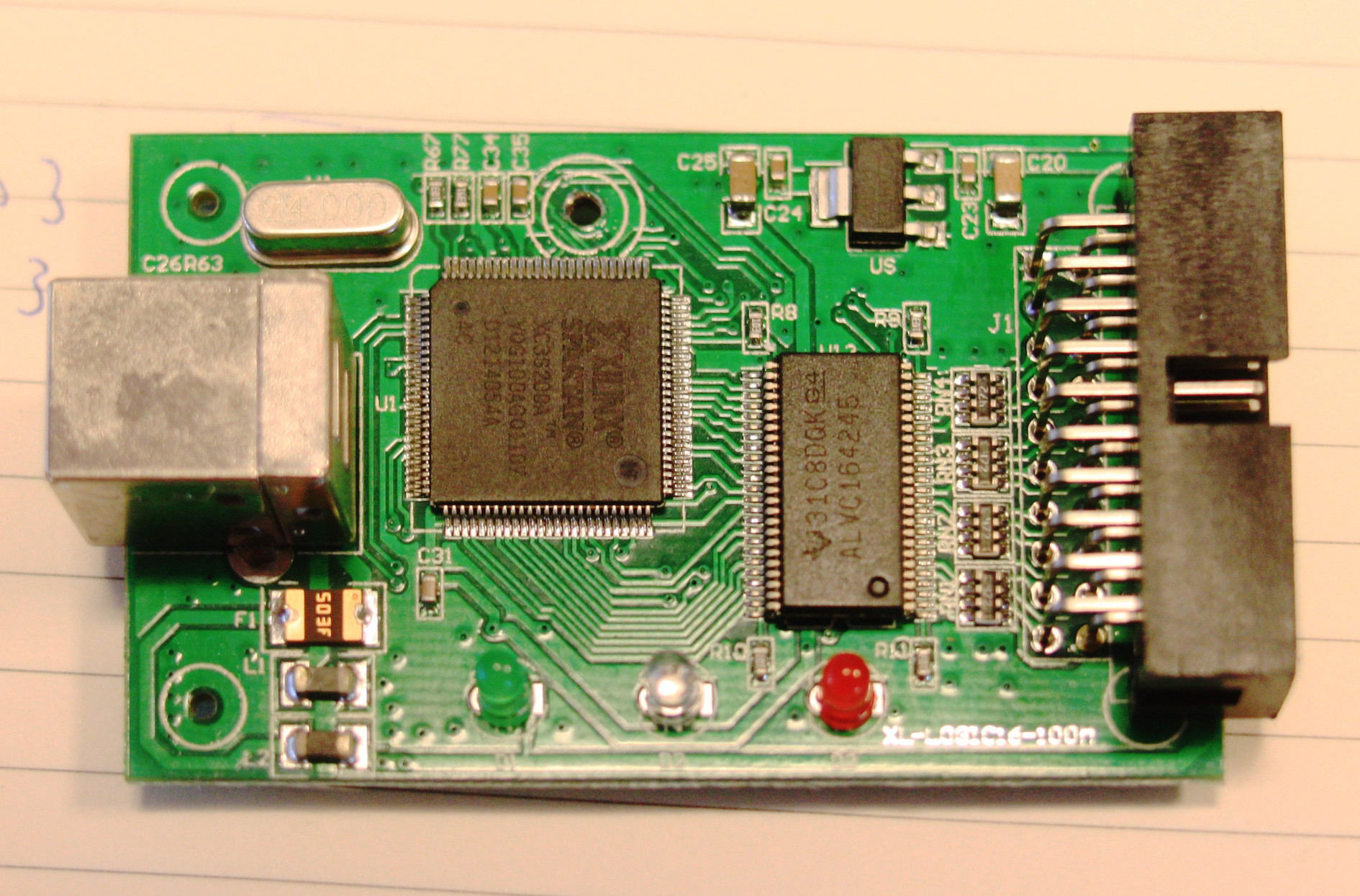

Xl Logic16 100m Pcb Top

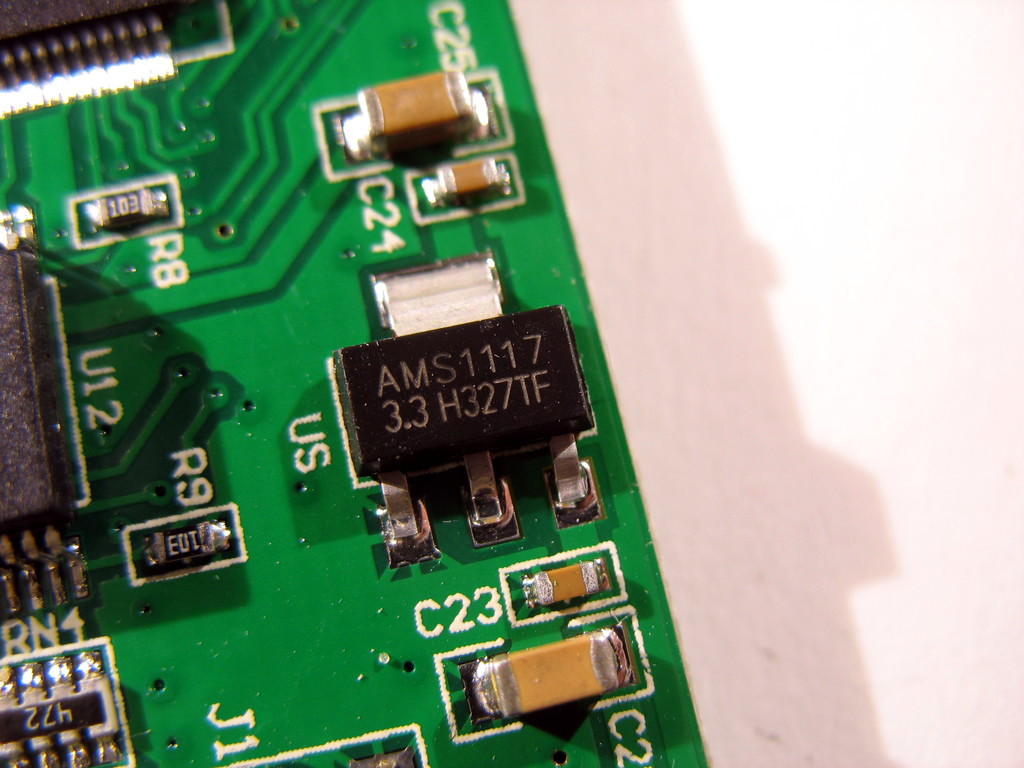

Noname Xl Logic16 100m Ams1117 33
Firmware¶
You can use the sigrok-fwextract-saleae-logic16 tool to extract (from the "Logic" Linux binary) the FX2 firmware and the FPGA bitstreams, exactly as for a real Saleae Logic16. Note, the md5sum of the FX2 firmware is identical to the original Saleae firmware, but the FPGA bitstreams are different. Attempting to connect to this device with the "modified" FPGA bitstream, which works with the vendor supplied "modified" Logic software fails to load in sigrok, with a FPGA version mismatch. The FX2 firmware loads successfully, at least in as much as the LED blinks a heartbeat pattern as expected.
Update: July 4, 2015: marcus_c has written some open source fpga bitstream for spartan based logic16s, and this bitstream does work with this device. However, at this time, binaries are not available. See [1] for the source. Update: September 3, 2015 blight has an alternative open source fpga bitstream. It also works. See [2] for both source and binaries
