Meilhaus Logian-16L¶


Status	supported
Source code	zeroplus-logic-cube
Channels	16
Samplerate	200MHz
Samplerate (state)	100MHz
Triggers	pattern, edge
Min/max voltage	-6V — +6V
Memory	128kBits/channel
Compression	yes
Website	meilhaus.de

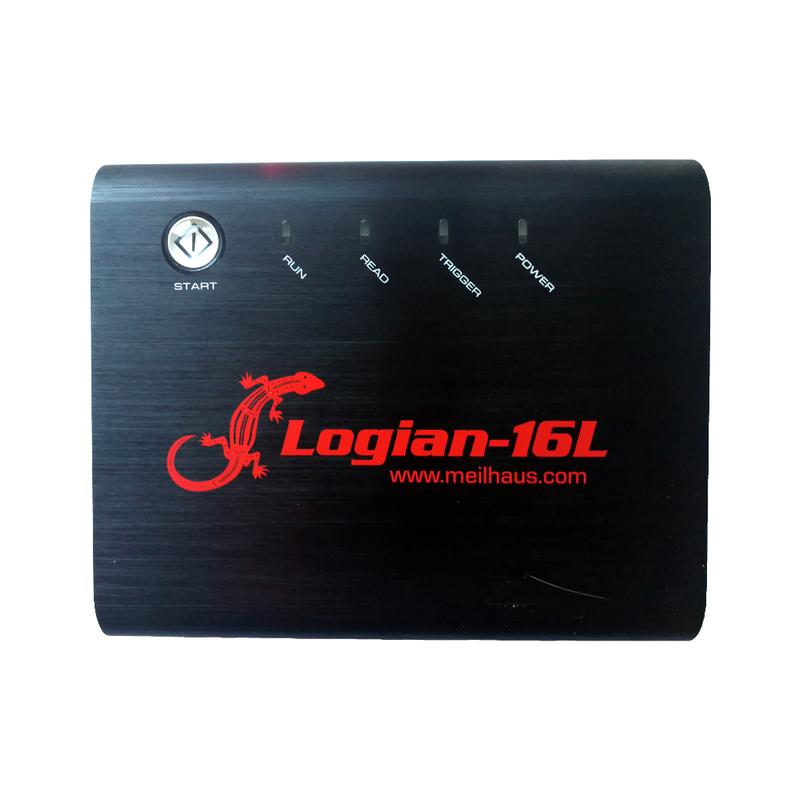

The Meilhaus Logian-16L is a USB-based, 16-channel logic analyzer with up to 200MHz samplerate.

See Meilhaus Logian-16L/Info for some more details (such as lsusb -v output) on the device.

See ZEROPLUS Logic Cube LAP-C series for information common to all devices in this series.

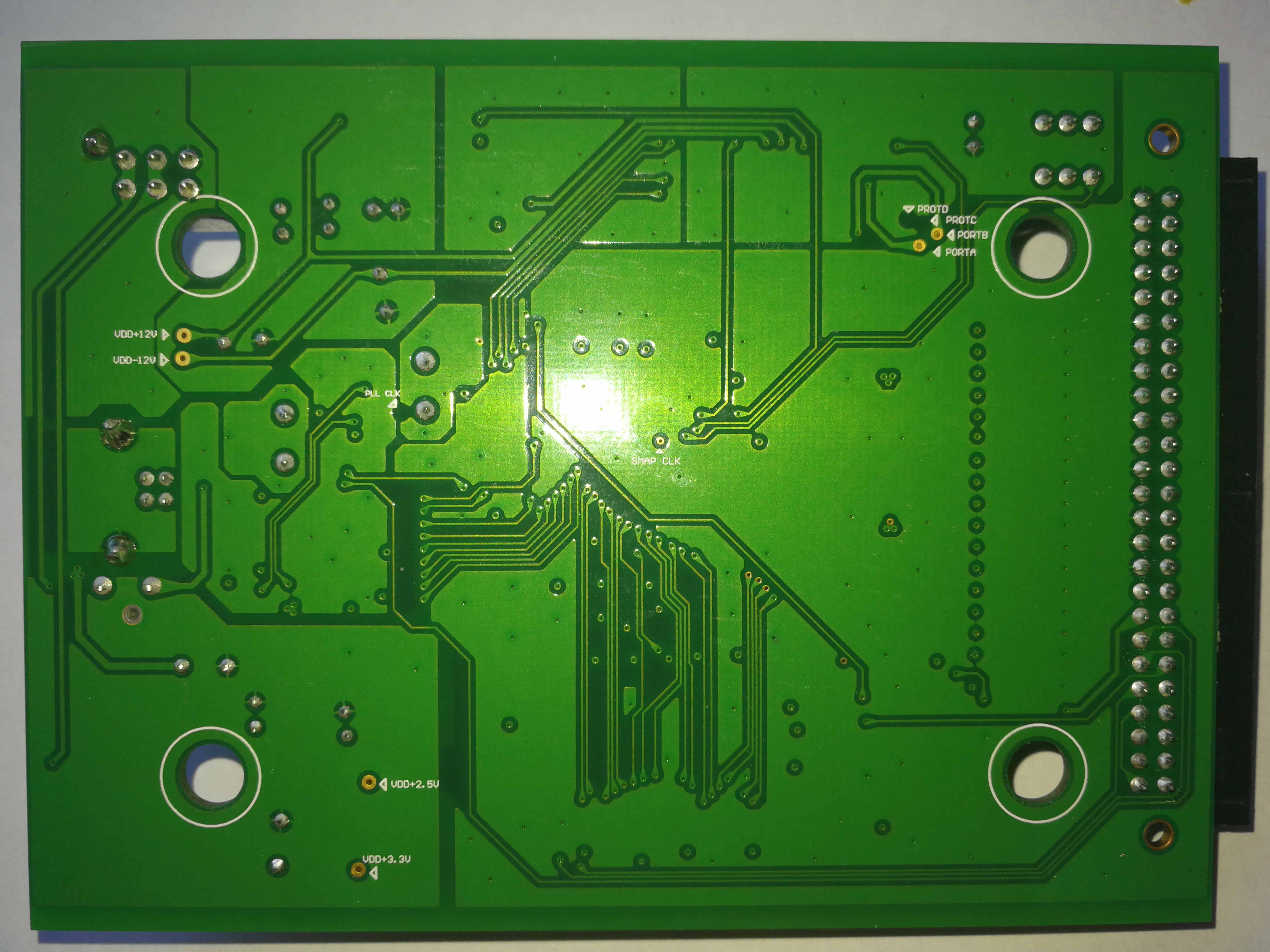

Hardware¶

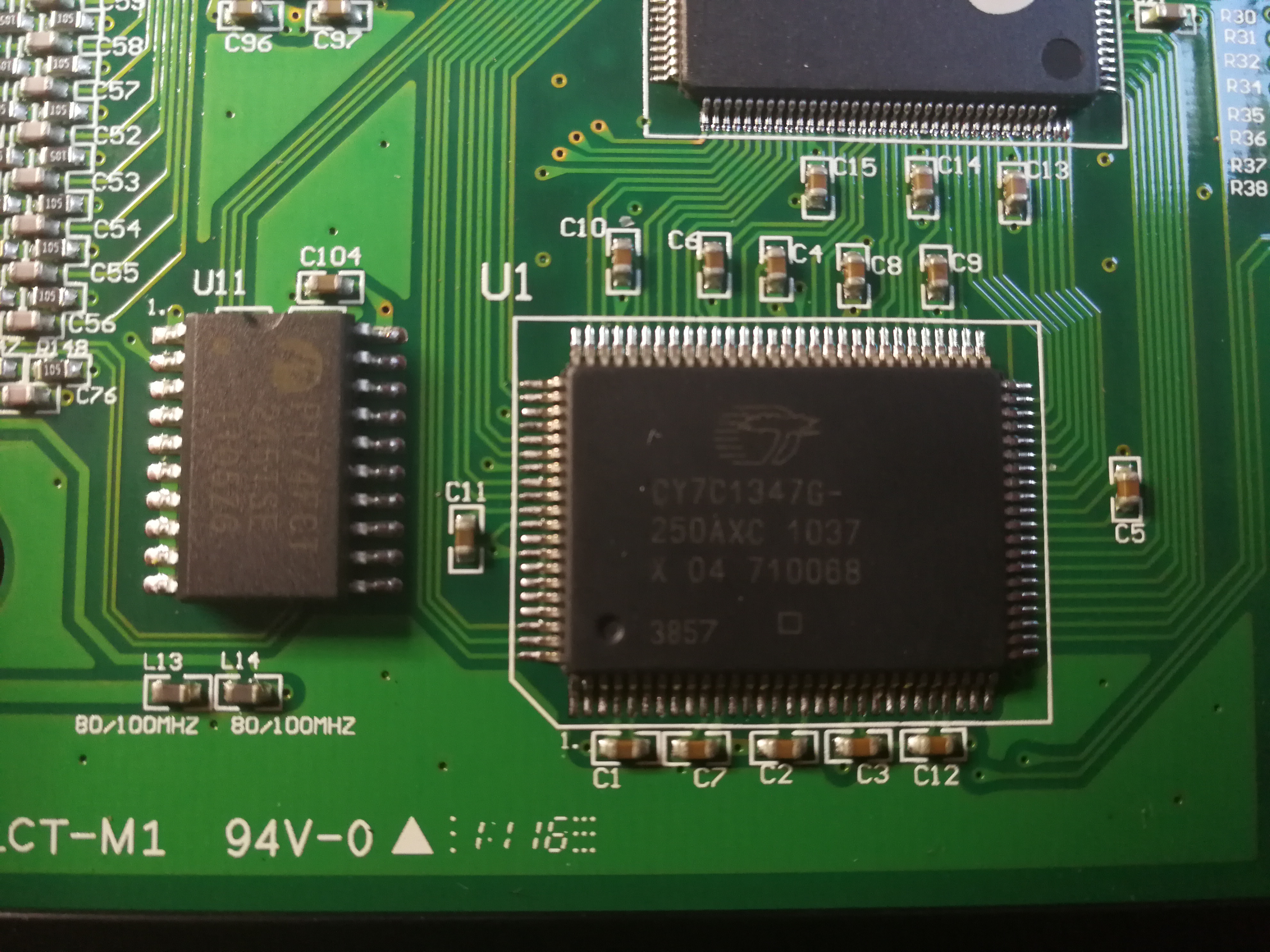

Note: According to a vendor software screenshot, the Logian-16L has 128kBit memory per channel (conflicts with some docs on the Internet, though, which state it has 64kBit/channel).
