mcupro Logic16 clone¶


Status	supported
Source code	saleae-logic16
Channels	3/6/9/16
Samplerate	100/50/32/16MHz
Samplerate (state)	—
Triggers	none (SW-only)
Min/max voltage	-0.9V — 6V
Threshold voltage	1.5V (operates with 3.3V logic)
Memory	none
Compression	yes
Price range	$30 - $35
Website	aliexpress.com

The mcupro Logic16 clone is a USB-based, 16-channel logic analyzer with 100/50/32/16MHz sampling rate (at 3/6/9/16 enabled channels).

This is a clone of the Saleae Logic16.

See mcupro Logic16 clone/Info for more details (such as lsusb -v output) about the device.

Hardware (Actel variant)¶

The PCB is marked "Saleae16 v4.6 By mcupro".

FPGA: Actel A3P125
USB interface chip: Cypress CY7C68013A
I²C EEPROM: Atmel 24C02N
3.3V voltage regulator: Advanced Monolithic Systems AMS1117-3.3
1.5V voltage regulator: Advanced Monolithic Systems AMS1117-1.5
Crystal: 24MHz

Hardware (Cyclone variant)¶

The PCB doesn't have any identifying markings.

FPGA: Altera Cyclone EP1C3T100
USB interface chip: Cypress CY7C68013A
I²C EEPROM: Atmel 24C02N
3.3V voltage regulator: Advanced Monolithic Systems AMS1117-3.3
1.5V voltage regulator: Advanced Monolithic Systems AMS1117-1.5
Crystal (FX2): 24MHz
Crystal (FPGA): 100MHz
FPGA bitstream: ST M25P10VP, 1Mbit SPI NOR flash (datasheet)
Bootstrap controller: STCMCU 15F10, 8051 compatible

Hardware (2018 variant)¶

The PCB is marked "Logic 16 Saleae". This variant also comes in a case identical to the Noname_XL-LOGIC16-100M.

FPGA: Markings ground off, but pinout indicates an Altera Cyclone EP1C3T144.
USB interface chip: Cypress CY7C68013A
I²C EEPROM: Markings ground off
3.3V voltage regulator: TD 6810 adjustable version + 150k/680k resistors pair
1.5V voltage regulator: TD 6810 adjustable version + 160k/240k resistors pair
Crystal (FX2): 24MHz
Crystal (FPGA): 32MHz
FPGA bitstream: ST M25P10VP, 1Mbit SPI NOR flash (datasheet)
Bootstrap controller: Not required?

Hardware (2015-01-08 variant)¶

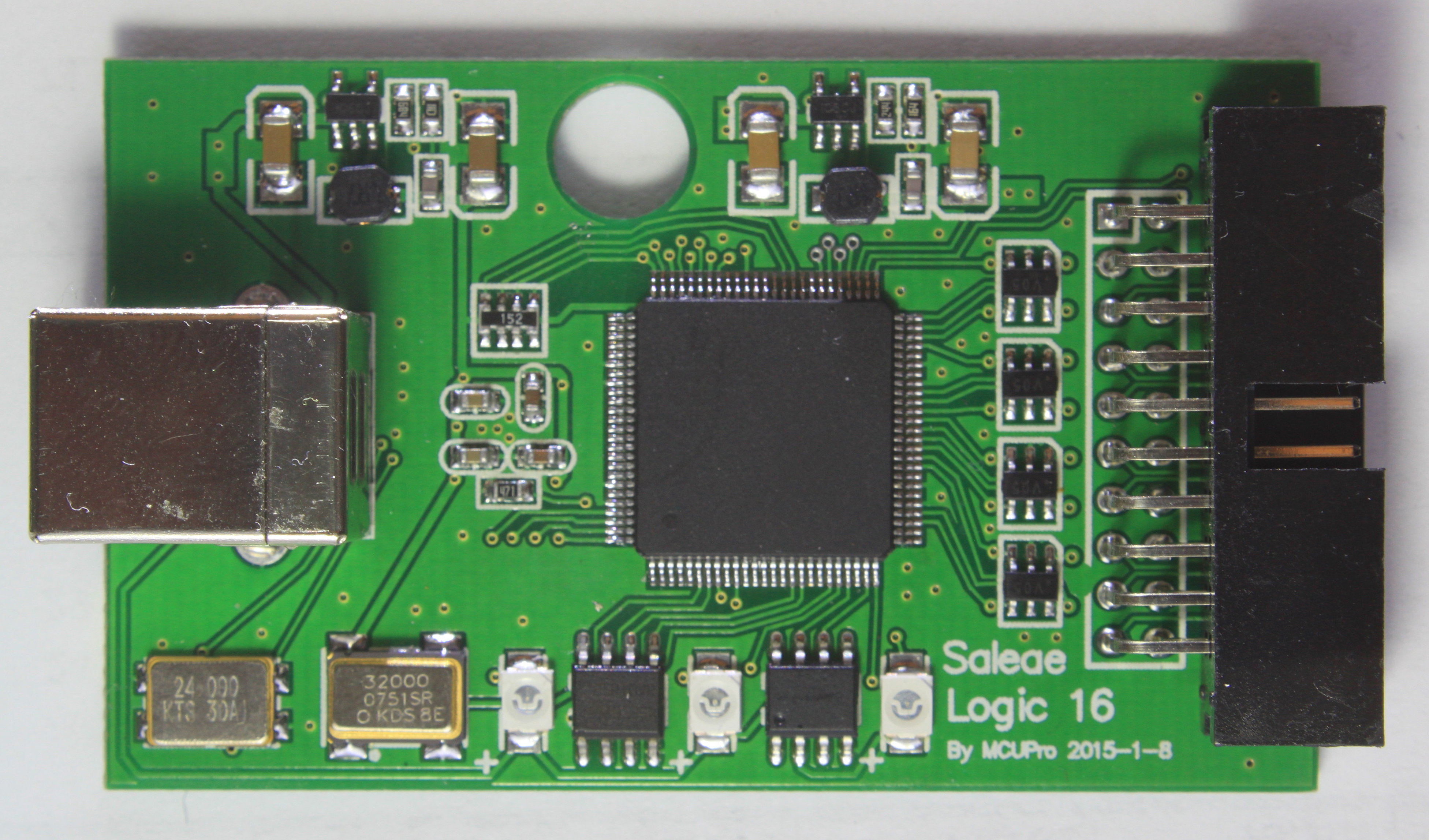

The PCB is marked "Saleae Logic 16 By MCUPro 2015-1-8". Readily identifiable by the irregular PCB traces, and switching power supplies. This comes in a different case, identical to the Noname_XL-LOGIC16-100M.

FPGA: Markings ground off
USB interface chip: Cypress CY7C68013A
I²C EEPROM: Markings ground off
3.3V voltage regulator: TD 6810 adjustable version + 150k/680k resistors pair
1.5V voltage regulator: TD 6810 adjustable version + 160k/240k resistors pair
Crystal (FX2): 24MHz
Crystal (FPGA): Looks like 32MHz?
FPGA bitstream: ST M25P10VP, 1Mbit SPI NOR flash (datasheet)
Bootstrap controller: Not required?

Hardware (2014-01-25 variant)¶

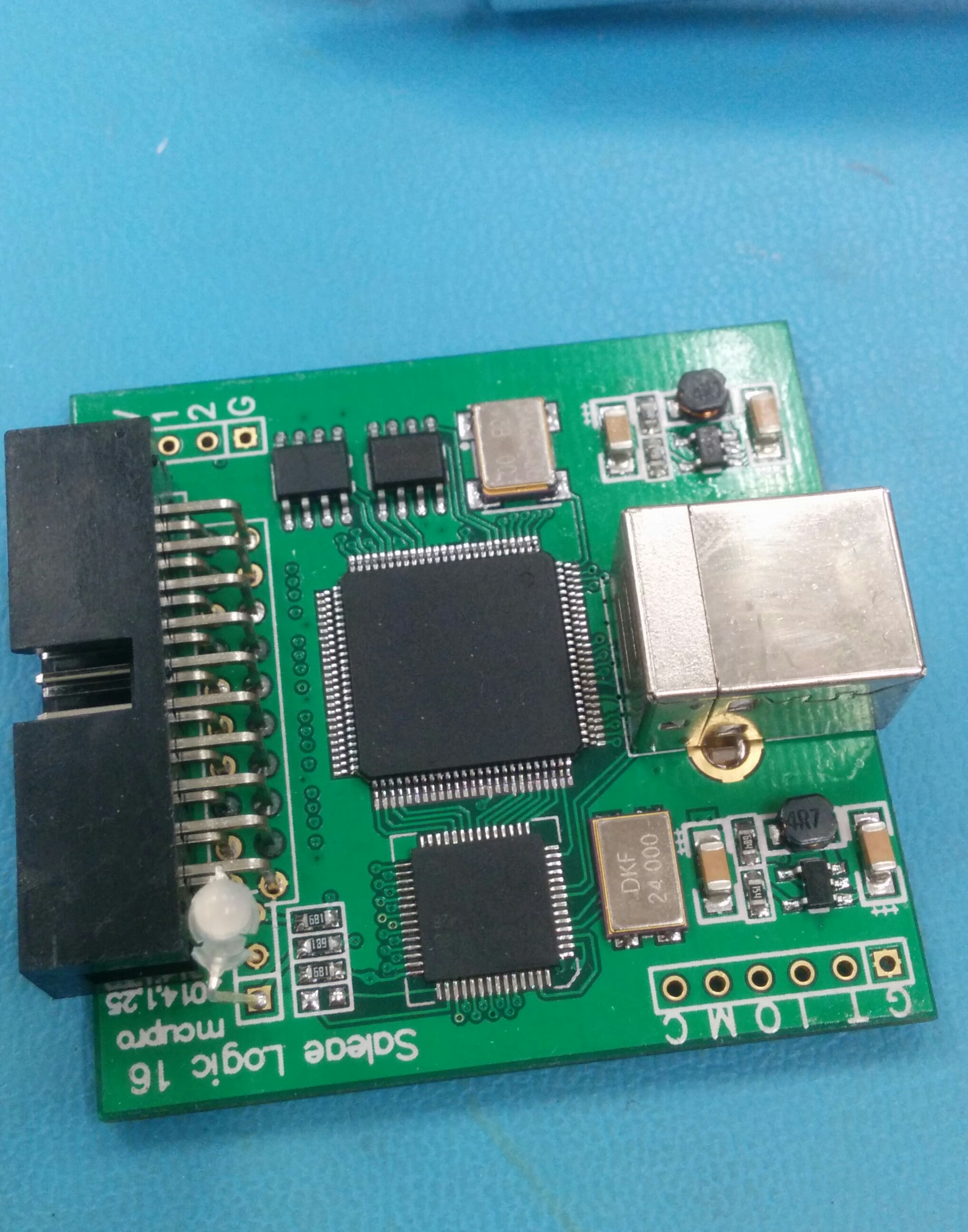

The PCB is marked "Saleae Logic 16 mcupro 2014.1.25".

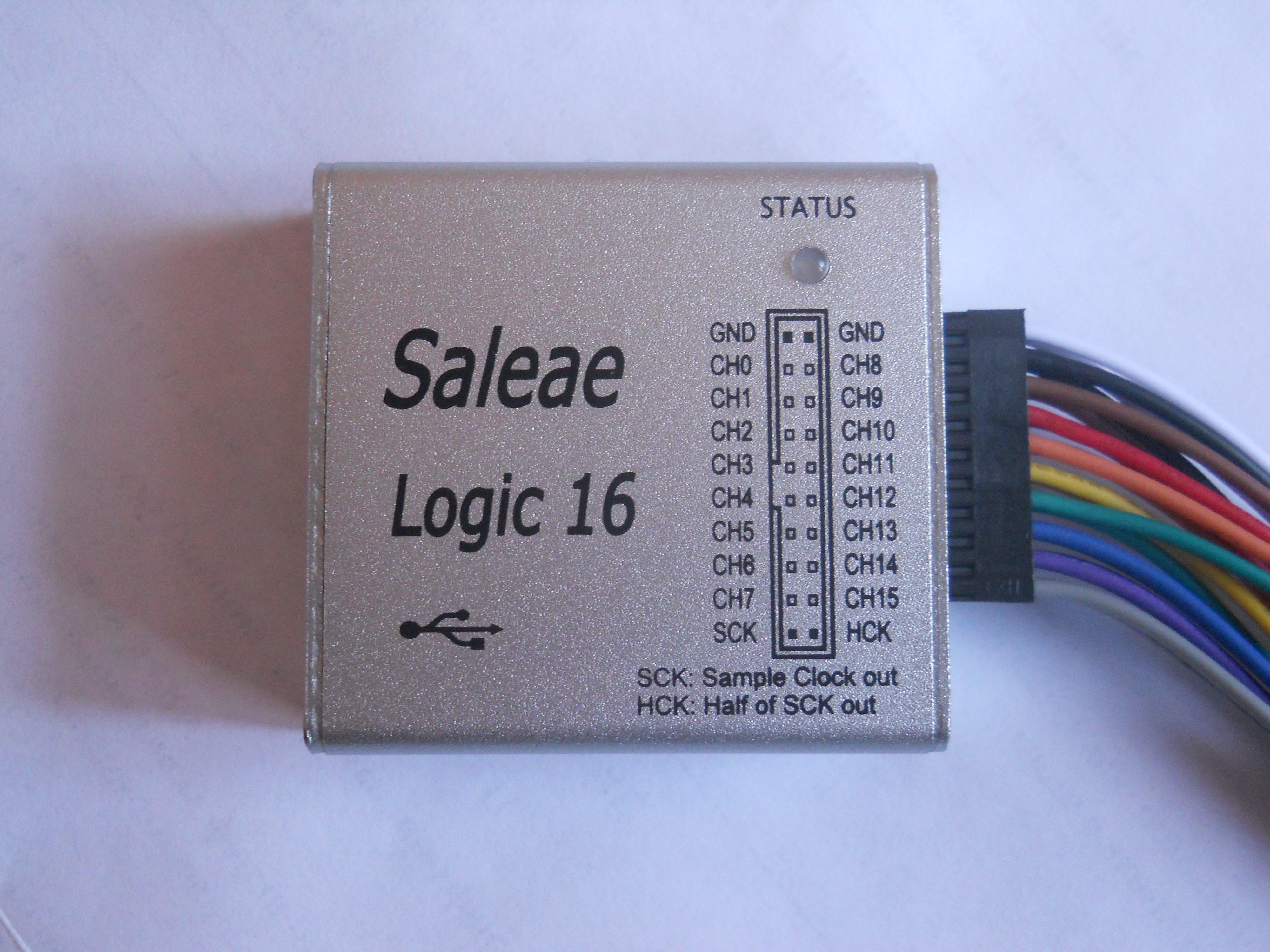

The bottom two channels are not GND, but SCK (sample clock out) and HCK (half of SCK out).

FPGA: Markings ground off, but pinout and JTAG (IDCODE 0x020810dd) indicate an Altera Cyclone EP1C3T100.
USB interface chip: Markings sometimes ground off? Cypress CY7C68013A
Crystal (FX2): marked "DKF 24.000"
Crystal (FPGA): marked "RAK32.00"
FPGA bitstream: ST M25P10VP, 1Mbit SPI NOR flash (datasheet)
I²C EEPROM: None? (CY7C68013A I2C port wired to FPGA pins)
Bootstrap controller: Markings ground off, pinout could indicate a STCMCU 15F10x 8051-based MCU?
3.3V voltage regulator: unknown switching regulator (marked "IC5CJ" ?) + 150k/680k resistors pair
1.5V voltage regulator: unknown switching regulator (marked "IC5CJ" ?) + 160k/240k resistors pair
Channel input buffering: none, only simple resistor (510R) + TVS diode array protection (possibly Semtech SRV05)

Photos¶

Img 0207 V1

Mcupro 2014 1 25 Top Overview

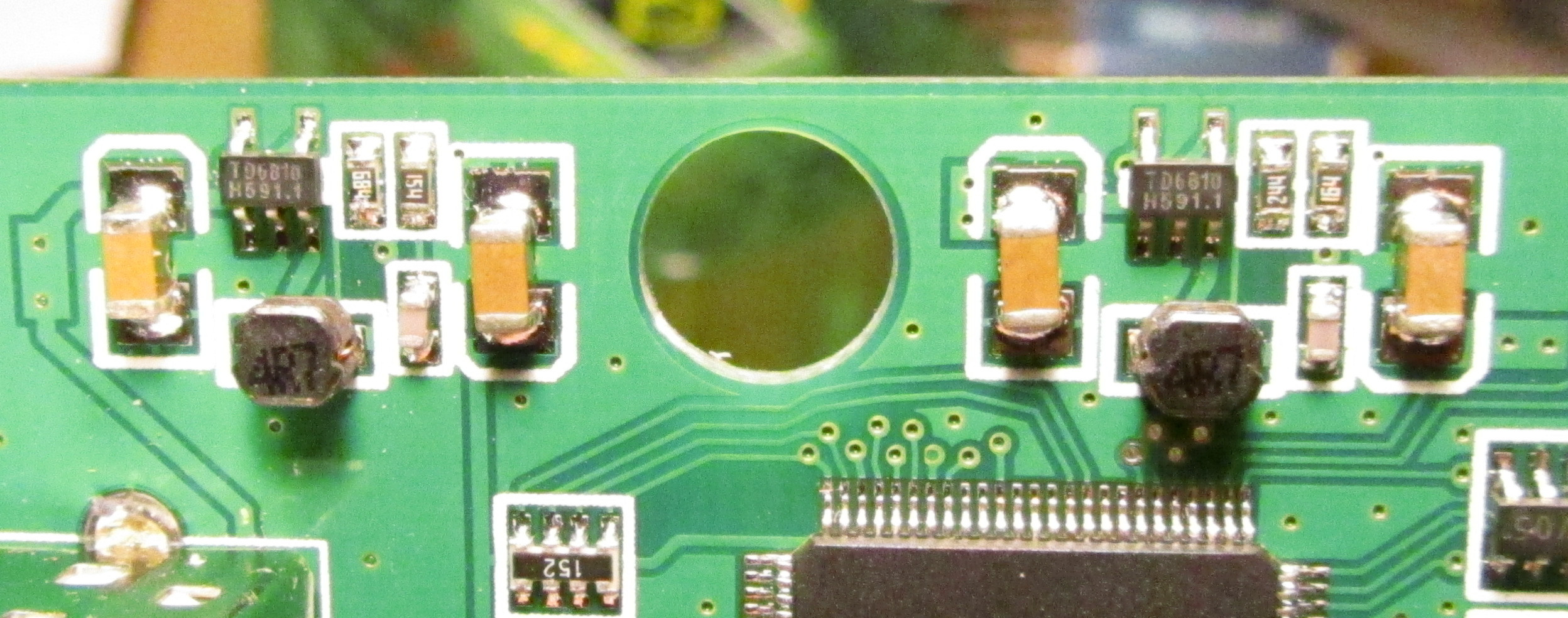

Mcupro 2015 1 8 Voltage Regulators

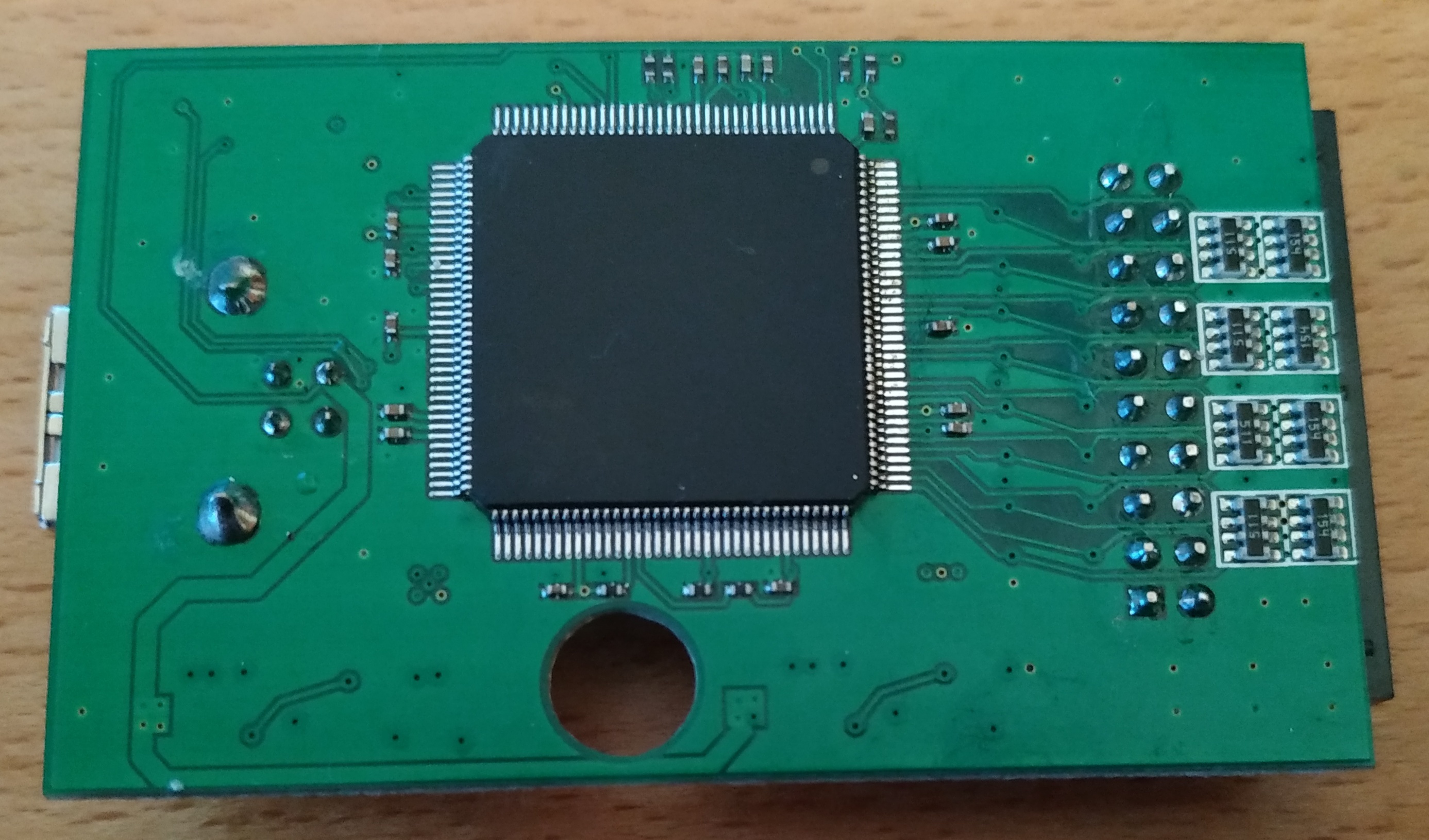

Mcupro 2018 Back

Seleae Logic16 Aliexpress Clone

Mcupro 2015 1 8 Top Overview

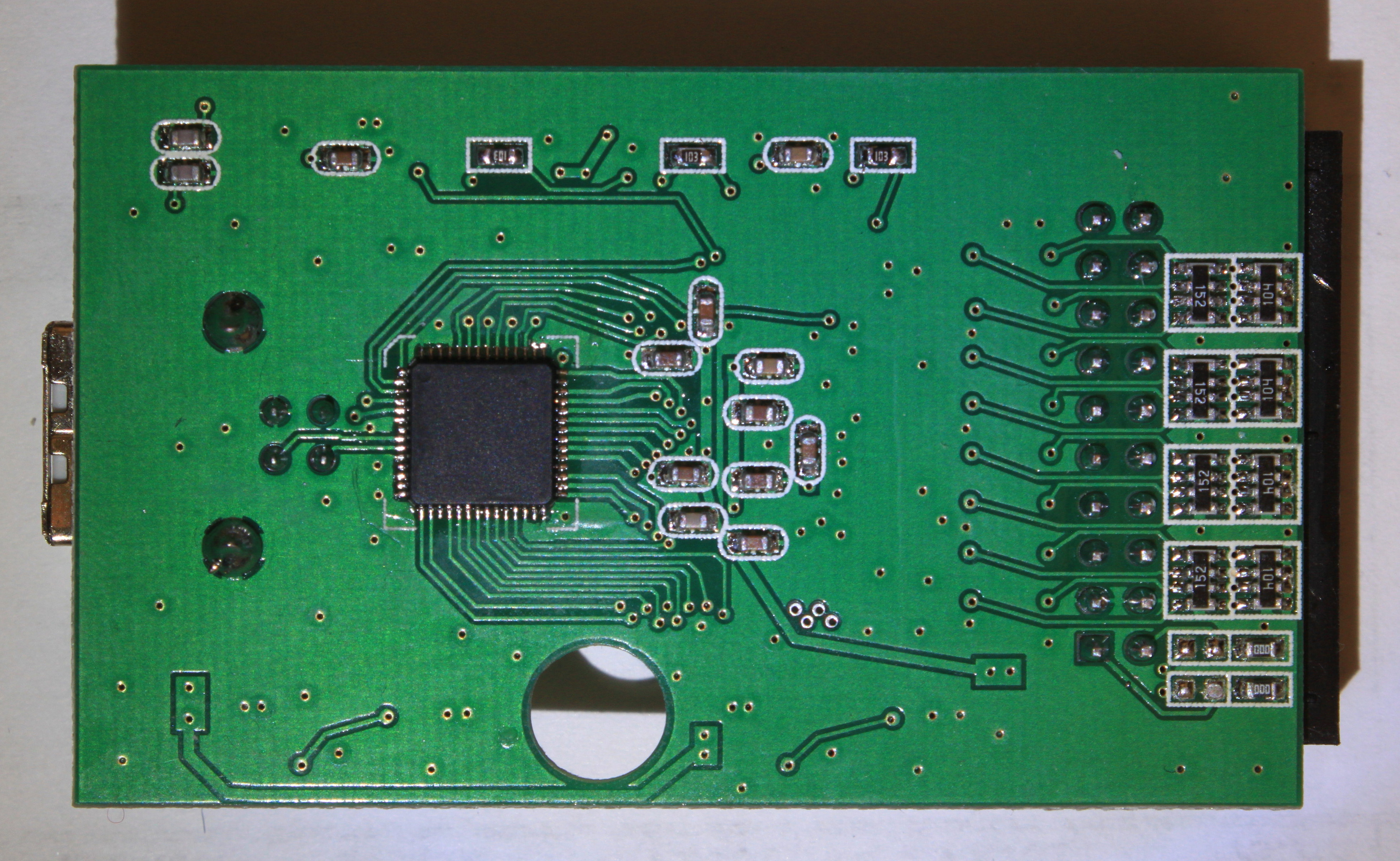

Mcupro 2015 1 8 Bottom Overview

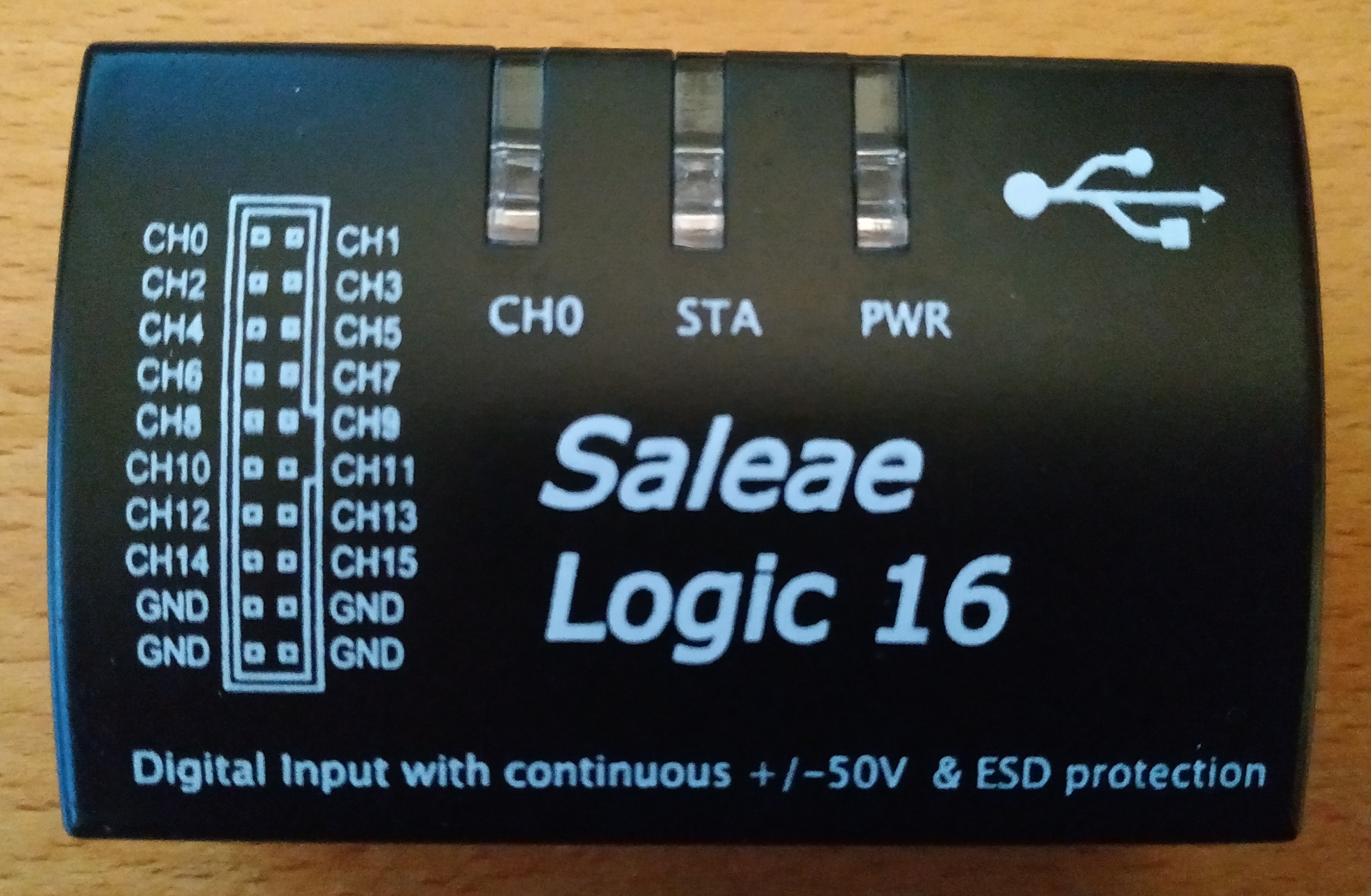

Mcupro 2018 Case

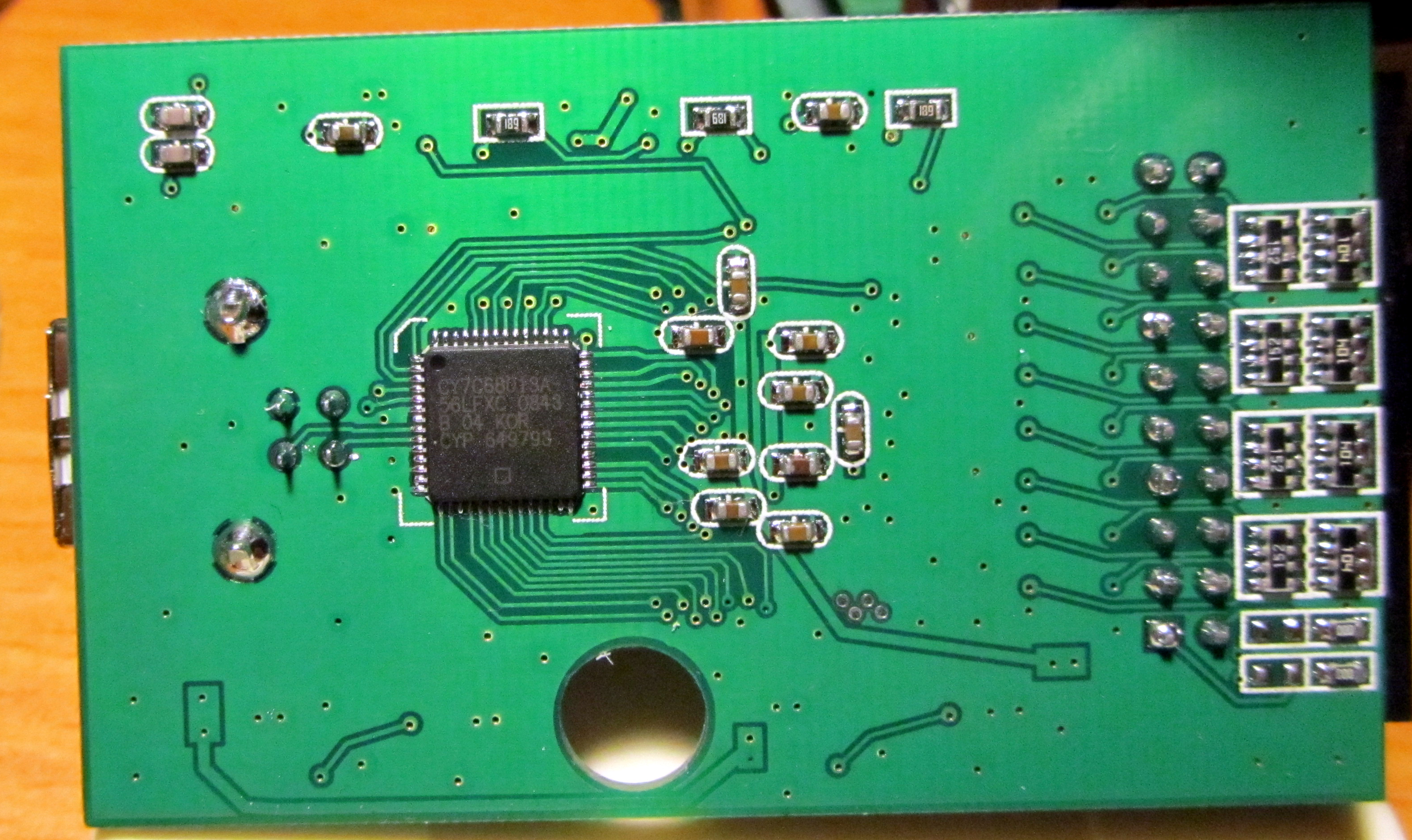

Mcupro 2015 1 8 Bottom Markings Intact

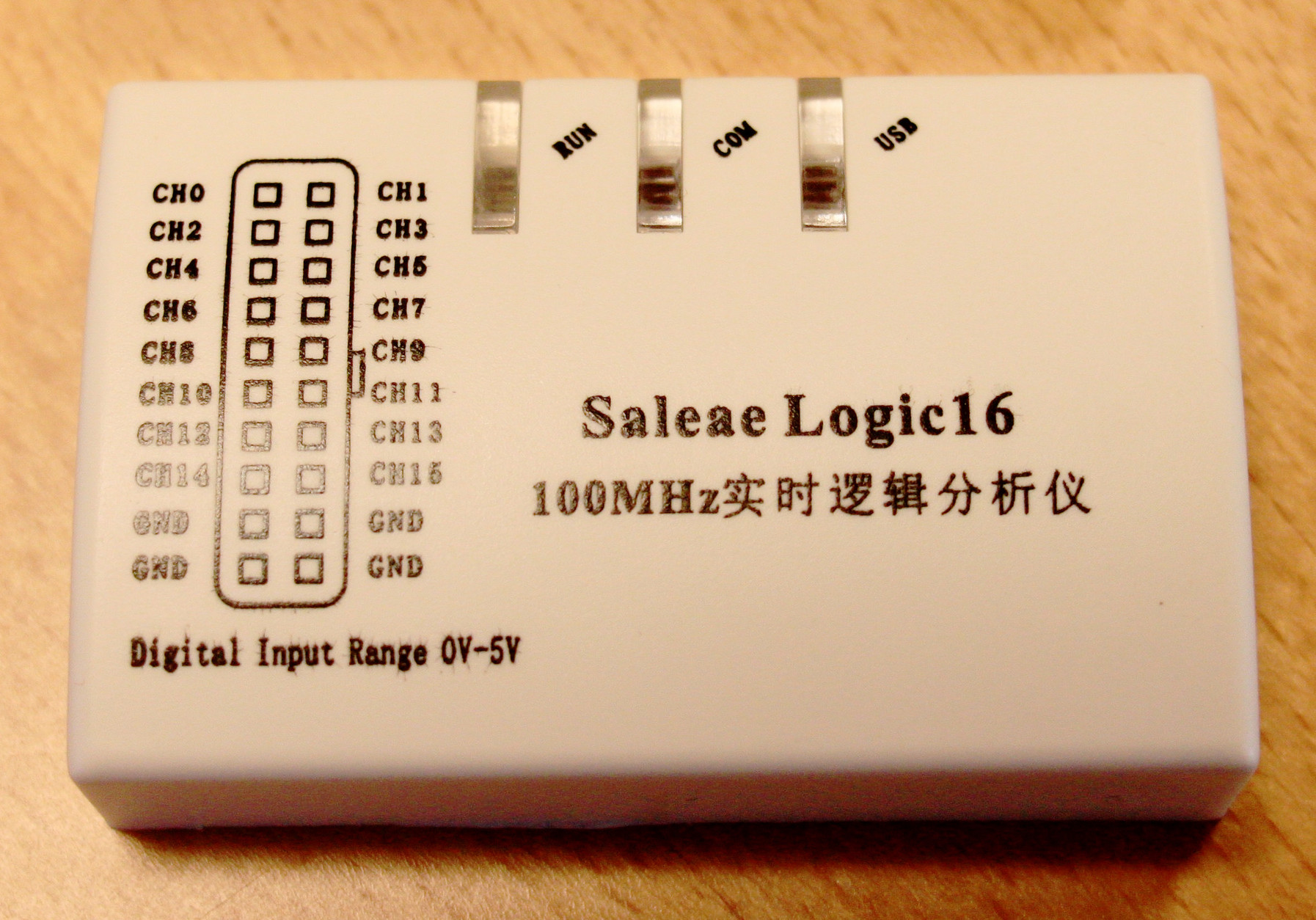

Xl Logic16 100m External

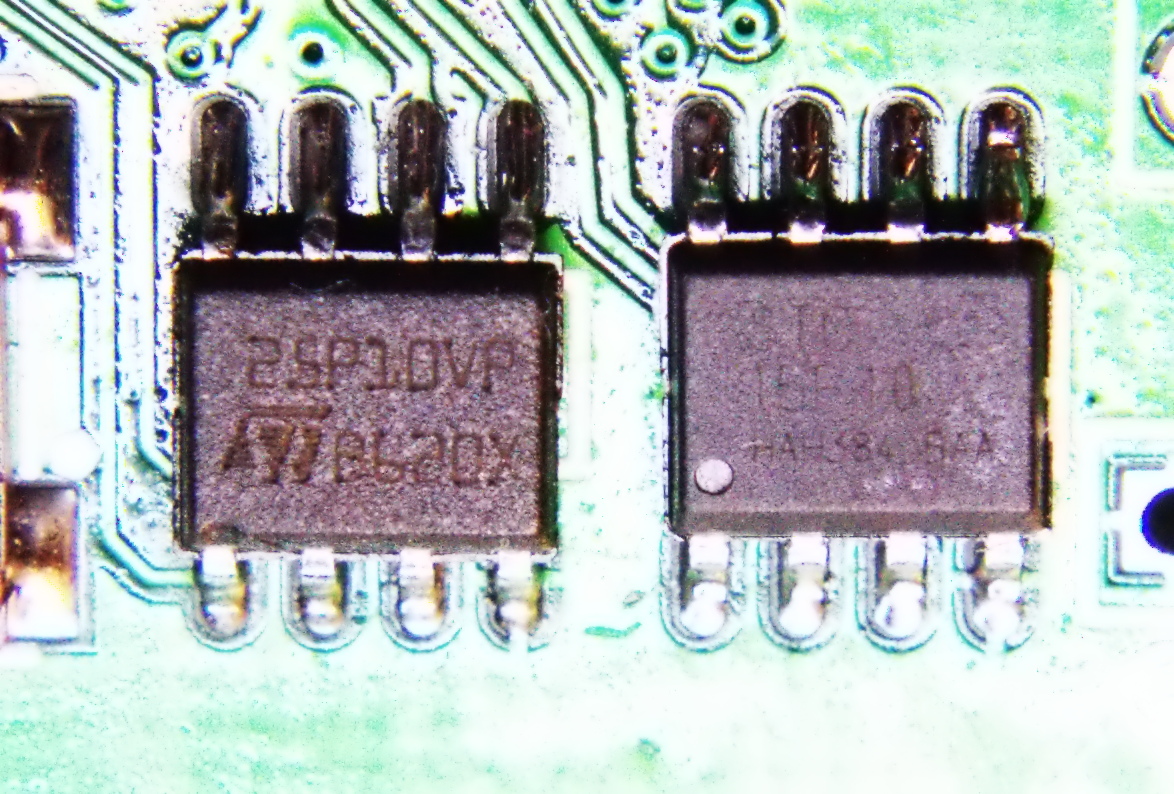

Mcupro Logic16 Variant2 Top Flash 2buc

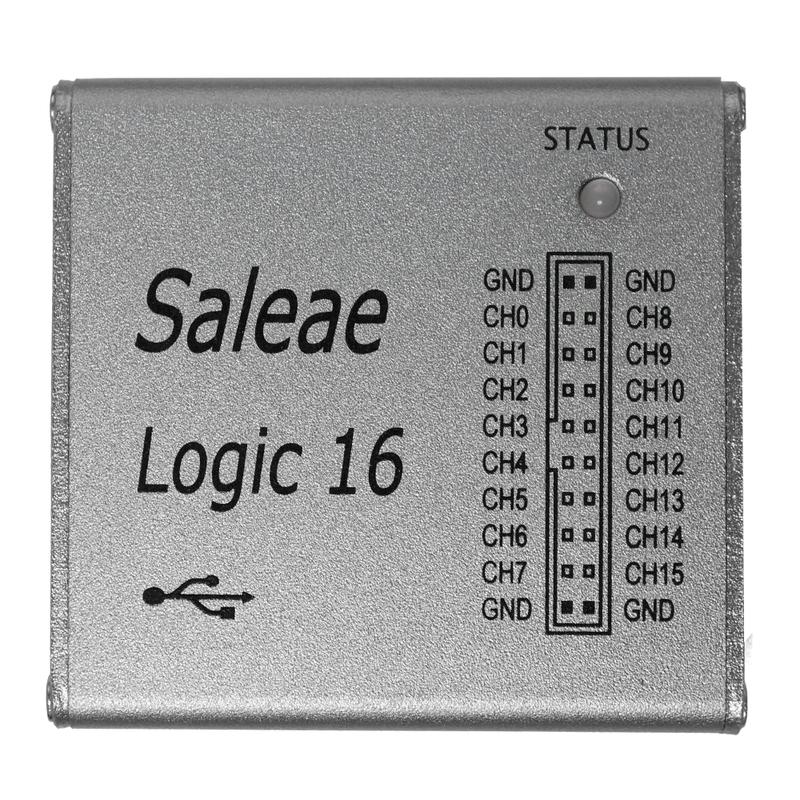

Mcupro Logic16 Overview

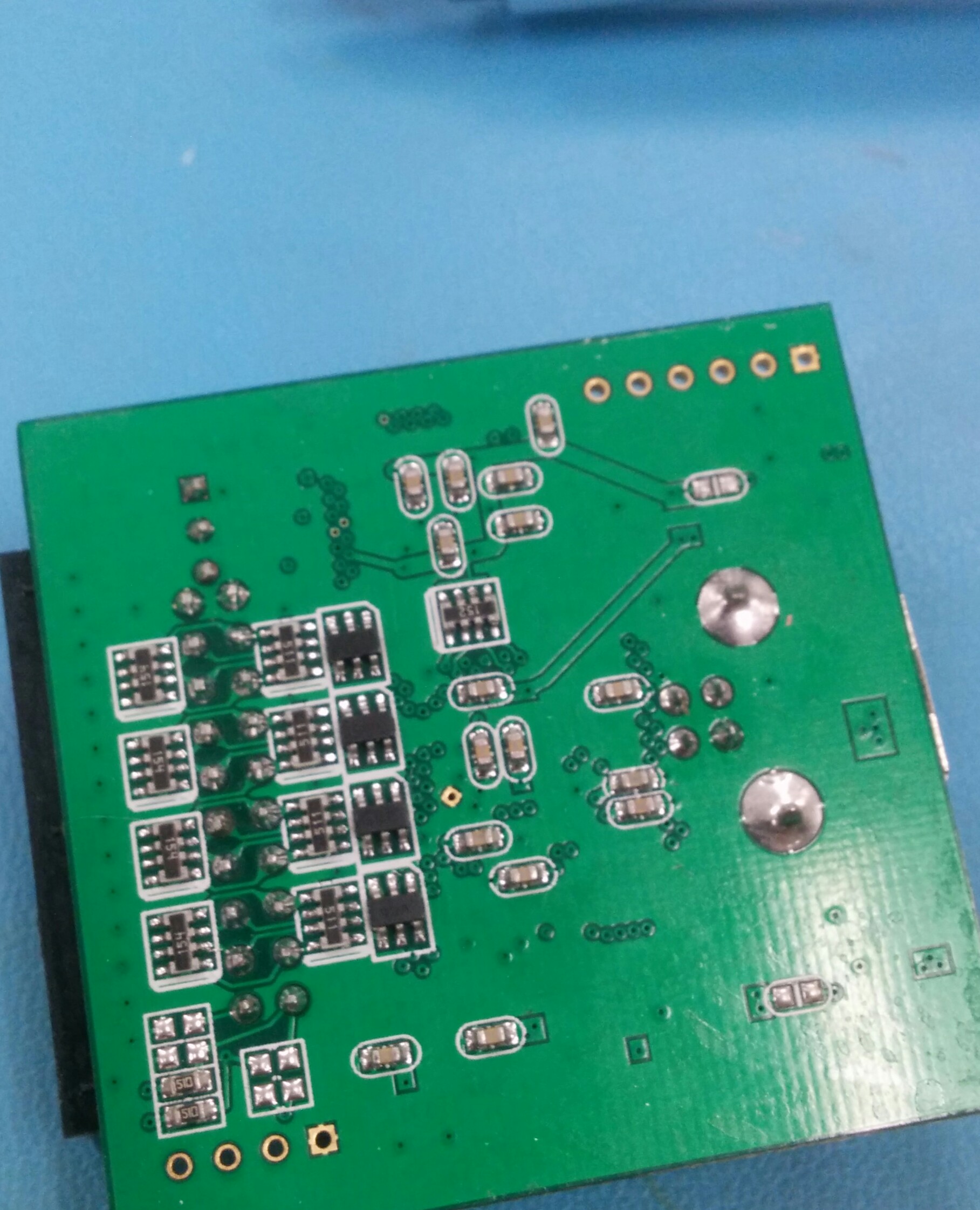

Mcupro 2014 1 25 Bottom Overview

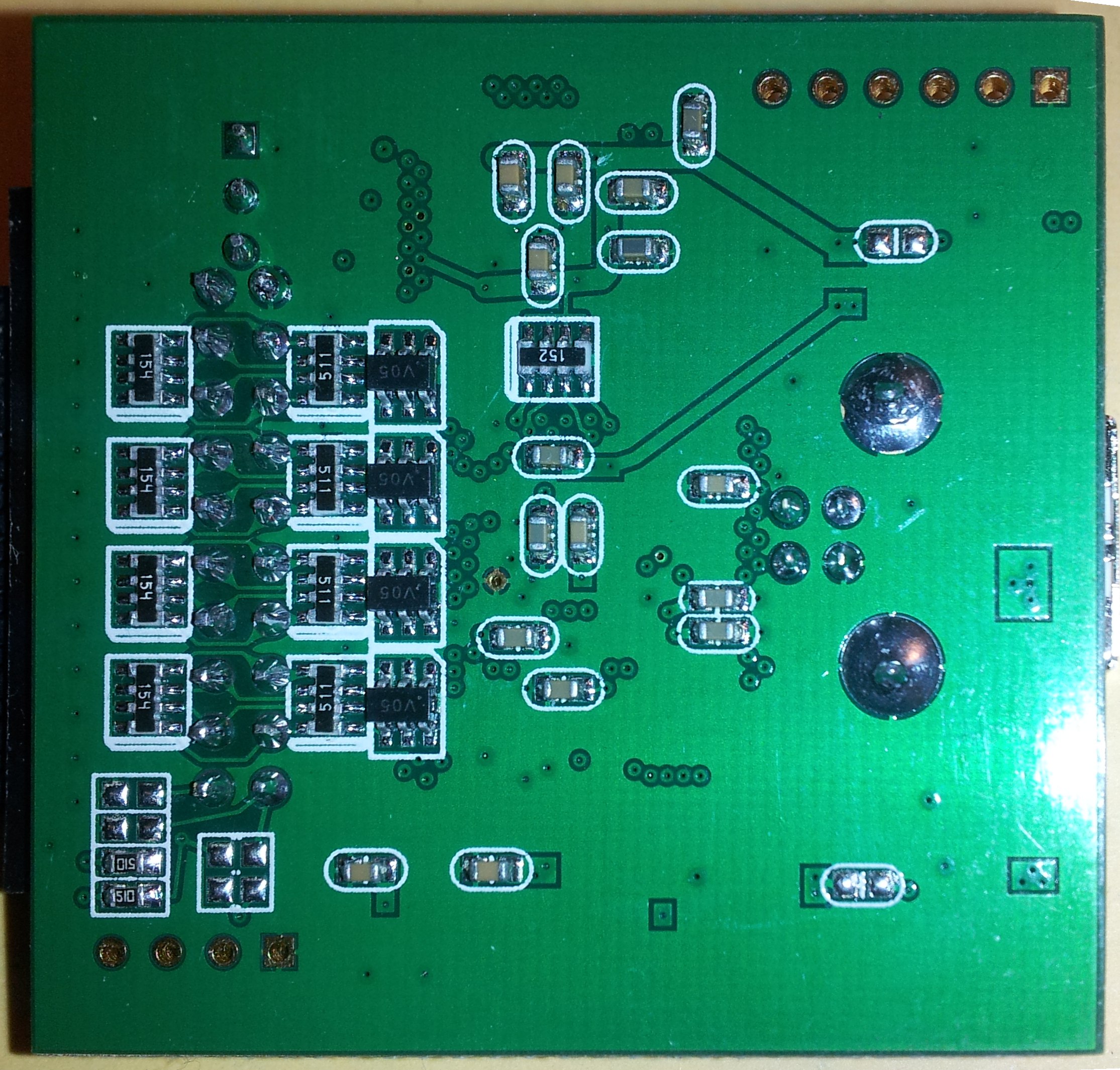

Mcupro 2014 1 25 Bottom Ortho

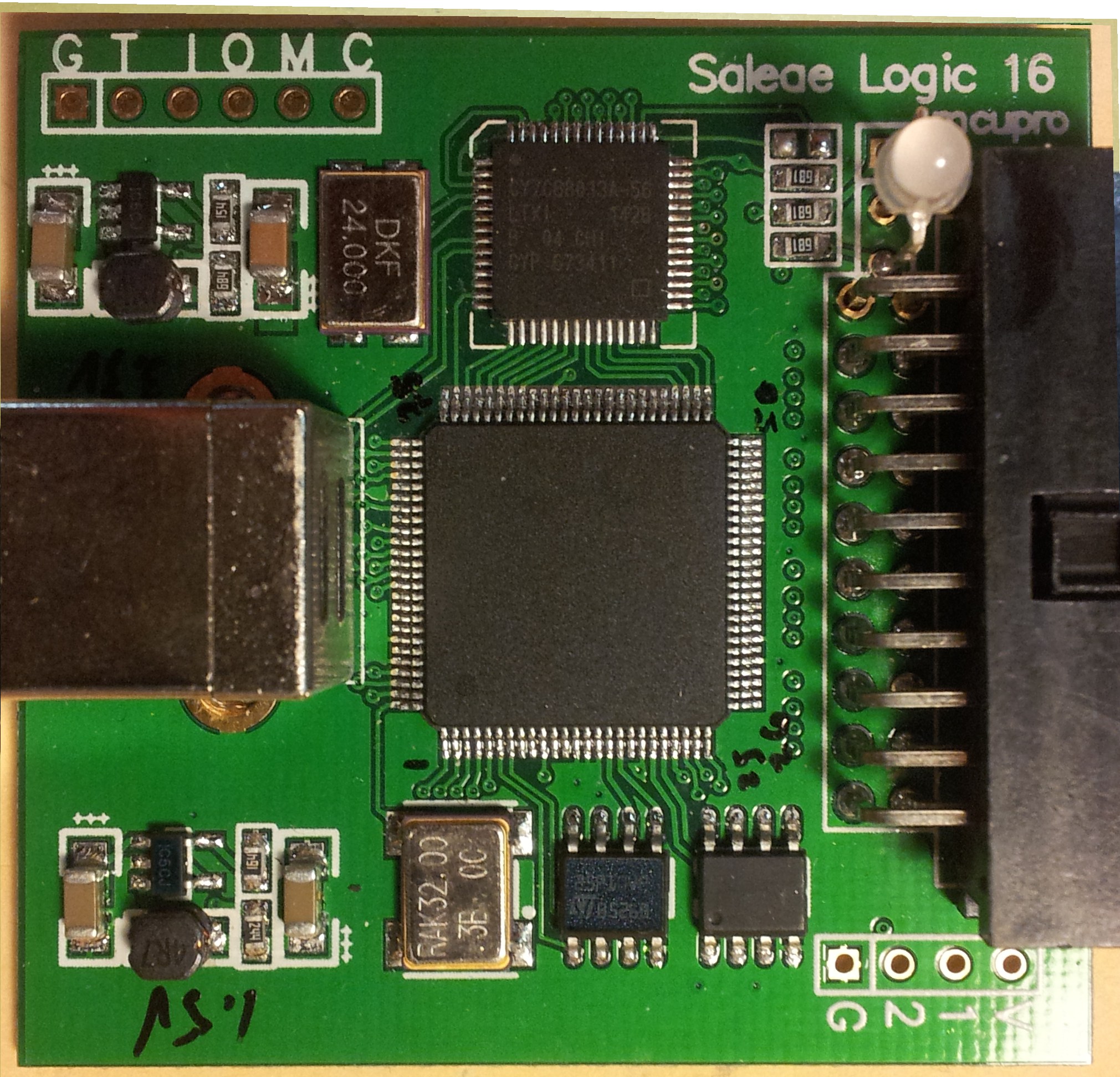

Mcupro 2014 1 25 Top Ortho

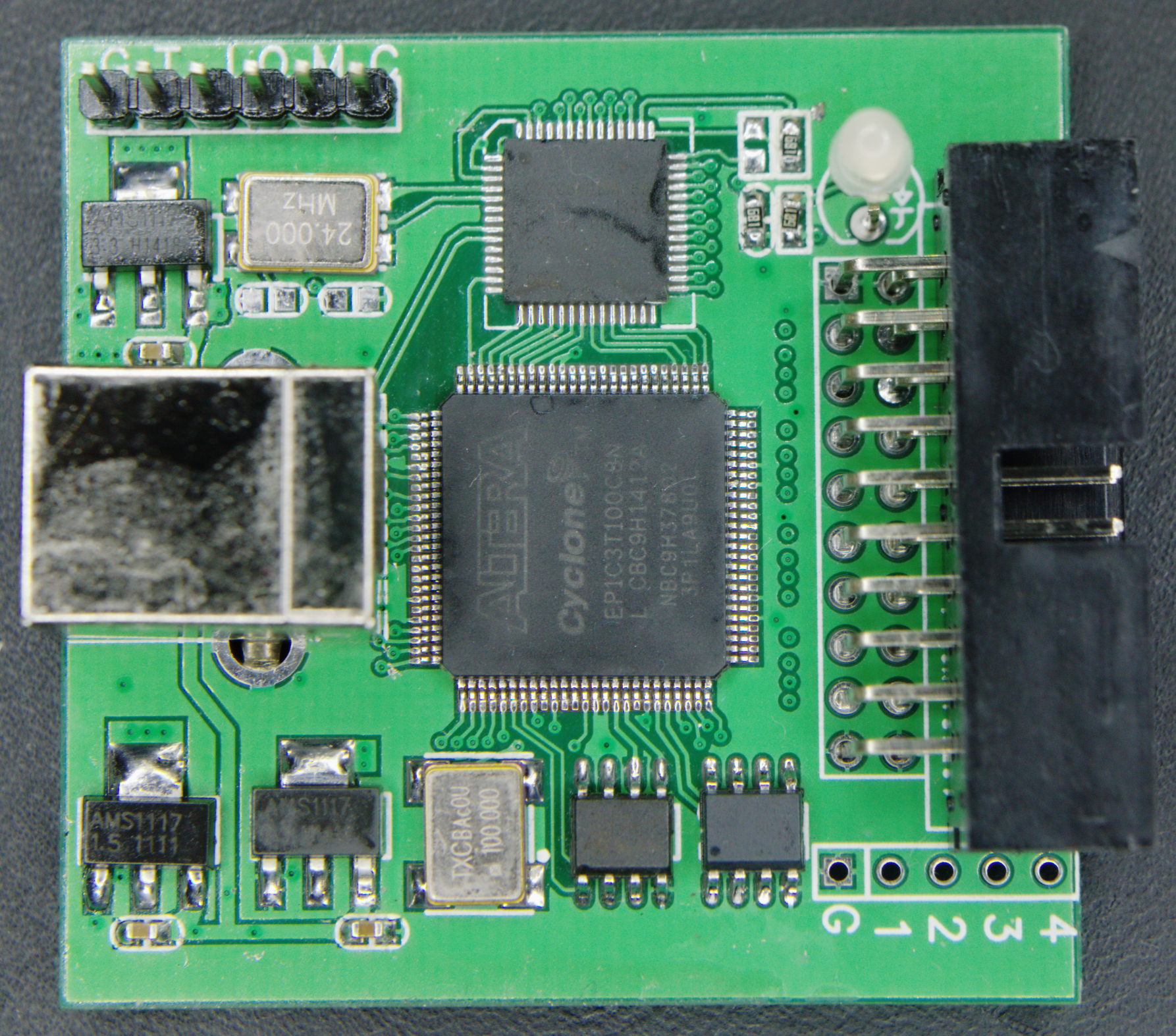

Mcupro Logic16 Variant2 Top

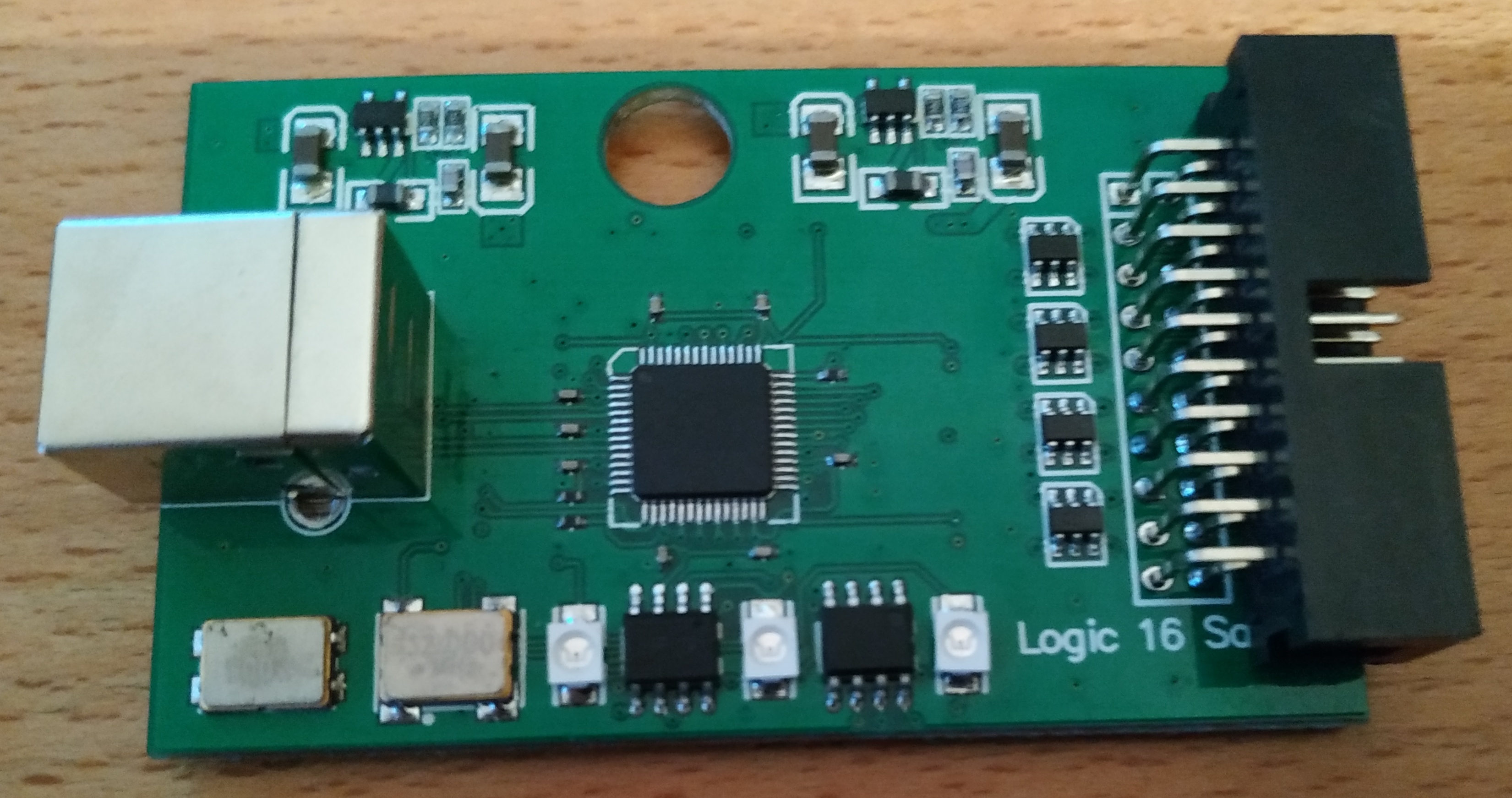

Mcupro 2018 Front

Photos¶

Img 0207 V1

Mcupro 2014 1 25 Top Overview

Mcupro 2015 1 8 Voltage Regulators

Mcupro 2018 Back

Seleae Logic16 Aliexpress Clone

Mcupro 2015 1 8 Top Overview

Mcupro 2015 1 8 Bottom Overview

Mcupro 2018 Case

Mcupro 2015 1 8 Bottom Markings Intact

Xl Logic16 100m External

Mcupro Logic16 Variant2 Top Flash 2buc

Mcupro Logic16 Overview

Mcupro 2014 1 25 Bottom Overview

Mcupro 2014 1 25 Bottom Ortho

Mcupro 2014 1 25 Top Ortho

Mcupro Logic16 Variant2 Top

Mcupro 2018 Front

Photos¶

Img 0207 V1

Mcupro 2014 1 25 Top Overview

Mcupro 2015 1 8 Voltage Regulators

Mcupro 2018 Back

Seleae Logic16 Aliexpress Clone

Mcupro 2015 1 8 Top Overview

Mcupro 2015 1 8 Bottom Overview

Mcupro 2018 Case

Mcupro 2015 1 8 Bottom Markings Intact

Xl Logic16 100m External

Mcupro Logic16 Variant2 Top Flash 2buc

Mcupro Logic16 Overview

Mcupro 2014 1 25 Bottom Overview

Mcupro 2014 1 25 Bottom Ortho

Mcupro 2014 1 25 Top Ortho

Mcupro Logic16 Variant2 Top

Mcupro 2018 Front

Photos¶

Img 0207 V1

Mcupro 2014 1 25 Top Overview

Mcupro 2015 1 8 Voltage Regulators

Mcupro 2018 Back

Seleae Logic16 Aliexpress Clone

Mcupro 2015 1 8 Top Overview

Mcupro 2015 1 8 Bottom Overview

Mcupro 2018 Case

Mcupro 2015 1 8 Bottom Markings Intact

Xl Logic16 100m External

Mcupro Logic16 Variant2 Top Flash 2buc

Mcupro Logic16 Overview

Mcupro 2014 1 25 Bottom Overview

Mcupro 2014 1 25 Bottom Ortho

Mcupro 2014 1 25 Top Ortho

Mcupro Logic16 Variant2 Top

Mcupro 2018 Front

Photos¶

Img 0207 V1

Mcupro 2014 1 25 Top Overview

Mcupro 2015 1 8 Voltage Regulators

Mcupro 2018 Back

Seleae Logic16 Aliexpress Clone

Mcupro 2015 1 8 Top Overview

Mcupro 2015 1 8 Bottom Overview

Mcupro 2018 Case

Mcupro 2015 1 8 Bottom Markings Intact

Xl Logic16 100m External

Mcupro Logic16 Variant2 Top Flash 2buc

Mcupro Logic16 Overview

Mcupro 2014 1 25 Bottom Overview

Mcupro 2014 1 25 Bottom Ortho

Mcupro 2014 1 25 Top Ortho

Mcupro Logic16 Variant2 Top

Mcupro 2018 Front

Protocol¶

See Saleae_Logic16#Protocol.

Firmware¶

Actel variant This logic analyzer works with unmodified Saleae software. The Actel FPGA has on-chip flash storage, so it only requires an upload of Cypress FX2LP firmware in order to operate. Cyclone variant This logic analyzer works with unmodified Saleae software. The PCB contains an SPI flash chip, so it only requires an upload of Cypress FX2LP firmware in order to operate. 2015-01-08 and 2018 variants Only requires an upload of Cypress FX2LP firmware to operate. Open-source binaries from gregani work, but must be renamed to saleae-logic16-fx2.fw. It also requires a libsigrok more recent than 2014-08-22 to work (see bug #680). 2014-01-25 variant Seems to have the bitstream in internal flash, so it only requires an upload of Cypress FX2LP firmware in order to operate. This requires a libsigrok more recent than 2014-08-22 to work (see bug #680).

The firmware extraction steps are identical to steps for Saleae Logic16, however you only need to have saleae-logic16-fx2.fw installed.
