MCU123 USBee AX Pro clone¶
MCU123 USBee AX Pro clone¶
| Status | supported |
| Source code | fx2lafw |
| Channels | 8 |
| Samplerate | 24MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | -0.5V — 5.25V |
| Threshold voltage | Fixed: VIH=2.0V—5.25V, VIL=-0.5V—0.8V |
| Memory | none |
| Compression | none |
| Price range | $5 - $10 |
| Website | dx.com |
The MCU123 USBee AX Pro clone is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate.
It is a clone of the CWAV USBee AX-Pro, but it doesn't have analog (only 8-channel digital) sampling capabilities. It's also very similar to the MCU123 Saleae Logic clone minus the different USB vendor/device IDs.
In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.
See MCU123 USBee AX Pro clone/Info for more detailed information on the device.
Hardware¶
- Main chip: Cypress CY7C68013A-56PVXC (FX2LP)
- Input buffer: NXP 74HC245 (markings: "NXP HC245 2A7K508 UnD2 18E")
- 256-byte I2C EEPROM: Atmel AT24C02 (markings: "ATMEL218 24C02N SU27 D")
- 3.3V low-dropout voltage regulator: Advanced Monolithic Systems AMS1117-3.3 (markings: "AMS1117 3.3 HT240E")
- 24MHz crystal: 24.000
Photos¶
Usbee Ax Clone Angle

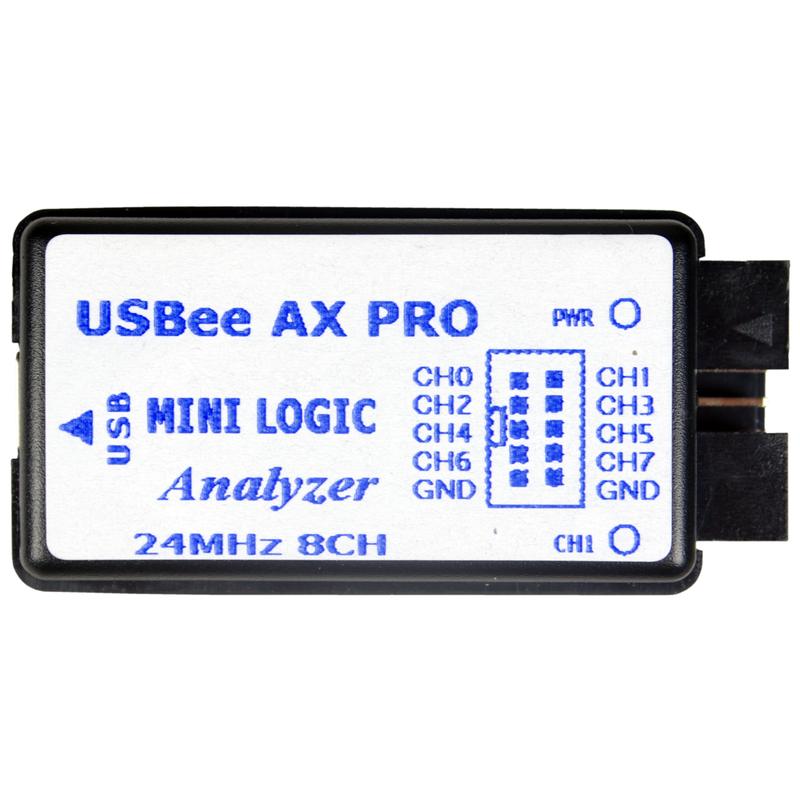

Usbee Ax Clone Front

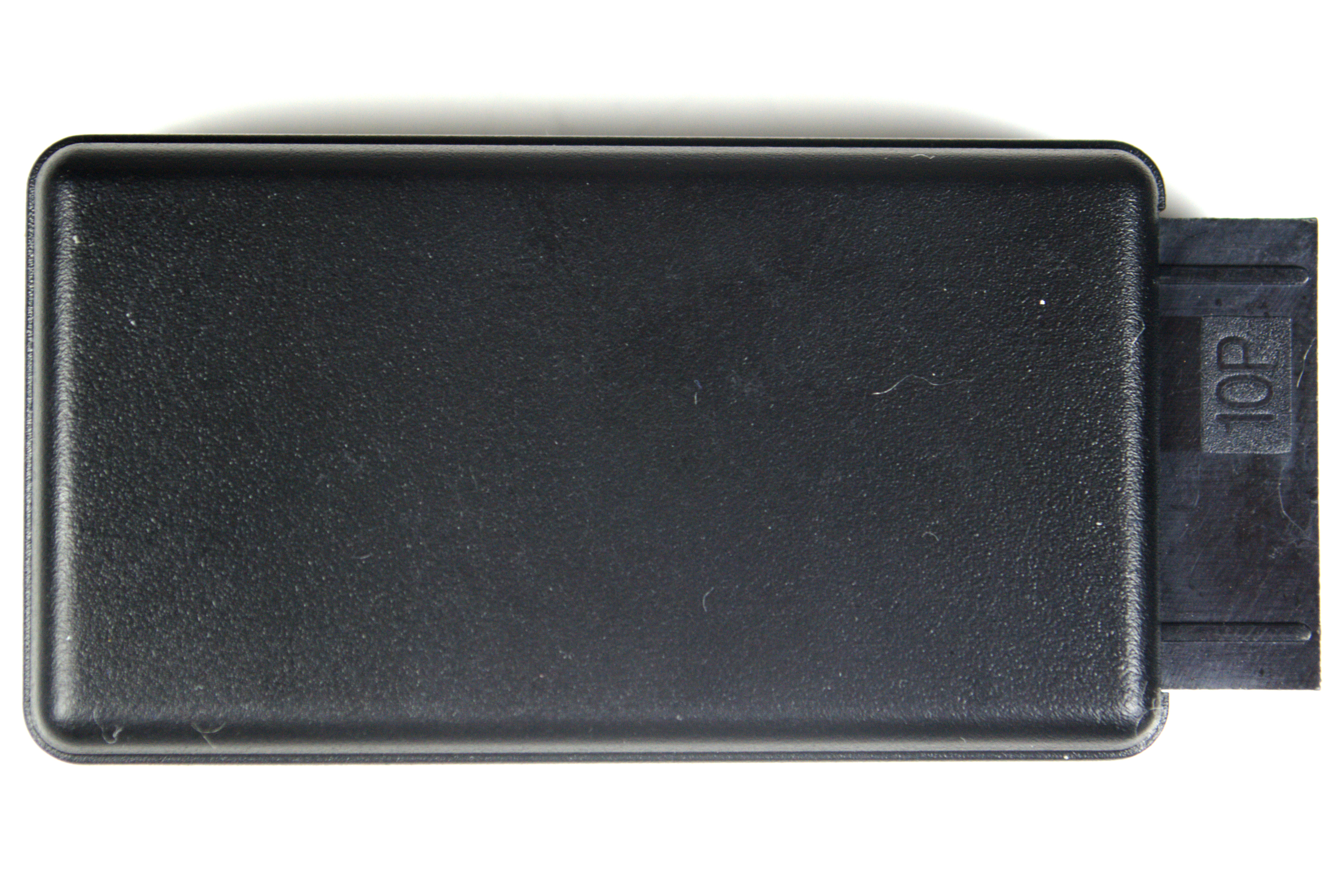

Usbee Ax Clone Back

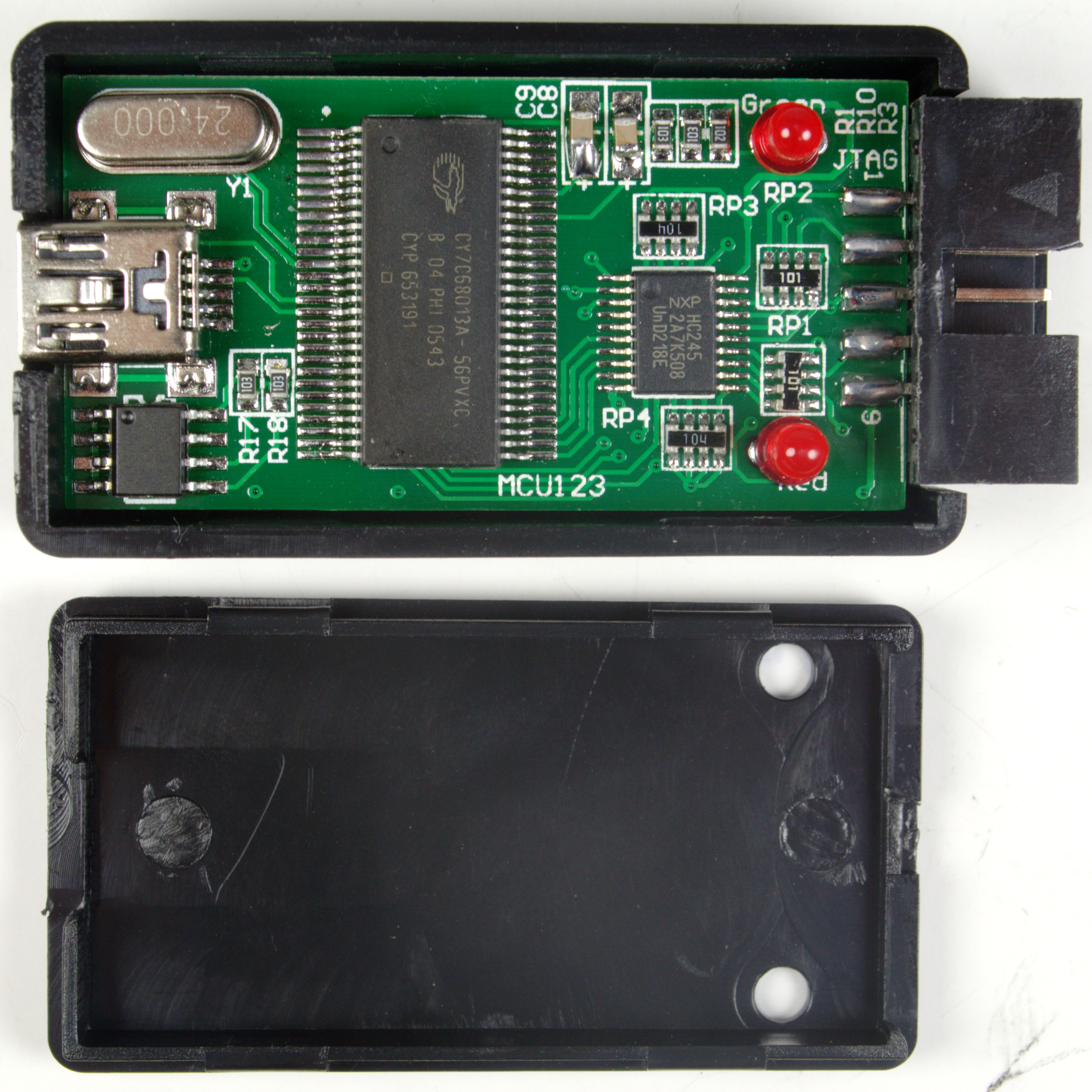

Usbee Ax Clone Opened

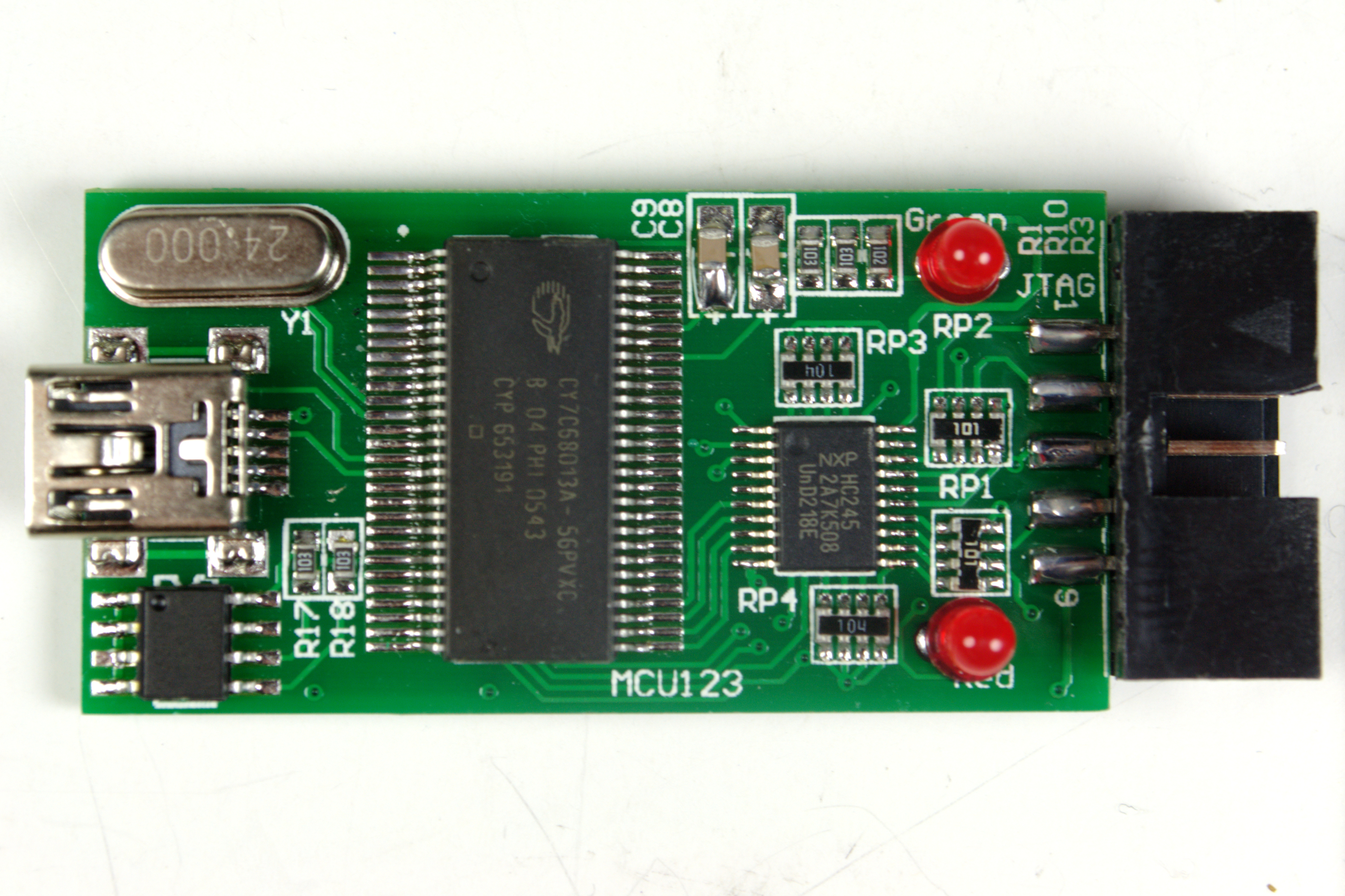

Usbee Ax Clone Pcb Front

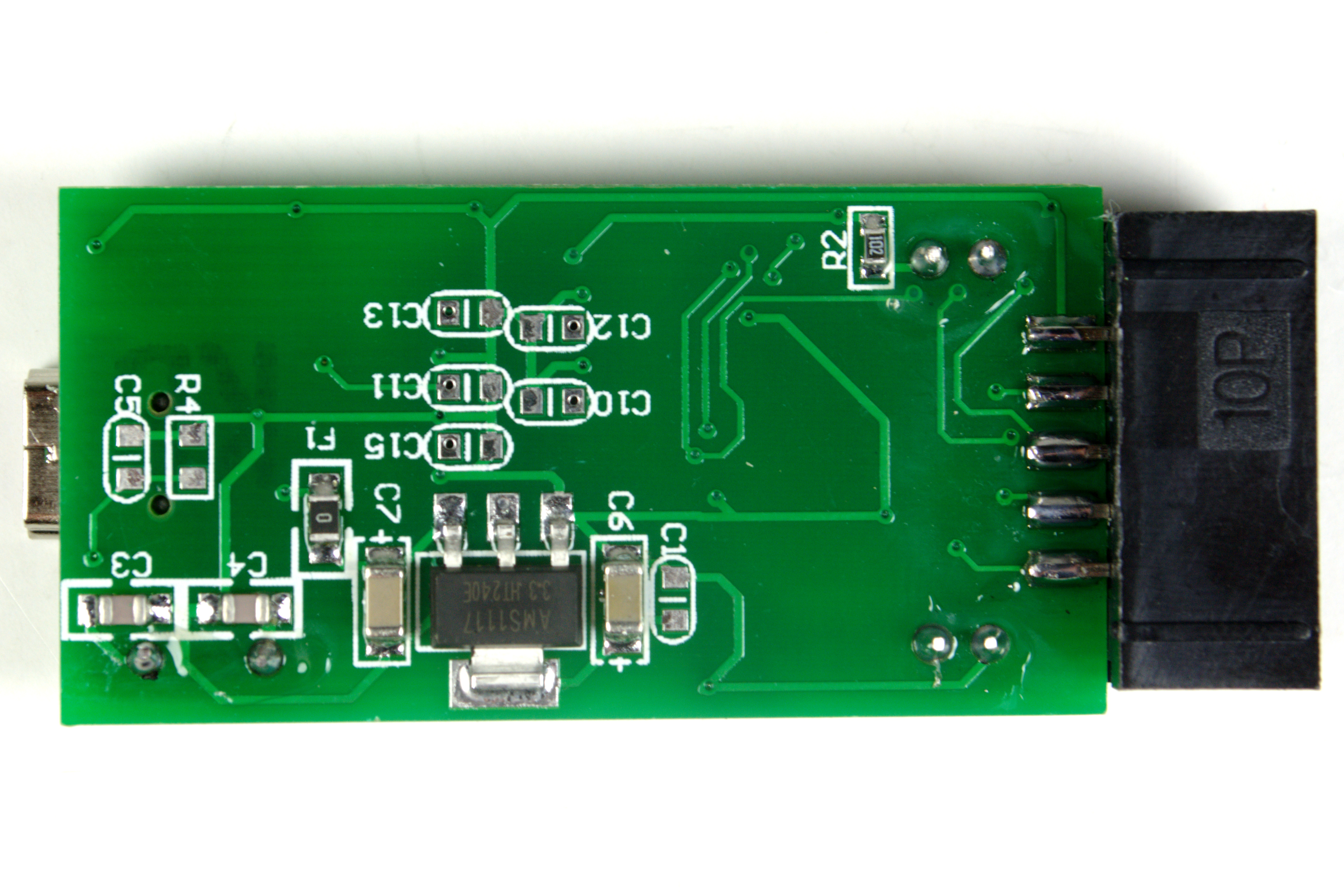

Usbee Ax Clone Pcb Back
Protocol¶
Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
