Status supported
Source code fx2lafw
Channels 8
Samplerate 24MHz
Samplerate (state) —
Triggers none (SW-only)
Min/max voltage -0.5V — 5.25V
Threshold voltage Fixed: VIH=2.0V—5.25V, VIL=-0.5V—0.8V
Memory none
Compression none
Price range $5 - $10
Website mcu123.com

The MCU123 Saleae Logic clone is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate.

It is a clone of the Saleae Logic. It's also very similar to the MCU123 USBee AX Pro clone minus the different USB vendor/device IDs.

In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.

See MCU123 Saleae Logic clone/Info for more detailed information on the device.

Hardware

  • Main chip: Cypress CY7C68013-56PVC (FX2)
  • Input buffer: NXP 74HC245 (markings: "NXP HC245 2A7K508 UnD2 18E")
  • 256-byte I2C EEPROM: Atmel AT24C02 (markings: "ATMEL211 24C02N SU27 D")
  • 3.3V low-dropout voltage regulator: Advanced Monolithic Systems AMS1117-3.3 (markings: "AMS1117 3.3 HT240E")
  • 24MHz crystal: 24.000

Photos

Mcu123 Saleae Logic Clone Top Mcu123 Saleae Logic Clone Top

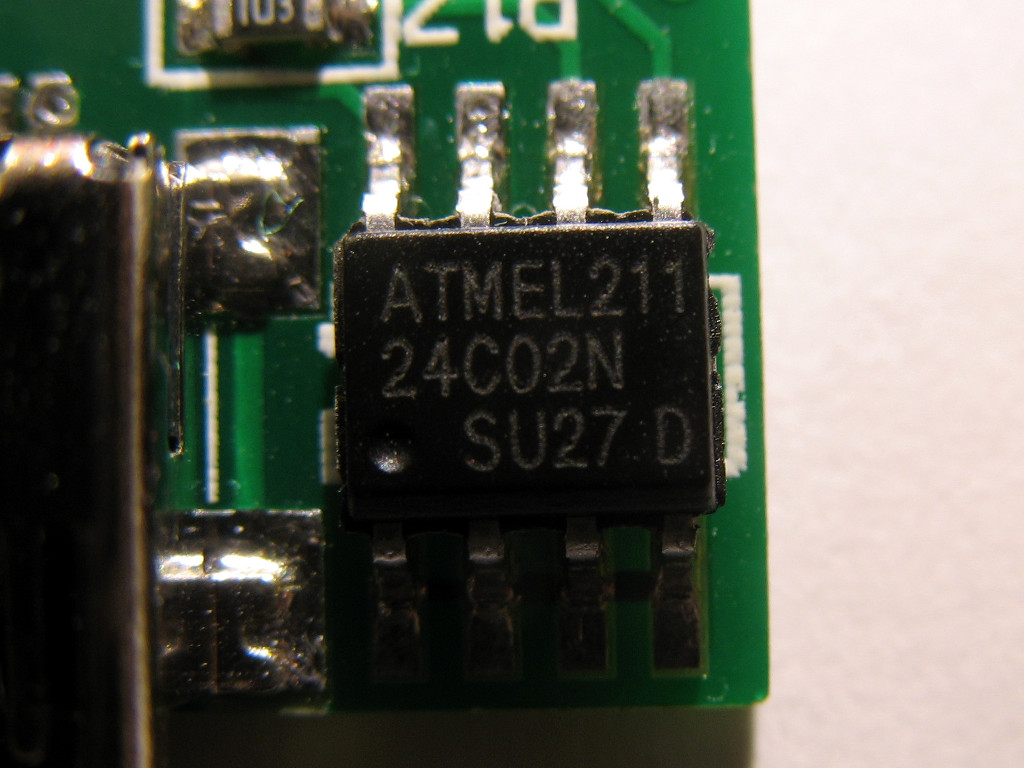

Mcu123 Saleae Logic Clone Eeprom Mcu123 Saleae Logic Clone Eeprom

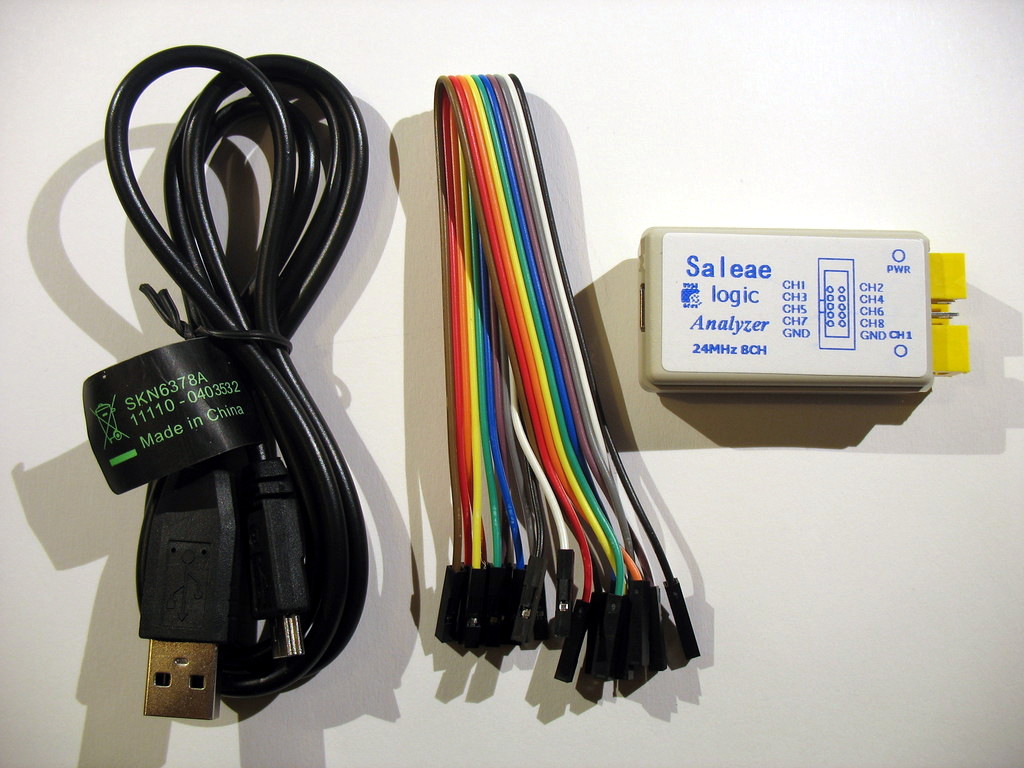

Mcu123 Saleae Logic Clone Package Contents Mcu123 Saleae Logic Clone Package Contents

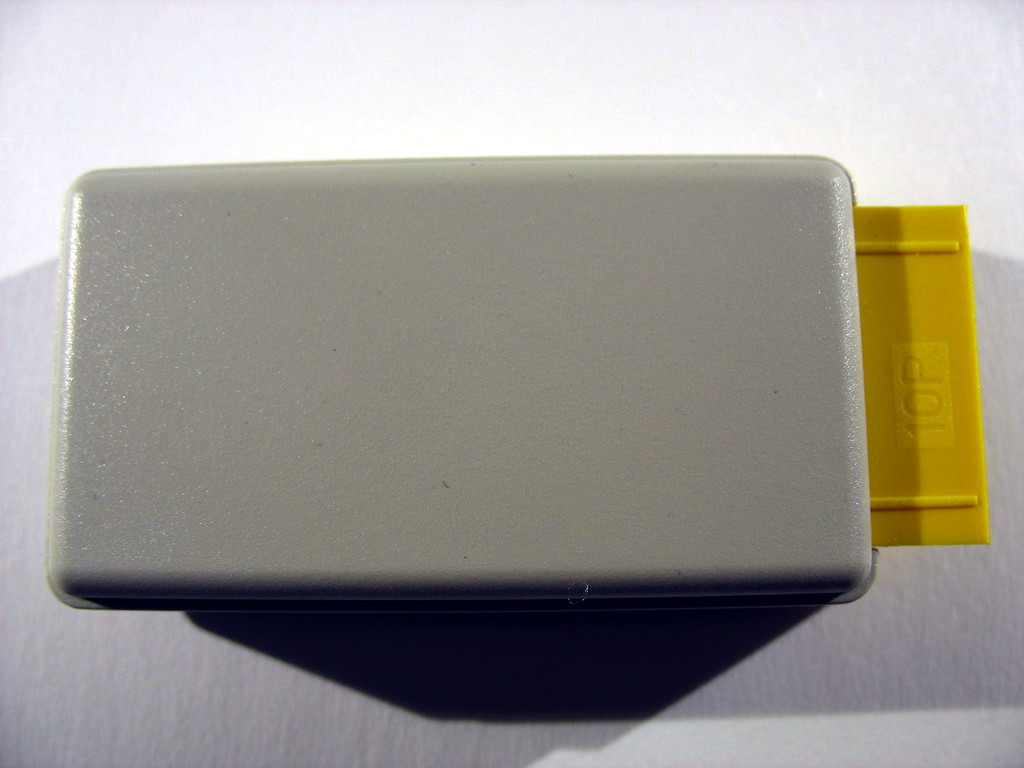

Mcu123 Saleae Logic Clone Bottom Mcu123 Saleae Logic Clone Bottom

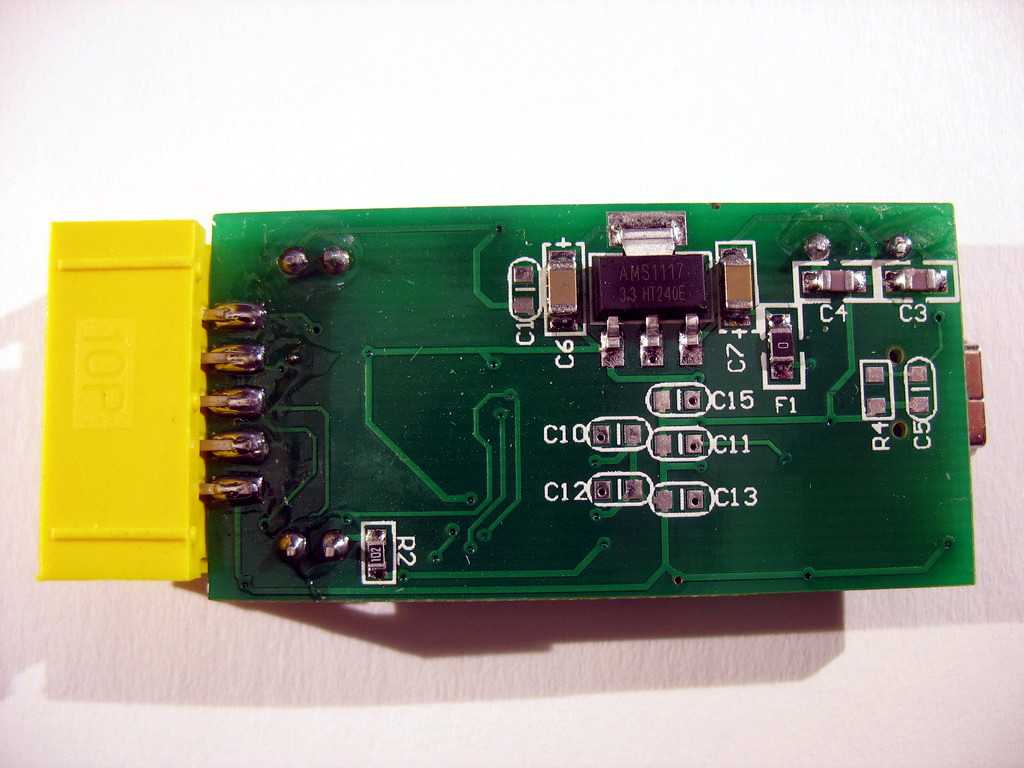

Mcu123 Saleae Logic Clone Pcb Bottom Mcu123 Saleae Logic Clone Pcb Bottom

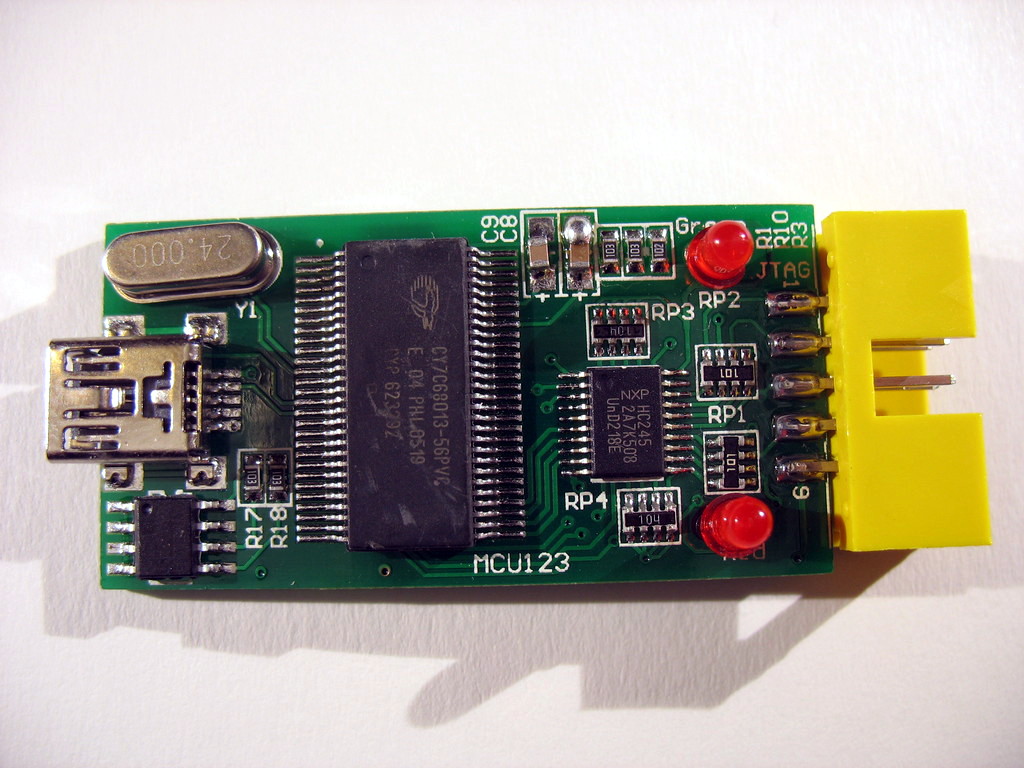

Mcu123 Saleae Logic Clone Pcb Top Mcu123 Saleae Logic Clone Pcb Top

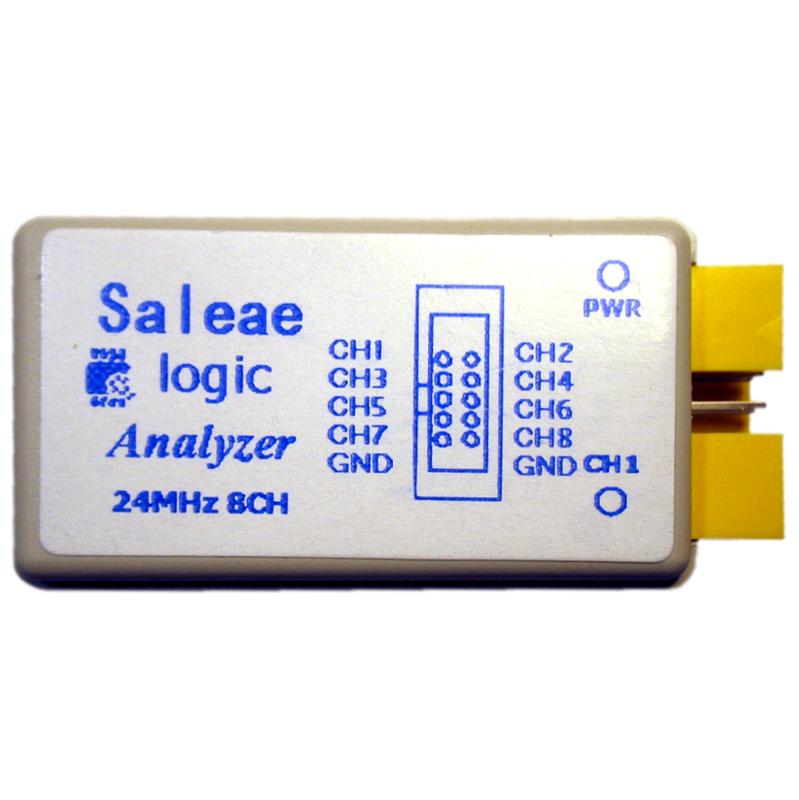

Mcu123 Saleae Logic Clone Mcu123 Saleae Logic Clone

Protocol

Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
