Logic Shrimp¶
Logic Shrimp¶
| Status | supported |
| Source code | openbench-logic-sniffer |
| Channels | 4 |
| Samplerate | 20MHz |
| Samplerate (state) | ? |
| Triggers | ? |
| Min/max voltage | ? |
| Memory | 256ksamples per channel |
| Compression | ? |
| Website | dangerousprototypes.com |
The Dangerous Prototypes Logic Shrimp is a USB-based, 4-channel logic analyzer with up to 20MHz sampling rate.
The hardware design is available under a Creative Commons (CC-BY-SA) license.
See Logic Shrimp/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- 8-bit microcontroller with integrated USB Full-Speed support: Microchip PIC18F24J50 (datasheet)
- 4x 32kByte SPI-attached SRAM: Microchip 23K256I (datasheet)
- Octal transparent D-type latches with 3-state output: Texas Instruments SN74LVC573A (datasheet)
- 20MHz crystal
The device essentially consists of a Microchip PIC microcontroller running at 20MHz, sampling each of its 4 probes into its own 256kBit (32kByte) SRAM chip. A buffer chip makes the design 5V tolerant.
Photos¶
Logic Shrimp Front

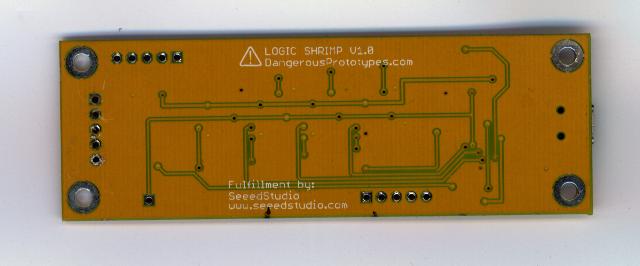

Logic Shrimp Back
Protocol¶
The Logic Shrimp uses the extended SUMP protocol, as used by the Openbench Logic Sniffer driver. It is thus supported in sigrok out of the box. However, the current firmware in the Logic Shrimp does not properly publish metadata according to its capabilities. In order to get valid data from it, make sure to always restrict the probes sampled to 1-4.
