KingST KQS3506-LA16100¶


Status	supported
Source code	saleae-logic16
Channels	3/6/9/16
Samplerate	100/50/32/16MHz
Samplerate (state)	—
Triggers	none (SW-only)
Min/max voltage	-0.9V — 6V
Threshold voltage	configurable:for 1.8V to 3.6V systems: VIH=1.4V, VIL=0.7Vfor 5V systems: VIH=3.6V, VIL=1.4V
Memory	none
Compression	yes
Website	taobao.com

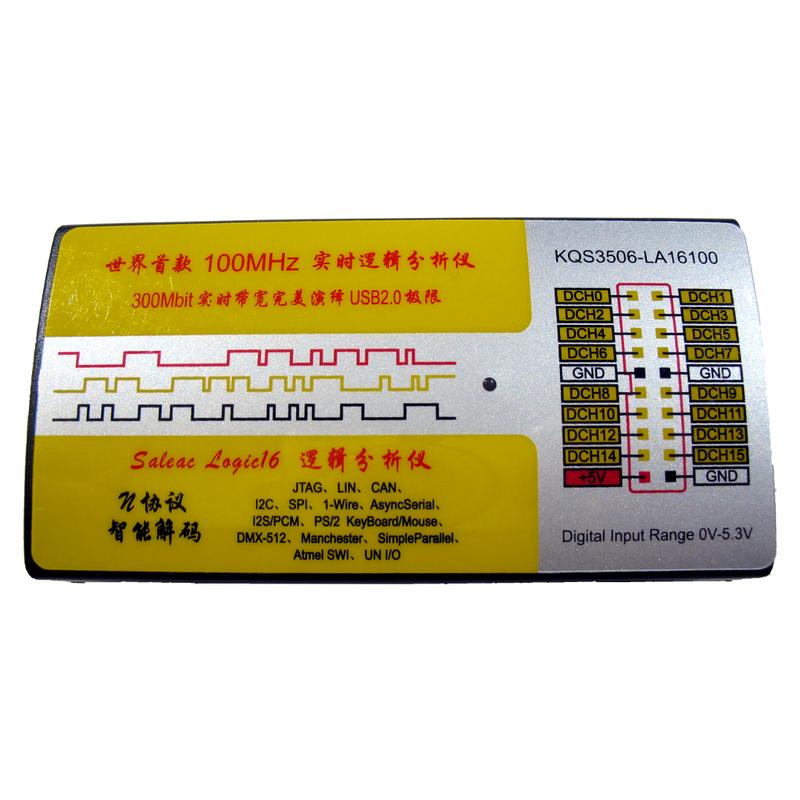

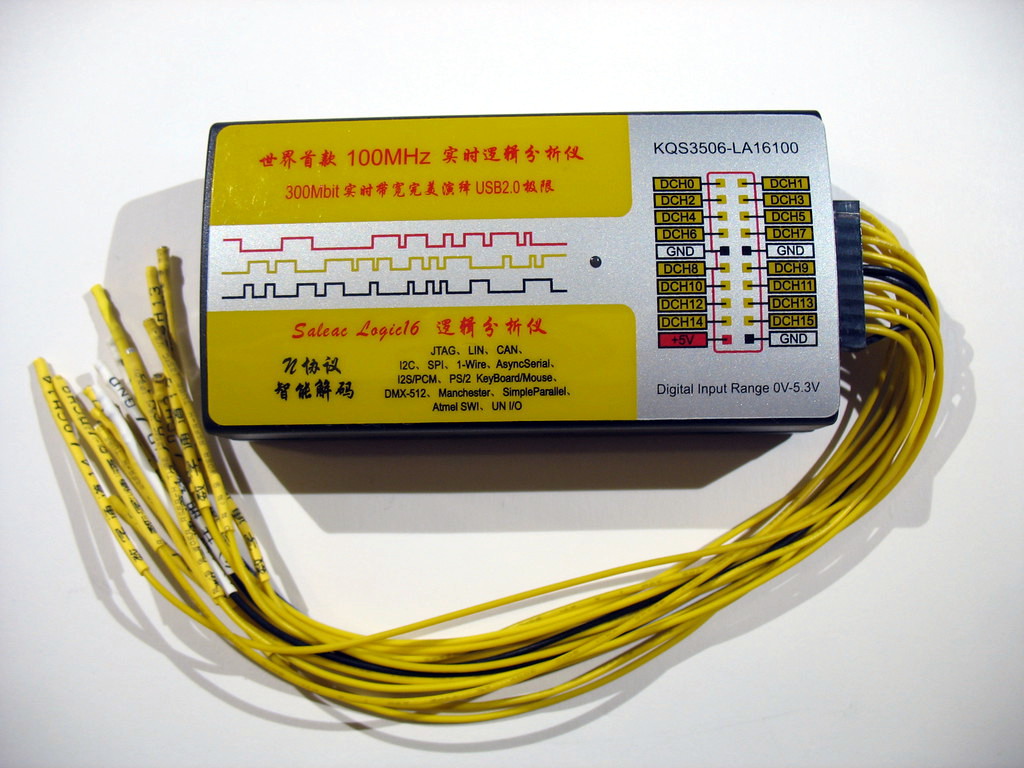

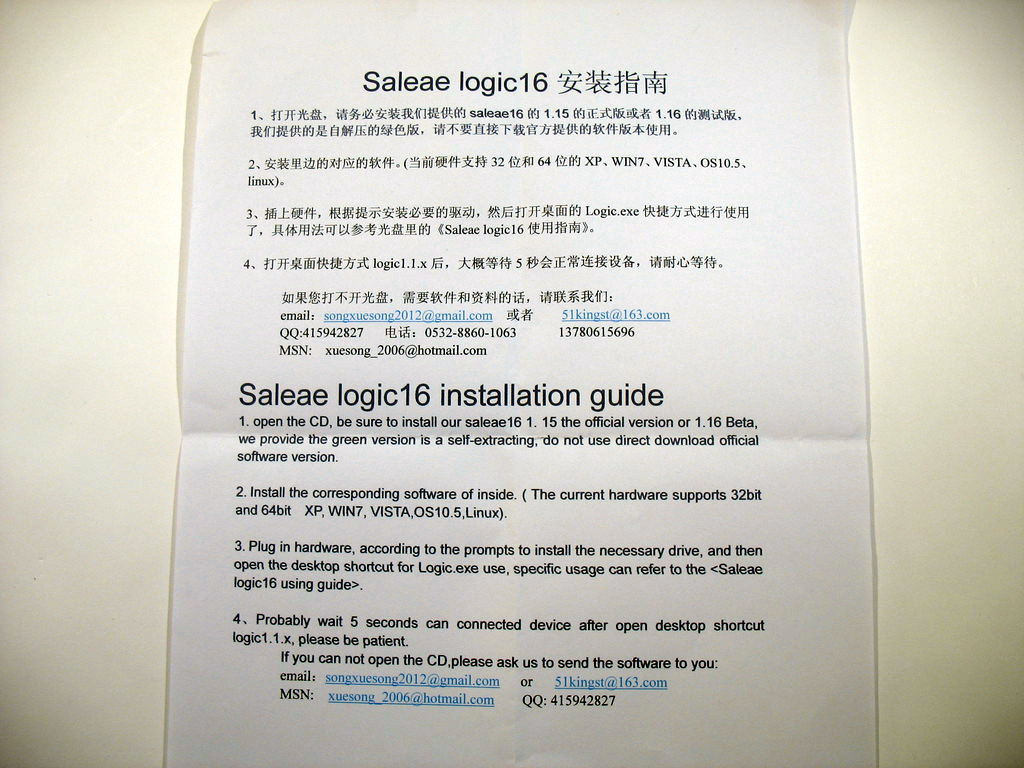

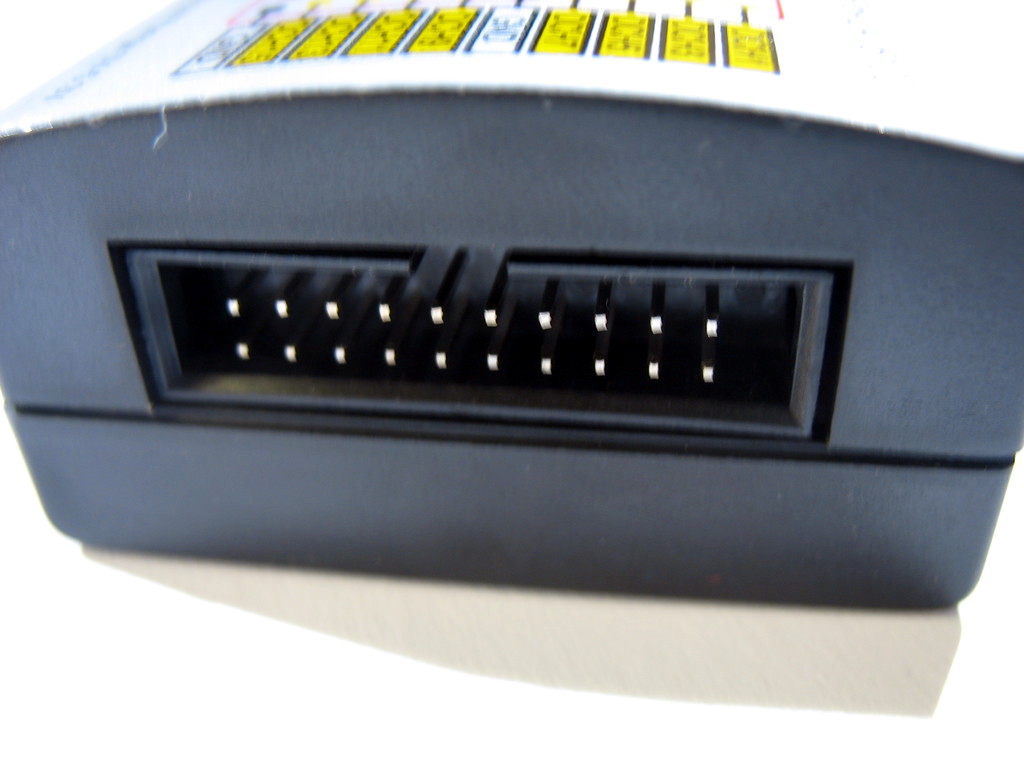

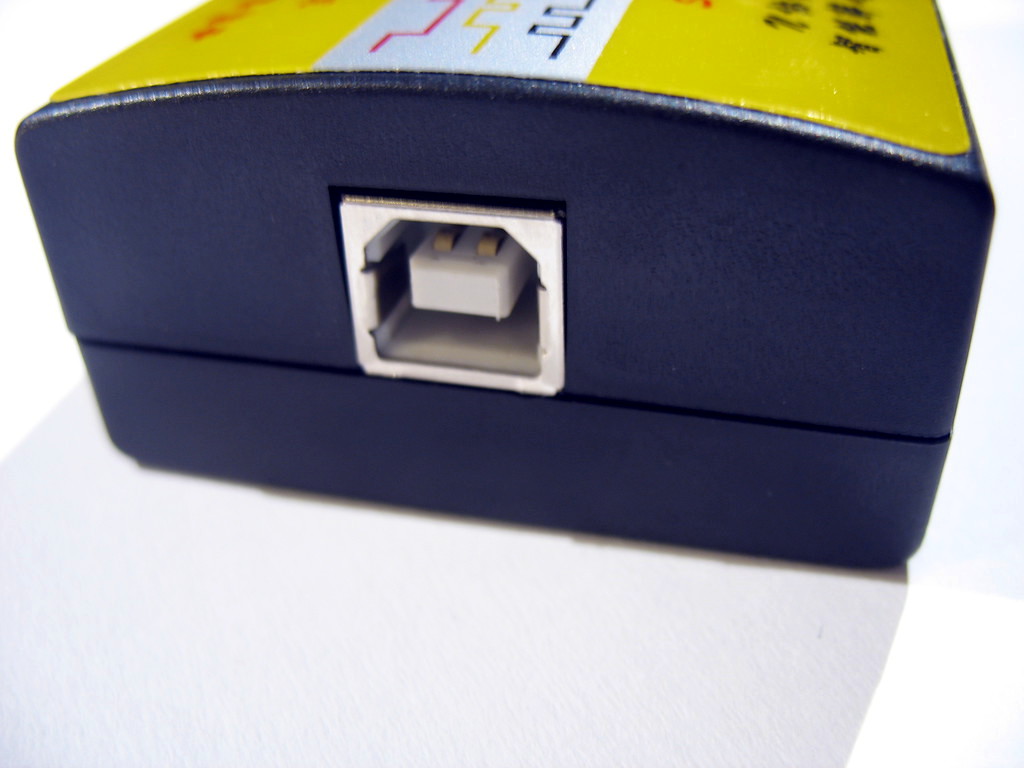

The KingST KQS3506-LA16100 is a USB-based, 16-channel logic analyzer with 100/50/32/16MHz sampling rate (at 3/6/9/16 enabled channels).

This is a clone of the Saleae Logic16.

See KingST KQS3506-LA16100/Info for more details (such as lsusb -v output) about the device.

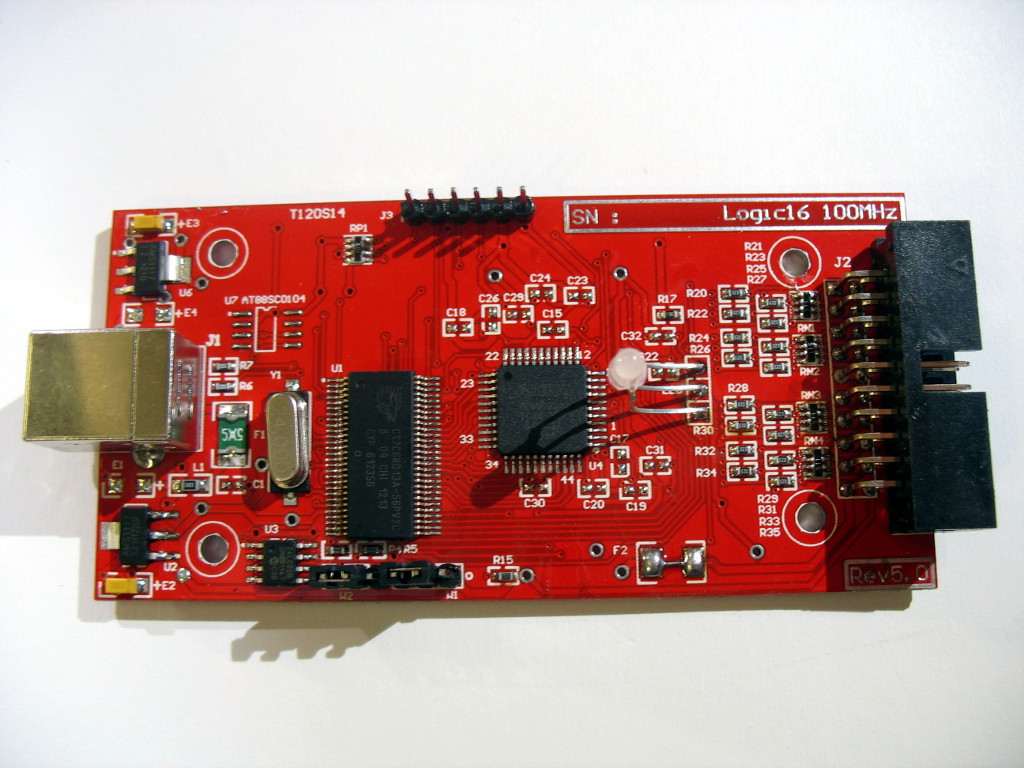

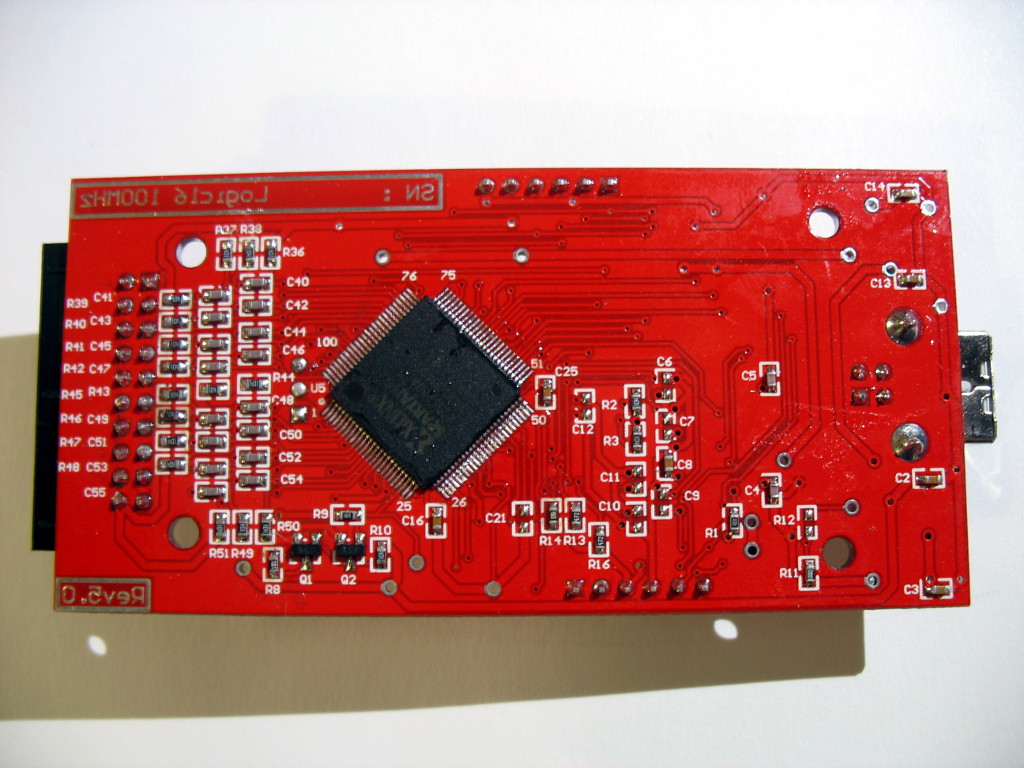

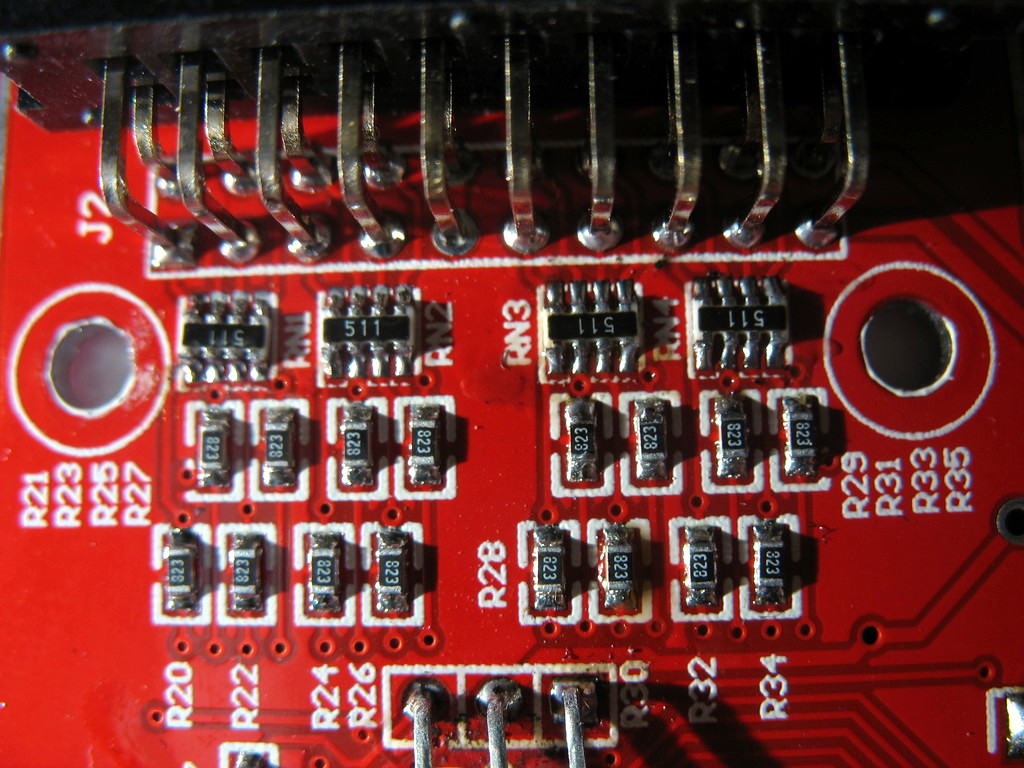

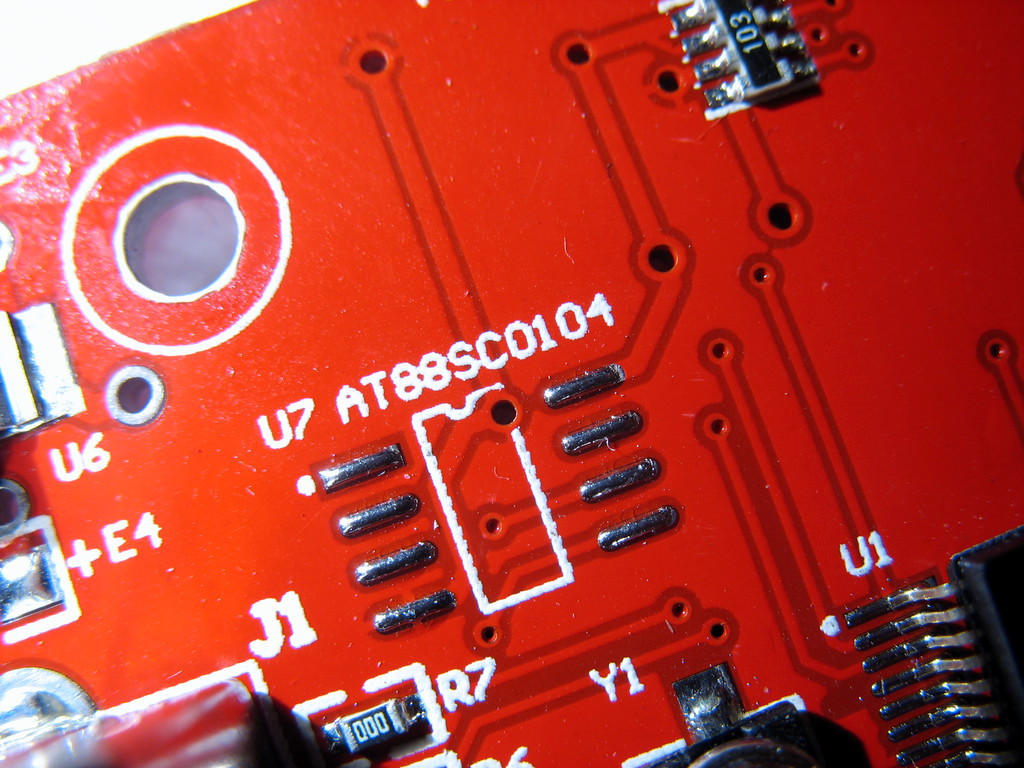

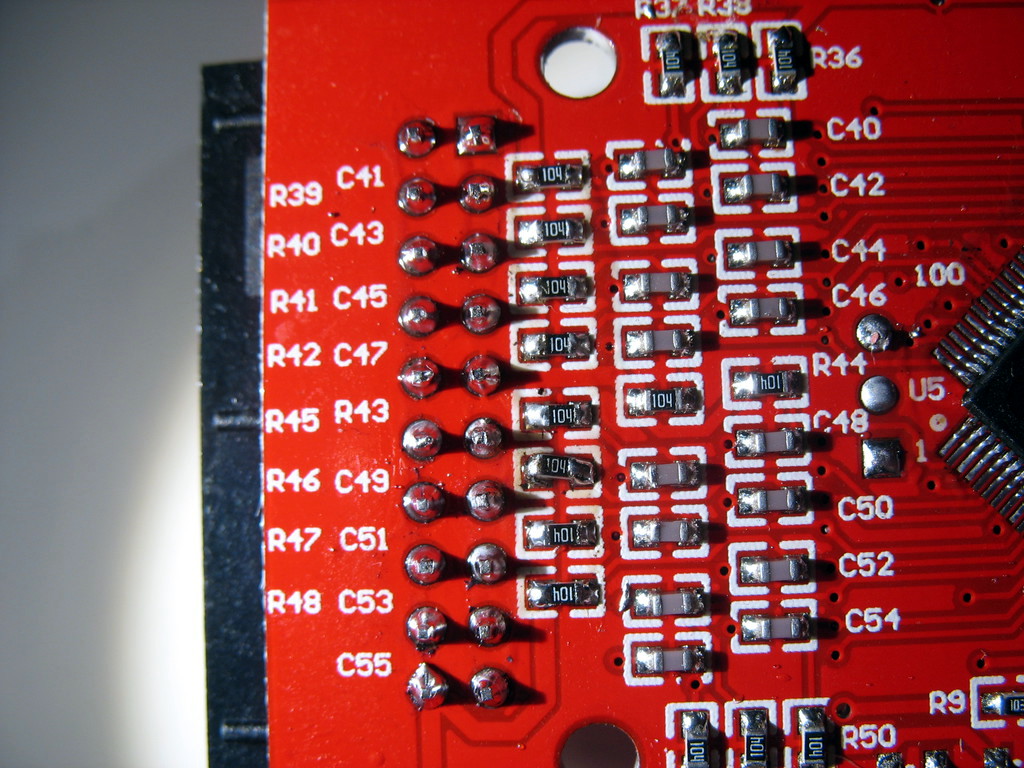

Hardware¶

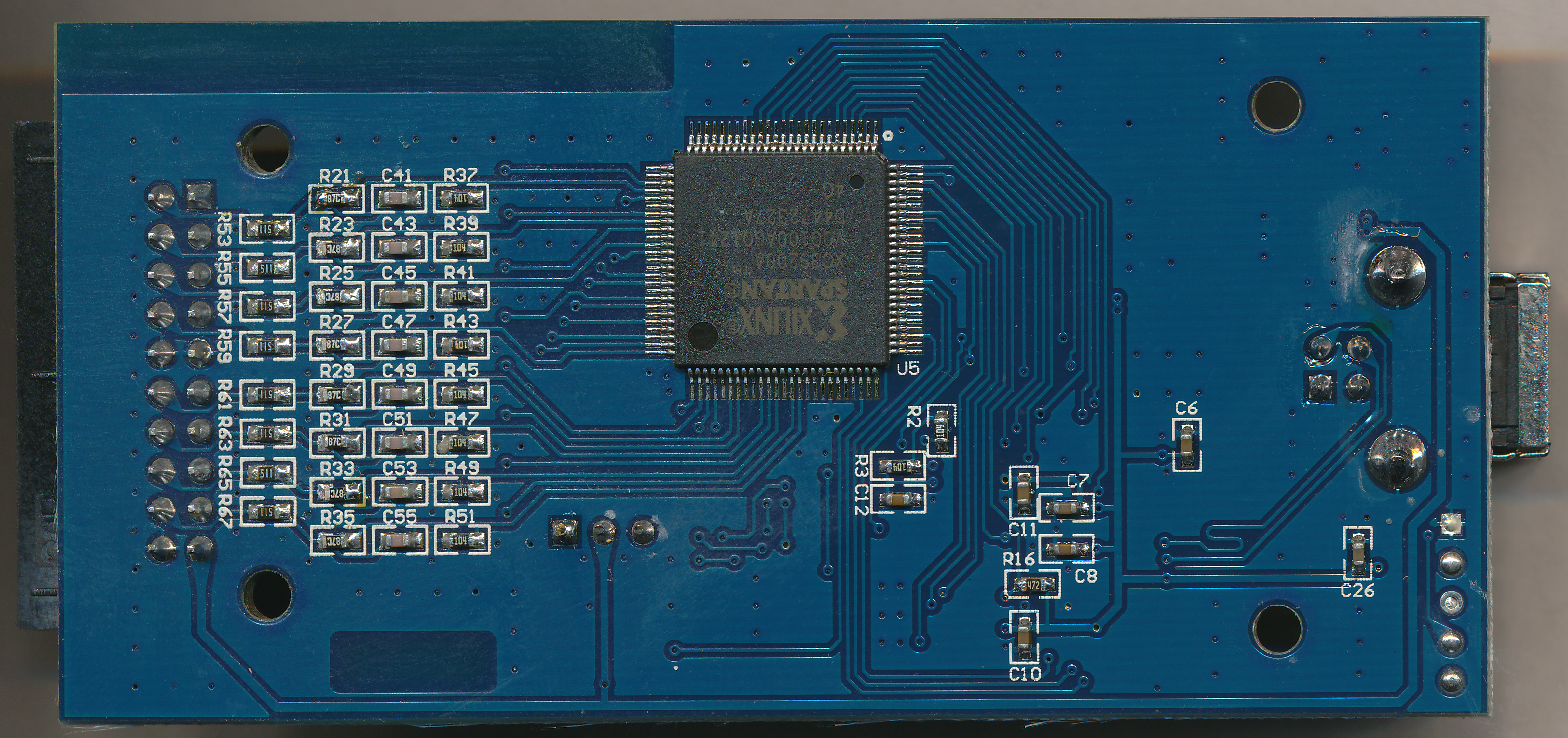

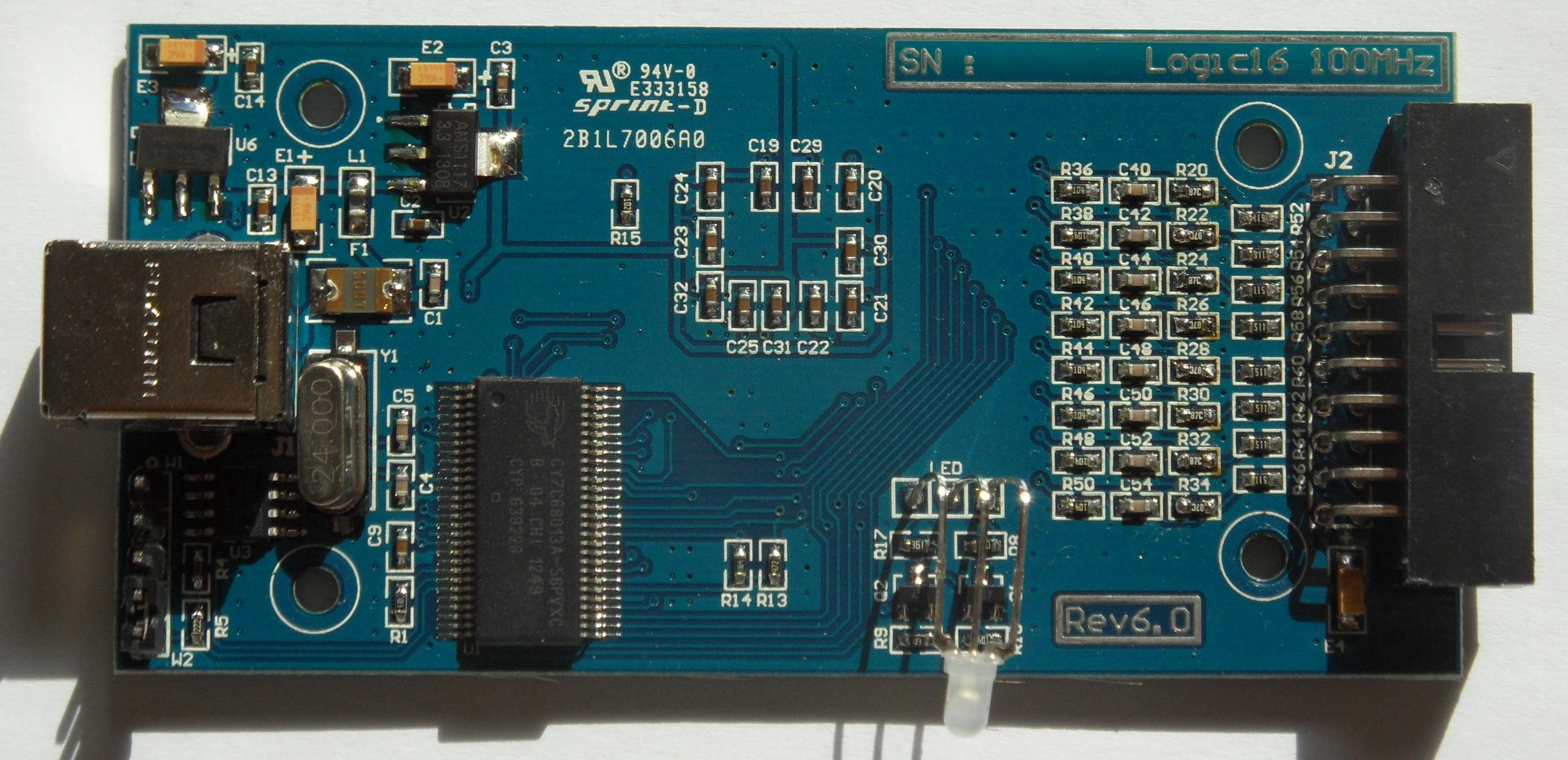

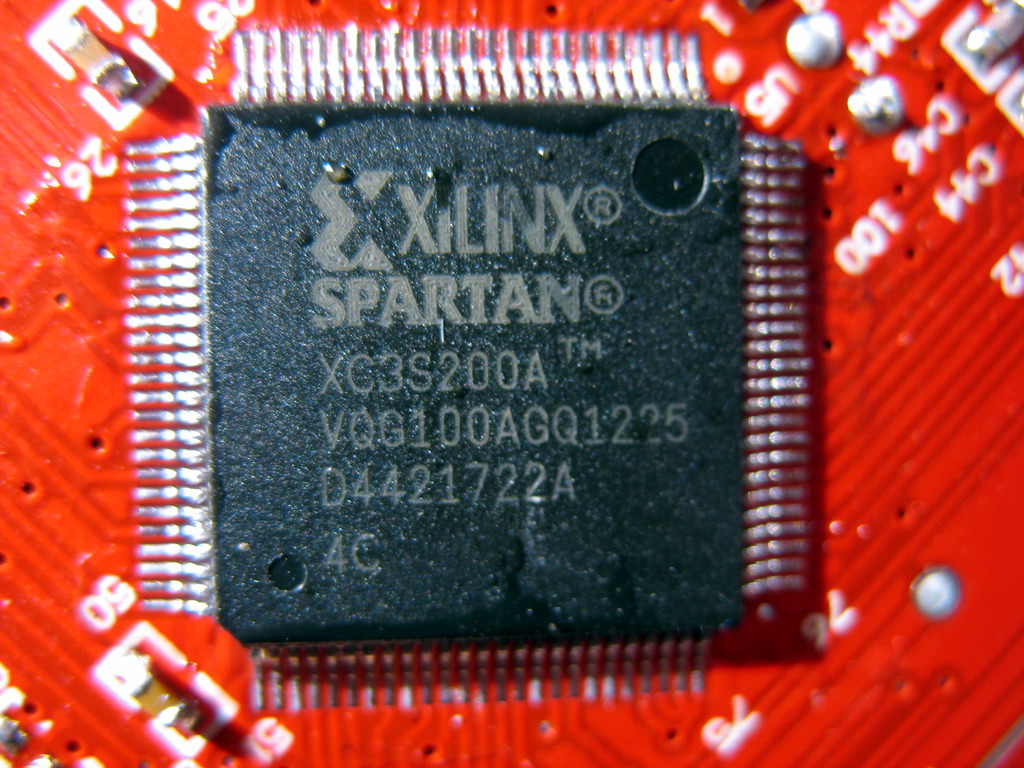

FPGA: Xilinx Spartan-3A XC3S200A, 200K gates (datasheet)

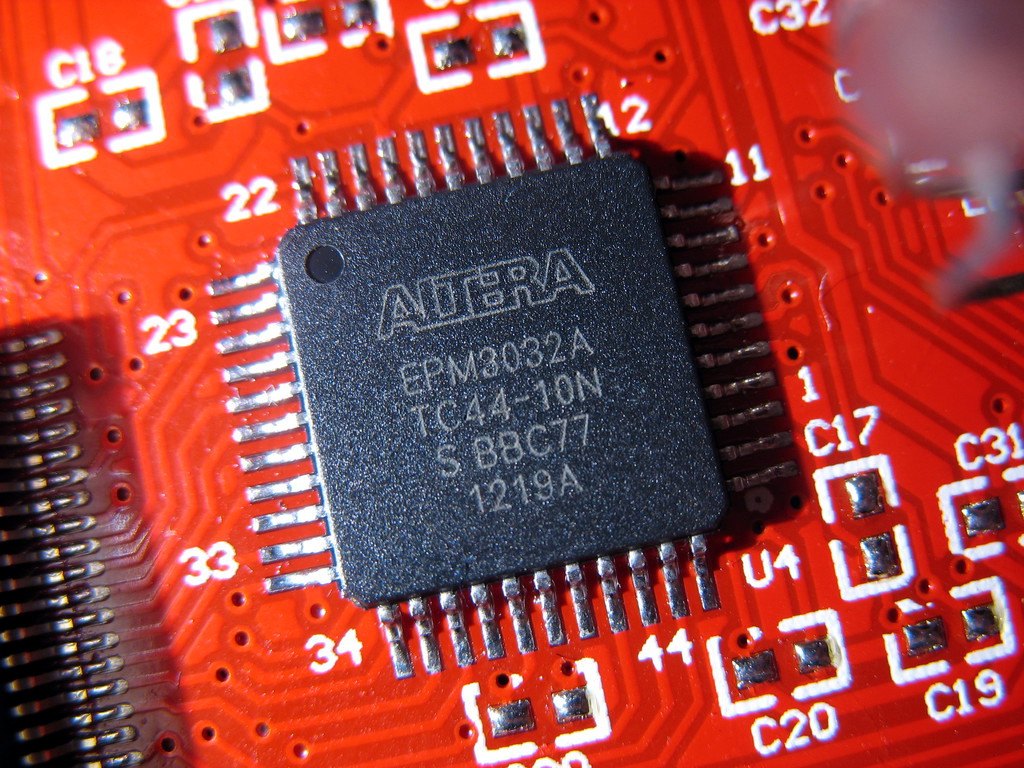

CPLD: Altera EPM3032A, 600 gates, 32 macrocells (datasheet, pinout).

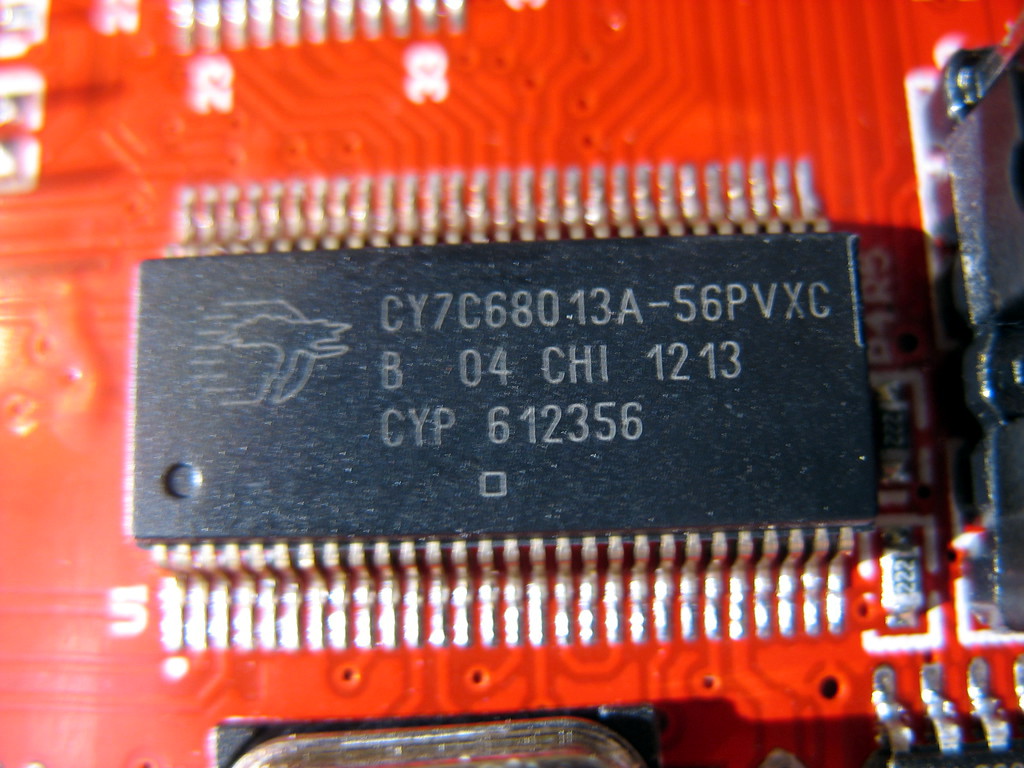

USB interface chip: Cypress CY7C68013A-56PVXC (FX2LP) (datasheet)
I2C EEPROM: Microchip 24LC02B (datasheet)

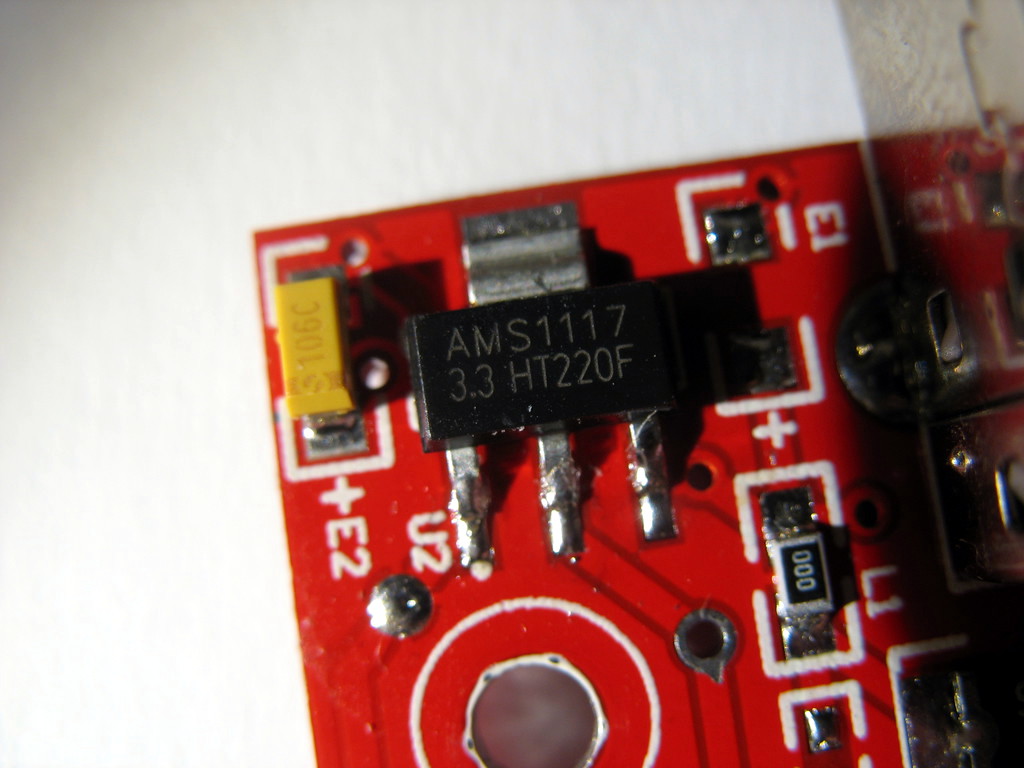

3.3V voltage regulator: Advanced Monolithic Systems AMS1117-3.3 (datasheet, older datasheet)

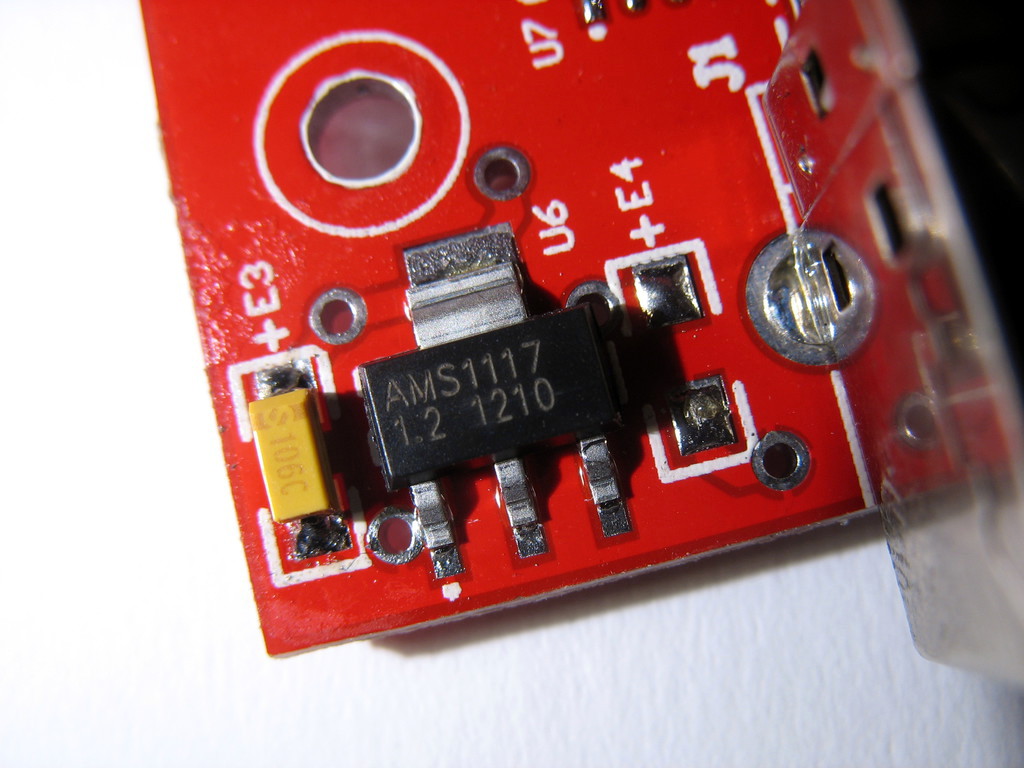

1.2V voltage regulator: Advanced Monolithic Systems AMS1117-1.2 (datasheet, older datasheet)
Crystal: 24.000

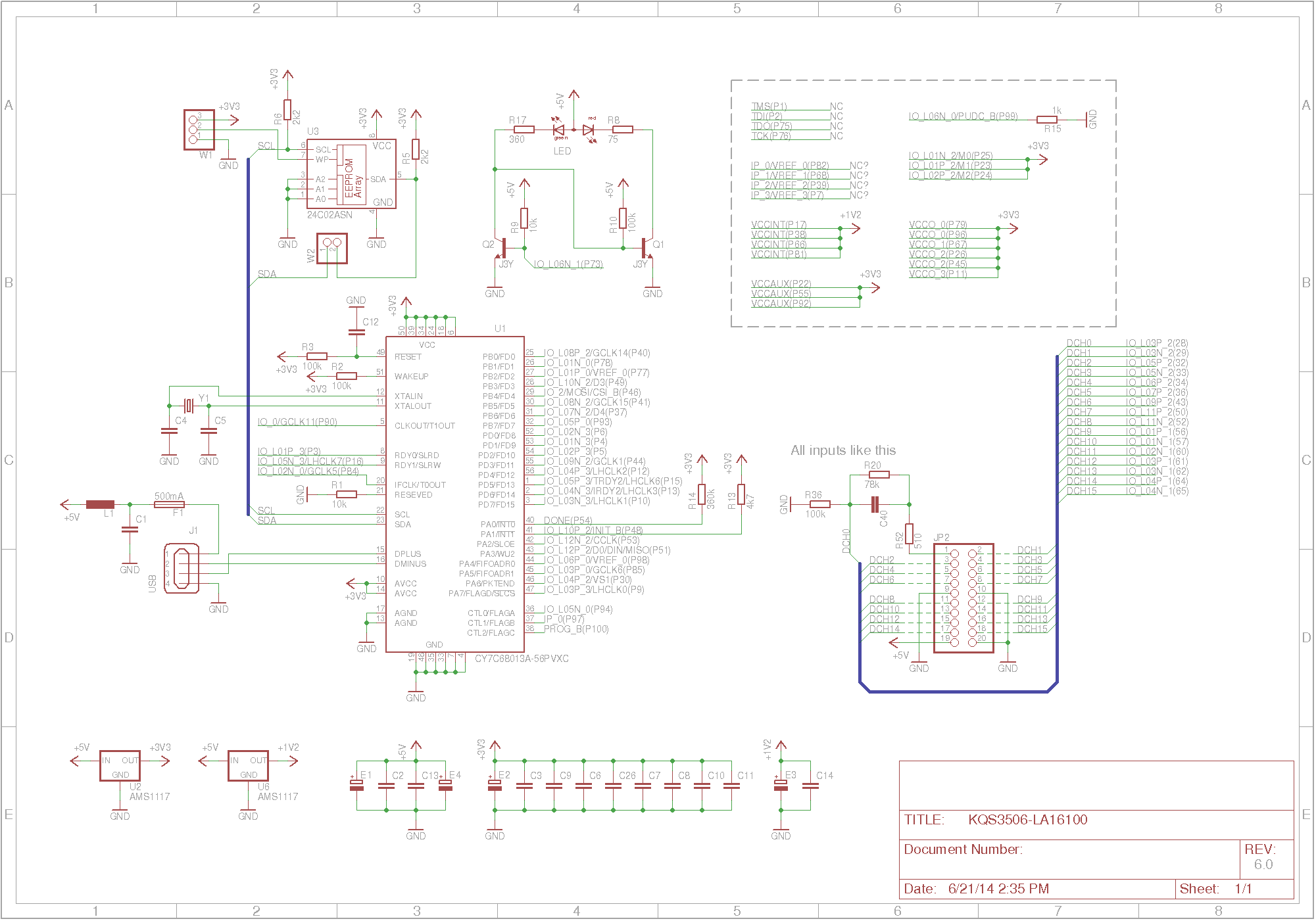

Pinouts and connections:

I2C EEPROM:

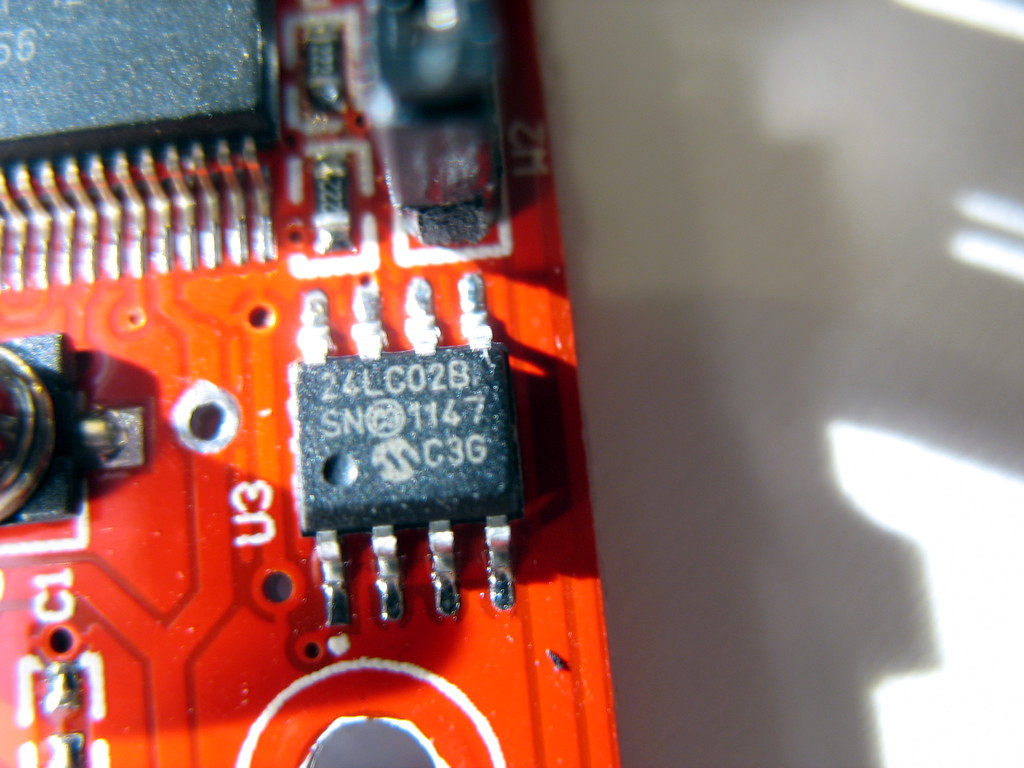

The Microchip 24LC02B is connected to the Cypress FX2. The WP pin of the EEPROM can be jumpered to low or high, in order to write-protect it (or not). The address pins (A0-A2) are all connected to GND, which makes the I2C slave address of the EEPROM 0x50.

(GND) A0	1-	O	-8
(GND) A1	2-	-7	WP (jumper W2)
(GND) A2	3-	-6	SCL (FX2 SCL)
GND	4-	-5	SDA (FX2 SDA)

CLPD:

The Altera EPM3032A JTAG pins are available on the J3 pin header.

1	2	3	4	5	6	7	8	9	10	11
JTAG TDI	I/O (FX2 PA7)	I/O (FX2 PA6)	GND	I/O (FX2 PA5)	I/O (FX2 PA4)	JTAG TMS	I/O (FX2 PA3)	VCC	I/O (FX2 PA2)	GND
12	13	14	15	16	17	18	19	20	21	22
I/O (FX2 PA1)	I/O (FX2 PA0)	I/O (FPGA PROG_B)	I/O (FPGA 94, IO_L05N_0)	GND	VCC	I/O (FPGA 85, IO_L03P_0)	I/O (FX2 CTL2)	I/O (FX2 CTL1)	I/O (FX2 CTL0)	I/O (FPGA 51, DIN/MISO)
23	24	25	26	27	28	29	30	31	32	33
I/O (NC?)	GND	I/O (FPGA 97, IP0)	JTAG TCK	I/O (FPGA 53, CCLK)	I/O (NC?)	VCC	GND	I/O (FPGA 3, IO_L01P_3)	JTAG TDO	I/O (NC?)
34	35	36	37	38	39	40	41	42	43	44
I/O (NC?)	I/O (NC?)	GND	I/O (NC?)	I/O (NC?)	I/O (NC?)	I/O (NC?)	VCC	I/O (NC?)	I/O (NC?)	I/O (NC?)

JTAG header (CPLD):

The J3 pin header is a JTAG connector wired to the CPLD (it is not additionally wired to the FPGA in a JTAG chain). The pins are (from left to right):
