Hantek 4032L¶
Hantek 4032L¶
| Status | supported |
| Source code | hantek-4032l |
| Channels | 32 |
| Samplerate | 400MHz |
| Samplerate (state) | ? |
| Triggers | edge, bus value range, pattern, pattern duration, combined |
| Min/max voltage | -6V — +60V input, -6V — +6V threshold |
| Memory | 2Gbit (64M samples x 32) |
| Compression | — |
| Website | hantek.com |
The Hantek 4032L is a USB-based, 32-channel logic analyzer with up to 400MHz sampling rate and 2Gbit DDR2 memory.
See Hantek 4032L/Info for more details (such as lsusb -v output) on the device.
Hardware¶
- Xilinx Spartan-6 XC6SLX16 CSG324 DIV1225 (FPGA, 14579 logic cells, 2 DDR1/2/3 memory controllers, BGA324)
- Cypress FX2LP CY7C68013A-100AXC (USB 2.0 HS controller, TQFP100)
- 2x Micron MT47H64M16HR-25E:H (1Gbit DDR2 SDRAM, BGA)
- TI TPS51116 (DDR memory power controller)
- Unknown I2C EEPROM (marking removed, contains FX2 firmware)
- MXIC MX25L4005 (4Mbit SPI flash, marking removed, contains FPGA bitstream)
- DAC122S085CIMM (marking removed, input Vref generators)
Photos¶
Hantek 4032l Ti Tps54286

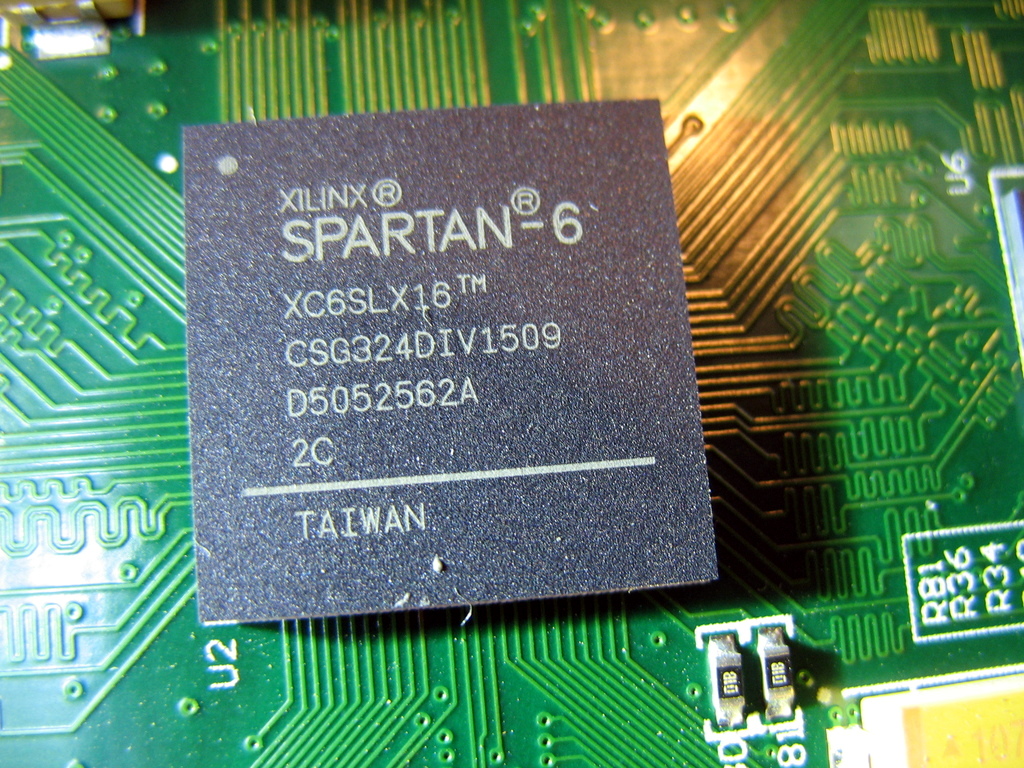

Hantek 4032l Xilinx Xc6slx16

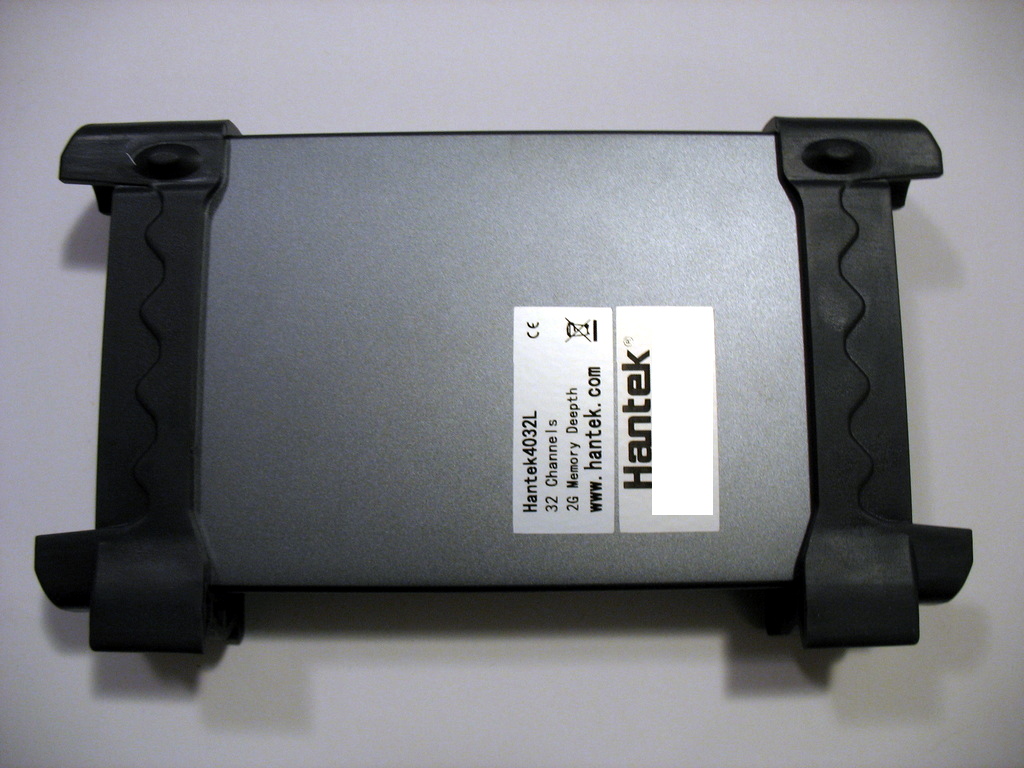

Hantek 4032l Device Bottom

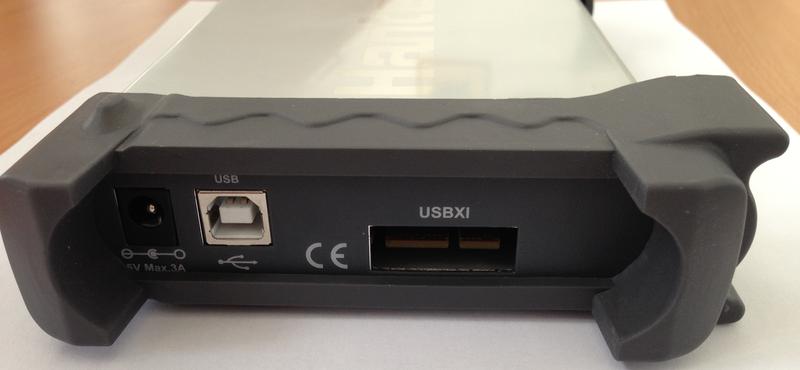

Hantek4032l Boxusbside

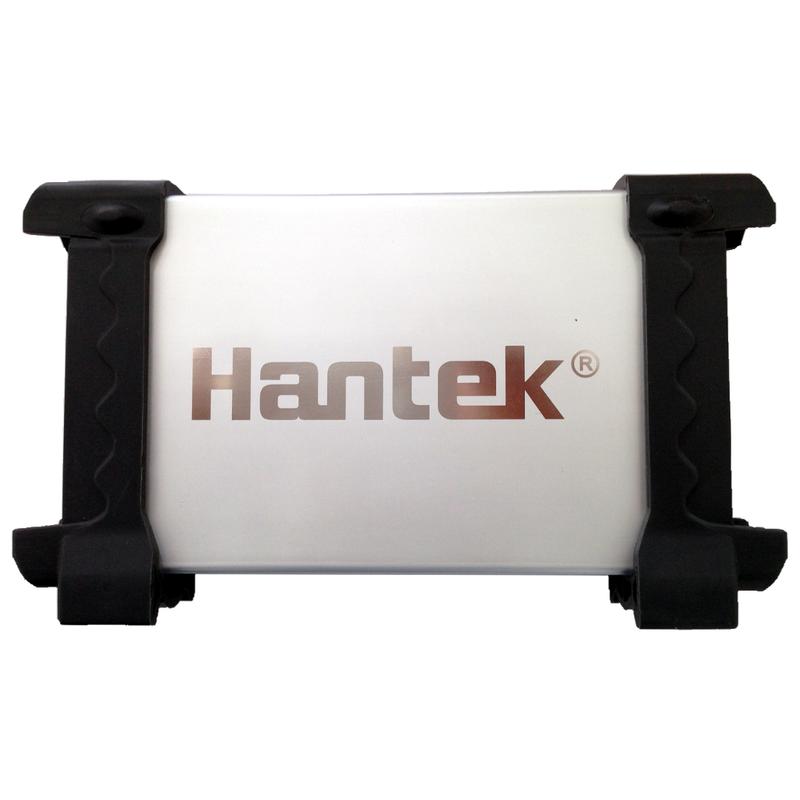

Hantek 4032l Mugshot

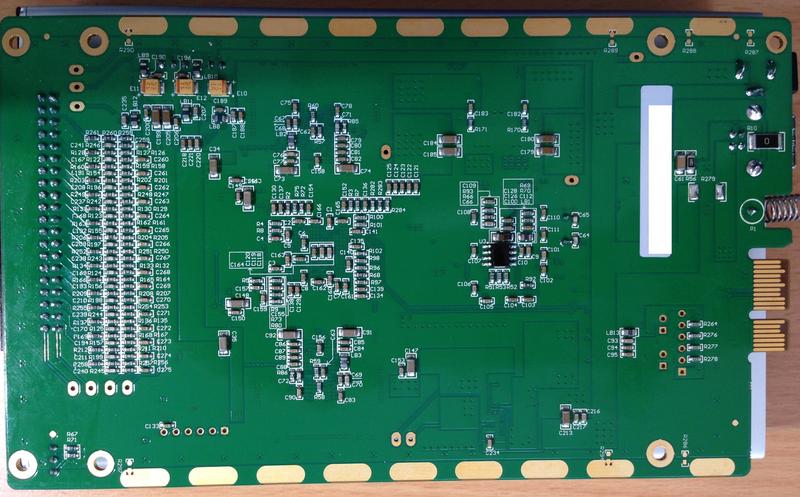

Hantek4032l Pcbbottom

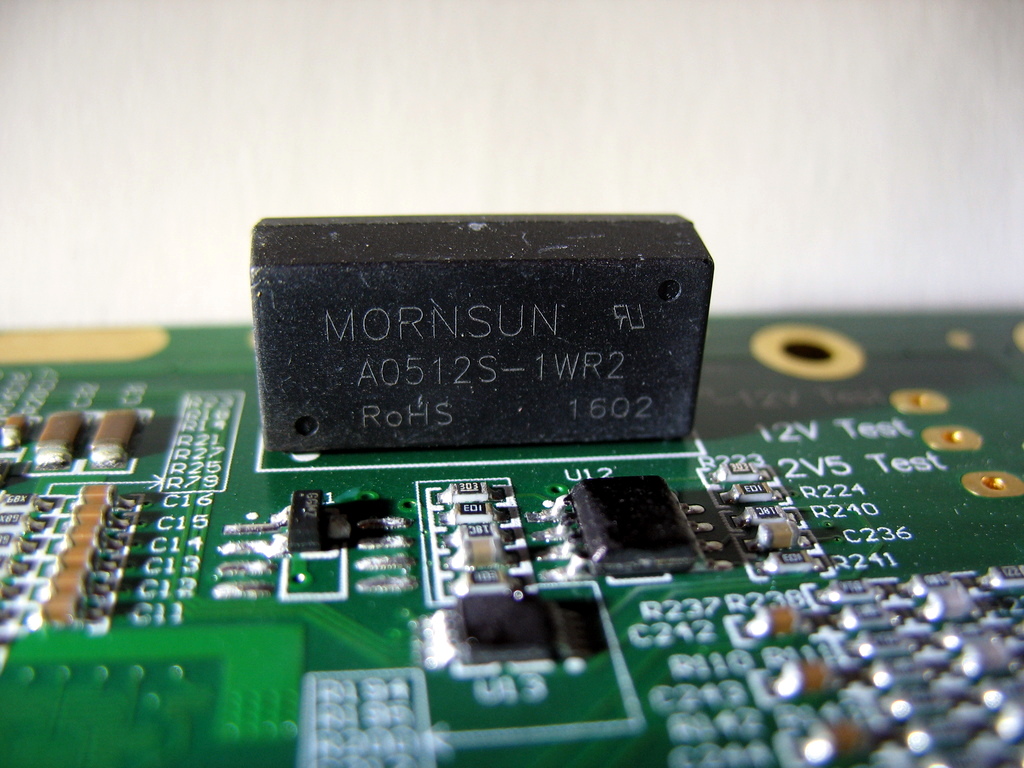

Hantek 4032l Mornsun A0512s 1wr2

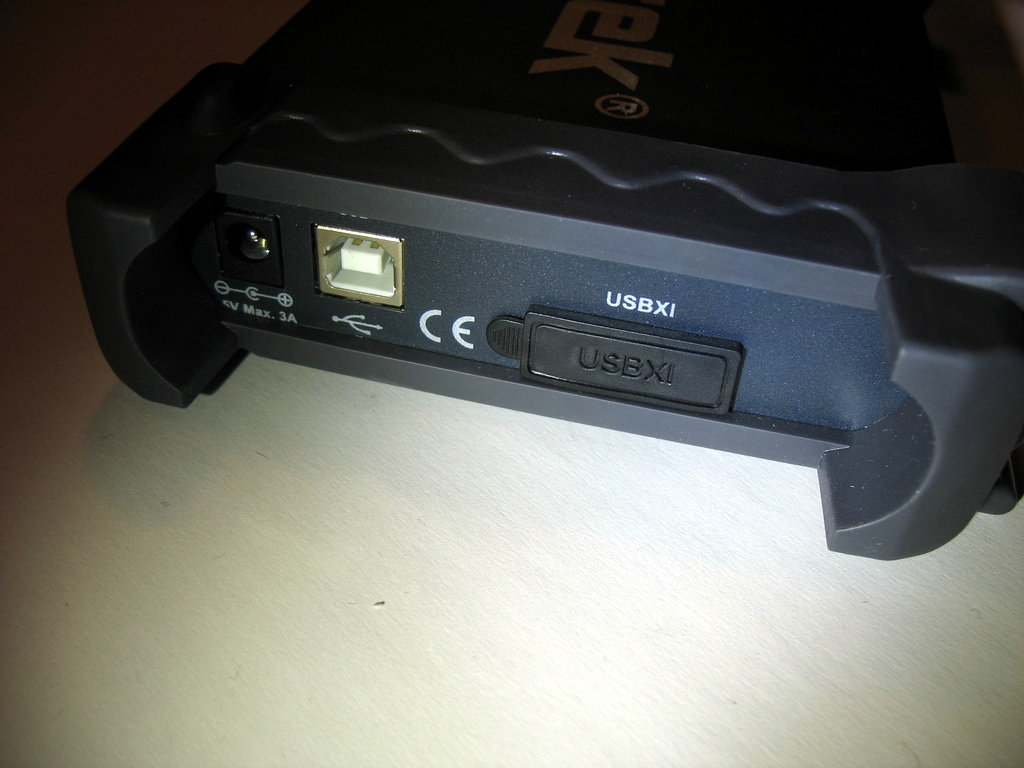

Hantek 4032l Usb Connector

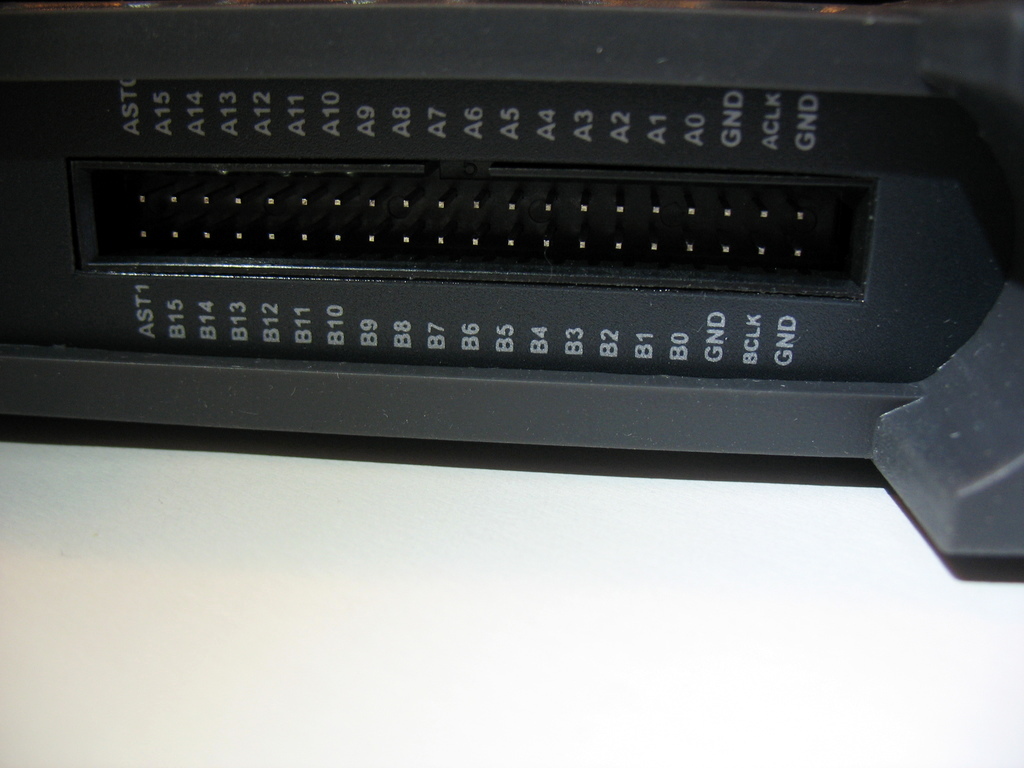

Hantek 4032l Probe Connector

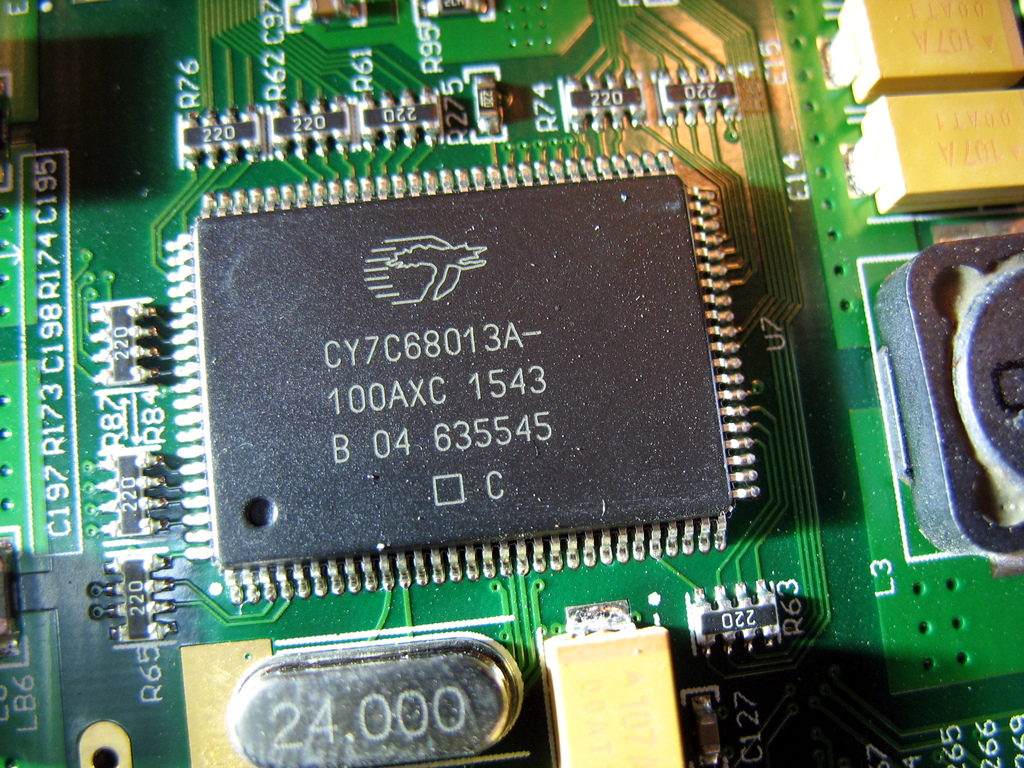

Hantek 4032l Cypress Fx2

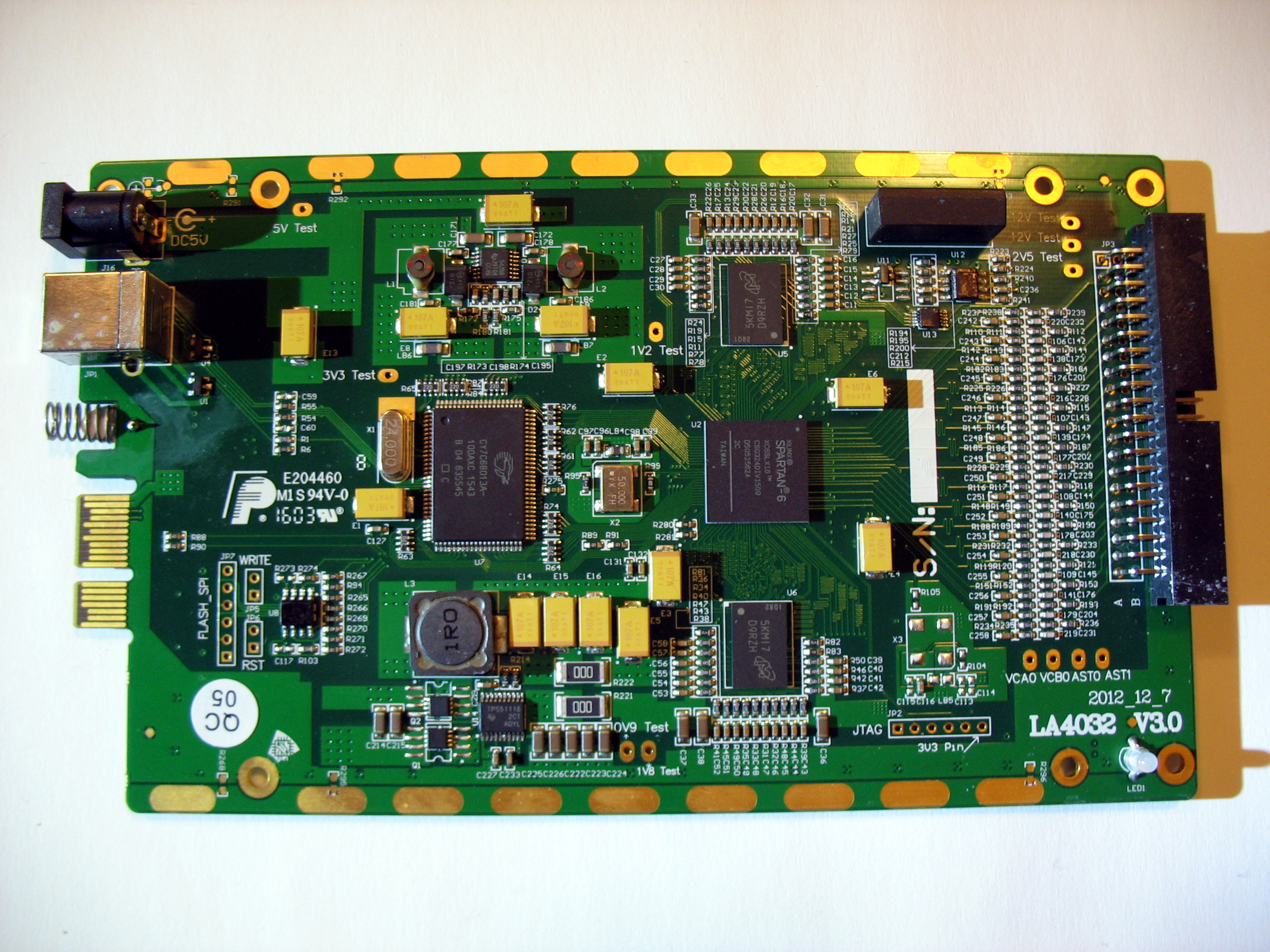

Hantek 4032l Pcb Top

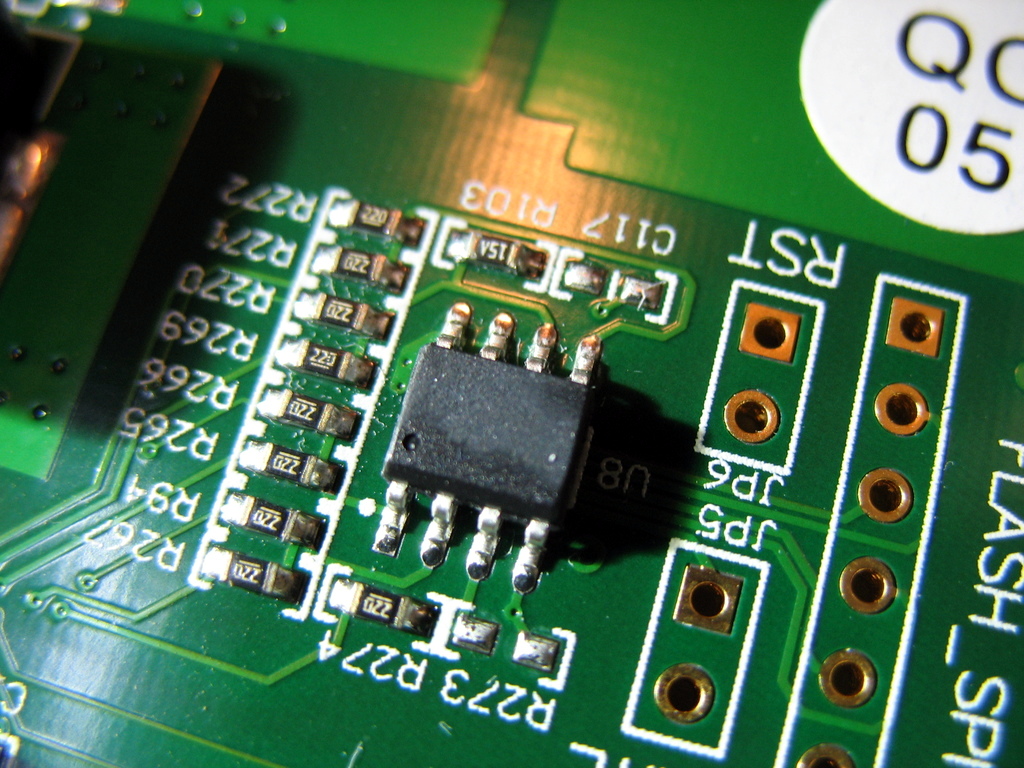

Hantek 4032l Spi Flash Chip

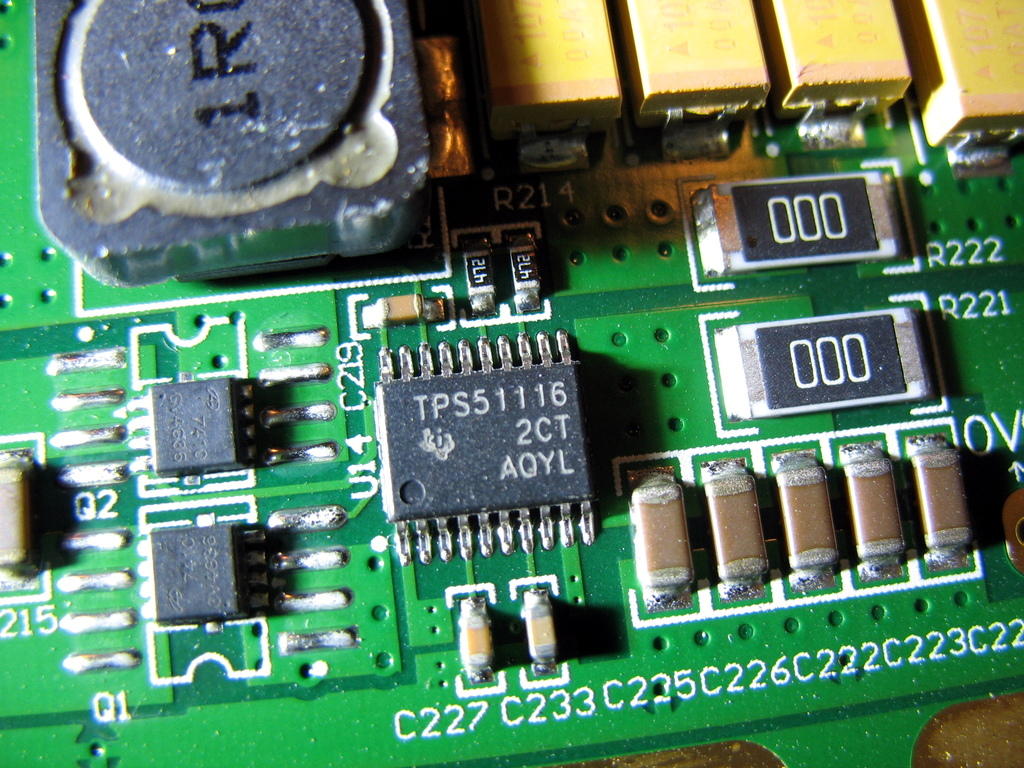

Hantek 4032l Tps51116

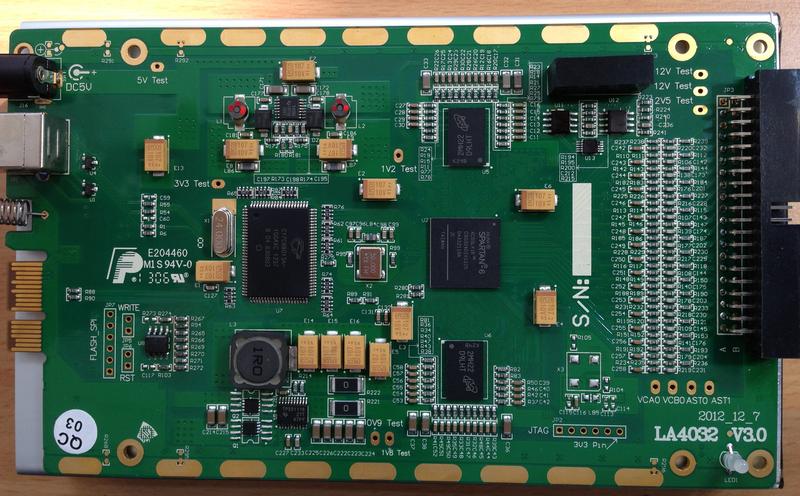

Hantek4032l Pcbtop

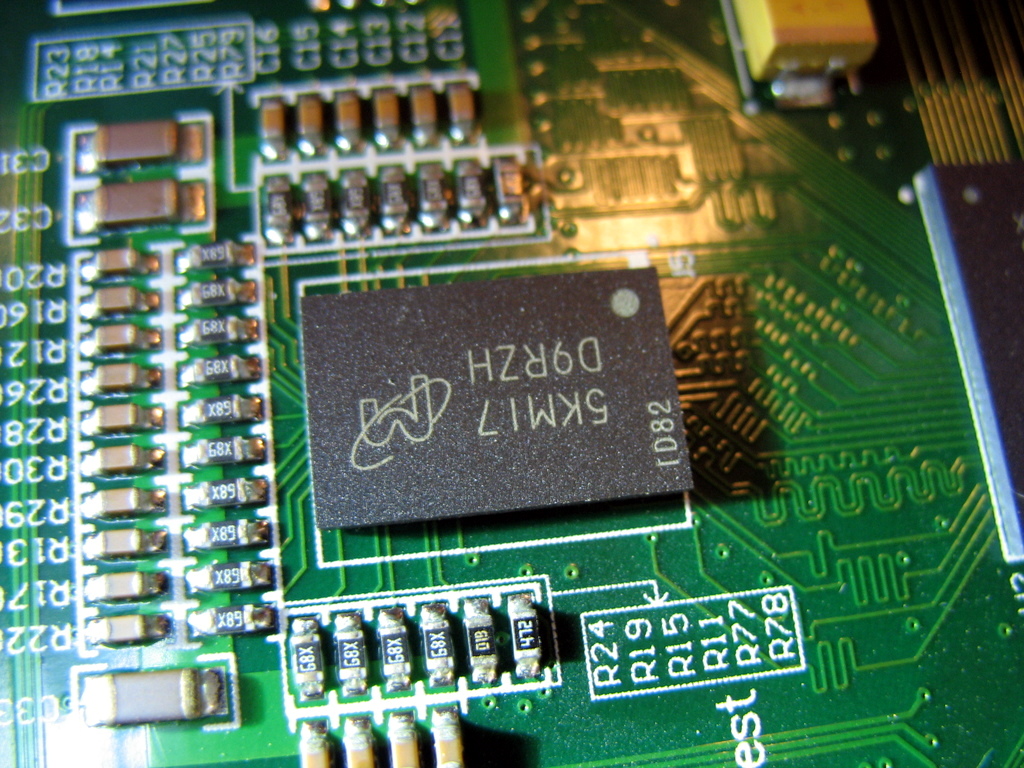

Hantek 4032l Micron Ddr2 Sdram2

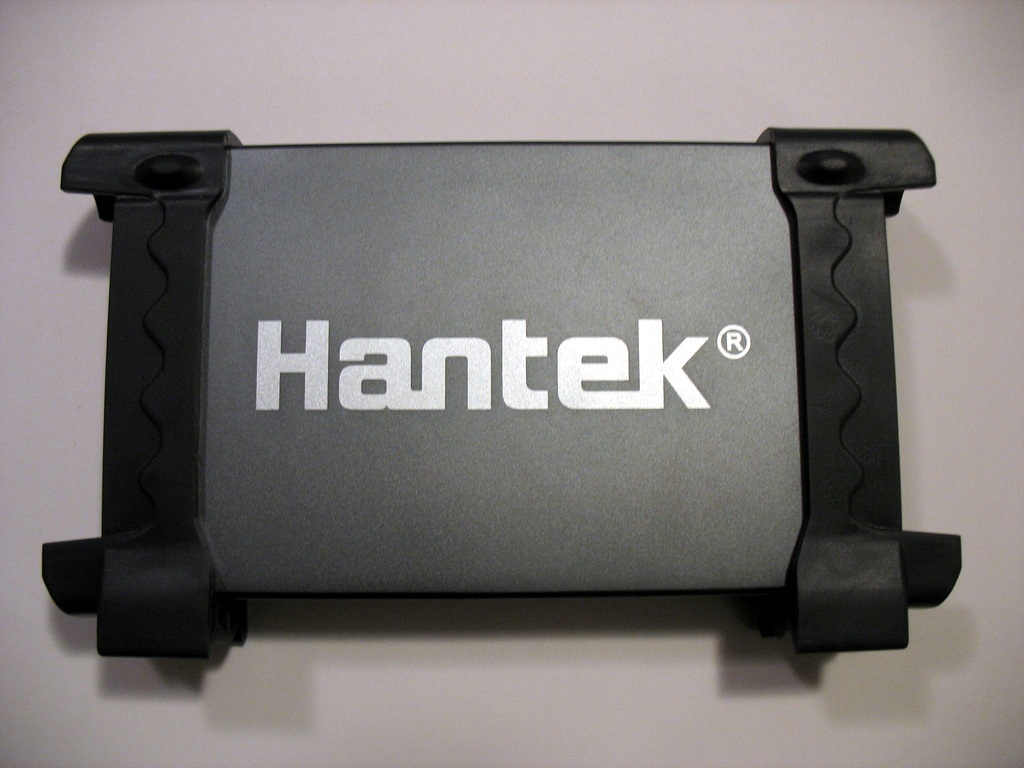

Hantek 4032l Device Top

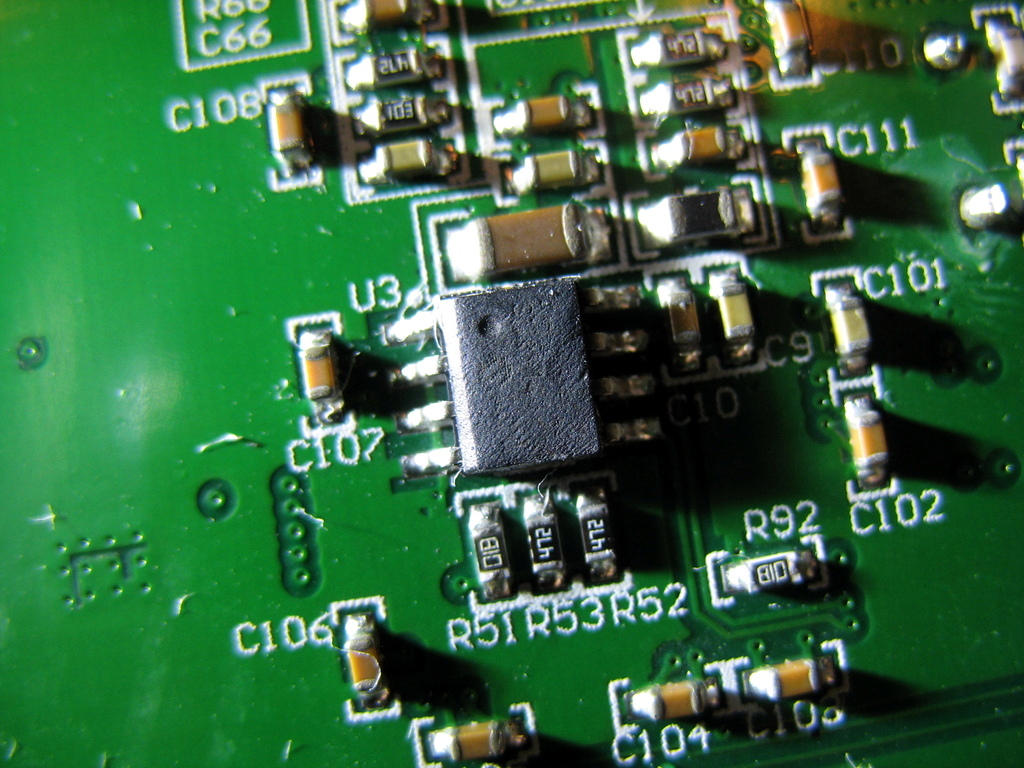

Hantek 4032l Unknown Chips2

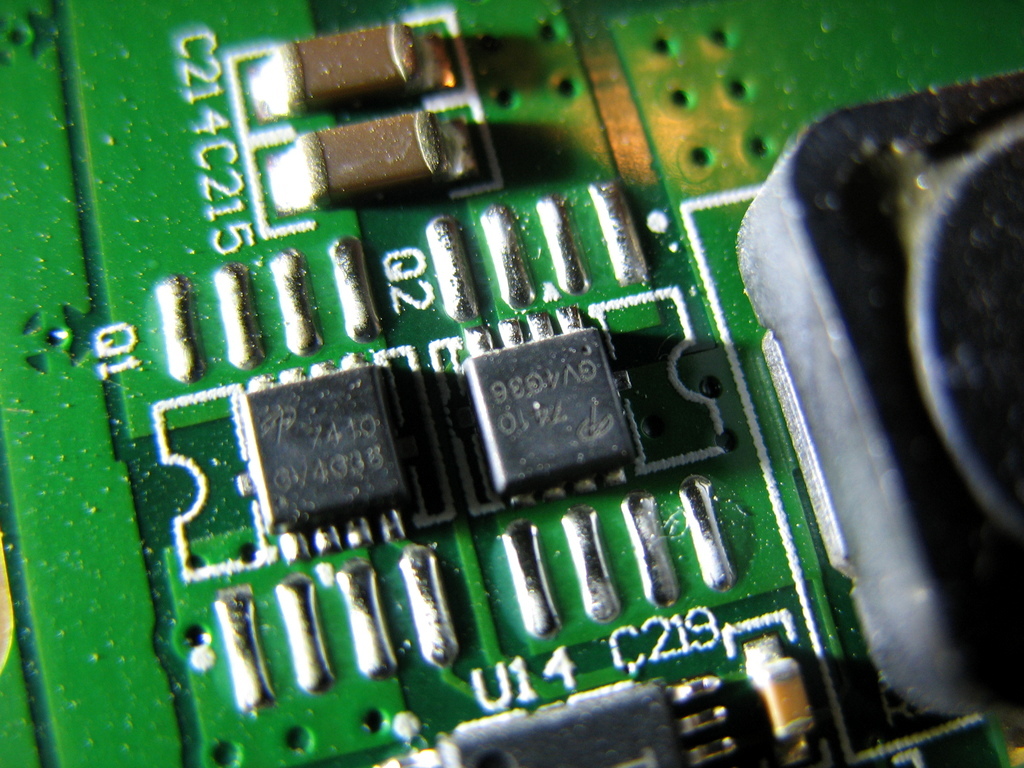

Hantek 4032l Unknown Chips3

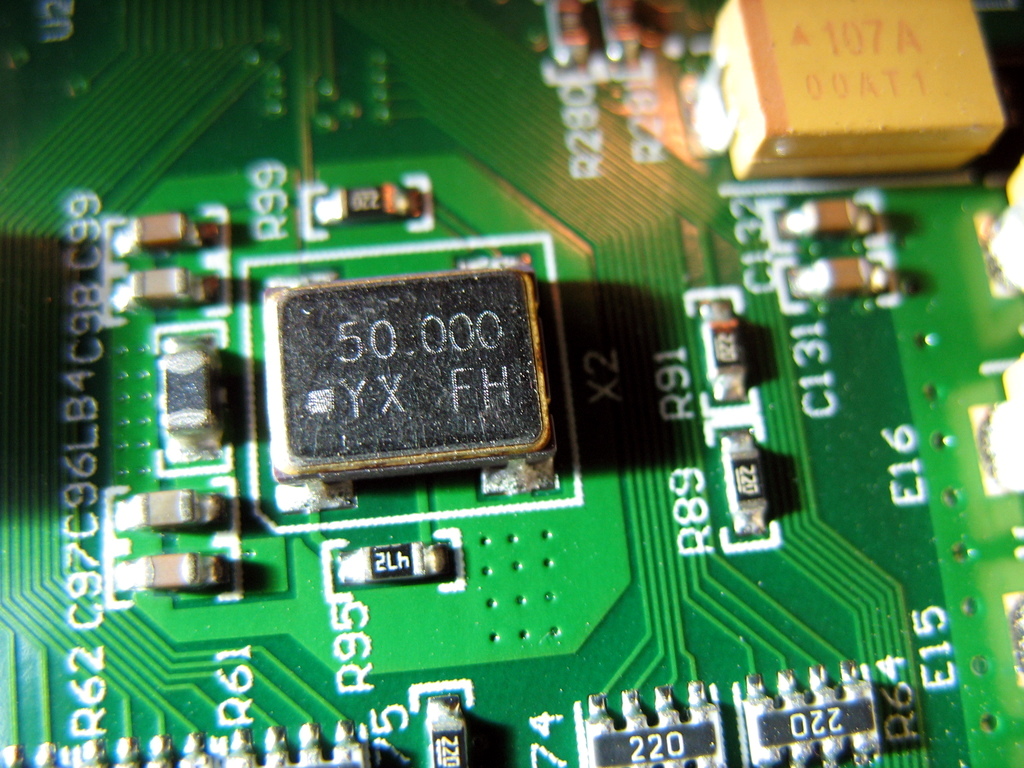

Hantek 4032l 50mhz Crystal

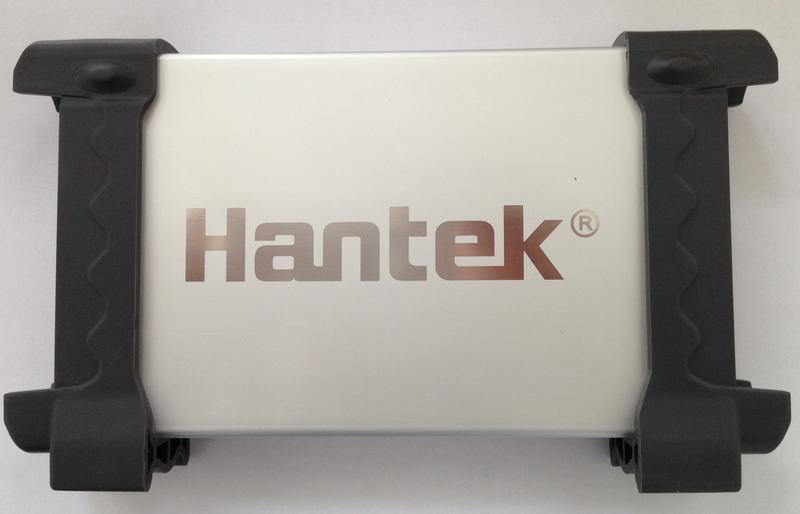

Hantek4032l Boxsideview

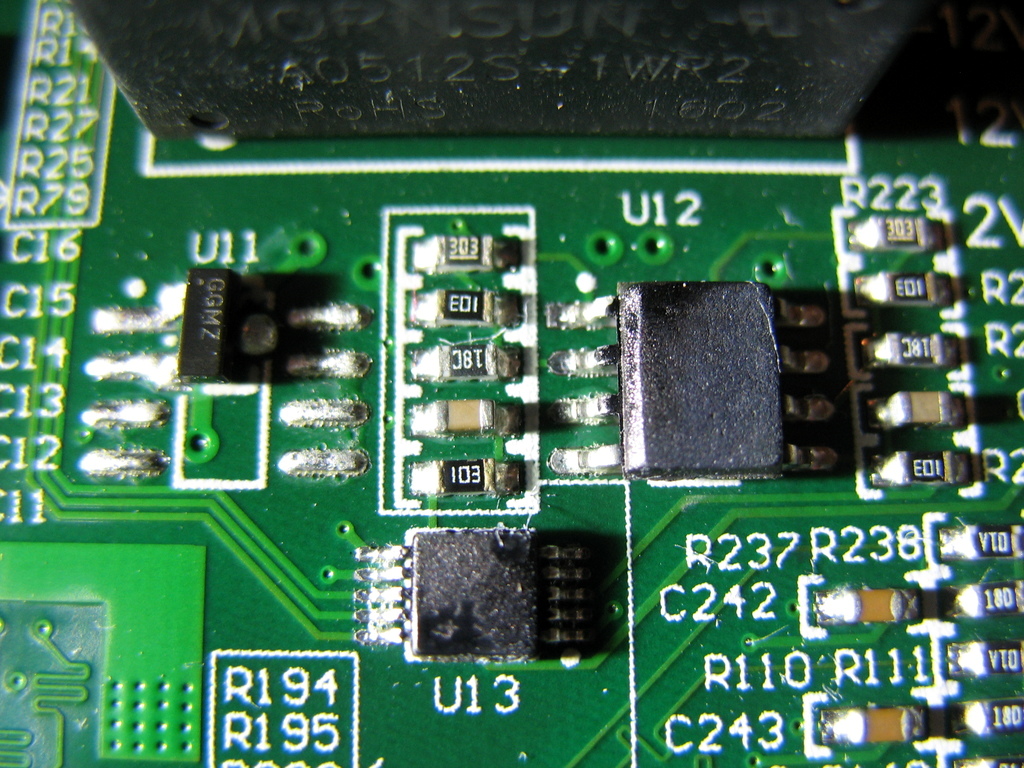

Hantek 4032l Unknown Chips1

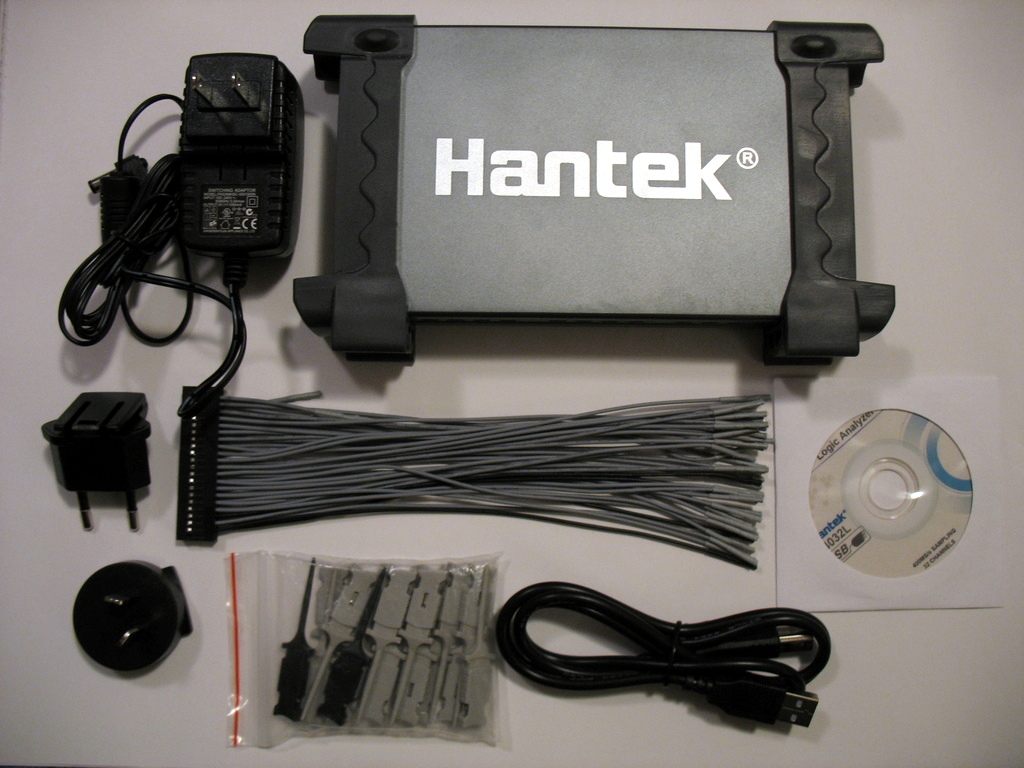

Hantek 4032l Package Contents

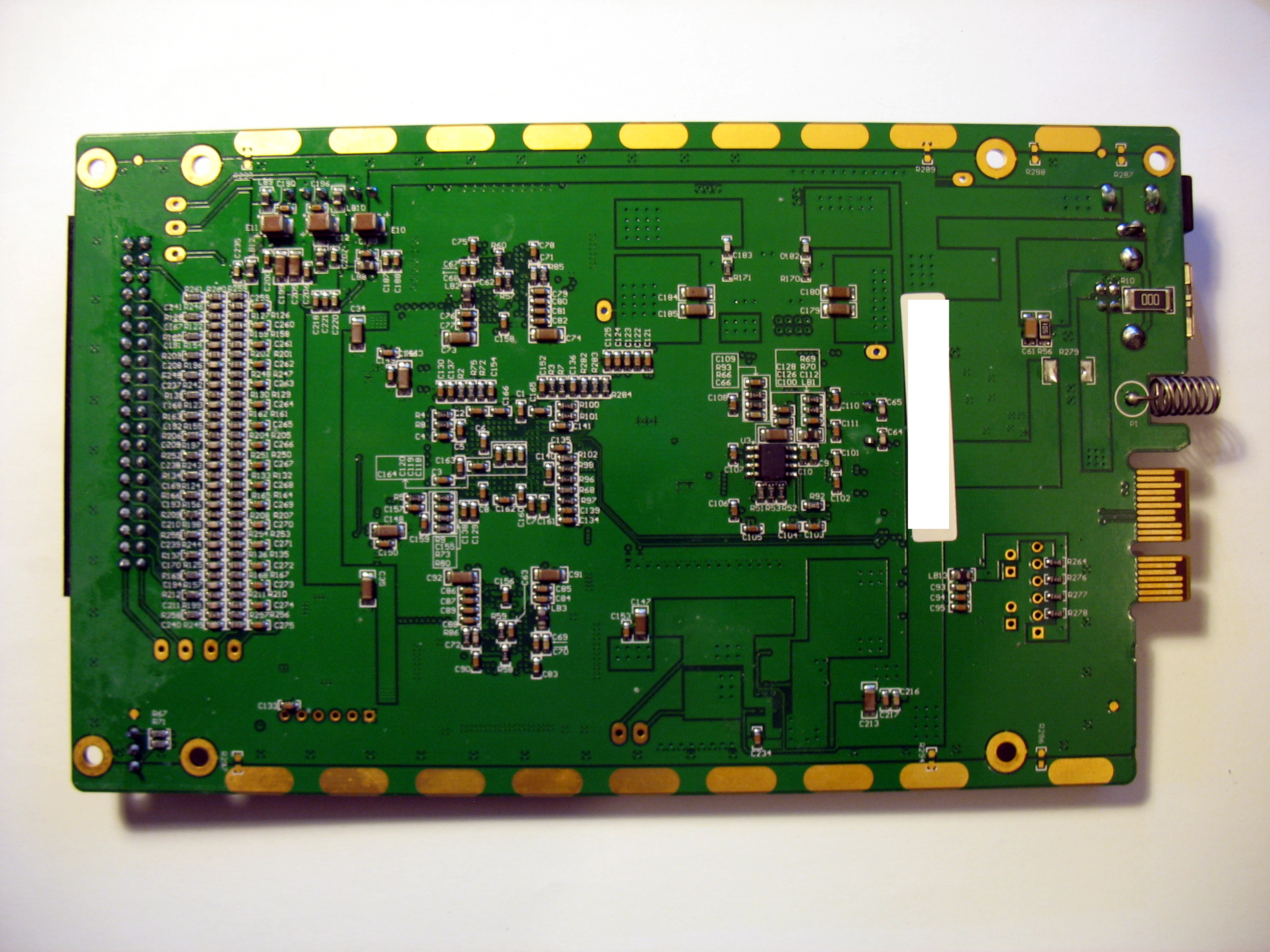

Hantek 4032l Pcb Bottom

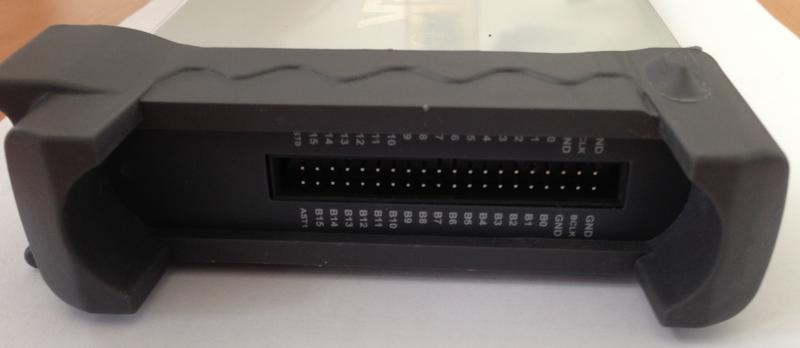

Hantek4032l Boxportside

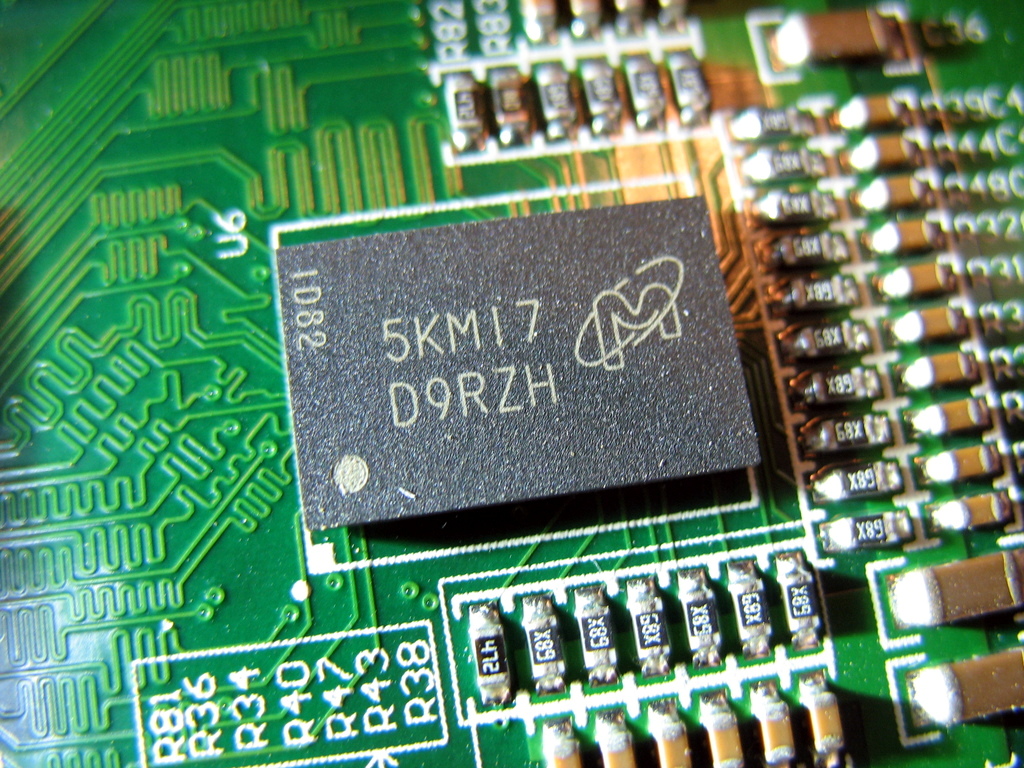

Hantek 4032l Micron Ddr2 Sdram1

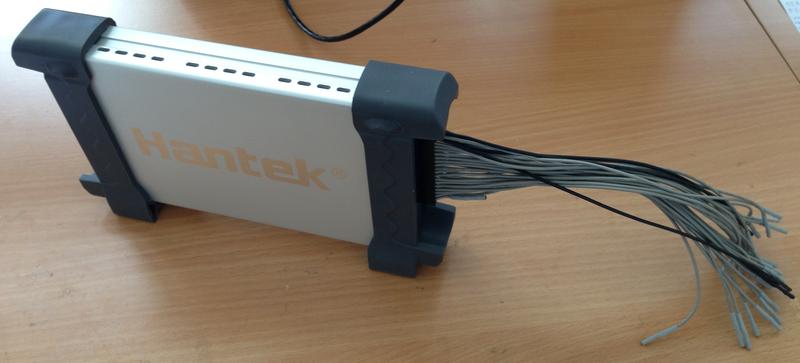

Hantek4032l Boxiso
Hantek 4032l Package
Protocol¶
- Vendor request is used to reset the engine and flush the buffers
- Endpoint 2 is used for host-to-device command/parameters transfers
- Endpoint 6 is used for device-to-host status/data transfers
X denotes "any value" in the following description
Vendor requests¶
- bRequest=0xB3, wValue=X, wIndex=X, wLength=0x0A, data={ 0x0F, 0x03, 0x03, 0x03, X, X, X, X, X, X } - restart the engine (reset FPGA, reset FIFOs)
- bRequest=0xD0, wValue=X, wIndex=X, wLength=0x00 - disable communication (set FIFO reset), not used
- bRequest=0xD1, wValue=X, wIndex=X, wLength=0x00 - enable communication (clear FIFO reset), not used
Command/Parameters packet¶
struct CmdParamsPacket
byte Magic[2]={ 0x7F, 0x01 }
byte SampleRate
0x22 - 400MS/s
0x23 - 320MS/s
0x20 - 200MS/s
0x21 - 160MS/s
0x00 - 100MS/s
0x08 - 80MS/s
0x01 - 50MS/s
0x09 - 40MS/s
0x02 - 25MS/s
0x0A - 20MS/s
0x03 - 12.5MS/s
0x0B - 10MS/s
0x04 - 6.25MS/s
0x0C - 5MS/s
0x10 - 4MS/s
0x05 - 3.125MS/s
0x0D - 2.5MS/s
0x11 - 2MS/s
0x06 - 1.5625MS/s
0x0E - 1.25MS/s
0x12 - 1MS/s
0x07 - 781.25KS/s
0x0F - 625KS/s
0x13 - 500KS/s
0x14 - 250KS/s
0x15 - 125KS/s
0x16 - 62.5KS/s
0x17 - 31.25KS/s
0x18 - 16KS/s
0x19 - 8KS/s
0x1A - 4KS/s
0x1B - 2KS/s
0x1C - 1KS/s
0x24 - posedge CLKA
0x25 - posedge CLKB
0x28 - negedge CLKA
0x29 - negedge CLKB
0x26 - DDR CLKA
0x27 - DDR CLKB
byte TrigFlags
bit 0 - enable trigger 1 (main)
bit 1 - enable trigger 2 (advanced)
bit 2 - trigger logic, 0 - T1 or T2, 1 - T1 and T2
bit 3 - unknown USBXI sync trigger config, default: 1
bit 4 - unknown USBXI sync trigger config, default: 0
bit 7 - unknown USBXI "check mode", default: 0
word PwmA - channel A Vref PWM value, pseudocode:
-6V < ThresholdVoltage < +6V
Vref = 1.8-ThresholdVoltage
if Vref>10.0
Vref = 10.0
if Vref<-5.0
Vref = -5.0
pwm = ToInt((Vref + 5.0) / 15.0 * 4096.0)
if pwm>4095
pwm = 4095
word PwmB - channel B Vref PWM value
byte UsbxiData - unknown USBXI parameter, default: 00
byte unused: 00
dword SampleDepth - sample depth in bits per channel, 2k-64M, must be multiple of 512
dword PretriggerDepth - pretrigger buffer depth in bits, must be < SampleDepth
struct Trig Trig1 - trigger 1 config, see below
struct Trig Trig2 - trigger 2 config, see below
byte Command[2] - command, see **Commands and responses** below
struct Trig
dword Flags - trigger types selection:
bit 4:0 - edge trigger signal, 0-31 -> A0-B15
bit 6:5 - edge to trigger on:
00 - rise
01 - fall
10 - rise or fall
11 - edge trigger disabled
bit 7 - unused
bit 9:8 - data range trigger type:
00 - data=RangeMax trigger
01 - data=RangeMin or data=RangeMax trigger
10 - data<RangeMin or data>RangeMax trigger
11 - RangeMin<data<RangeMax trigger
bit 11:10 - time range trigger type:
00 - time=TimeMax trigger
01 - time=TimeMin or time=TimeMax trigger
10 - time<TimeMin or time>TimeMax trigger
11 - TimeMin<time<TimeMax trigger
bit 12 - enable data range trigger (see bit 9:8)
bit 13 - enable time trigger (see bit 11:10)
bit 15:14 - unused
bit 17:16 - combined trigger data selection (data=EquData and data_sel matches other criteria like time, range, edge):
00 - data_sel is next data (next to matched with EquData)
01 - data_sel is current data
10 - data_sel is previous data
11 - undefined
bit 18 - enable combined trigger (see bit 17:16)
bit 31:19 - unused
dword RangeMin - min value for data range trigger (see Flags[9:8]), must be masked with RangeMask (see Masking below)
dword RangeMax - max value for data range trigger (see Flags[9:8]), must be masked with RangeMask
dword TimeMin - min value for time trigger (see Flags[11:10])
dword TimeMax - max value for time trigger (see Flags[11:10])
dword RangeMask - mask value for data range trigger
dword EquMask - mask value for combined trigger
dword EquData - data value for combined trigger (see Flags[17:16]), must be masked with EquMask
Masking:
Some trigger types (data range, combined "pattern and condition") operate on a "bus" value of several signals selected with a mask. Active bits are combined to a single value WITHOUT GAPS:
mask=01000011, value=11010001 -> masked_value=00000101 (bits 6,1,0 are combined and zero-extended)
Commands and responses¶
{ 0x1A, 0x2B } - configure and start capture, all parameters are used
Response: none
{ 0x3A, 0x4B } - get status, parameters are defaults
Response:
dword Magic=0x2B1A037F - drop rx data until this)
dword CurrentDataValue - A0-B15 current state snapshot
dword CaptureStatus - 0-not finished, 1-?, 2-done, data is ready
dword UsbxiData - unknown USBXI data
dword DevVersion - FPGA firmware version
dword DummyData[251] - pad to 1024 bytes
{ 0x5A, 0x6B } - get captured data, parameters are defaults
Response:
dword Magic=0x2B1A027F - drop rx data until this
dword CaptureData[SampleDepth] - capture data
dword EndMarker=0x4D3C037F - drop rx data after this till end of 512 byte packet
{ 0x9A, 0xAB } - unknown USBXI "eraser data" cmd, parameters are defaults
Response: none
{ 0xBA, 0xCB } - unknown USBXI "set sync trig output" cmd, parameters are defaults
Response: none
Acquisition session flow¶
- Send restart vendor request (0xB3)
- Send { 0x1A, 0x2B } type packet to configure and start capture
- Poll with { 0x3A, 0x4B } until CaptureStatus=2 (optionally blink bus indicators according to CurrentDataValue during poll)
- Get capture data with { 0x5A, 0x6B }
Hardware features support status¶
+ Buffered mode acquisition
+ Sample depth selection
+ Pretrigger depth selection
+ Internal clocking (timing mode)
+ External clocking (state mode) with edge (rising/falling/both) and clock channel (ACLK/BCLK) selection
+ Logic voltage threshold selection (independent for Axx and Bxx channel groups, possible to analyze dual standard circuits)
+ Unconditional trigger
+ Trigger on signal edge (rising/falling/any)
+ Trigger on bus pattern match
- Trigger on bus value within/out of range
- Trigger on bus pattern condition (match/within/out of range) repeating for N consecutive samples
where N is equal/within range/out of range
- Trigger on bus pattern condition at specific signal edge
- Trigger on any of the above conditions combined with pattern match on the previous/current/next sample
- Use two trigger units in AND/OR combination
- External trigger input/output signals
