| Status | supported |
| Source code | fx2lafw |
| Channels | 8 |
| Samplerate | 24MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | -0.5V — 5.25V |
| Threshold voltage | Fixed: VIH=2.0V—5.25V, VIL=-0.5V—0.8V |
| Memory | none |
| Compression | none |
| Price range | <$50 |
| Website | eeelec.com |
The EE Electronics ESLA100 is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate.
It is a clone of the Saleae Logic.
In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.
See EE Electronics ESLA100/Info for some more details (such as lsusb -vvv output) on the device.
Hardware¶
- Main chip: Cypress CY7C68013A-56LFXC (FX2LP)
- I2C EEPROM: Atmel ATMLH911 02B 1
- Octal tristate bus transceiver: NXP 74HC245D
- Crystal: 24MHz
Photos¶
Eeelec Xla Esla100 Atmlh911

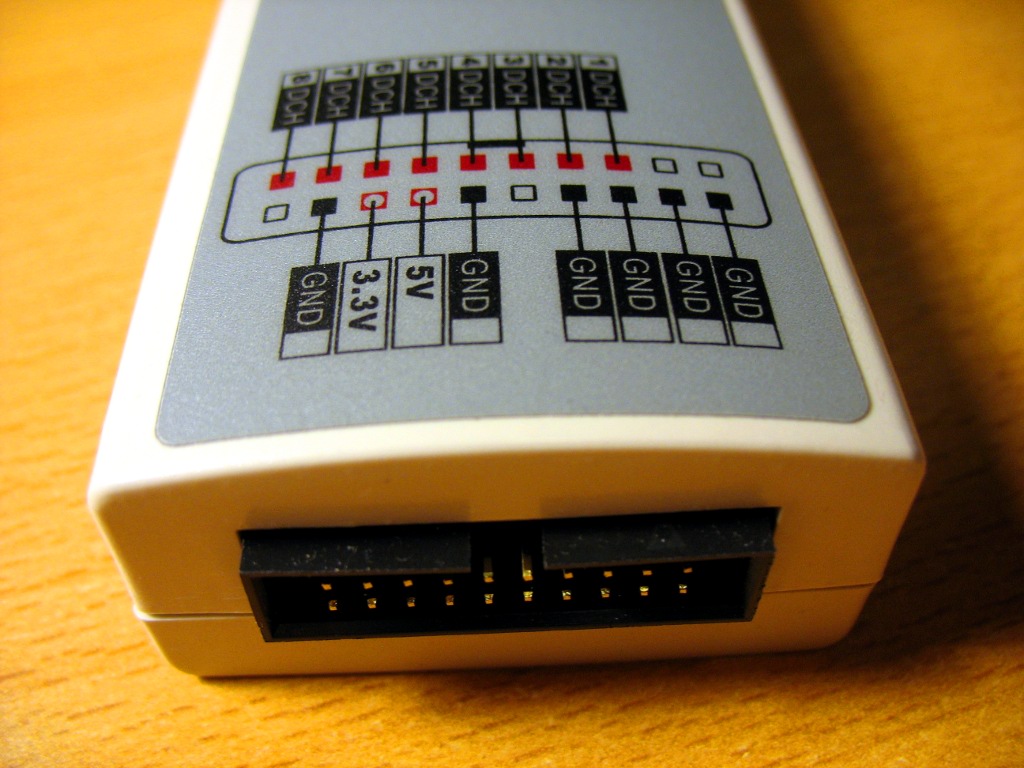

Eeelec Xla Esla100 Probe Connector

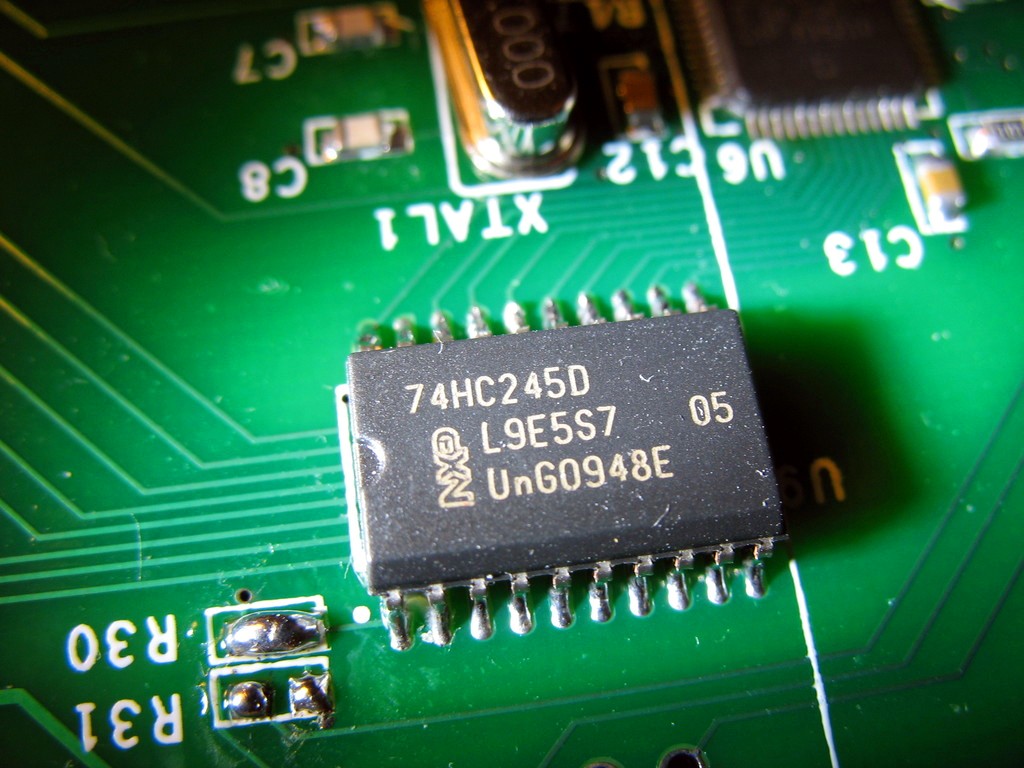

Eeelec Xla Esla100 74hc245d

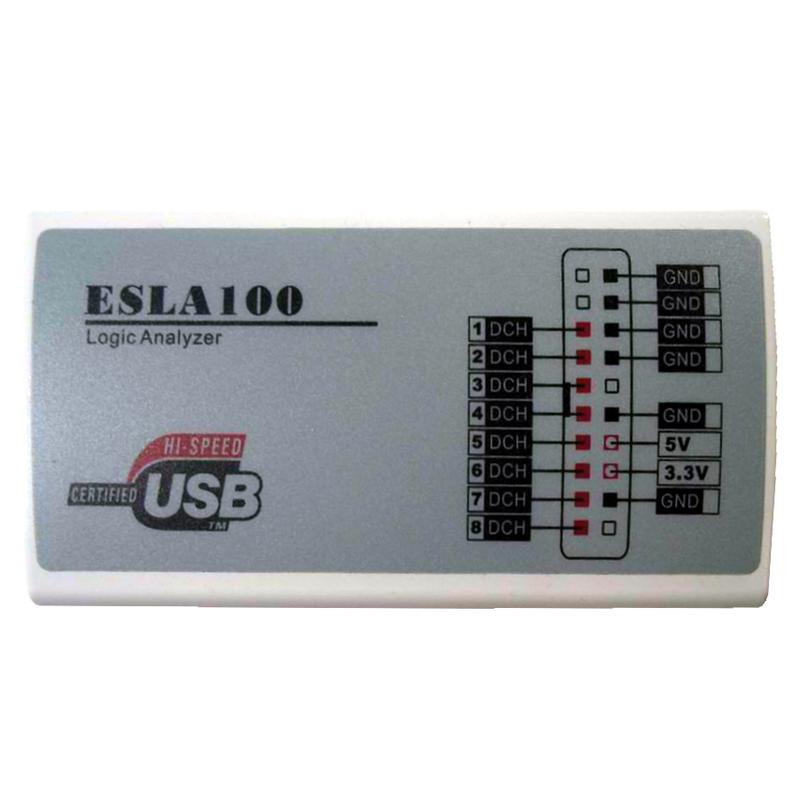

Eeelec Xla Esla100

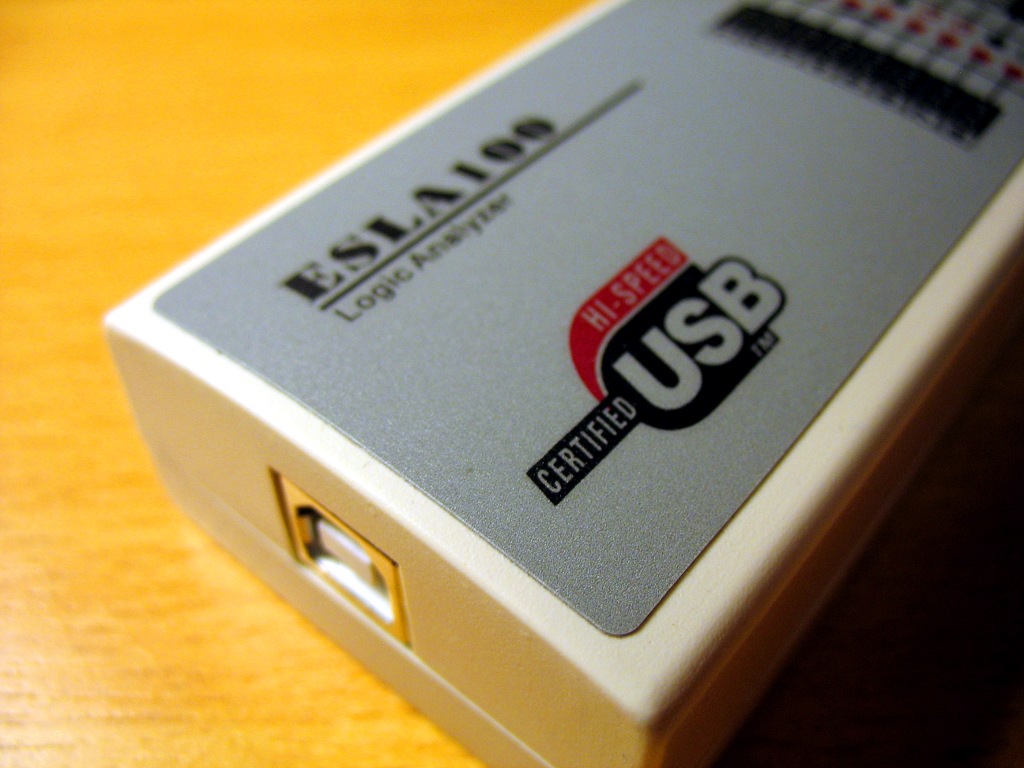

Eeelec Xla Esla100 Usb

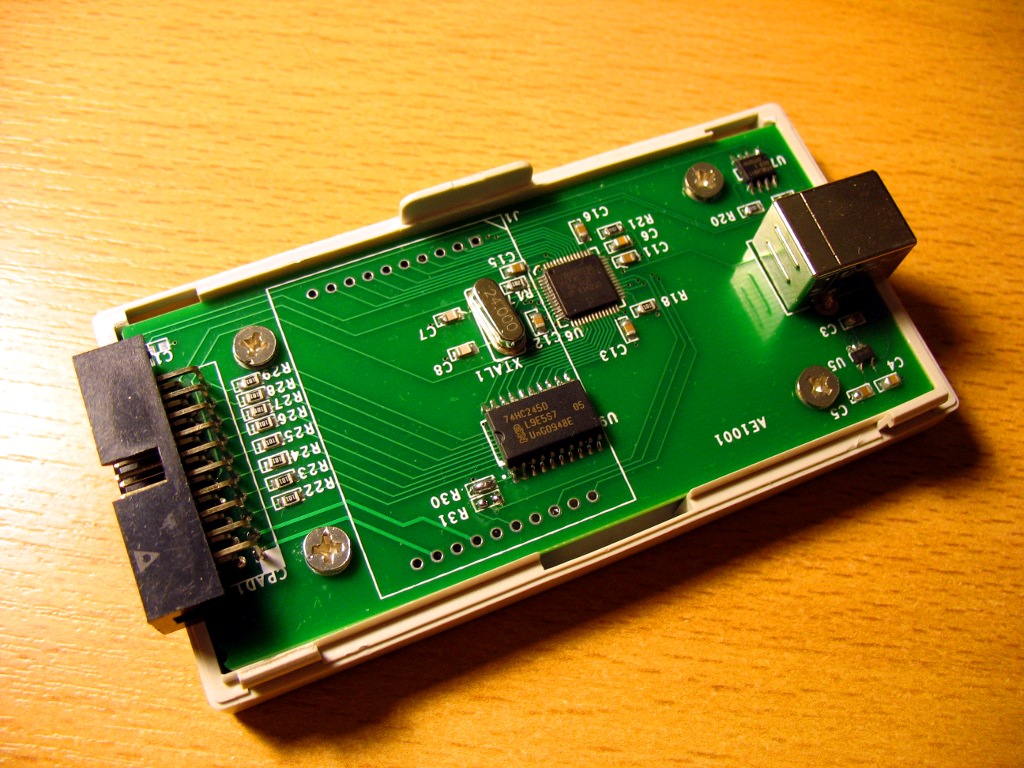

Eeelec Xla Esla100 Pcb Front

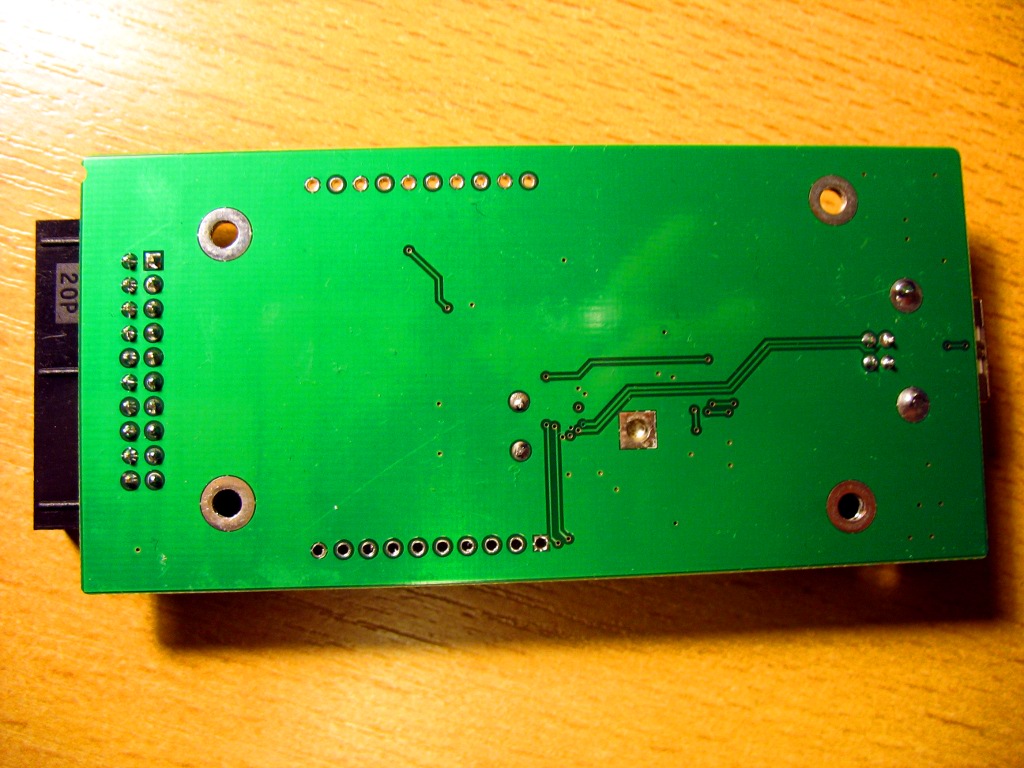

Eeelec Xla Esla100 Pcb Back

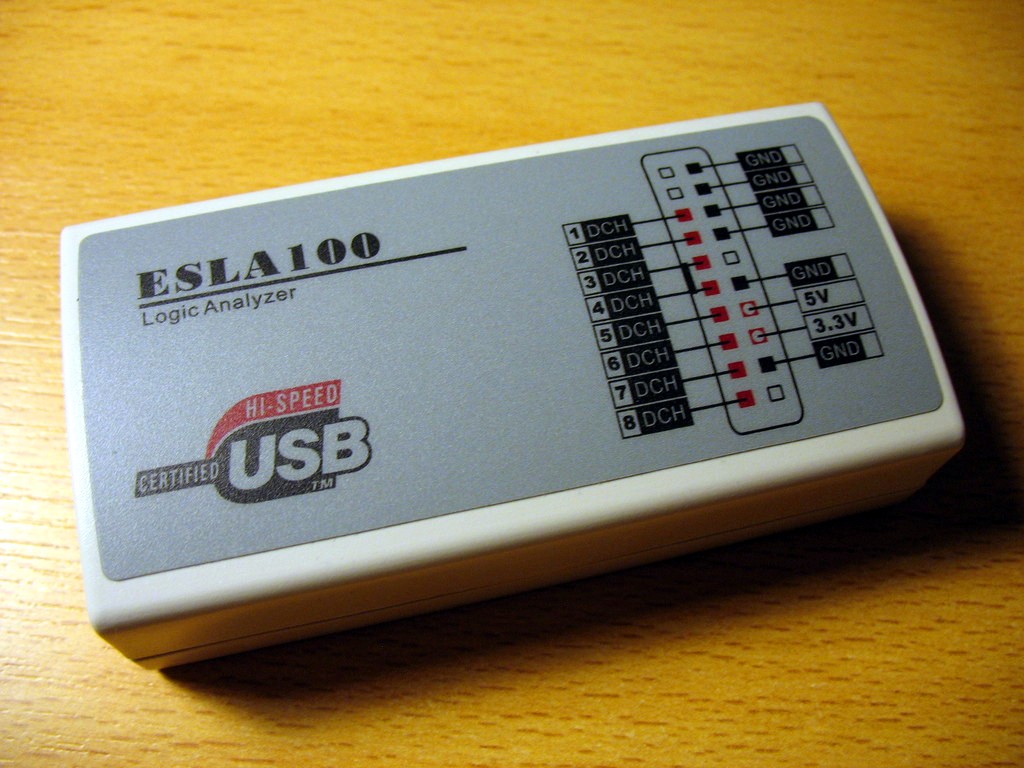

Eeelec Xla Esla100 Front

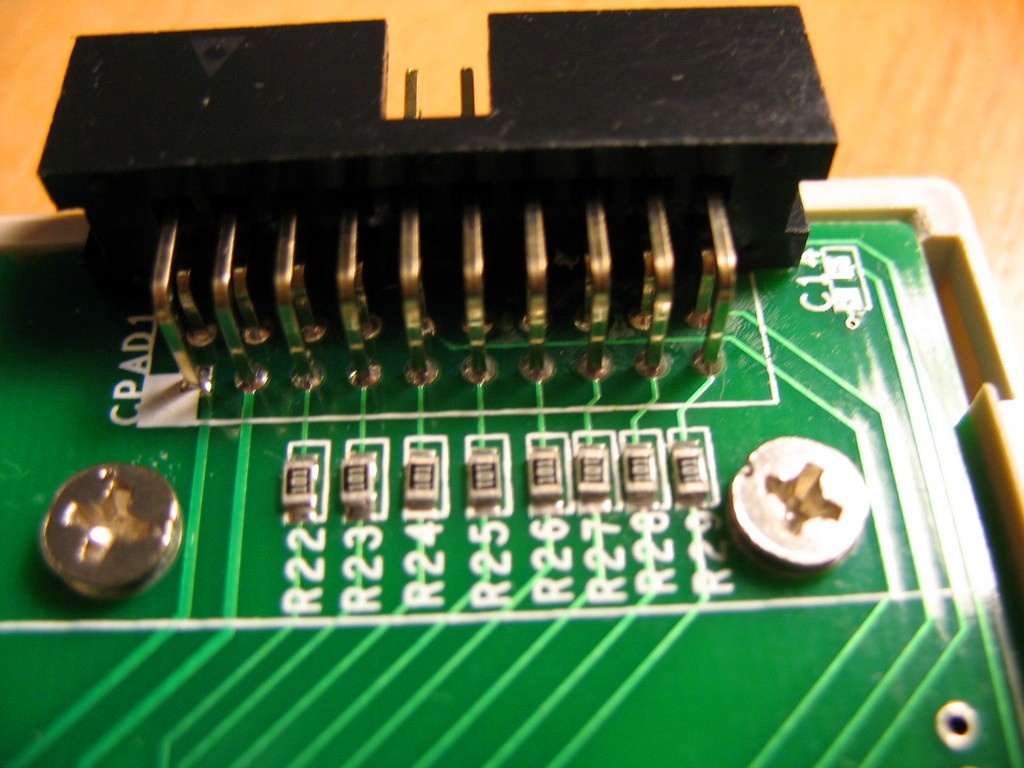

Eeelec Xla Esla100 Resistors
Eeelec Xla Esla100

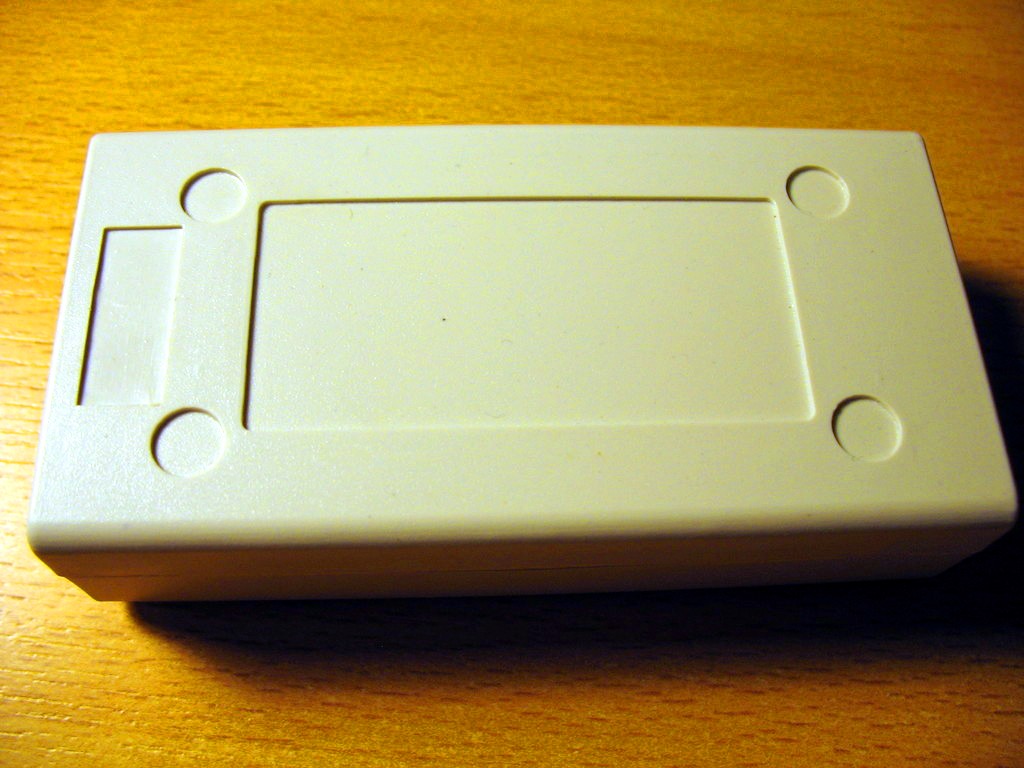

Eeelec Xla Esla100 Back

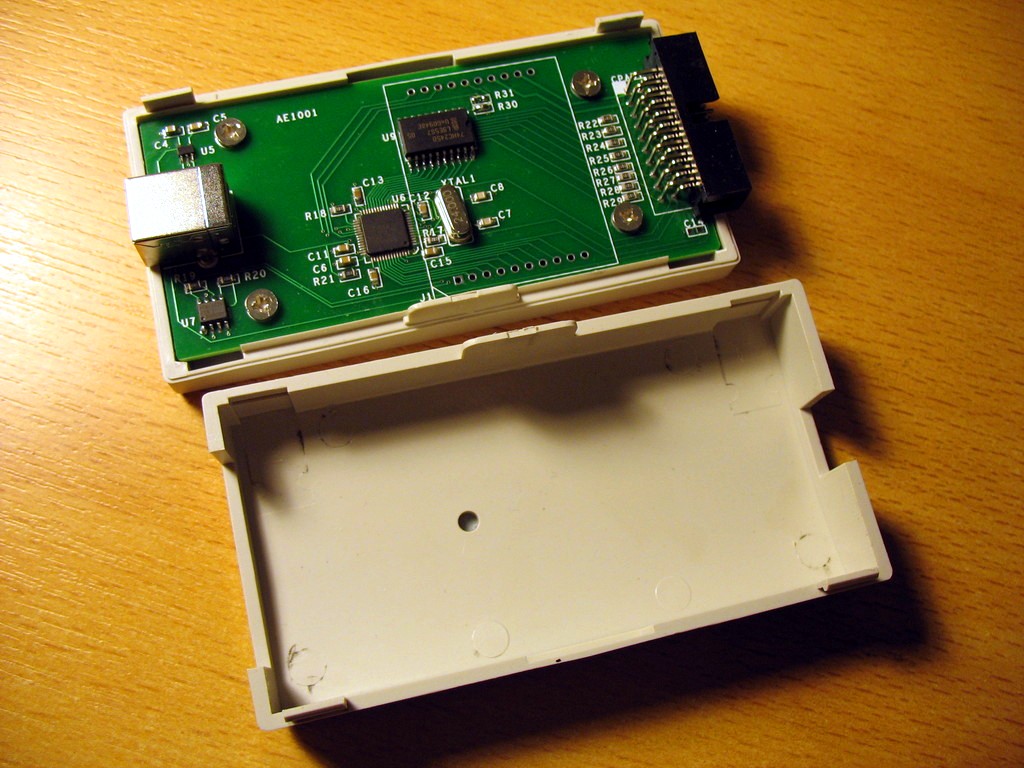

Eeelec Xla Esla100 Open

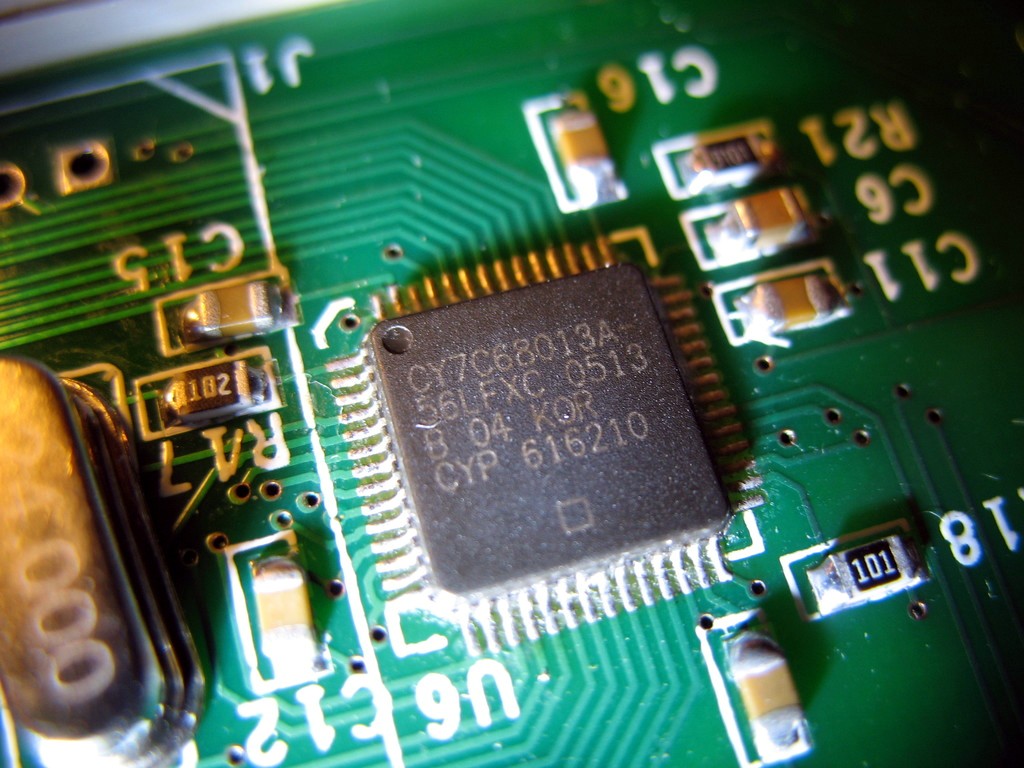

Eeelec Xla Esla100 Cy7c68013a
Protocol¶
Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
