DreamSourceLab DSLogic U3Pro16¶
DreamSourceLab DSLogic U3Pro16¶
| Status | planned |
| Source code | dreamsourcelab-dslogic |
| Channels | 1-16 |
| Samplerate | 1GHz(3ch), 500MHz(6ch), 250MHz(12ch), 125MHz(16ch) |
| Samplerate (state) | ? |
| Triggers | ? |
| Min/max voltage | -0.9V — 6V |
| Threshold voltage | configurable: 0V — 5V (0.1V steps) |
| Memory | 256Mbyte |
| Compression | ? |
| Website | dreamsourcelab.com |
The DreamSourceLab DSLogic U3Pro16 is a 16-channel USB-based logic analyzer, with sampling rates up to 1GHz (when using only 3 channels).
See DreamSourceLab DSLogic U3Pro16/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- FPGA: Xilinx Spartan-6 XC6SLX16
- USB: Cypress CYUSB3014-BZX (FX3)
- SPI flash: Macronix MX25R2035F
- DDR3 SDRAM: Micron MT41K128M16JT-125:K
Photos¶
Dslogic U3pro16 Box

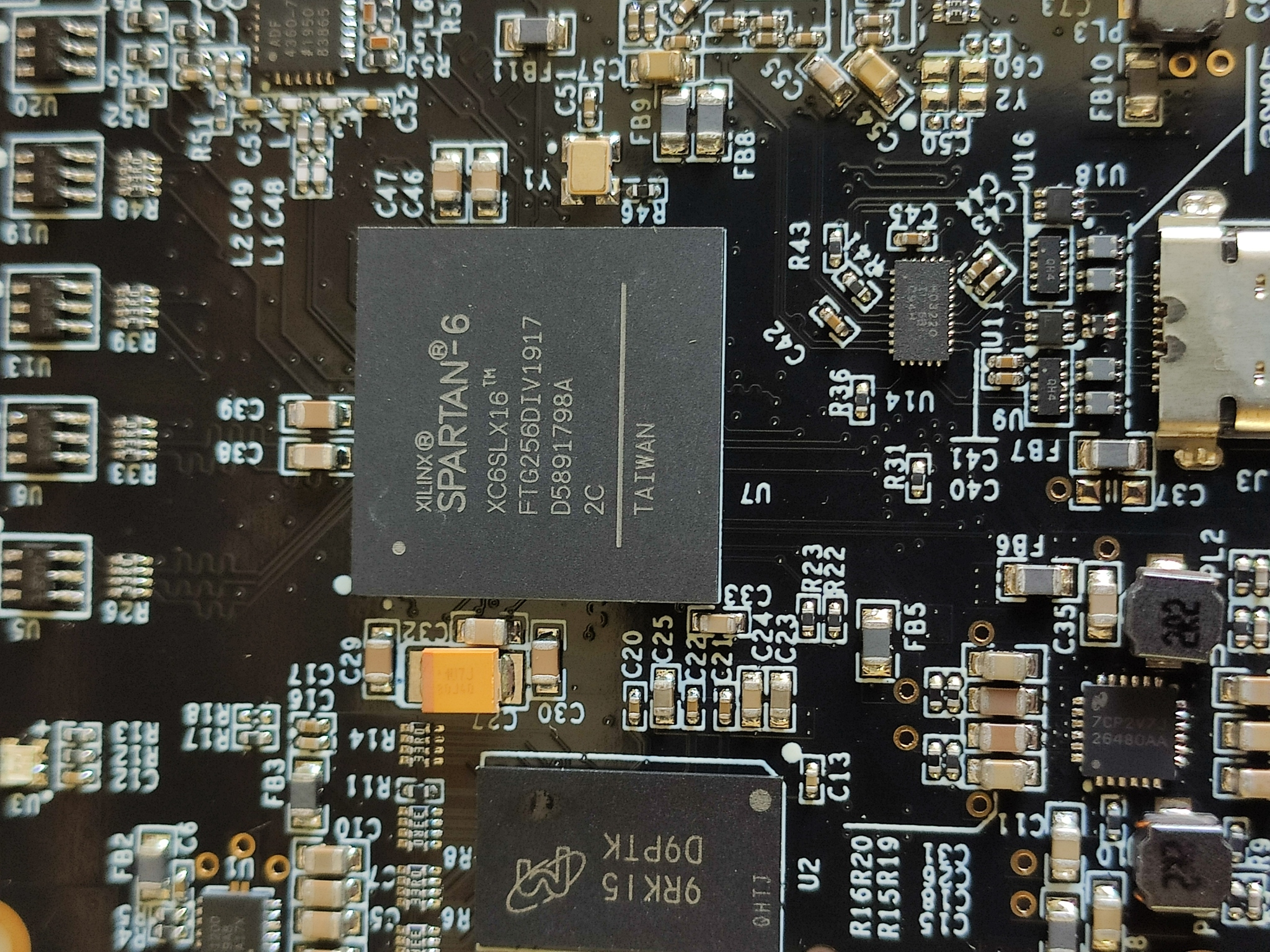

Dslogic U3pro16 Fpga Ram

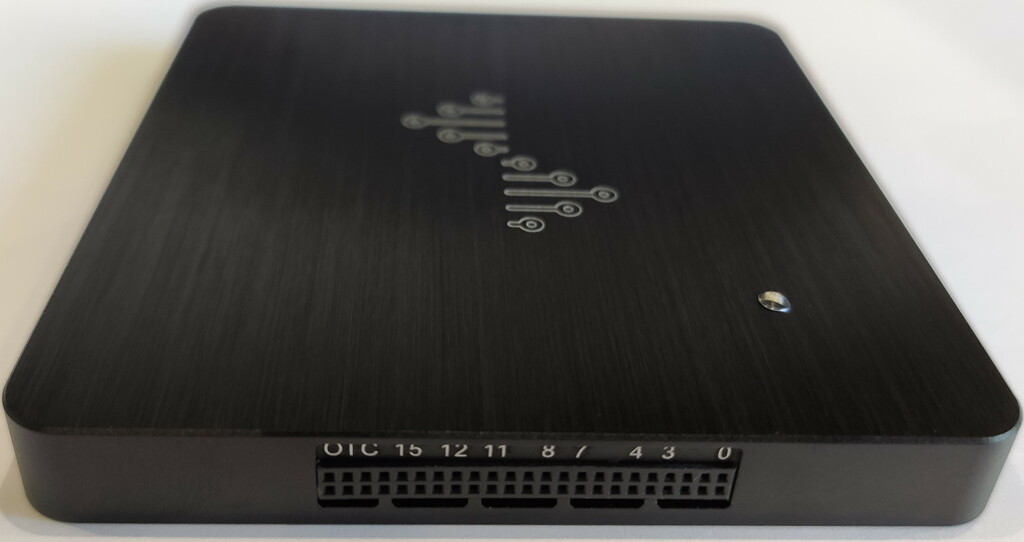

Dslogic U3pro16 Device Connector

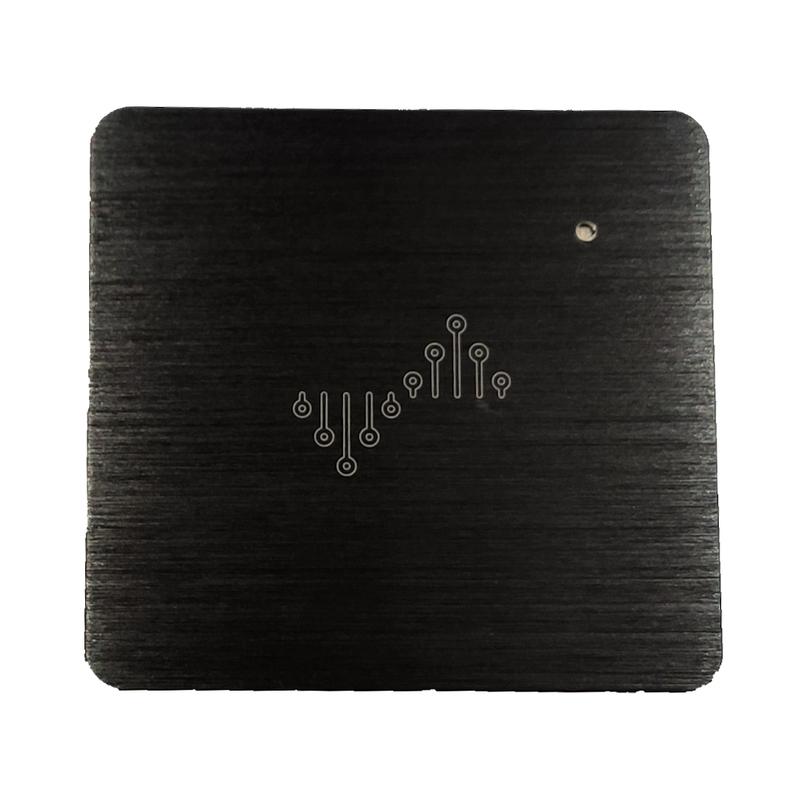

Dslogic U3pro16

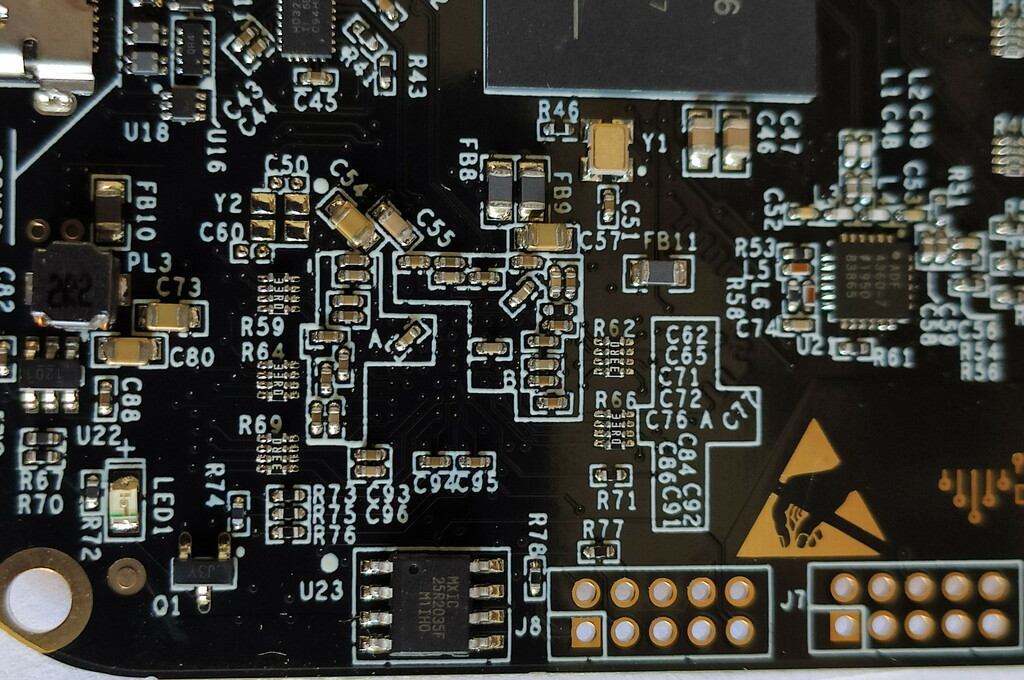

Dslogic U3pro16 Mx25r2035f
Dslogic U3pro16 Case
Dslogic U3pro16 Case Inside

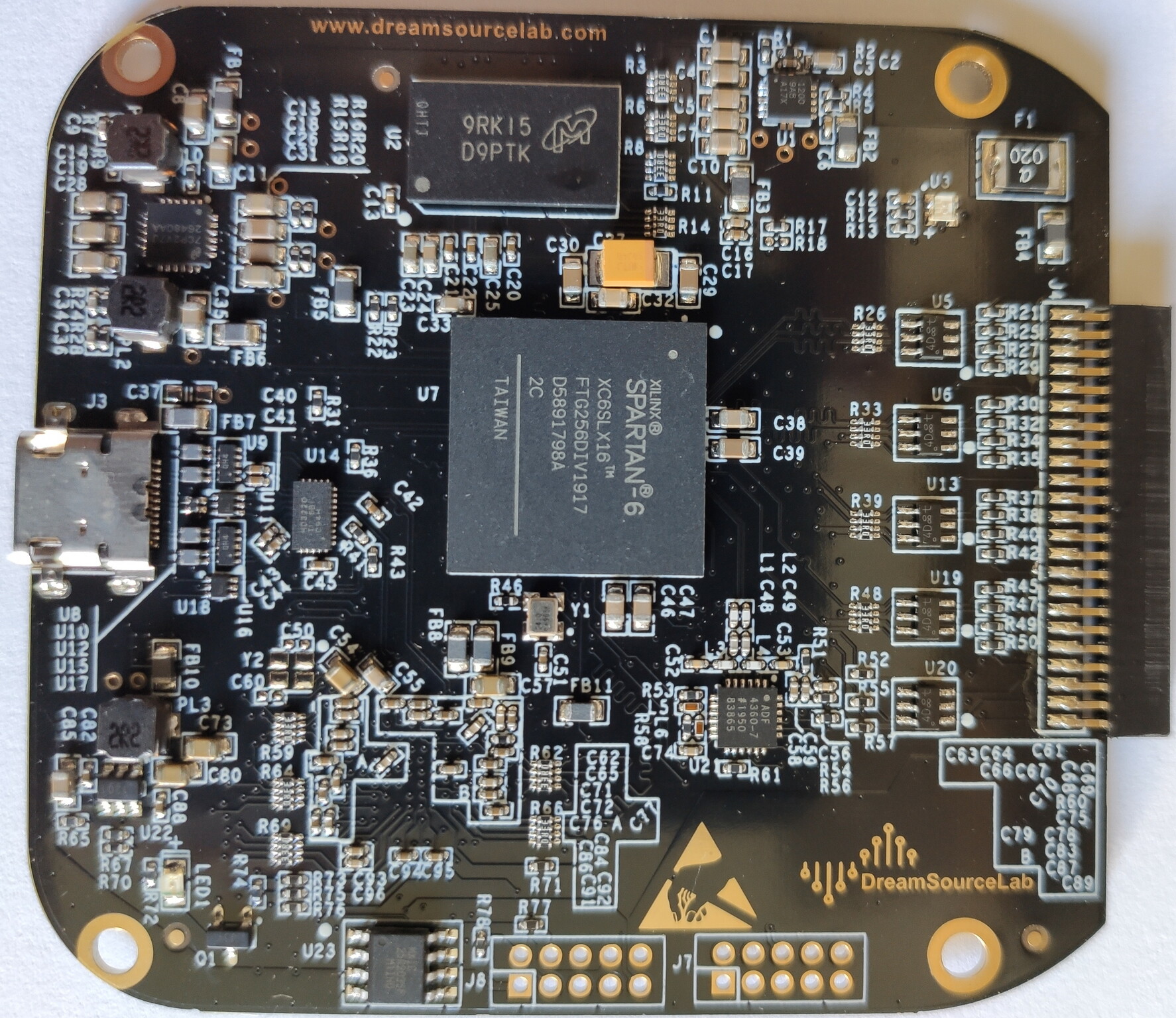

Dslogic U3pro16 Pcb Bottom

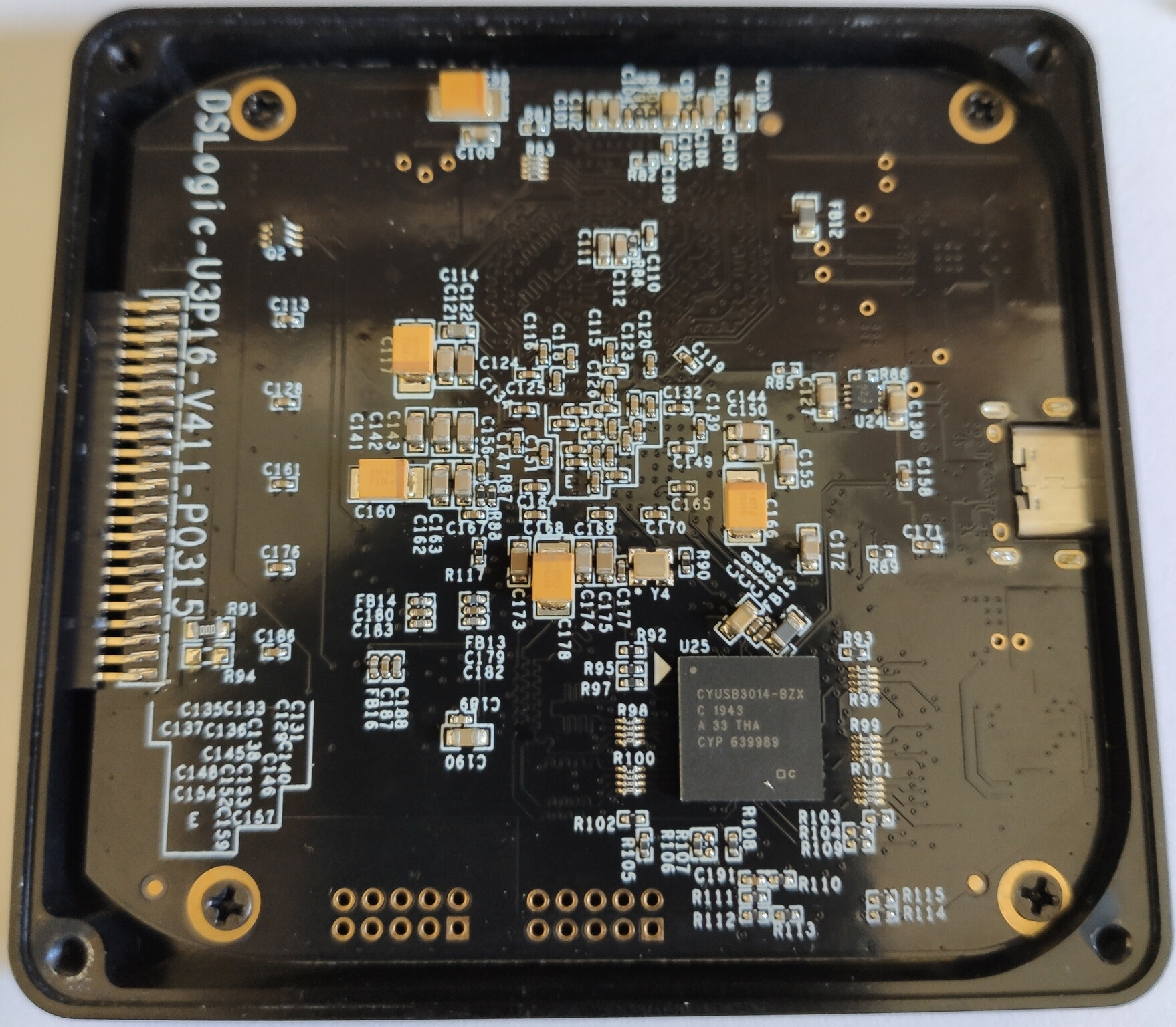

Dslogic U3pro16 Pcb Top

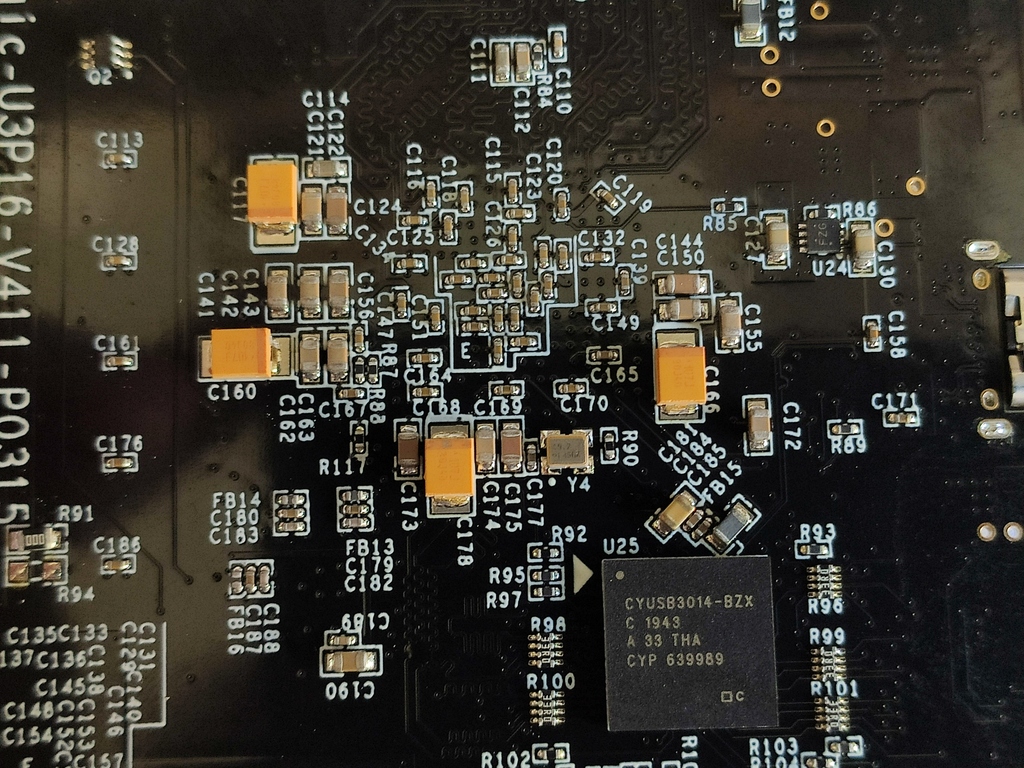

Dslogic U3pro16 Cyusb3014 Bzx

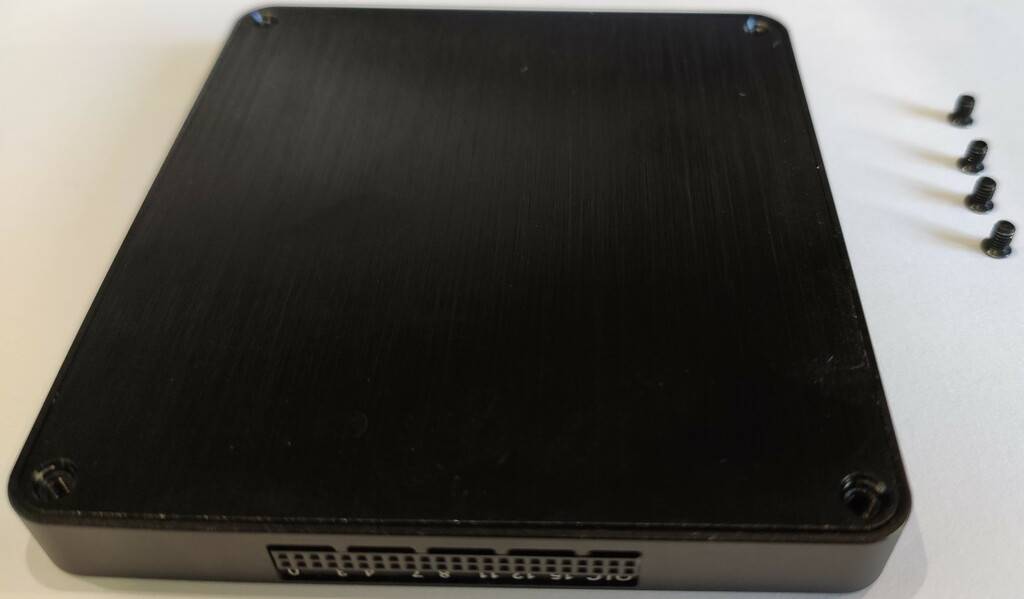

Dslogic U3pro16 Device Back

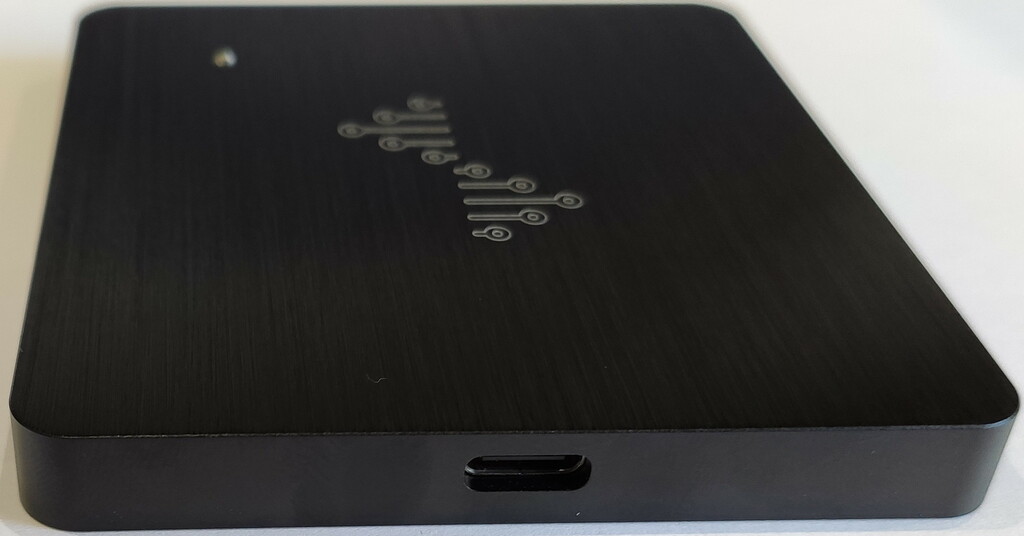

Dslogic U3pro16 Device Usb
