DreamSourceLab DSLogic Pro¶


Status	supported
Source code	dreamsourcelab-dslogic
Channels	1-16
Samplerate	400MHz(4ch), 200MHz(8ch), 100MHz(16ch)
Samplerate (state)	30MHz (?) or 50MHz (?)
Triggers	high, low, rising, falling, edge, multi-stage triggers
Min/max voltage	-0.6V — 6V
Threshold voltage	configurable: 0-5V (0.1V increments)
Memory	32MByte (2MByte/ch)
Compression	yes
Website	dreamsourcelab.com

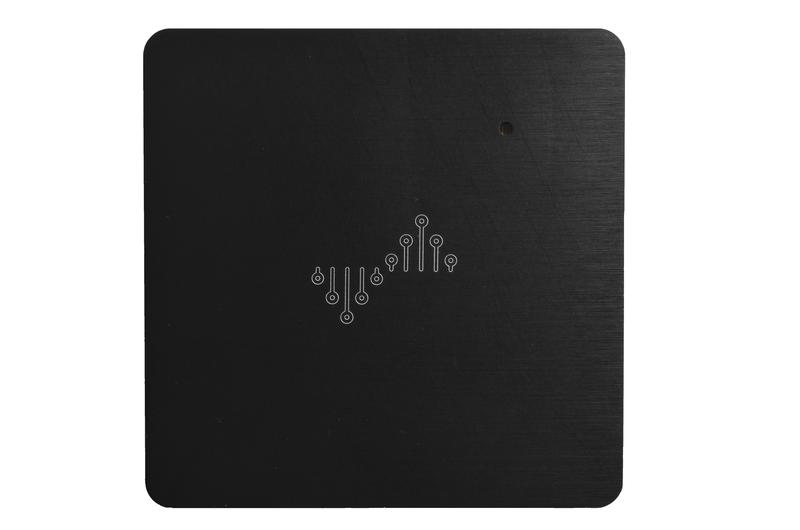

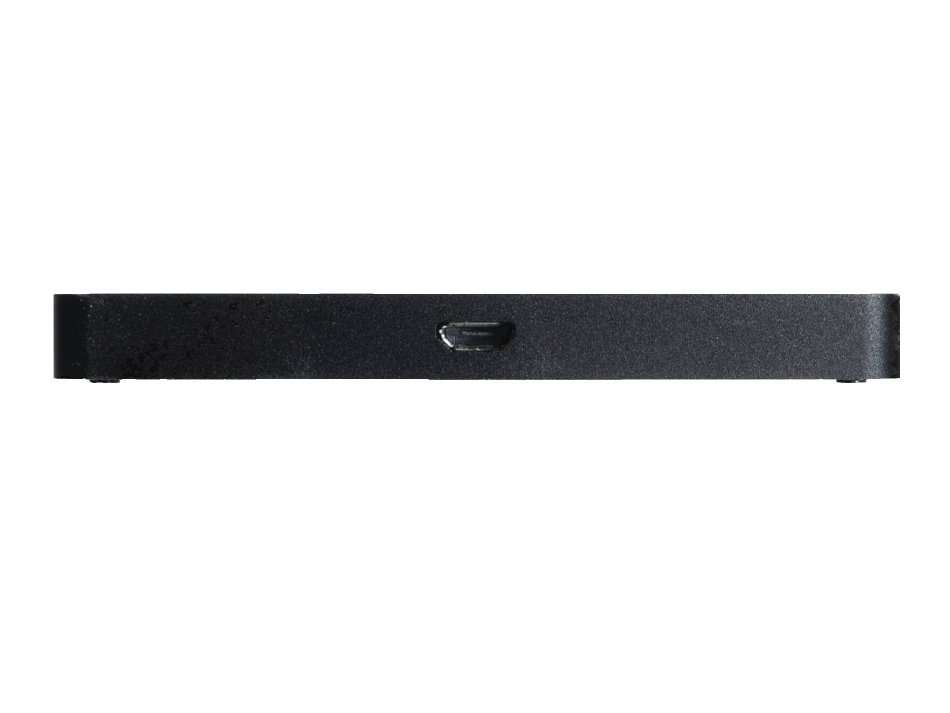

The DreamSourceLab DSLogic Pro is a 16-channel USB-based logic analyzer, with sampling rates up to 400MHz (when using only 4 channels). This differs slightly from the original DSLogic product in its configurable threshold voltage and different PCB layout. DreamSourceLab doesn't make the distinction between these two products very clear on their website.

See DreamSourceLab DSLogic Pro/Info for more details (such as lsusb -v output) about the device.

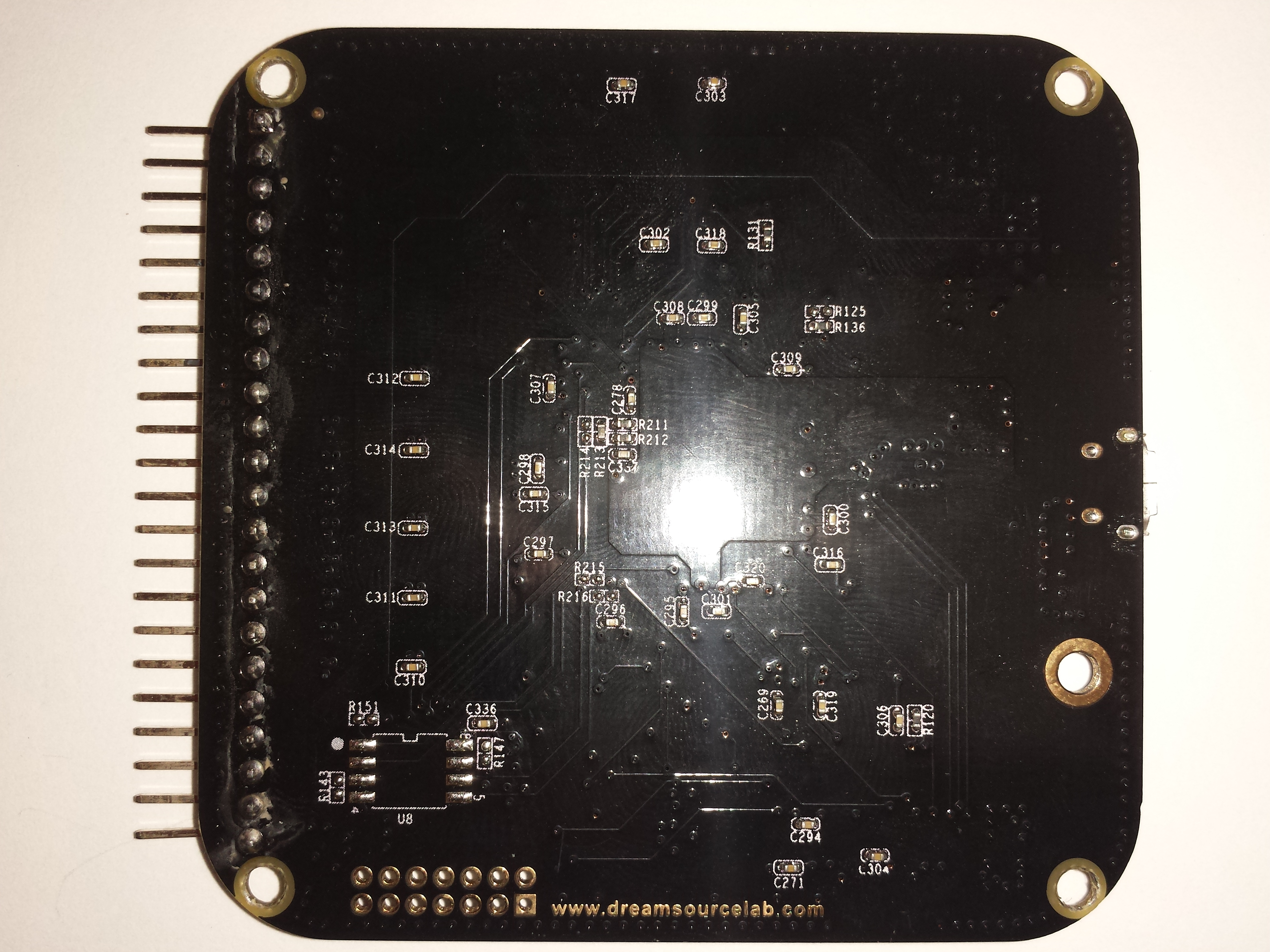

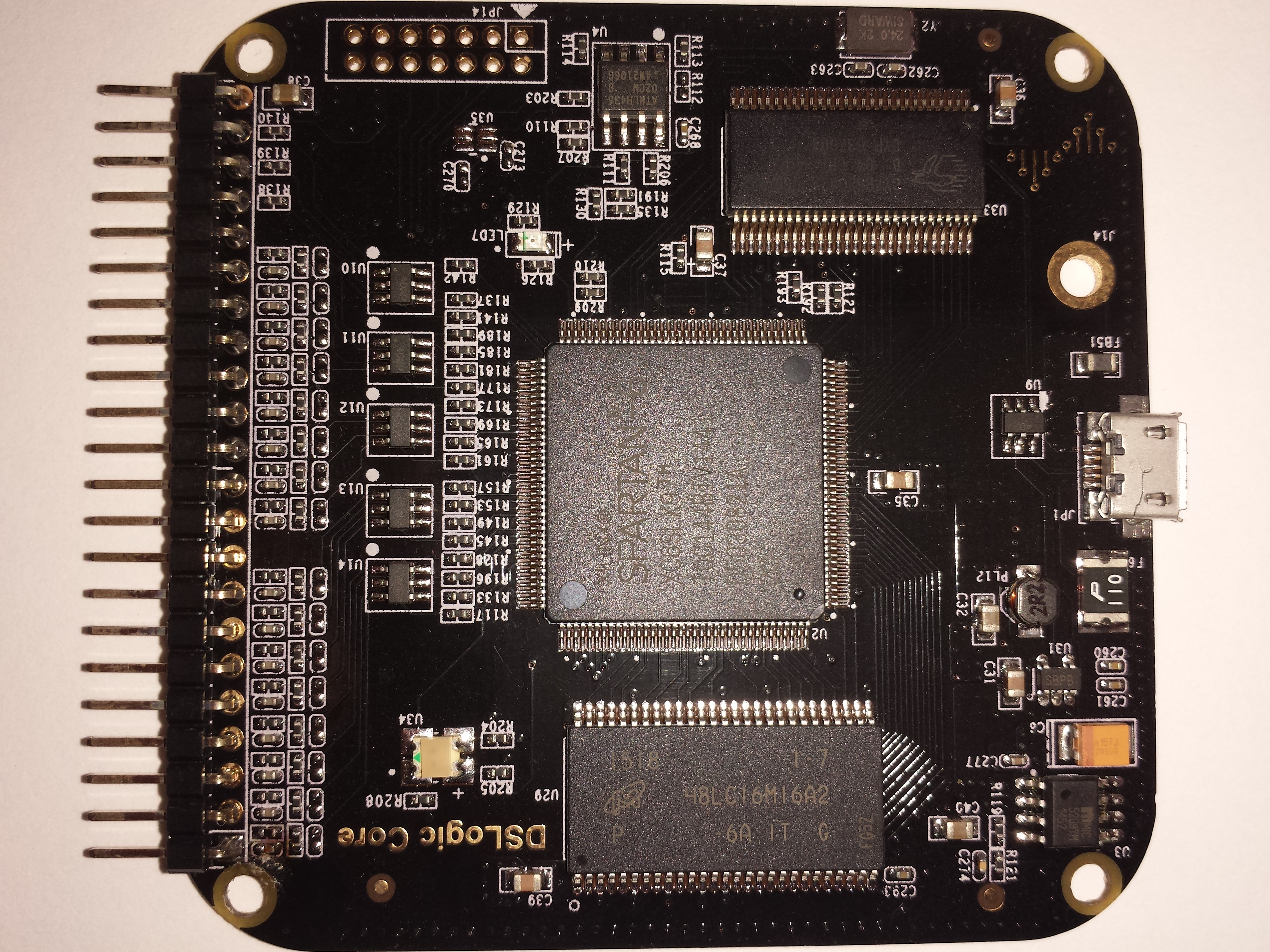

Hardware¶

Xilinx XC6SLX9 U2: Spartan-6 FPGA (TQG144BIV13337)
Micron MT48LC16M16A2P-6A U29: 32MB SDRAM (IC SDRAM 256MBIT 167MHZ TSOP)
Cypress CY7C68013A U33: FX2 USB interface chip (IC MCU USB PERIPH HI SPD 56SSOP)
Serial EEPROM 16Kbit U4: ATMLH348 16CM Y 3X3098, I2C/2Wire Serial EEPROM 16Kbit (2048x8) ATMEL AT24C16C
ESD Protection U9,10,11,12,13,14: D234 ESD Protection CM1213A-04S7 TVS DIODE 3.3VWM 10VC SC746
Adjustable 500mA LDO U3: Adjustable (configured for 3.3V) 600mA 2MHz Step Down DC-DC Converter MIC5209YM
1.2V 600mA LDO U31: SBPB 1.2V 600mA 2MHz Step Down DC-DC Converter LM3671MF-1.2/NOPB
