DreamSourceLab DSLogic Plus¶


Status	supported
Source code	dreamsourcelab-dslogic
Channels	1-16
Samplerate	400MHz(4ch), 200MHz(8ch), 100MHz(16ch)
Samplerate (state)	30MHz (?) or 50MHz (?)
Triggers	high, low, rising, falling, edge, multi-stage triggers

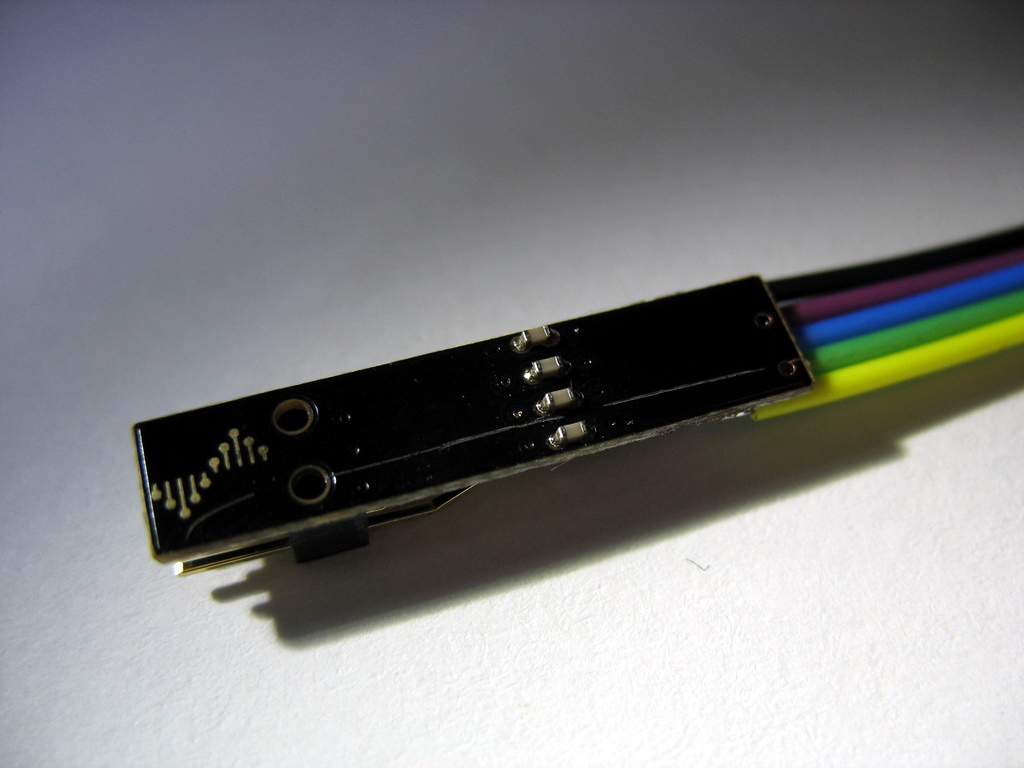

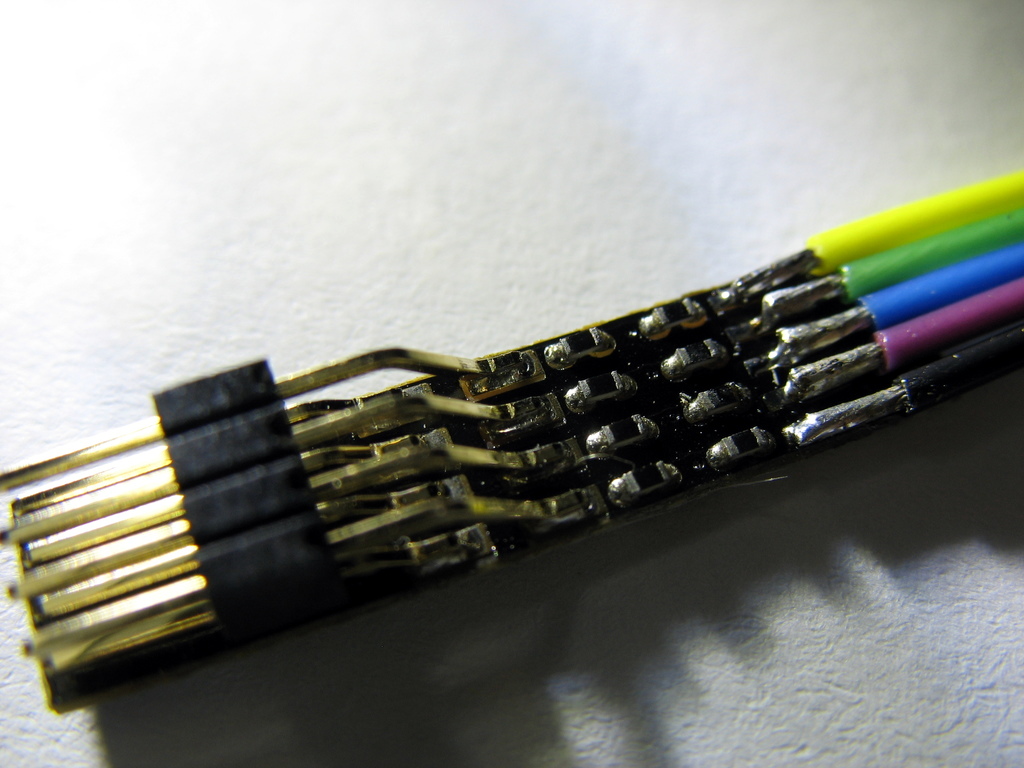

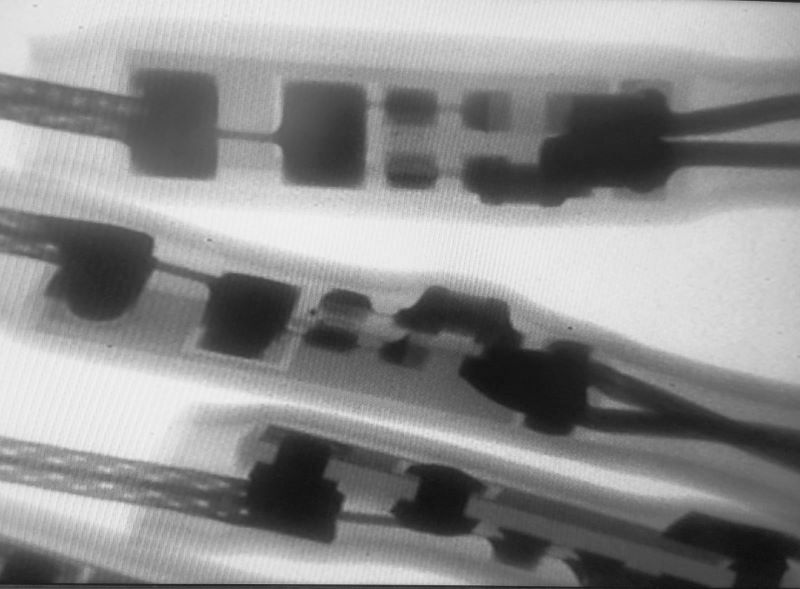

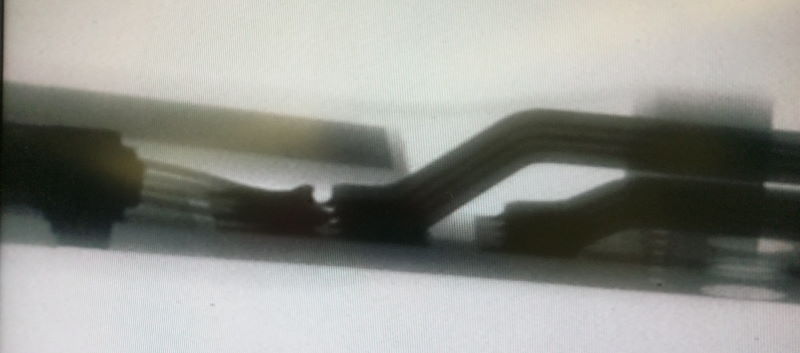

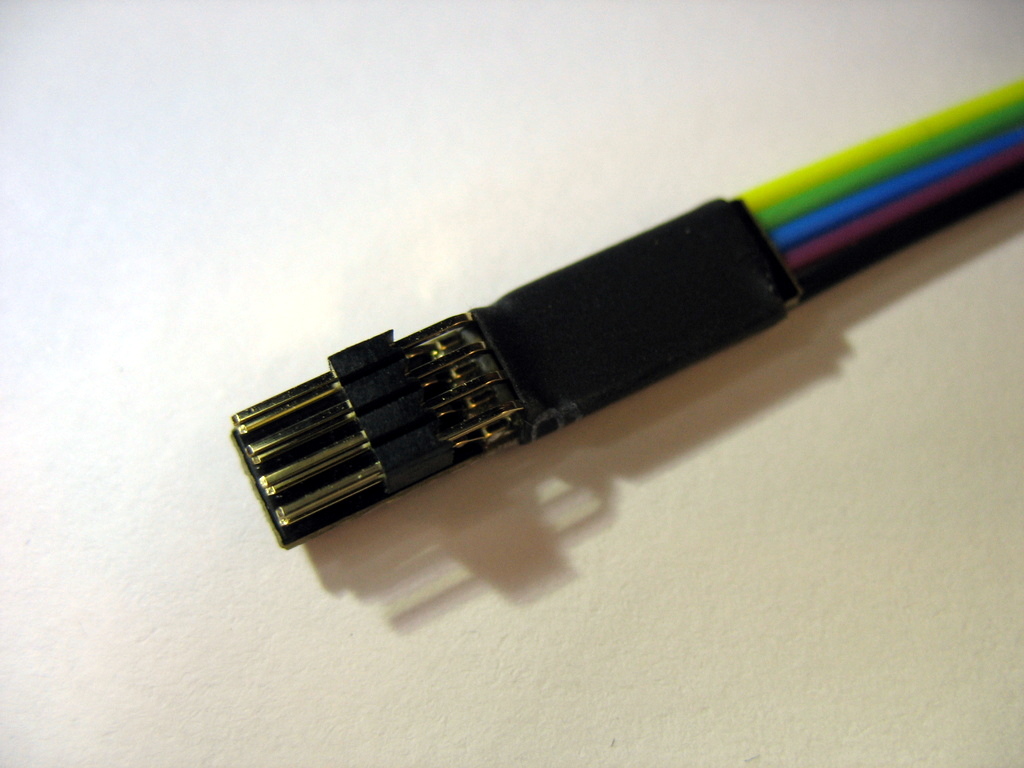

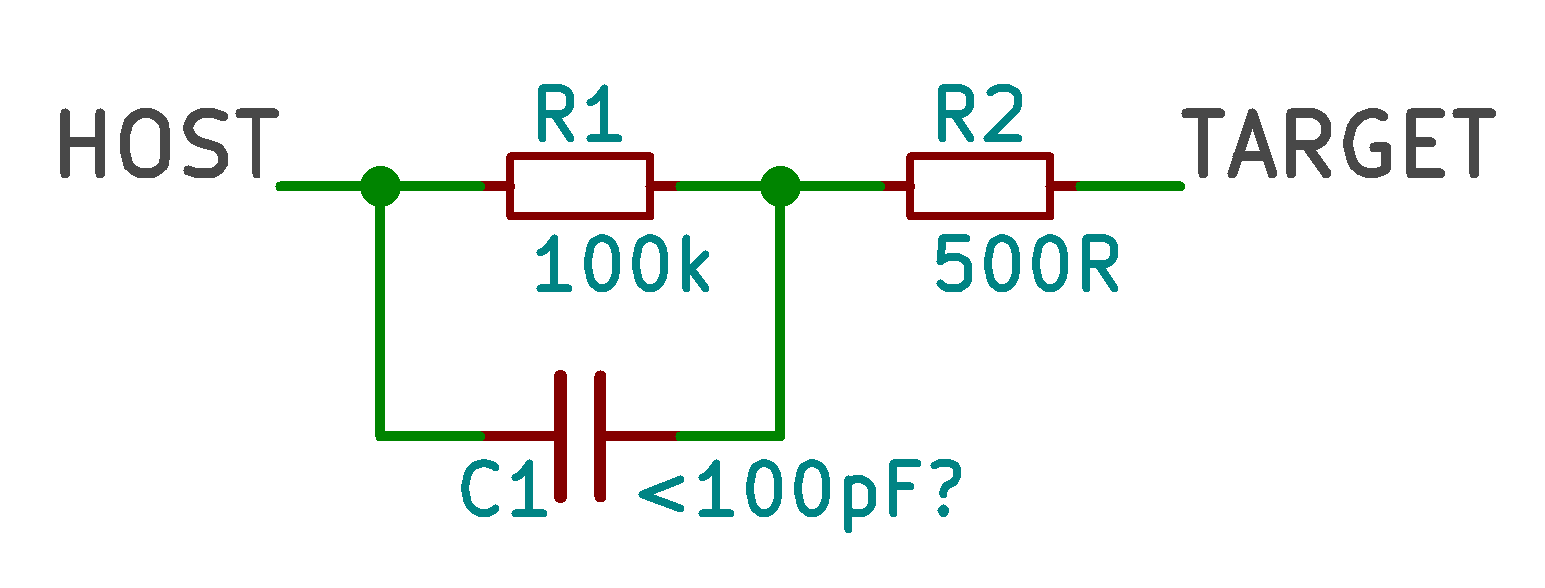

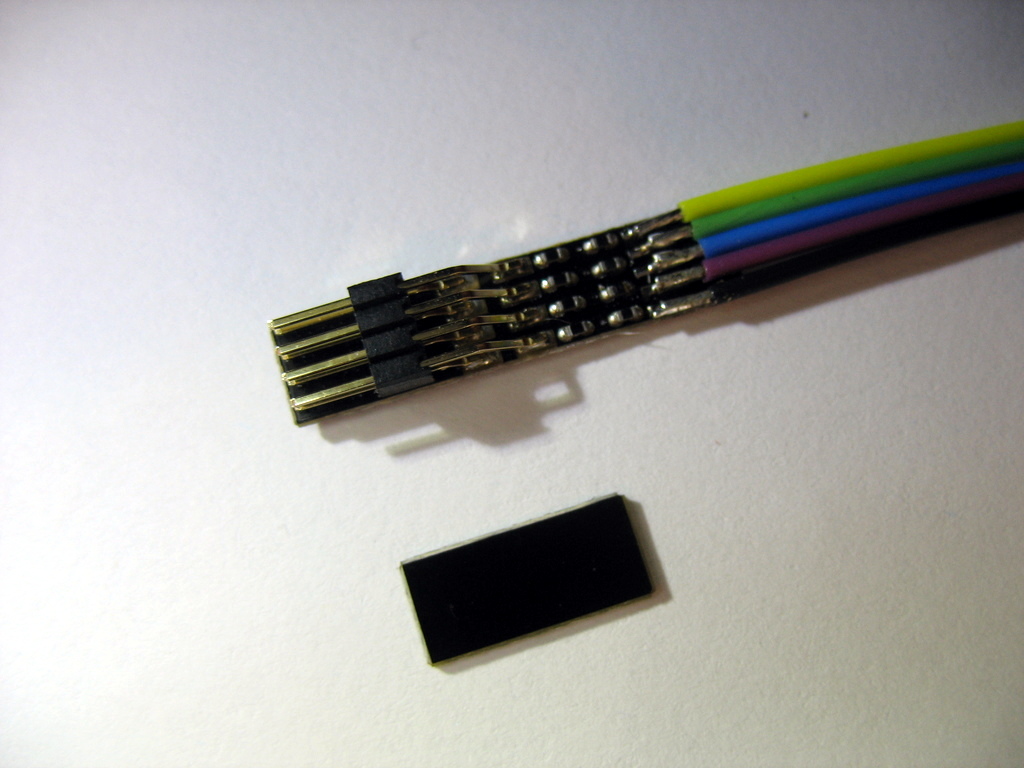

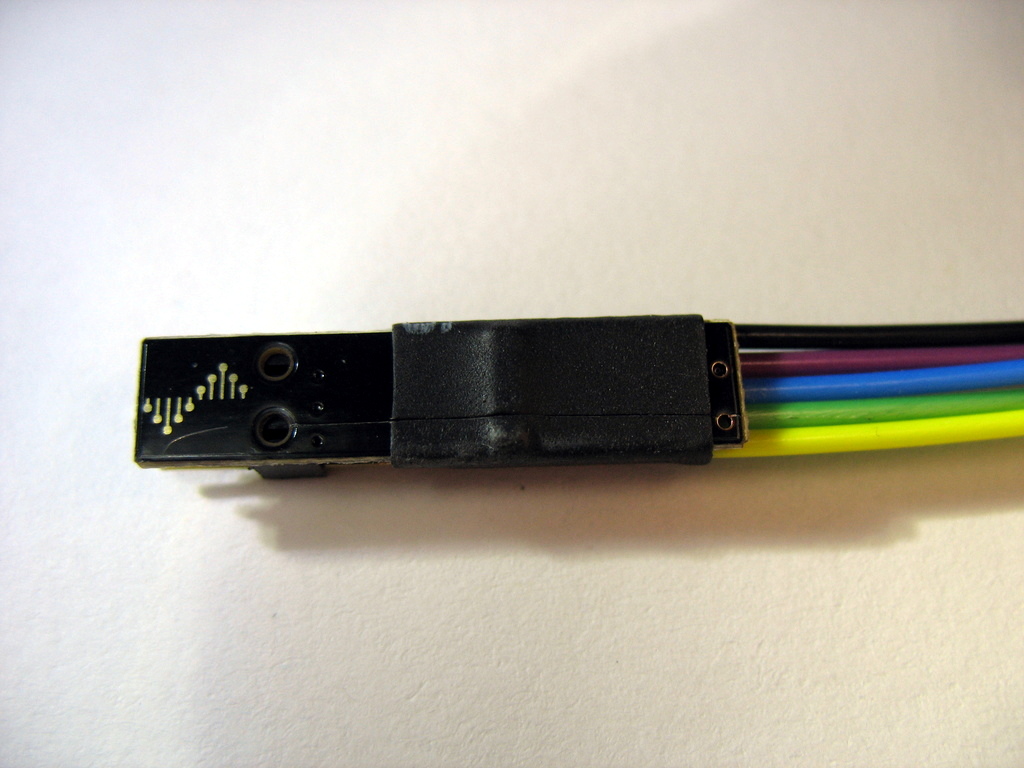

Min/max voltage	-0.6V — 6V, +-30V with provided probe-wires
Threshold voltage	configurable: 0-5V (0.1V increments)
Memory	256MBit
Compression	yes
Website	dreamsourcelab.com

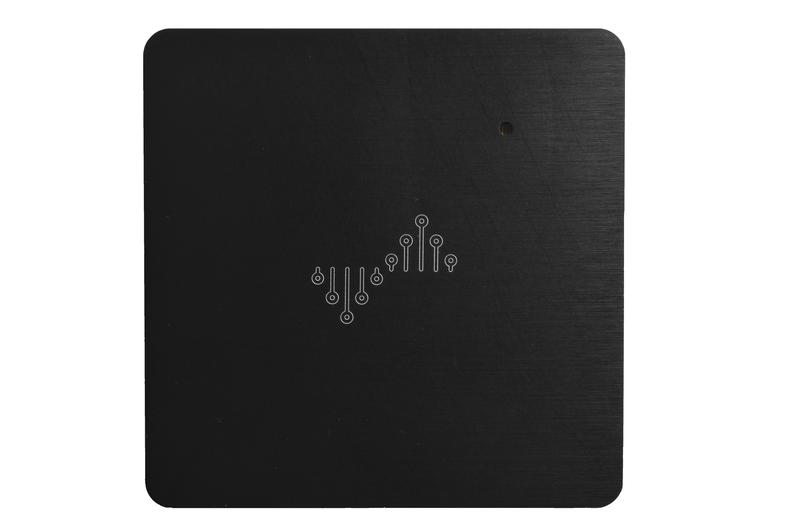

The DreamSourceLab DSLogic Plus is a 16-channel USB-based logic analyzer, with sampling rates up to 400MHz (when using only 4 channels). This differs slightly from the original DSLogic product in its configurable threshold voltage and different PCB layout. DreamSourceLab doesn't make the distinction between these two products very clear on their website.

See DreamSourceLab DSLogic Plus/Info for more details (such as lsusb -v output) about the device.

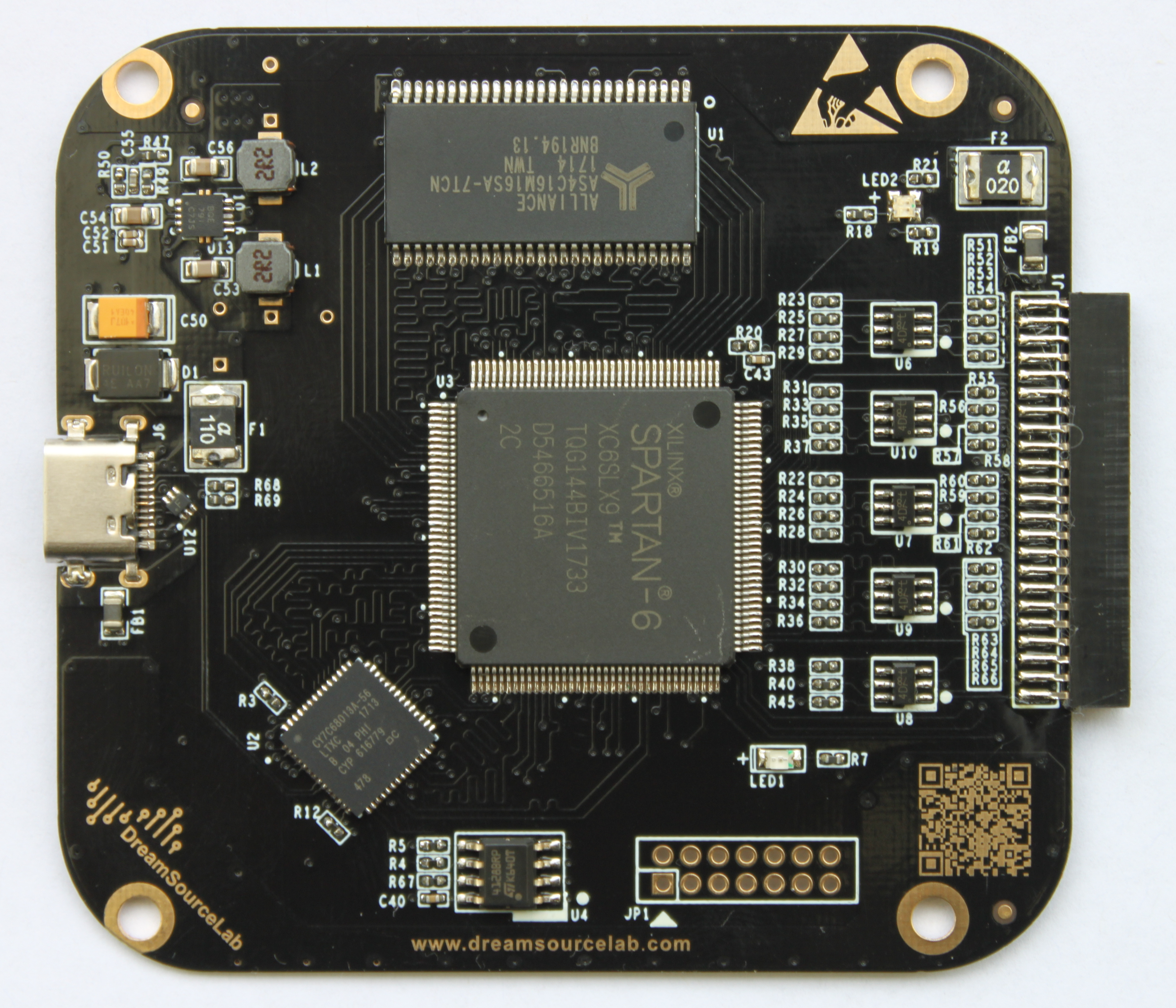

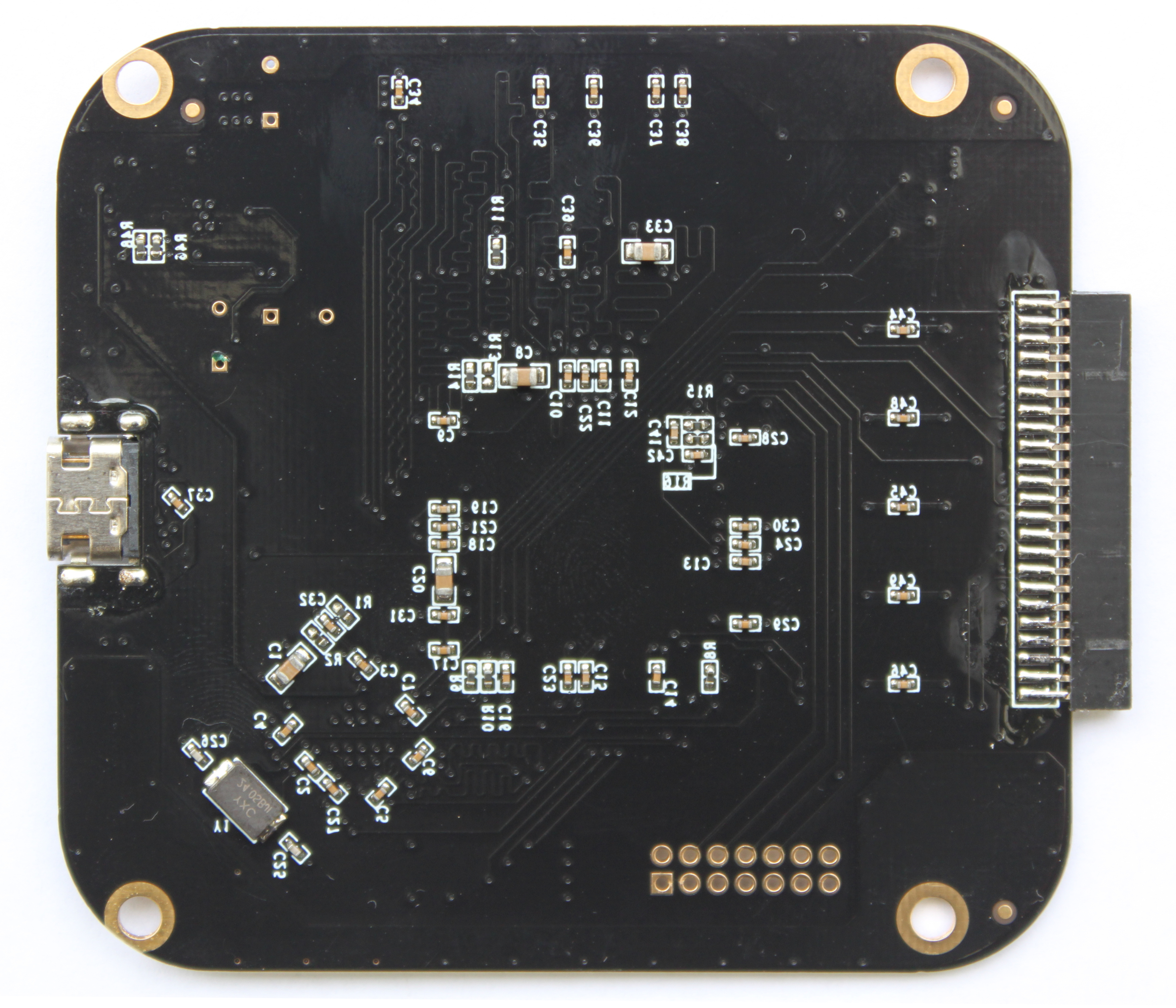

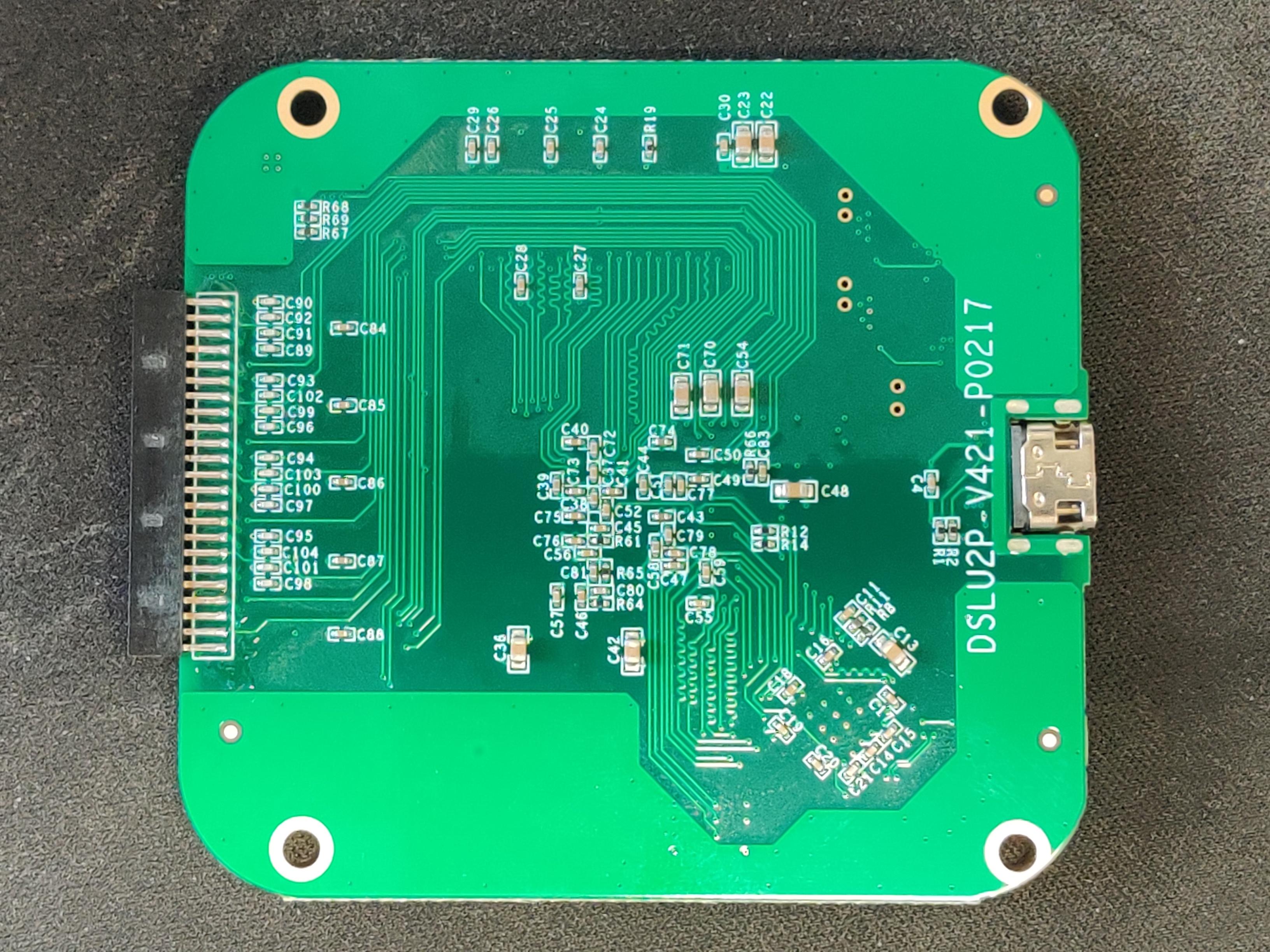

Hardware¶

Xilinx XC6SLX9 U3: Spartan-6 FPGA (TQG144BIV13337)
Sample memory: Original version: Alliance AS4C16M16SA-7TCN U1: 256Mbit SDRAM
V211: Micron MT48LC16M16A2 256Mbit SDRAM
Cypress CY7C68013A U2: FX2LP USB interface chip
128Kbit I²C EEPROM U4: ST M24128-BR
TI TPS62400 U10: Dual, Adjustable, 400mA and 600mA, 2.25MHz Step-Down Converter (3.3V and 1.2V output)
24.0Mhz Crystal Y1: YSX321SL series 20ppm (markings: YXC 24.0SBJI)
