Braintechnology USB-LPS¶
Braintechnology USB-LPS¶
| Status | supported |
| Source code | fx2lafw |
| Channels | 8/16 |
| Samplerate | 24MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | -0.5V — 5.25V |
| Threshold voltage | Fixed: VIH=2.0V—5.25V, VIL=-0.5V—0.8V |
| Memory | none |
| Compression | none |
| Website | braintechnology.de |
The Braintechnology USB-LPS is a Cypress FX2 based 16-channel, 24MHz, USB-based logic analyzer and signal/pattern generator.
In sigrok, the open-source fx2lafw firmware and driver is used for this device.
See Braintechnology USB-LPS/Info for some more details (such as lsusb -v output) on the device.
Hardware¶
- Main chip: Cypress CY7C68013A-56PVXC (FX2LP)
- I²C EEPROM: Atmel ATtiny13-20SU
- 3.3V voltage regulator: LD33
- Crystal: 24MHz
Photos¶
Braintechnology Usb Lps

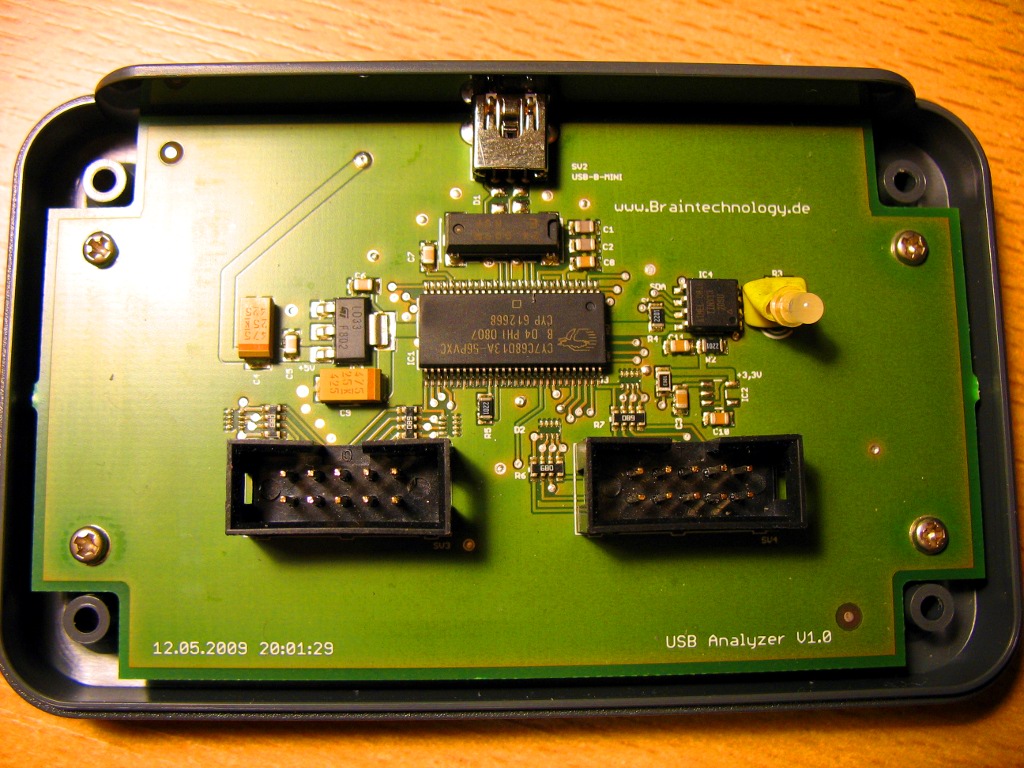

Braintechnology Usb Lps Pcb Front
Braintechnology Usb Lps

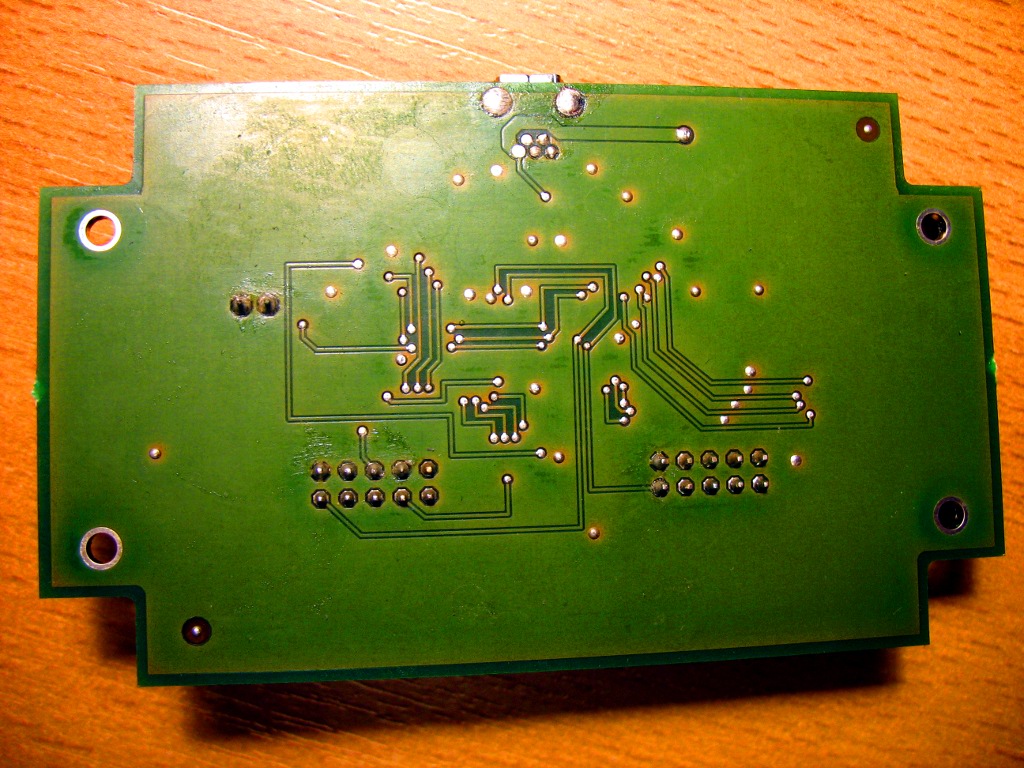

Braintechnology Usb Lps Pcb Back

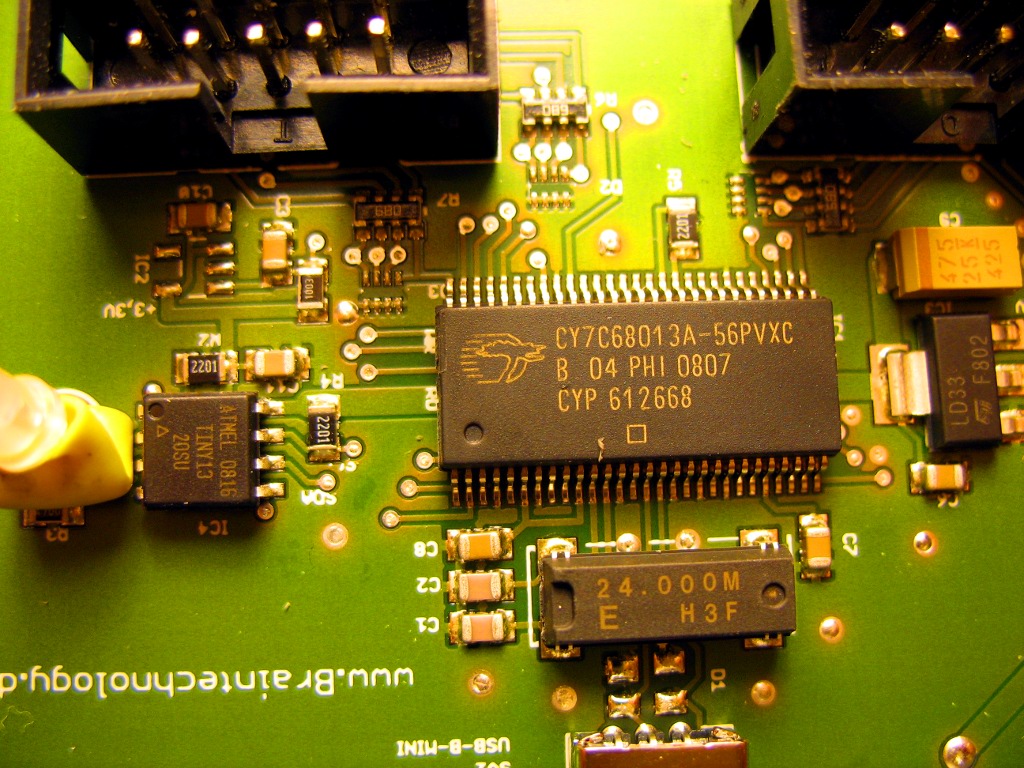

Braintechnology Usb Lps Pcb Front Details
Protocol¶
Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
However, for those interested in this, see our old vendor protocol docs.
