Braintechnology USB Interface V2.x¶
Braintechnology USB Interface V2.x¶
| Status | supported |
| Source code | fx2lafw |
| Channels | 8/16 |
| Samplerate | 24MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | -0.5V — 5.25V |
| Threshold voltage | Fixed: VIH=2.0V—5.25V, VIL=-0.5V—0.8V |
| Memory | none |
| Compression | none |
| Website | braintechnology.de |
The Braintechnology USB Interface V2.x is a Cypress FX2 eval board, which can be used as USB-based, 16-channel logic analyzer with up to 24MHz sampling rate.
There are various revisions of the hardware, e.g. V2.5, V2.6, and V2.7.
In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.
See Braintechnology USB Interface V2.x/Info for some more details (such as lsusb -vvv output) on the device.
Hardware¶
- Main chip: Cypress CY7C68013A-56PVXC (FX2LP)
- 64kB I2C EEPROM: Microchip 24LC641
- Low-dropout voltage regulator: ST LD33
- Crystal: 24MHz
- ?: PDEI
Photos¶
Braintechnology Usb Interface V2x Pdei

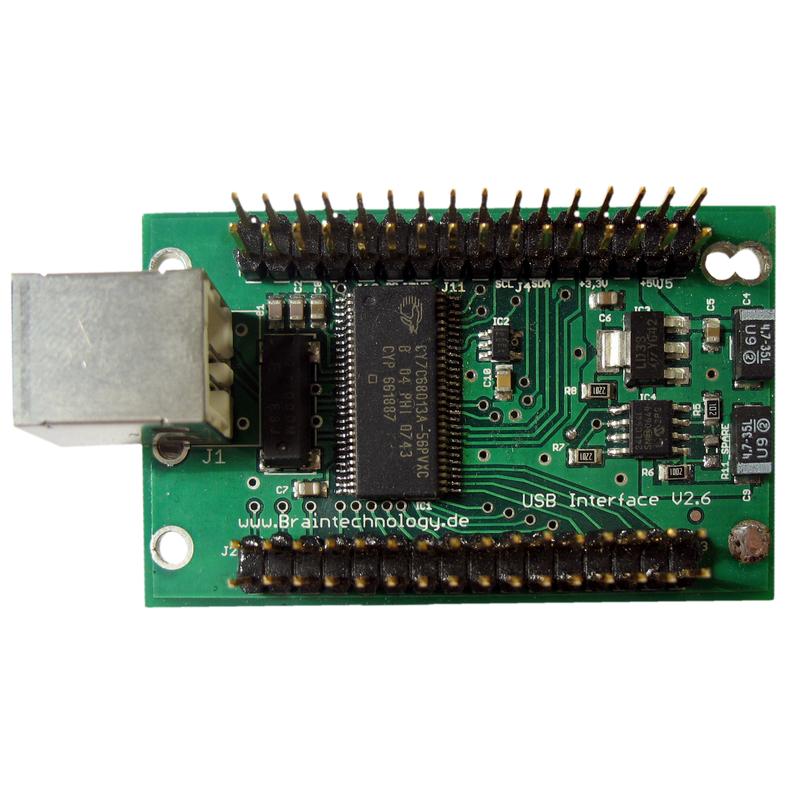

Braintechnology Usb Interface V26

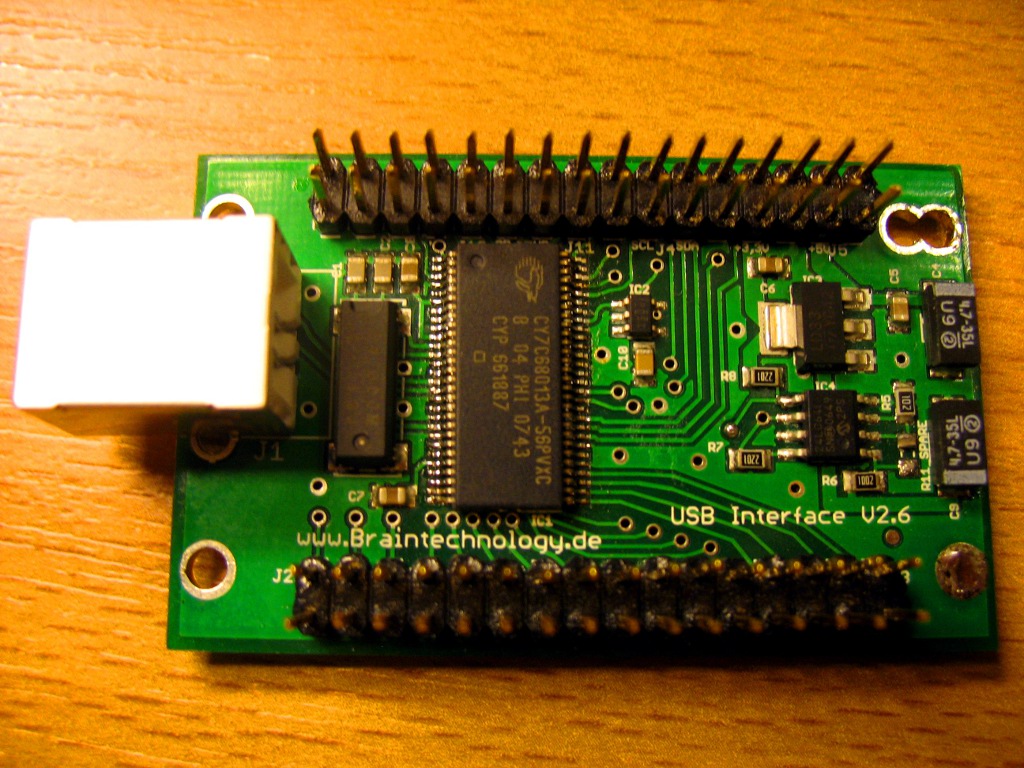

Braintechnology Usb Interface V2x Pcb Front

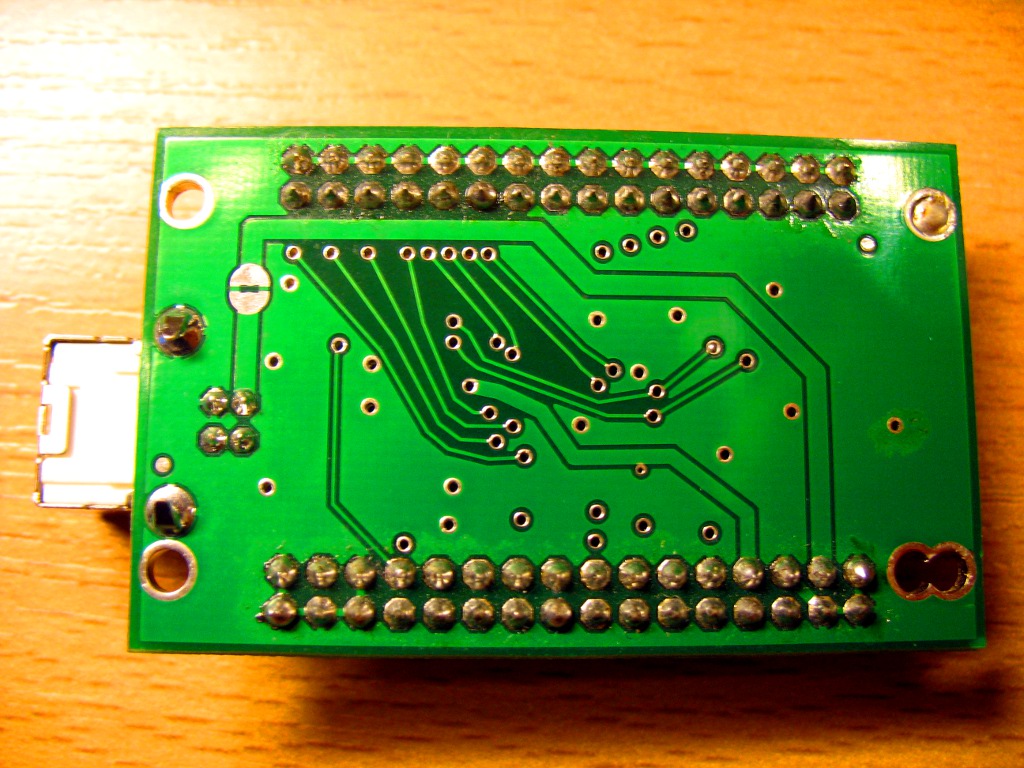

Braintechnology Usb Interface V2x Pcb Back

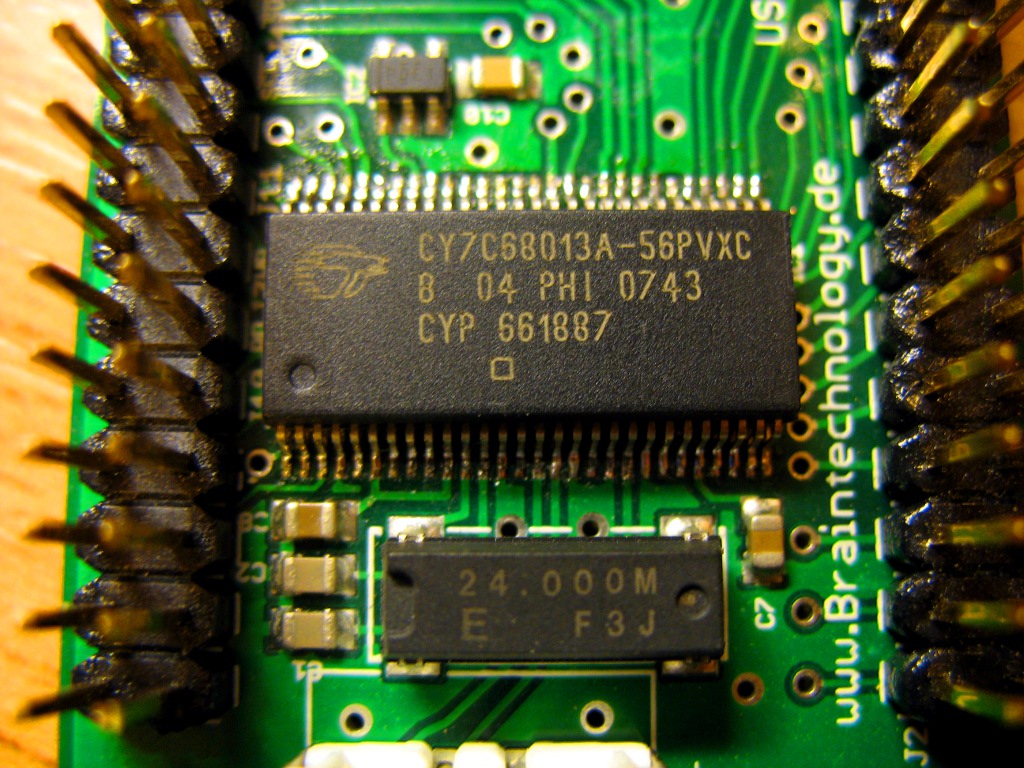

Braintechnology Usb Interface V2x Fx2

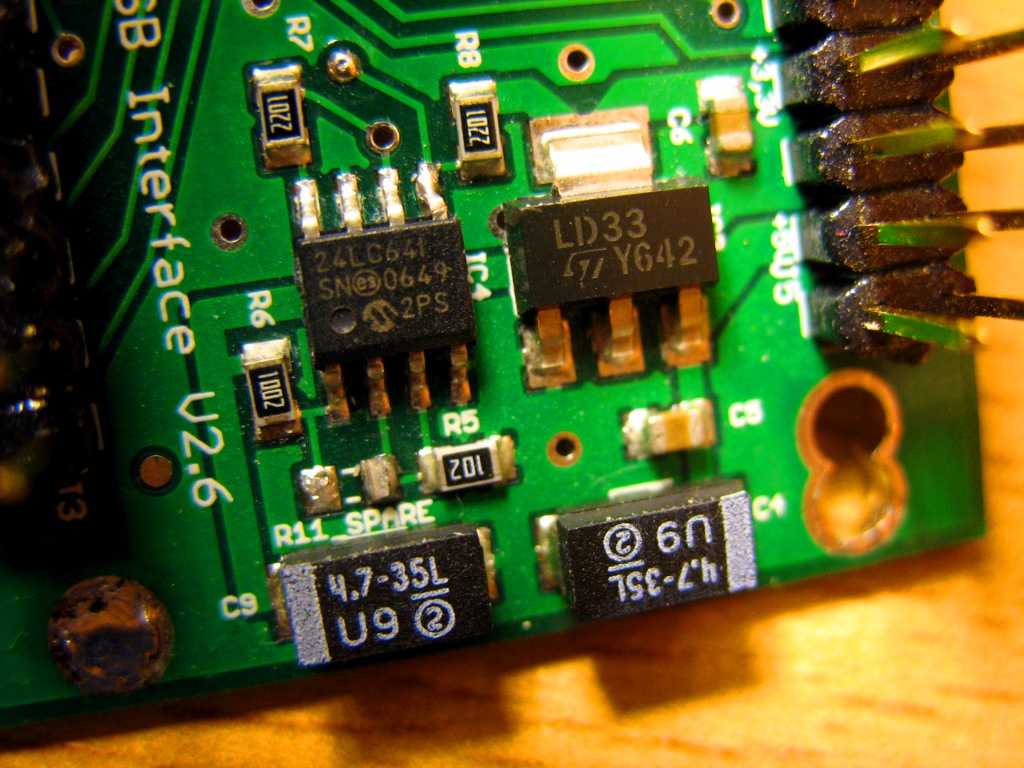

Braintechnology Usb Interface V2x Eeprom Ldo
Protocol¶
Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
